Description

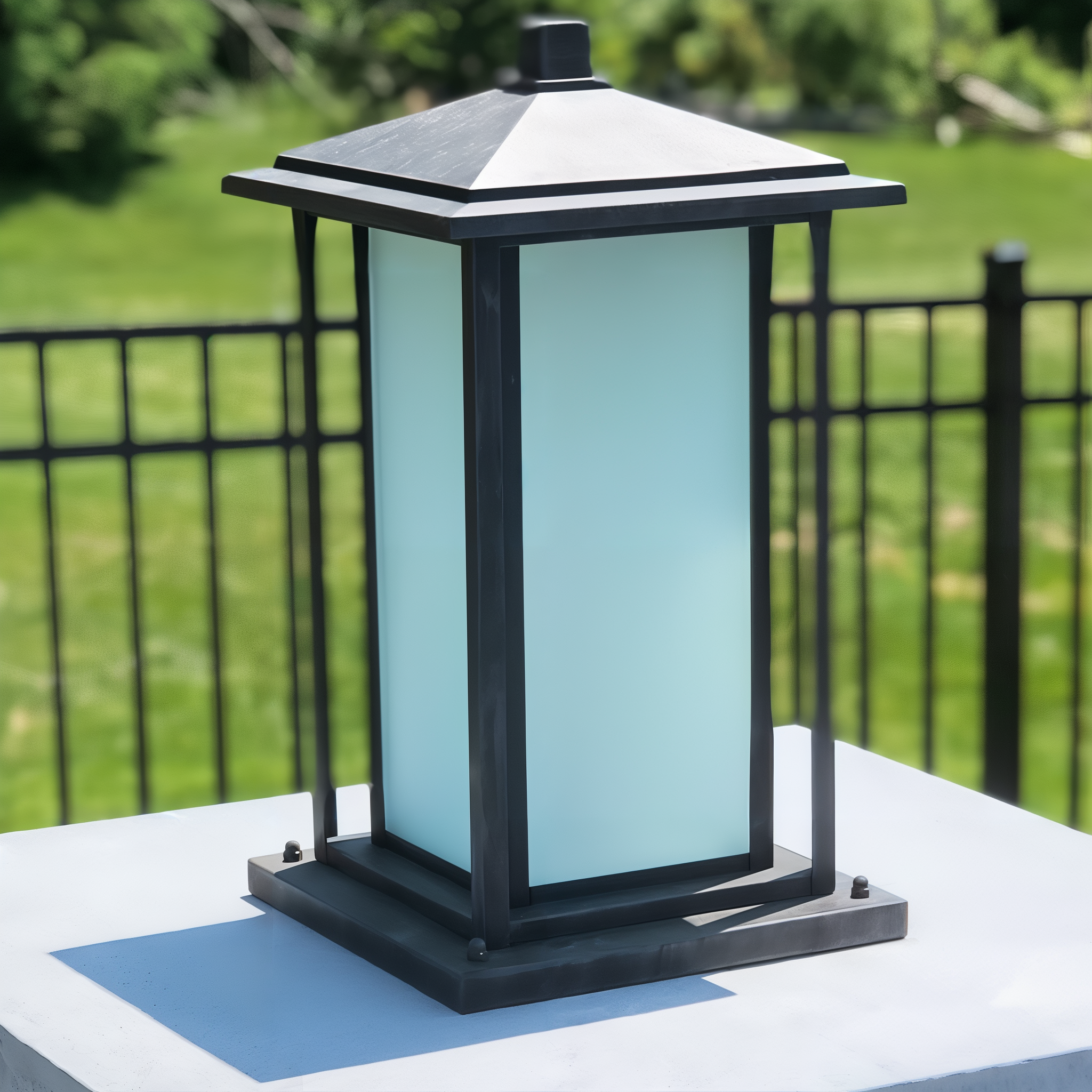

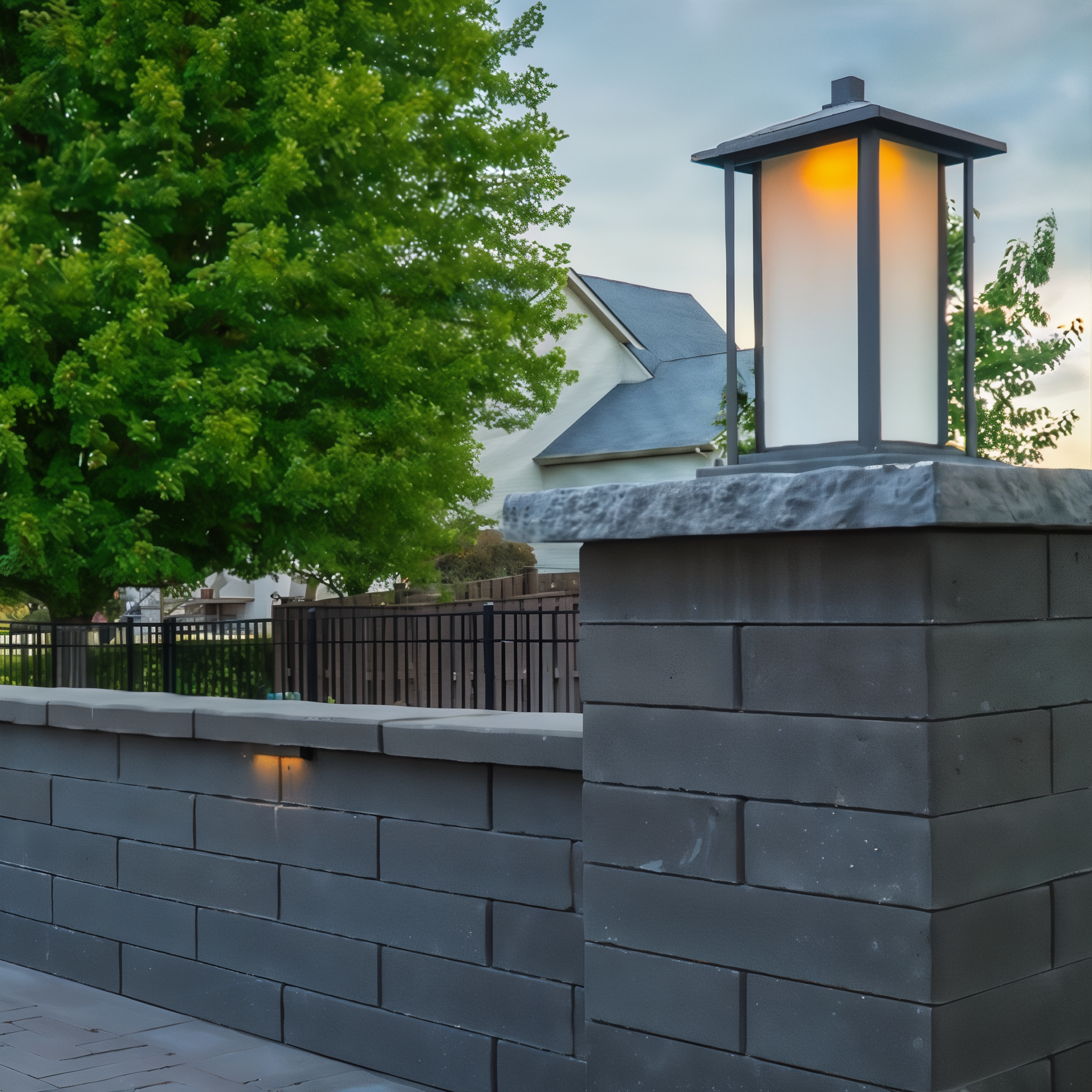

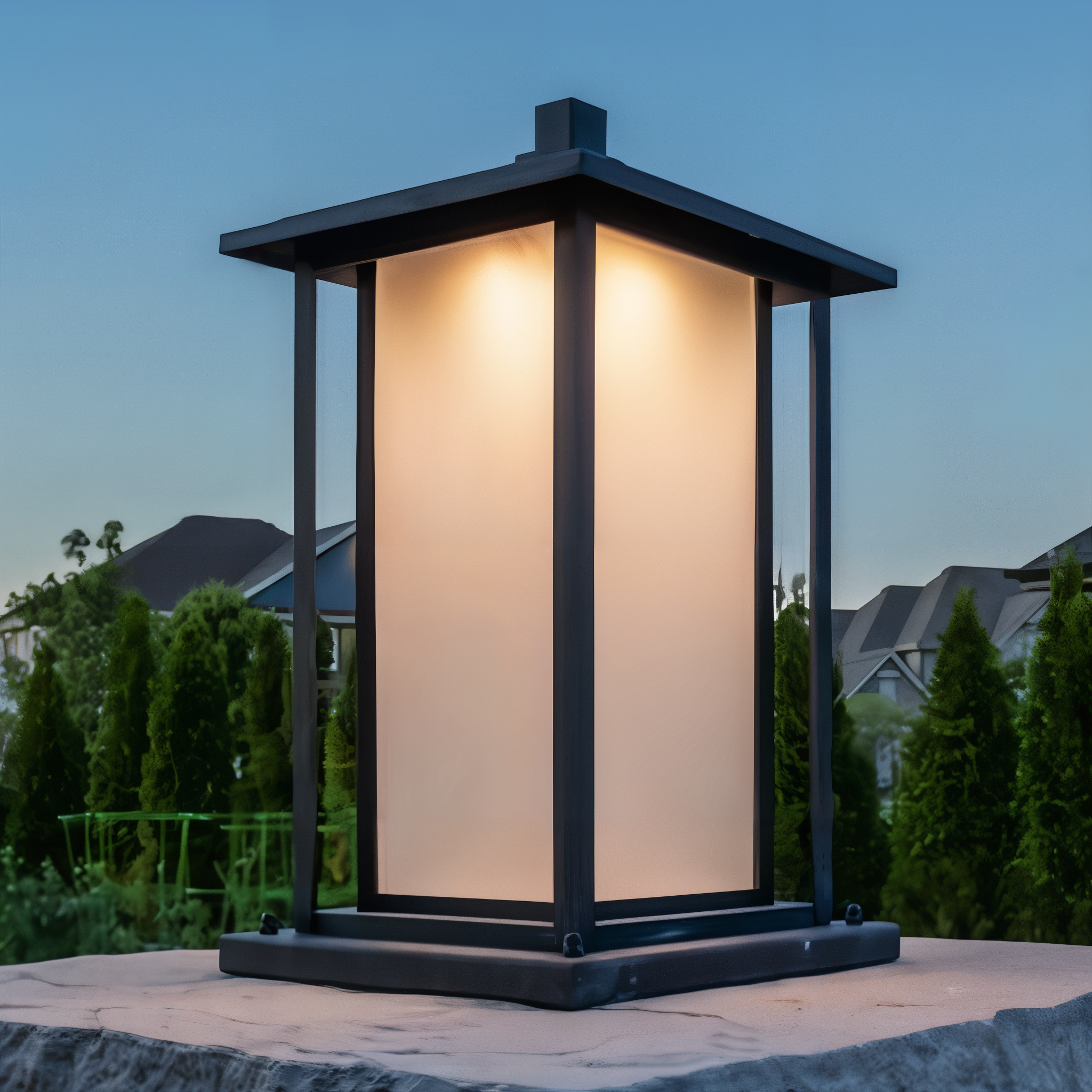

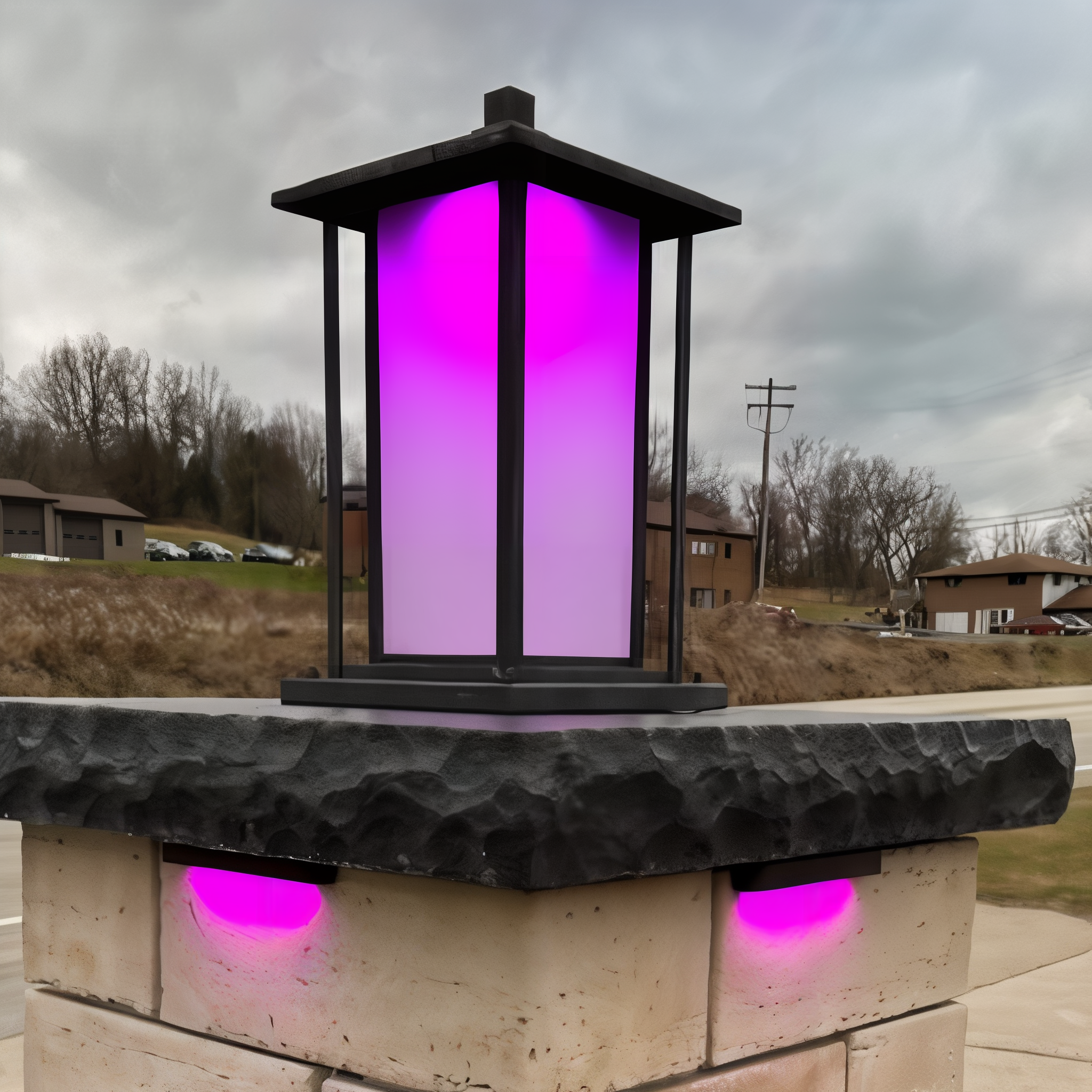

Crown your largest stone columns and gate piers with the Tru-Scapes Noble Pillar Light (TS-PL102) — the largest, brightest, and most fully featured fixture in the Tru-Scapes pillar lineup. Powder-coated aluminum in antique brushed bronze with a frosted heat-resistant glass encasement, the TS-PL102 ships with a Bluetooth-enabled RGBCW LED module out of the box: dial in any white from 2700K to 6500K, set RGB scenes, or zone multiple fixtures by group through the free Tru-Scapes app.
Model #: TS-PL102-BRZ · Available in: Bronze
Lighting Specifications
- Construction: Powder-coated aluminum housing with frosted heat-resistant glass encasement
- Finish: Antique Brushed Bronze
- Light Source: Replaceable Bluetooth RGBCW LED module (defaults to 2700K)
- Color Temperature: Tunable RGBCW — 2700K through 6500K white, plus full RGB color
- Wattage: 6W
- Lumens: 184L
- Beam Angle: 360°
- Power Factor: 0.778
- Voltage Range: 9V–15V AC/DC (12V low-voltage transformer sold separately)
- Lead Wire: 24″ 18AWG SPT-1W black waterproof
- Dimensions: 19-7/8″ H × 11″ W × 11″ D
- Mounting: Pillar / column / pier cap mount — masonry drill bit and anchor kit included
- Control: Free Tru-Scapes app (Apple App Store / Google Play); group fixtures into zones, save scenes, schedule color shifts
- Certifications: ETL Listed (Intertek); dust-tight and water-resistant
- Warranty: Lifetime on sockets · 5 years on aluminum and finish · 5 years (or 30,000 hours) on LED bulbs · 5 years on transformers (excl. timers/photocells)
What's in the Box
- Tru-Scapes Noble Pillar Light fixture (Bronze)
- Bluetooth RGBCW LED module
- Masonry drill bit
- Anchor kit
- (2) Silicone-filled wire connectors rated for direct burial and outdoor use
Installation
Use the included masonry drill bit and anchor kit to set the mounting plate flush to the top of a stone column or gate pier, then run the 24″ lead wire to a 12V low-voltage transformer using the included silicone-filled connectors. Pair with the Tru-Scapes app on iOS or Android to discover the fixture, set CCT/RGB, and group multiple Noble pillars into zones.
For full technical drawings and installation details, see the TS-PL102 Spec Sheet.
