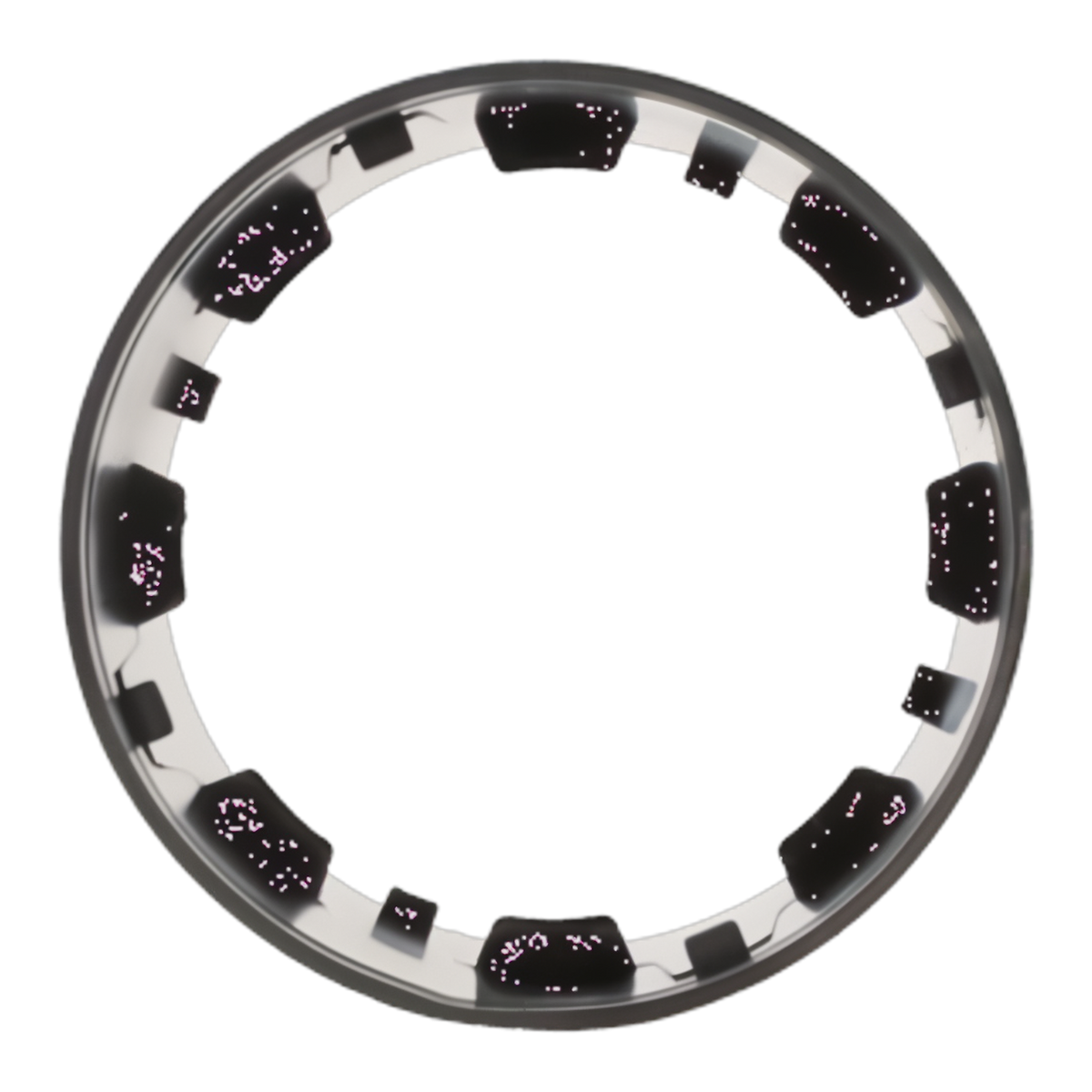

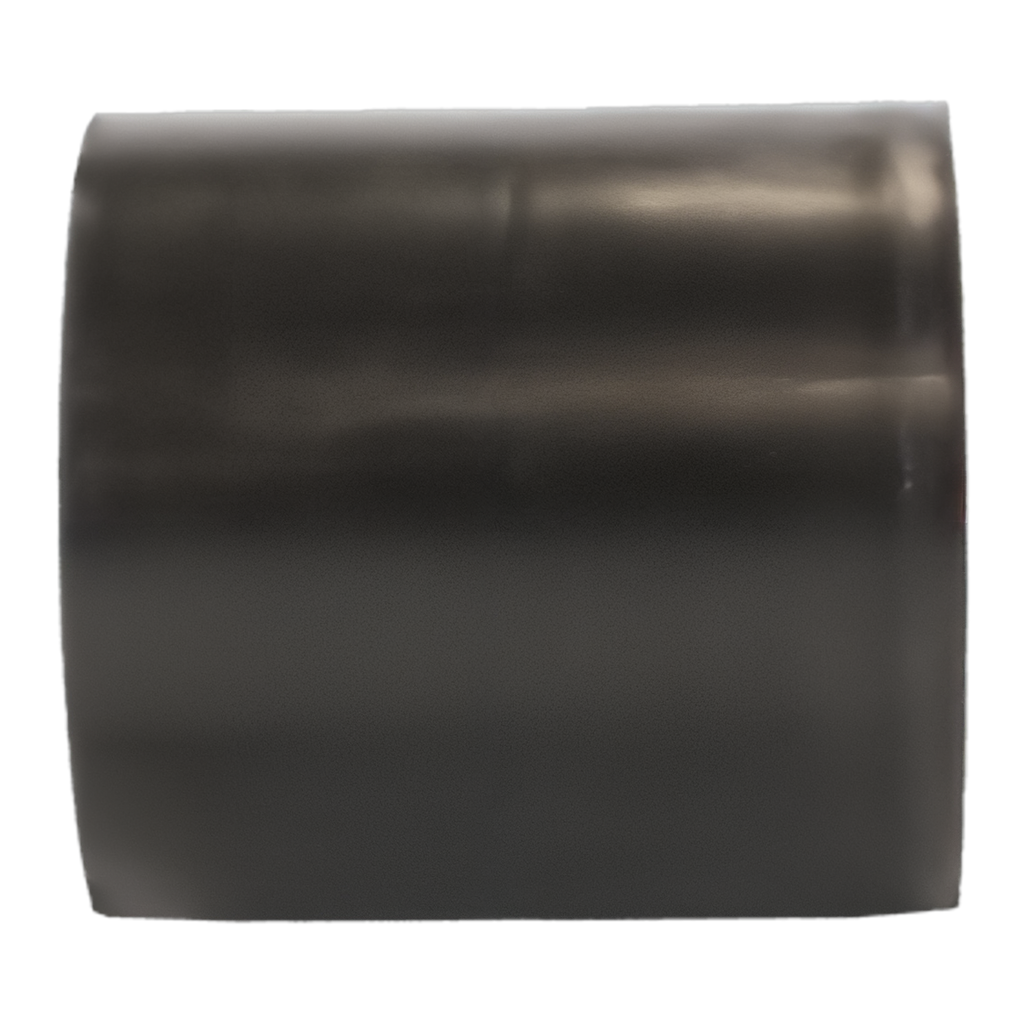

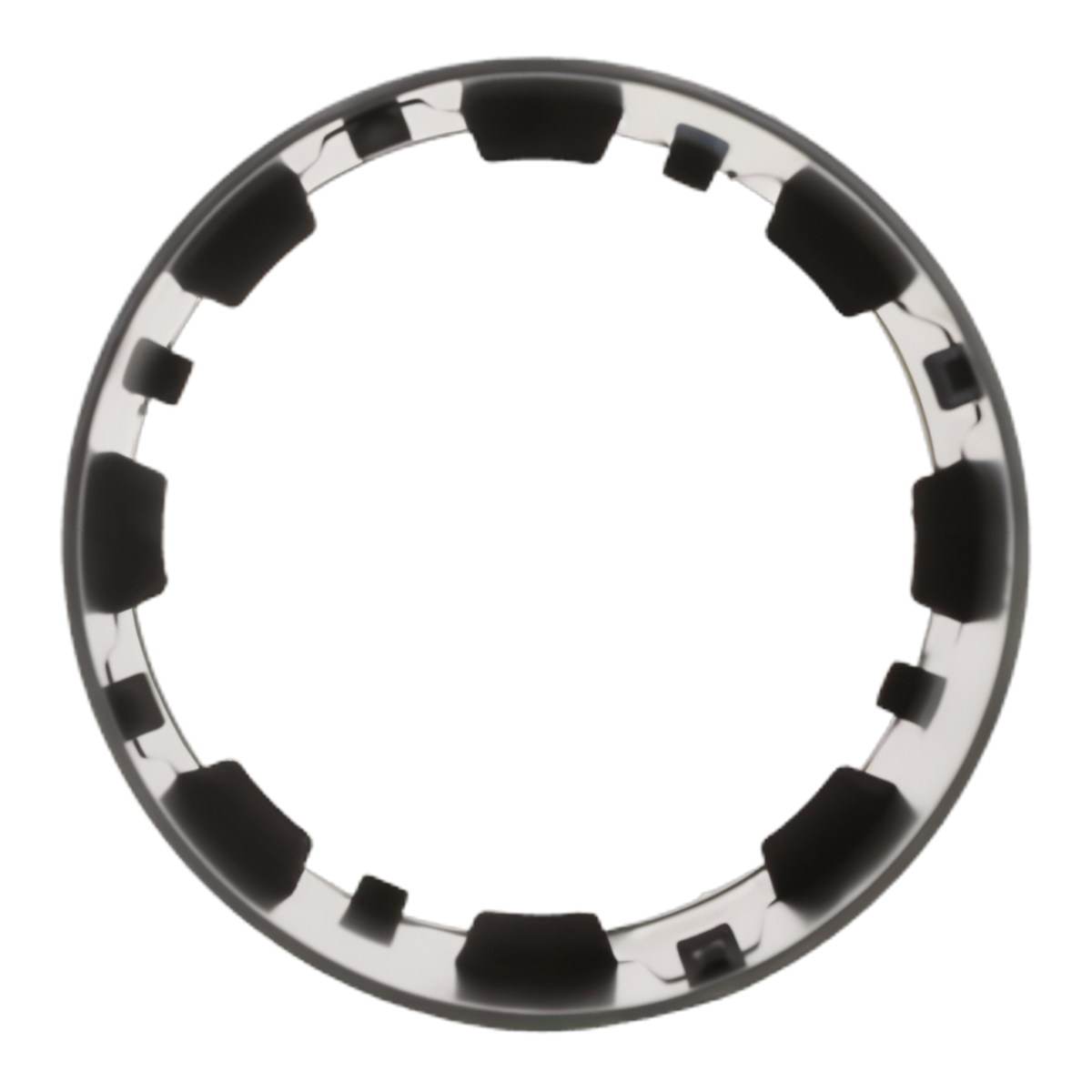

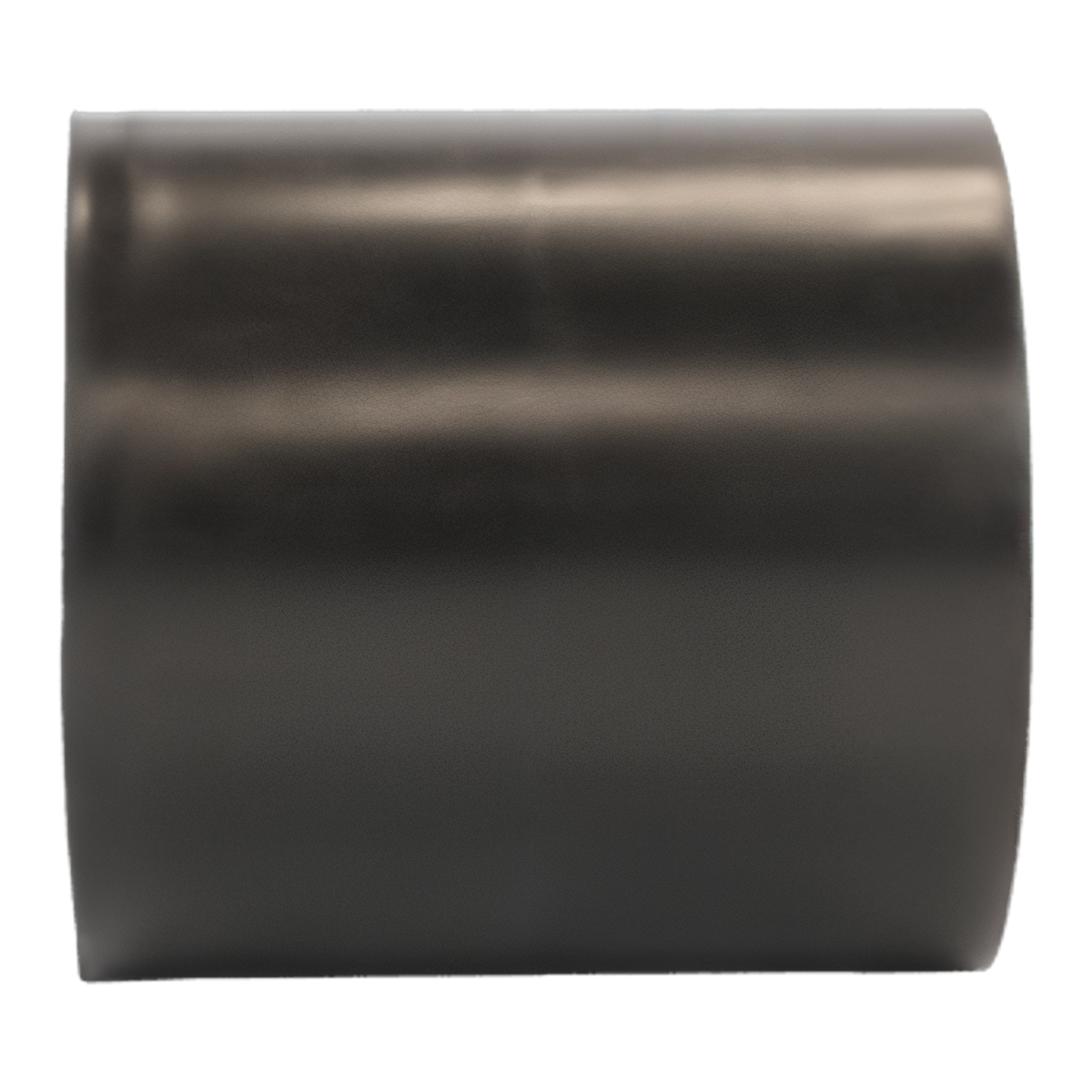

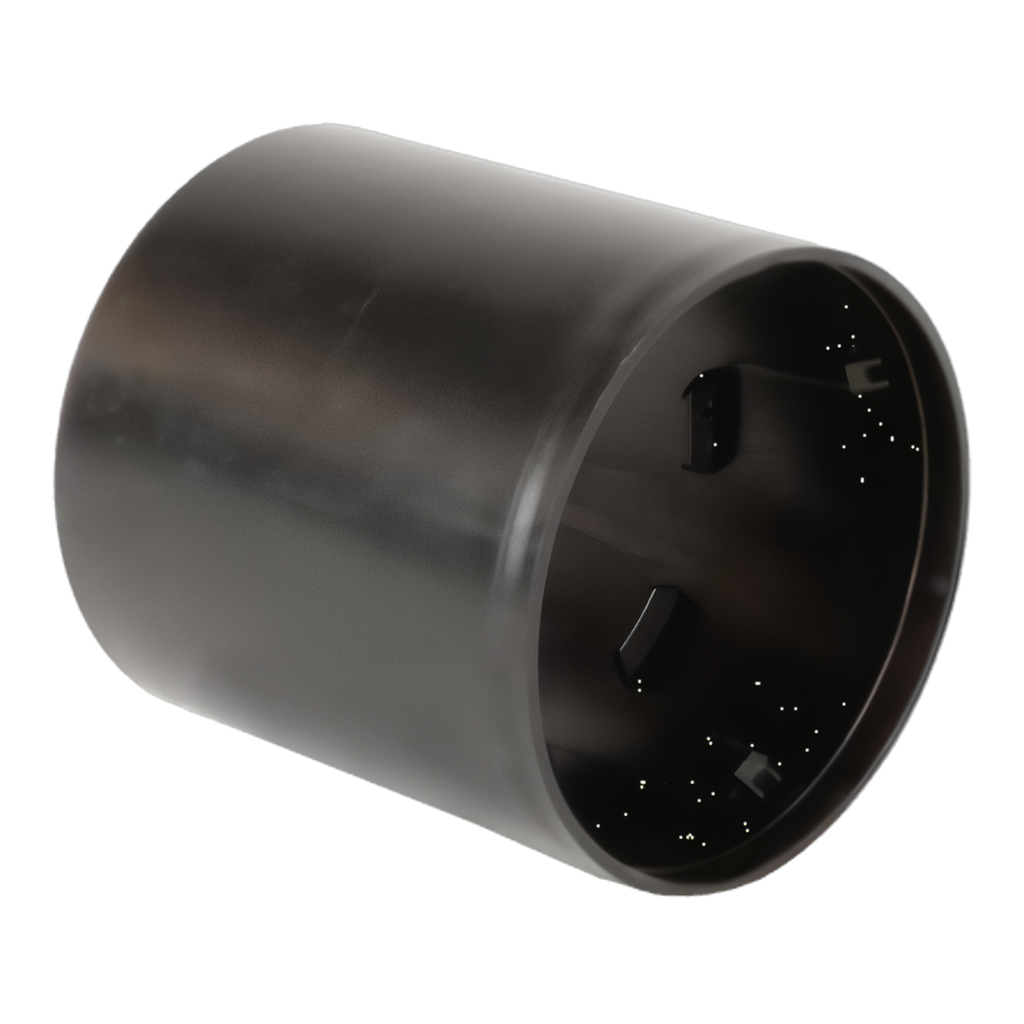

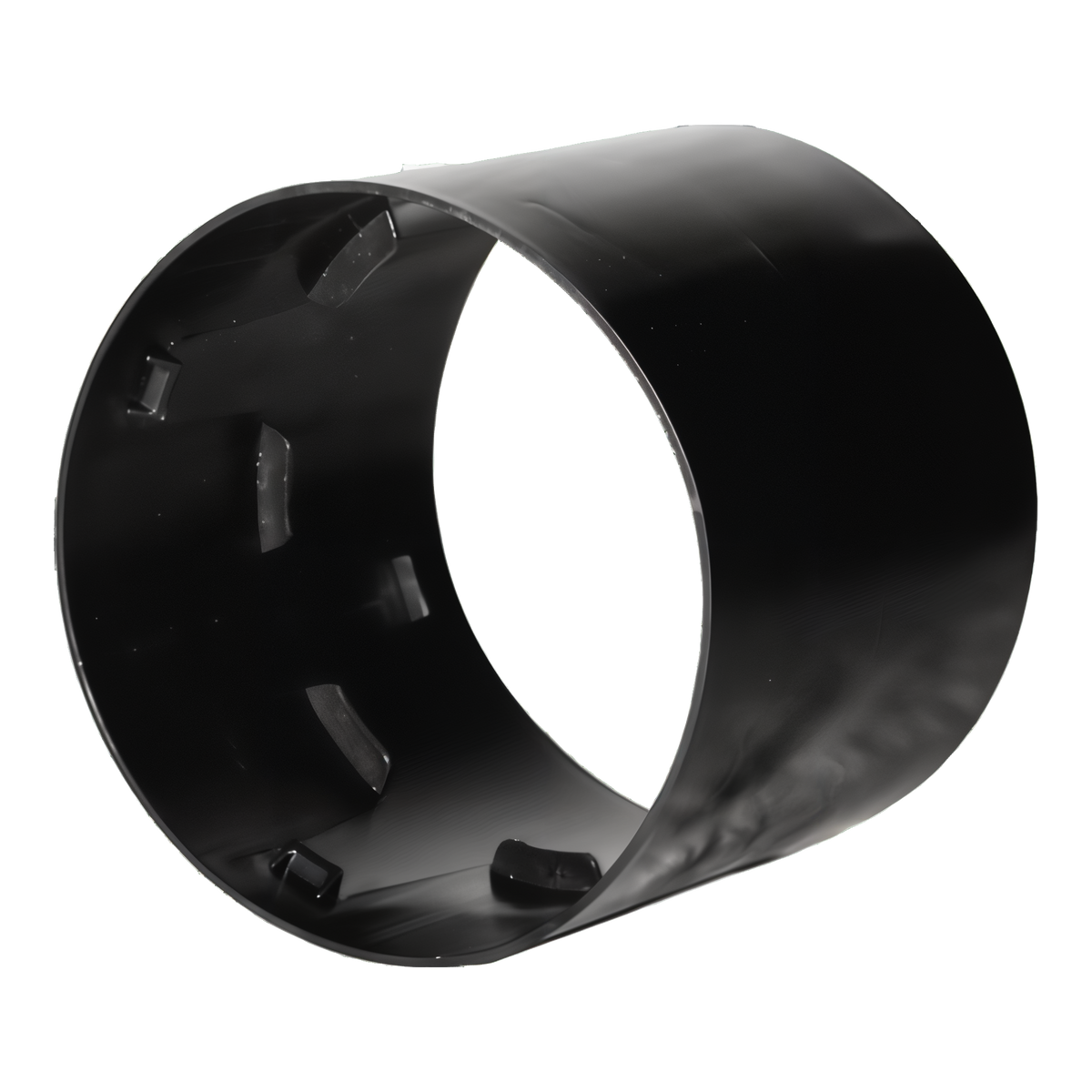

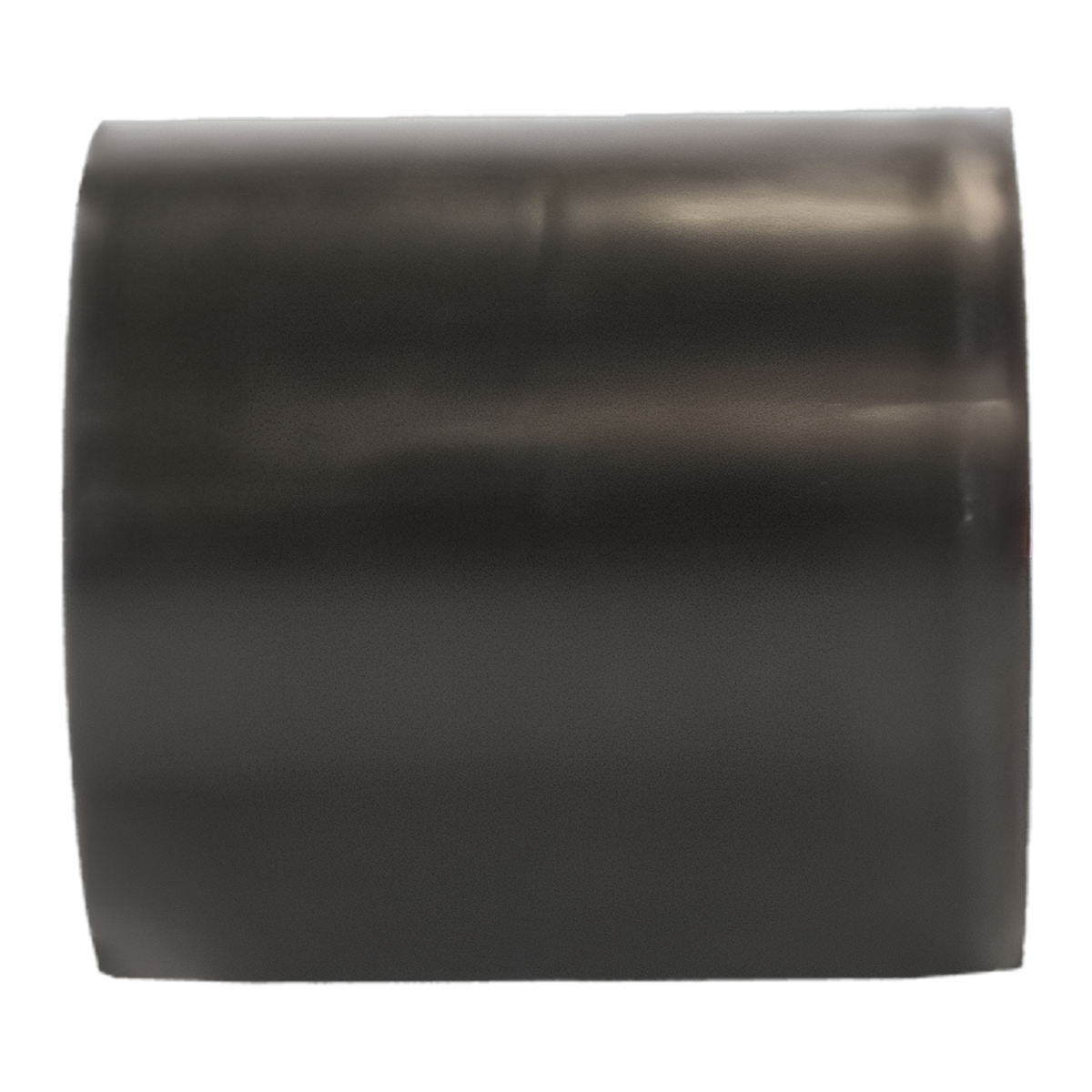

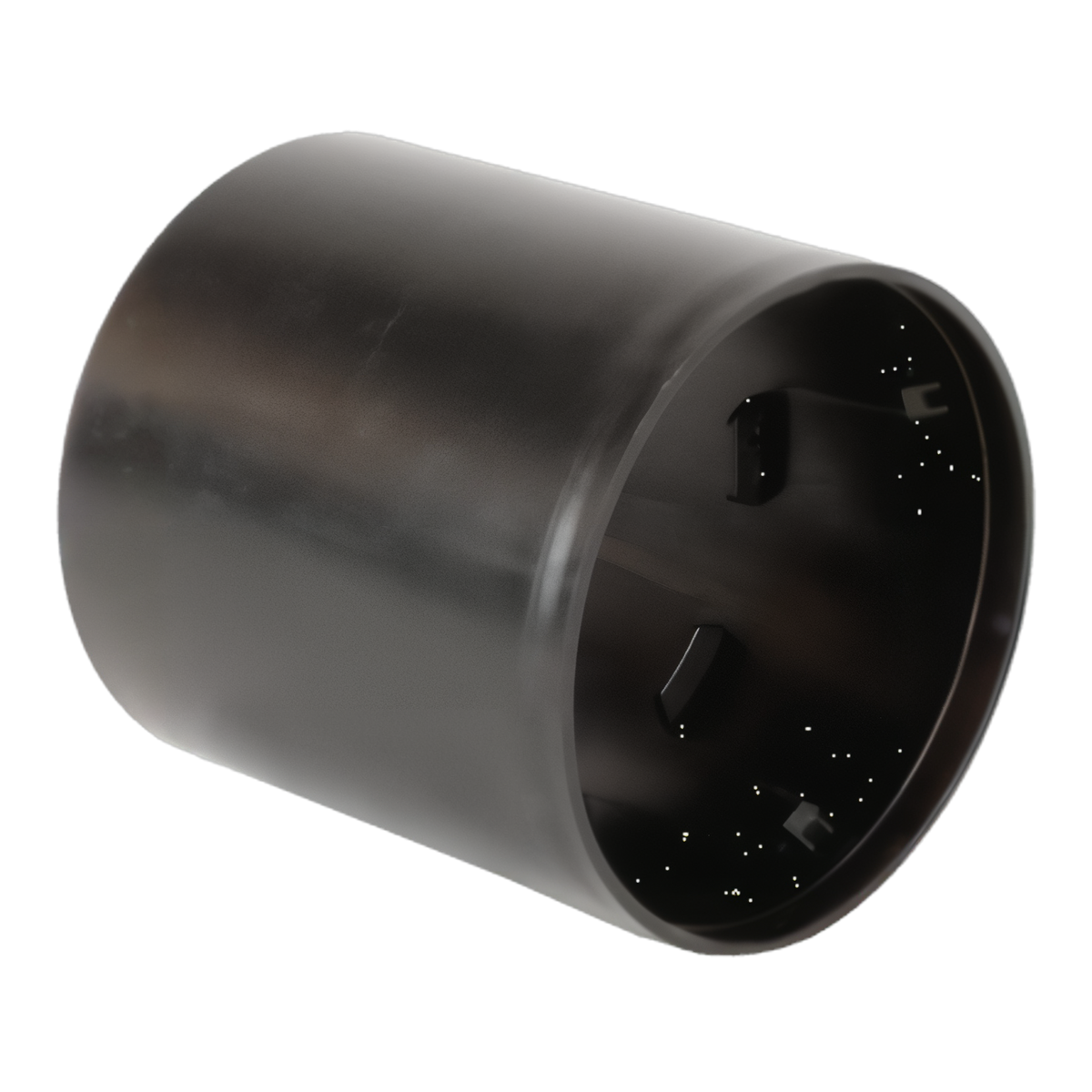

Join two lengths of 4 in. corrugated drain pipe in seconds with the Advanced Drainage 4 in. Single Wall External Snap Coupler. The short black HDPE sleeve, about 4.3 in. long, snaps over the ends of two 4 in. single wall pipes and locks into the corrugations to make a secure joint. There are no tools, no tape and no glue, so you can extend a downspout drain line, splice a damaged section or connect a new run to an existing one without stopping to fetch anything from the truck. Product code 0412AA, sized for 4 in. (100 mm) single wall pipe.
Key Features
-
Snap-on joint: The coupler snaps over both pipe ends and grips the corrugation, holding the two pieces in line under backfill.
-
No tools required: Push it on by hand; there is no solvent, tape, clamp or screw to install.
-
Matched material: Black HDPE like the pipe itself, so the joint will not rust, corrode or degrade underground.
-
Compact size: Roughly 4.3 in. long, the coupler adds almost nothing to trench length and is easy to keep a few of on hand.
-
About Advanced Drainage: Advanced Drainage Systems (ADS) manufactures corrugated HDPE drainage pipe and the single wall fittings that join it, from adapters and reducers to snap couplers.
How to Install It
Cut the pipe ends square between corrugations so both pieces seat fully inside the sleeve. Push one end of the coupler over the first pipe until it snaps, then bring the second pipe in and snap the other end on. Check that the run keeps its fall away from the house, set the pipe in the trench and backfill. Use the coupler wherever a 4 in. single wall line needs to grow: adding pipe past a new garden bed, replacing a crushed section or tying a downspout adapter into a longer run. Keep two or three in the shed, since the moment you need one is usually the moment the trench is already open.
Specifications
- Size: 4 in. (100 mm) nominal, approx. 4.3 in. long
- Fits: 4 in. single wall corrugated HDPE pipe, external snap fit
- Material: HDPE (high-density polyethylene), black
- Product code: 0412AA
- Manufacturer case pack: 24; sold per unit
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
ADS 0412AA is the 4 in. (100 mm) external snap coupler for single wall corrugated HDPE pipe. The black HDPE sleeve, approximately 4.3 in. long, snaps over the outside of two pipe ends and engages the corrugation to hold the joint in line under backfill. No solvent, tape, band or tool is required. It is the standard splice for 4 in. single wall runs from downspout adapters, yard drains and foundation perimeter lines to a daylight outlet, pop-up emitter or drywell. The same coupler family runs 3 in. through 10 in. (0312AA to 1012AA); 0412AA is the 4 in. size that matches the single wall pipe and downspout adapters Garoppo's stocks. Manufacturer case pack is 24; Garoppo's sells it per unit for service work, short runs and the odd repair where the trench is already open.
Key Features
- External snap fit: Sleeve grips the corrugation on both pipes; push on by hand until it seats, no crimping or clamping.
- Single wall only: Sized for 4 in. single wall corrugated pipe; use ADS dual wall couplers or split couplers for N-12 and other profiles.
- Material: HDPE, black, matching the pipe so the joint has the same soil-contact and freeze-thaw behavior as the run.
- Take-off: One coupler per joint; allow one extra per 100 ft. of run for field cuts and repairs, and one per downspout adapter tie-in where the adapter meets the first length of pipe.
- Documentation: ADS 4 in. to 24 in. External Snap Coupling sheet and HDPE Single Wall Fittings Manual on file.
Installation
Cut pipe ends square between corrugations. Snap the coupler onto the first pipe, then draw the second pipe into the sleeve until it snaps home. Maintain continuous fall through the joint so water does not sit in the coupling; a low spot at a splice is the usual source of a frozen or silted line. Bed and backfill so the corrugated pipe is supported along its length, and keep single wall pipe out of vehicular loading; transition to dual wall under drives with the appropriate ADS fitting. Where a line has to be opened for repair, cut out the damaged section, slide a coupler onto each end of the replacement piece and snap in. For downspout tie-ins, start with the ADS single wall downspout adapter and use this coupler for every added length of pipe downstream. Solid and perforated 4 in. single wall pipe take the same coupler, so one part covers both the collection run and the leach section of a drywell or French drain.
Specifications
- Size: 4 in. (100 mm) nominal; approx. 4.3 in. long.
- Fits: 4 in. single wall corrugated HDPE pipe, external snap.
- Material: HDPE, black.
- Product code: 0412AA.
- Case pack: 24; sold per unit.
