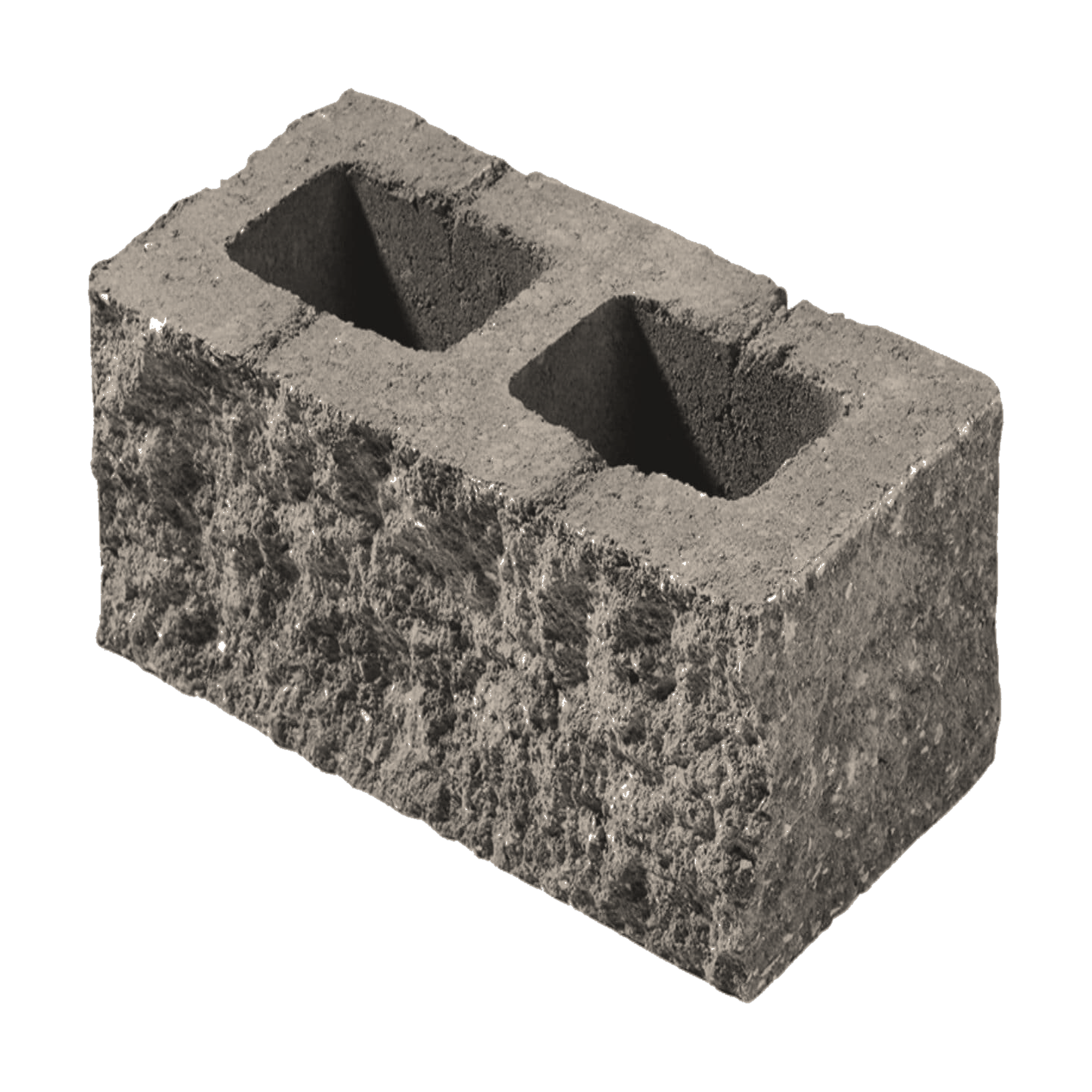

Turn corners, finish wall ends, and build columns on a medium-height retaining wall with the Belgard Terrace Wall Corner. This split-stone concrete corner block carries the same natural, hand-laid look across two finished faces, so outside corners and column wraps match the rest of your wall. Each unit is 6" × 16" × 8" and is sold by the square foot of wall face. Belgard (Oldcastle APG) molds it from concrete with natural aggregates and through-body color, and backs it with a lifetime transferable limited warranty.
Color Choices
-
Dakota Blend — mixed brown-grey with natural variation
-
Harvest Blend — warm earth-tone brown
-
Pewter Blend — neutral warm grey
Why Choose the Terrace Wall Corner
-
Two finished split-stone faces — wrap outside corners and columns cleanly
-
Matches the Terrace Wall system — same texture and color as the straight 6x16x12 wall block
-
Through-body color — runs through the unit, so chips and saw cuts stay color-true
-
Hollow two-core design — core-fill with 3/4" clean stone for a stable, free-draining retaining wall
-
Gravity walls up to 30" — build taller with engineered geogrid reinforcement
Specifications
-
Material: segmental concrete with natural aggregates
-
Nominal size: 6" × 16" × 8"
-
Sold by: the square foot of wall face
-
Weight: about 45 lb per corner (~67 lb per square foot)
-
Face: split-stone, two finished faces
-
Color: integrated, through-body
-
Max gravity height: 30" (taller with geogrid)
-
Min outside radius: 35.75"
-
Manufacturer: Belgard (Oldcastle APG)
-
Warranty: lifetime transferable limited
How Much Do You Need?
Each corner unit covers about 0.67 square foot of wall face (a 6"-high × 16"-long face), so roughly 1.5 pieces make one square foot. Measure the height and length of your corner runs in feet, multiply for square footage, and add about 5% for cuts. (Coverage based on nominal face dimensions — we’ll confirm at pickup.)
Where It Works

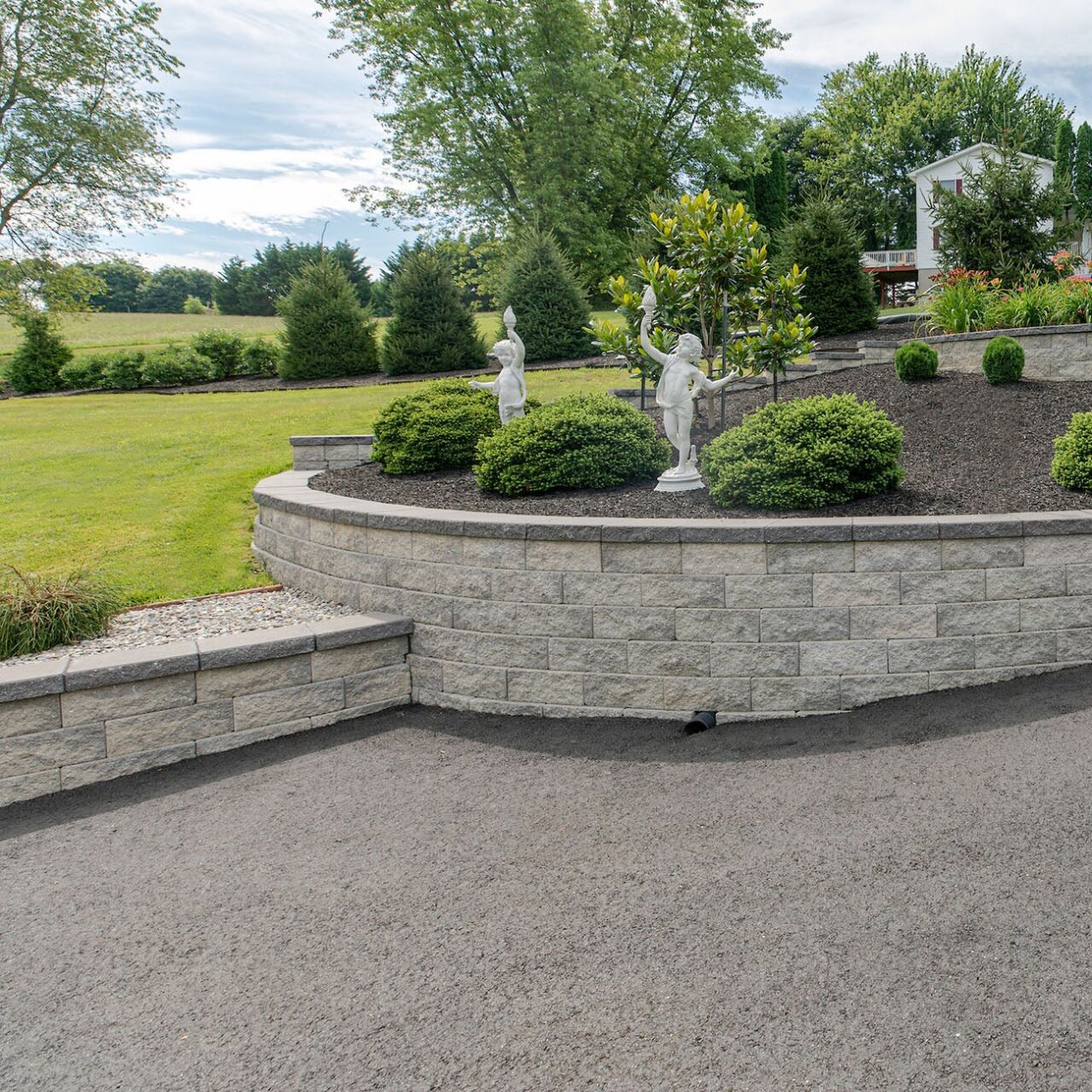

- Outside corners and finished ends on garden walls and retaining walls
- Freestanding or wall-mounted columns and pillars

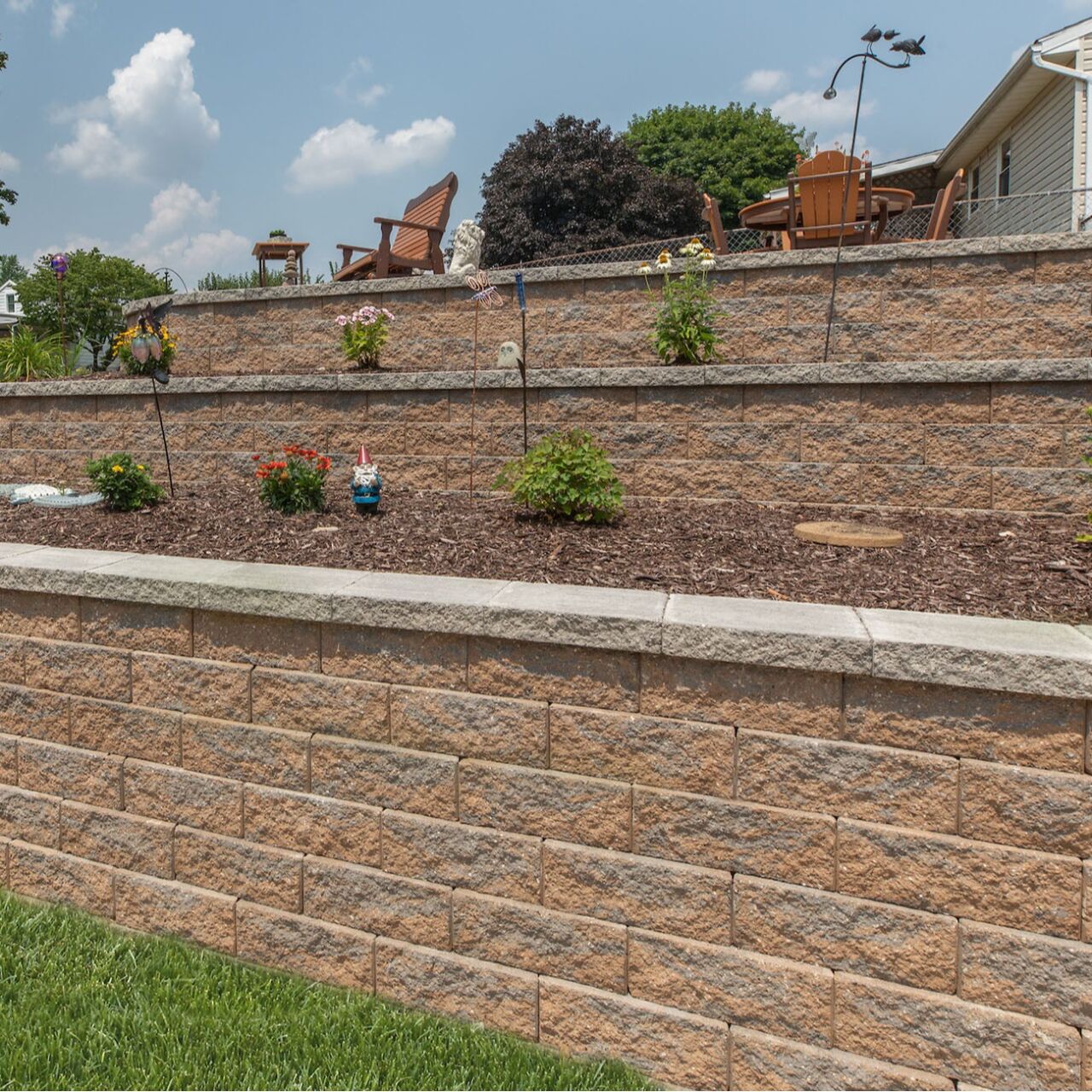

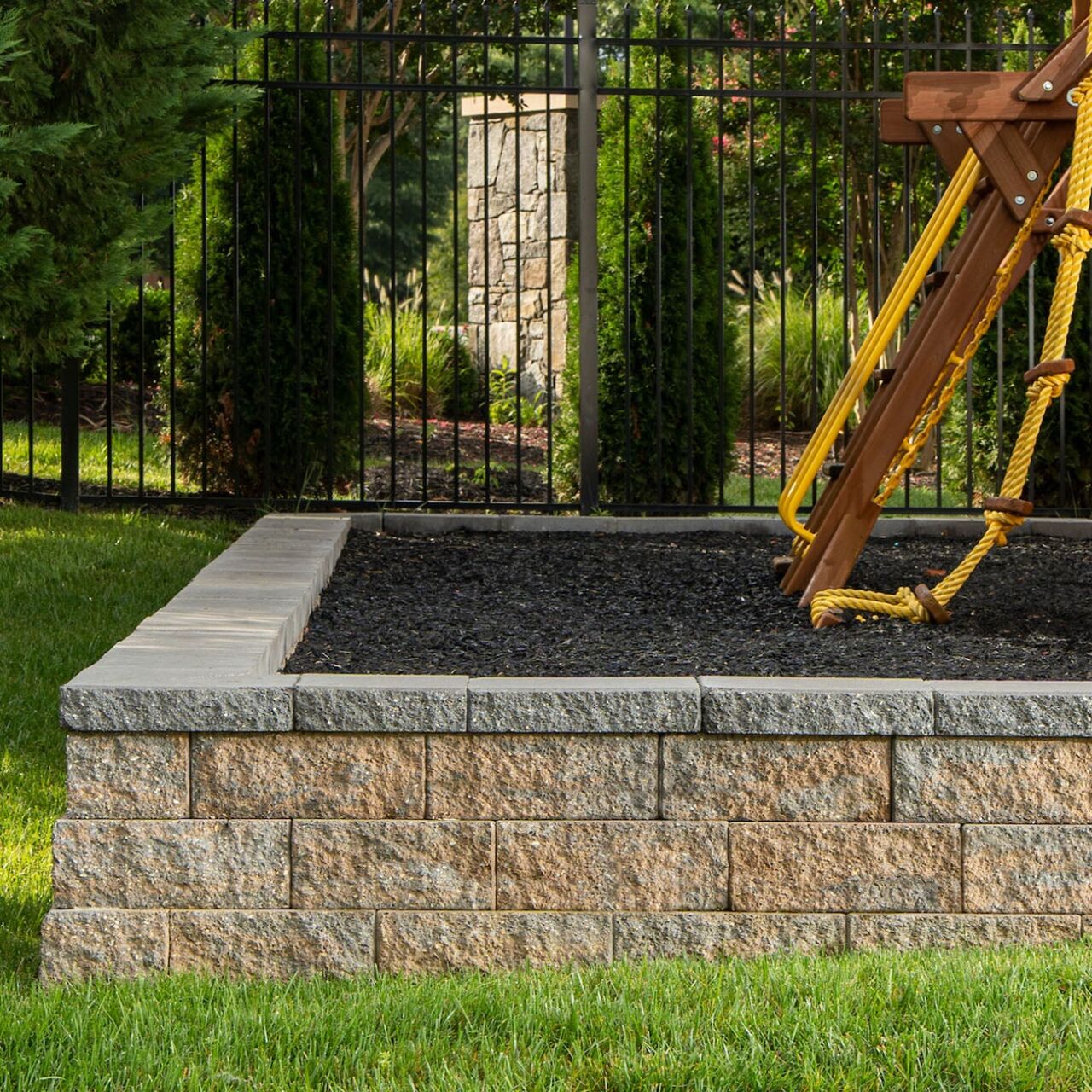

- Raised planting beds, terraced gardens, and tree rings

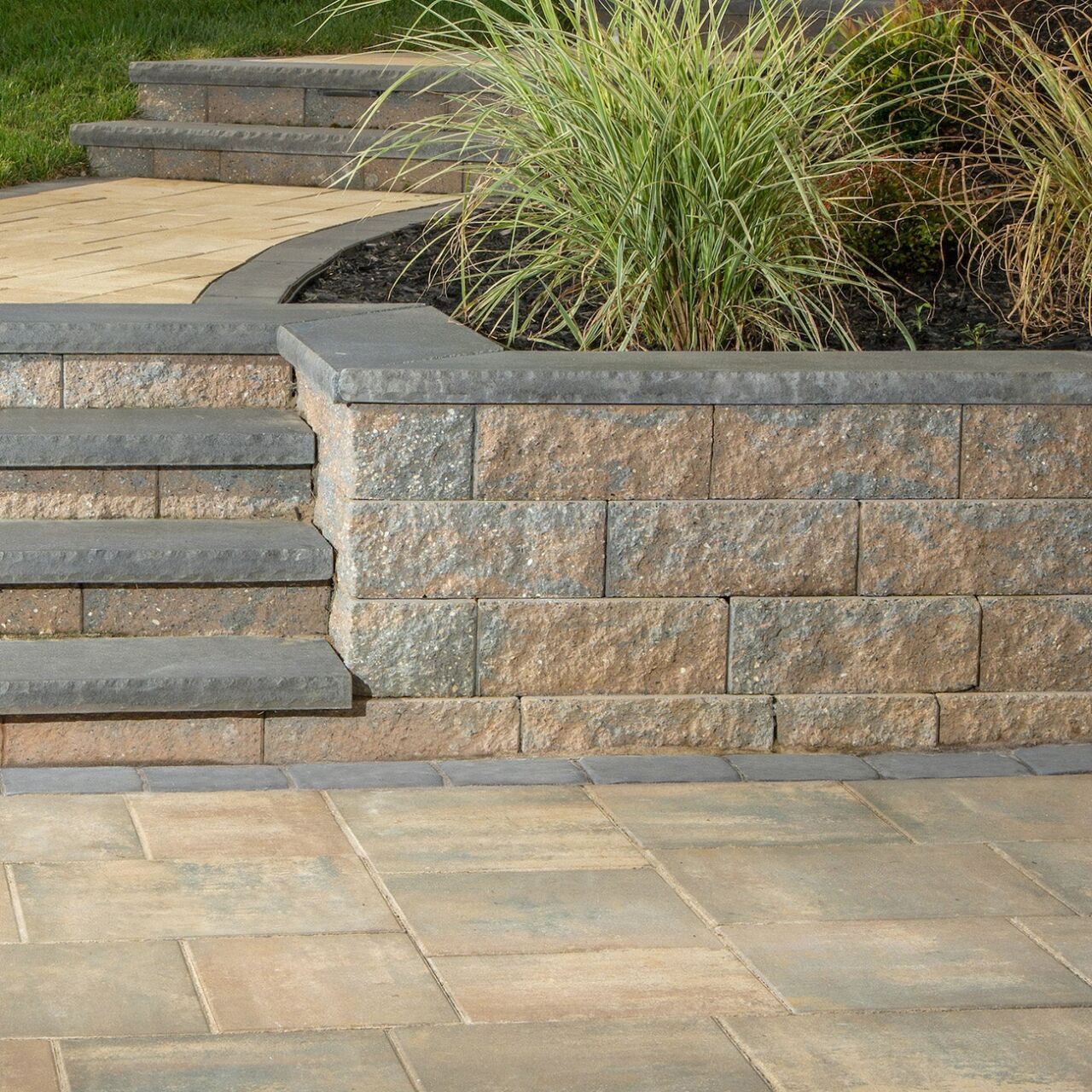

- Wall steps and seat walls that need a clean corner return
Unlike poured concrete that needs forms and a long cure, the Terrace Wall Corner dry-stacks by hand and core-fills with clean stone for a solid, free-draining segmental retaining wall you can build over a weekend.
How to Install Terrace Wall Corners
- Excavate and compact a level, well-drained base trench, then set a leveling pad of crushed stone.
- Lay the first course dead level, alternating the corner unit’s finished faces to wrap each outside corner.
- Core-fill the hollow cores and backfill behind the wall with 3/4" clean stone for drainage.
- Stack and offset each course; add engineered geogrid if the wall exceeds 30" or carries a surcharge.
- Finish with coordinating Terrace Wall caps (sold separately).
Sold by the square foot at Garoppo’s — stop in for current pricing and pickup, or ask about local delivery within our service area.
Wrap outside corners, columns, and wall ends in one trip with the Belgard Terrace Wall Corner, a split-stone segmental retaining wall block built for production crews. Each 6 x 16 x 8-inch unit has two finished faces, dry-stacks by hand, and is sold by the square foot of wall face for clean take-offs. It is the same EP Henry / Belgard (Oldcastle APG) Terrace Wall system you already spec, with through-body color and a lifetime transferable limited warranty.
Color Options
- Dakota Blend: mixed brown-grey with natural variation.
- Harvest Blend: warm earth-tone brown.
- Pewter Blend: neutral warm grey. All three are integral, through-body blends that match the straight Terrace Wall block and existing installs.
Why Spec the Terrace Wall Corner
- Two finished split-stone faces: turn outside corners and wrap columns without cutting or mitering field block.
- System match: identical texture and color to the 6x16x12 straight unit for a continuous retaining wall.
- Through-body color: saw cuts and field trims stay color-true on site instead of flashing grey.
- Two-core hollow design: core-fill with 3/4-inch clean stone for a stable, free-draining gravity wall.
- Engineered height: gravity walls to 30 inches, taller with geogrid; minimum outside radius 35.75 inches.
Specifications
- Material: segmental concrete with natural aggregates.
- Nominal size: 6 x 16 x 8 in.
- Sold by: the square foot of wall face (about 1.5 pieces per sq ft).
- Weight: about 45 lb per piece, roughly 67 lb per square foot.
- Color: integrated, through-body.
- Max gravity height: 30 in. (taller with engineered geogrid).
- Manufacturer: Belgard / EP Henry (Oldcastle APG).
- Warranty: lifetime transferable limited.
Coverage and Take-Offs
Each corner presents a 6-inch-high by 16-inch-long face, so about 1.5 pieces cover one square foot of wall face. Multiply corner height by run length for square footage, add roughly 5% for cuts, and order corners separately from straight block to keep your take-off and pallet counts clean.
Where to Spec It
- Retaining and garden walls: outside corners, finished ends, and returns on medium-height walls.
- Columns and pillars: freestanding or wall-integrated, built from stacked corner units.
- Terraces and raised beds: crisp corners on terraced gardens, tree rings, and planters.
- Steps and seat walls: clean corner returns where walls change direction.
Unlike poured curbing or formed concrete that needs forms, rebar, and a cure, the Terrace Wall Corner dry-stacks and core-fills for a solid, free-draining segmental retaining wall installed in a single visit.
Installation
- Excavate and compact a level, well-drained base, then set a crushed-stone leveling pad.
- Lay the first course dead level, alternating the corner's finished faces to wrap each outside corner.
- Core-fill the cores and backfill with 3/4-inch clean stone for drainage.
- Stack and offset courses; add engineered geogrid above 30 inches or under surcharge.
- Cap with coordinating Terrace Wall caps to finish.
Sold by the square foot at Garoppo's for accurate orders and minimal waste, with local pickup and delivery within our service area. The lifetime transferable warranty is a spec point that reassures homeowners and helps close the sale on retaining-wall projects.
