Description
- Weight: 0.5 lb
- Size: 5/8 in

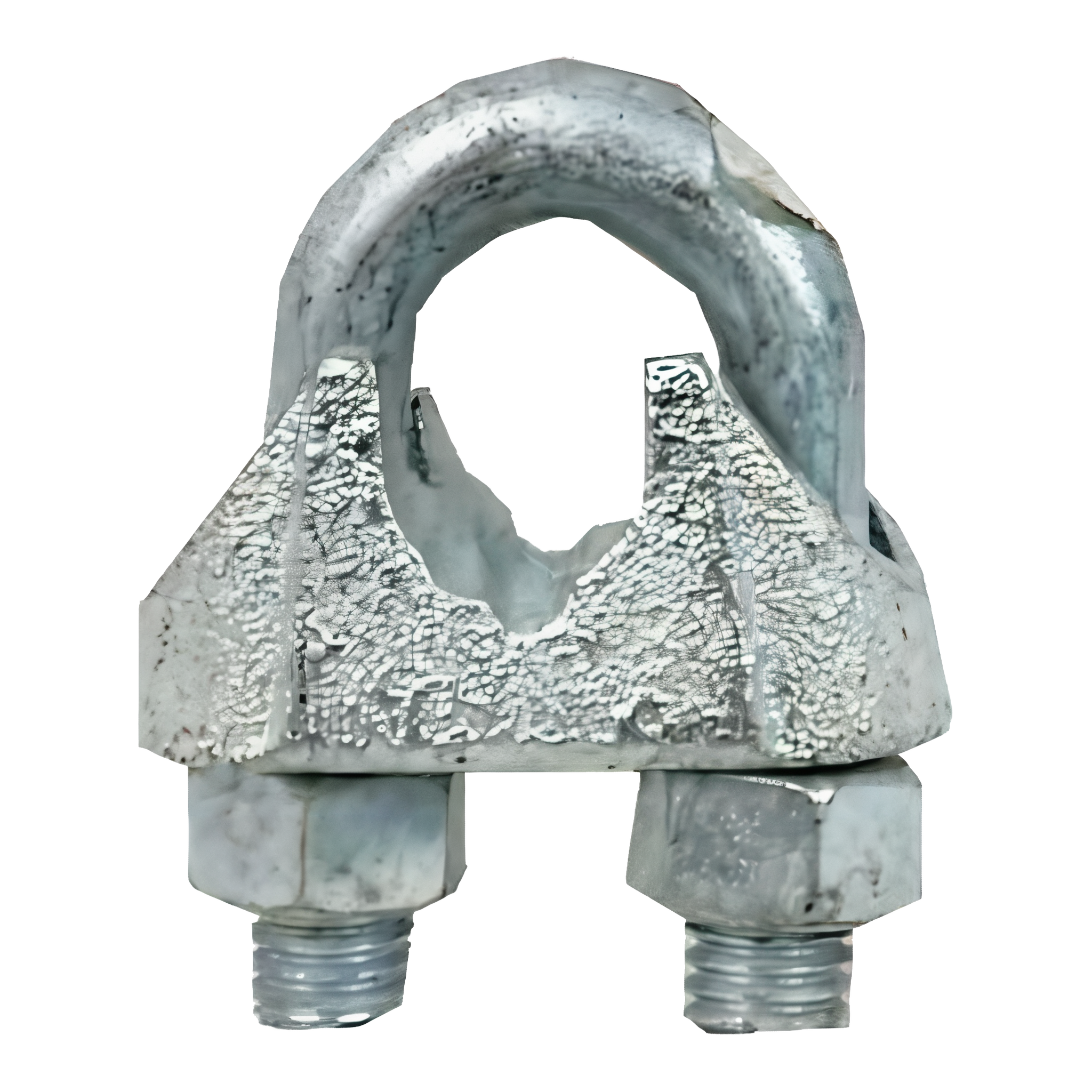

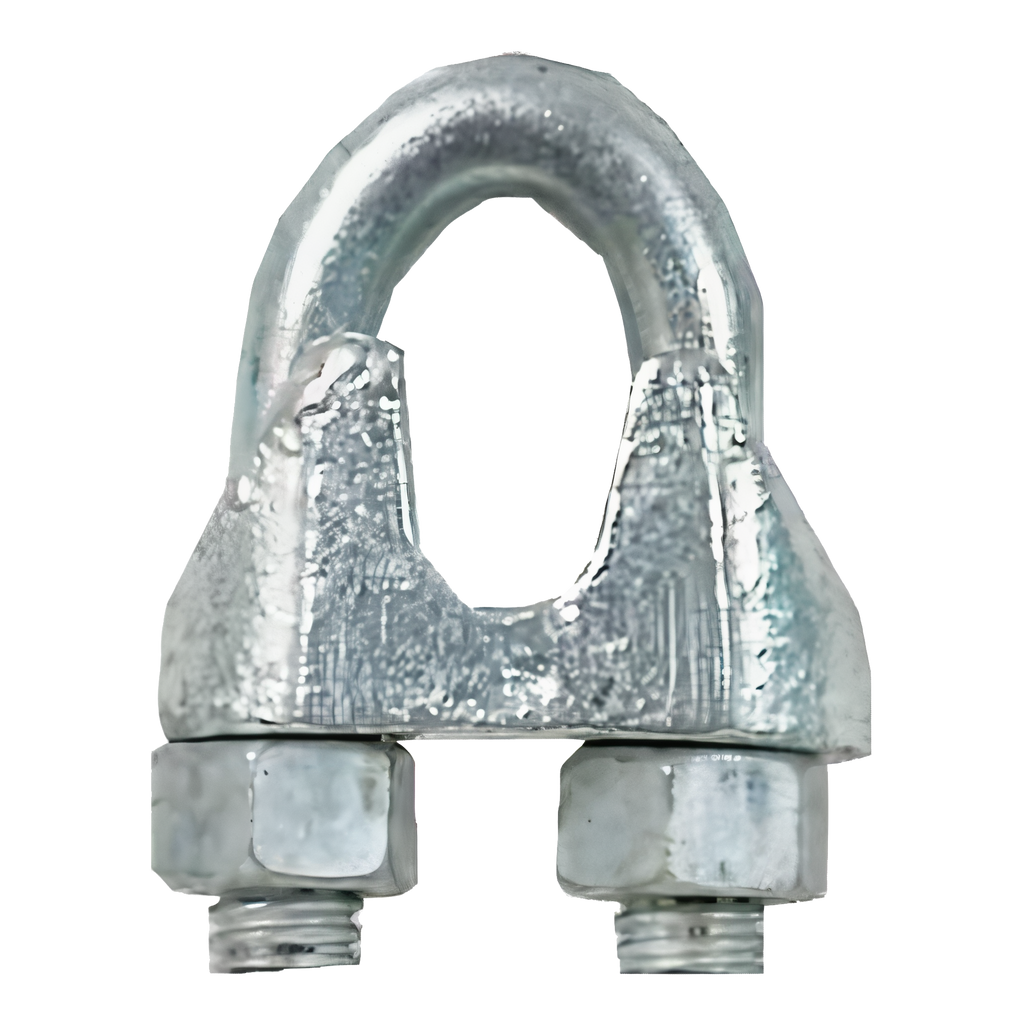

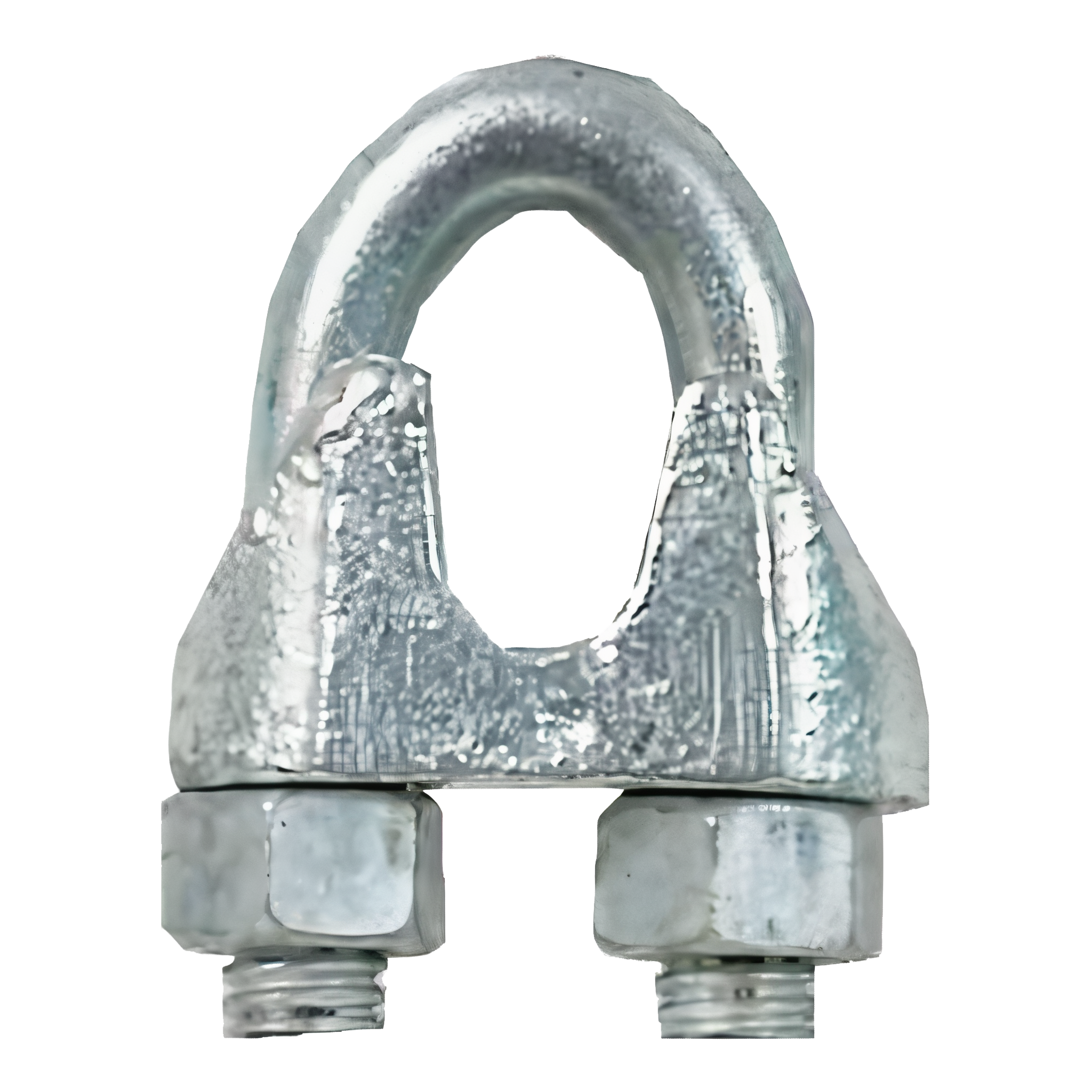

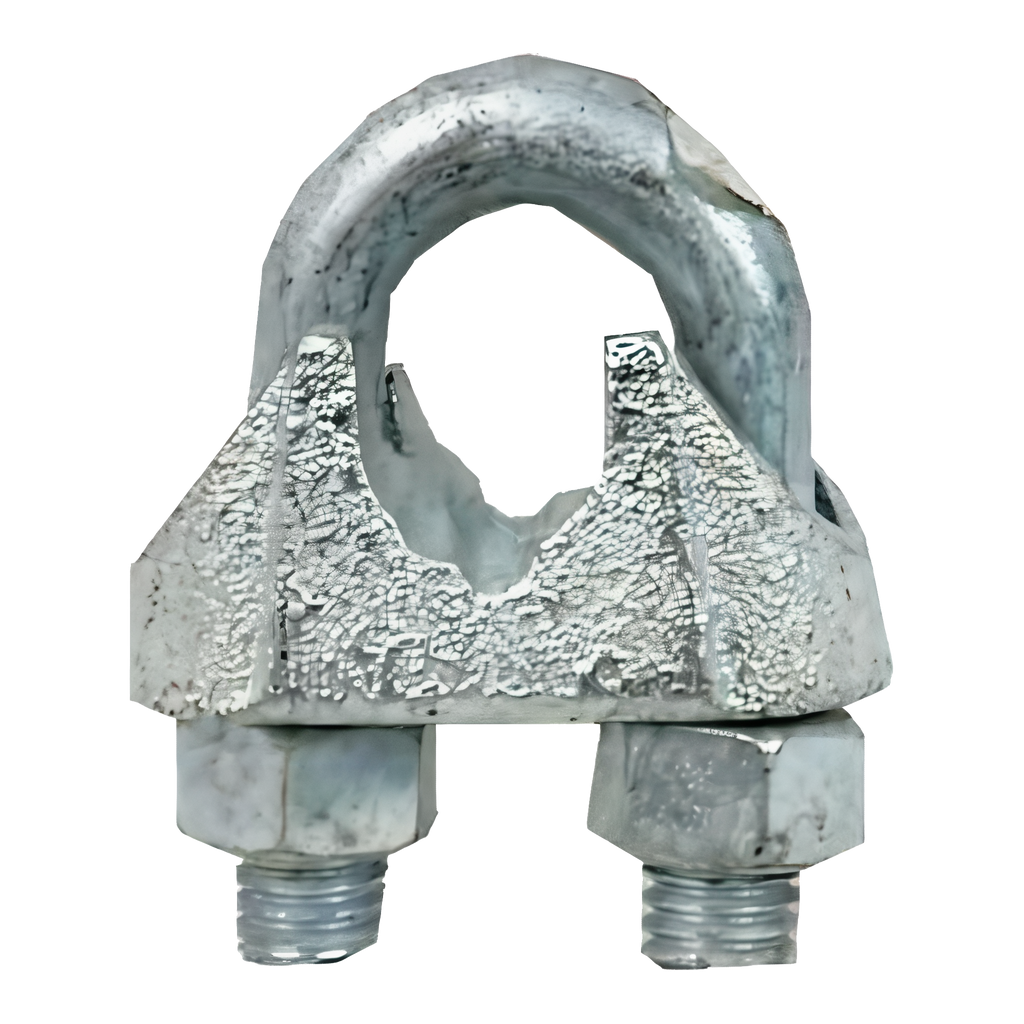

Secure cable terminations that hold up on the job with this Campbell wire rope clip. Build dependable eye splices and tie-backs using malleable iron hardware with an electrogalvanized finish that resists rust. Match it to 5/8 in wire rope for a stable grip, and stock extras—at about 0.5 lb each, it rides light in your kit.
Key Features
- Malleable iron body: Handle daily site use without fuss.
- Electrogalvanized finish: Reduce corrosion in outdoor conditions.
- 5/8 in fit: Pair with 5/8 in wire rope for consistent clamping.
- Compact, 0.5 lb size: Carry multiples without adding bulk.
- Simple U-bolt design: Install quickly with standard hand tools.
Applications
Use this clip to terminate guy wires, tension fencing runs, set temporary handrails, and secure signage or general tie-backs around the site. Rely on it for non-critical connections where fast setup and reliable hold matter day to day.
Specifications
- Material: Malleable iron
- Finish: Electrogalvanized
- Size: Fits 5/8 in wire rope
- Connection: U-bolt and saddle clip
- Weight: Approx. 0.5 lb each
Installation Tips
- Orient correctly: Place the saddle on the live end; position the U-bolt on the dead end.
- Match size: Use the correct clip size for your rope diameter.
- Tighten evenly: Torque nuts evenly, load the assembly, then recheck and retighten.
- Safety note: Not for overhead lifting, life-safety, or fall protection.
