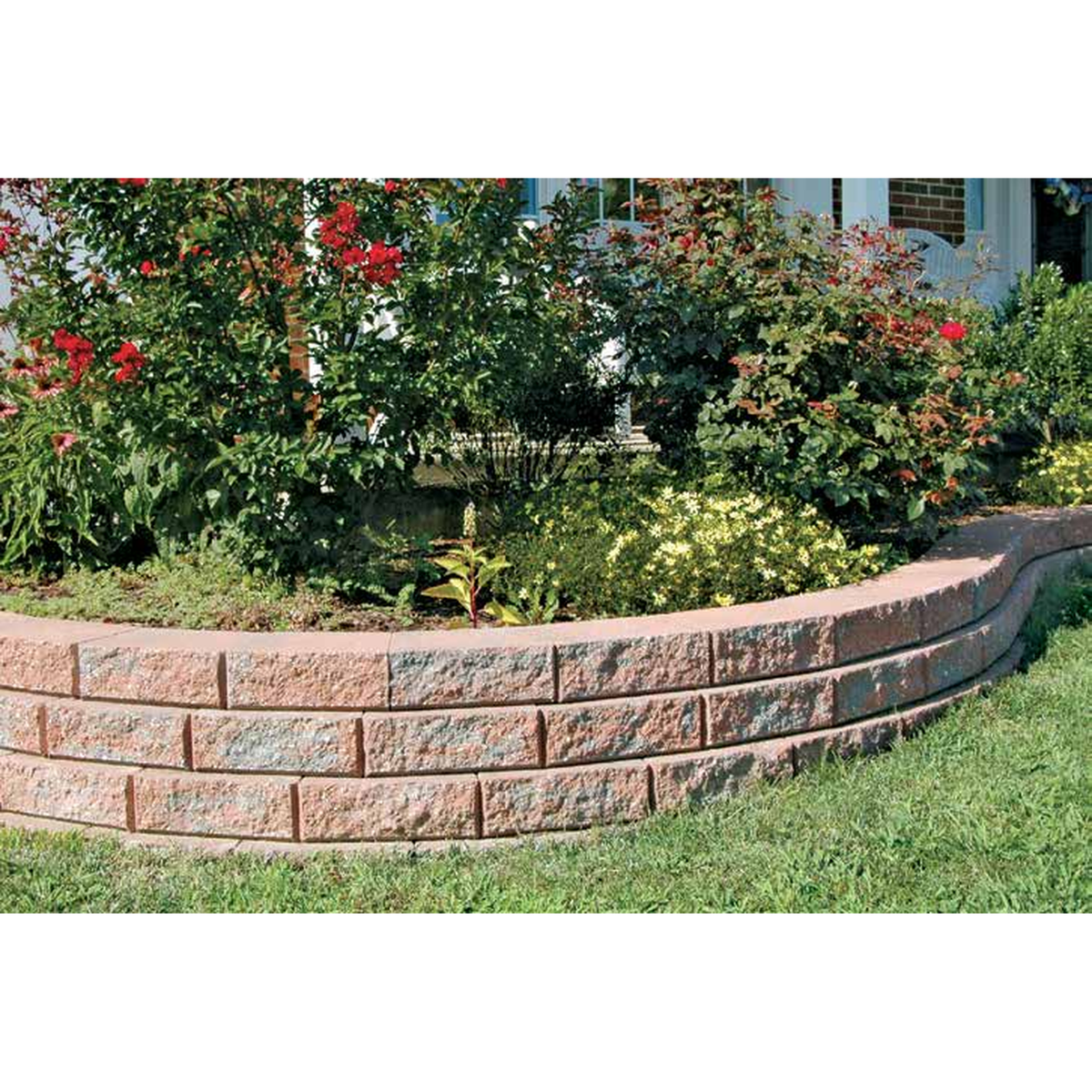

Ring a tree, edge a bed or stack a low curved planter wall with the EP Henry English Garden Wall, a small split-face concrete block with a rear lip that sets each course back for you. It comes in two shapes, Tapered (Beveled) for curves and Rectangular for straight runs, and two colors, Gray and Harvest Blend. The catalog photos show a tree ring and a curved planter wall. EP Henry has discontinued this line, so what is on our yard is closeout stock and sells while it lasts.
Shapes & Colors
-
Tapered (Beveled): 8 in across the front and 9 in across the back, 4 in high and 11-5/8 in deep, about 26 lb, for curves and tree rings.
-
Rectangular: 8 in long, 4 in high and 11-5/8 in deep, about 29 lb, for straight walls and borders.
-
Gray: Plain grey split face.
-
Harvest Blend: Warm tan and brown blended split face.
Key Features
-
Easy take-off: Three pieces make 1 sq ft of wall face.
-
Self-aligning lip: The rear lip sets the setback with no pins or adhesive.
-
Garden wall rating: Built for planters and garden walls up to 16 in, four courses, under ideal conditions. It is not a retaining wall block.
-
About EP Henry: The Woodbury, New Jersey hardscape maker joined Oldcastle APG in 2021 and its current lines sell as Belgard Metro products; English Garden Wall was dropped before that change.
How to Install It
Dig a trench about 24 in wide and lay a 6 in compacted base of modified stone. Chip the lip off the base-course units so they sit flat, level them in both directions, then stack the next courses lip-down so each one locks behind the course below. Switch to tapered blocks where the wall bends and keep the inside radius at 22 in or more from the back of block. Backfill behind the wall with 12 in of 1/2 to 3/4 in clean stone before adding soil. Stop at four courses.
Specifications
- Material: split-face dry-cast concrete with rear lip
- Tapered (Beveled): 8 in front, 9 in back; 26 lb; 120 per cube, 3,129 lb
- Rectangular: 8 in long; 29 lb; 120 per cube, 3,518 lb
- Coverage: 3 pieces per sq ft; 40 sq ft per cube
- Maximum height 16 in (4 courses); minimum inside radius 22 in
- Colors: Gray, Harvest Blend; discontinued line, sold per piece
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
EP Henry English Garden Wall is a discontinued 4 in dry-cast split-face garden wall unit with a rear-lip locator, sold from remaining yard stock. Two shapes, Tapered (Beveled) and Rectangular, in Gray and Harvest Blend. Spec it only for planters, tree rings, borders and low garden walls to four courses; the manufacturer does not rate it as a retaining wall. Buy the full job quantity in one pull, since there is no reorder and color lots will not be matched later.
Shapes & Colors
- Tapered (Beveled): 8 in front / 9 in back x 4 in H x 11-5/8 in D, 26 lb. 3 pcs per sq ft; 120 pcs / 40 sq ft per cube at 3,129 lb. Use on all curved work.
- Rectangular: 8 in L x 4 in H x 11-5/8 in D, 29 lb. 3 pcs per sq ft; 120 pcs / 40 sq ft per cube at 3,518 lb. Use on straight runs.
- Gray: Plain grey split face.
- Harvest Blend: Tan/brown blend (the 2015 catalog also listed Autumn Blend, not stocked).
Key Features
- Take-off: 3 pcs per sq ft of face at a 4 in course height, so a 16 in wall runs 12 pcs per lineal ft over four courses.
- Rear-lip locator: Automatic setback course to course with no pins, clips or adhesive. Knock the lip off base-course units so they bed flat.
- Height limit: 16 in (4 courses) maximum under ideal conditions; planter and garden wall duty only. Do not spec for soil retention or surcharge.
- About EP Henry: Woodbury, NJ producer acquired by Oldcastle APG in 2021 and now sold as Belgard Metro; this line was dropped before the 2022 catalog and never migrated to belgard.com.
How to Install It

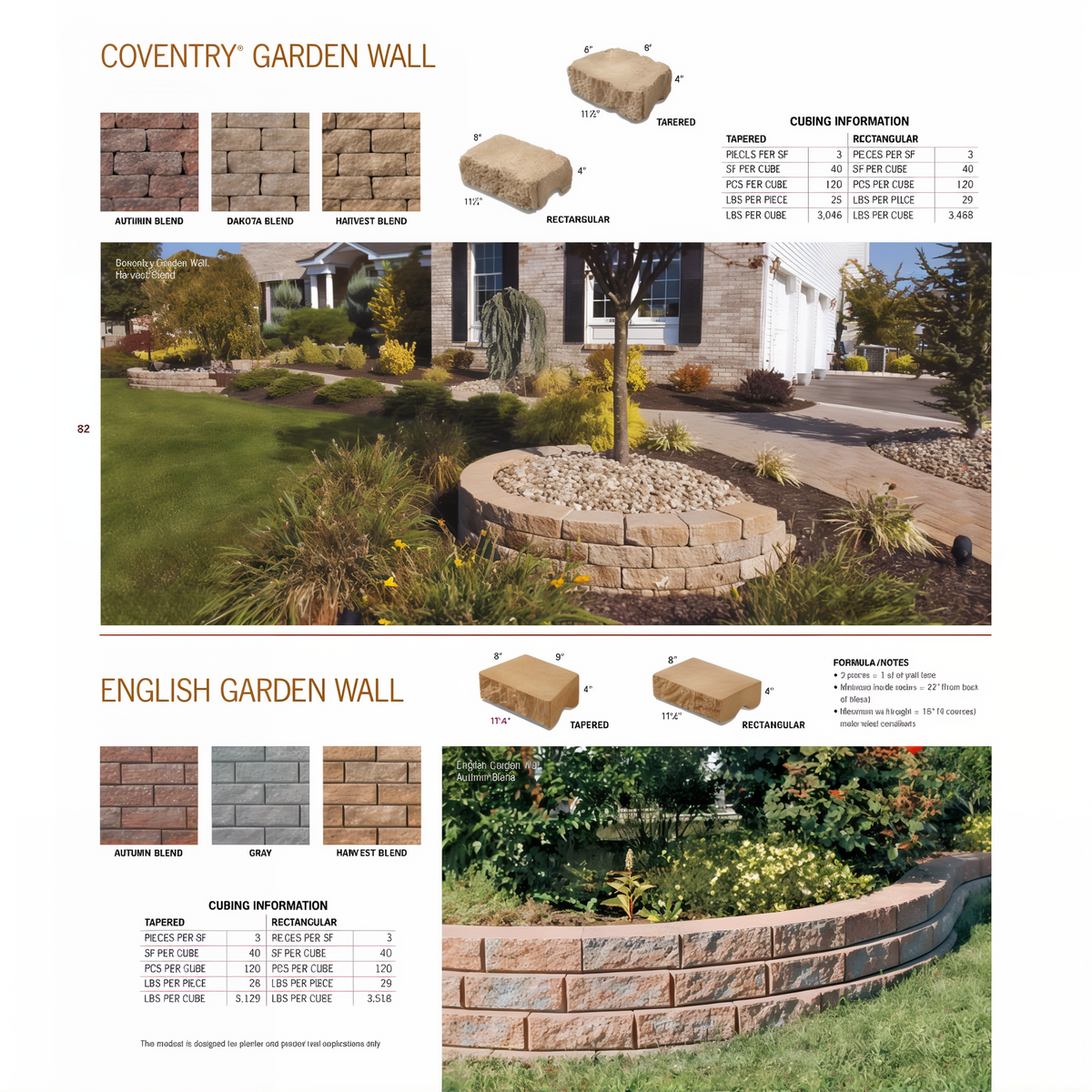

Per the EP Henry 2015 catalog: excavate a 24 in wide trench and place 6 in of compacted modified stone base. Chip the lip off the base-course units, set them lip side down and level in both directions, then run subsequent courses lip-down so each engages the back of the course below and pulls the setback automatically. Alternate rectangular and tapered units as the alignment changes, holding inside curves to 22 in minimum radius. Backfill 12 in behind the wall with 1/2 to 3/4 in clean stone, then topsoil. Stop at four courses. Treat it like any dry-cast unit for freeze-thaw: drained base, clean-stone backfill, no ponding at the toe.
Specifications
- Height 4 in; depth 11-5/8 in; dry-cast split-face concrete, rear lip
- Tapered (Beveled): 8/9 in; 26 lb; 120 pcs / 40 sq ft per cube; 3,129 lb
- Rectangular: 8 in; 29 lb; 120 pcs / 40 sq ft per cube; 3,518 lb
- Coverage: 3 pcs per sq ft
- Max height 16 in (4 courses); min inside radius 22 in from back of block
- Base: 24 in trench, 6 in compacted modified stone; backfill 12 in of 1/2 to 3/4 in clean stone
- Colors: Gray, Harvest Blend; discontinued, closeout stock, sold per piece
