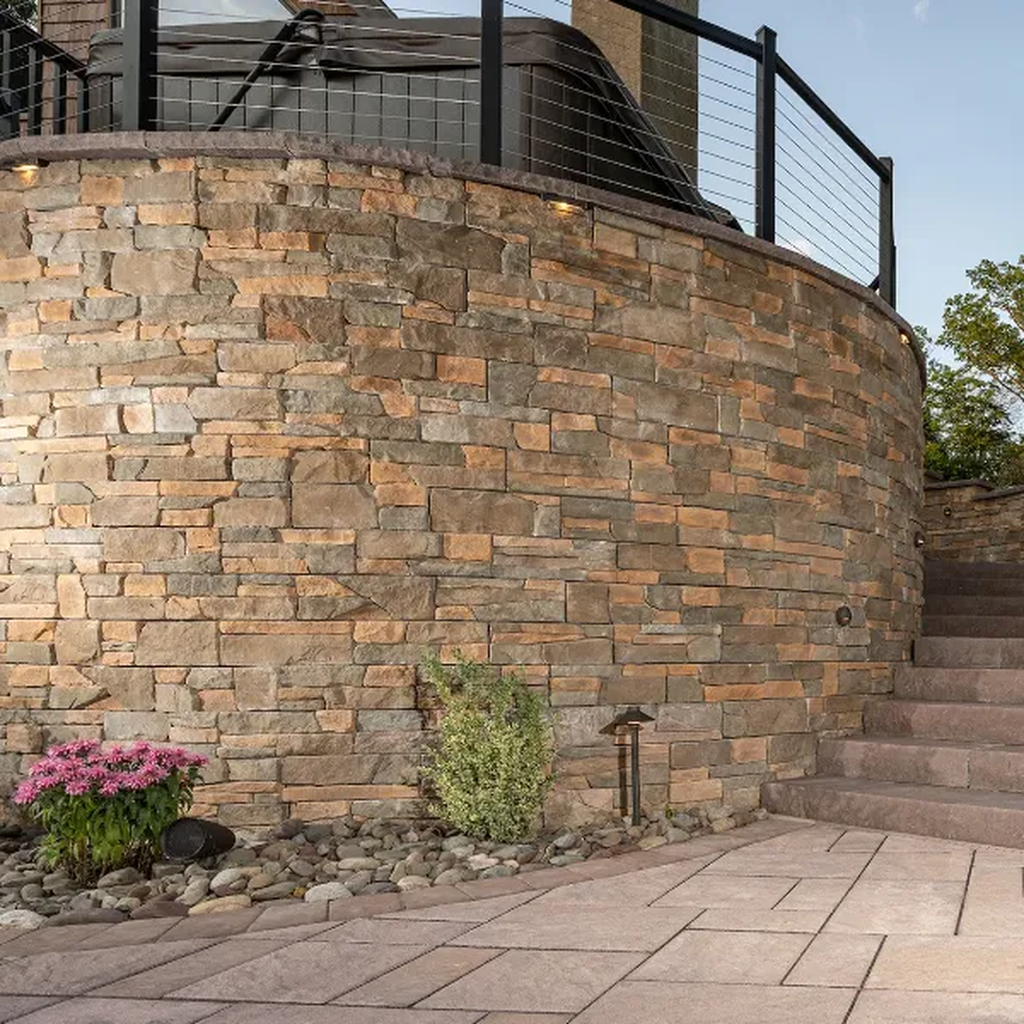

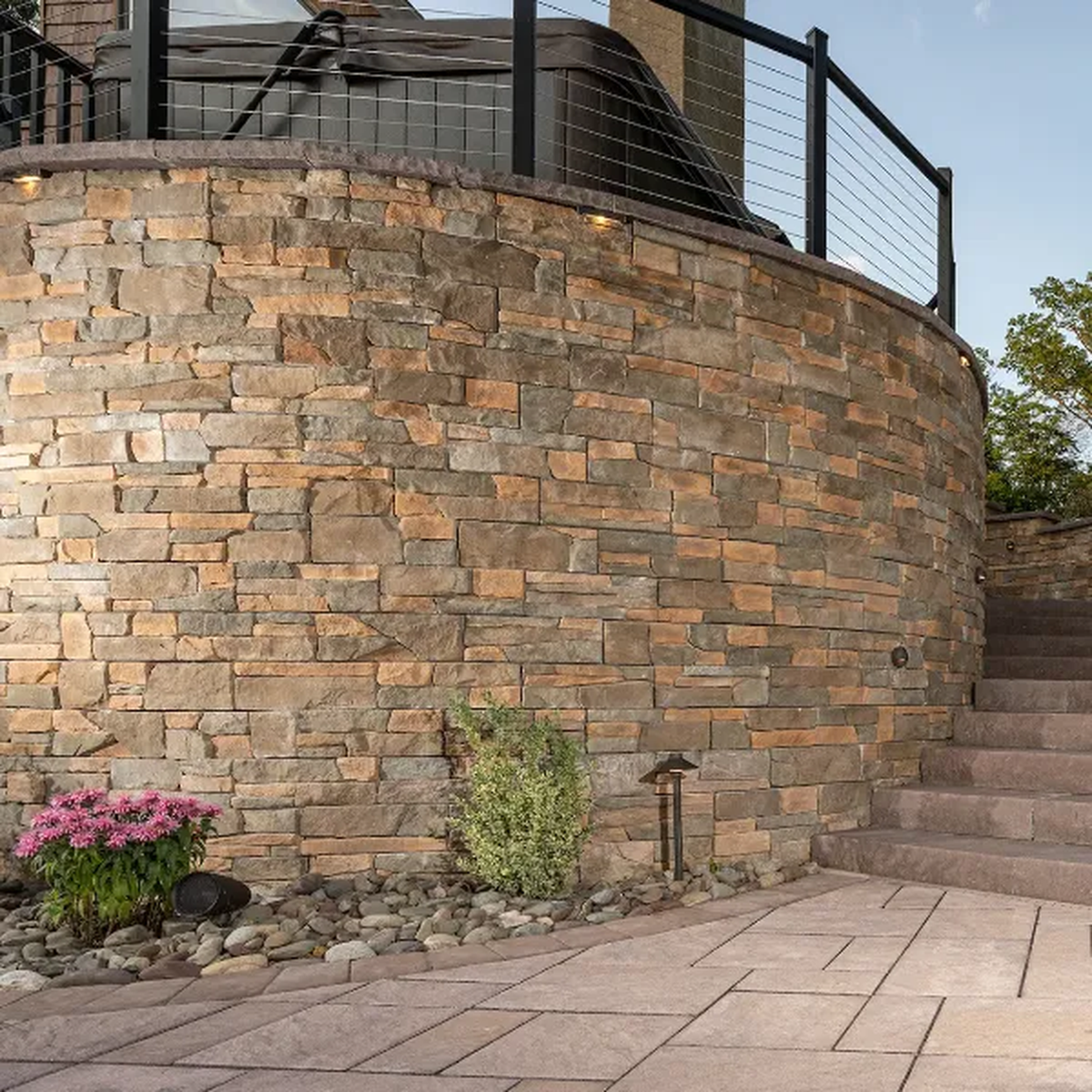

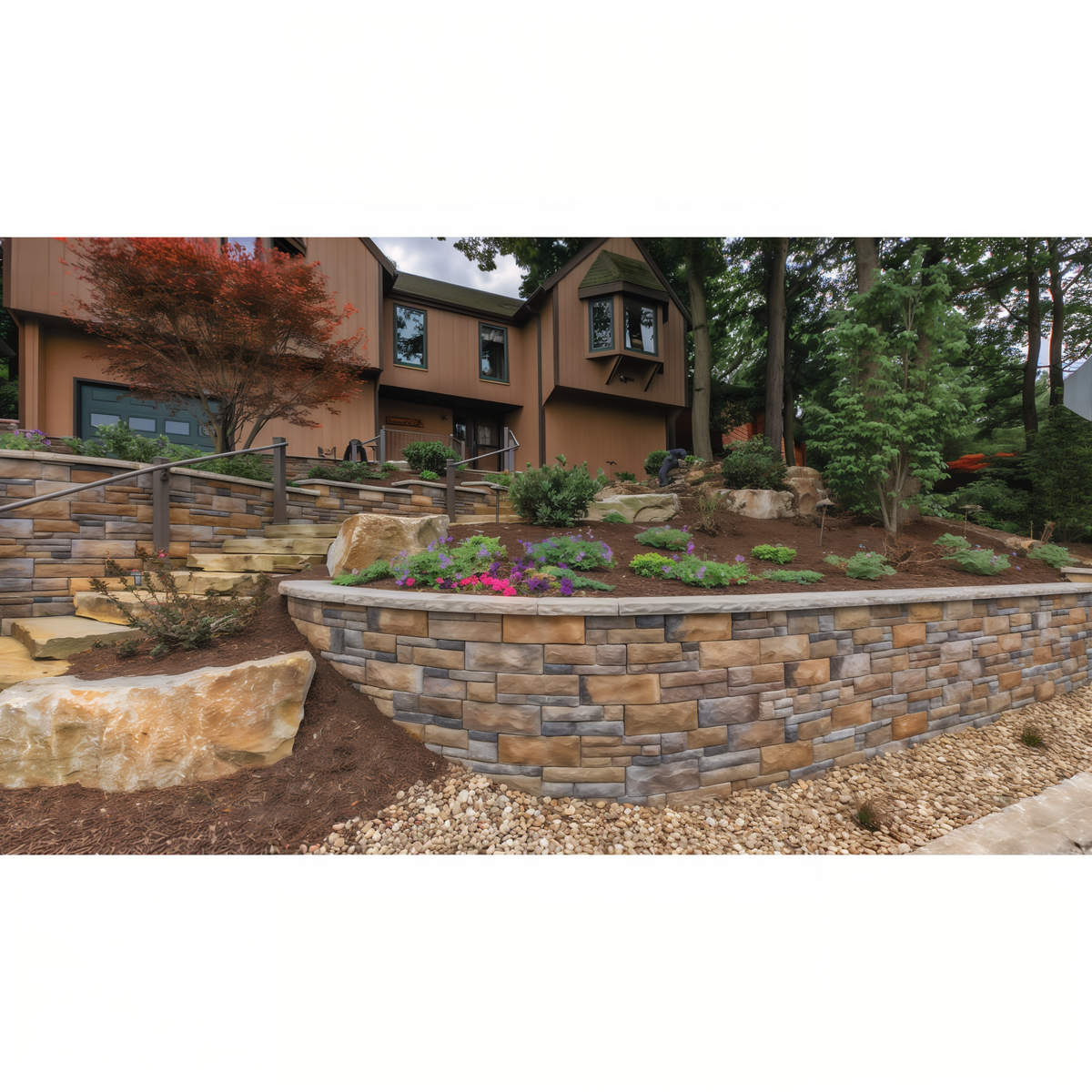

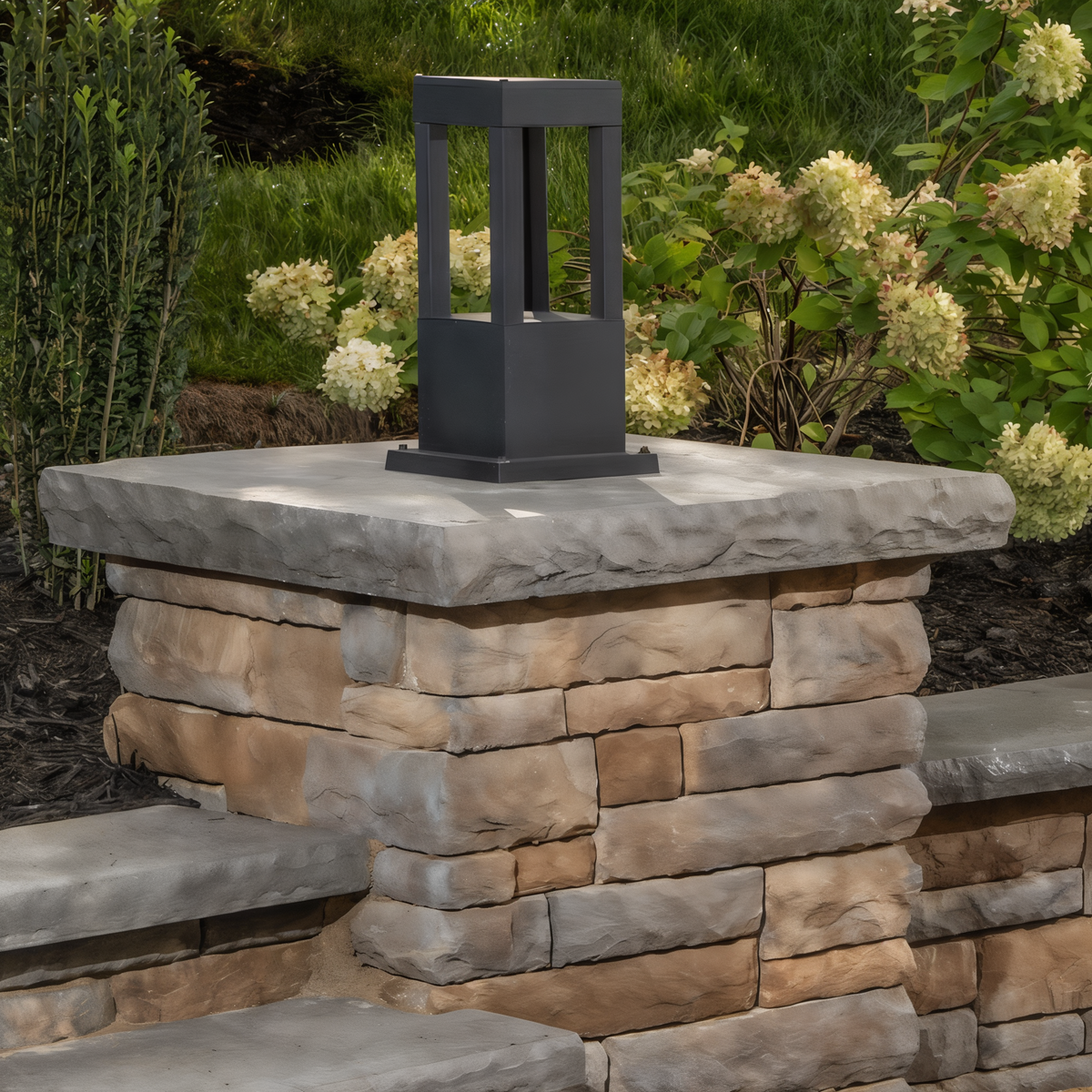

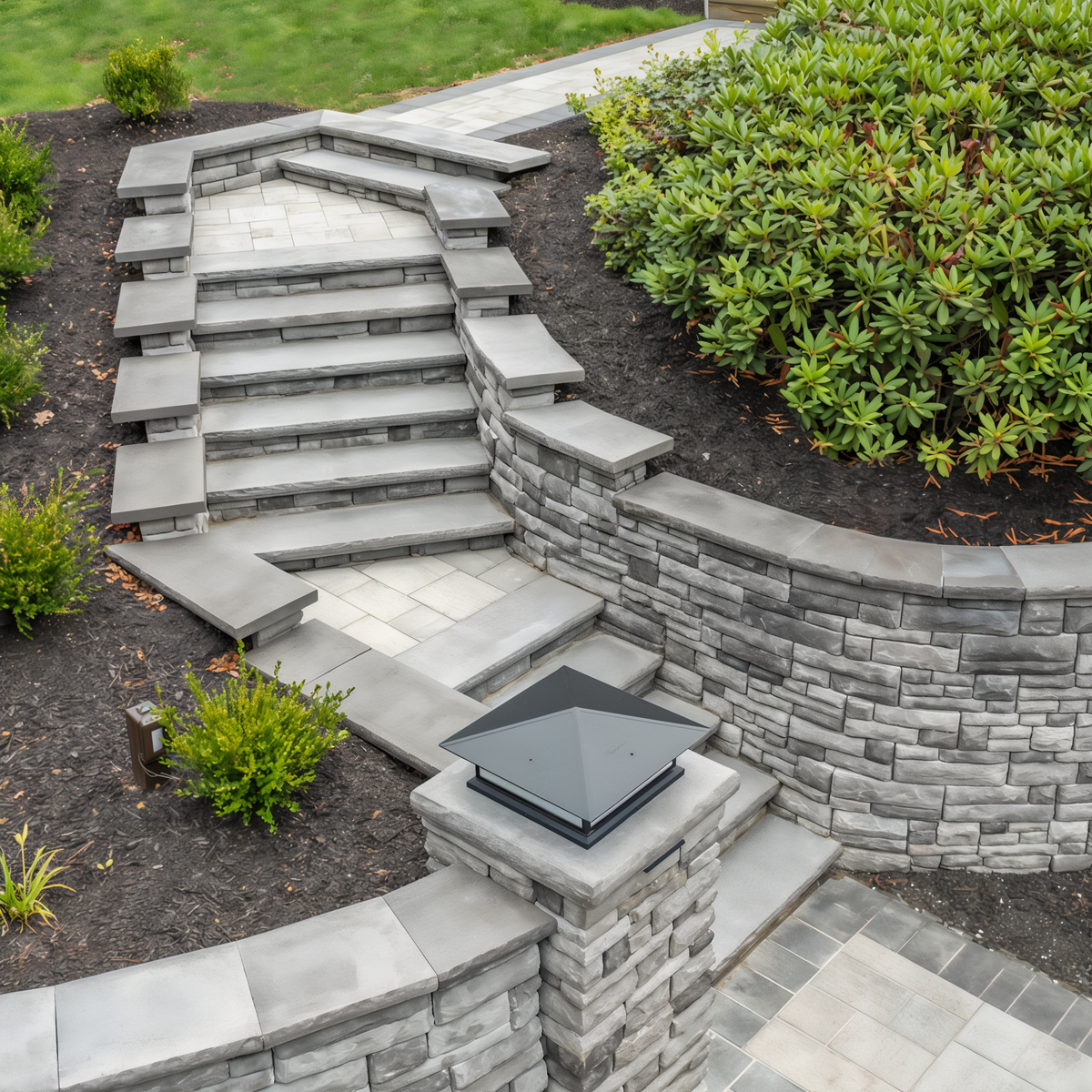

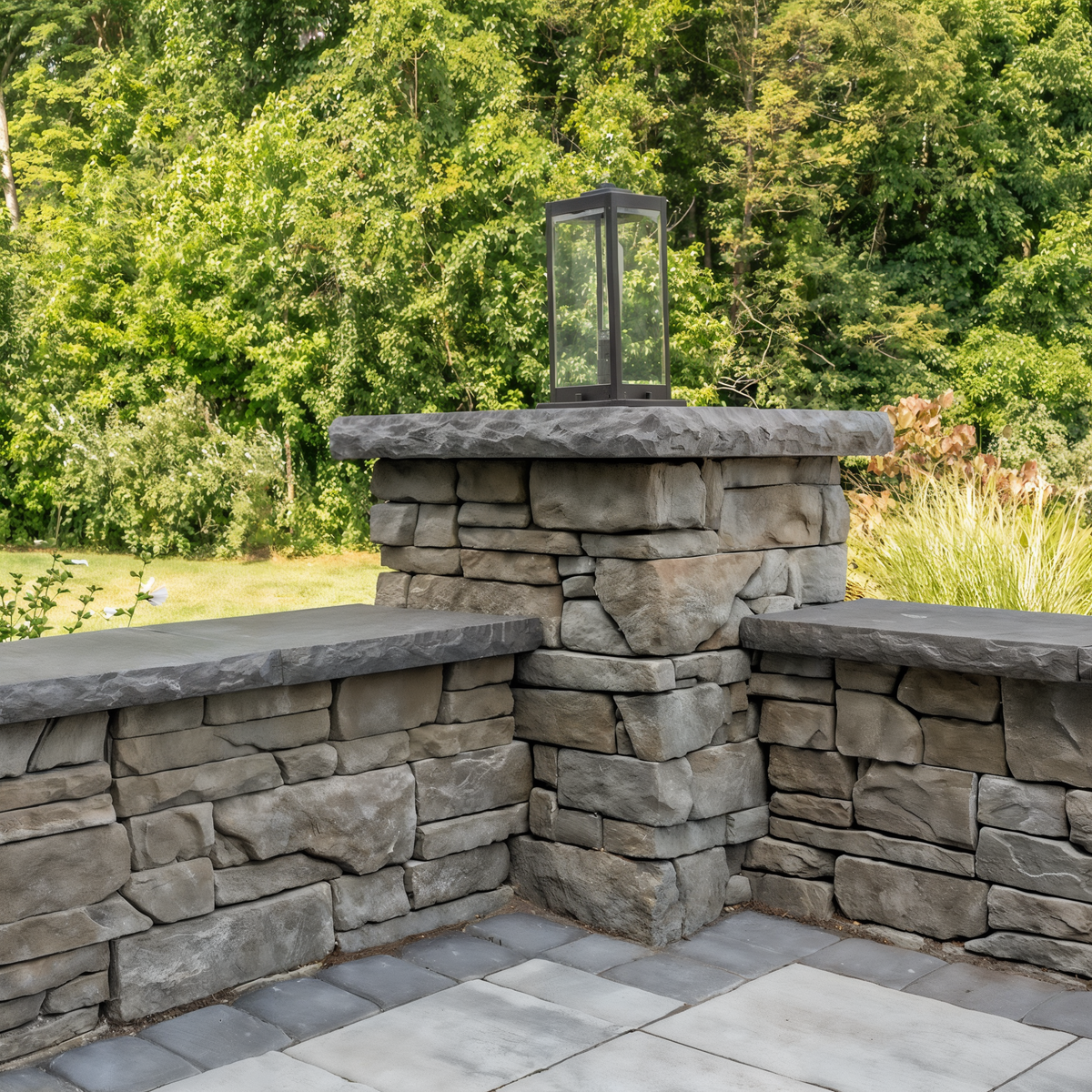

Build a retaining wall, garden wall or column that passes for hand-laid fieldstone with the EP Henry Single Sided Cast Stone Wall. Every unit is cast from molds pulled off real stone, so courses never repeat. Pick the chiseled Cut Stone profile or the linear Ledgestone profile, then set the hollow units mortarless with adhesive. The photos show finished terrace walls, steps and stone pillars, all topped with Belmont caps.
Units & Colors
-
Stretcher: 16 in long, 12 in deep and 6 in high, about 50 lb; 1.5 units cover 1 sq ft of wall face. Stocked in Cut Stone Adirondack, Ledgestone Allegheny and Ledgestone Aztec.
-
Corner: 16 x 8 x 6 in, about 34 lb, finished on two faces for square ends and columns. Stocked in Cut Stone Adirondack, Cut Stone Aspen and Ledgestone Allegheny.
Key Features
-

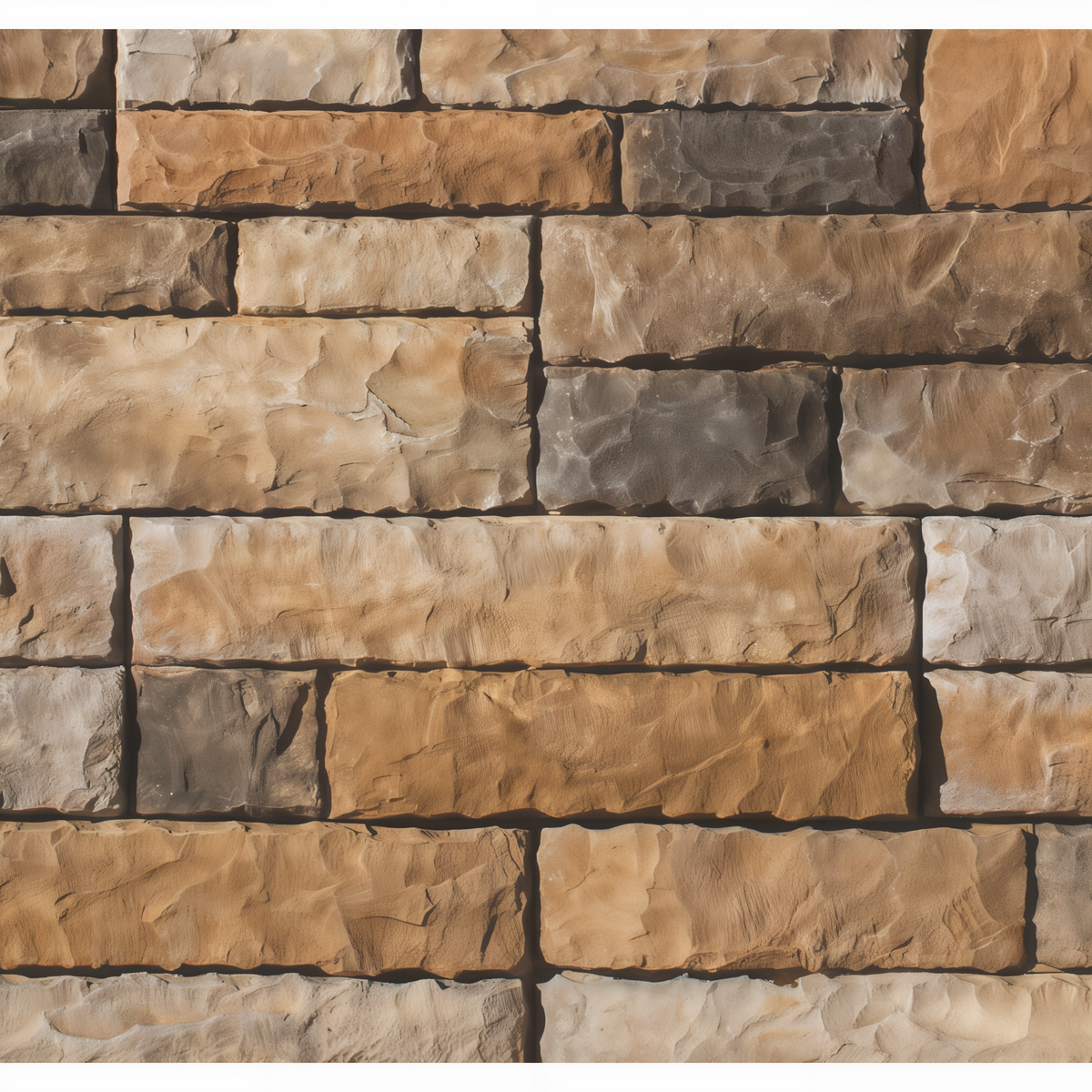

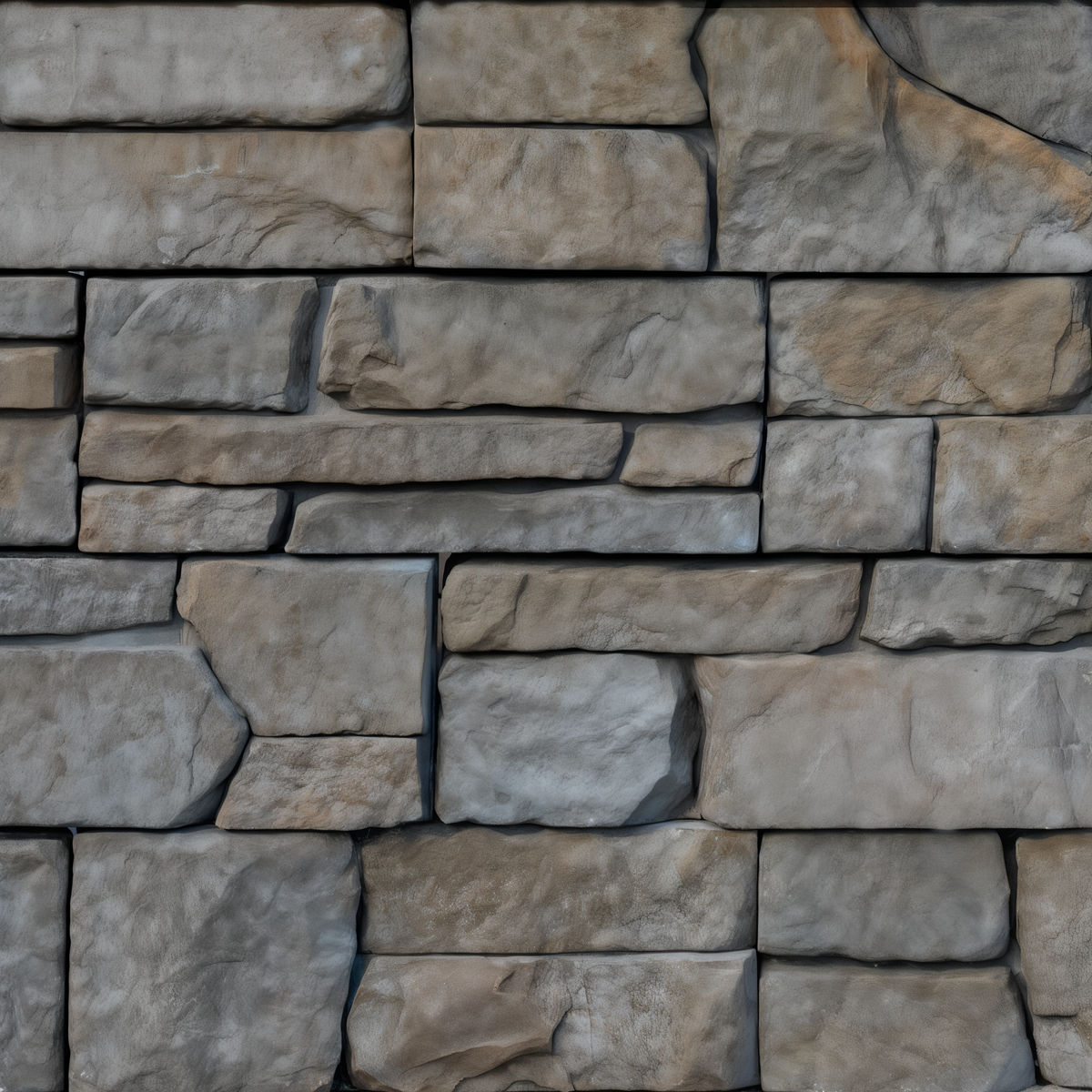

Natural stone look: Faces cast from natural stone molds read as quarried stone, not block.
-
Mortarless build: Adhesive-set units go up in about one-third the time and half the cost of conventional masonry.
-
Tested performance: Meets or exceeds segmental retaining wall standards for shear bond strength and freeze-thaw, with a lifetime transferable limited warranty.
-
About EP Henry: The Woodbury, New Jersey hardscape maker joined Oldcastle APG in 2021 and its lines now sell as Belgard Metro products, made in the same NJ and PA plants.
How to Install It
Start on a compacted stone base and use a Cast Stone footer block or Terrace Wall stretcher for the buried footer course. Set each course in adhesive with the faces flush, and drop about 12.5 lb of clean stone into every core as you go. Stagger the joints, build ends and columns with the two-face corner, and keep outside curves to a radius of at least 35-3/4 in from the back of the block. Single sided walls can reach 48 in, five courses including the footer, without geogrid. Finish with Belmont caps in Bluestone or Brownstone.
Specifications
- Stretcher: 16 x 12 x 6 in; 50 lb Cut Stone, 51 lb Ledgestone; 60 per cube covers 40 sq ft
- Corner: 16 x 8 x 6 in; 34 lb; 24 per cube covers 16 sq ft
- Construction: hollow hybrid unit, adhesive connection, no setback

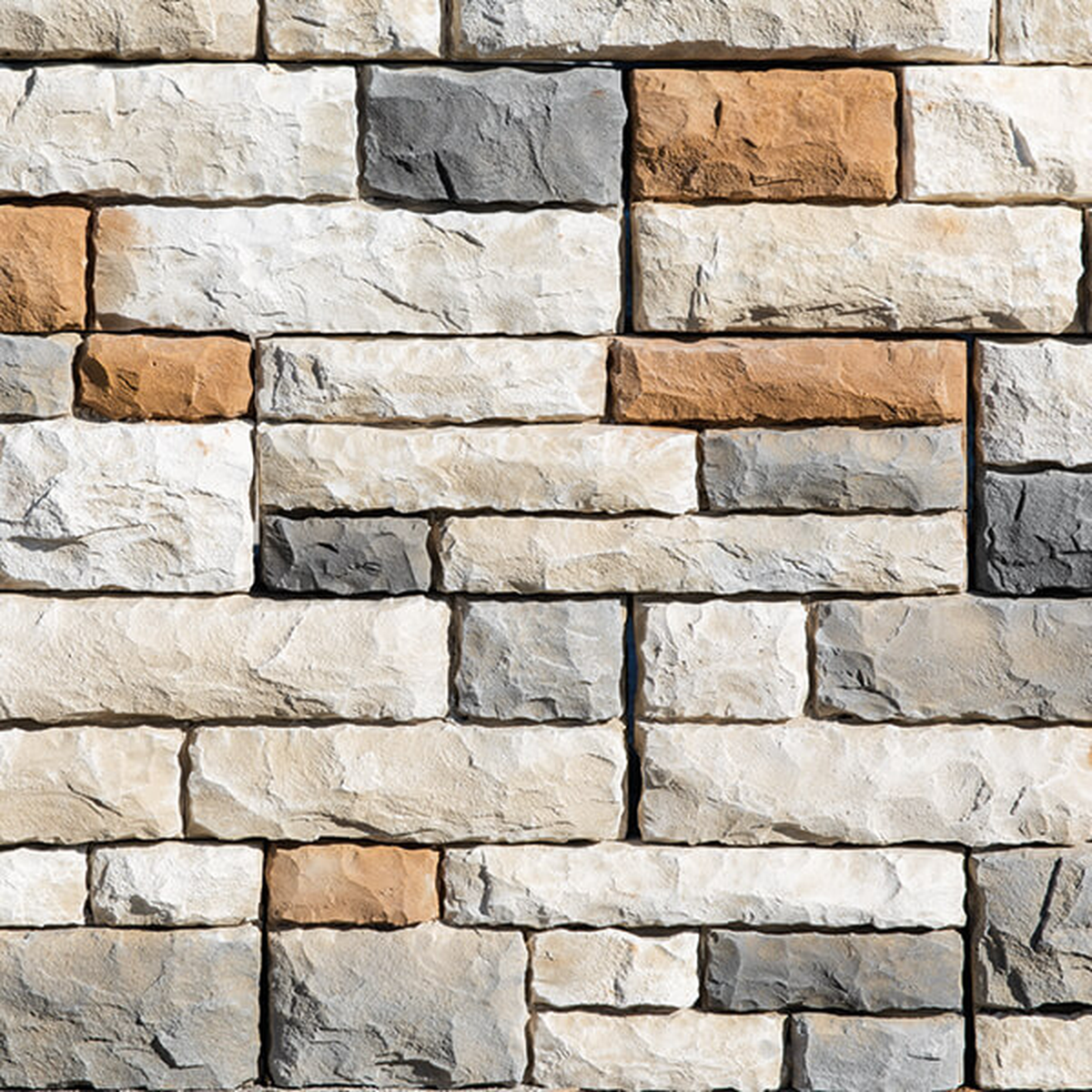

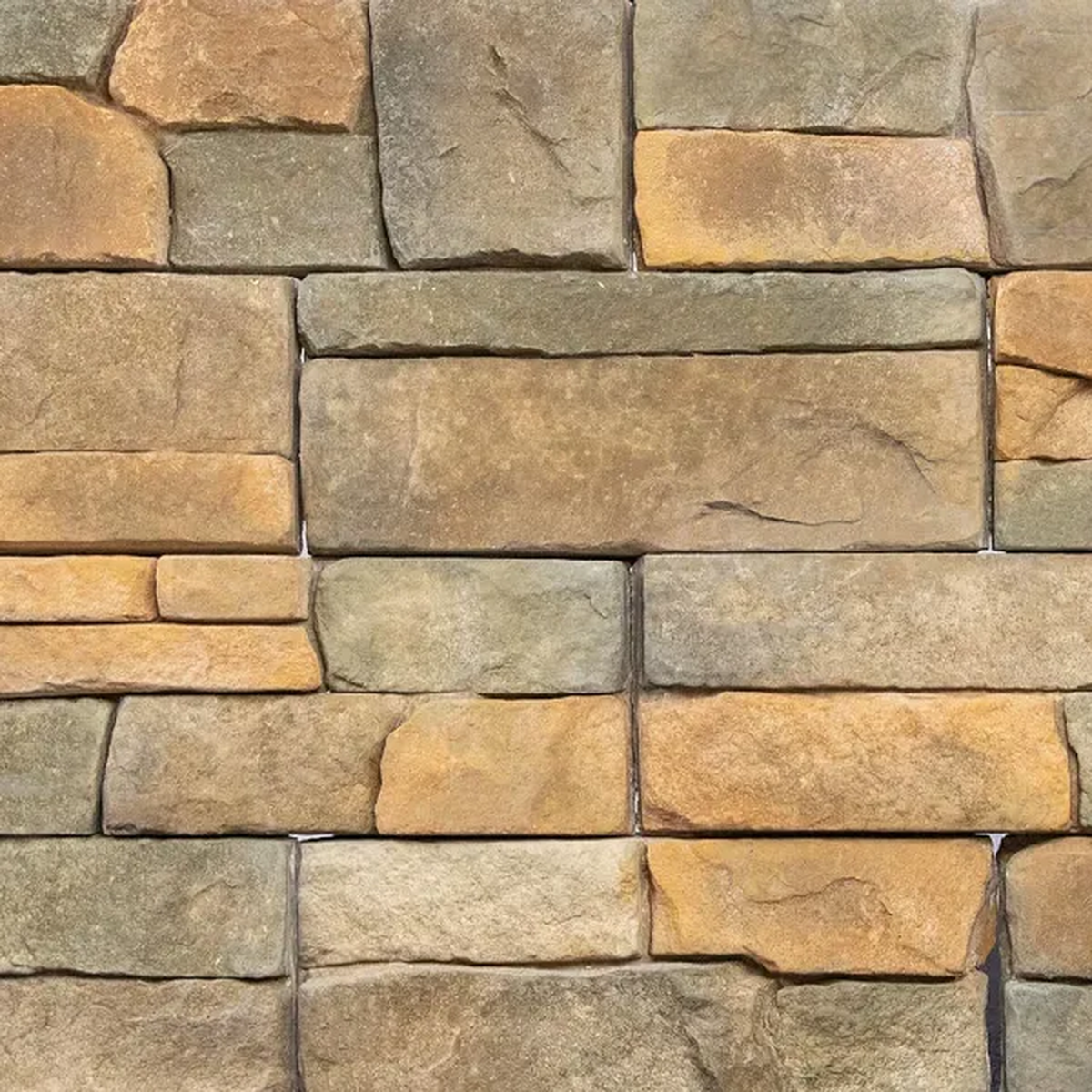

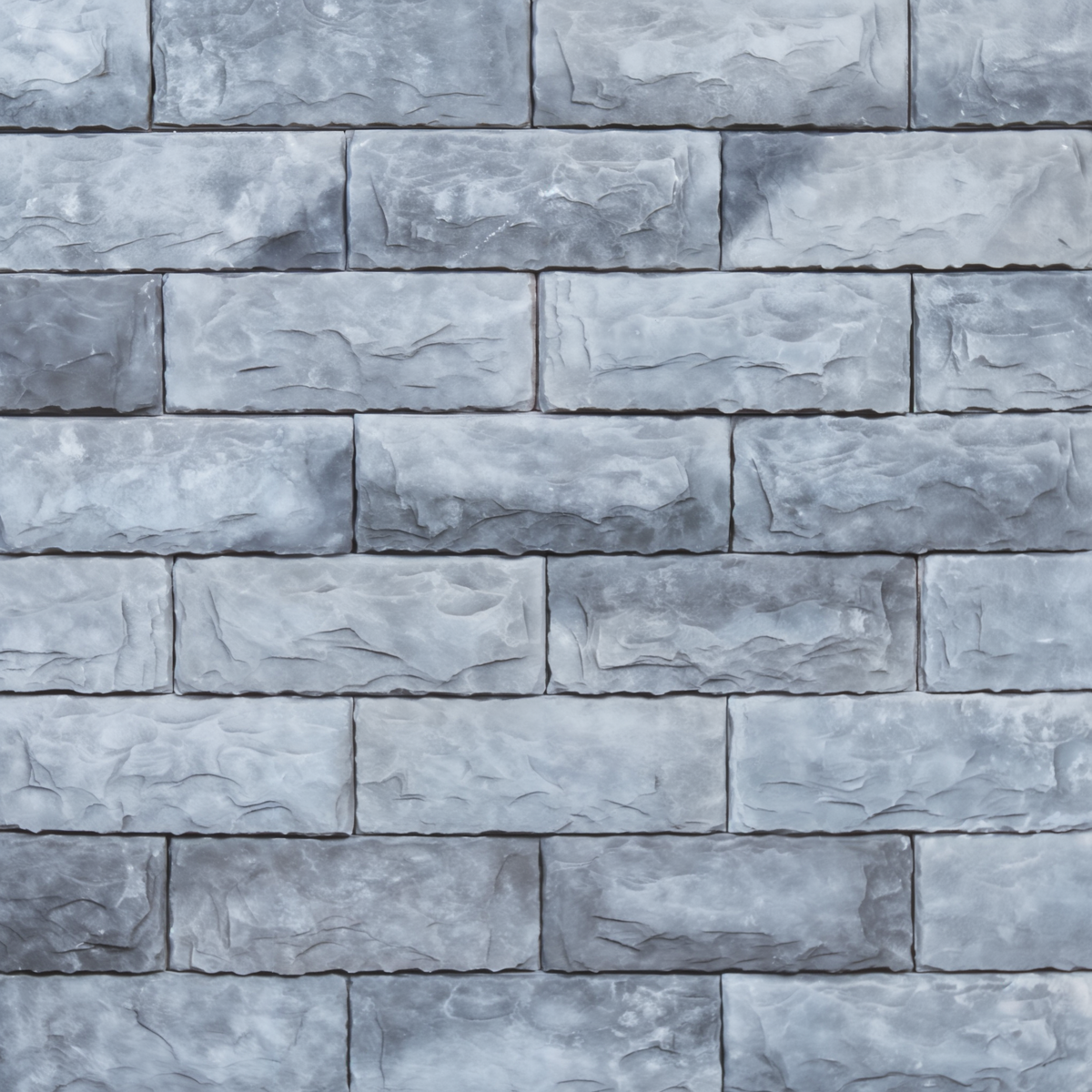

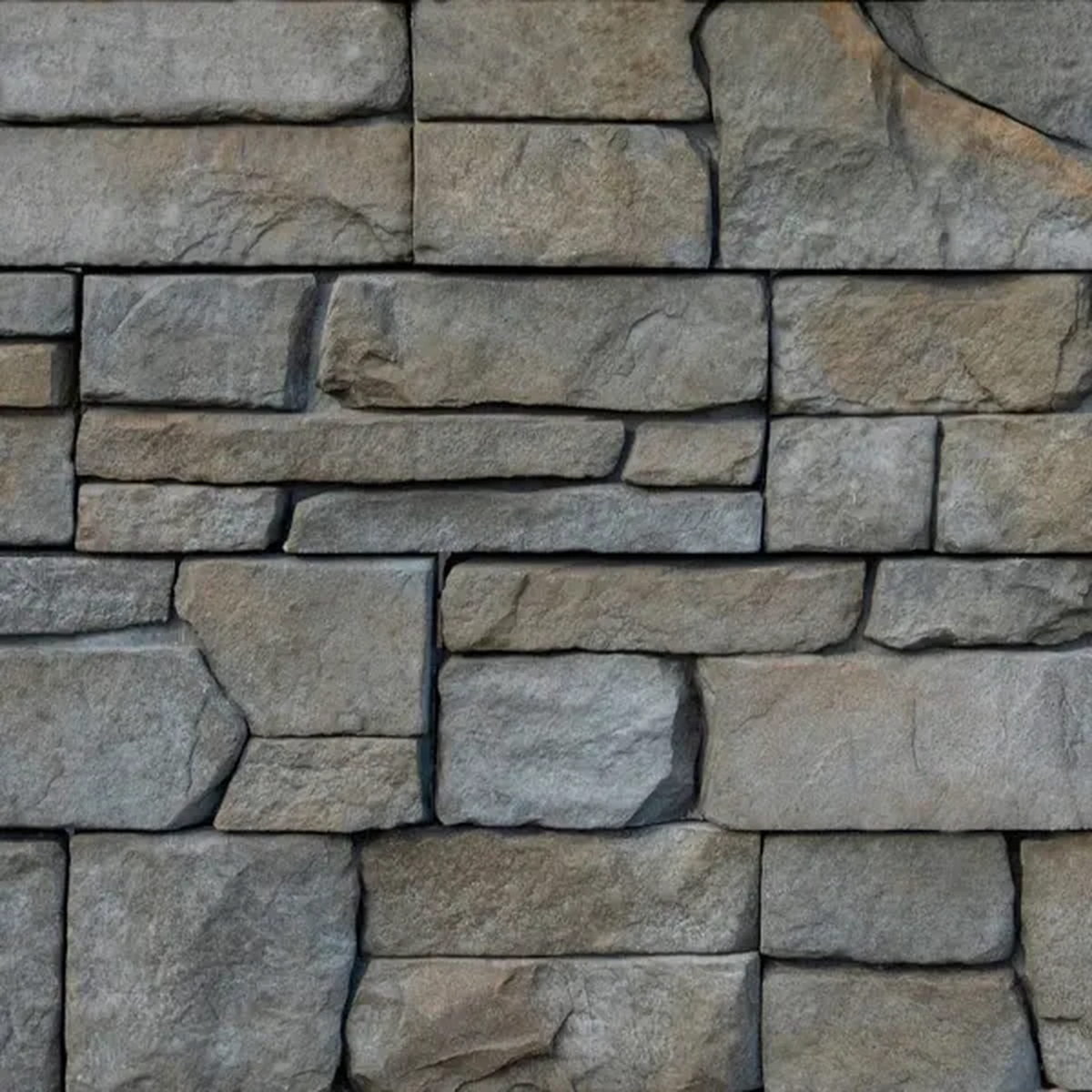

- Colors: Cut Stone Adirondack (grey), Cut Stone Aspen (cream and tan), Ledgestone Allegheny (grey), Ledgestone Aztec (tan and brown); sold per piece
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
EP Henry Single Sided Cast Stone Wall is a hybrid wet-cast face / dry-cast body segmental wall unit, now produced under Belgard Metro at the former EP Henry plants. Random-face stretchers and two-face corners are adhesive-set with zero setback and take a 12.5 lb clean-stone core fill per unit. Two profiles share one footprint: Cut Stone (chiseled) in Adirondack and Aspen, Ledgestone (linear) in Allegheny and Aztec. Spec it for single-face retaining and garden walls, columns and step cheeks.
Units & Colors
- Stretcher: 16 in L x 12 in D x 6 in H, 50 lb Cut Stone / 51 lb Ledgestone. 1.5 pcs per sq ft; 60 pcs and 40 sq ft per cube at 3,046 lb (Ledgestone 3,106 lb). Yard stock: Cut Stone Adirondack, Ledgestone Allegheny, Ledgestone Aztec.
- Corner: 16 x 8 x 6 in, 34 lb, finished two faces for 90 degree returns and piers. 24 pcs and 16 sq ft per cube at 885 lb. Yard stock: Cut Stone Adirondack, Cut Stone Aspen, Ledgestone Allegheny.
- Colors: Adirondack and Allegheny grey; Aspen cream/tan/grey; Aztec tan/brown. Take off each profile separately; they do not mix on one elevation.
Key Features
- Natural stone face: Cast from natural stone molds with 70-plus unique patterns per line, so long runs do not show repeats.
- Mortarless assembly: Adhesive connection, zero setback. Manufacturer figures roughly one-third the labor time and half the cost of conventional masonry.
- Standards and warranty: Meets or exceeds industry standards for segmental retaining walls and manufactured stone, including shear bond strength and freeze-thaw. Lifetime transferable limited warranty; Cast Stone Wall carries its own EP Henry warranty.
- About EP Henry: Woodbury, NJ producer acquired by Oldcastle APG in 2021; the line ships under the Belgard Metro name from the Woodbury and Wrightstown, NJ and Parker Ford, PA plants.
How to Install It
Excavate to a compacted aggregate base and run the buried footer course in Cast Stone footer block (11-5/8 x 15-5/8 x 4 in, 56 lb, 72 pcs / 93.8 LF per cube) or Terrace Wall stretcher. Adhere each course with the face plumb and core-fill 12.5 lb of clean stone per unit before the next course goes on. Break joints, turn returns and build piers with the corner unit, and hold outside curves to a 35-3/4 in minimum radius from back of block. Single-face walls are rated to 48 in, five courses including the footer, without geogrid; anything taller or under surcharge goes to an engineered design. Cap with Belmont in Bluestone or Brownstone.
Specifications
- Stretcher: 16 x 12 x 6 in; 50 lb Cut Stone / 51 lb Ledgestone; 60 pcs / 40 sq ft per cube
- Corner: 16 x 8 x 6 in; 34 lb; 24 pcs / 16 sq ft per cube
- Footer block: 11-5/8 x 15-5/8 x 4 in; 56 lb; 72 pcs / 93.8 LF per cube
- Connection: adhesive, no setback; hollow unit, 12.5 lb clean-stone core fill
- Max unreinforced height: 48 in incl. footer; min outside radius 35-3/4 in
- Colors: Cut Stone Adirondack, Cut Stone Aspen, Ledgestone Allegheny, Ledgestone Aztec; sold per piece
