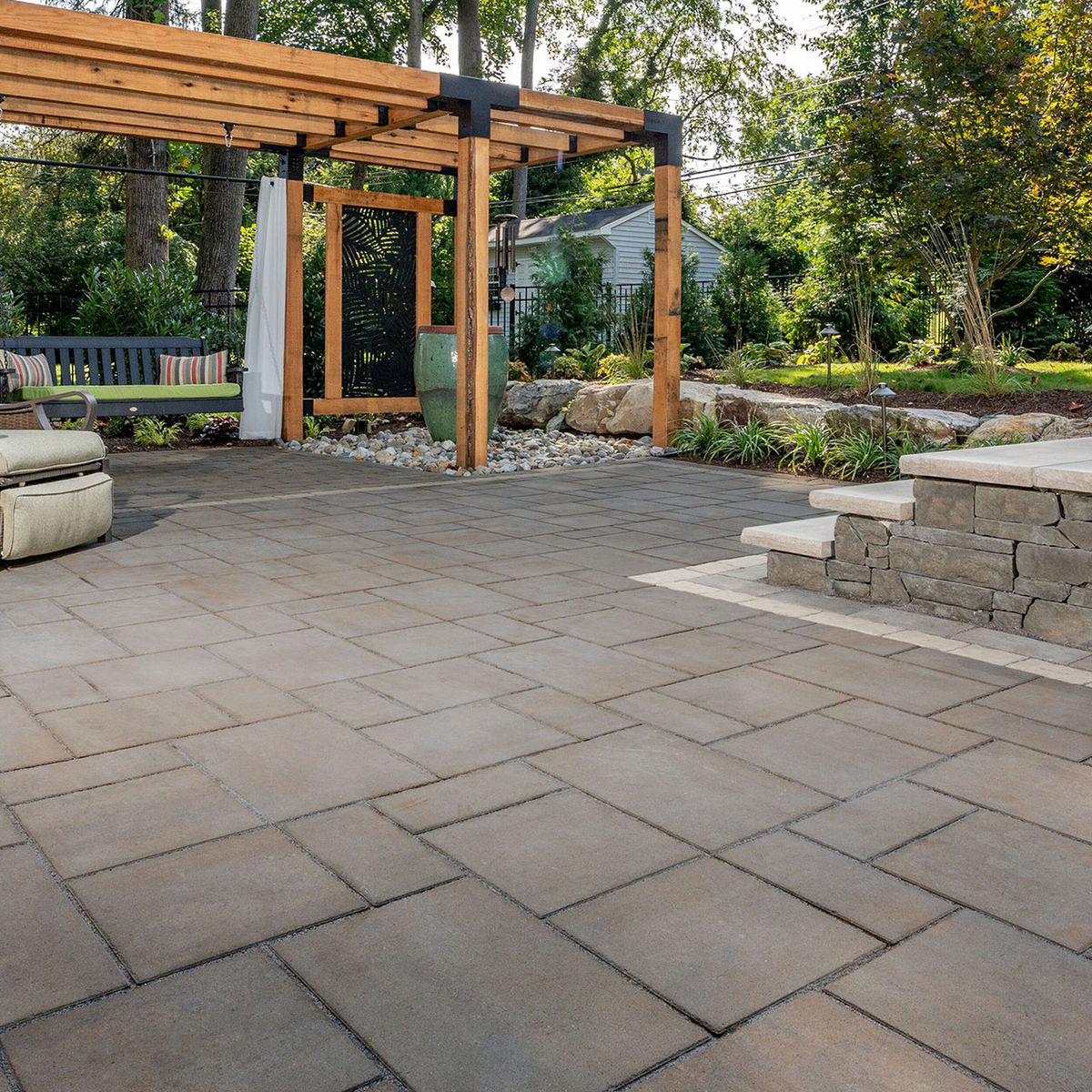

Lay a clean, contemporary patio with EP Henry Trilogy Smooth Pavers, a large-format three-piece system with a refined smooth face and vibrant color that holds up to years of foot traffic. The set combines 6-1/2 x 13 in, 13 x 13 in and 13 x 19-1/2 in pieces, all 2-3/8 in thick, for a random modular pattern with few repeating seams. DuraFusion Technology builds the surface for lasting color and texture, and a factory-applied ColorTech sealer gives every paver a finished, protected look on day one. Choose Tucson, Sonoran or Pewter Blend.
Key Features
-
Three modular sizes: The three pieces mix into multiple layouts and pair with Trilogy Textured pavers for a two-finish design.
-
DuraFusion and ColorTech: DuraFusion Technology strengthens the wear face, and the factory-applied ColorTech sealer deepens color and resists stains without a sealing step after installation.
-

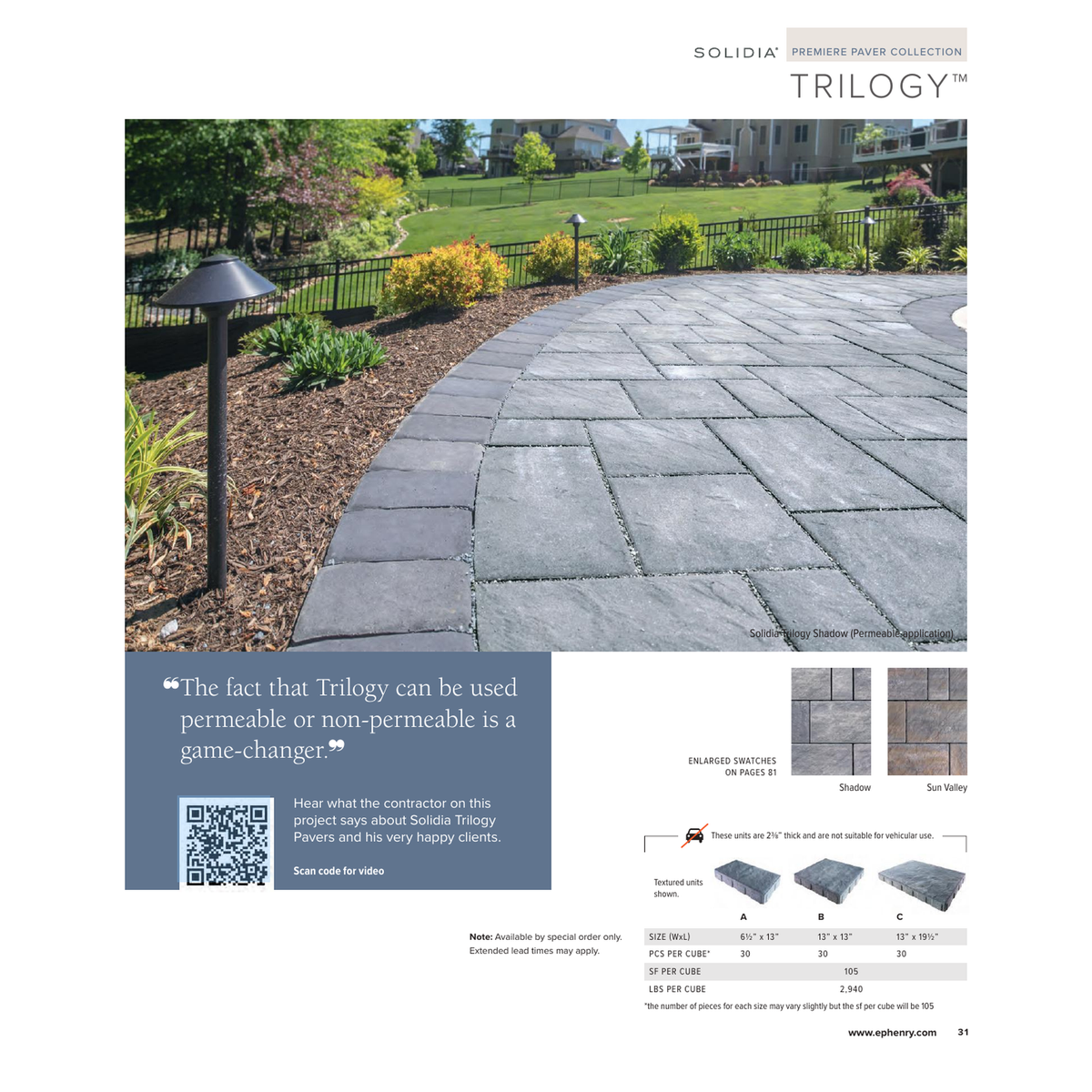

Permeable option: Set the pavers with the wider 7 mm joint spacing to install Trilogy Smooth as a permeable system that lets rain soak through.
-
Accessible surfaces: The smooth face and tight modular layout can be used to build ADA-compliant walkways and pool decks.
-
About EP Henry: EP Henry of Woodbury, New Jersey, joined Oldcastle APG in 2021, and Trilogy Smooth is now sold as a Belgard Metro and Mid-Atlantic product with a lifetime transferable limited warranty.
How to Install It

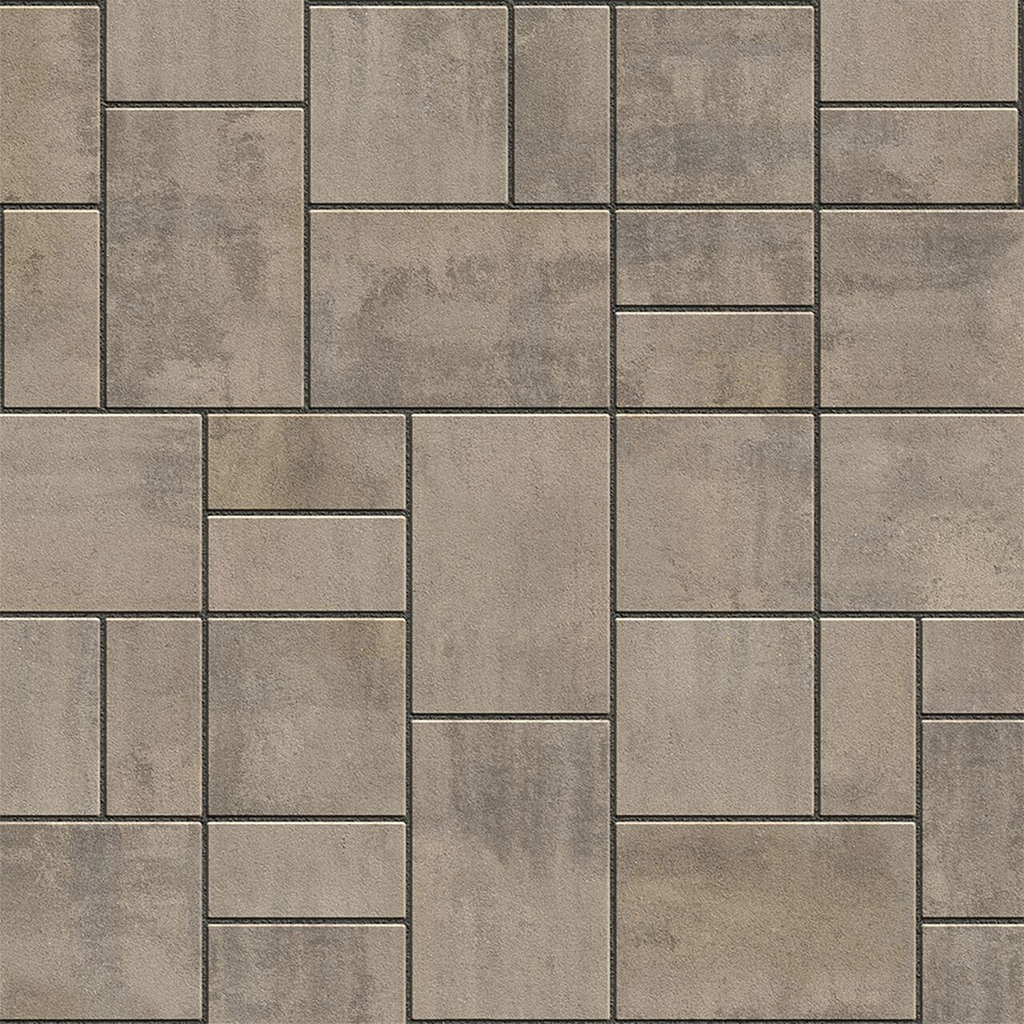

Excavate for a compacted aggregate base under the patio, walkway or pool deck, screed a sand bedding layer, and lay the three sizes in a random modular pattern off two string lines to keep joints square. Alternate the small, medium and large pieces so seams do not line up, and pull from several pallet layers at once to blend color. Edge the field with a paver restraint, sweep in joint sand and compact. Keep Trilogy Smooth to patios, walkways and pool decks; it is not rated for driveways or vehicular use. Skip sealing, since ColorTech is applied at the plant.
Specifications

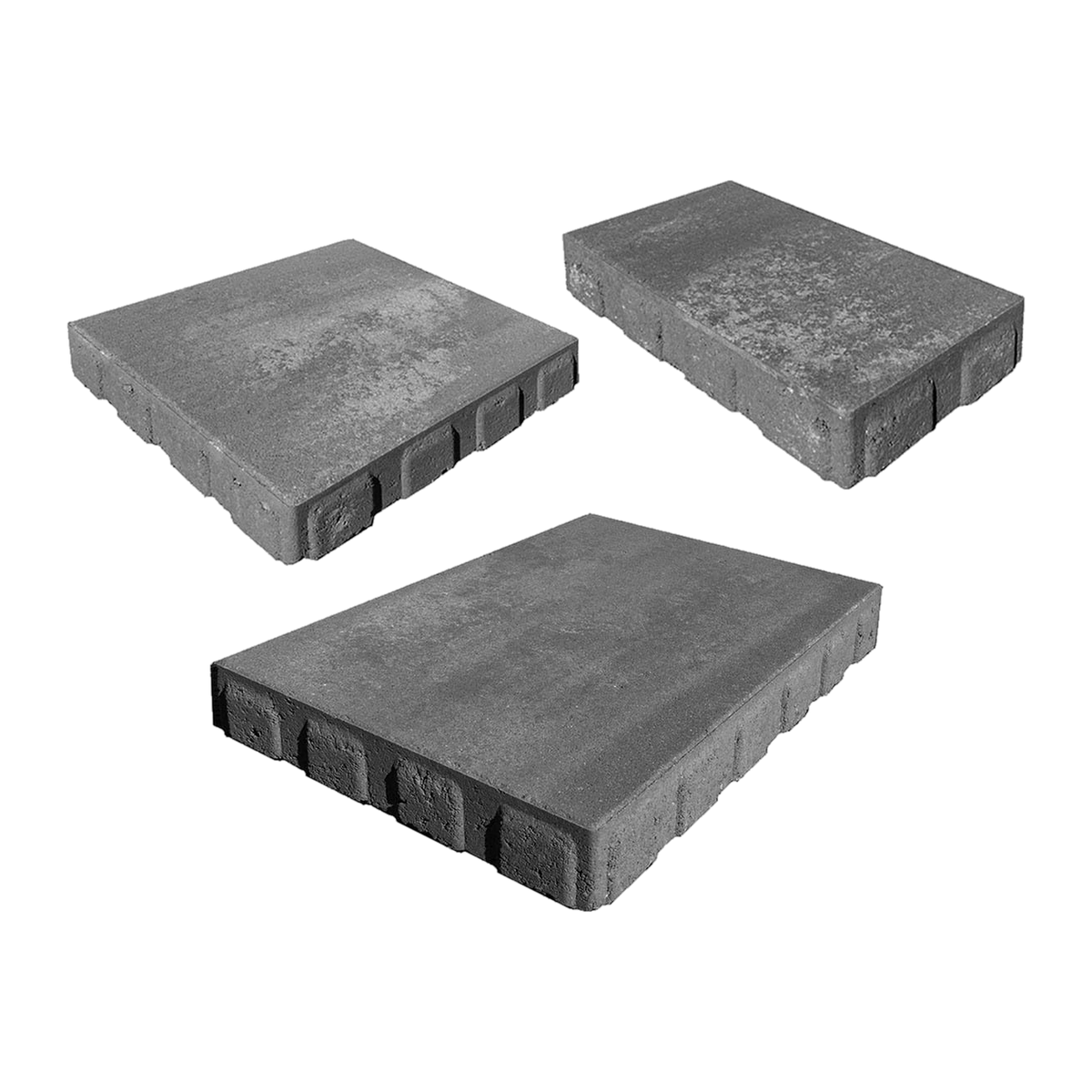

- Sizes: 6-1/2 x 13 in, 13 x 13 in, 13 x 19-1/2 in; all 2-3/8 in (60 mm) thick

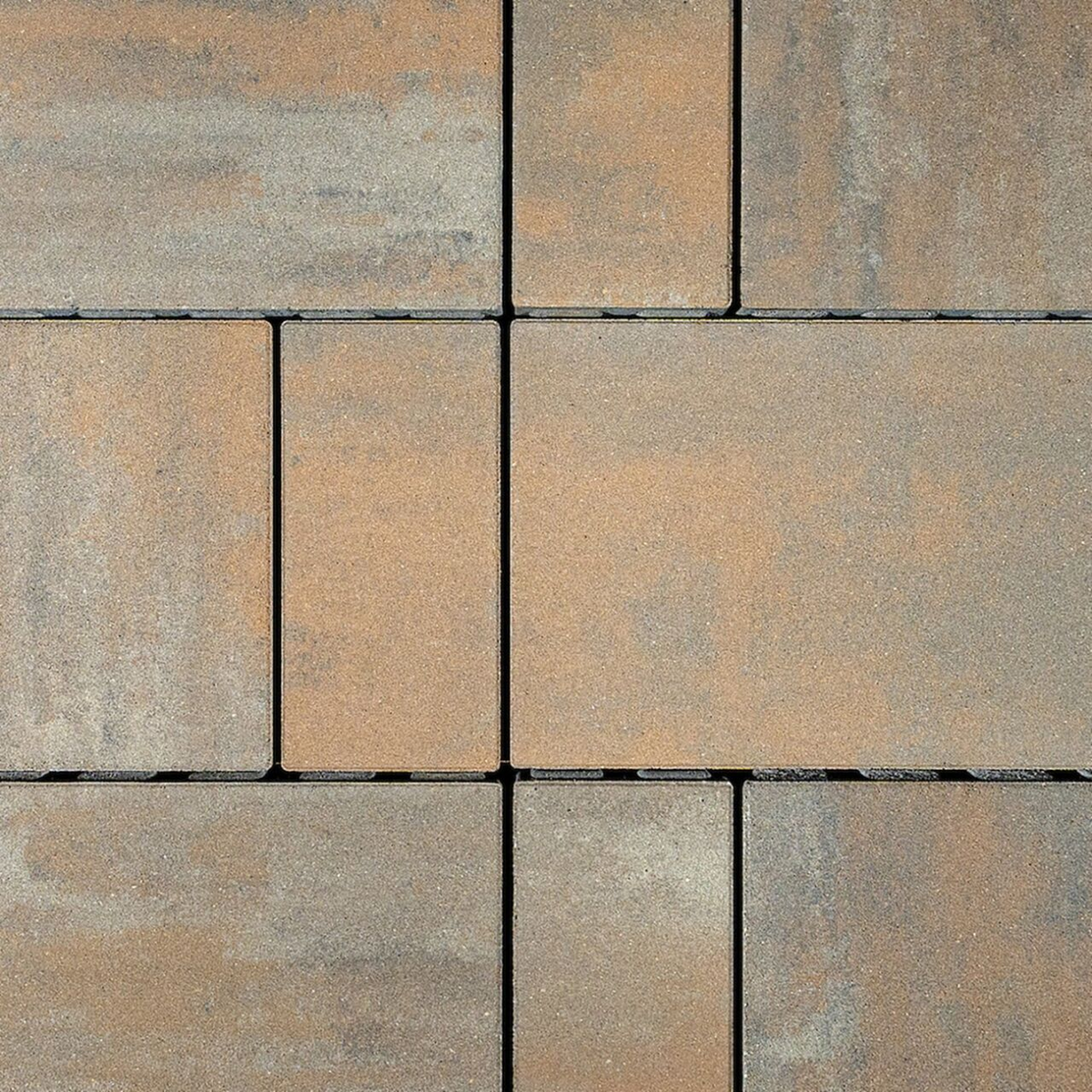

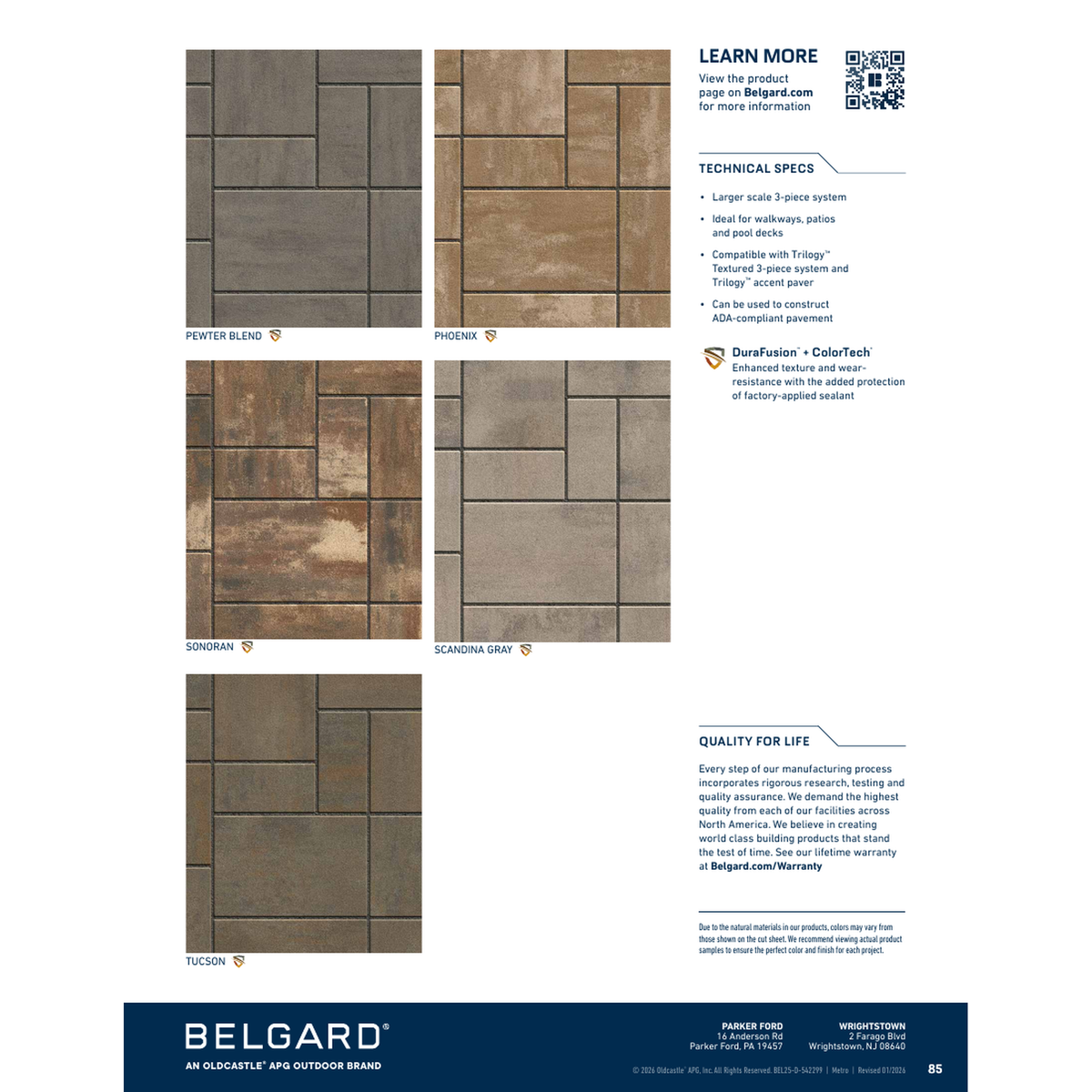

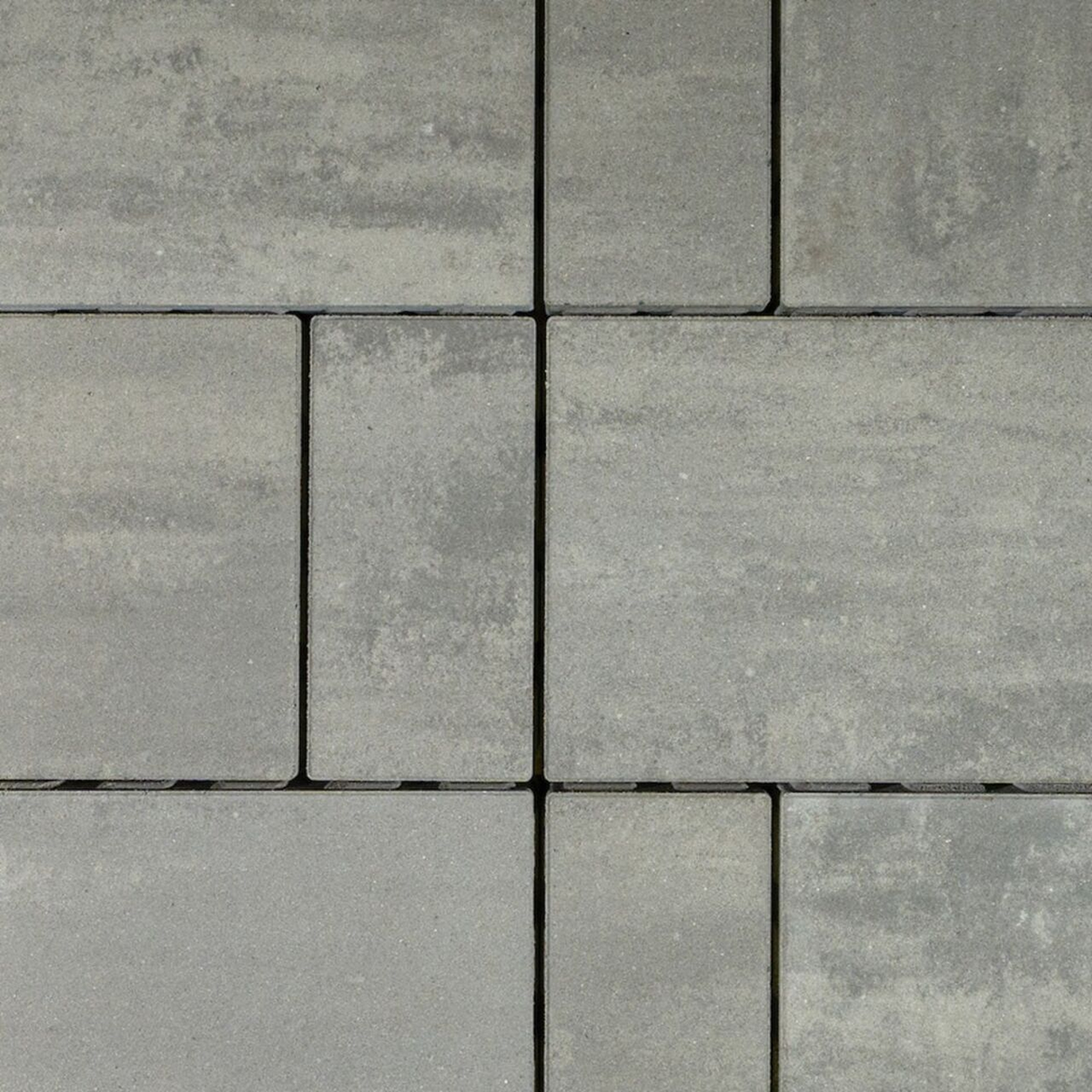

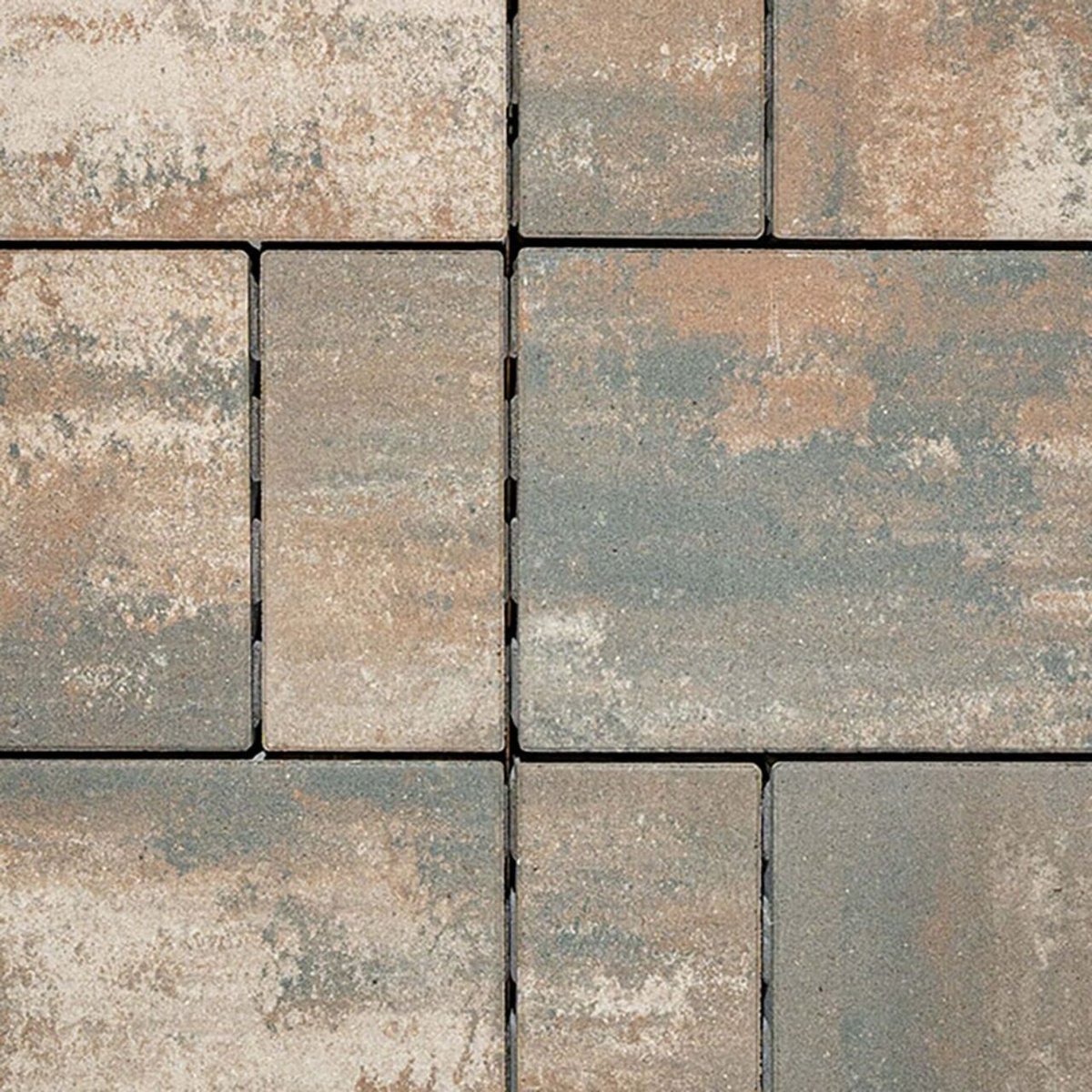

- Colors: Tucson, Sonoran, Pewter Blend
- Material: Dry-cast concrete with natural aggregates, DuraFusion surface and factory-applied ColorTech sealer

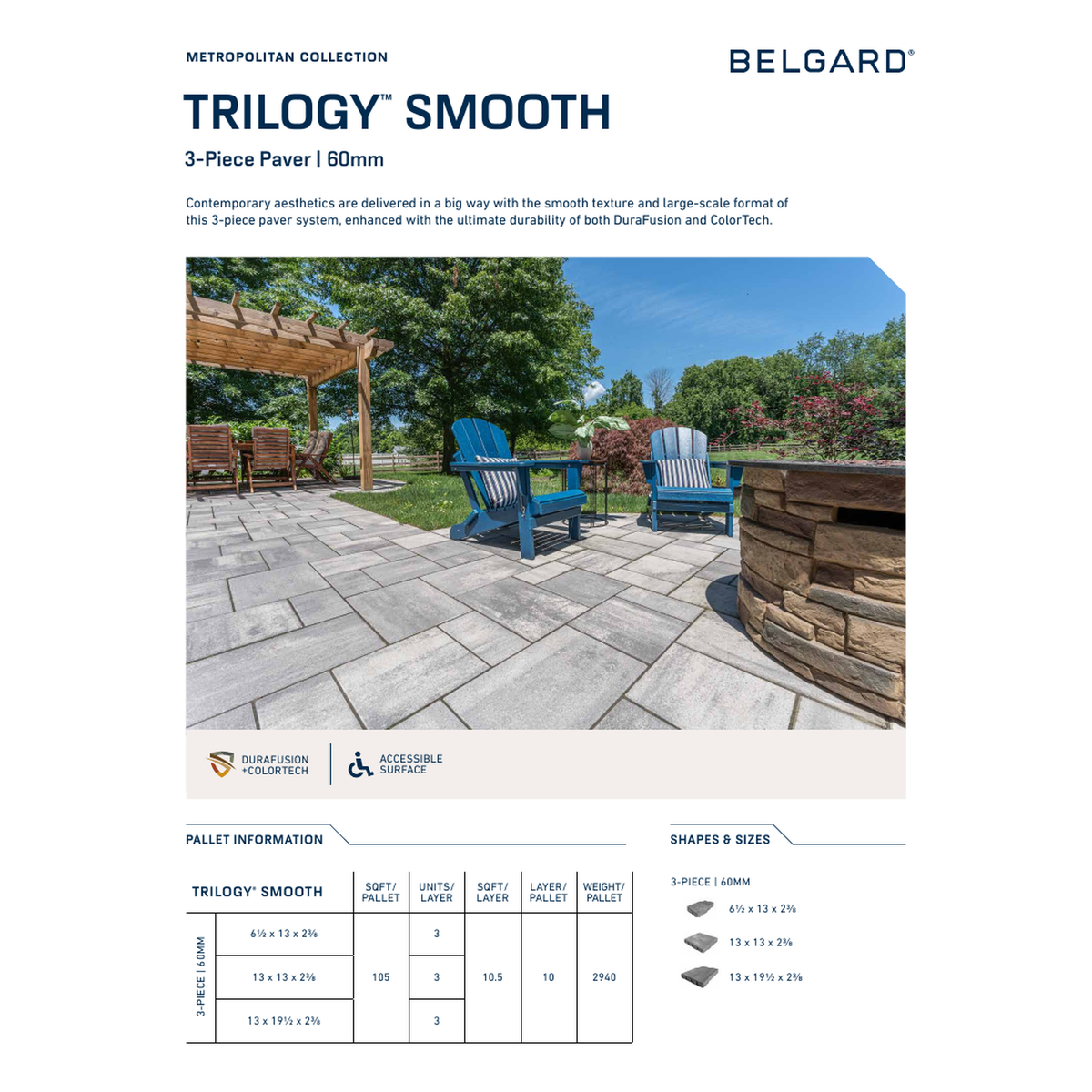

- Pallet: 105 sq ft, 10 layers, 2,940 lb; about 30 pieces of each size
- Use: Pedestrian only; not rated for vehicular applications
- Warranty: Lifetime transferable limited warranty
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
EP Henry Trilogy Smooth is a 60 mm (2-3/8 in) large-format modular paver system in three sizes, 6-1/2 x 13, 13 x 13 and 13 x 19-1/2 in, with a smooth face, DuraFusion Technology wear surface and factory-applied ColorTech sealer. Produced at the former EP Henry plants under Belgard Metro and Mid-Atlantic, it is a pedestrian-rated unit for patios, walkways and pool decks and is not rated for vehicular loads. Stocked colors are Tucson, Sonoran and Pewter Blend. Sold per piece here; a full pallet is 105 sq ft, 10 layers, 2,940 lb, roughly 30 pieces of each size.
Key Features
- Take-off: Per layer the 6-1/2 x 13 pieces cover 1.76 sf, the 13 x 13 cover 3.521 sf and the 13 x 19-1/2 cover 5.281 sf, for 10.5 sf per layer and 105 sf per pallet. Order by the square foot plus waste for cuts and blending.
- Surface: DuraFusion Technology face for color and texture retention; ColorTech sealer applied at the plant, so no post-install seal coat is needed.
- Permeable install: Spacer bars set a 7 mm joint that qualifies Trilogy for a permeable section over open-graded base with appropriate jointing aggregate.
- Accessibility and compatibility: Can be used to construct ADA-compliant pavement; modular sizes are compatible with Trilogy Textured for mixed-finish fields and borders.
- About EP Henry: Dry-cast with natural aggregates and Solidia low-carbon cement technology by EP Henry, part of Oldcastle APG since 2021 and sold through Belgard, with a lifetime transferable limited warranty.
How to Install It
Build a compacted aggregate base sized for pedestrian loading and soil conditions, screed a 1 in bedding course, and lay from string lines in a random modular pattern, pulling from multiple layers to blend color. For a permeable section, substitute open-graded base and bedding and joint with the specified aggregate at the 7 mm spacing. Restrain all edges, sweep joints and compact with a protected plate. Hold the field to patios, walkways and pool decks; do not spec Trilogy Smooth for driveways or vehicular aprons. Confirm the piece size on the store variant before pricing a job by the piece.
Specifications
- Sizes: 6-1/2 x 13 x 2-3/8 in; 13 x 13 x 2-3/8 in; 13 x 19-1/2 x 2-3/8 in; Belgard size code EC-10000440
- Pallet: 105 sq ft, 10 layers, 2,940 lb, about 30 pieces of each size
- Colors: Tucson (Belgard item 127000508), Sonoran (127000512), Pewter Blend (127000486)
- Material: Dry-cast concrete paver with DuraFusion surface and ColorTech sealer
- Rating: Pedestrian only; not rated for vehicular applications; ADA-compliant pavement possible; permeable option at 7 mm joints
- Warranty: Lifetime transferable limited warranty
