Description
The Hunter® Pro-C® P2C-400 is the step-up from a basic residential timer — same simple dial-and-button programming as the X-Core, but with a modular wiring bay that grows from 4 stations to 23 as the property grows. Plus two sensor inputs, an optional Wi-Fi module slot for app control, dedicated Solar Sync programming, IP44 outdoor-rated cabinet, and 120 VAC plug-in install — this is the controller pros stock when they need one box that handles a starter system today and a full property tomorrow.
Why Pros Specify the Pro-C
- 4-station base, modular expansion to 23 stations — add PCM-300 (3-station) or PCM-900 (9-station) modules in the wiring bay; no controller swap, no wire pull
- Hybrid EZ Decoder option up to 32 total stations — mix conventional + two-wire on the same controller (28 stations max if two-wire only)
- 3 independent programs, 4 start times each — turf, drip, ornamentals, and a hand-water override on one controller
- 2 sensor inputs (SEN-1 / SEN-2) — wire a Hunter Clik rain/freeze/wind sensor and a separate Solar Sync ET sensor simultaneously, no jumper acrobatics
- Dedicated Solar Sync® dial position — full ET-based weather adjustment built into the firmware; pair with Solar Sync transmitter (sold separately) to take over seasonal adjust
- Optional PC-WIFI module — drops into the controller slot to enable remote programming and monitoring via the Hydrawise™ app over 2.4 GHz Wi-Fi (WPA/WPA2 personal)
- SmartPort® remote harness — included; plug in any Hunter ROAM or ROAM XL for one-person zone testing
- Optional Seconds Mode — run times in 1-second increments for high-precision drip / micro-spray zones

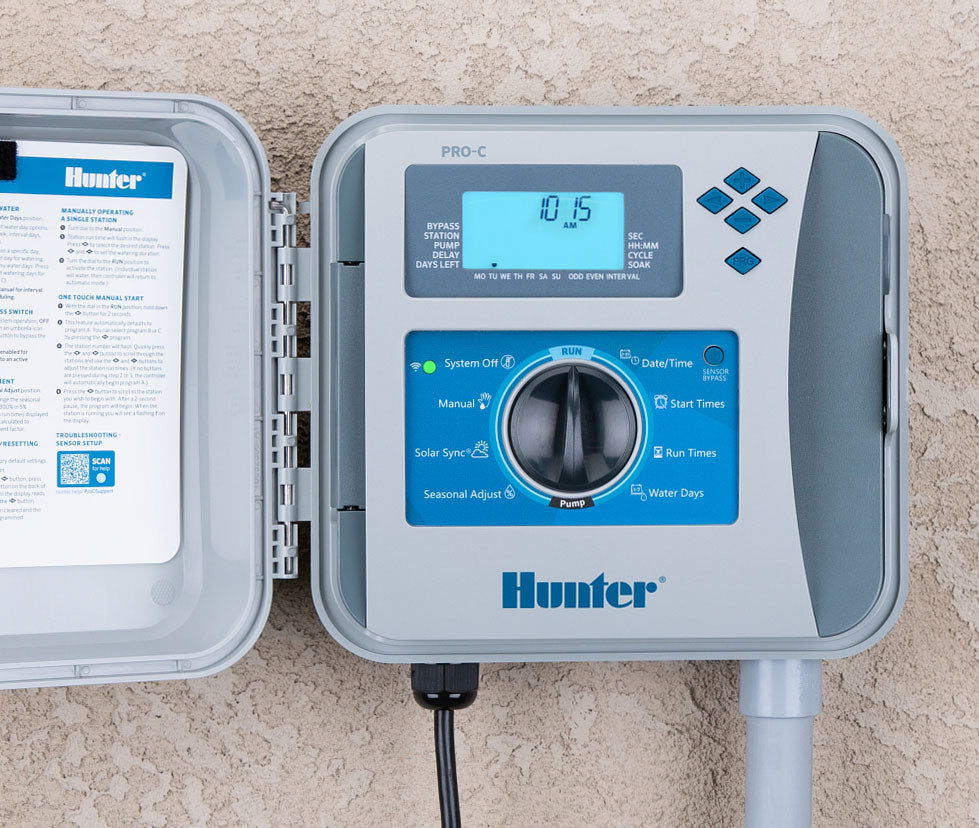

- Large backlit LCD — programmable in any light, including outdoor twilight installs
- P/MV output for pump start relay or master valve — standard on every Pro-C, no module add-on
- Built-in surge protection & non-volatile memory — programs survive power loss indefinitely
- Pre-wired 120 VAC cord with U.S. plug — outlet install, no electrician needed for residential outdoor mounts
- IP44 cabinet rating — certified for outdoor wall mount on a stucco, brick, or wood substrate
- 2-year manufacturer warranty, UL Listed
Where It Shines
- Residential properties starting at 4–6 zones with planned future expansion (back yard build-out, drip retrofit, lighting circuit add)
- Light-commercial sites (HOAs, small commercial frontage, restaurants) where 6–23 stations fit on one cabinet
- Service-call swaps replacing Hunter SRC, Rain Bird ESP-RZX, Orbit B-hyve, or Toro EVOLUTION — same SENS terminal, same pre-wired transformer install, faster pull-and-replace
- Anyone who wants the Wi-Fi upgrade path without paying for a Hydrawise-only controller today — buy the Pro-C now, drop in the PC-WIFI module when ready
- Mixed indoor/outdoor installs — the IP44 cabinet handles eaves, soffits, garage exterior walls without a separate enclosure
Specifications
- Model number: P2C-400 (Hunter SKU P2C400)
- Type: outdoor/indoor wall-mount modular irrigation controller, plastic cabinet, 120 VAC plug-in with U.S. cord
- Base stations: 4
- Maximum stations (conventional wiring): 23
- Maximum stations (Hybrid EZ Decoder): 32 total (28 max if two-wire only)
- Expansion modules (sold separately): PCM-300 (3-station), PCM-900 (9-station)
- Programs: 3 independent (A, B, C)
- Start times: 4 per program (12 daily starts max)
- Station run time range: 1 minute to 6 hours; optional Seconds Mode 1 second to 12 hours
- Sensor inputs: 2 (SEN-1, SEN-2) — Hunter Clik or Solar Sync
- Hardware sensor bypass switch (faceplate)
- Seasonal adjust: 10% to 150% manual, or automatic via Solar Sync sensor
- P/MV output: 1 (pump start relay or master valve), 0.28 A @ 24 VAC
- Battery: 3 V lithium CR2032 (included) for clock backup; non-volatile flash for programs
- Transformer input: 120 VAC, plug-in U.S. cord
- Transformer output: 24 VAC, 1.0 amp
- Station output: 0.56 amps per station @ 24 VAC
- SmartPort® remote harness: included
- Wi-Fi: optional PC-WIFI module (2.4 GHz, 802.11b/g/n, WPA/WPA2 Personal) — sold separately
- Cabinet rating: IP44 (outdoor/indoor wall mount)
- Approvals: UL, cUL, FCC, CE, UKCA, RCM, ISED
- Warranty: 2-year manufacturer warranty
- UPC: 611698958605
What’s in the Box
- One P2C-400 Pro-C controller with 4-station base wiring bay
- Pre-wired 120 VAC transformer with U.S. plug
- SmartPort® remote wiring harness
- 3 V CR2032 lithium battery (pre-installed)
- Wall-mount screws and anchors
- Printed Owner’s Manual and programming sticker (mounted inside the door)
Install Notes

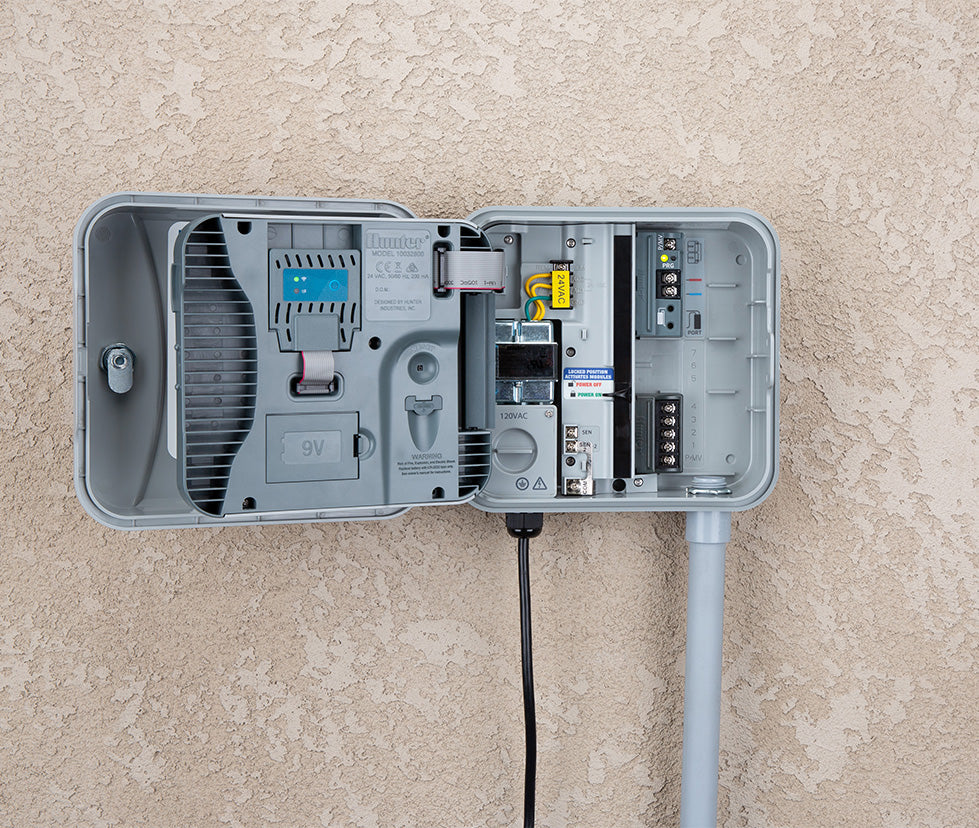

Mount location: indoor or outdoor (IP44 rated). Typical installs: garage exterior wall, mechanical room, eave under cover, or interior utility closet. Mount with the included screws on stucco, brick, drywall, or wood.
Power: 120 VAC convenience outlet within reach of the pre-wired transformer cord. No hardwiring required for the base unit.
Valve wiring: 18 AWG multi-strand sprinkler wire from the valve box, common to the C terminal, station leads to stations 1–4.

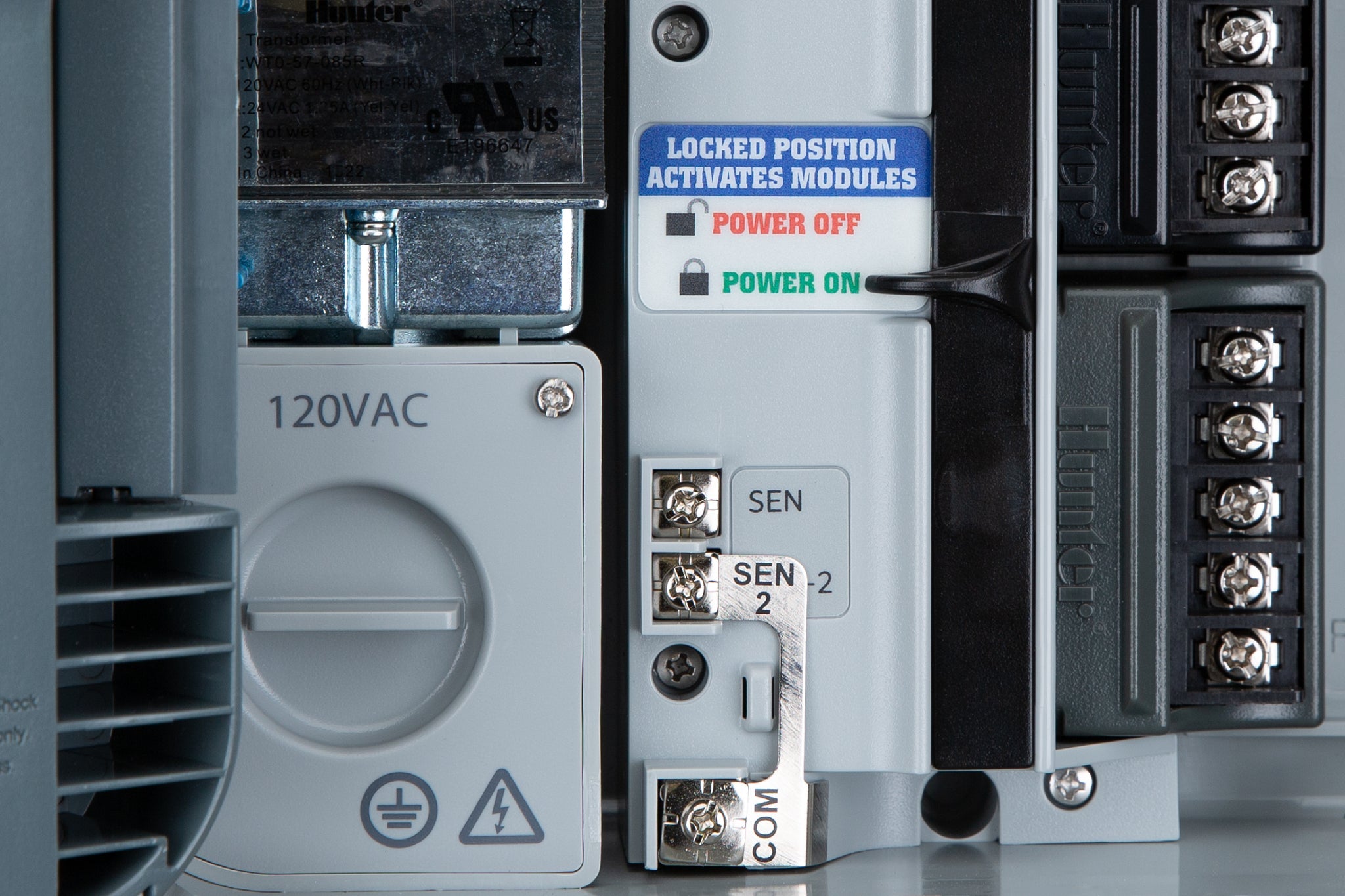

Expansion: rotate the locking lever on the wiring bay to POWER OFF, slide in the PCM-300 (3-station) or PCM-900 (9-station) module, rotate back to POWER ON. Stations become live immediately, no reprogramming.
Sensors: wire each Hunter Clik sensor to SEN-1 or SEN-2 with the bypass switch in ACTIVE.
Wi-Fi (optional): Power off, slide the PC-WIFI module into the dedicated slot, restore power. Pair to your 2.4 GHz network via the Hydrawise app.
Compatible Accessories — Sold Separately
- PCM-300 — 3-station expansion module
- PCM-900 — 9-station expansion module
- PC-WIFI — Wi-Fi connectivity module for Hydrawise™ app integration
- Solar Sync / Wireless Solar Sync — ET-based smart-water sensor
- Mini-Clik / Rain-Clik / Wireless Rain-Clik / Wind-Clik / Freeze-Clik — rain, wind, and freeze shutoff sensors
- ROAM / ROAM XL — handheld remote receivers (plug into the included SmartPort harness)
- EZ Decoder System (EZDM + EZ-1) — two-wire decoder retrofit for runs up to 32 stations
Pro-C P2C-400 vs. X-Core XC-600i — Which One Should You Buy?
- X-Core XC-600i — fixed 6 stations, indoor cabinet only, 1 sensor input, no Wi-Fi upgrade path, no expansion. Right for finished installs that will never grow past 6 zones.
- Pro-C P2C-400 — 4-station base modular to 23 (32 with decoder), IP44 outdoor cabinet, 2 sensor inputs, Solar Sync dial, Wi-Fi capable via PC-WIFI module. Right when the property might grow, when Wi-Fi remote control is a possibility, or when the controller has to live on an exterior wall.
Stop by Garoppo’s to pick one up, or schedule local delivery within our service area.
