Description

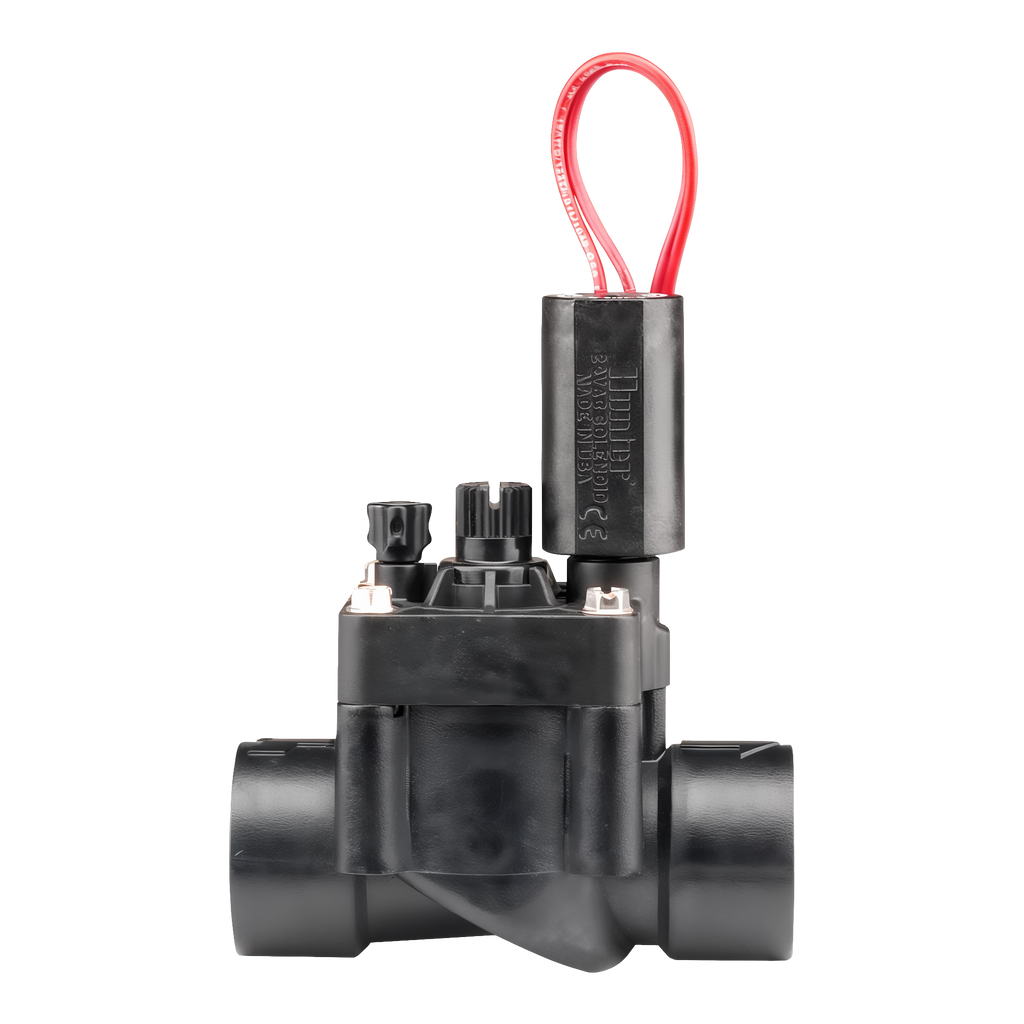

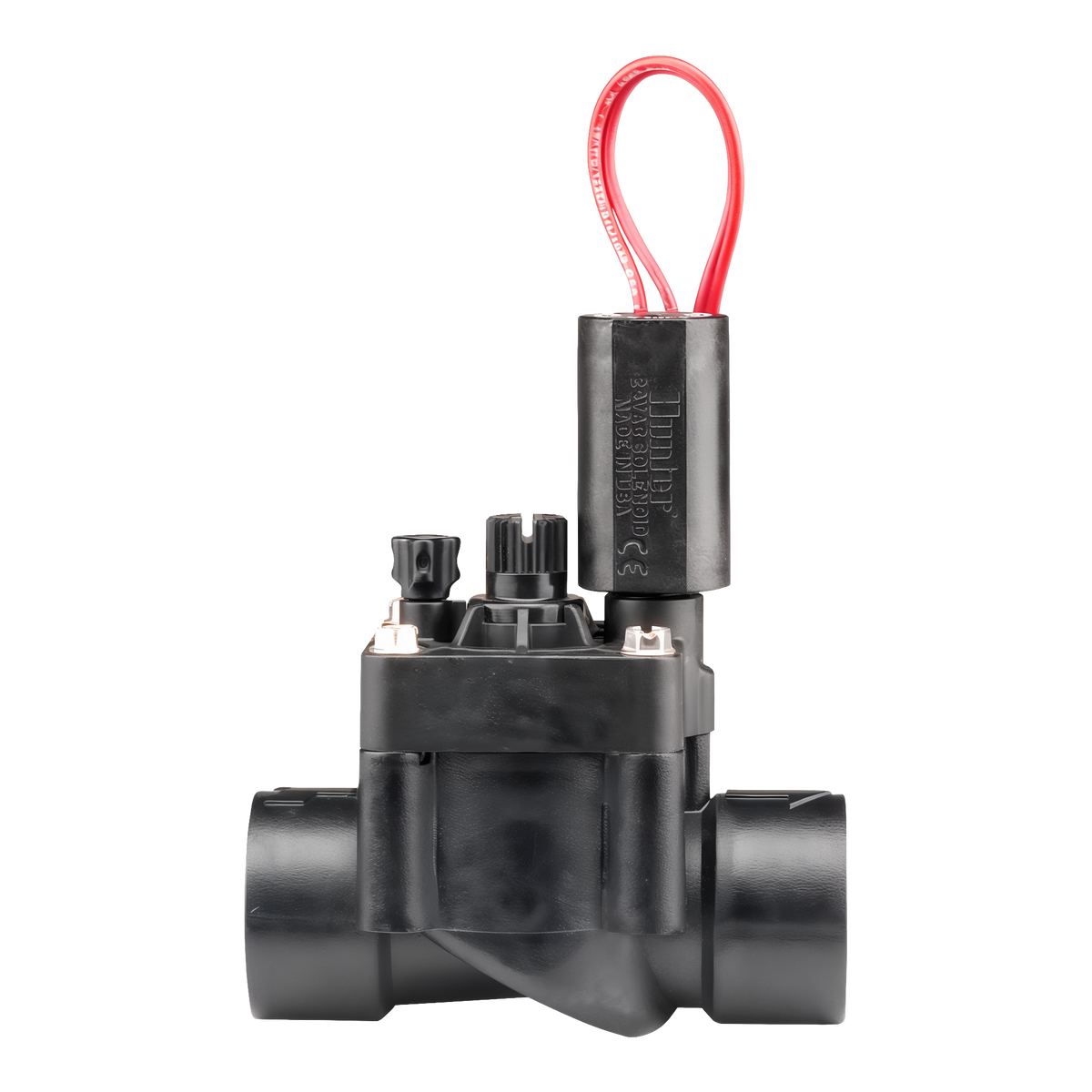

Put a dependable, serviceable valve on every zone with the Hunter PGV-101-G-S 1 in. PGV Globe Valve with Flow Control, Slip x Slip. The black plastic globe body has 1 in. slip (solvent-weld) inlet and outlet ports, a screw-top threaded bonnet that opens for service without cutting the valve out of the line, and a flow control handle on top that trims each zone to the pressure its heads want. Inside, a heavy-duty Hunter 24 VAC solenoid with a captive plunger and a rigid diaphragm support give it long, quiet life at up to 150 psi. It is the workhorse valve for residential lawn and drip systems.
Key Features
- 1 in. slip x slip: Solvent-weld inlet and outlet glue straight onto Schedule 40 PVC manifolds.
- Screw-top bonnet: Threaded bonnet opens for diaphragm or solenoid service with the valve in place.
- Flow control: The handle throttles the zone to fine-tune head performance or shut it down for repairs.
- Heavy-duty solenoid: 24 VAC solenoid with captive plunger; internal and external manual bleed; 150 psi rated construction.
- About Hunter: The PGV is Hunter Industries’ professional-grade residential valve family, offered in threaded, slip and DC-latching versions.
How to Install It

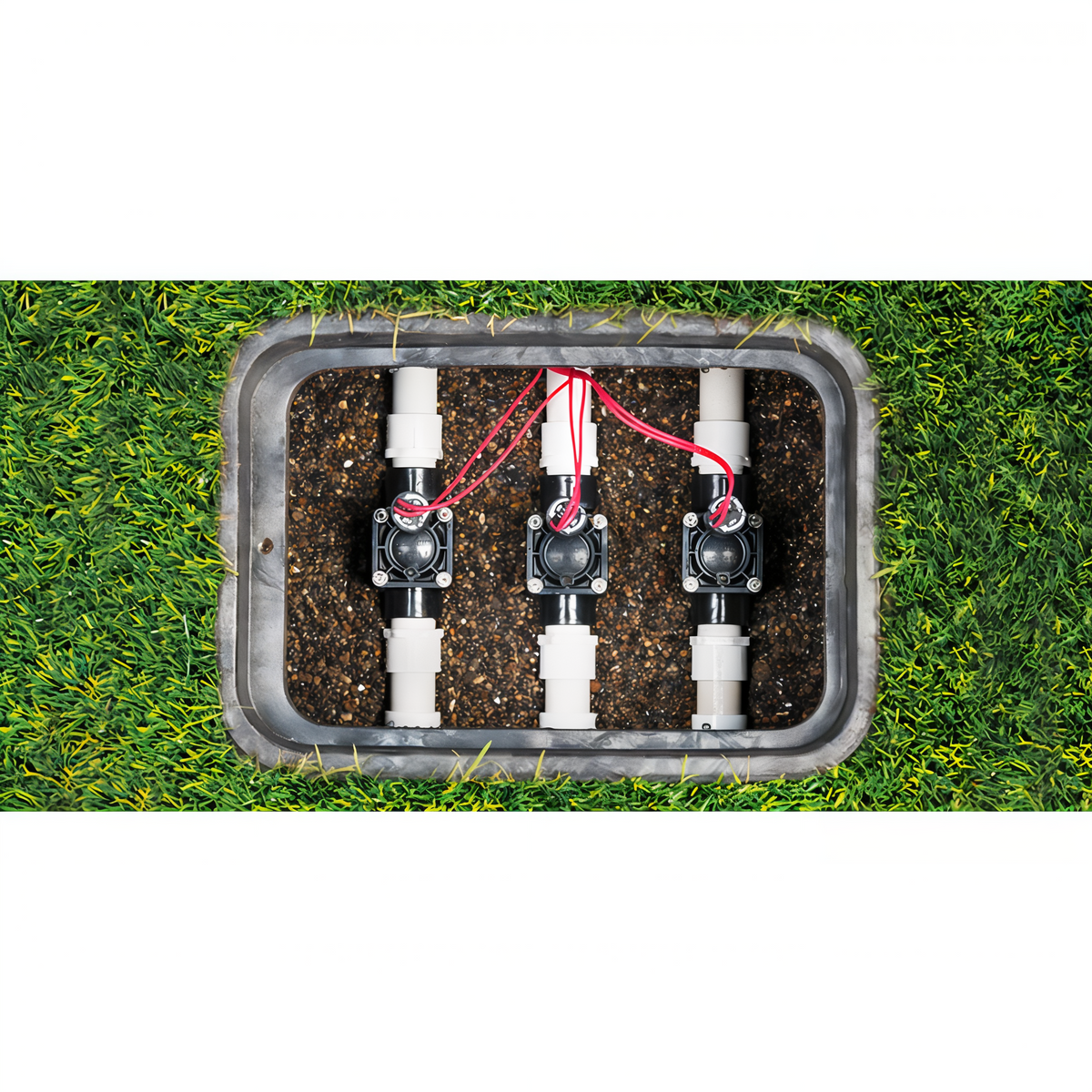

Build the manifold in a valve box with the valve’s arrow pointing in the direction of flow. Prime and cement the 1 in. inlet and outlet directly to PVC pipe, keeping the bonnet accessible for later service. Wire one solenoid lead to the zone wire and the other to the common using waterproof connectors, then bring the controller wire to the appropriate station. Open the flow control fully, run the zone, and turn the handle down until the heads stop misting. Use the external bleed screw to run the zone by hand without the controller. Pair it with a 12 in. x 17 in. valve box for a two- or three-valve manifold and a Hunter or Rain Bird controller with an open station.
Specifications
- Model: PGV-101-G-S
- Size and connection: 1 in. slip inlet and outlet
- Type: globe valve, screw-top bonnet, with flow control
- Solenoid: 24 VAC, captive plunger
- Pressure rating: 150 psi; internal and external manual bleed
- Pressure loss (1 in. globe): 1 psi at 3 gpm, 4 psi at 10 gpm, 8 psi at 30 gpm
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
