Description

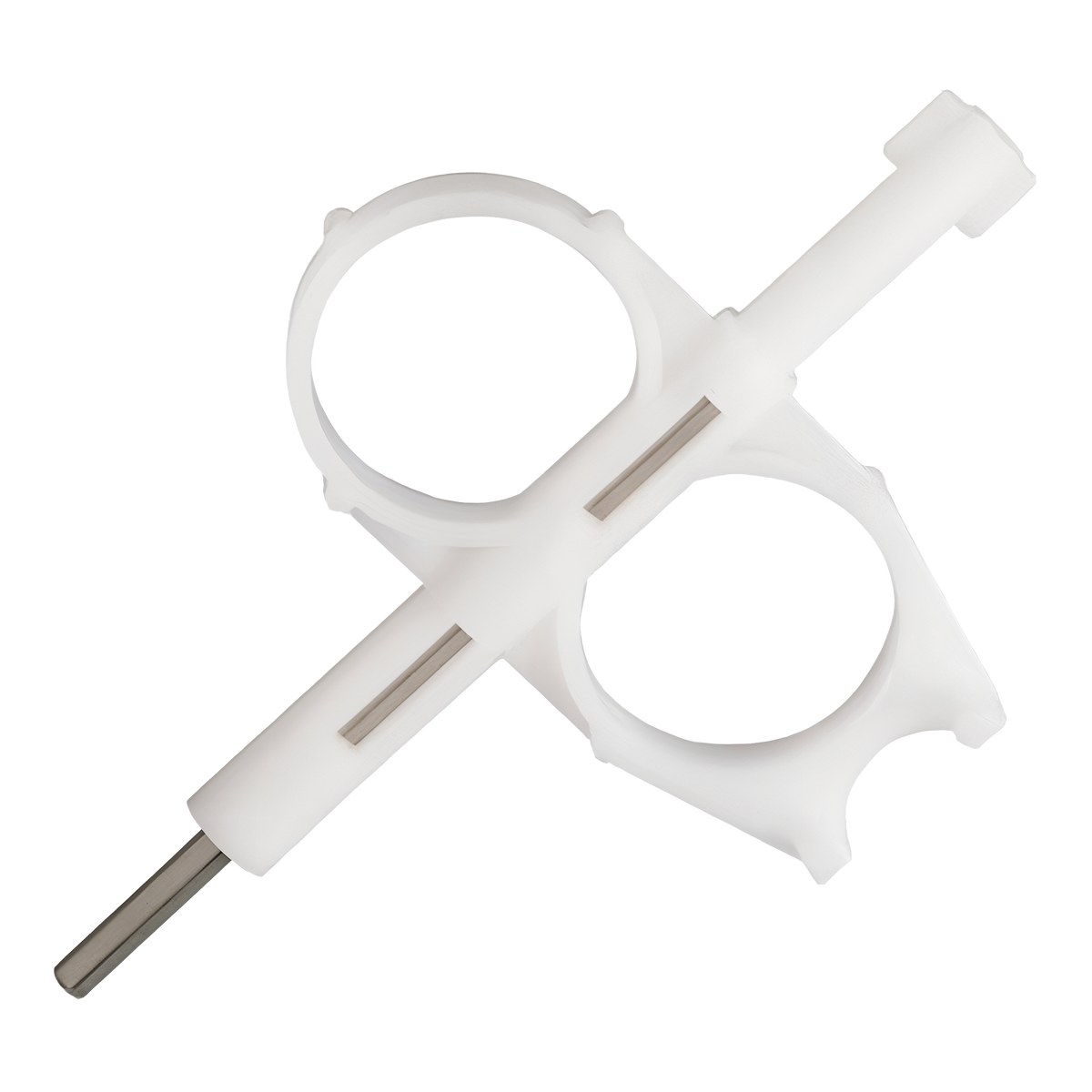

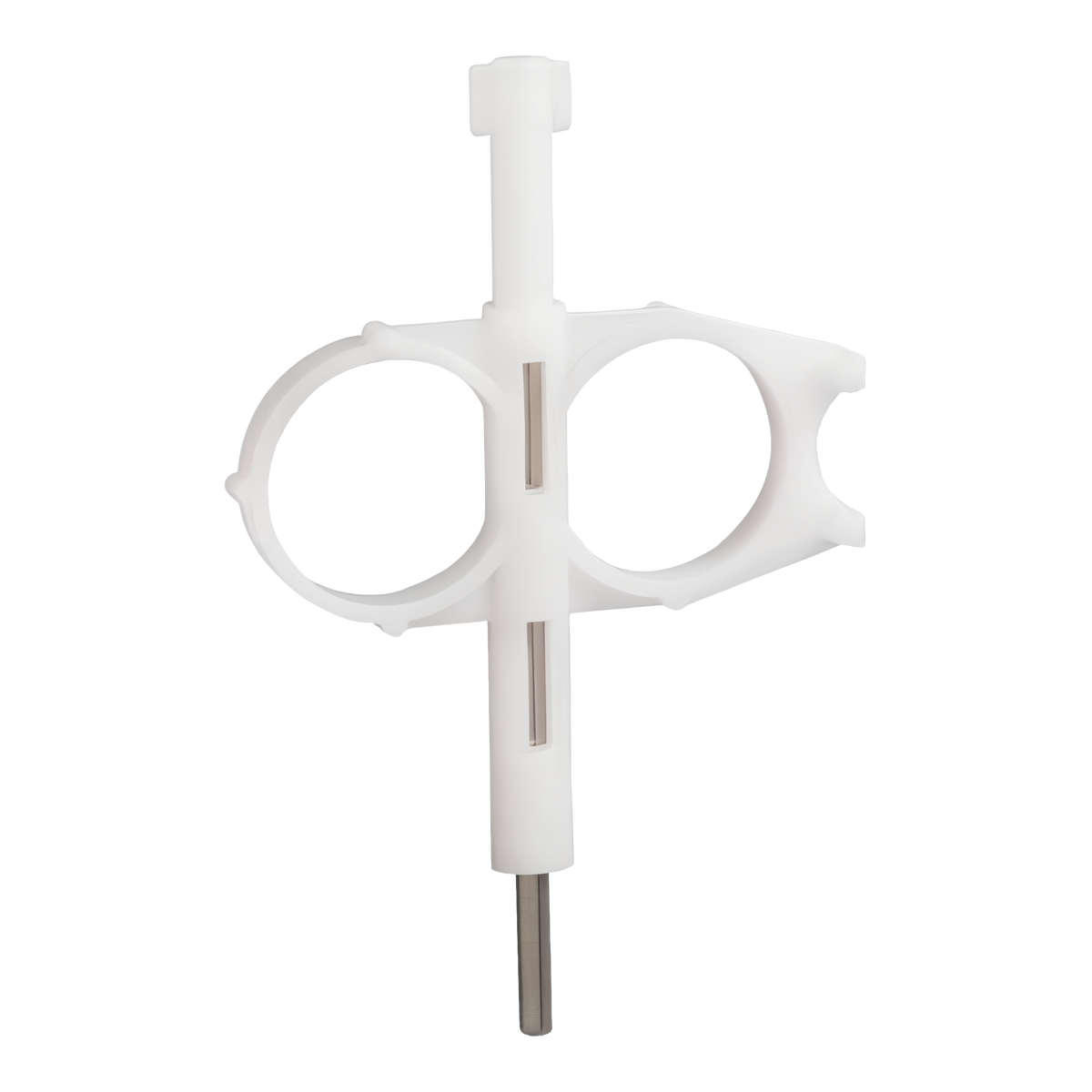

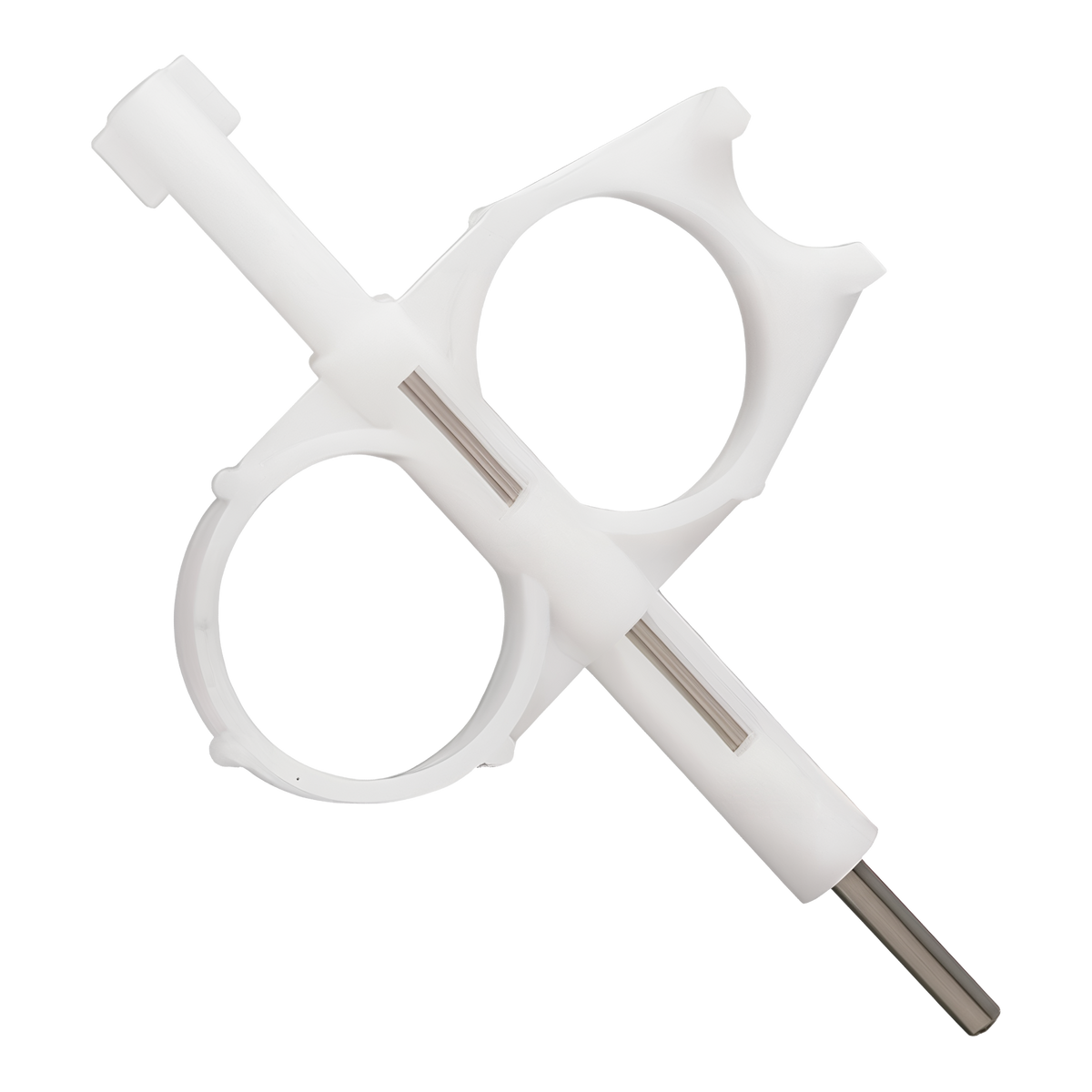

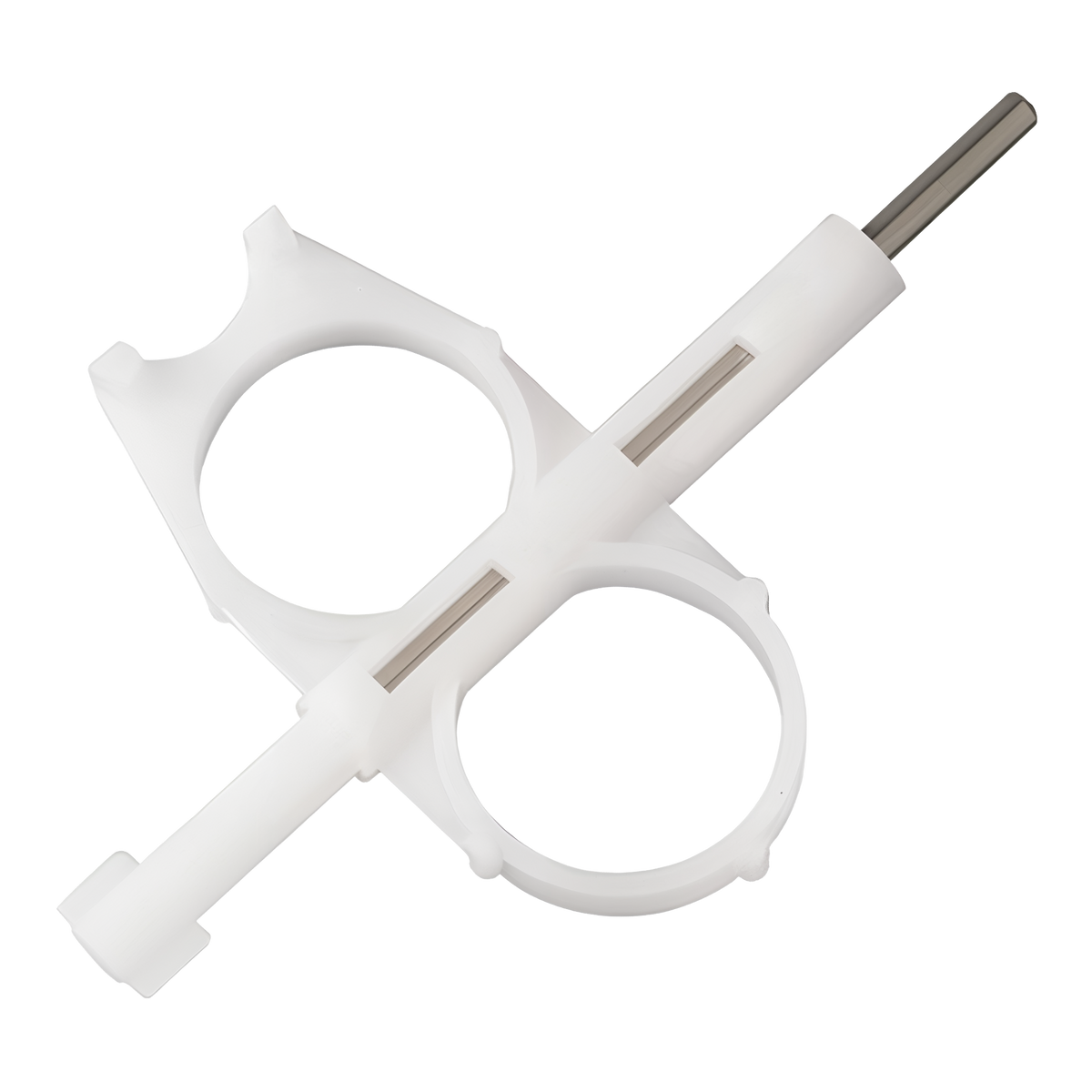

Dial in every rotor in the yard with the one key Hunter designed for the job, the Hunter Rotor Adjustment Wrench. The small plastic body, about three inches long, carries a steel 3/32 in. hex key on one end for the radius screw and an arc adjustment key on the opposite end, with two finger loops in between so it turns easily even when your hands are wet. It fits every Hunter residential rotor, from the PGP and PGP Ultra to the PGJ, I-20 and I-25, and also lifts the riser so you can change a nozzle without digging.
Key Features
- 3/32 in. hex key: Turns the radius (break-up) screw on all Hunter rotors to shorten or lengthen the throw.
- Arc adjustment key: The opposite end changes the left or right arc so the head waters the lawn and not the sidewalk.
- Finger loops: Two loops give a sure grip for turning the key with the rotor running.
- Riser lift: Pull the pop-up riser out to swap nozzles with the head in the ground.
- About Hunter: Hunter Industries makes the PGP, PGJ and I-series rotors this wrench is built around and supplies the tool through irrigation distributors.
How to Use It

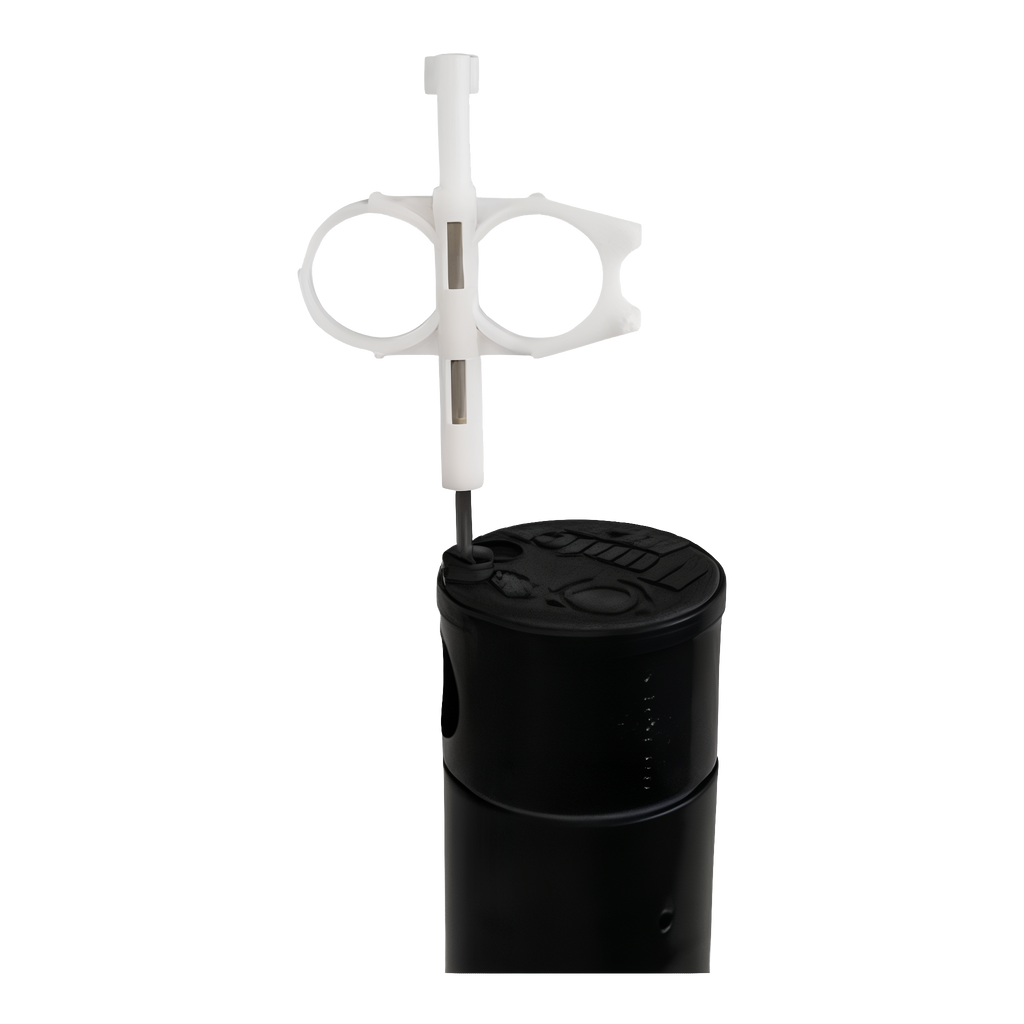

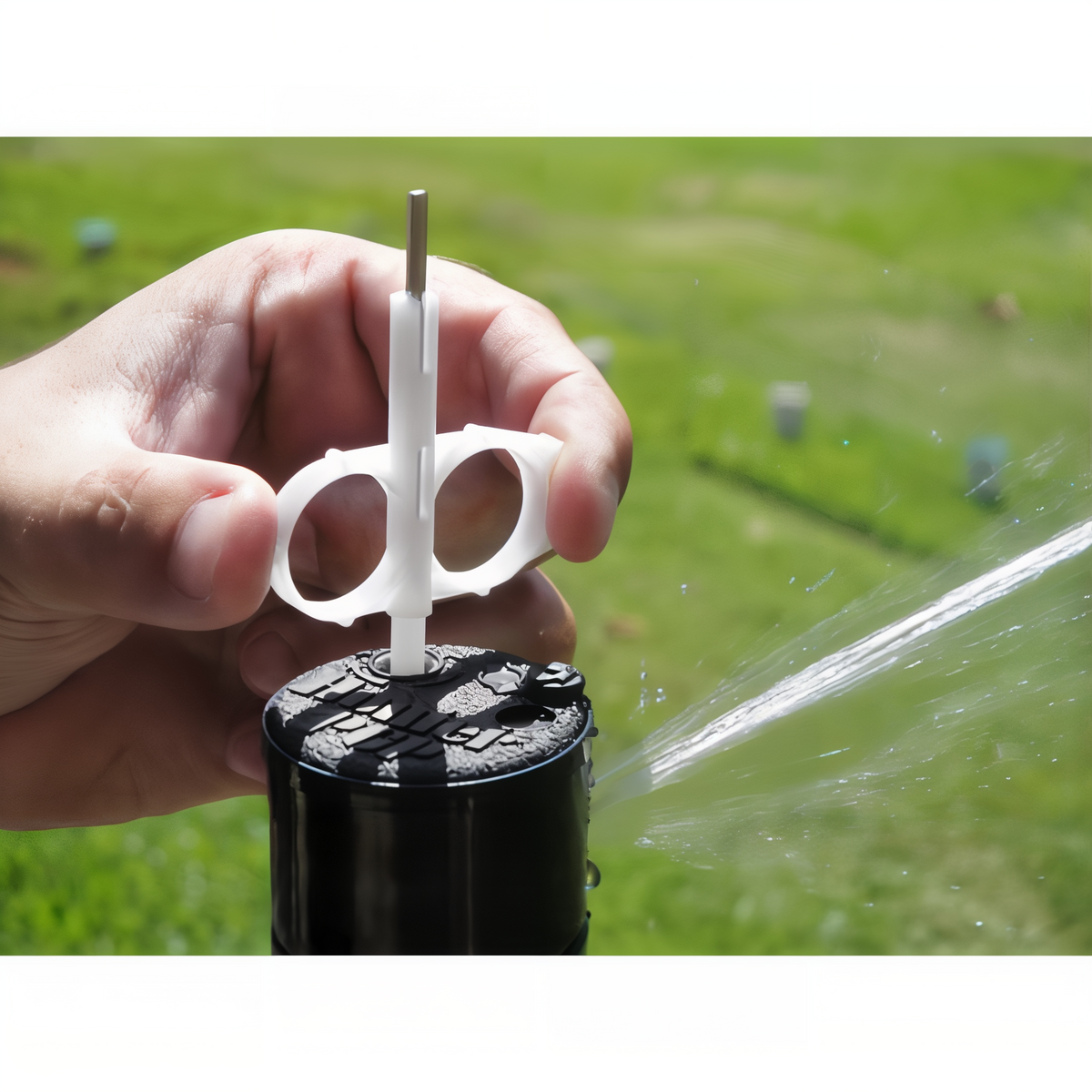

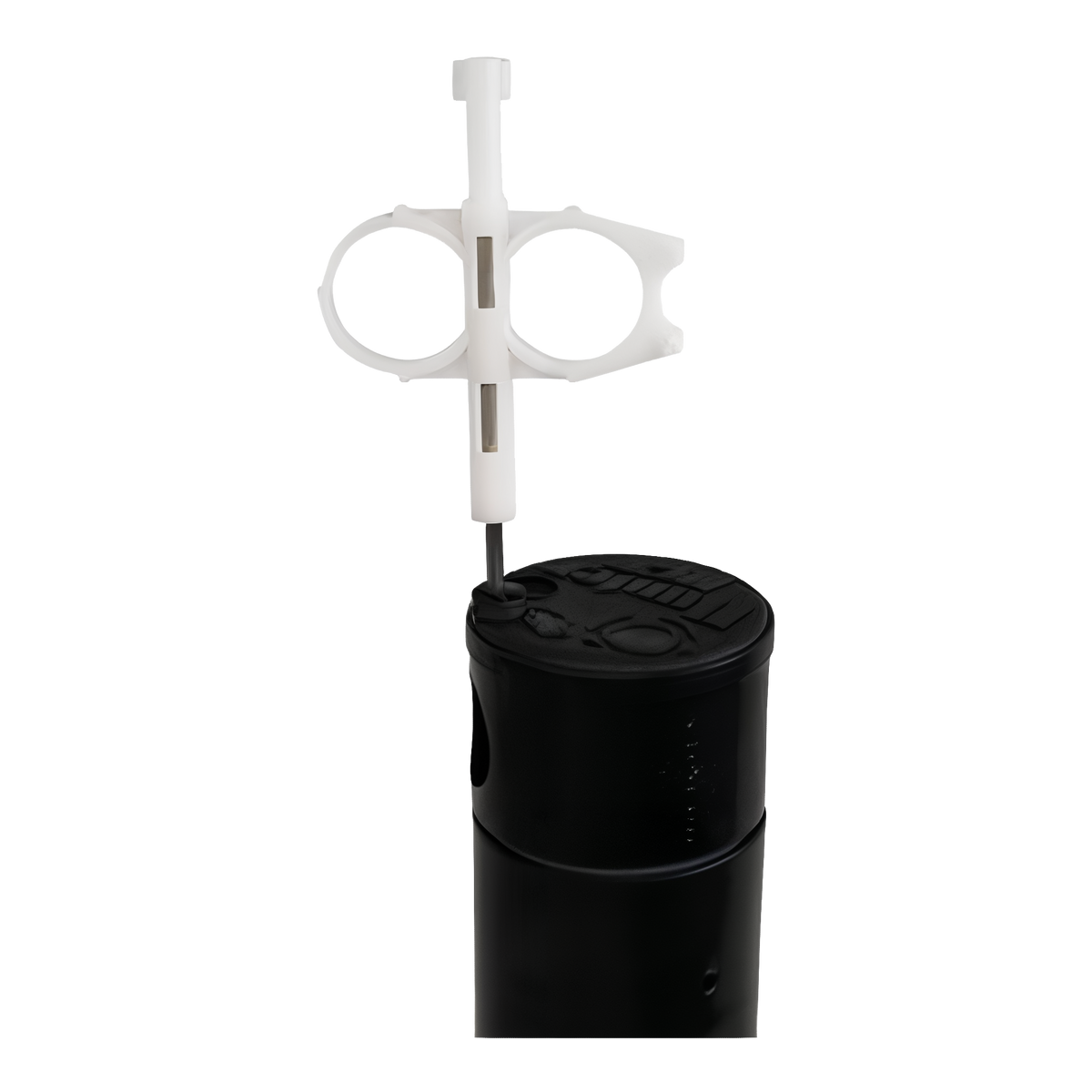

Run the zone and walk to the rotor. To change the distance, insert the 3/32 in. hex key into the radius screw on top of the nozzle and turn it in to shorten the spray or out to lengthen it. To change the arc, lift the riser with the wrench, hold it, and use the arc key to rotate the adjustment collar left or right until the pattern stops where you want it. For a nozzle change, lift the riser, back the radius screw out, pull the old nozzle and press in the new one. Use it on Hunter PGP, PGP Ultra, PGJ, I-20 and I-25 rotors; it is not the tool for Pro-Spray pop-up spray heads.
Specifications
- Type: rotor adjustment wrench and key
- Hex key: 3/32 in. (steel); body: plastic
- Fits: all Hunter residential rotors (PGP, PGP Ultra, PGJ, I-20, I-25); not for Pro-Spray heads
- Overall size: about 1 x 1 x 3 in.
- Sold per wrench
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
