Description
- Weight: 0.04 lb
- Dimensions: 0.5 x 1.0625 in

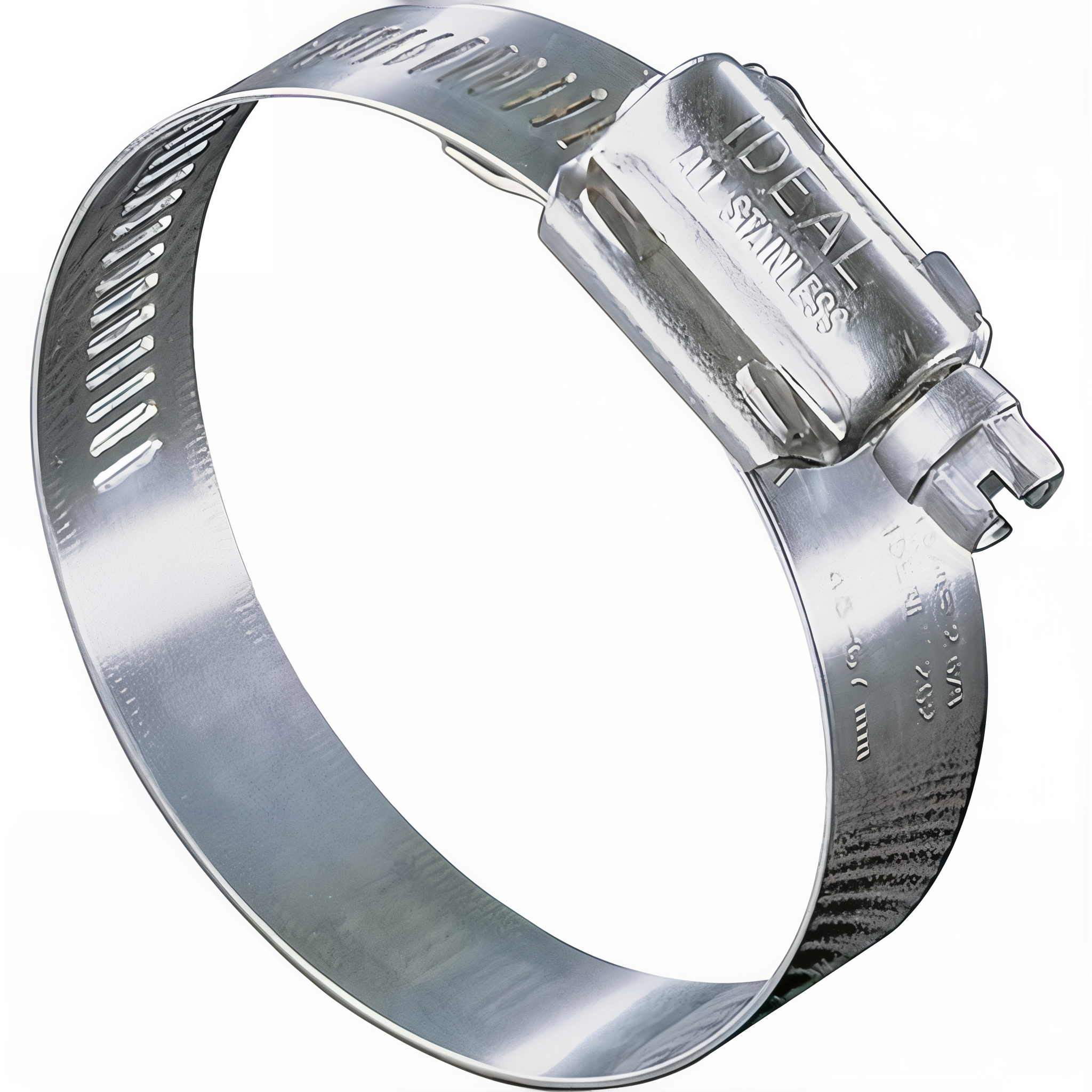

Lock down leaks fast with the Ideal Hy-Gear Series worm gear hose clamp built for jobsite reliability. Secure small-diameter lines with a stainless band that grips evenly and a tough 5/16 in slotted hex screw that tightens quickly with the tools you already carry.
Key Features
- Reliable seal: Spread clamping force with a 9/16 in band to help prevent hose damage and leaks.
- Corrosion resistance: Count on 201/301 stainless housing and band to stand up to weather and washdowns.
- Strong drive: Turn the 410 stainless screw with a socket or flathead for fast installs in tight spots.
- Flexible sizing: Adjust from 0.5 to 1.0625 in diameter to cover common 3/8–5/8 in hose IDs.
- Field-ready: Carry multiples without bulk; each clamp weighs just 0.04 lb.
Applications
Handle on-site connections for irrigation lines, water pumps, compressors, and small engine fuel or coolant runs. Fit the clamp behind the barb or bead and hold pressure under vibration and temperature swings common on outdoor crews.
Specifications
- Material: 201/301 stainless band and housing
- Screw: 410 stainless, slotted 5/16 in hex head
- Clamp range (diameter): 0.5–1.0625 in
- Suitable hose IDs: 3/8–5/8 in
- Band width: 9/16 in
- Weight: 0.04 lb
Install with a nut driver or flathead. Position just behind the fitting barb, then tighten until the hose compresses uniformly. Avoid over-tightening, and recheck after first run-in.
