Description
Ivy Classic pipe wrenches in five working sizes — 8 in., 10 in., 14 in. (heavy-duty cast-iron with red enamel) and 18 in., 24 in. (drop-forged aluminum, about 40% lighter than steel at the same reach). All five share the same hardened Cr-Mo (chrome molybdenum) steel jaws with spring-suspended top jaw for self-energizing bite. ANSI-spec, beam-handle pattern, ships with the IVY Classic hangtag.
What You Get
- Cr-Mo (chrome molybdenum) steel jaws — same hardened jaw alloy across all five sizes. Aggressive serrated teeth, heat-treated for repeated bite-and-release cycles without dulling
- Spring-suspended top jaw — pulls the wrench down into a self-energizing bite on each turn; release pressure to reposition without unscrewing the nut
- Beam-handle pattern (I-beam cross-section) — the high-stress profile that lets a thinner handle handle the torque of pipe work without flexing
- Hang hole at the handle end — molded into every size for tool-board, peg-hook, or lanyard storage
- Heat-treated thumbwheel nut — adjusts the jaw spread smoothly under load; doesn't slip when the wrench is under torque
- Drop-forged construction — high-density grain throughout the body, not cast
- ANSI-spec performance — conforms to ASME B107.310 dimensional and proof-load requirements
Sizes — What Each One Is For

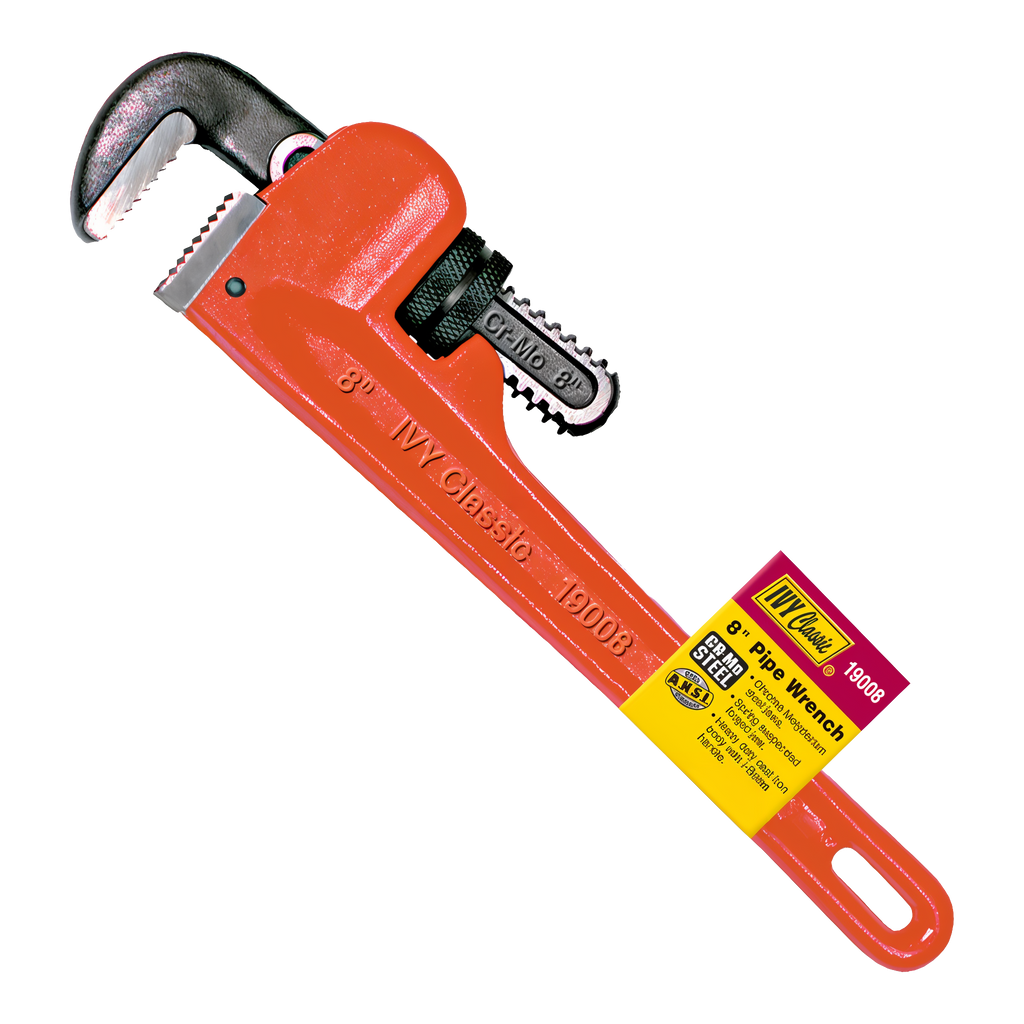

- 8 in. Steel (Model 19008, SKU 28258) — the small-pipe wrench: 3/8 in. to 1 in. nominal capacity. Trap arms, supply stops, compression fittings, anything in a tight cabinet or under-sink space where a bigger wrench won't fit. Heavy-duty cast-iron body, red enamel finish.
- 10 in. Steel (Model 19010, SKU 28259) — the most-reached-for residential plumbing size: up to 1-1/2 in. nominal capacity. P-traps, supply lines, ball valves, faucet shanks. The size that lives in the toolbox.

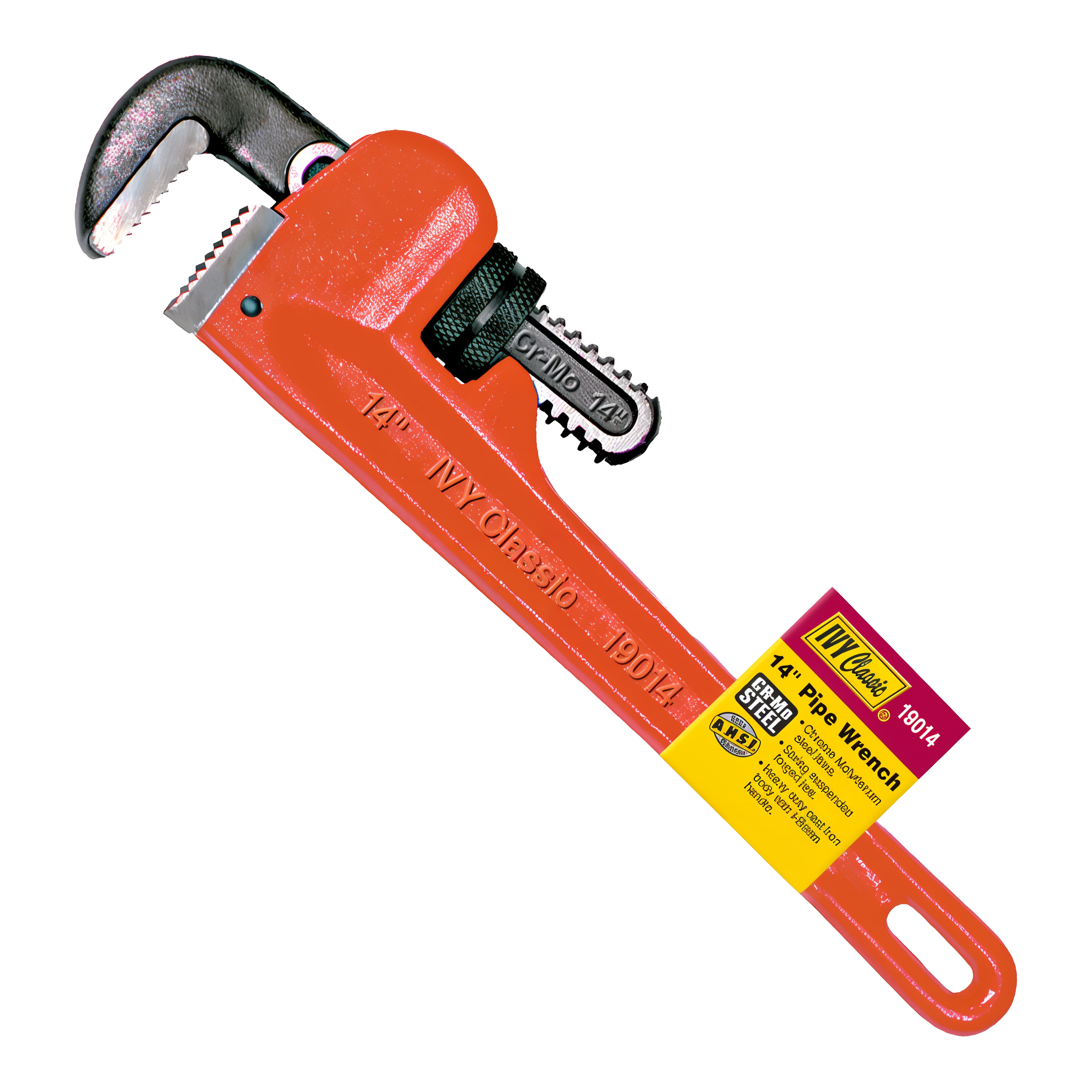

- 14 in. Steel (Model 19014, SKU 28260) — up to 2 in. nominal. Water-heater unions, washing-machine supply, pump fittings, and where a 10 in. wrench can't get the leverage. Still cast-iron / red enamel.

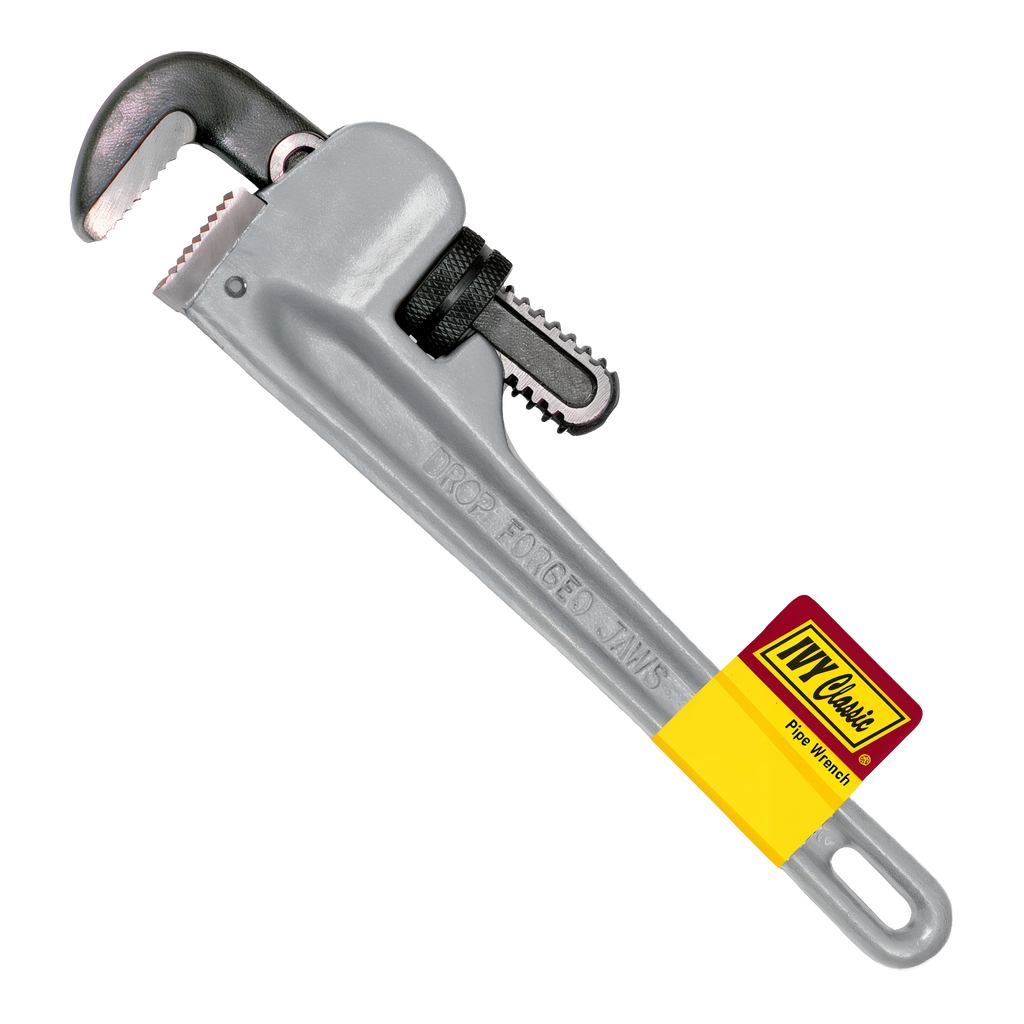

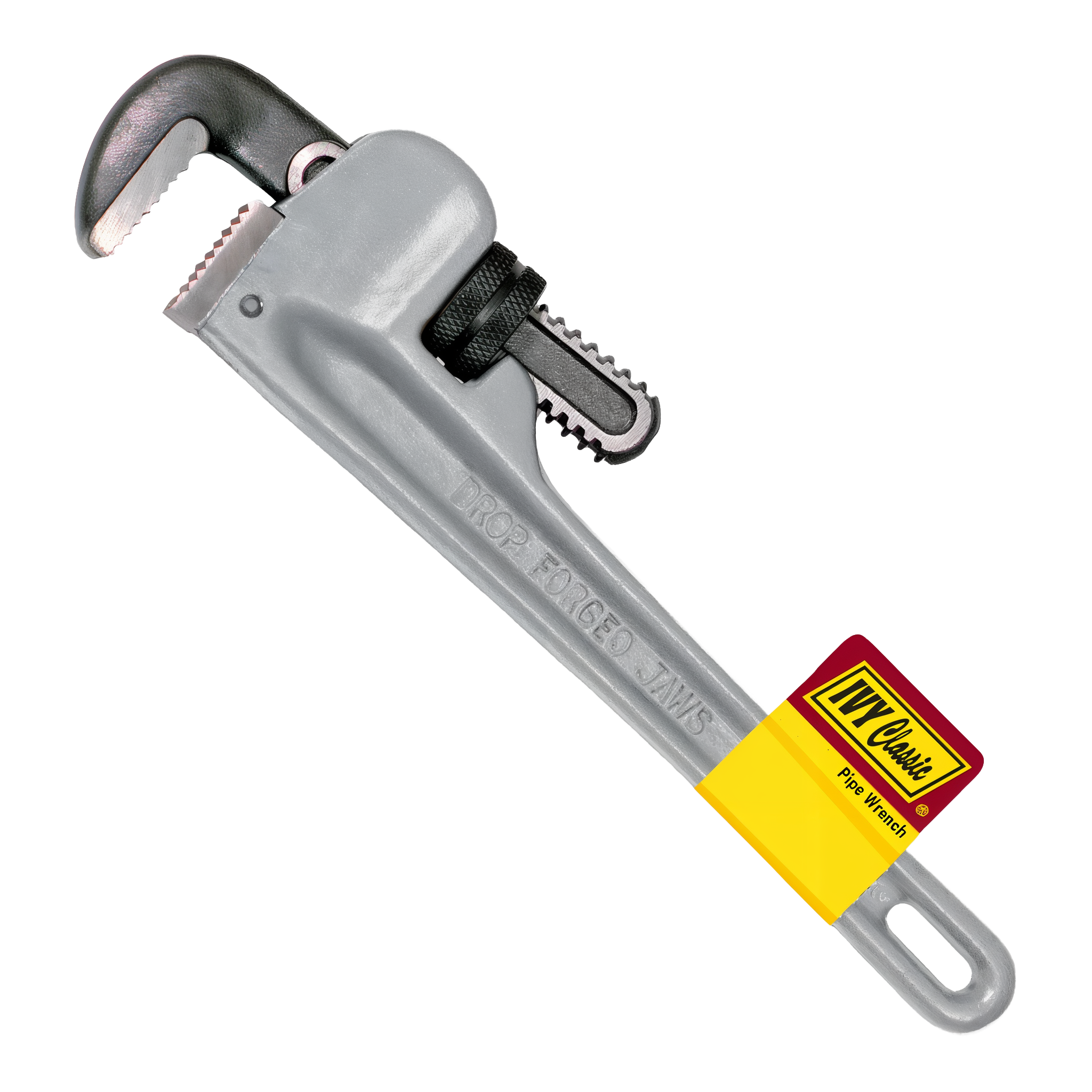

- 18 in. Aluminum (Model 19028, SKU 29059) — up to 2-1/2 in. nominal. Mainline work where you want long-handle leverage without the weight penalty of cast iron. Drop-forged aluminum body keeps the wrench around 5 lb where the steel version would be 8+ lb.
- 24 in. Aluminum (Model 19030, SKU 29063) — up to 3 in. nominal. The big one: well casings, irrigation mainline transitions, large-bore unions. Drop-forged aluminum keeps it overhead-friendly; steel jaws still do the cutting.
Steel vs. Aluminum — Which to Buy
Choose steel (8 / 10 / 14 in.) when budget matters more than weight. The cast-iron body is rugged, takes abuse, and shrugs off being thrown in a service van. Best for residential plumbing and small-pipe work where the handle isn't long enough to be a fatigue issue.
Choose aluminum (18 / 24 in.) when you'll be working overhead or carrying the wrench across a site all day. A 24-in. aluminum pipe wrench is roughly half the weight of an equivalent-length cast-iron one — matters a lot at the end of an 8-hour shift. The Cr-Mo jaws on the aluminum body are the same alloy as the steel version's, so bite strength is identical.
Specifications
- Manufacturer: Ivy Classic Industries
- Series: 19008 / 19010 / 19014 (steel) and 19028 / 19030 (aluminum)
- Jaw alloy: chrome molybdenum (Cr-Mo) steel, heat-treated, on all sizes
- Steel body sizes (8 / 10 / 14 in.): heavy-duty cast-iron, red enamel finish
- Aluminum body sizes (18 / 24 in.): drop-forged aluminum, natural grey finish, “DROP FORGED JAWS” embossed marking
- Handle pattern: I-beam (beam handle)
- Standards: ANSI / ASME B107.310 dimensional and proof-load conformance
- Country of origin: Ivy Classic catalog product, imported
Use Notes
Adjust the jaw spread loose, then tight: set the thumbwheel so the top and bottom jaws meet the pipe with the jaws slightly open, then snug down. A pipe wrench grips by biting in — the spring-suspended top jaw walks the bite into the pipe as you turn. Don't try to clamp the jaws fully closed before turning; that's a knuckle wrench, not a pipe wrench.
Pull, don't push. Pipe wrenches are designed to bite on the pull stroke (when the user pulls the handle toward themselves with the spring-loaded jaw oriented up). Pushing reverses the bite mechanics and risks the jaw skating.
One wrench backs up the other on union joints. Use a smaller pipe wrench on the union nut and a larger one on the pipe body, in opposing directions. Trying to undo a stuck union with one wrench transfers all the torque into rotating the pipe; you'll twist it out of the wall fitting.
Don't use a pipe wrench on chrome / brass / soft-finish fittings. The serrated jaws will mark the finish. Use a strap wrench, basin wrench, or padded jaws for finished plumbing.
Don't use a pipe extension (“cheater bar”) on the handle unless you're prepared to break the wrench. The handle is sized for the torque the jaws can take; an extension on a 14 in. wrench can wreck the jaw assembly before the joint breaks loose.
What’s in the Box
- One Ivy Classic pipe wrench in your selected size and material, with original Ivy Classic hangtag
Compatible Accessories — Sold Separately
- PTFE thread tape (white standard, pink heavy-duty) for any threaded joint being assembled
- Pipe joint compound for threads that don't seal cleanly with tape alone
- Strap wrench for chrome / brass / finished plumbing where serrated jaws would mark the surface
- Basin wrench for sink-supply nuts behind faucets (where a pipe wrench can't fit)
Stop by Garoppo’s to pick one up, or schedule local delivery within our service area.
