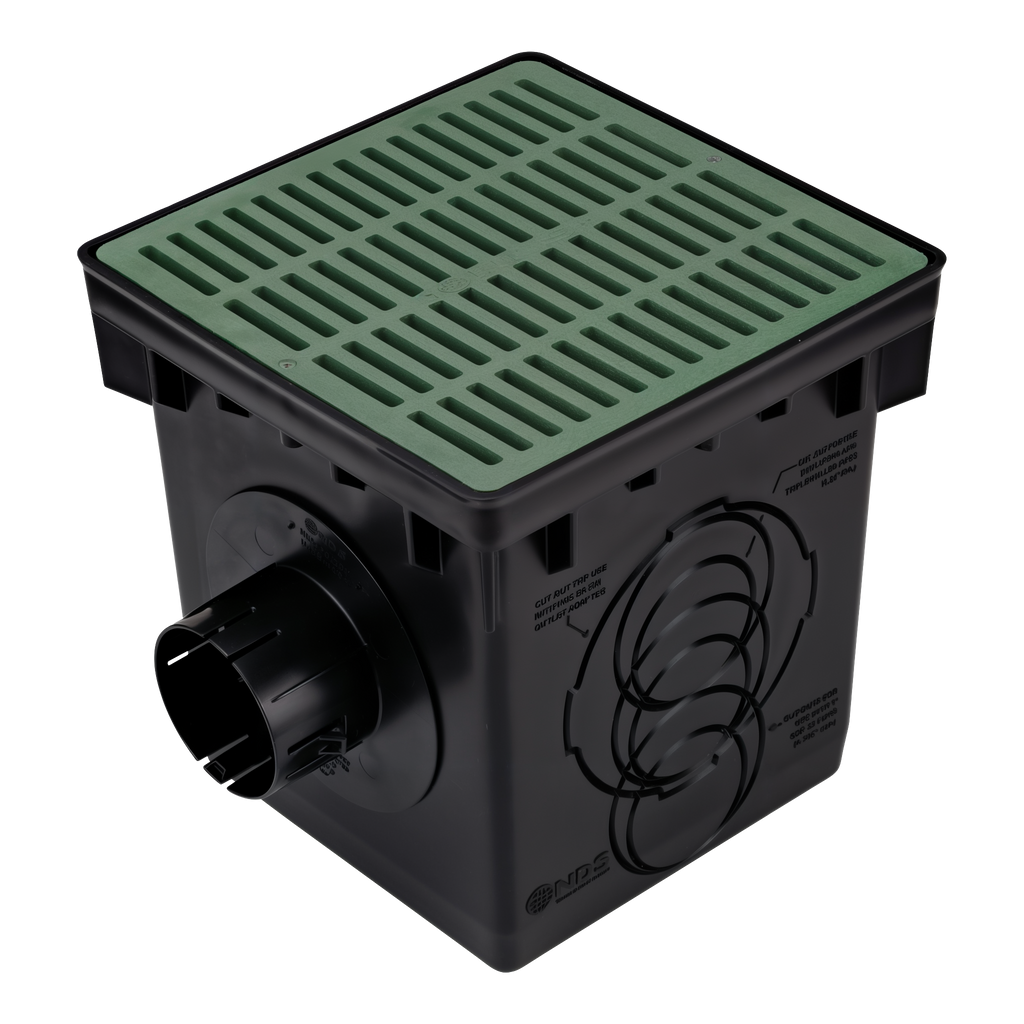

Move heavy runoff off a flooding lawn, patio or downspout corner with the NDS 12 in. Square Catch Basin Drain Kit, the larger of the two NDS square basin kits. The 12 in. by 12 in. polypropylene basin gives you a bigger grate face and more volume than the 9 in. model, so it takes the heavy flows that come off wide roof sections and sloped landscaping. The box includes the 2-opening basin, a green HDPE grate, two locking outlet adapters and an outlet plug, all UV inhibited, so the drain goes in with nothing else to buy.
Key Features
-
Heavy Flow Capacity: The 12 in. grate face and basin volume handle heavy flows from lawns, landscaped areas, downspouts, patios and walkways.
-

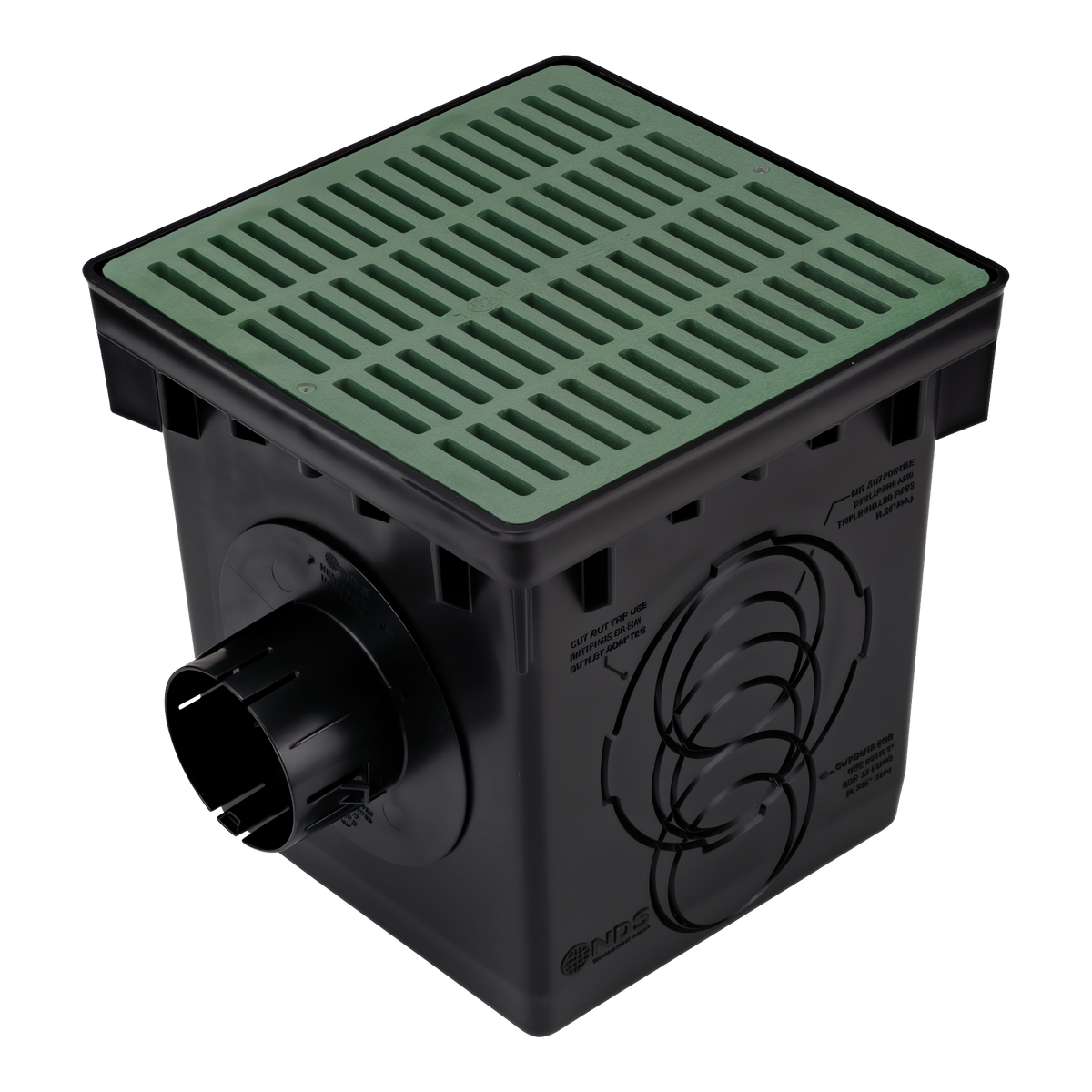

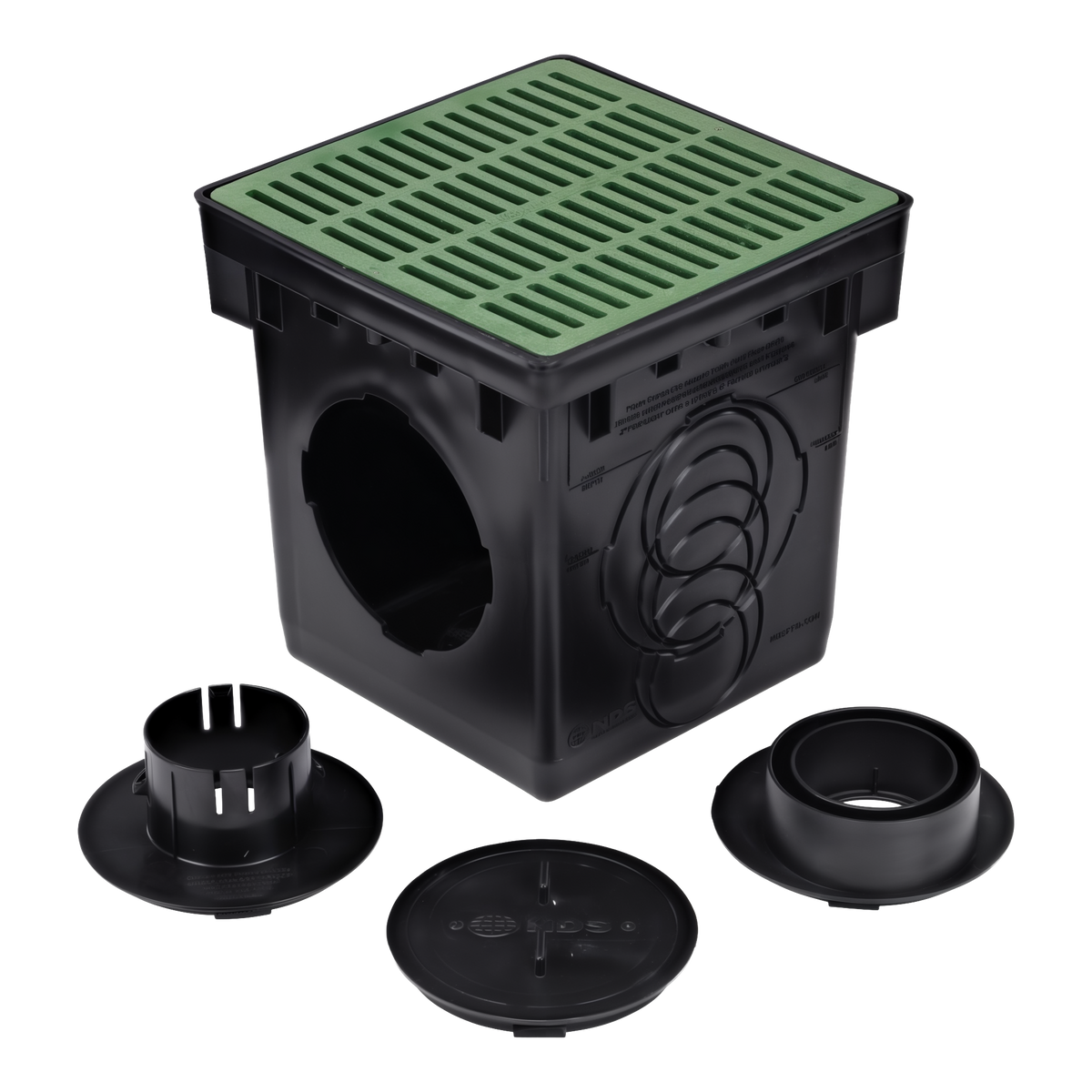

Complete Kit: One 2-opening catch basin, one square green grate, two locking outlet adapters and one outlet plug.
-

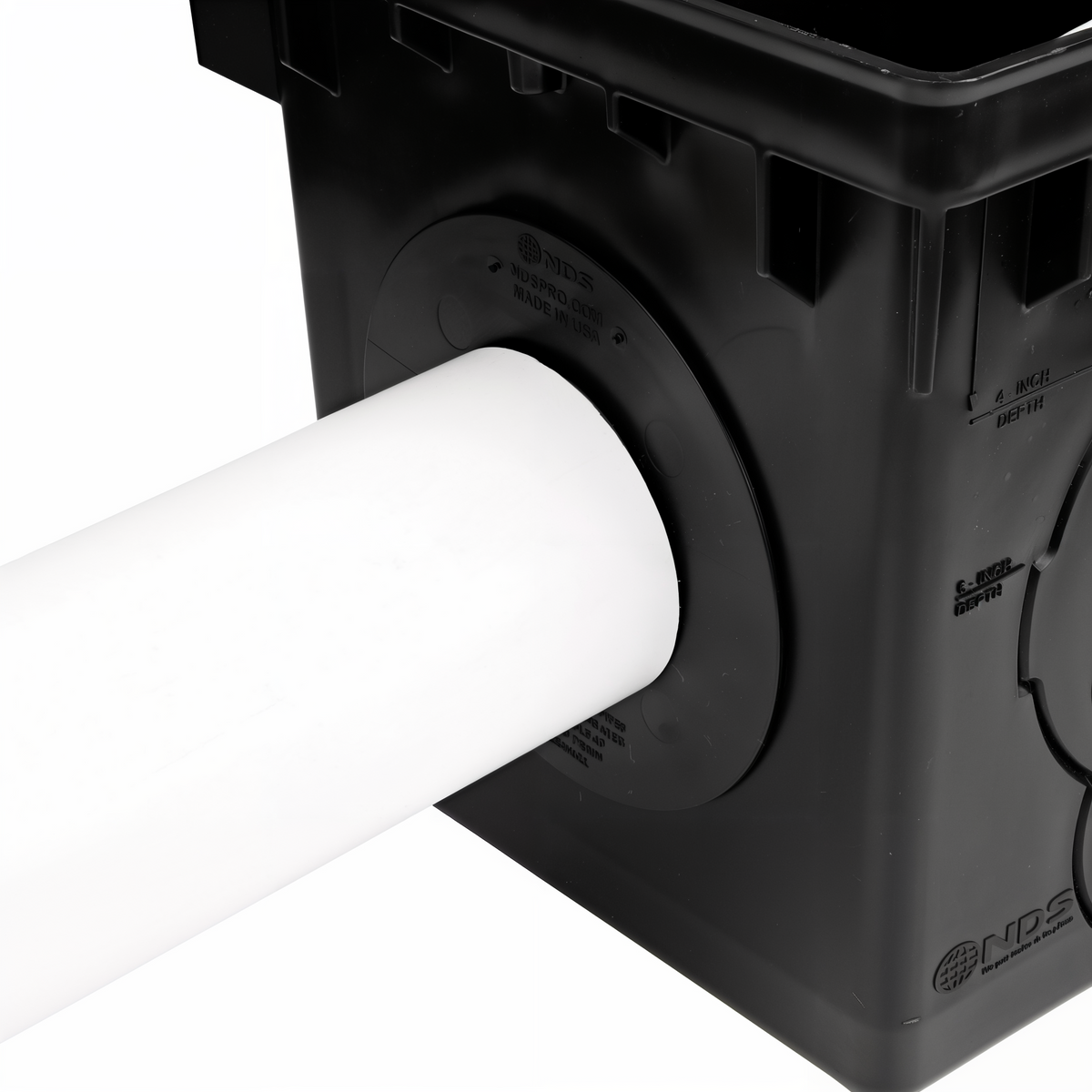

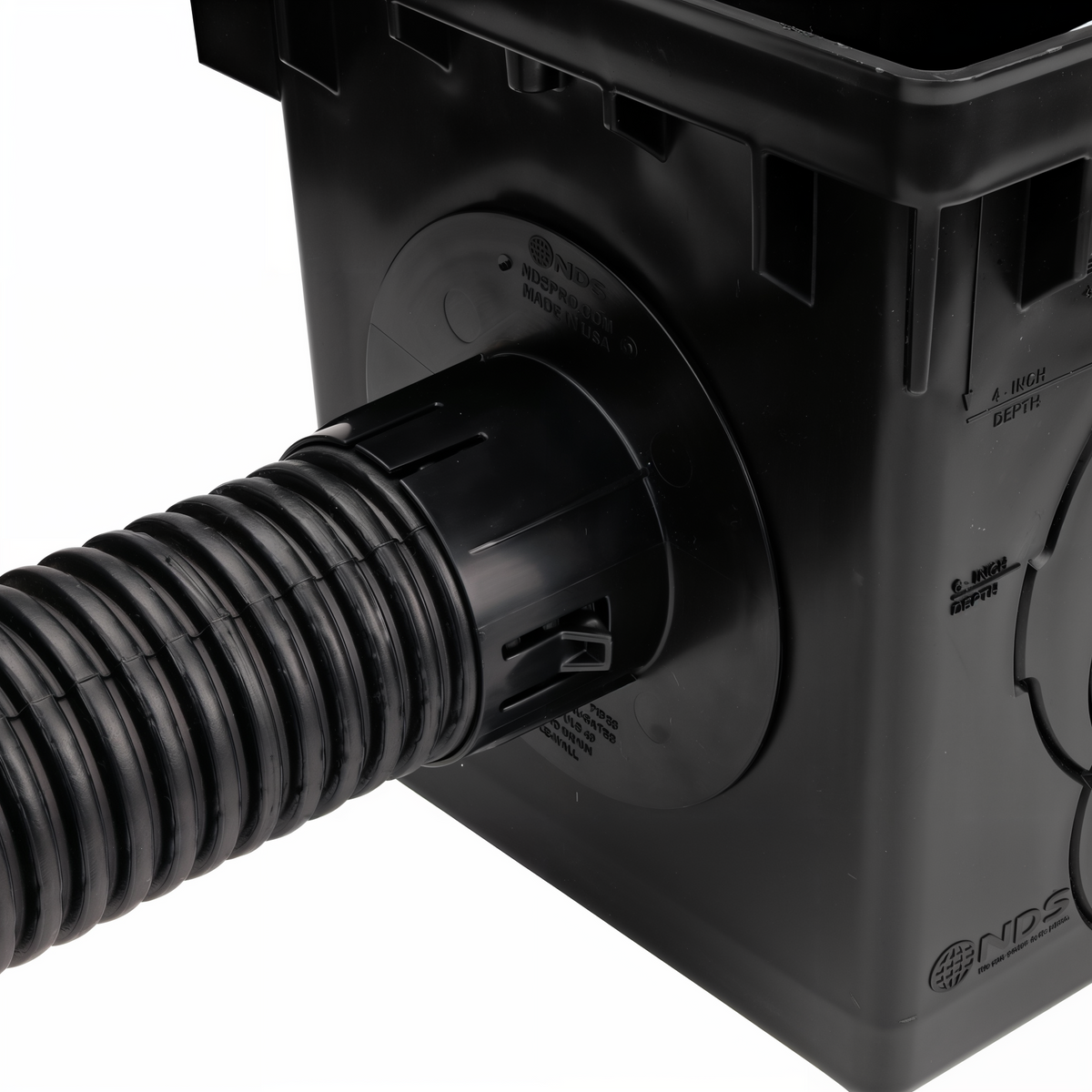

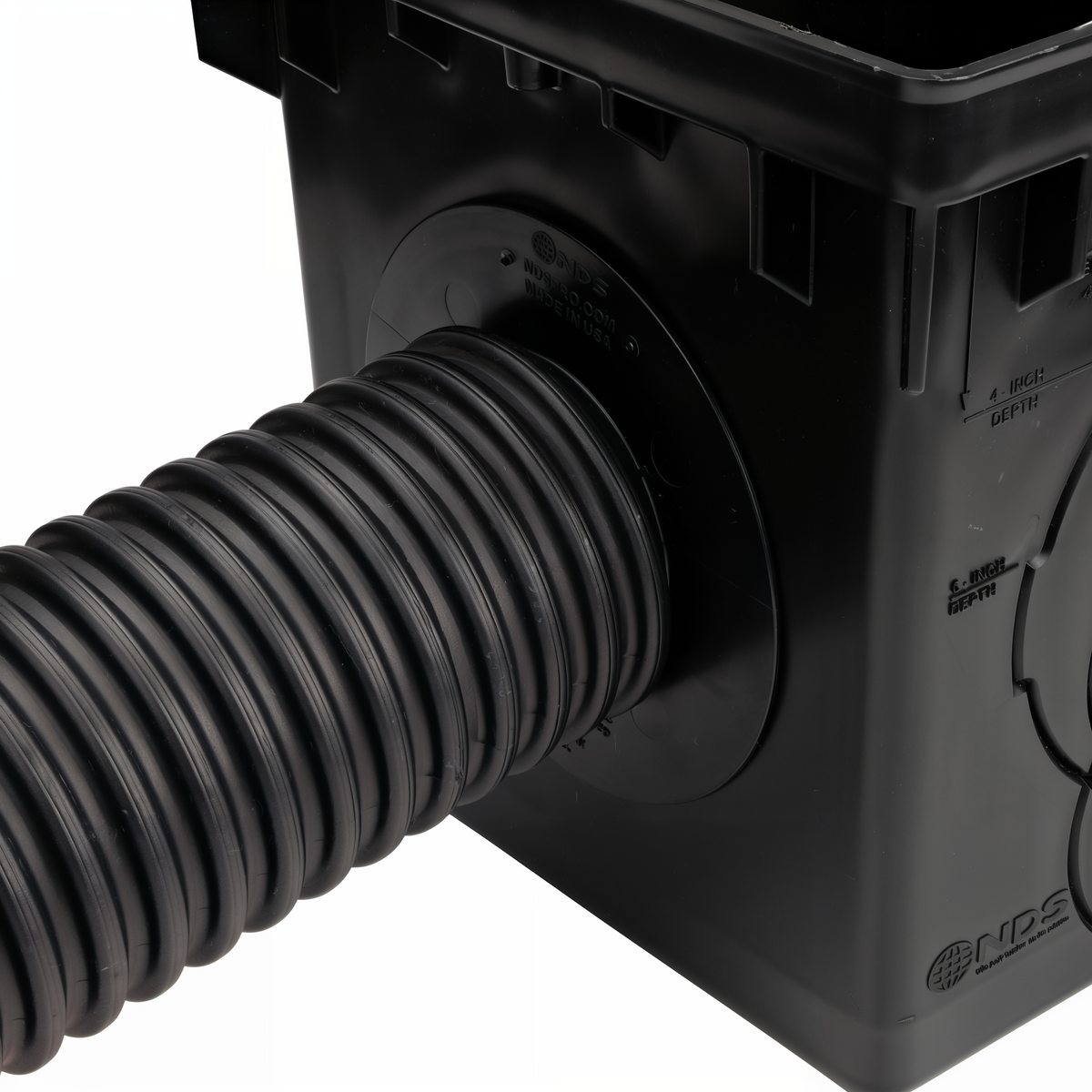

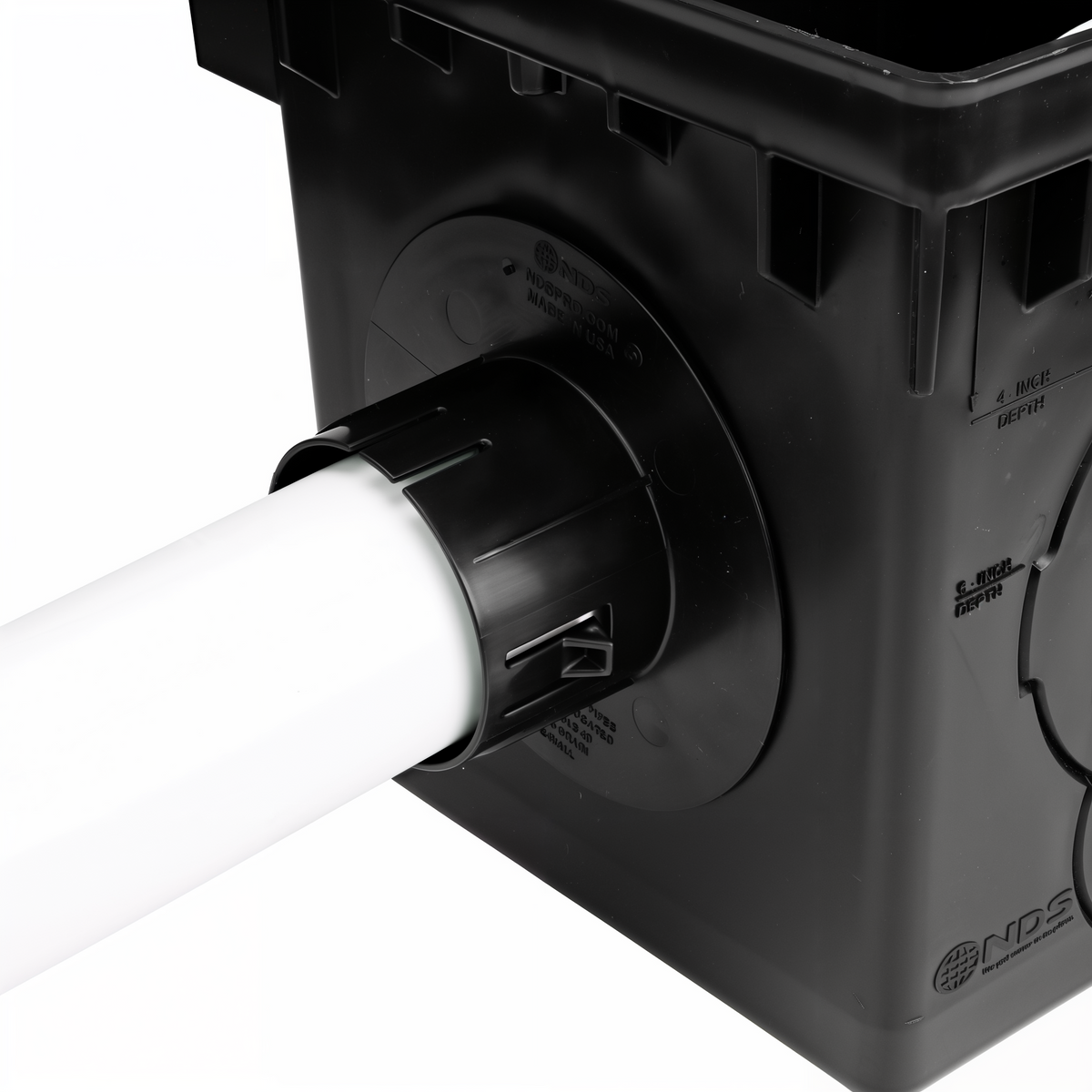

Pipe Compatibility: Adapters connect 3 in. and 4 in. sewer and drain, single-wall corrugated, triple-wall and DWV or Schedule 40 pipe with no tape or glue.
-

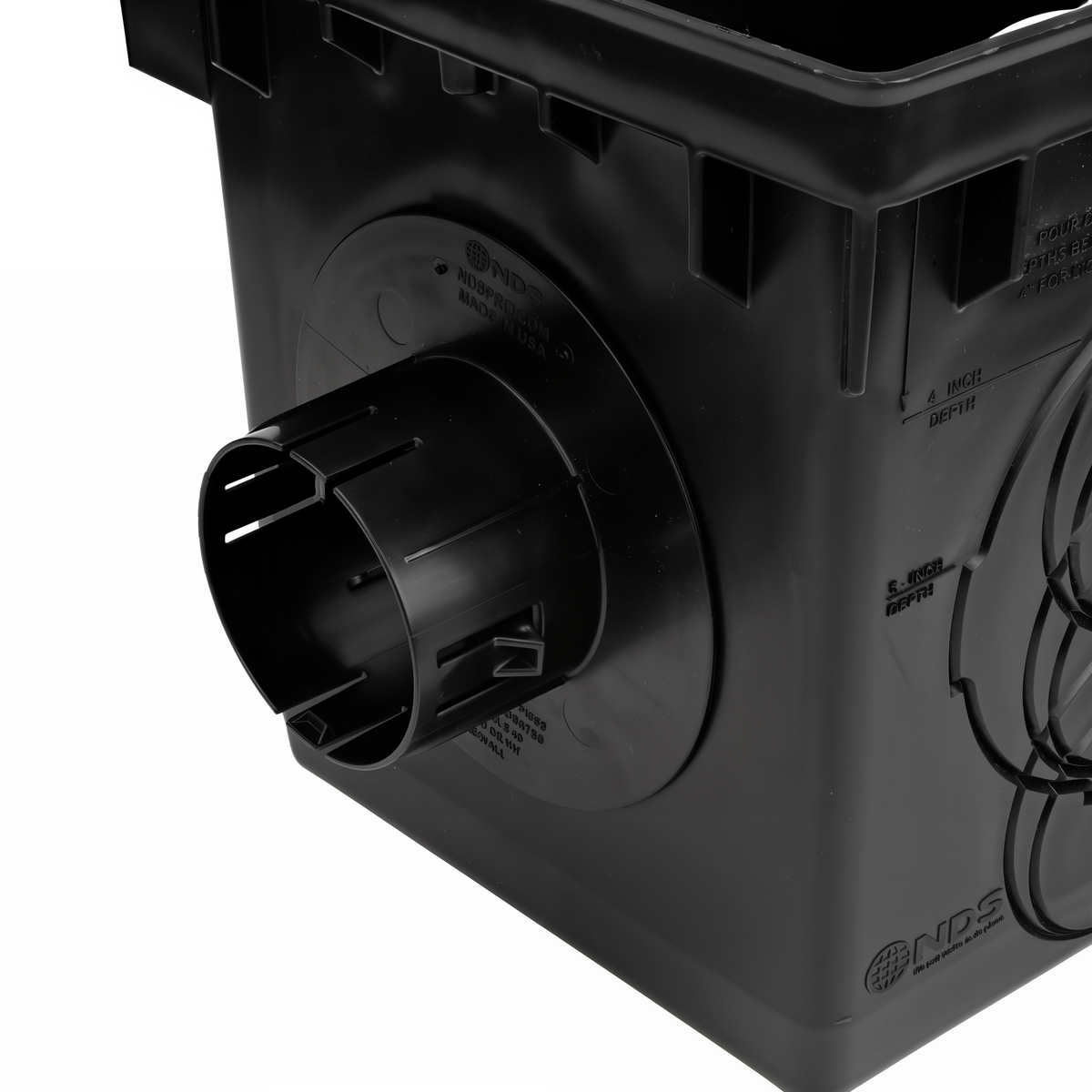

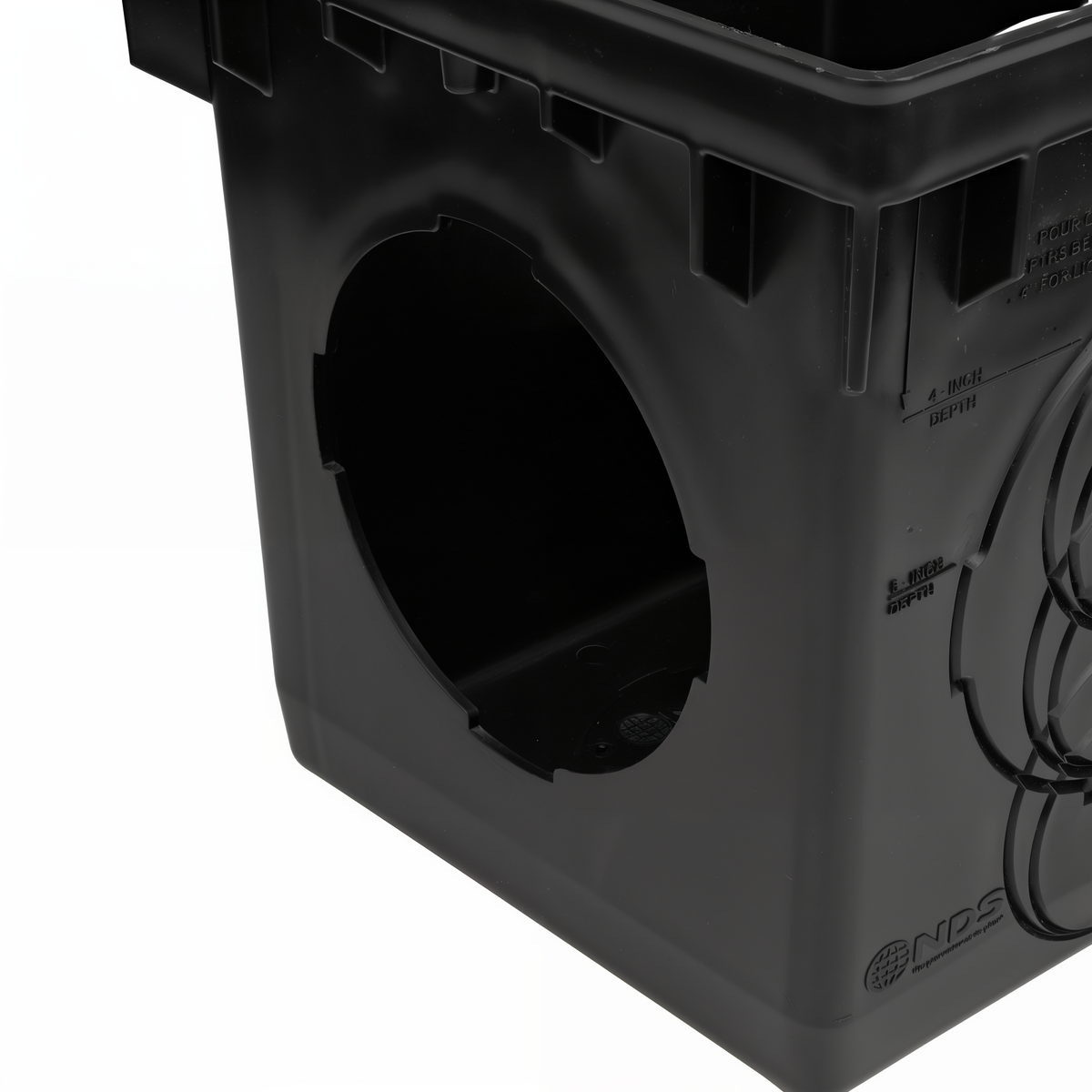

Reinforced Build: Keyed side openings lock the adapters in place and supporting ribs under the grate seat carry the grate load; the built-in sump is easy to access and clean.
-
About the NDS Catch Basin Line: NDS backs the 12 in. basin with installation details for landscape, riser, downspout and traffic settings, plus flow and invert tables.
How to Install It
Choose the 12 in. kit when the 9 in. basin would overflow, such as a downspout serving a large roof or a lawn low spot fed from several directions. Excavate the pit and trench with a steady fall toward the discharge point, snap the adapters onto the pipe and push them into the keyed openings. Seal the unused opening with the plug, or run pipe through both for a mid-line junction. Set the grate slightly below finished grade, backfill in layers and tamp around the basin. Clean the sump each spring and fall by lifting the grate and scooping out silt. Finish the run with an NDS pop-up emitter.
Specifications
- Part number: NDS 1200GRKIT
- Basin size: 12 in. x 12 in., two side openings
- Materials: polypropylene basin, HDPE grate, both UV inhibited
- Color: green grate, black basin
- Weight: 7.59 lb
- Pipe fit: 3 in. and 4 in. sewer and drain, corrugated, triple-wall, DWV and Sch. 40
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 1200GRKIT is the 12 in. by 12 in. two-opening polypropylene catch basin kit for heavy-flow collection points: large roof downspouts, lawn sumps that collect from several slopes, and patio or walkway edges feeding 3 in. or 4 in. drain lines. The kit ships with a green UV-inhibited HDPE grate, two locking outlet adapters and an outlet plug. Adapters key into the basin sidewall and snap onto sewer and drain, single-wall corrugated, triple-wall and DWV or Sch. 40 pipe with no solvent, so tie-ins stay fast. Catalog weight is 7.59 lb per kit.
Key Features
- Capacity: Step up from the 9 in. basin when the drainage area or downspout load calls for heavy flow; confirm intake against the NDS catch basin flow capacity tech spec.
- Kit Contents: Basin, grate, two adapters and one plug; NDS 12 in. risers and a downspout defender grate are available when the basin needs to reach grade or sit under a leader.

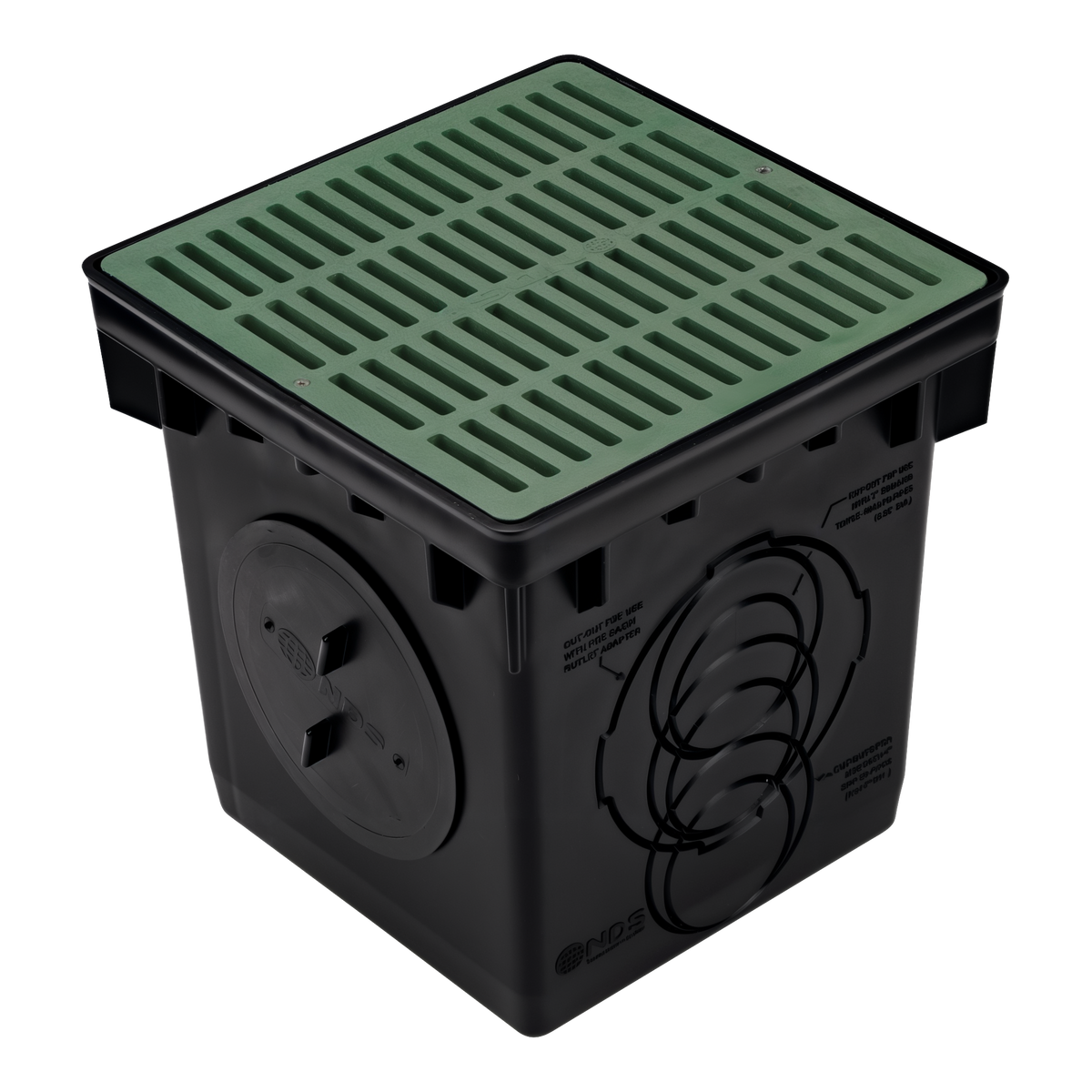

- Pipe Interface: 3 in. and 4 in. S&D, corrugated, triple-wall, DWV and Sch. 40 through locking adapters; plug seats inside an adapter to blank the second opening.
- Structure: Ribs under the grate seat carry grate loads; keyed openings hold adapters against backfill pressure.

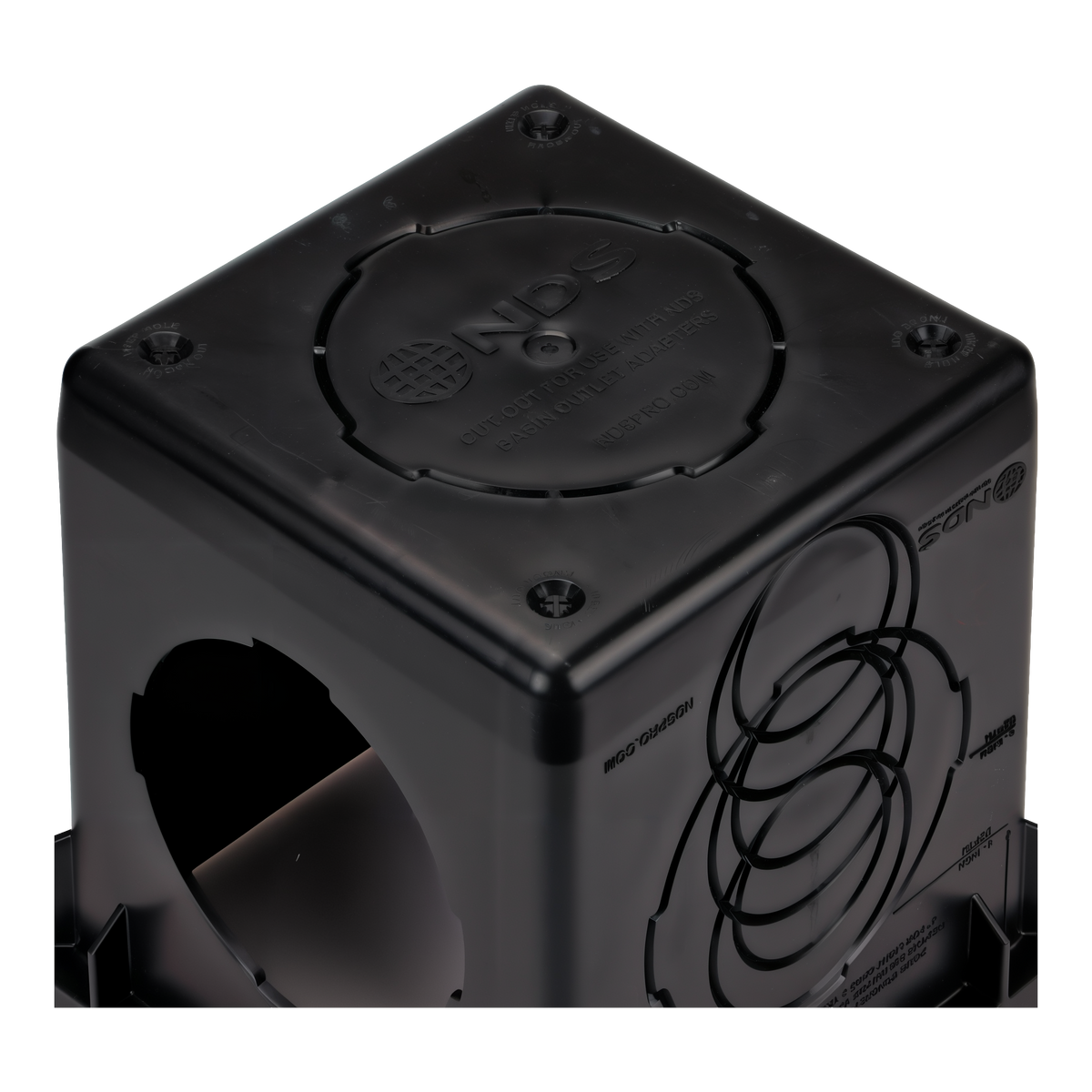

- Sump: Integral sump below the outlet inverts traps sediment for cleanout; outlet inverts are published in the NDS invert table.
Installation
Excavate to the invert from the NDS 12 in. catch basin landscape detail and set the basin on compacted bedding with the grate slightly below finished grade. In turf, hold the grate about 1/2 in. to 1 in. low so grass cannot bridge the face; in paver fields, set it flush and cut pavers to the rim. Hold positive fall on the outlet line and pull inverts from the NDS invert table where the run has to clear footings or utilities. For traffic areas, build to the 12 in. pedestrian and vehicular installation detail, which changes the bedding and surround; NDS does not publish a load class on the product page, so quote the detail rather than a rating. Use the riser details when the basin sits deep. Backfill in lifts and tamp around the body. Blank the unused opening with the plug unless the basin is a mid-run junction, and terminate at a pop-up emitter or daylight with enough fall to empty the pipe after the event so the line does not hold water through a freeze. Flow capacity, invert table and installation details are attached in the documentation for submittals.
Specifications
- Part number: NDS 1200GRKIT
- Basin: 12 in. x 12 in., two keyed side openings
- Grate: square, green HDPE, UV inhibited
- Basin material: polypropylene, UV inhibited
- Outlet fit: 3 in. and 4 in. S&D, single-wall corrugated, triple-wall, DWV and Sch. 40
- Weight: 7.59 lb per kit
