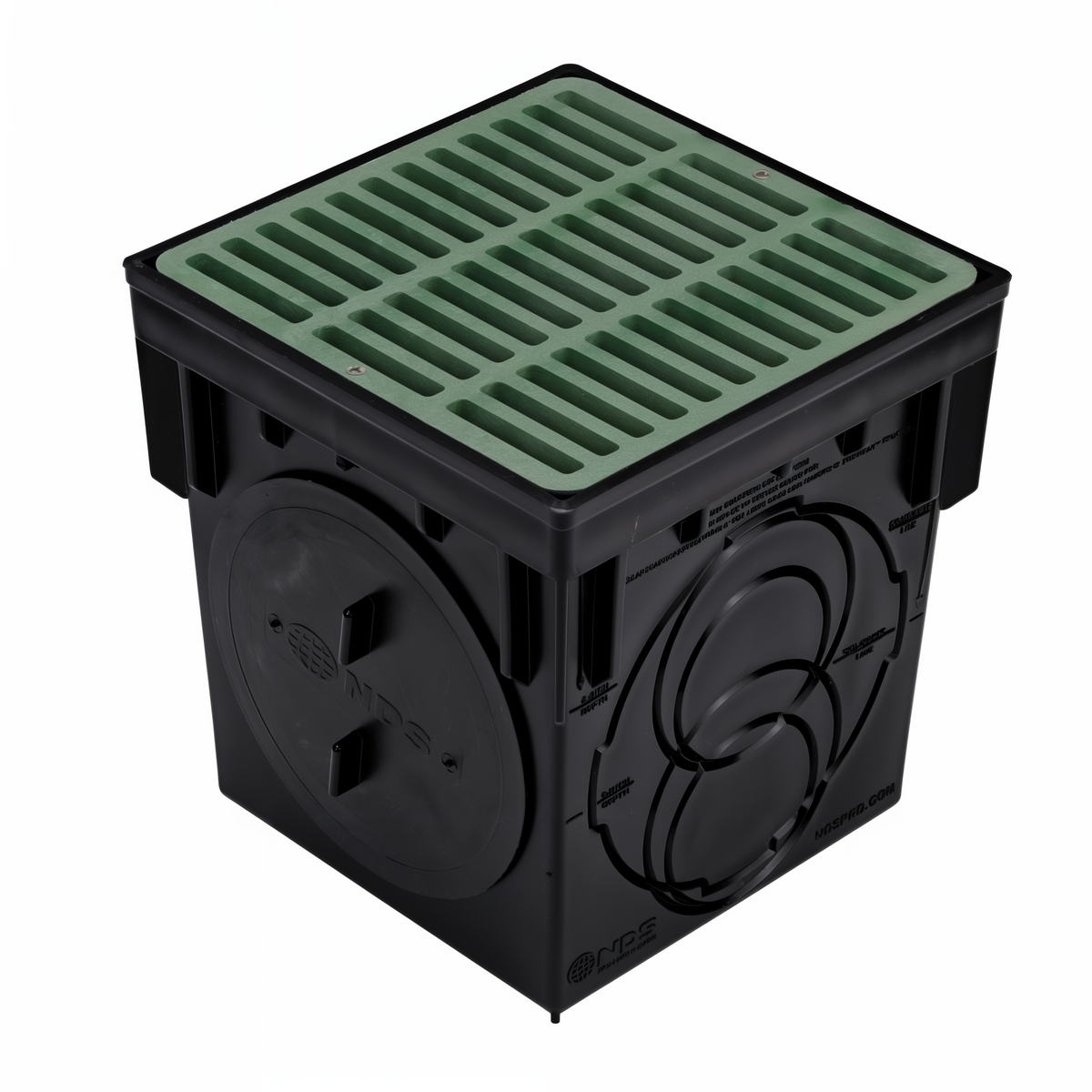

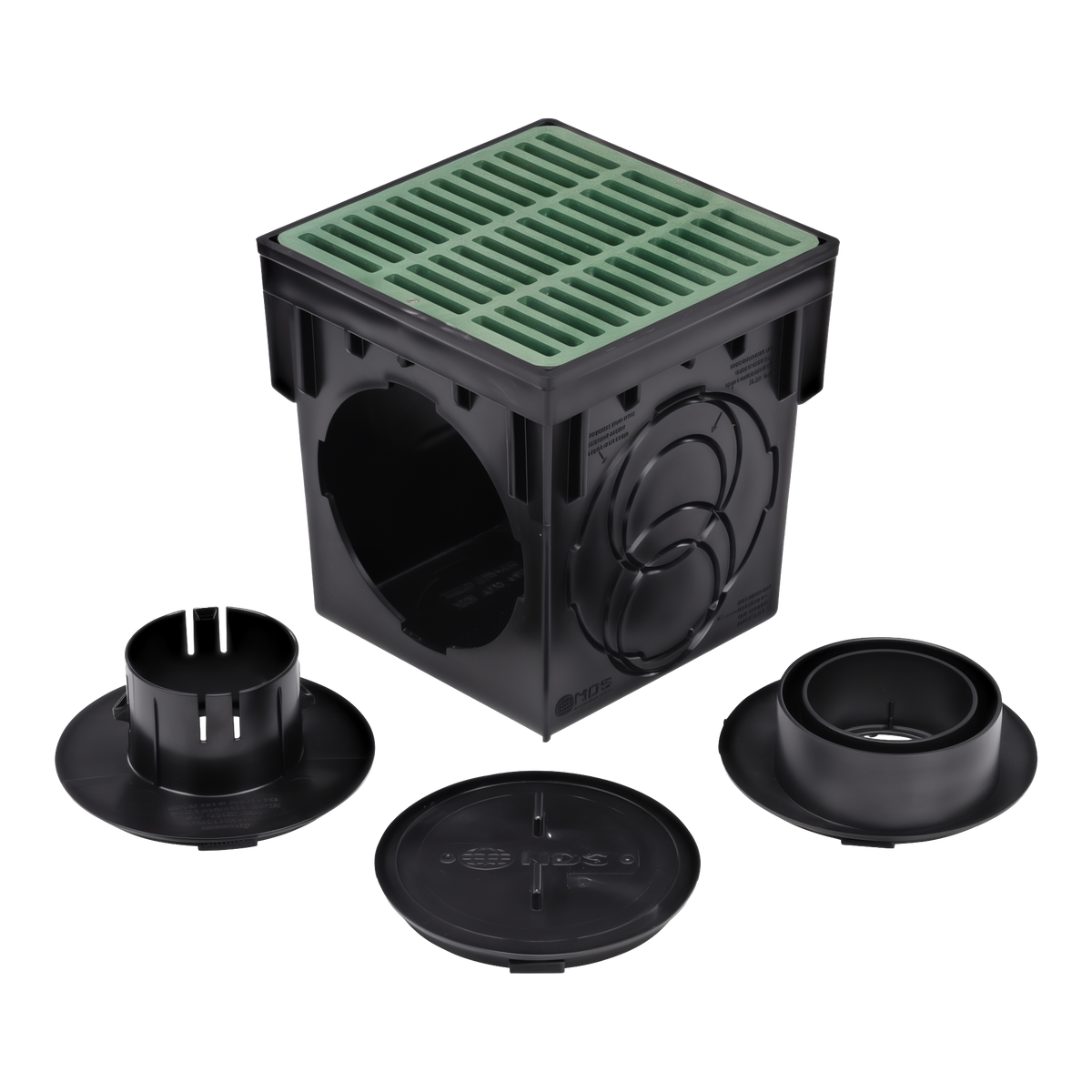

Pull standing water off a soggy lawn or a downspout splash zone with the NDS 9 in. Square Catch Basin Drain Kit, a complete yard drain in one box. The kit pairs a black 9 in. by 9 in. polypropylene basin with a green HDPE grate, two locking outlet adapters and one outlet plug. Set the basin at the low spot, connect 3 in. or 4 in. drain pipe to the side openings and the grate collects moderate flows from lawns, beds, patios and walkways before puddles turn into erosion. Basin and grate both carry UV inhibitors.
Key Features
-

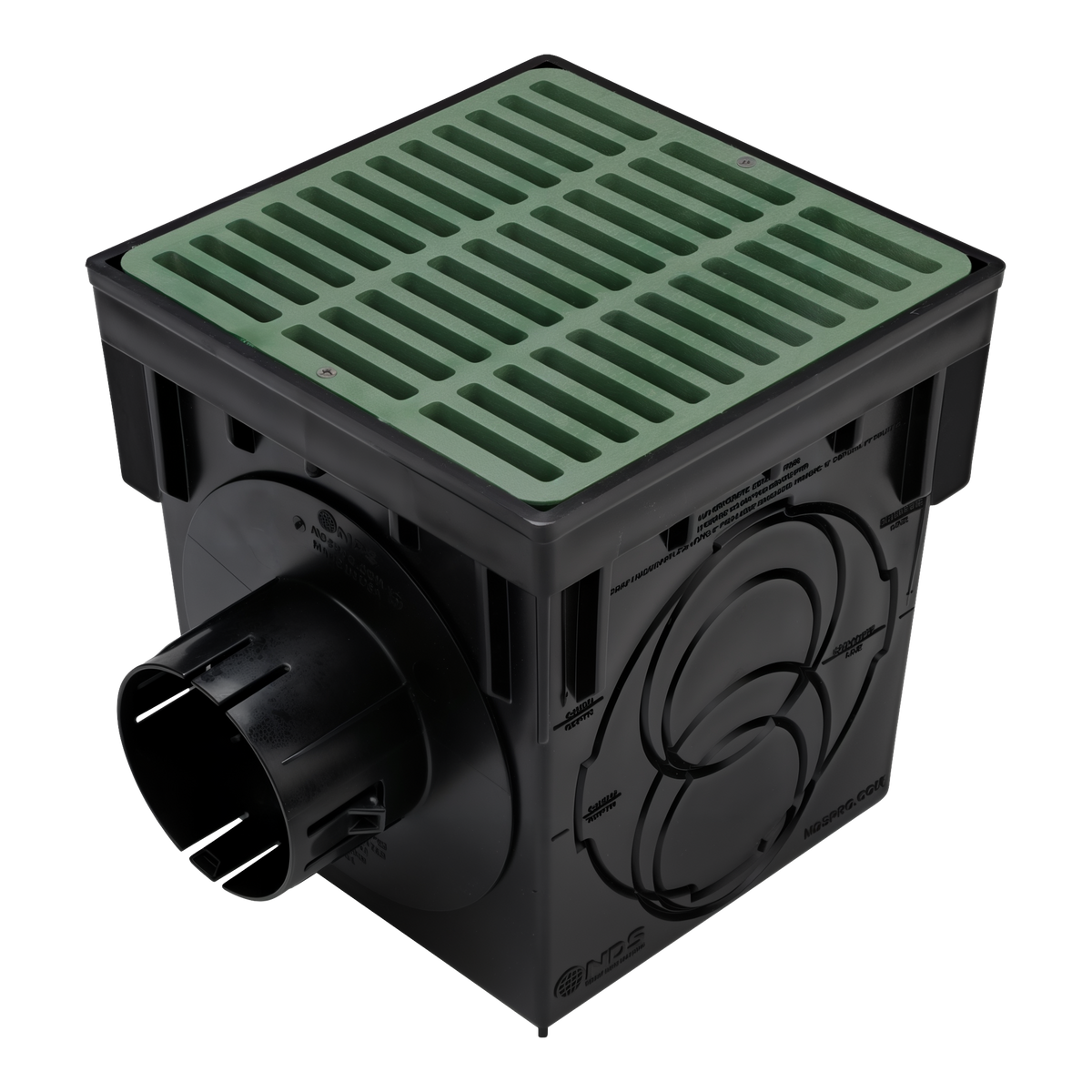

Complete Kit: One 2-opening catch basin, one square green grate, two locking outlet adapters and one outlet plug, ready for a single-outlet or two-outlet layout.
-

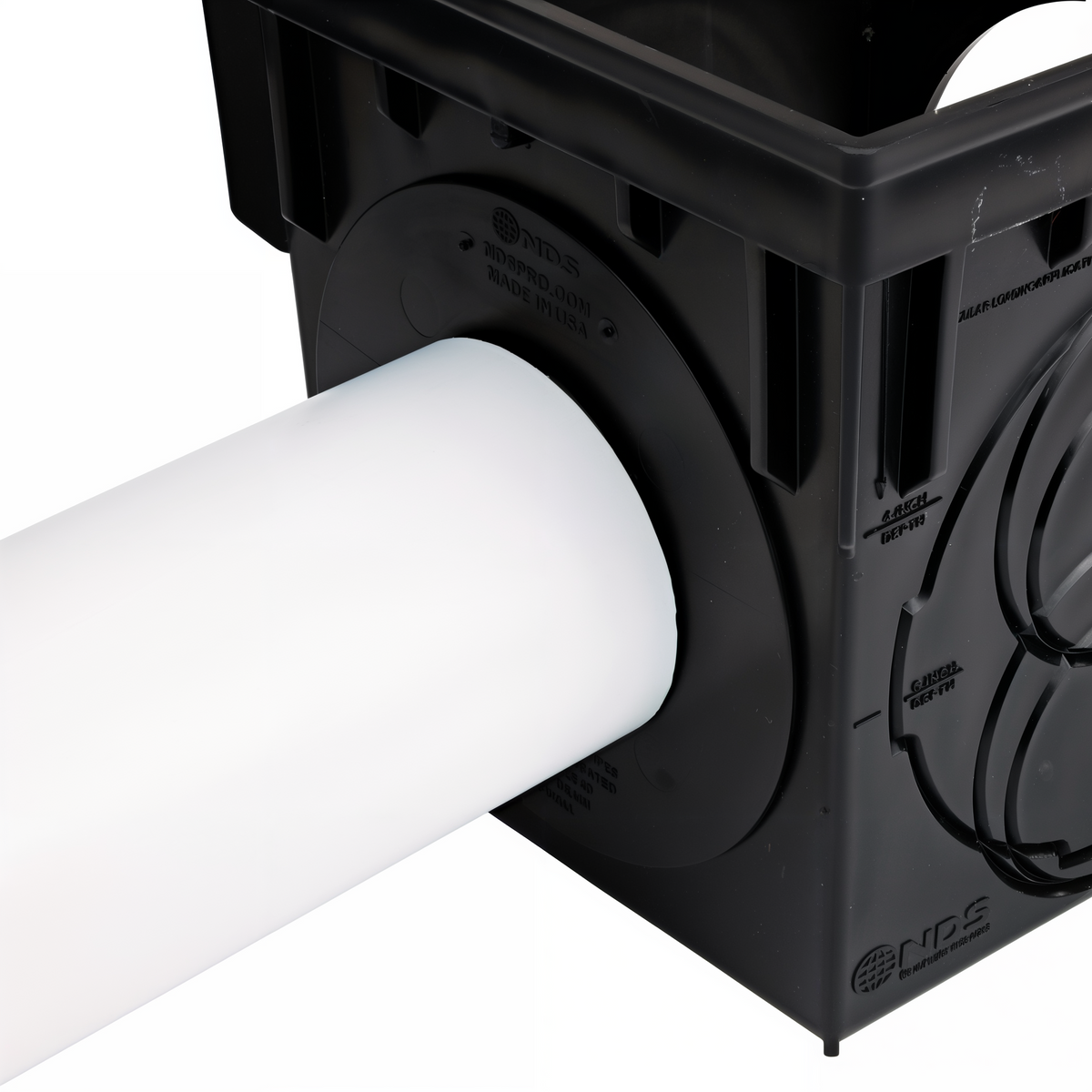

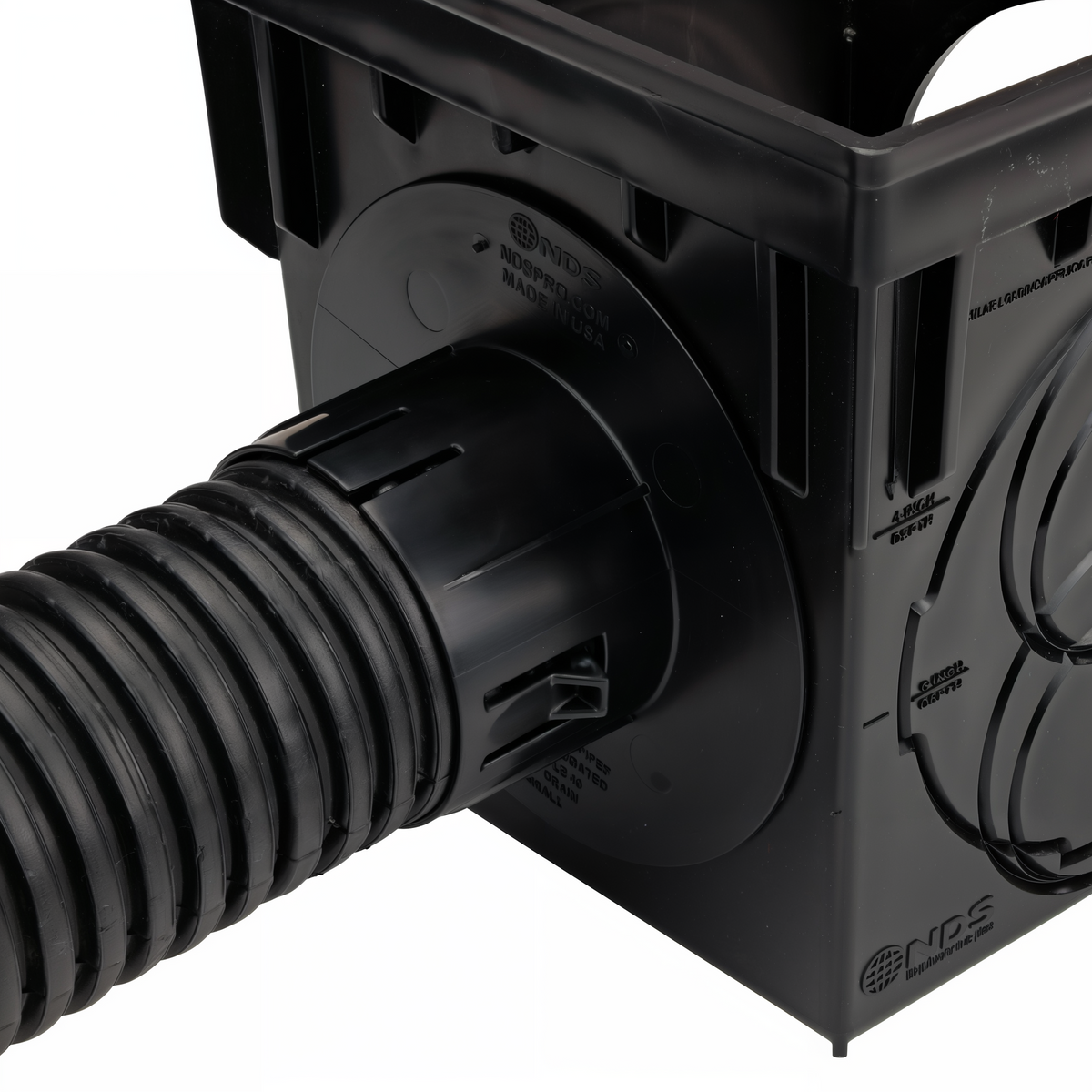

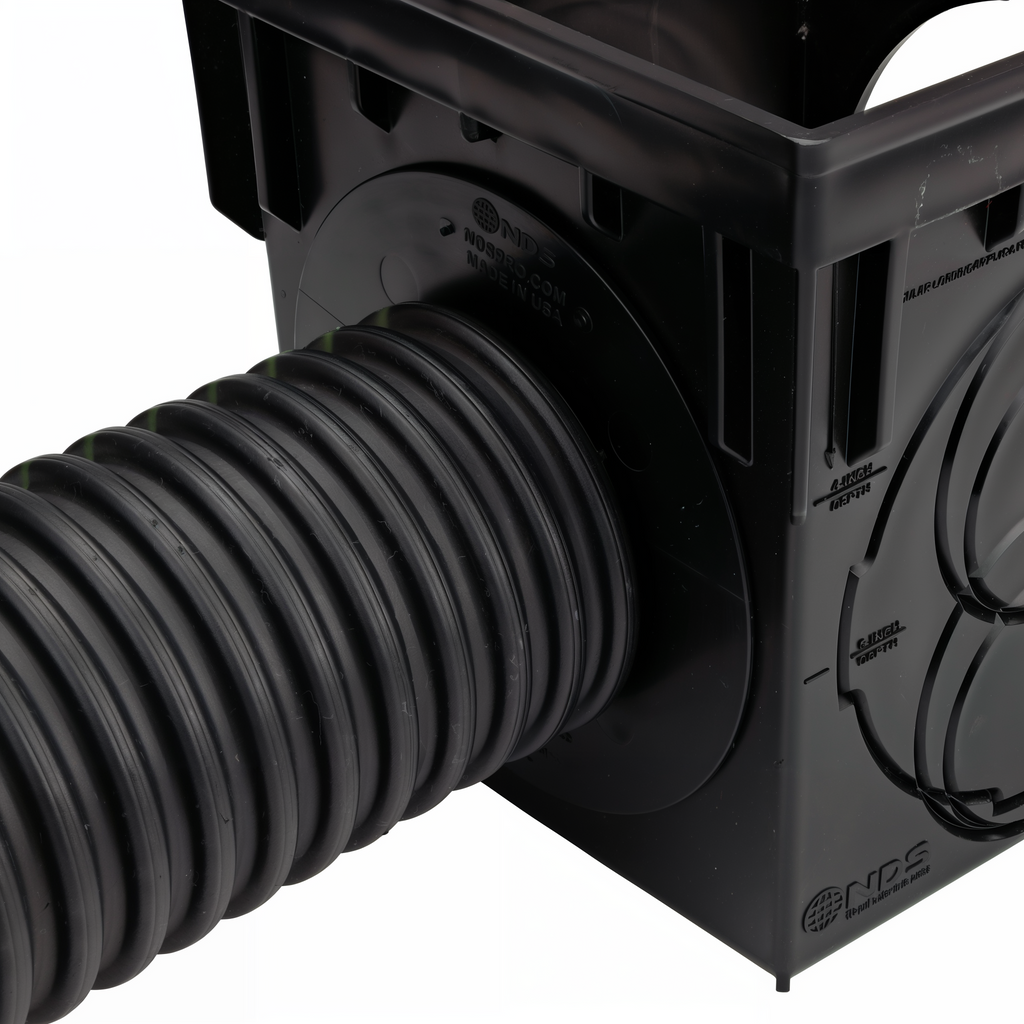

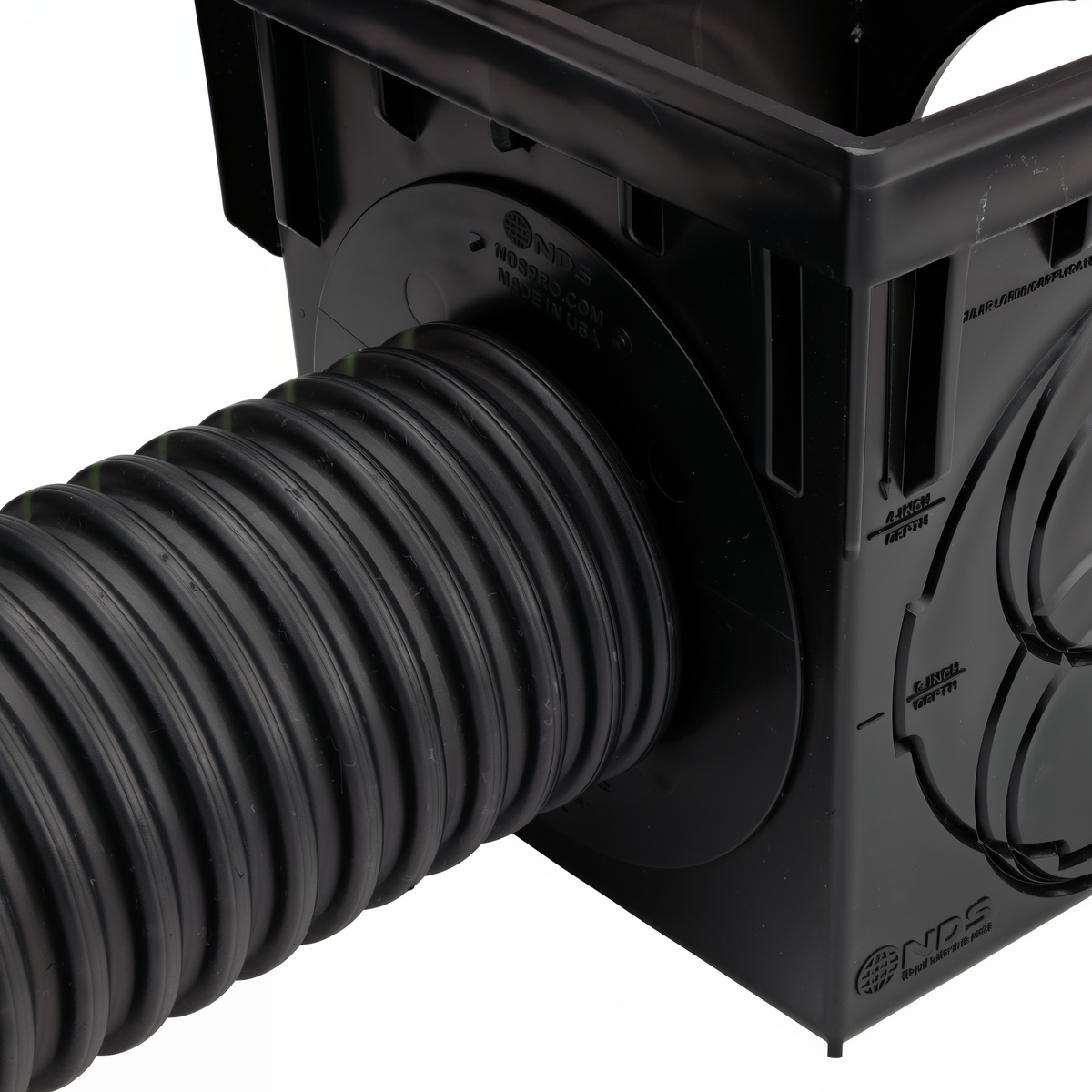

Pipe Compatibility: Adapters connect to 3 in. and 4 in. sewer and drain, single-wall corrugated, triple-wall and DWV or Schedule 40 pipe.
-

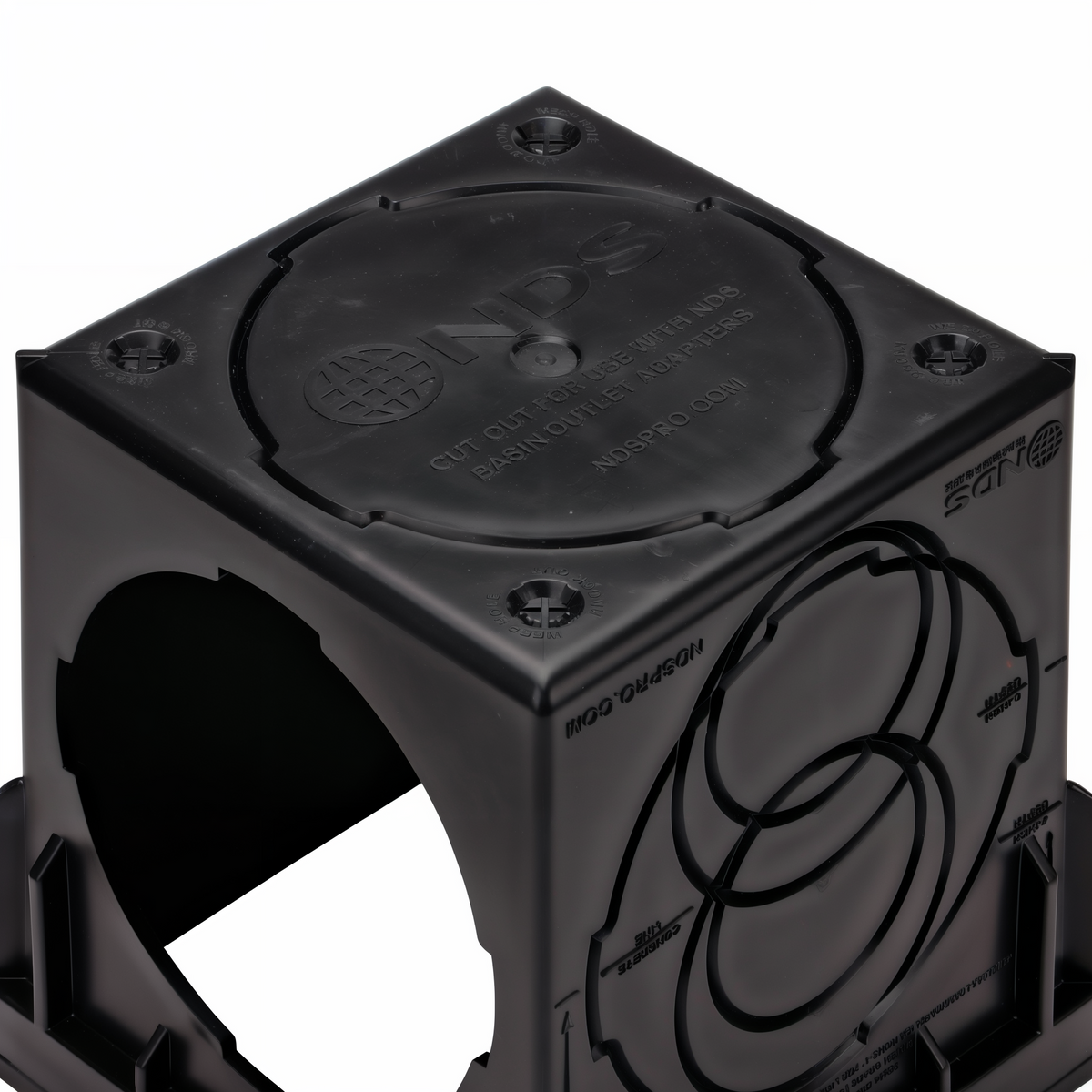

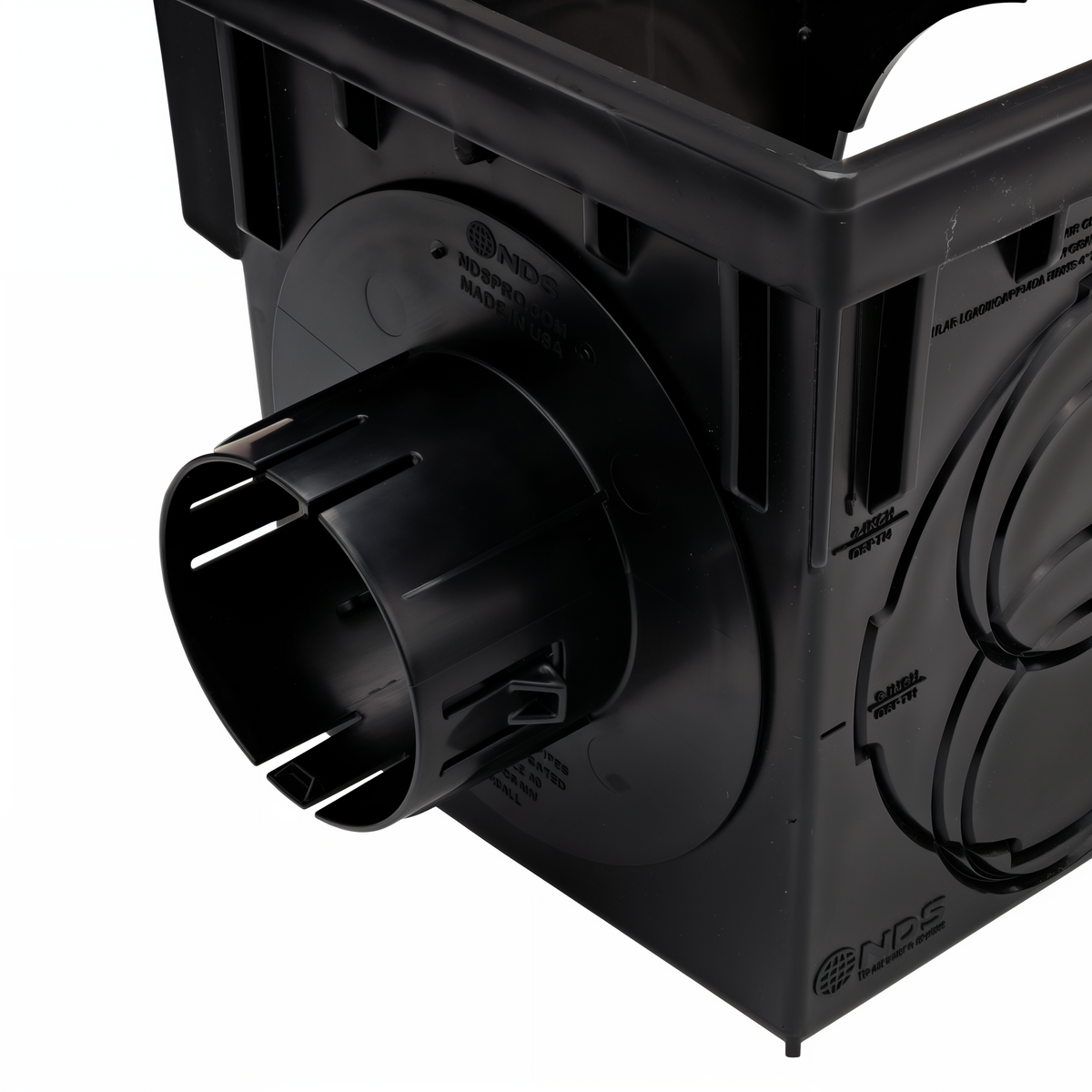

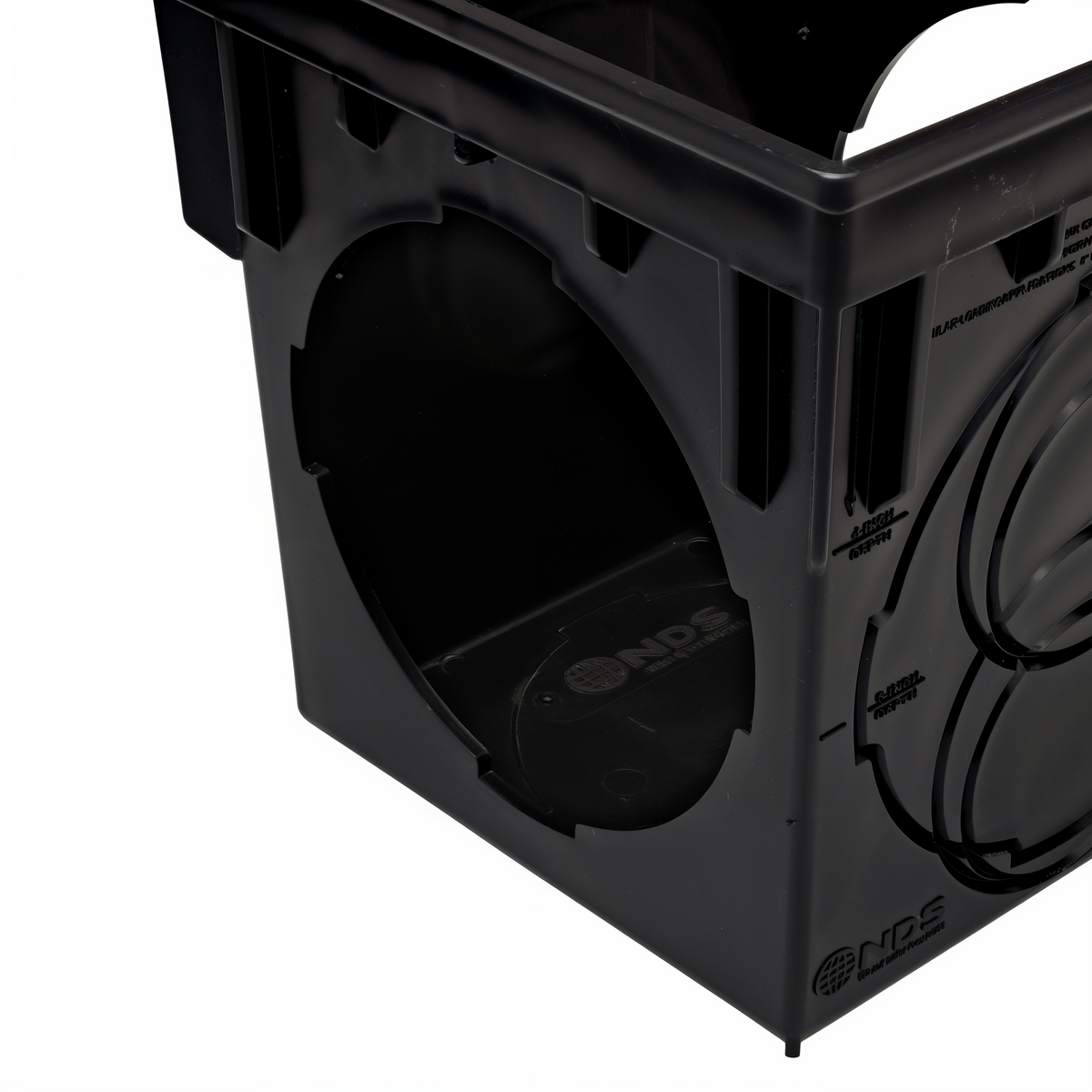

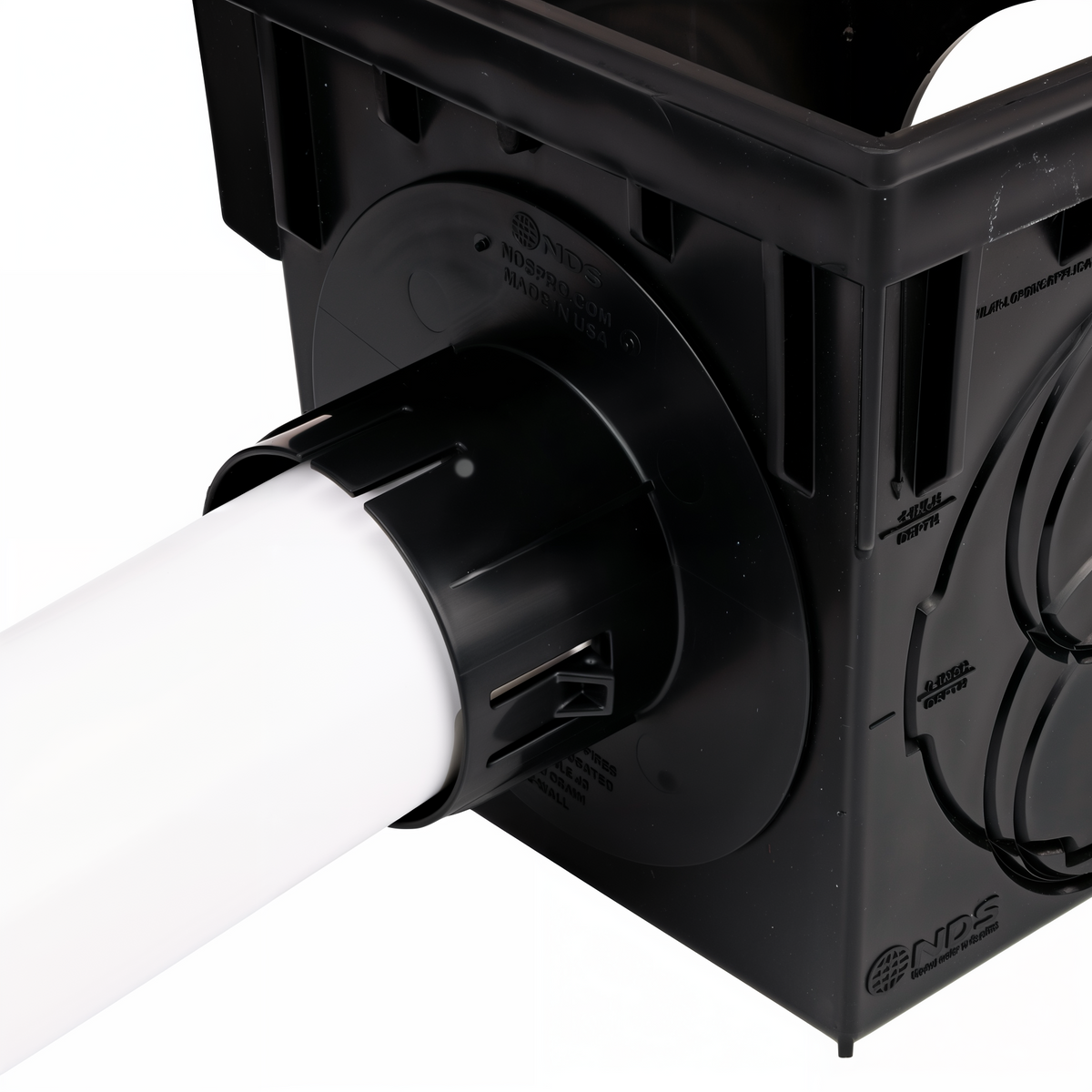

Locking Adapters: Keyed side openings lock the adapters in place and the adapters snap onto pipe with no tape or glue; the plug seats inside an adapter to seal the unused opening.
-
Reinforced Grate Seat: Supporting ribs molded under the grate seat carry the grate load, and the built-in sump is easy to reach and clean.
-
About the NDS Catch Basin Line: NDS builds this 9 in. kit alongside its 12 in. catch basin kit, with published installation details for landscape, downspout, riser and traffic settings.
How to Install It
Dig the basin pit at the lowest point of the wet area and trench toward the discharge point with a steady downhill grade. Snap an outlet adapter onto the drain pipe, push it into a keyed side opening and use the second adapter for a through-line or seal the opening with the plug. Bed the basin so the grate sits just below finished grade, then backfill and tamp around the body. Under a downspout, set the grate directly beneath the outlet. Lift the grate a few times a year to scoop leaves out of the sump, and finish the run with an NDS pop-up emitter.
Specifications
- Part number: NDS 900GRKIT
- Basin size: 9 in. x 9 in., two side openings
- Materials: polypropylene basin, HDPE grate, both UV inhibited
- Color: green grate, black basin
- Weight: 5.30 lb
- Pipe fit: 3 in. and 4 in. sewer and drain, corrugated, triple-wall, DWV and Sch. 40
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 900GRKIT packages a 9 in. by 9 in. two-opening polypropylene catch basin with a green HDPE grate, two locking outlet adapters and an outlet plug. Spec it for moderate-flow collection points: lawn low spots, bed drainage, downspout capture and patio or walkway edges feeding 3 in. or 4 in. drain lines. The adapters key into the basin sidewalls and snap onto sewer and drain, single-wall corrugated, triple-wall and DWV or Sch. 40 pipe without solvent or tape, which keeps the tie-in fast on residential yard drainage. NDS lists the kit at 5.30 lb.
Key Features
- Kit Contents: Basin, grate, two adapters and one plug per box; add a riser or a downspout defender grate from the NDS 9 in. line when the tie-in calls for it.
- Pipe Interface: Locking adapters cover 3 in. and 4 in. S&D, corrugated, triple-wall, DWV and Sch. 40; the plug seats inside an adapter to blank the unused opening.
- Grate Support: Ribs molded beneath the grate seat carry point loads on the grate; NDS publishes separate landscape and pedestrian or vehicular installation details for the 9 in. basin.
- Sump: Integral sump below the outlet inverts collects sediment for cleanout instead of passing it downstream; see the NDS invert table for outlet elevations.
- Material: UV-inhibited polypropylene basin and HDPE grate for exposed installations.
Installation
Excavate to the invert shown on the NDS 9 in. catch basin landscape detail and set the basin on compacted bedding so the grate finishes slightly below surrounding grade. In lawn, hold the grate 1/2 in. to 1 in. low so turf does not bridge the grate face; in paver work, set it flush with the paver surface and cut pavers to the basin rim. Maintain positive fall on the outlet line and confirm the invert from the NDS catch basin invert table when the run has to clear a footing or utility. Under vehicular loading, follow the pedestrian and vehicular installation detail, which changes the bedding and surround; the product page does not publish a load class, so quote the detail rather than a rating. Backfill in lifts and tamp around the basin body to keep it from shifting. Plug the second opening unless the basin is a mid-run junction. Terminate the line at a pop-up emitter or daylight outlet with enough fall to drain the pipe after the event; in this climate a line that holds water freezes. The NDS flow capacity, invert table and installation details are attached in the documentation for submittals.
Specifications
- Part number: NDS 900GRKIT
- Basin: 9 in. x 9 in., two keyed side openings
- Grate: square, green HDPE, UV inhibited
- Basin material: polypropylene, UV inhibited
- Outlet fit: 3 in. and 4 in. S&D, single-wall corrugated, triple-wall, DWV and Sch. 40
- Weight: 5.30 lb per kit
