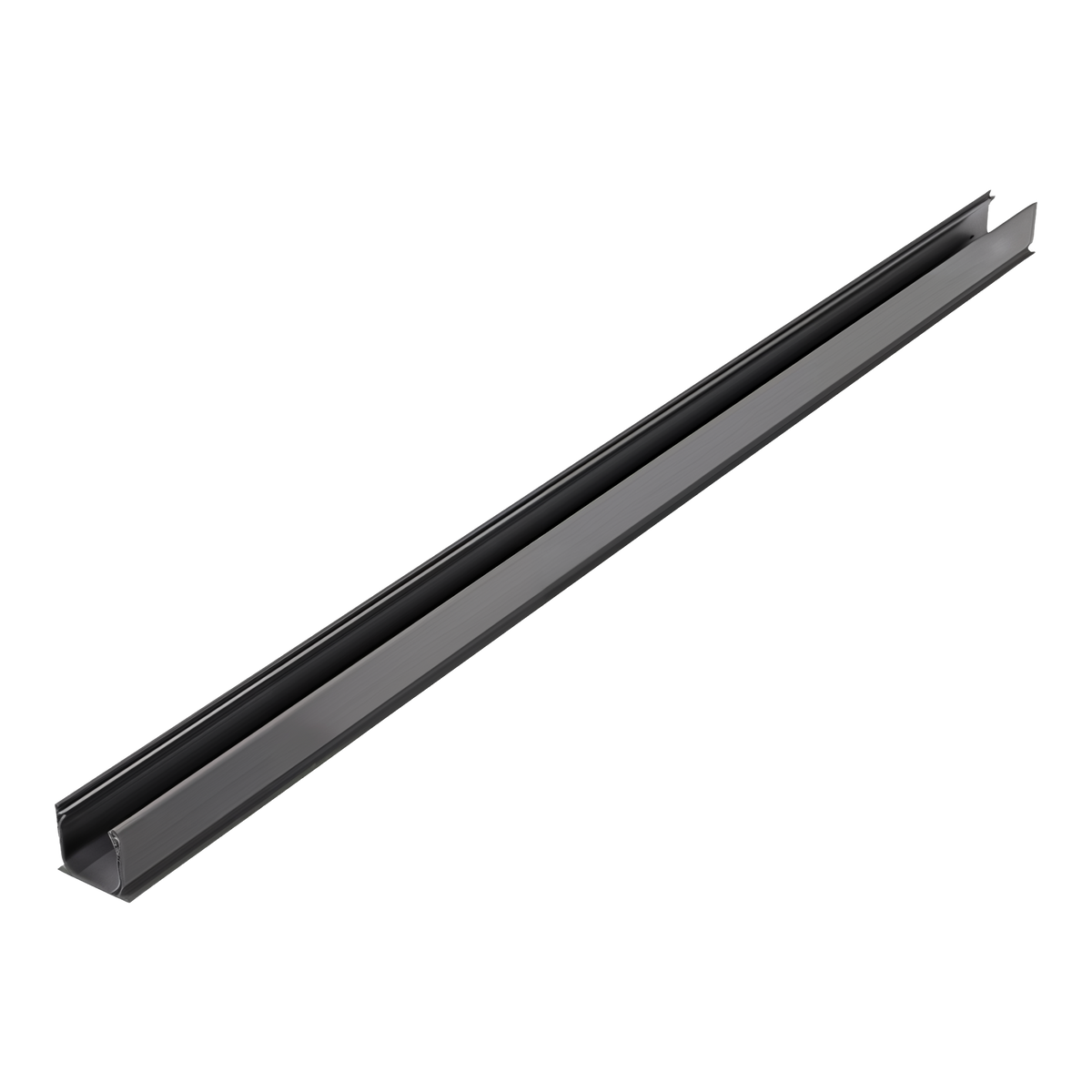

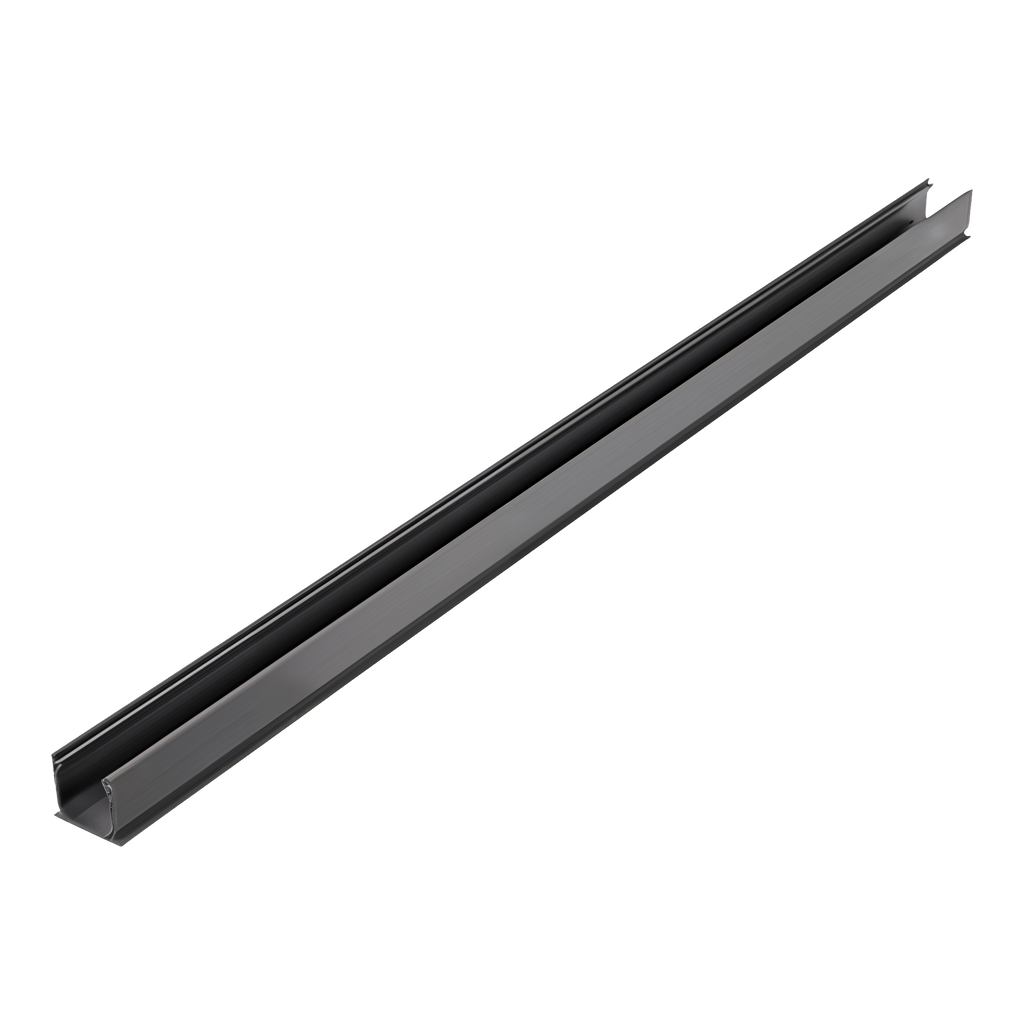

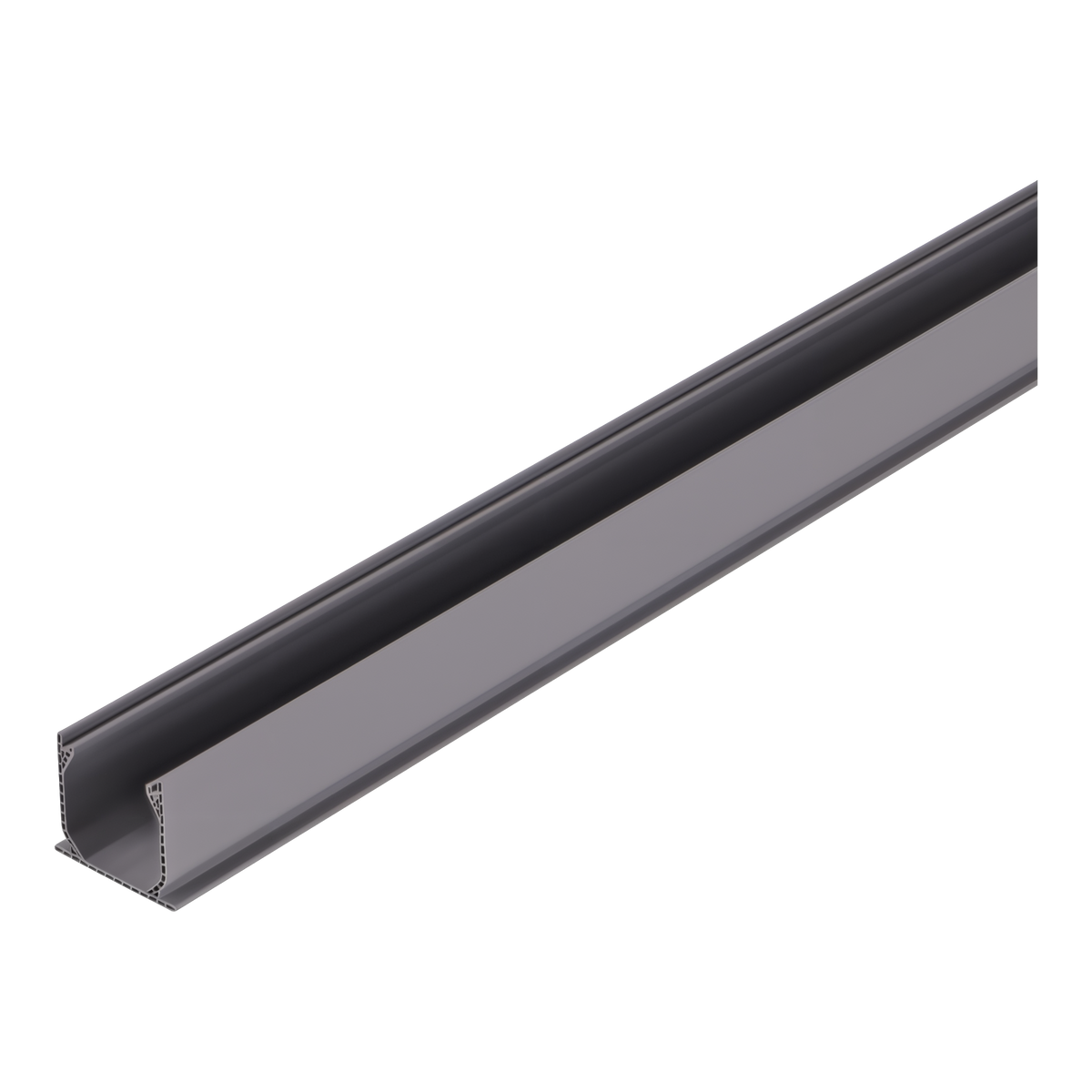

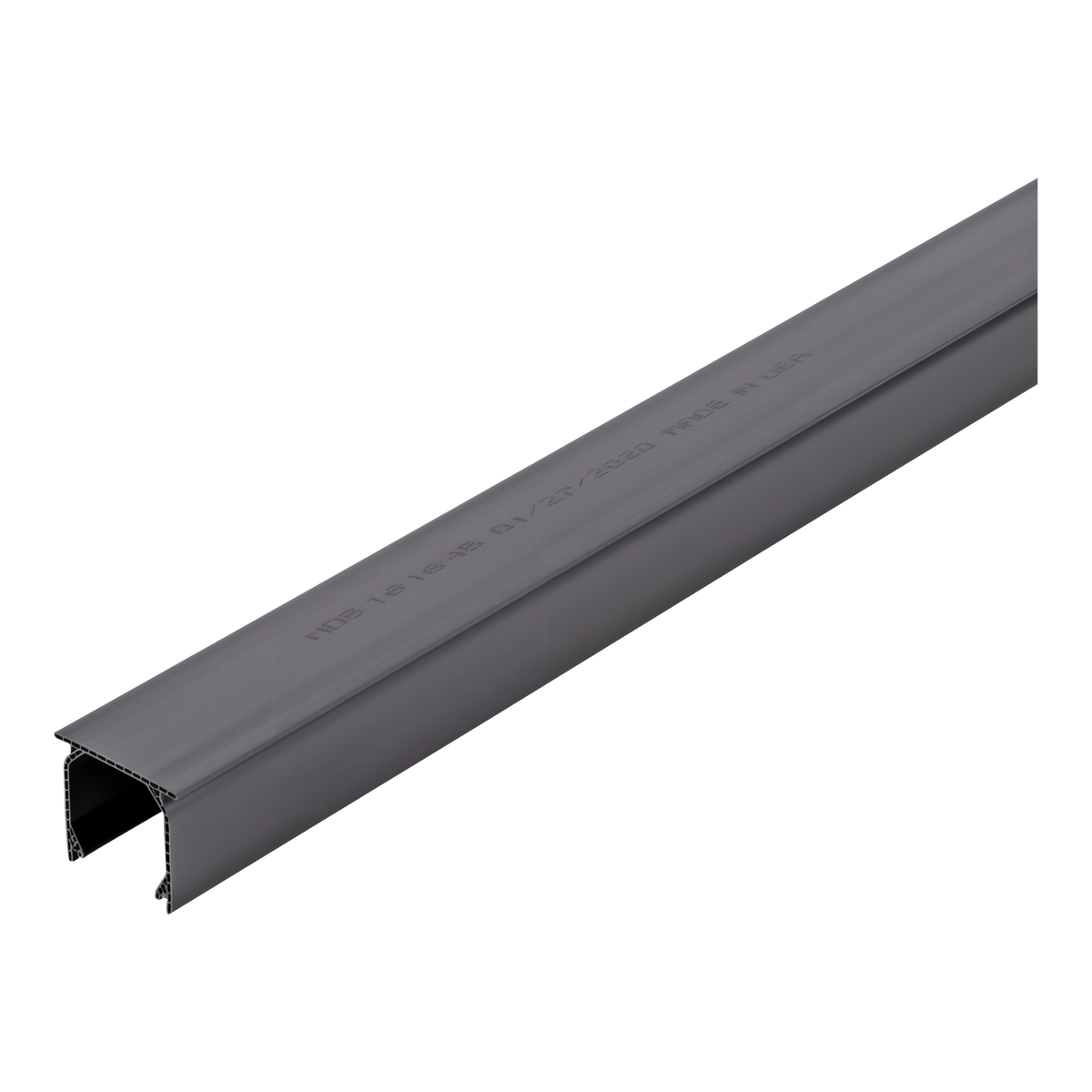

Catch sheet flow before it crosses a patio, pool deck or garage threshold with the NDS Mini Channel Drain 3-1/16 in. x 6 ft., the gray PVC trench drain from the NDS Profile Series. Each 6 ft. section is 3-1/16 in. wide and 3-1/8 in. high, small enough to set into a paver border or concrete pour without a wide saw cut. Honeycomb-reinforced walls and a flying buttress profile carry load from both sides and underneath, and bottom flanges anchor the channel so it stays straight and does not float during the pour. Cut it to length with a saw.
Key Features
-
Light Flow Drainage: Collects light sheet flows from pool and spa surrounds, concrete and paver patios, tennis courts, walkways and driveways.
-

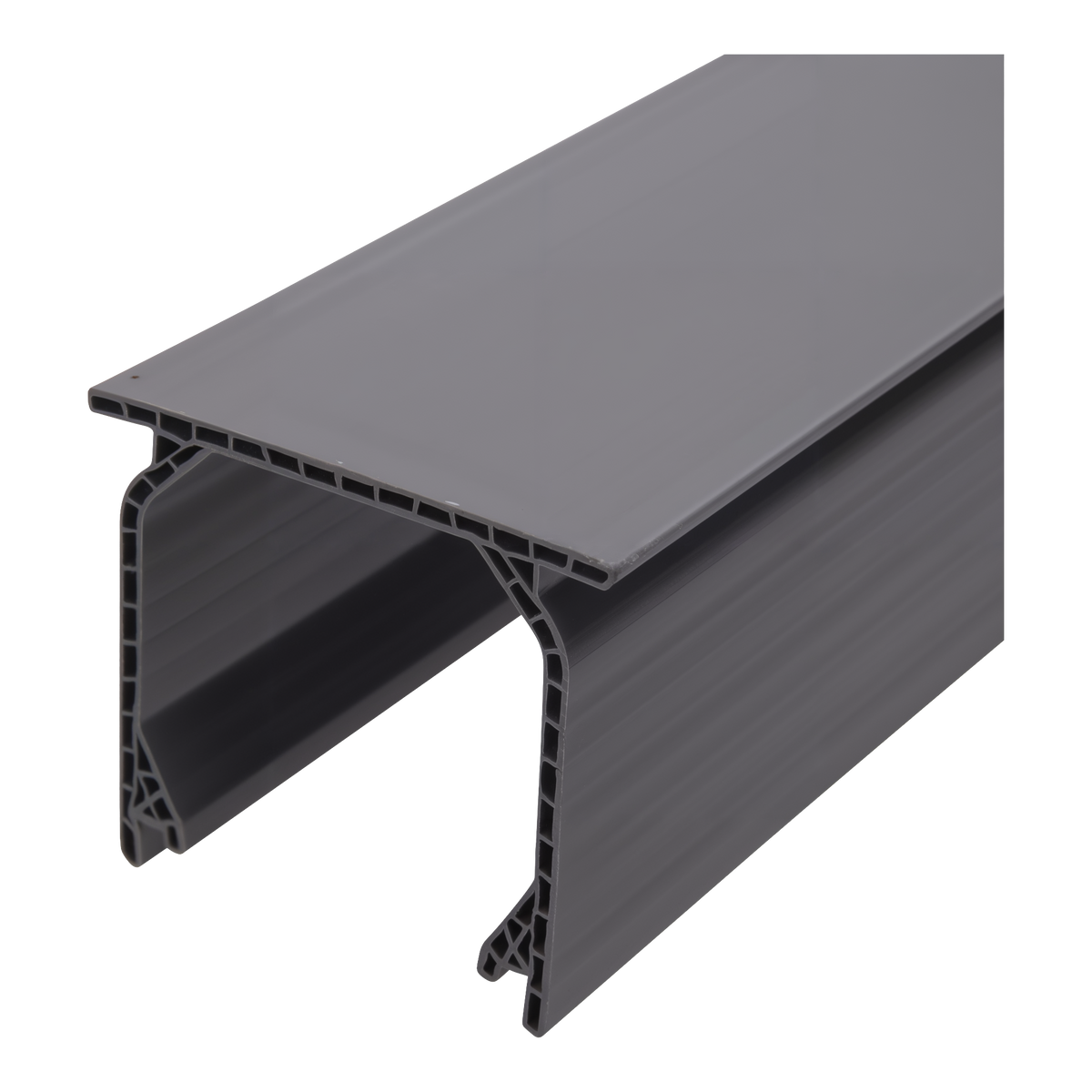

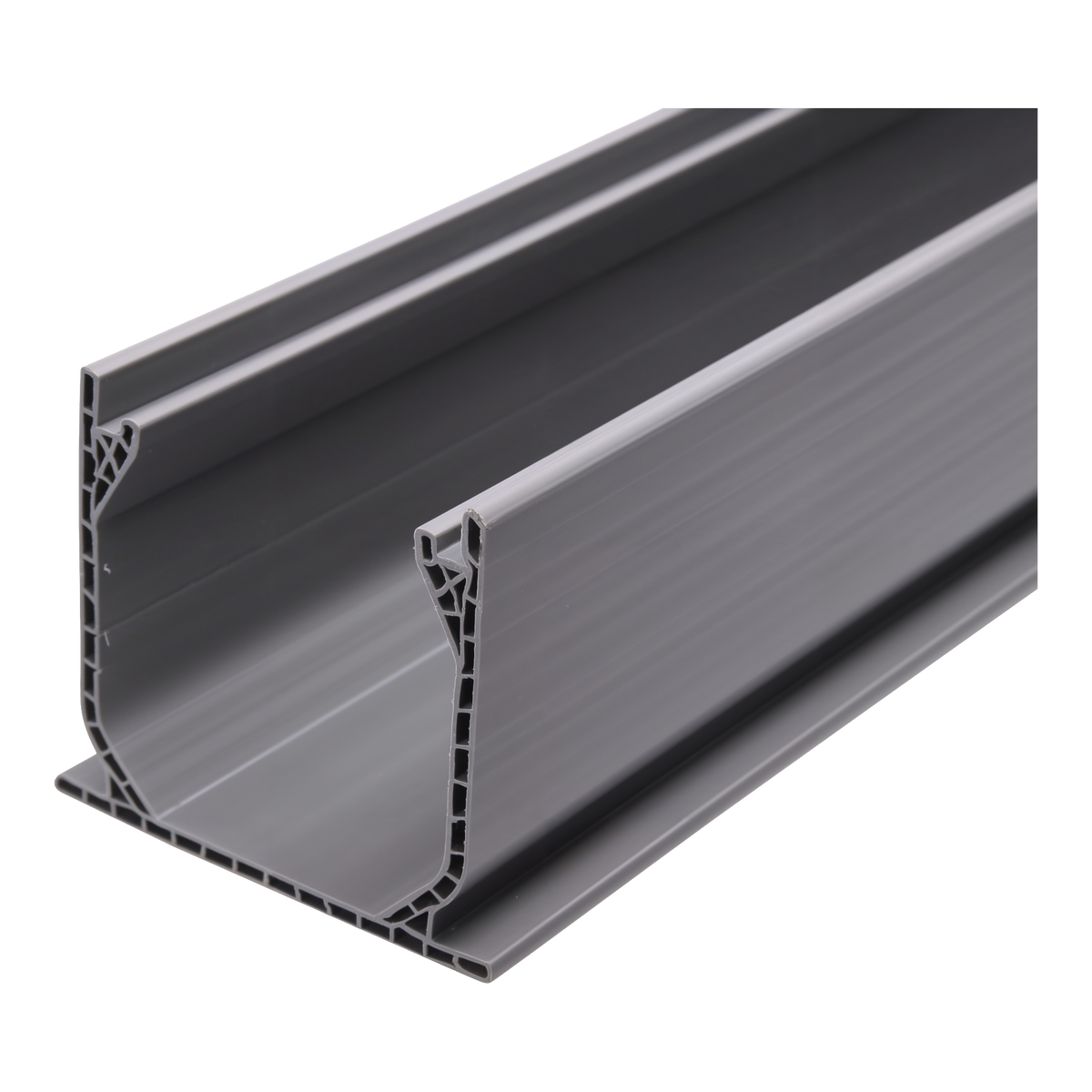

Flying Buttress Design: Patented honeycomb-reinforced walls and buttresses provide load-bearing support from both sides and beneath the channel.
-
Anchoring Flanges: Flanges on the bottom of the channel give the concrete an anchoring lip for a straight installation and keep the channel from floating.
-

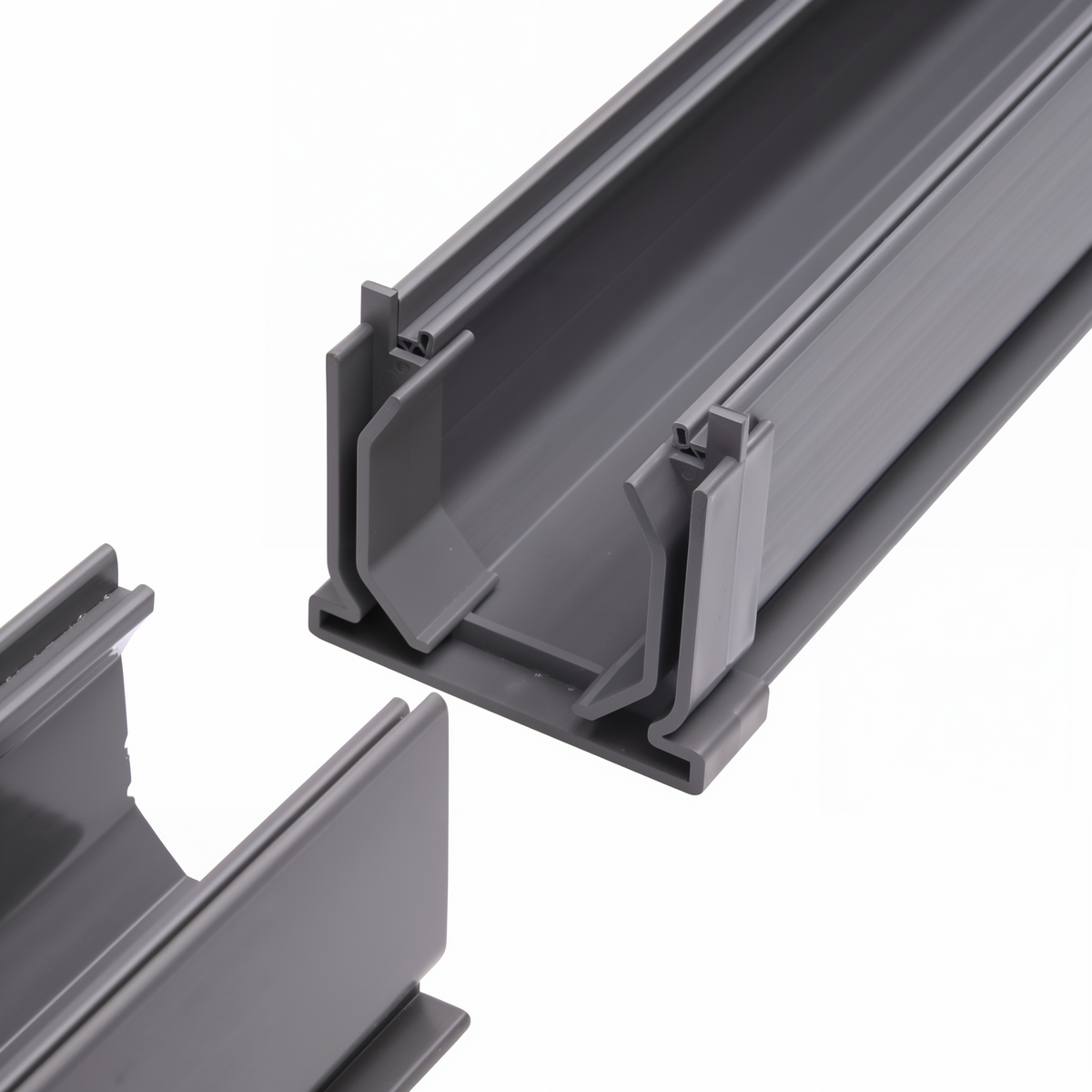

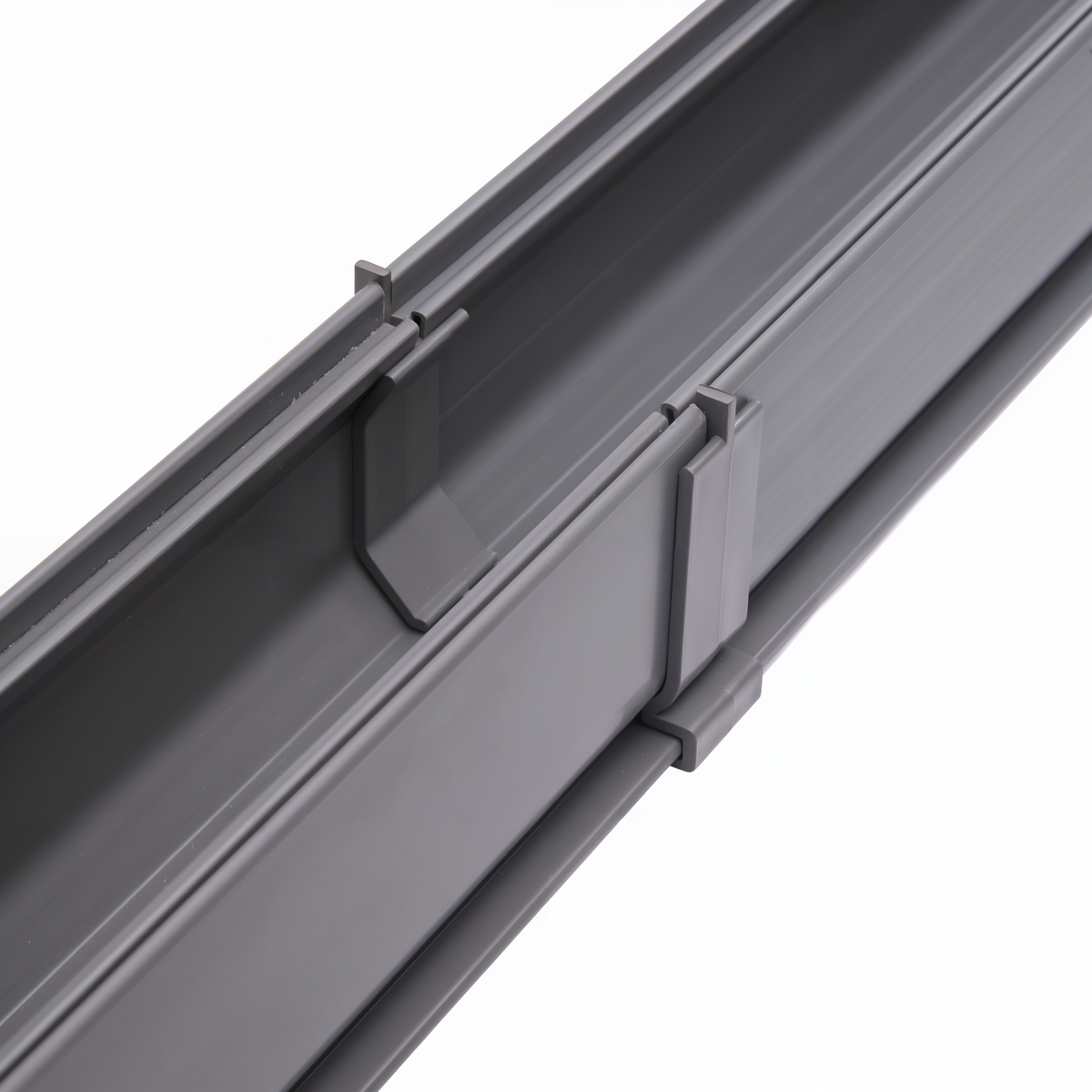

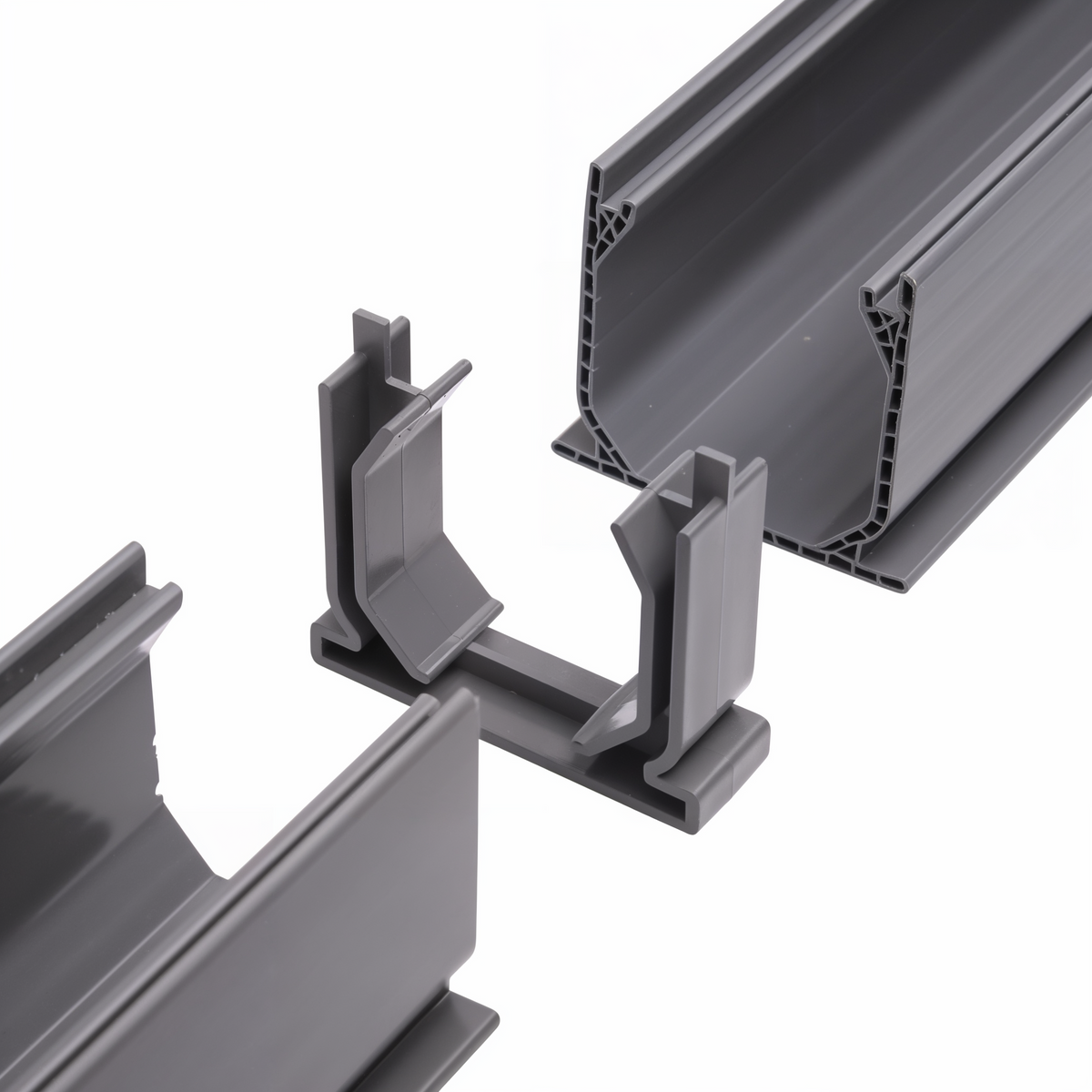

Cut to Length: Trim the 6 ft. section with a saw and join sections with an NDS coupling; end caps and outlet fittings are sold separately.
-
About the NDS Profile Series: The Mini Channel is the compact member of the NDS Profile Series Channel line and takes NDS Mini Channel grates in several colors and styles.
How to Install It
Cut a trench along the line where water collects, deep enough for a bed of concrete under the channel and wide enough to haunch both sides. Set the channel with the top about 1/8 in. below the finished surface so water sheets in, cap the closed end, and connect the outlet end to your drain pipe using the NDS outlet fittings. Snap sections together with a coupling and hold the run straight with the bottom flanges set into the concrete. Drop in the matching NDS Mini Channel grates once the surface is finished. NDS publishes installation details for pedestrian, pool deck and vehicular settings, so pick the one that matches the load.
Specifications
- Part number: NDS 500
- Dimensions: 3-1/16 in. wide x 3-1/8 in. high x 6 ft. long
- Material: PVC with UV inhibitors
- Color: gray
- Weight: 3.26 lb
- Grates, end caps and couplings sold separately
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 500 is the Profile Series Mini Channel body: 3-1/16 in. wide, 3-1/8 in. high, 6 ft. per section, gray UV-inhibited PVC. Spec it for light sheet flow across pool decks, paver and concrete patios, sport courts, walkways and driveway aprons where a full-size trench drain would be oversized. Take-off is linear feet divided by 6, rounded up, plus a coupling per joint, an end cap per closed end, an outlet fitting per discharge and two 3 ft. grates per section. The patented honeycomb wall and flying buttress profile carry load from both sides and under the channel, and the bottom flanges key into the concrete bed to hold line and resist flotation during the pour.
Key Features
- Application: Light sheet flow per NDS; confirm capacity against the NDS Mini Channel tech spec and the All Type Grates Flow Capacities table for the grate you spec.
- Structure: Honeycomb-reinforced walls with flying buttresses for side and bottom support; bottom flanges anchor in the concrete haunch.
- Field Cutting: PVC cuts with a hand or circular saw; sections join with the NDS coupling, so odd lengths are not a problem.
- Accessories: End cap 547, outlet connections per the NDS outlet detail and Mini Channel grates are separate line items.
- Material: PVC with UV inhibitors; catalog weight 3.26 lb per 6 ft. section.
Installation
Build to the NDS Profile Channel Drains installation manual and the pedestrian, pool deck or vehicular installation detail that matches the load case; each one sets trench width, concrete bed thickness and haunching, and NDS does not publish a load class on the product page, so quote the detail rather than a rating. Set the channel on a concrete bed with the top 1/8 in. below finished surface, hold line with stakes or the flange key, and pour the haunch on both sides in one lift so the channel does not float. Cap closed ends, connect outlets per the NDS outlet connections detail and install grates after the surface is finished. In freeze-thaw exposure, keep the concrete surround continuous so the channel is not carrying pavement load alone, and pitch the run to the outlet so the channel empties after each event instead of holding ice. On paver decks, set the channel in the concrete bed before the paver field goes down and cut the border course to the channel rim. Keep the grate seat clear of polymeric sand during the sweep-in. The installation manual, tech specs and outlet, pedestrian, pool deck and vehicular details are attached in the documentation for submittals.
Specifications
- Part number: NDS 500
- Dimensions: 3-1/16 in. W x 3-1/8 in. H x 6 ft. L
- Material: PVC, UV inhibited
- Color: gray
- Weight: 3.26 lb per section
- Related parts: grate 541, end cap 547, coupling and outlet fittings sold separately
