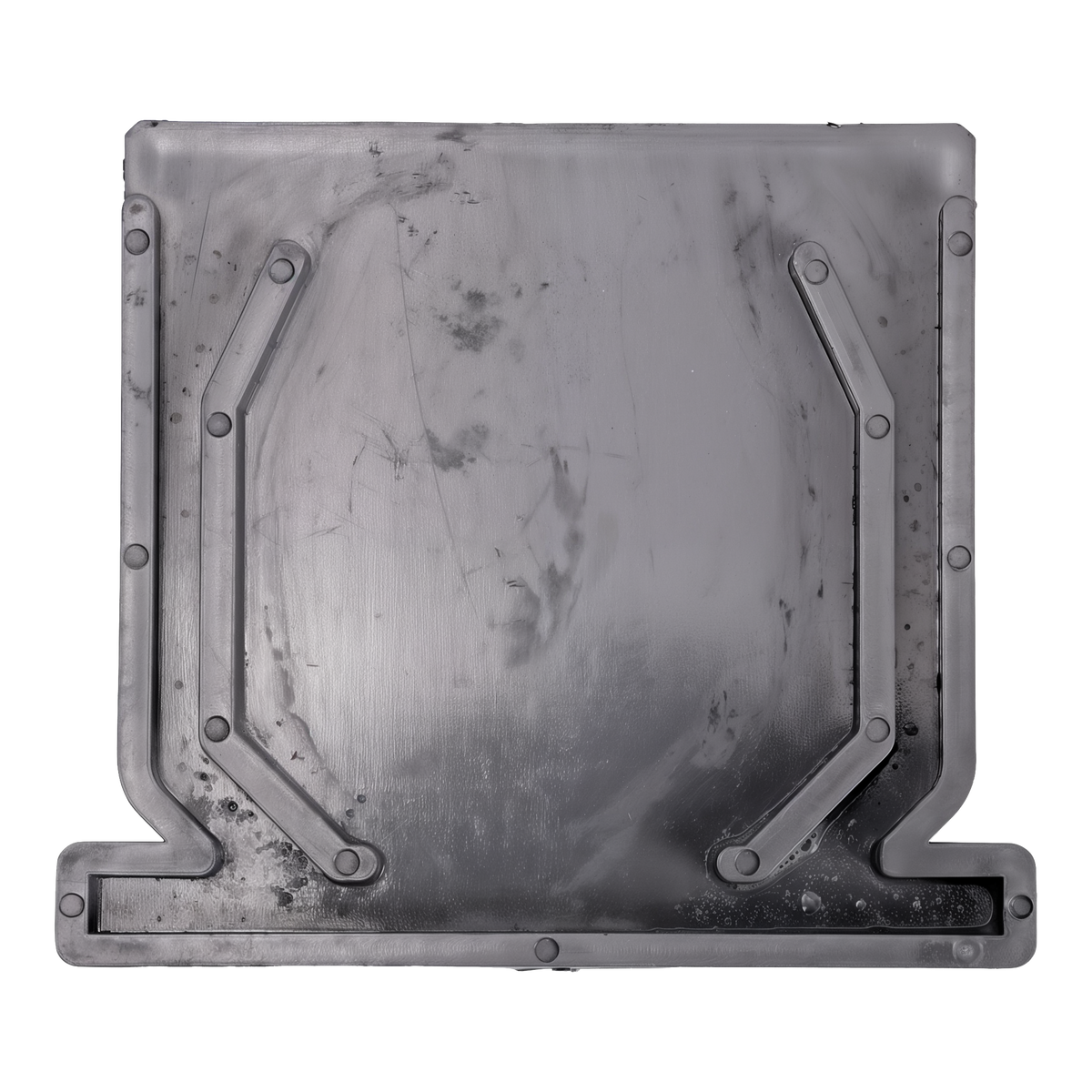

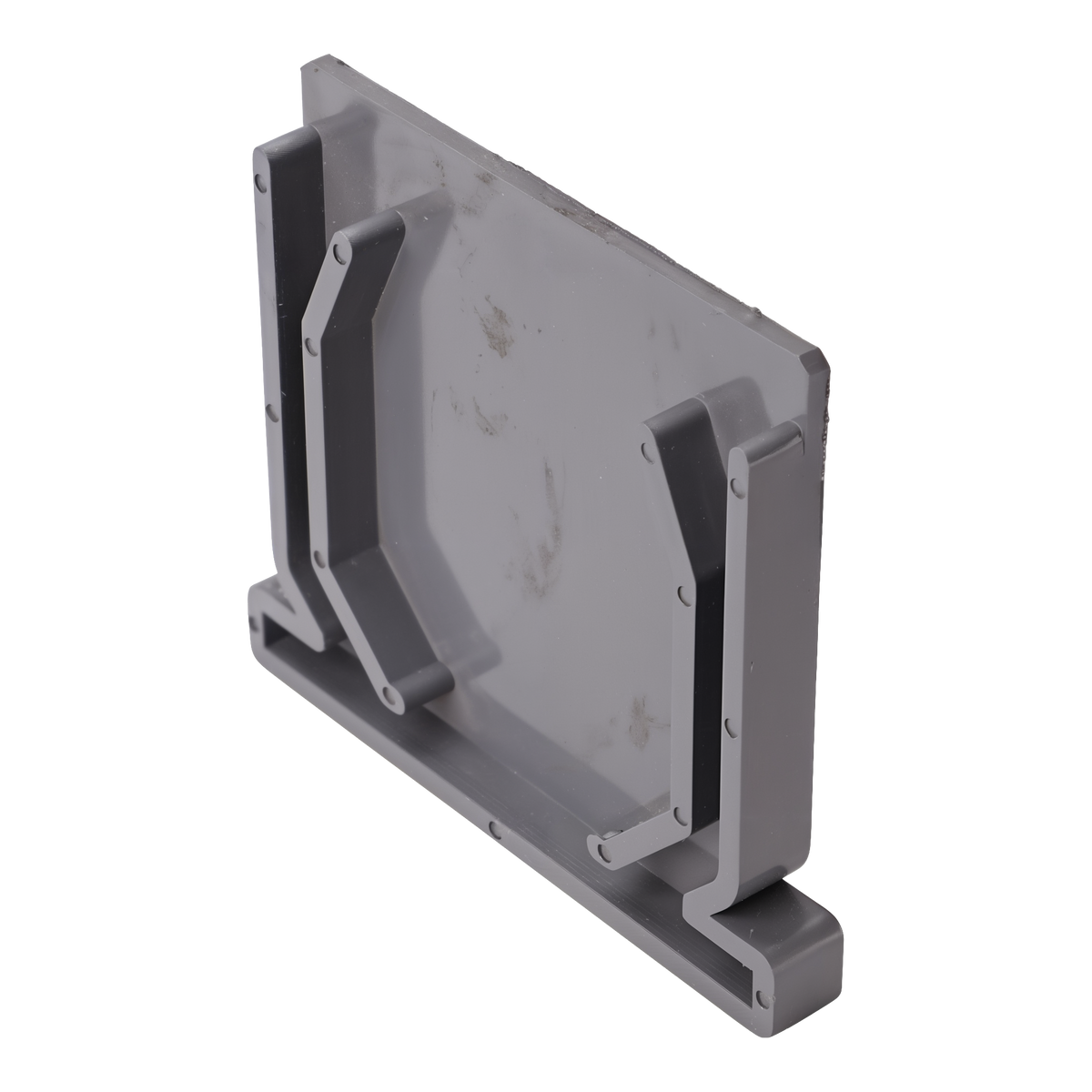

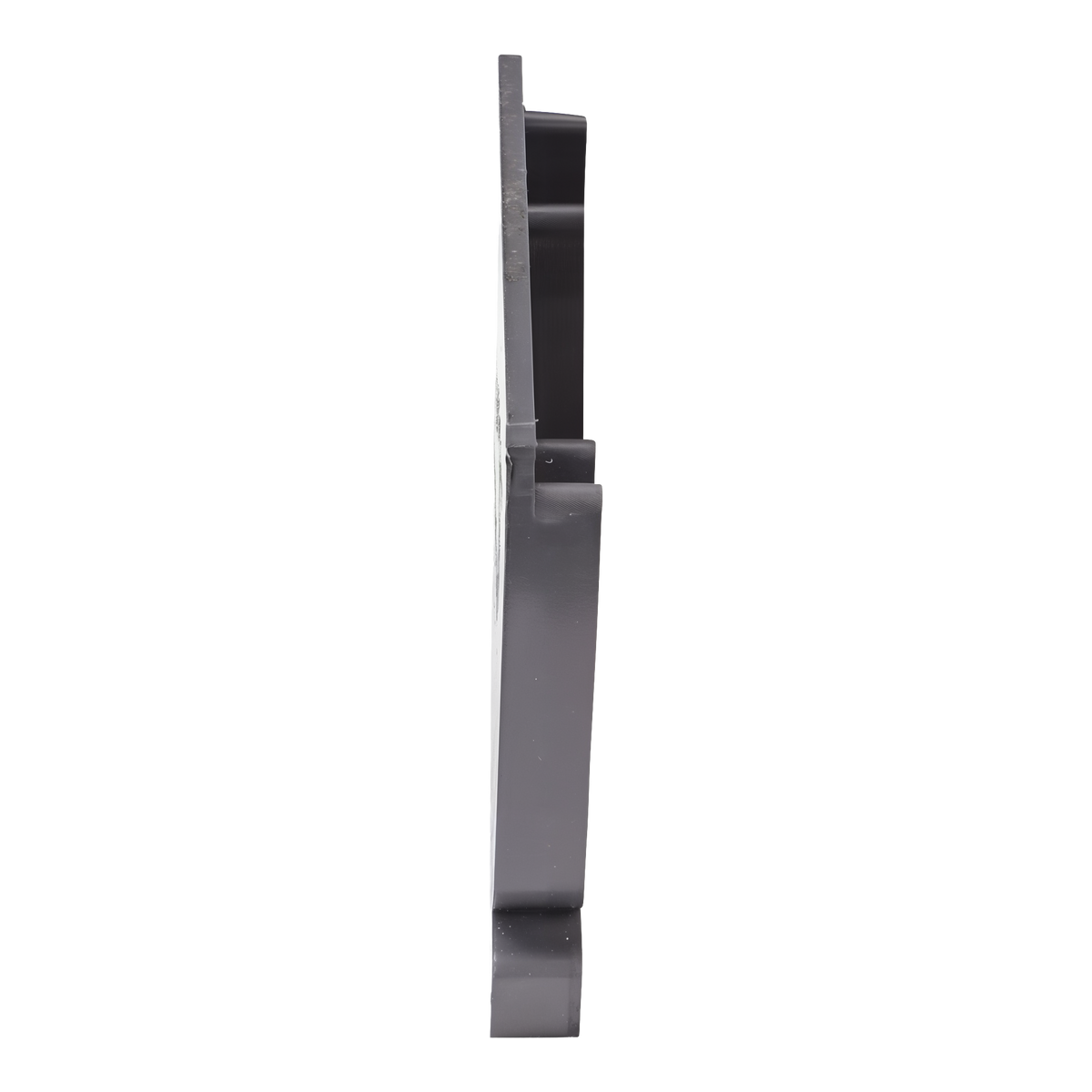

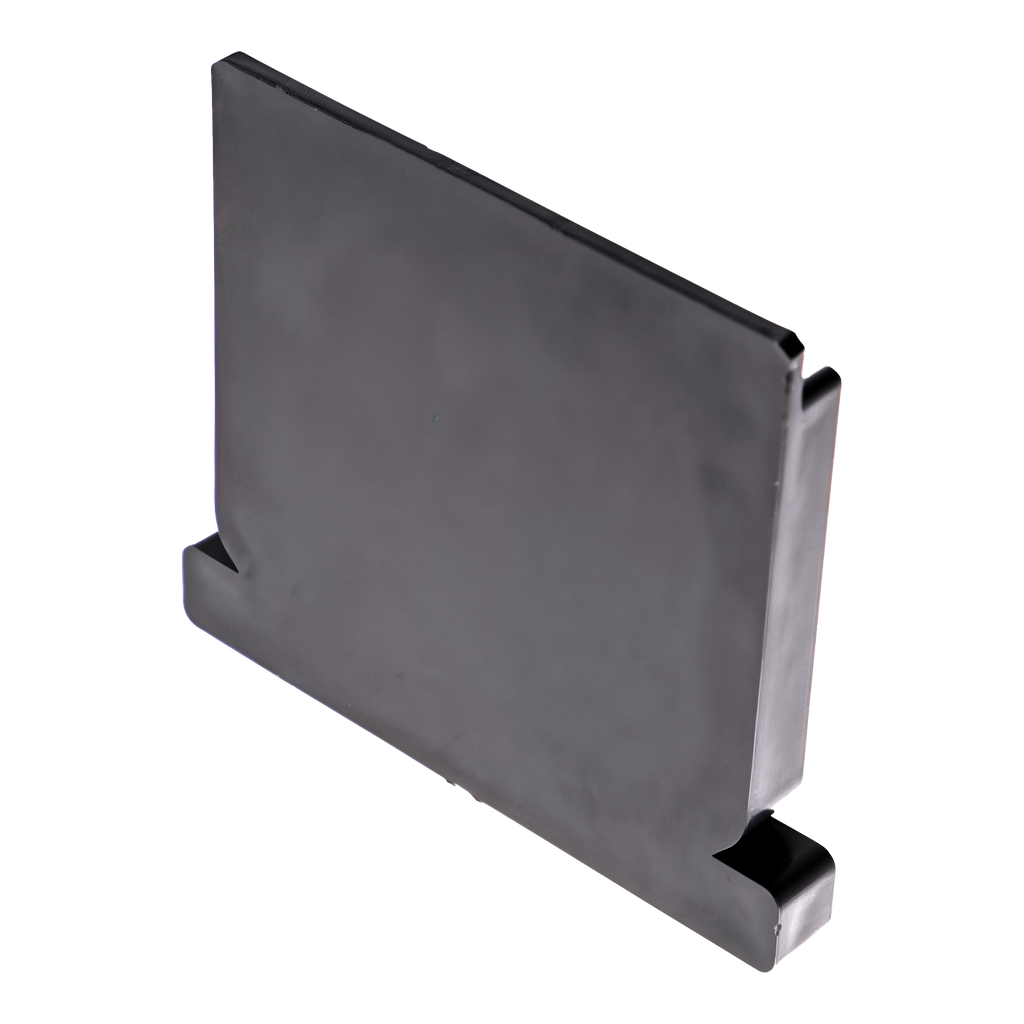

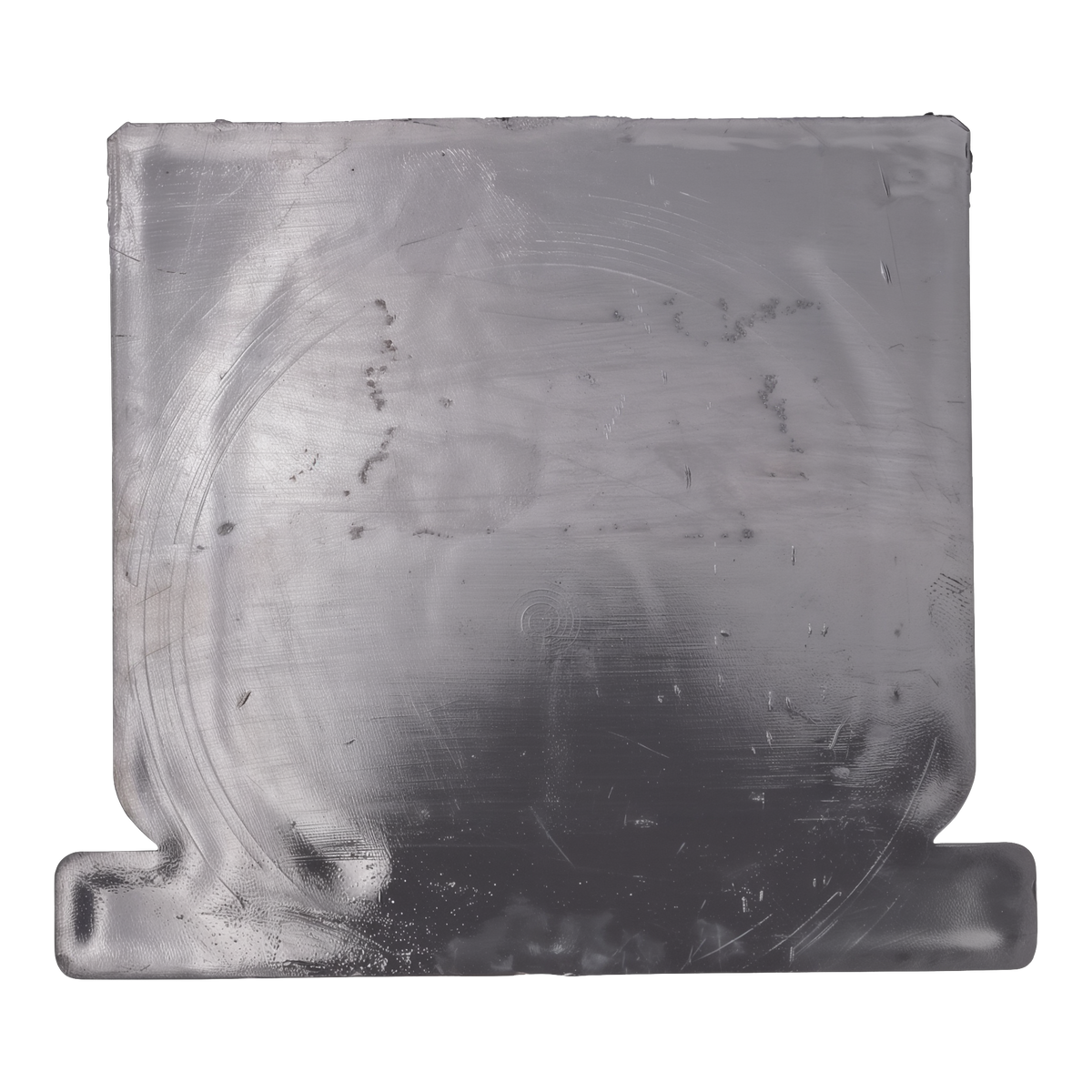

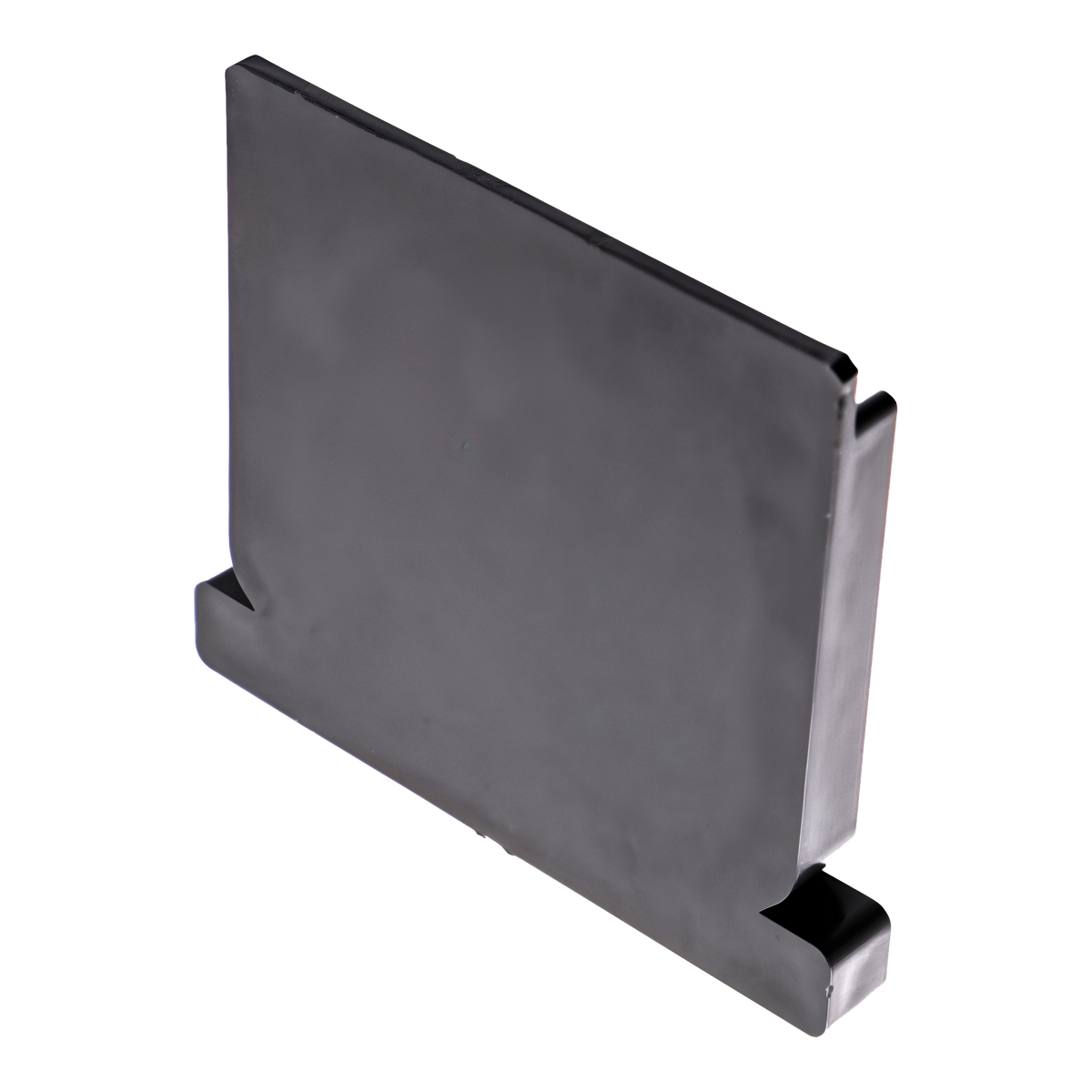

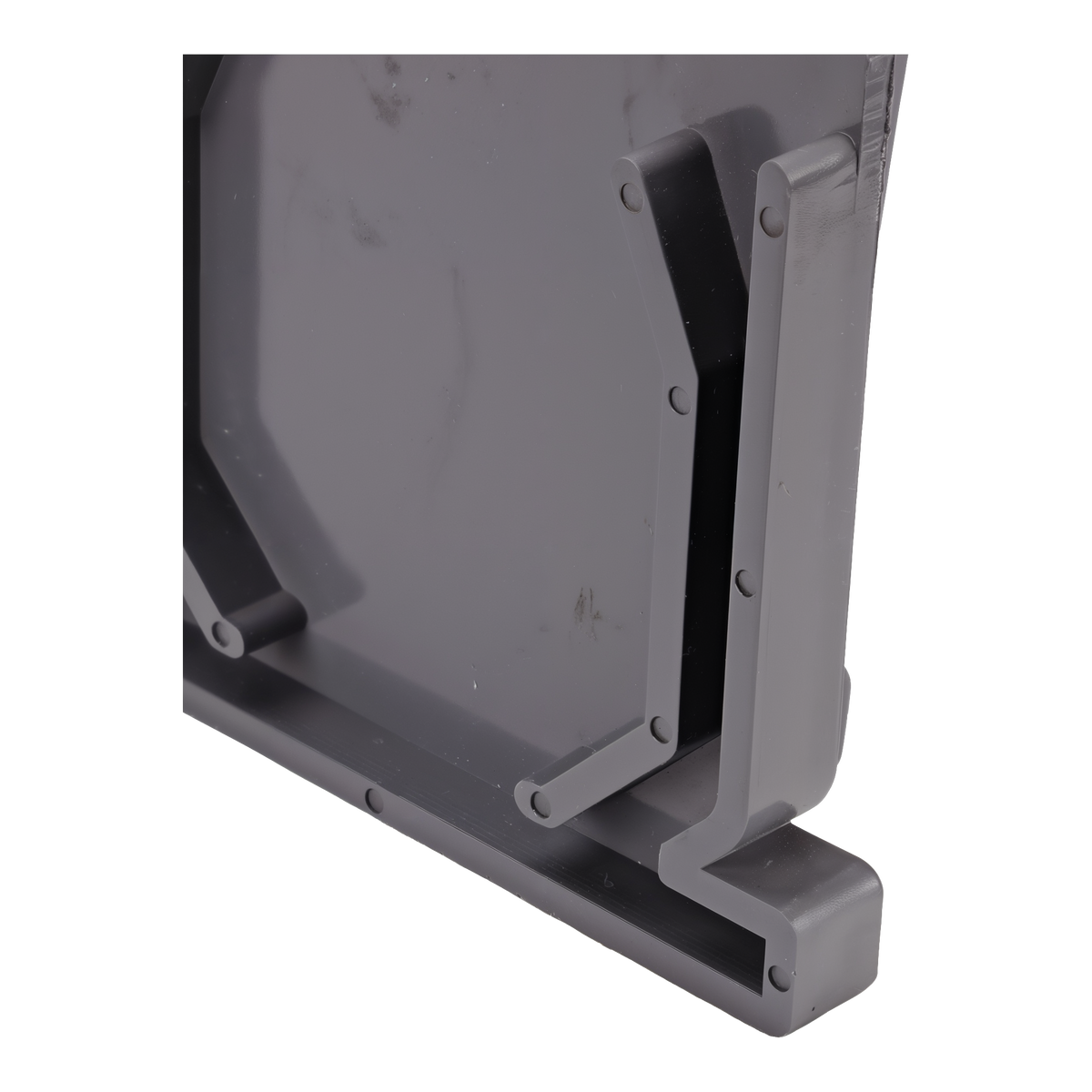

Close off the dead end of your trench drain with the NDS Mini Channel Drain End Cap Gray, the gray PVC cap that seals either end of the NDS Mini Channel so water travels toward the outlet instead of leaking into the concrete bed. The cap presses straight onto the channel profile without a coupling, and its UV-inhibited PVC matches the channel body for a clean finish at a pool deck edge, patio border or driveway apron. One cap closes one end, so plan a cap for every run that does not tie into a fitting.
Key Features
-
Direct Fit: Attaches directly to the NDS Mini Channel Drain with no coupling needed, so a closed end takes one part and no extra fitting.
-
Flow Control: Seals the channel so collected water conveys toward the open outlet end rather than seeping out the end of the run.
-
Matching Material: PVC treated with UV inhibitors, in the same gray as the Mini Channel body.
-
Light Weight: At 0.12 lb the cap adds nothing to your load and fits in a pocket on the job.
-
About the NDS Profile Series: The Mini Channel end cap belongs to the NDS Profile Series Channel line built for light water flows from pool and spa areas, patios, tennis courts, walkways and driveways.
How to Install It
Cut the channel to its final length first, then press the end cap onto the open profile at the closed end of the run before the channel goes into the trench. Check that the cap seats fully around the flanges so the concrete haunch does not push it off during the pour. On a run with a single outlet, cap the far end; on a run that drains from the middle, cap both ends and place the outlet fitting where the pipe leaves. Keep the cap end slightly higher than the outlet end so water always moves toward the discharge. Order one cap per closed end when you buy your channel sections.
Specifications
- Part number: NDS 547
- Fits: NDS Mini Channel Drain, part 500
- Material: PVC with UV inhibitors
- Color: gray
- Weight: 0.12 lb
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 547 is the gray PVC end cap for the Profile Series Mini Channel (part 500). It presses directly onto the channel profile with no coupling and blanks a closed end so flow conveys to the outlet fitting. Take-off is one cap per closed end: one for a single-outlet run, two for a run that outlets mid-length, plus spares for field cuts and layout changes. Every Mini Channel run needs a cap at any end that does not terminate in an outlet connection, otherwise the channel bleeds into the concrete bed and the bed saturates through the freeze-thaw season. The cap is UV-inhibited PVC to match the channel and weighs 0.12 lb, so it adds nothing to the load or the ticket.
Key Features
- Fit: Direct connection to the Mini Channel 500; no coupling, no adapter.
- Function: Seals the closed end so collected water stays in the channel and runs to the outlet fitting rather than bleeding into the concrete bed.
- Material: PVC with UV inhibitors, gray; matches the channel body where the cap end is exposed at a paver border.
- Weight: 0.12 lb per cap; negligible on the take-off.
- System: Part of the NDS Mini Channel accessories group with couplings, outlet connections and grates; the NDS accessories tech spec covers the full set for the take-off.
Installation
Cut the channel to final length, press the cap fully onto the open profile and confirm it seats around the flanges before the channel goes on the concrete bed. Set the capped end slightly high so the run drains to the outlet, and pour the haunch on both sides in one lift so the cap is not pushed off by uneven concrete pressure. Follow the NDS outlet connections detail at the discharge end and the pedestrian, pool deck or vehicular installation detail for the surround. Where the cap end lands at an expansion joint or paver border, keep the concrete surround continuous to the cap so the channel end is supported and does not become the weak point under a wheel load. Check the cap again after the pour before the grates go in; a cap that shifted during placement leaves an open channel end under finished pavement that cannot be reached later. The end cap tech spec, the Mini Channel installation manual and the outlet, pedestrian, pool deck and vehicular installation details are attached in the documentation for submittals.
Specifications
- Part number: NDS 547
- Fits: NDS Mini Channel Drain 500
- Material: PVC, UV inhibited
- Color: gray
- Weight: 0.12 lb
