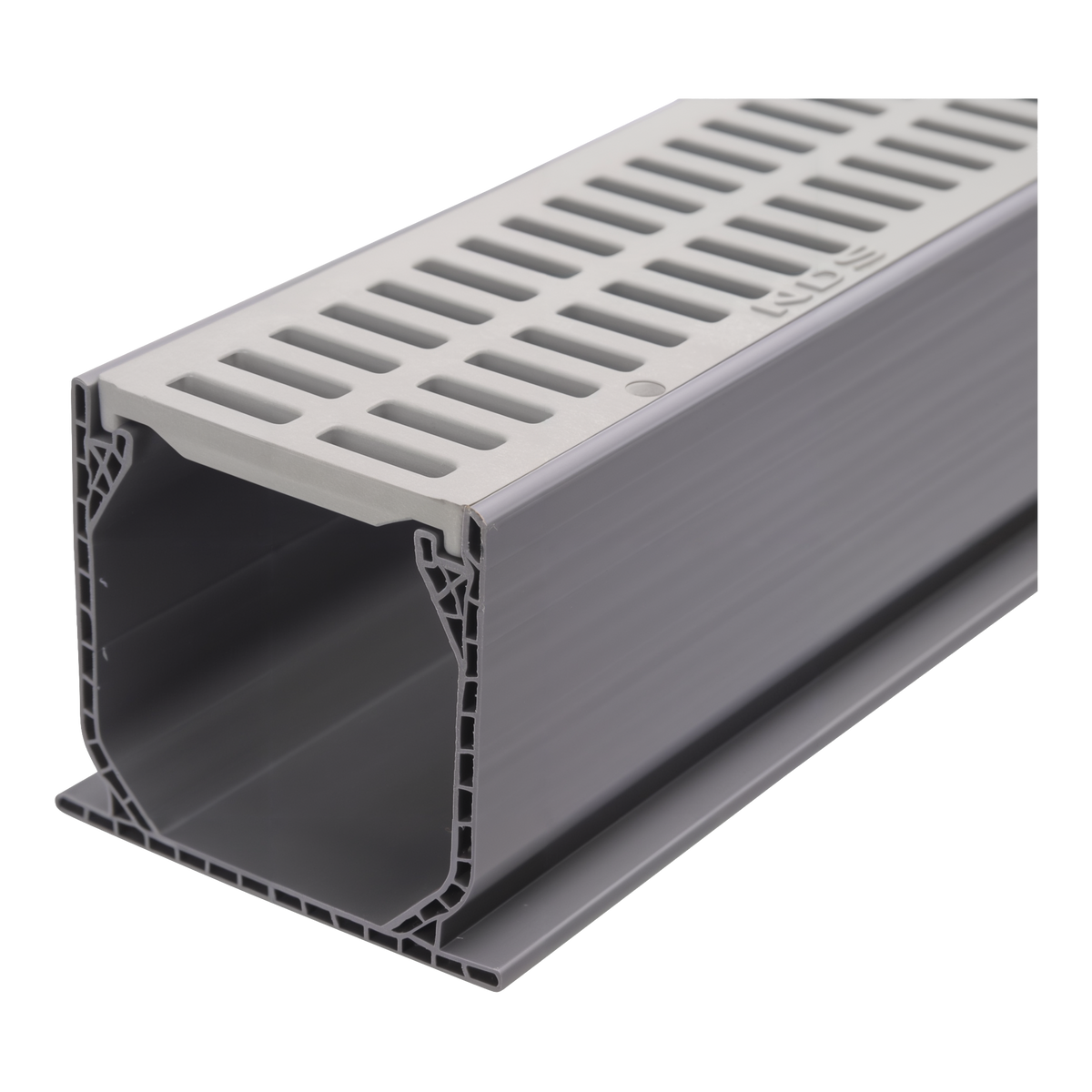

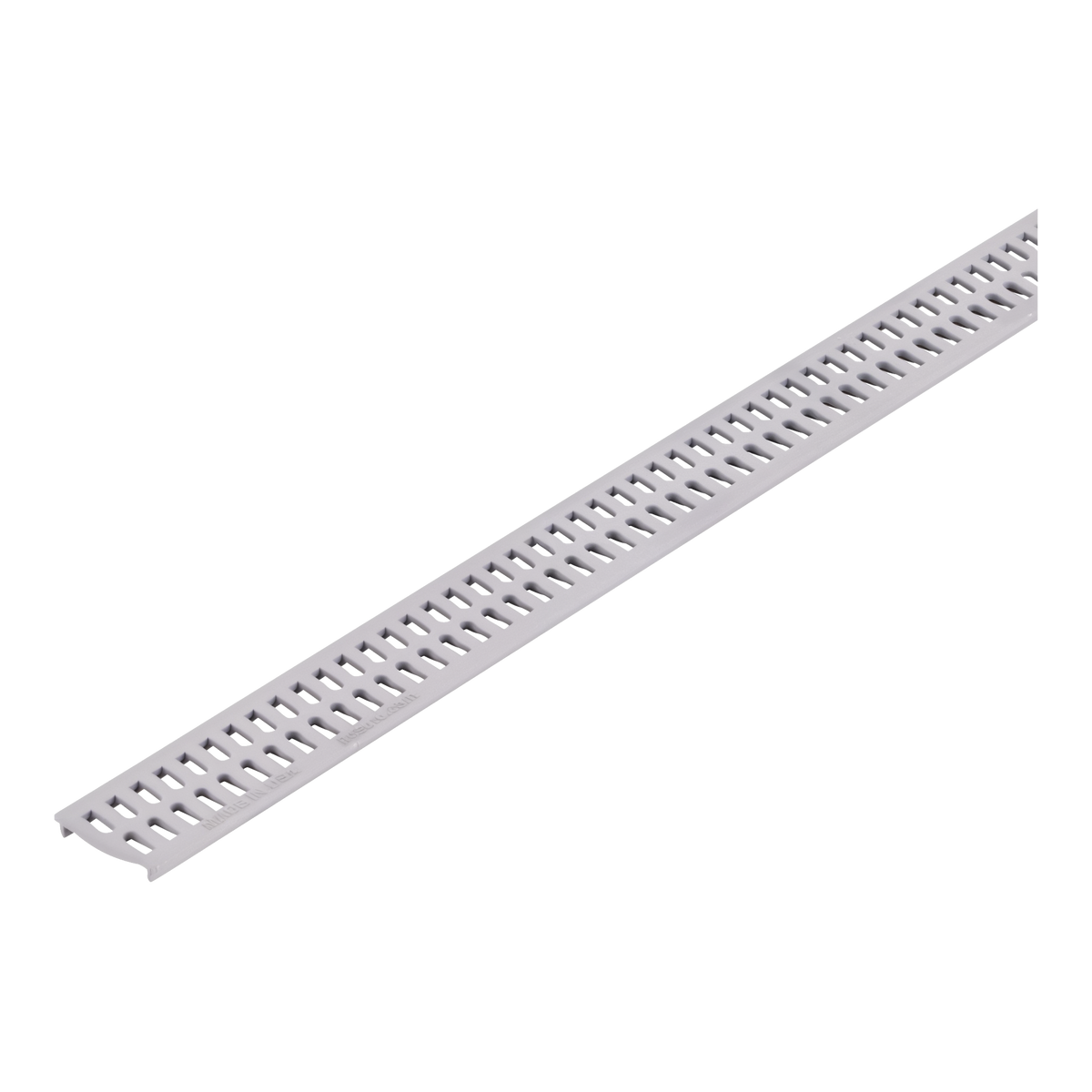

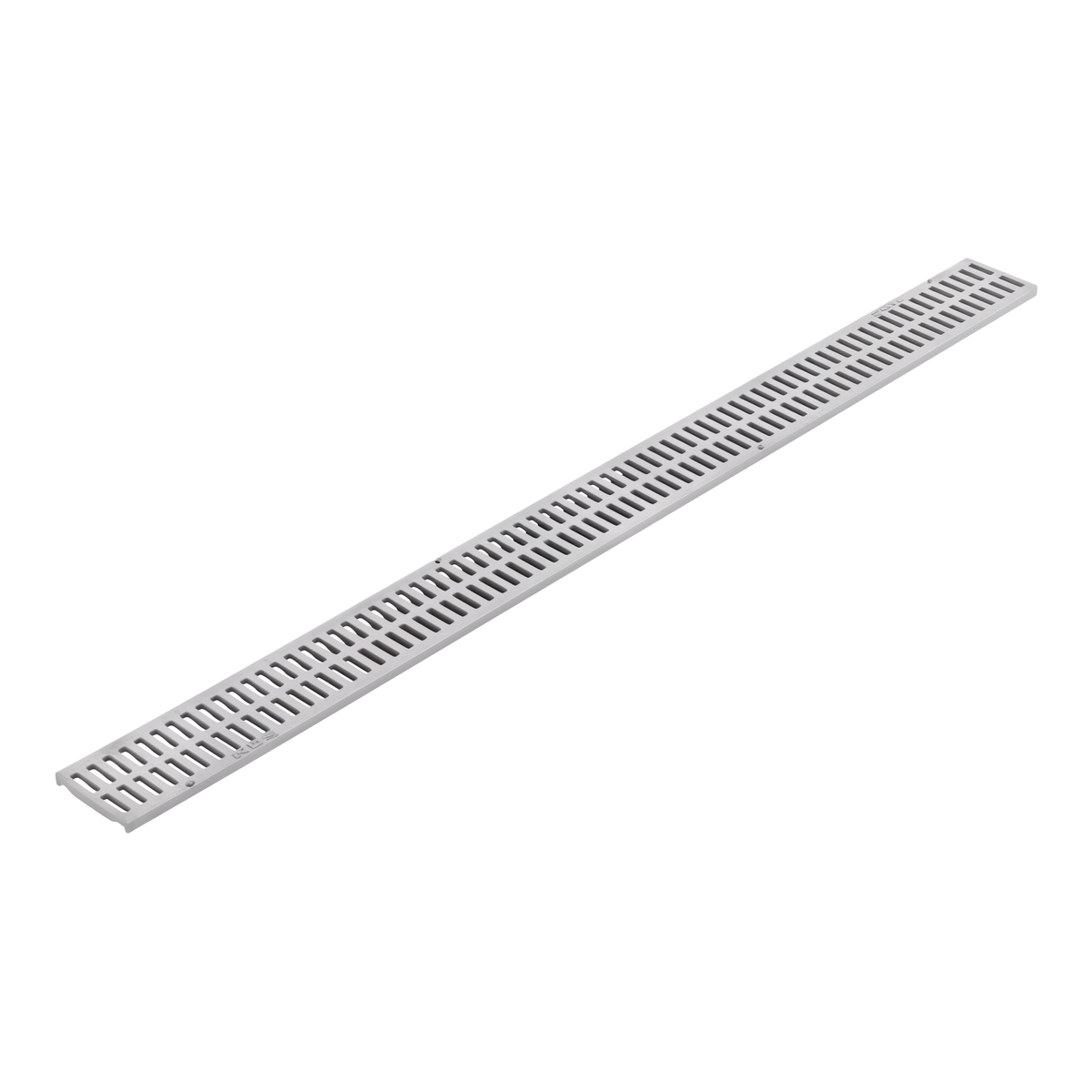

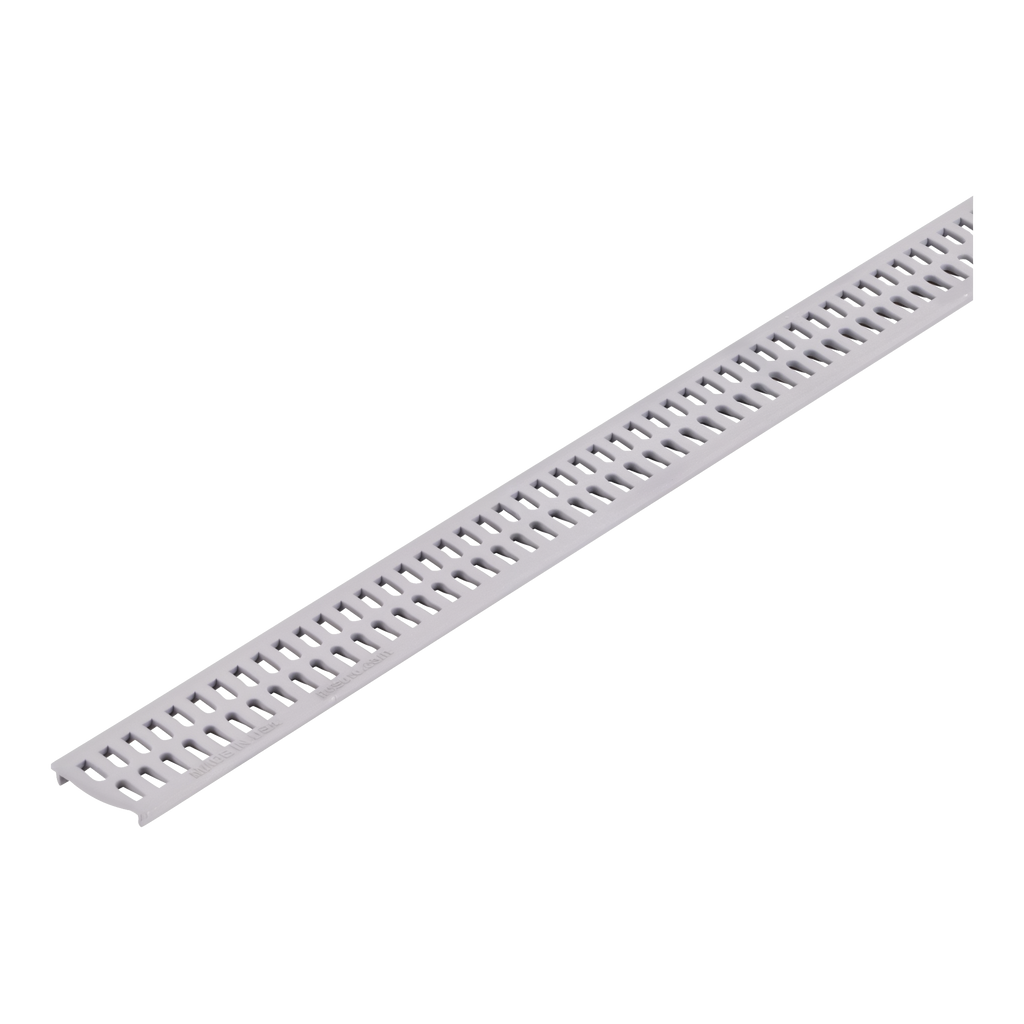

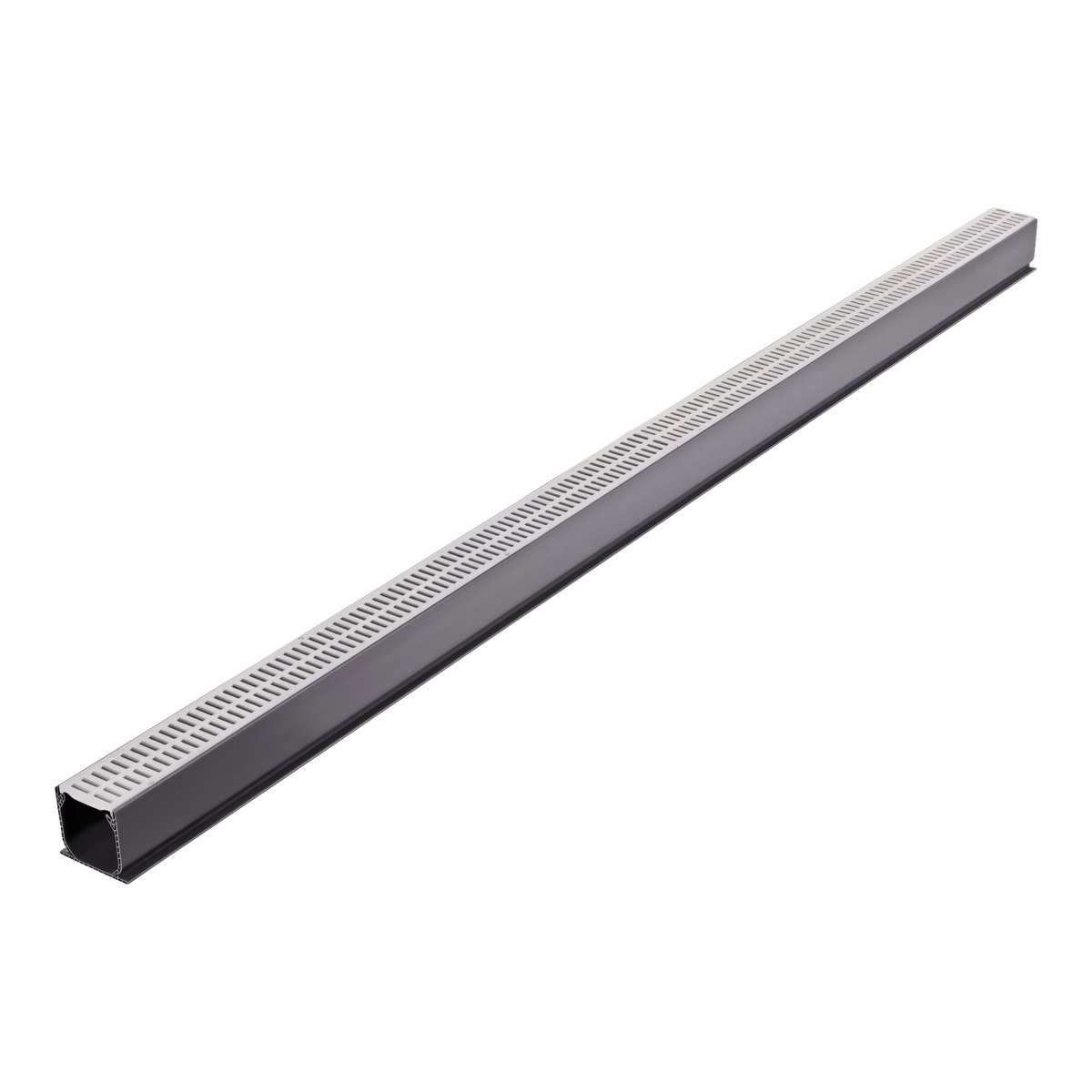

Keep leaves, mulch and grit out of your trench drain with the NDS Mini Channel Drain Grate 2-3/4 in. x 3 ft. Gray, the slotted plastic drain cover made for the NDS Mini Channel. The gray grate spans 2-3/4 in. across and 3 ft. long, so two pieces cover a full 6 ft. channel section. Narrow slots pass sheet flow from pool decks, paver patios, walkways and driveways into the channel below while screening out the debris that clogs drain pipe. UV inhibitors in the polypropylene keep the gray finish from chalking in full sun.
Key Features
-

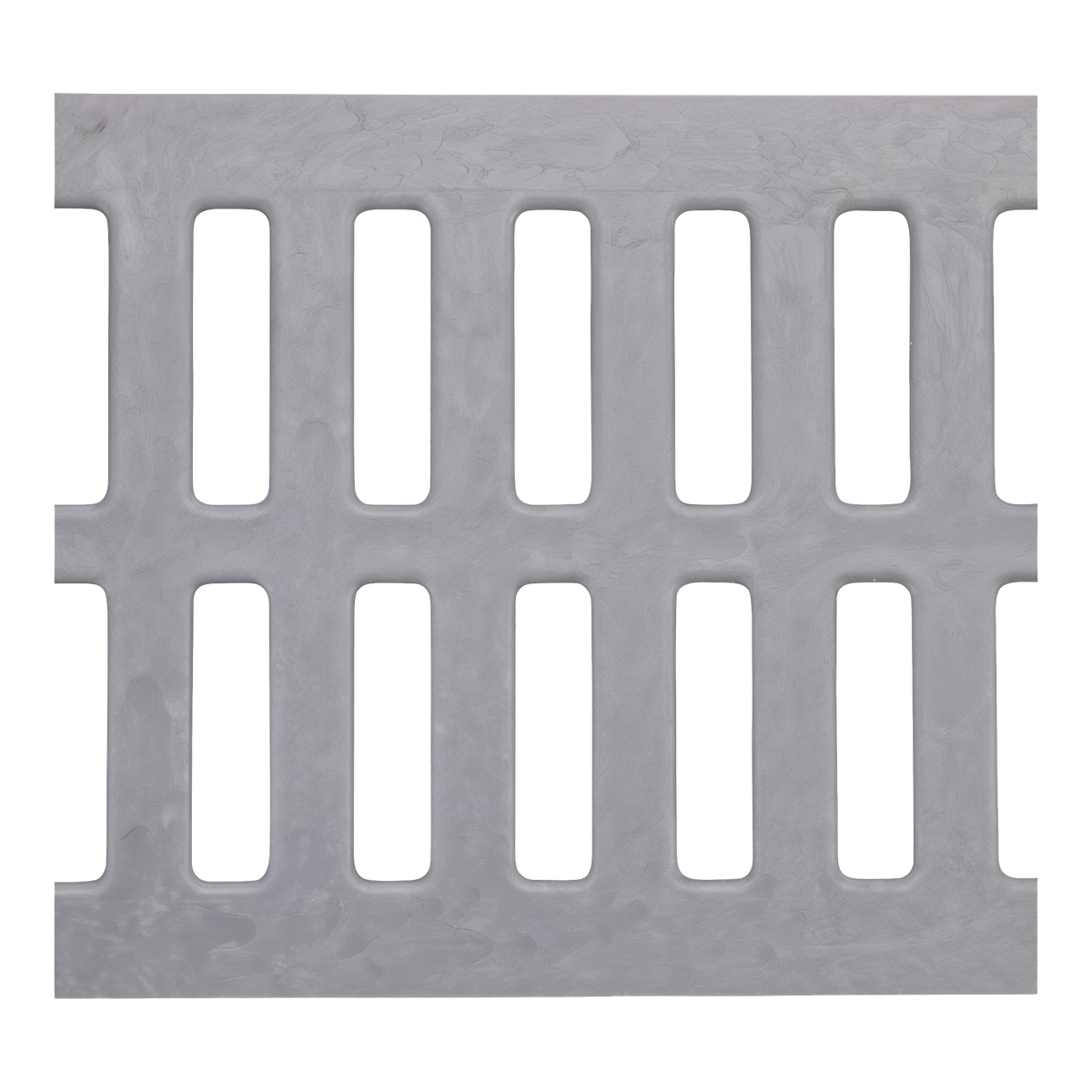

Debris Screening: Slotted top passes surface water into the channel and blocks leaves, needles and mulch before they reach the outlet pipe.
-

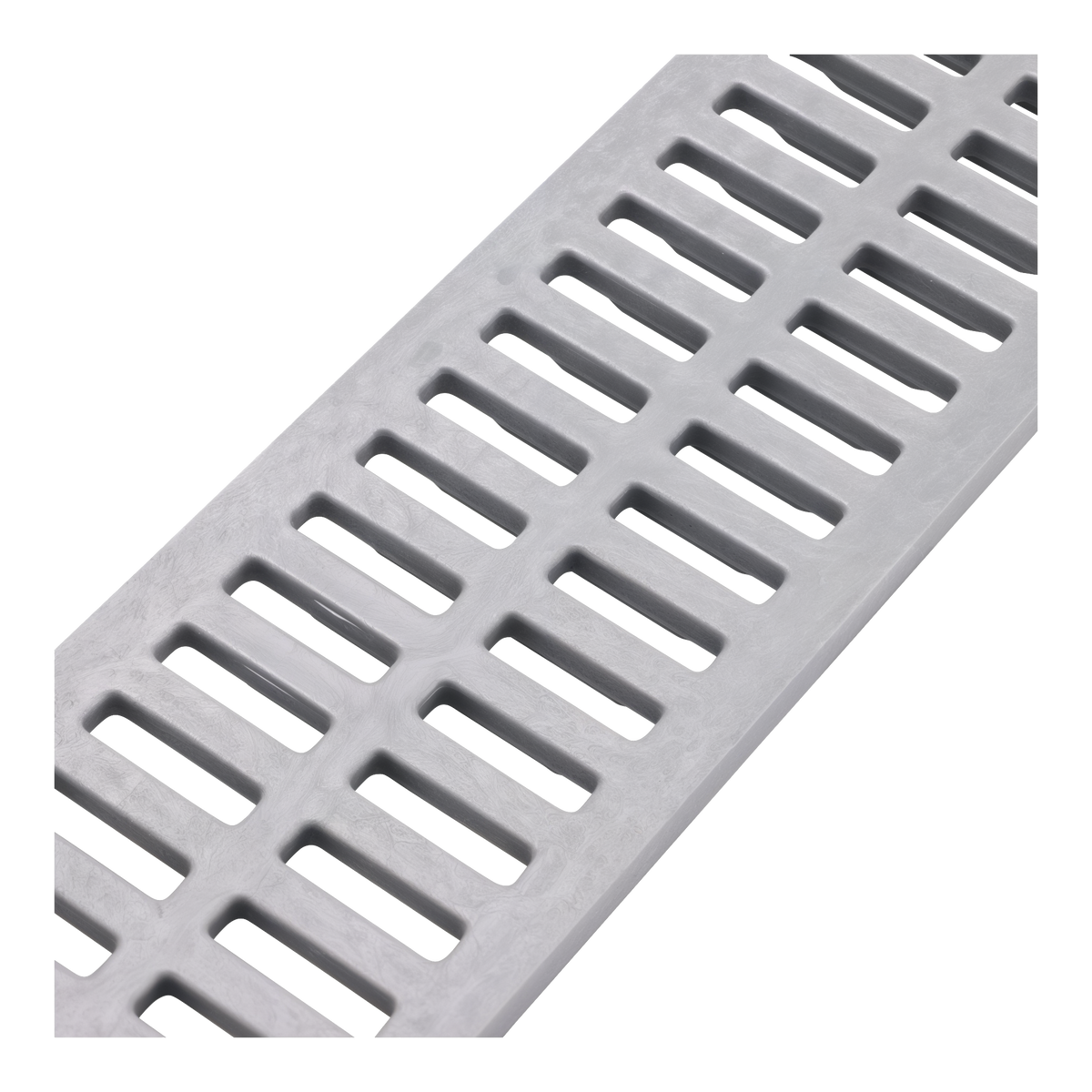

Open Area: 9.90 sq. in. of open slot area per foot of grate, per the NDS catalog, for steady intake when a storm hits.
-

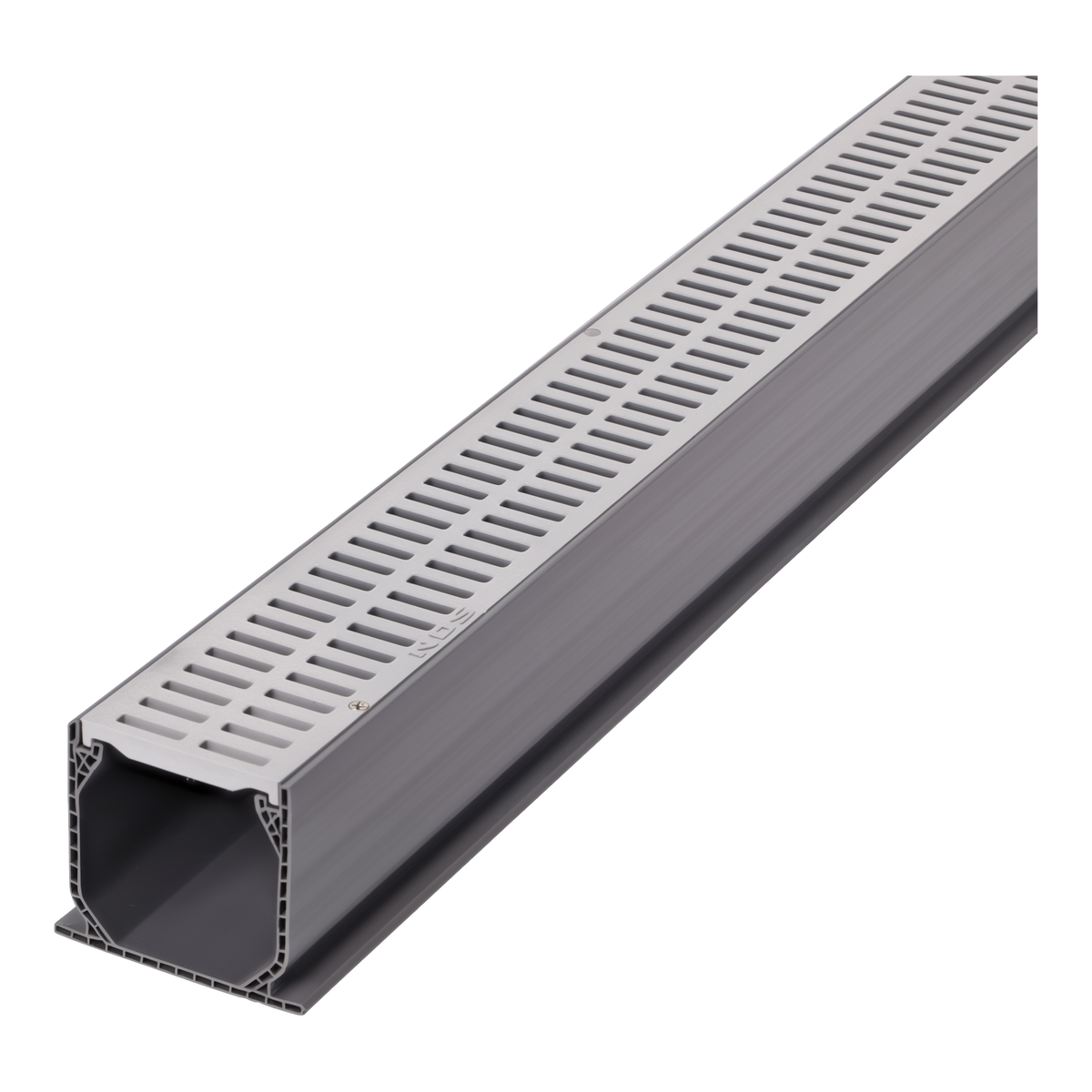

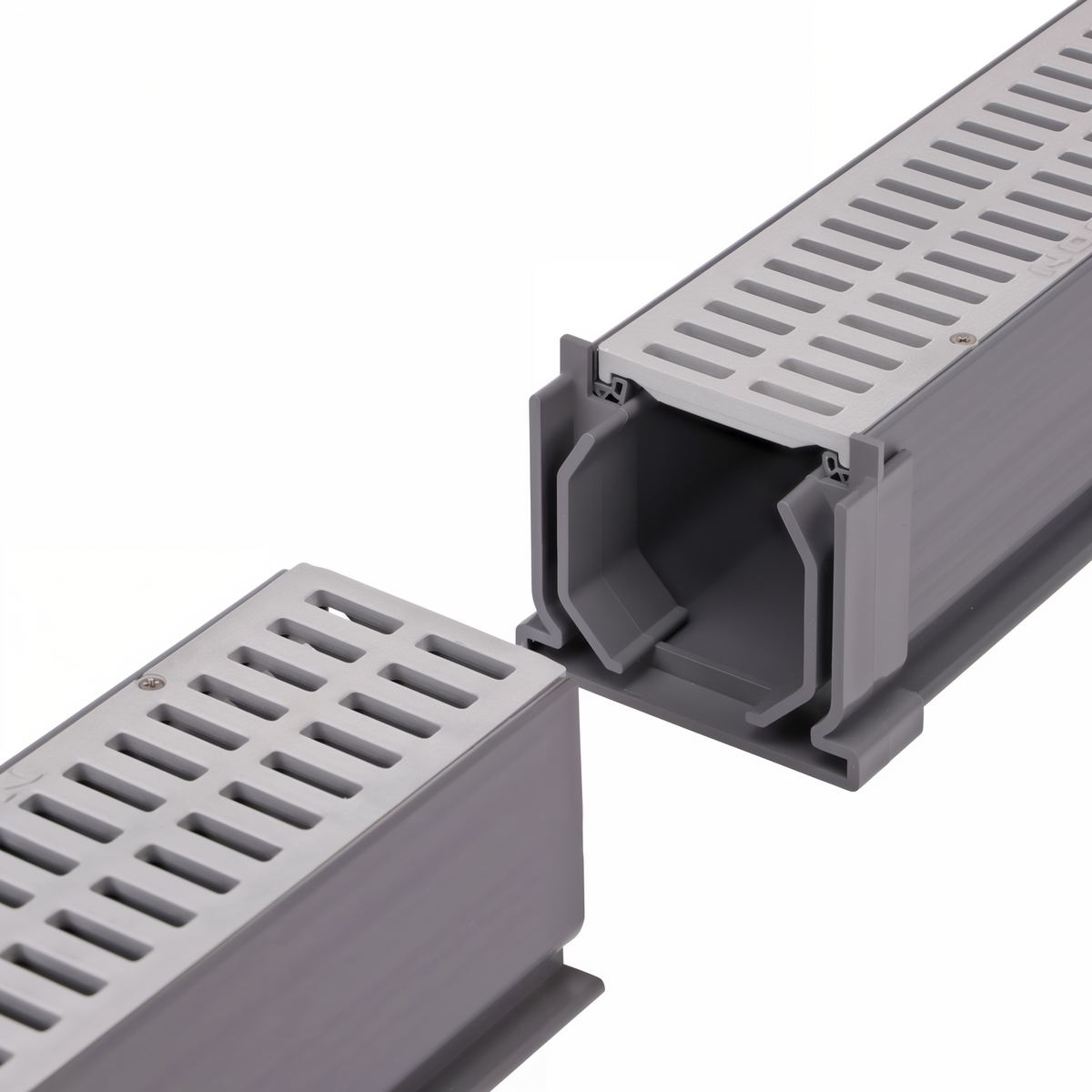

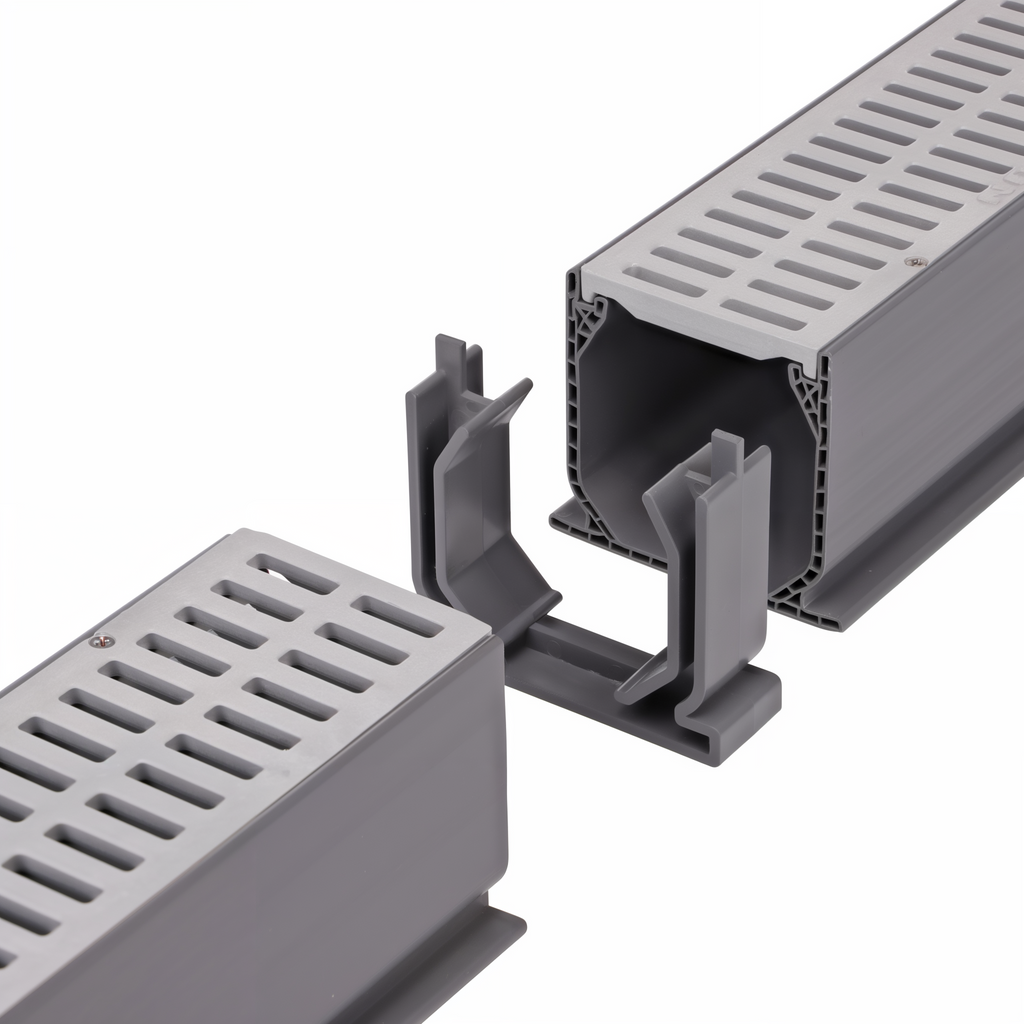

Mini Channel Fit: Sized for the NDS Mini Channel Drain (part 500); the 3 ft. length covers a 6 ft. channel run with two grates.
-
UV Inhibitors: Polypropylene treated with UV inhibitors resists fading and brittleness through years of sun exposure.
-
About the NDS Profile Series: The Mini Channel belongs to the NDS Profile Series Channel family, which offers drain covers in a variety of colors, decorative styles and materials.
How to Install It

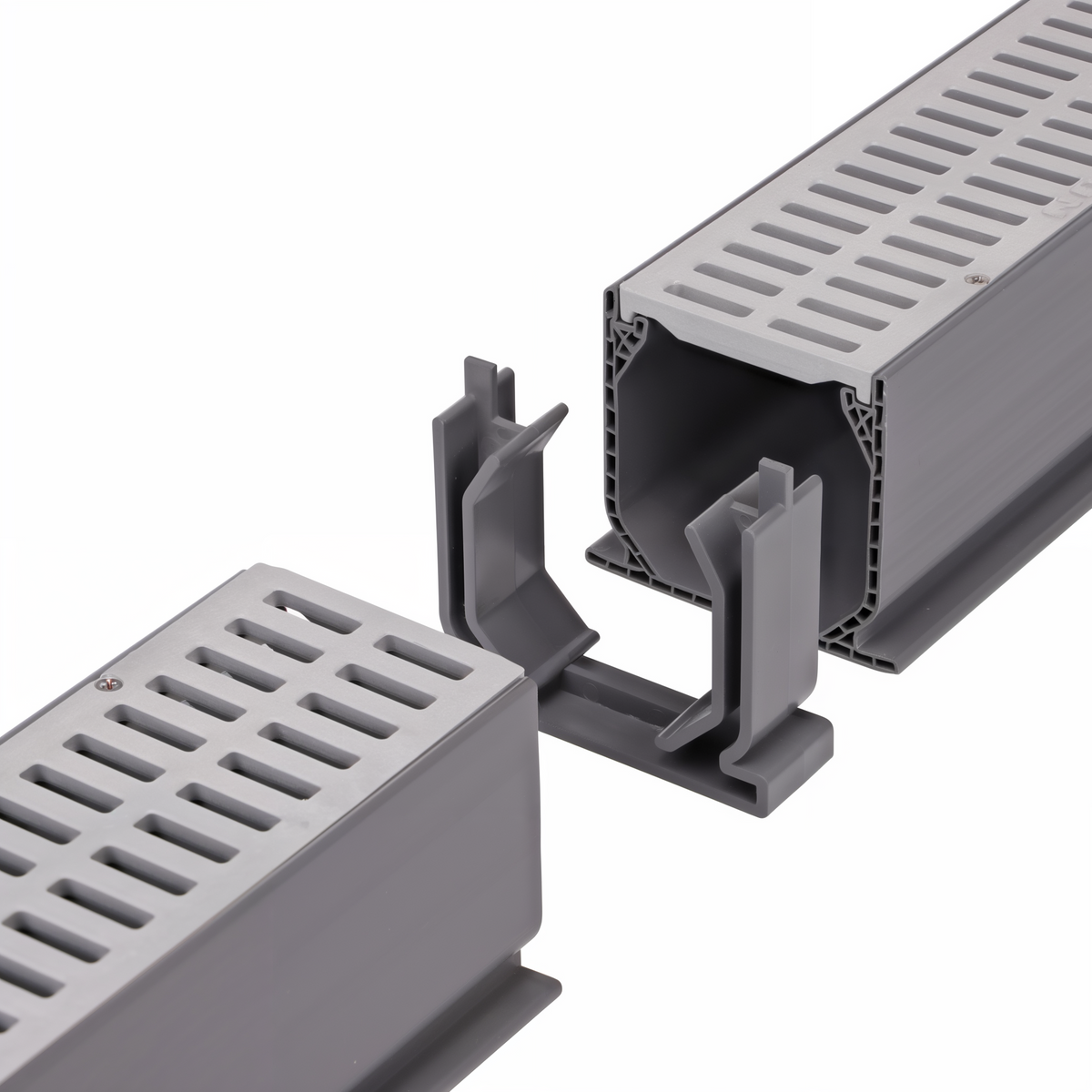

Set the grate into the seat molded along the top of the Mini Channel once the channel is bedded and the surrounding concrete or pavers are finished flush with the rim. Butt grates end to end along the run. This part, 541, is the grate only; NDS part 541-1 is the same grate packaged with screws if you want it fastened down. NDS publishes installation details for pedestrian, pool deck and vehicular applications, so match the bedding to how the drain will be loaded. Clean the drain by lifting the grate, flushing the channel with a hose and dropping the grate back in place. Keep a spare on hand for pool areas where grates get moved often.
Specifications
- Part number: NDS 541
- Size: 2-3/4 in. wide x 3 ft. long
- Material: polypropylene with UV inhibitors
- Color: gray
- Weight: 0.66 lb
- Open surface area: 9.90 sq. in. per ft.
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 541 is the gray slotted polypropylene grate for the Profile Series Mini Channel (part 500). Each grate is 2-3/4 in. wide by 3 ft. long, so figure two grates per 6 ft. channel section on your take-off, plus one spare per run for grates that get pulled during cleaning. Open area is 9.90 sq. in. per foot per the NDS catalog; check it against the NDS All Type Grates Flow Capacities tech spec when sizing a run for pool deck, patio or driveway apron sheet flow. UV inhibitors in the polypropylene limit chalking and embrittlement on exposed installations.
Key Features

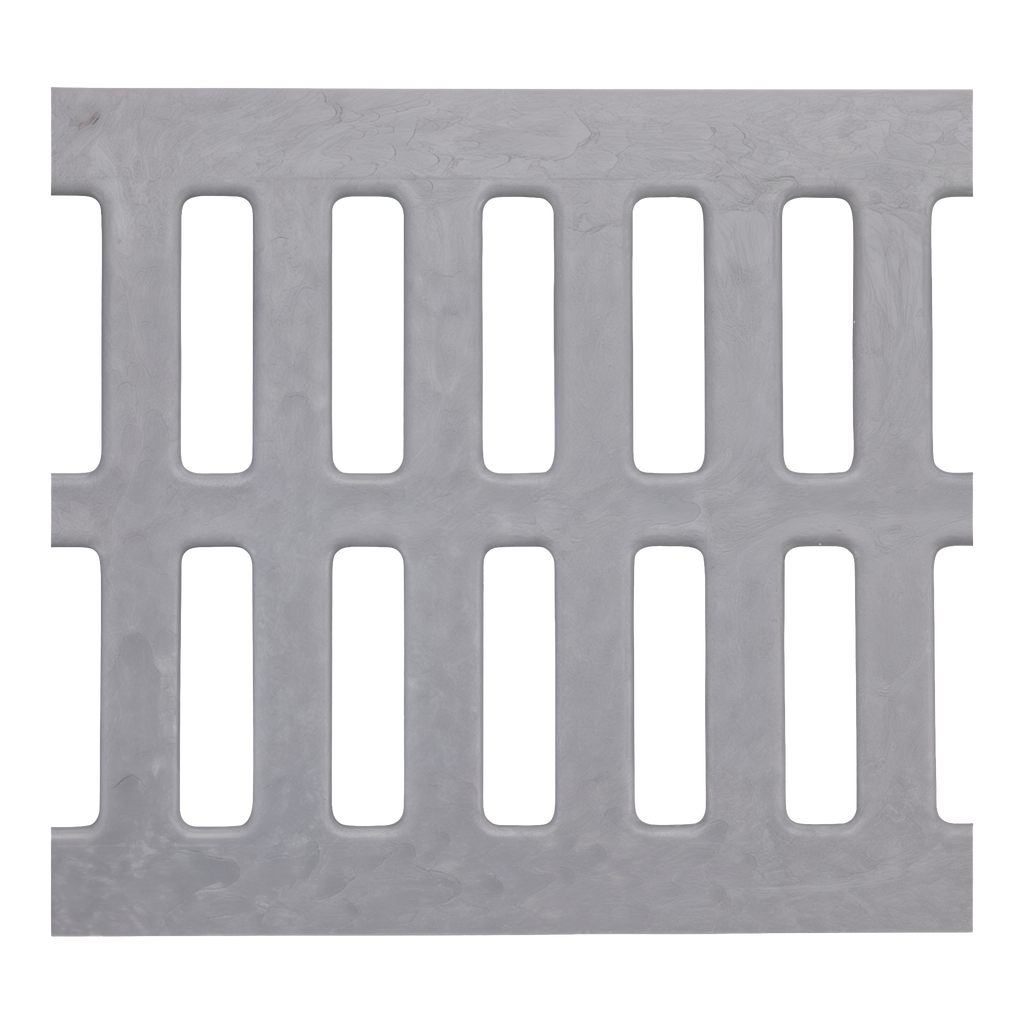

- Debris Screening: Slotted profile passes sheet flow while holding back leaves, mulch and grit before they reach the outlet fitting.
- Open Area: 9.90 sq. in. of open slot per linear foot; confirm intake against the NDS grate flow capacity table for the design storm.

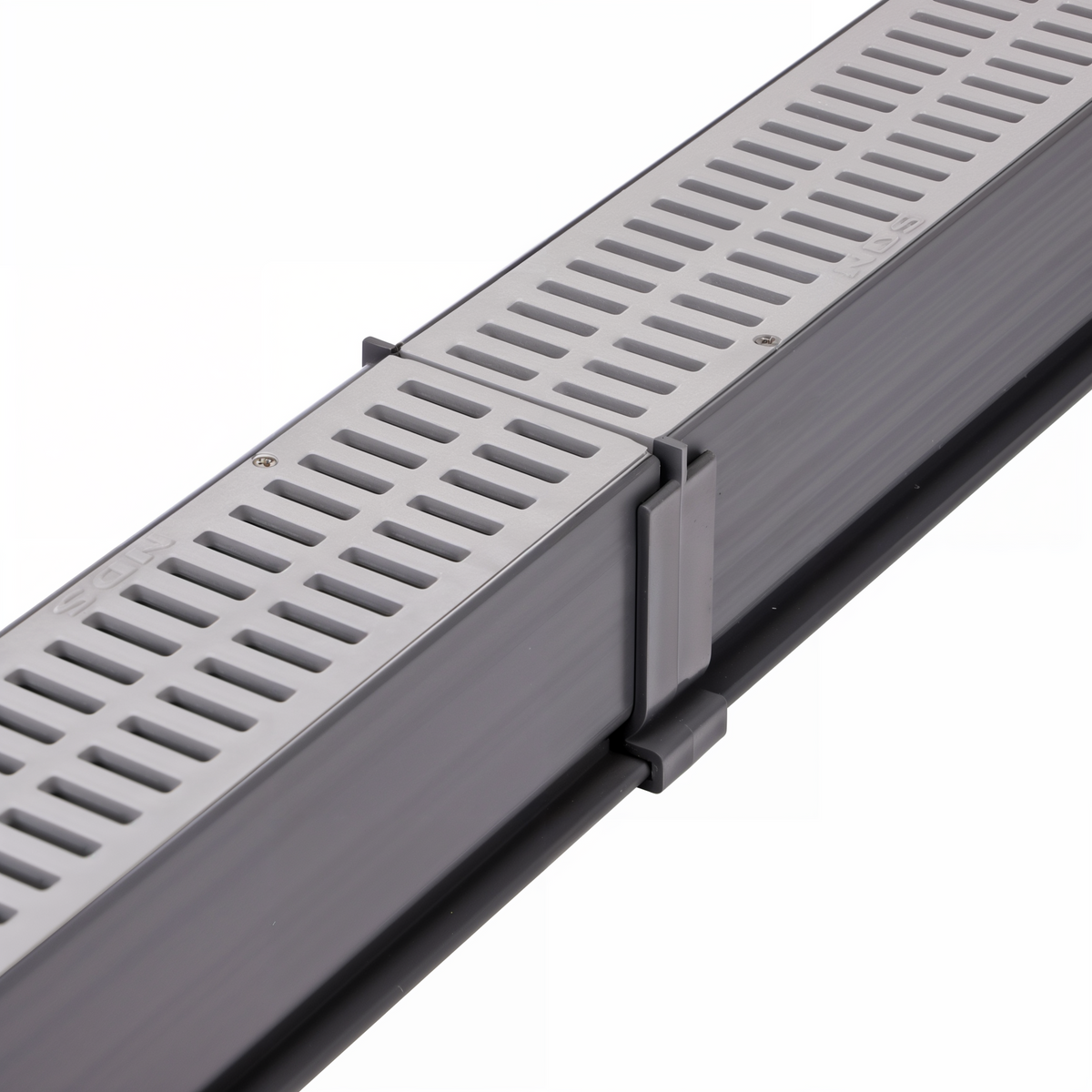

- Fit: Seats in the molded grate ledge of the Mini Channel 500 with no adapter; grates butt end to end along the run.
- Material: Polypropylene with UV inhibitors for outdoor exposure; NDS also offers Mini Channel grates in other colors, decorative styles and materials when the spec calls for a different look.
- Fastening: 541 ships without screws; spec 541-1 when the drawings call for a fastened grate.
Installation
Install grates after the channel is bedded and the adjacent concrete or paver surface is finished about 1/8 in. above the grate so runoff sheets in. Follow the NDS pedestrian, pool deck or vehicular installation detail that matches the load case; each detail specifies bedding and haunching around the channel, and NDS does not publish a load class on the grate page, so do not promise one to the client. Keep the grate seat clean of mortar and polymeric sand during the finish work so the grate sits flush; a proud grate is a trip edge on a pool deck and a snowplow catch on a driveway apron. Pull the grate and flush the channel at seasonal cleanouts, and order 541-1 instead of adding field screws to 541 when the run needs a fastened grate. Tech specs for the grate, the grate flow capacities and the Mini Channel accessories are attached in the documentation so they can be submitted with the shop drawings.
Specifications
- Part number: NDS 541 (541-1 is the screw-in version)
- Dimensions: 2-3/4 in. W x 3 ft. L
- Material: polypropylene, UV inhibited
- Color: gray
- Weight: 0.66 lb each
- Open surface area: 9.90 sq. in. per ft.
- Compatible channel: NDS Mini Channel Drain 500
