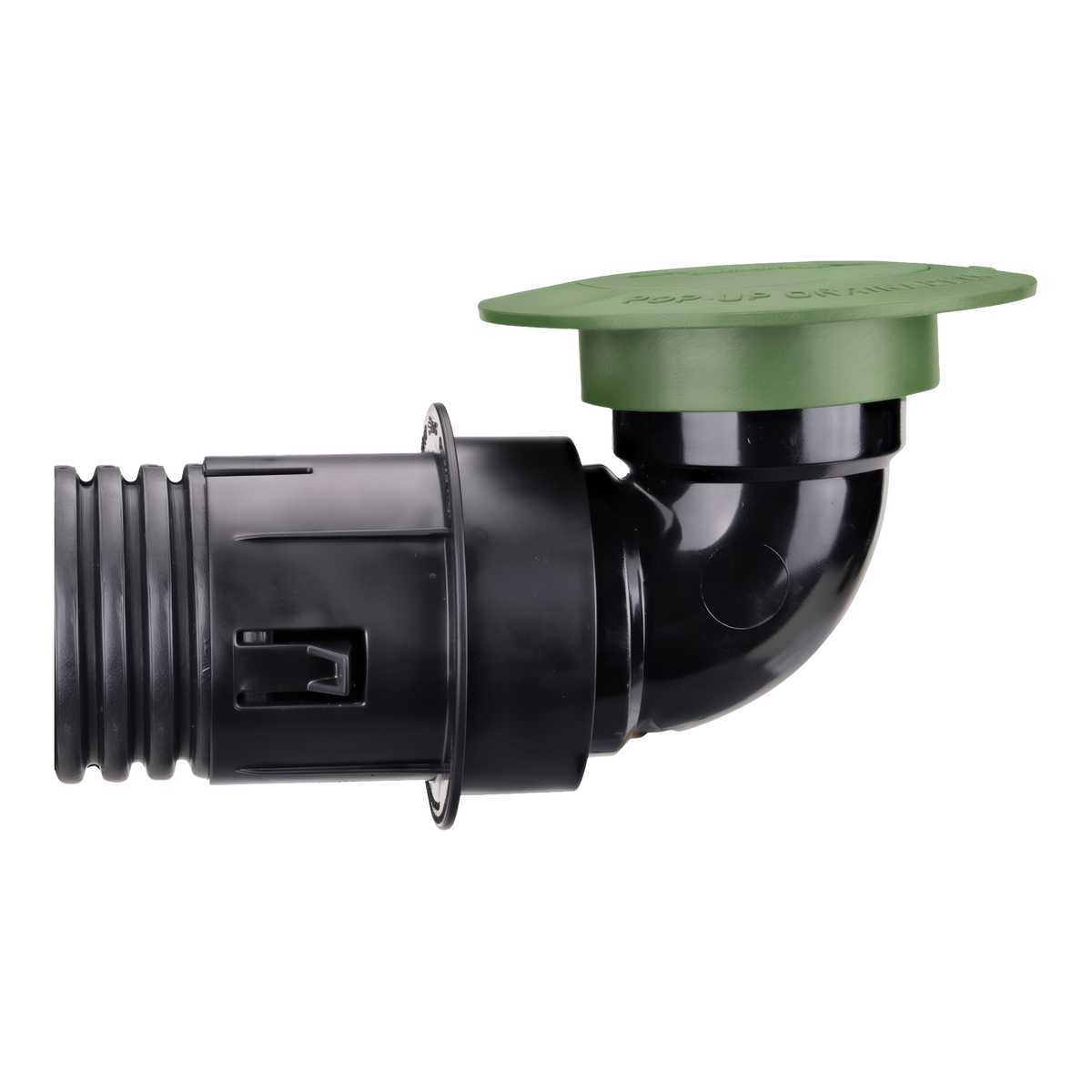

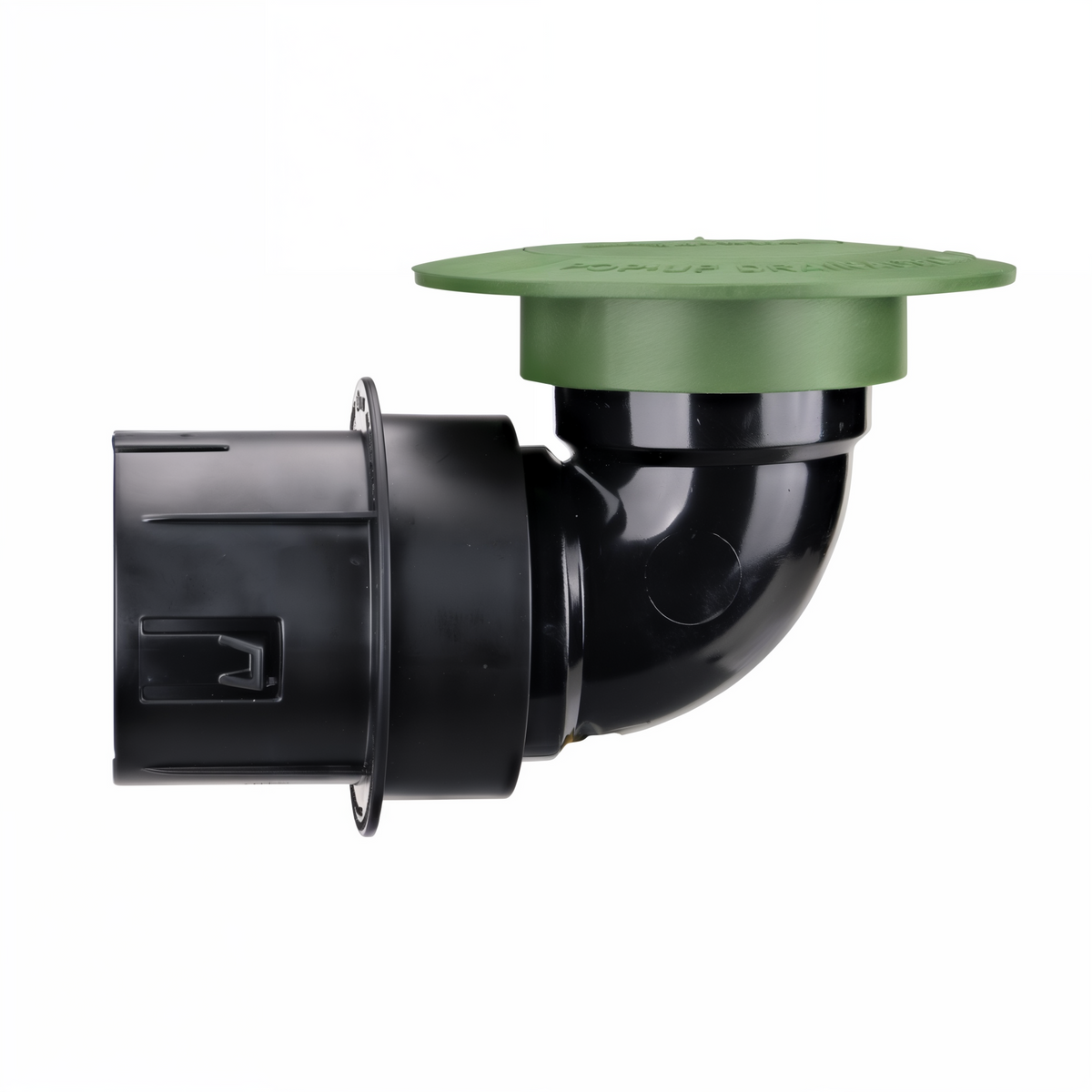

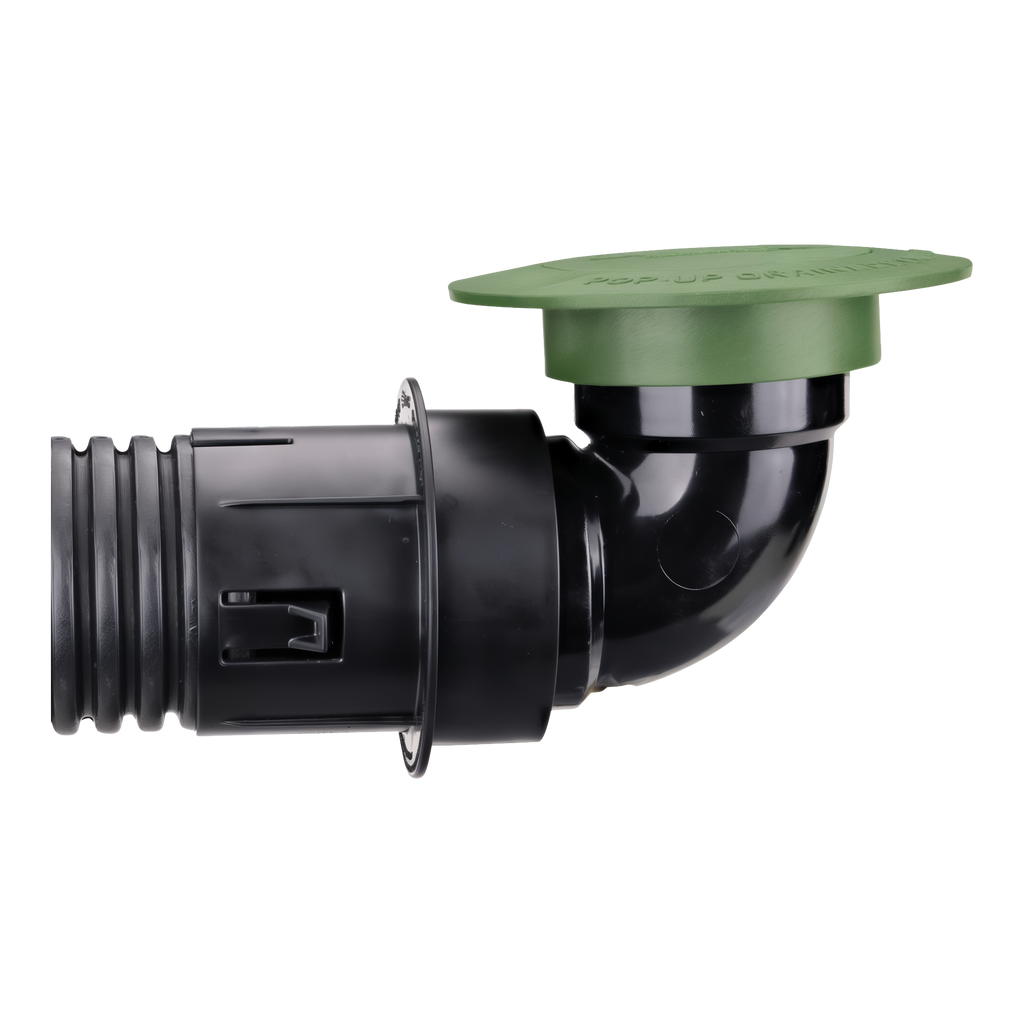

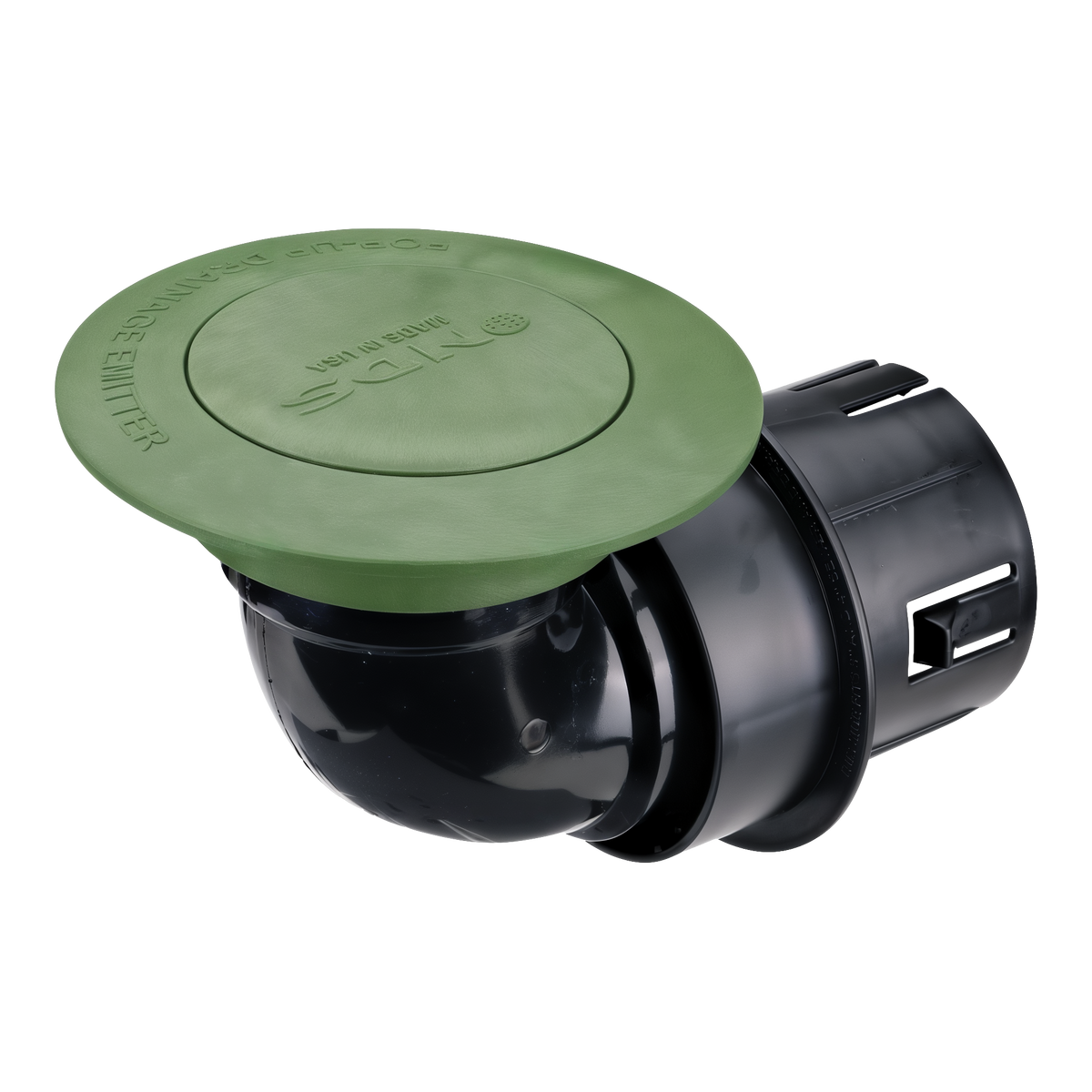

Give your drain line a clean point of release with the NDS Pop-Up Drainage Emitter with Elbow and Adapter 3 in. and 4 in., the green spring-loaded outlet that closes itself when the water stops. Connect the elbow to 3 in. or 4 in. drain pipe at the end of a downspout or catch basin run and set the cover flush with the turf. When water pressure builds, the cap lifts as high as 1 in. and sends the flow across the grass, away from foundations and eroding beds. Once the flow tapers off, the cap drops shut to keep debris and rodents out.
Key Features
-

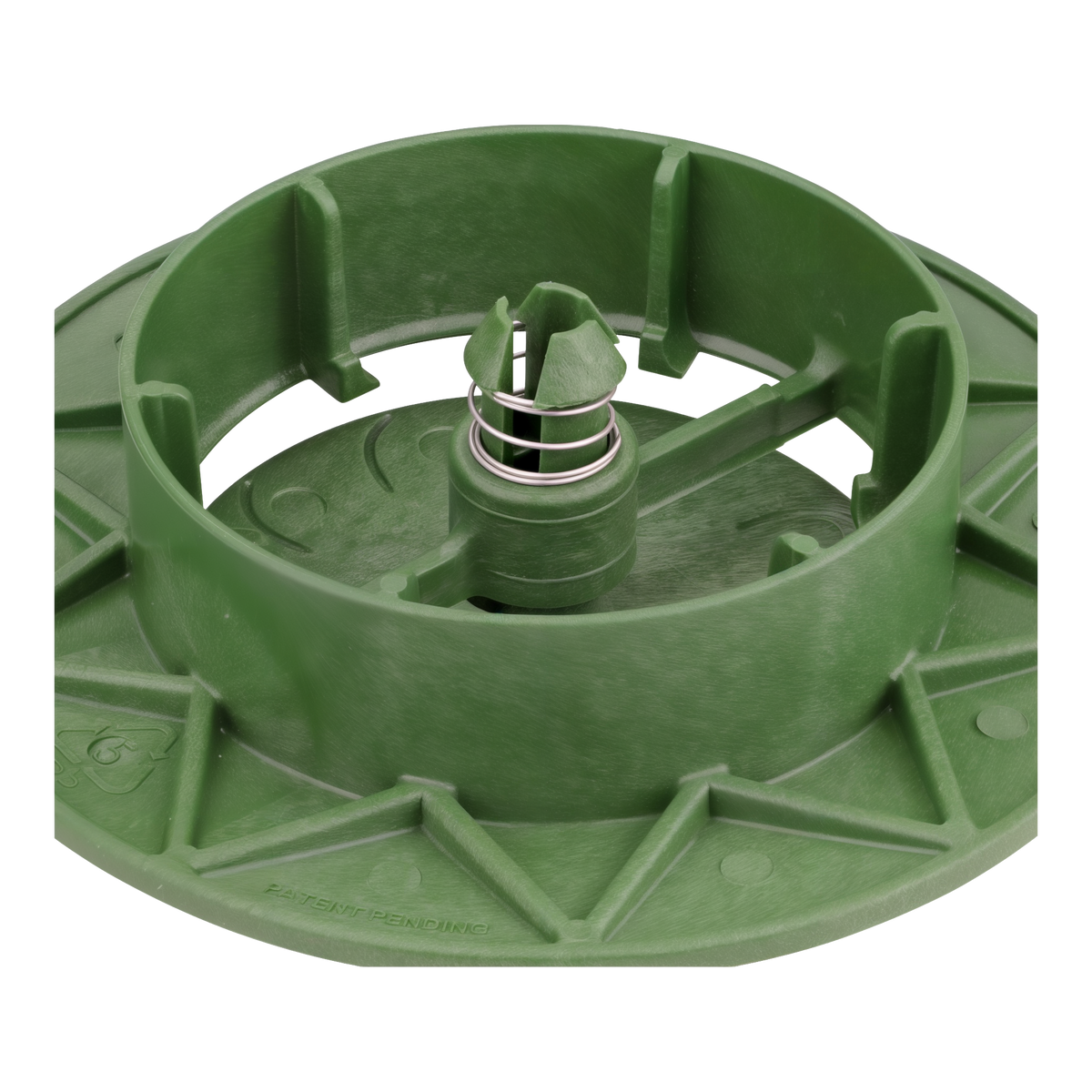

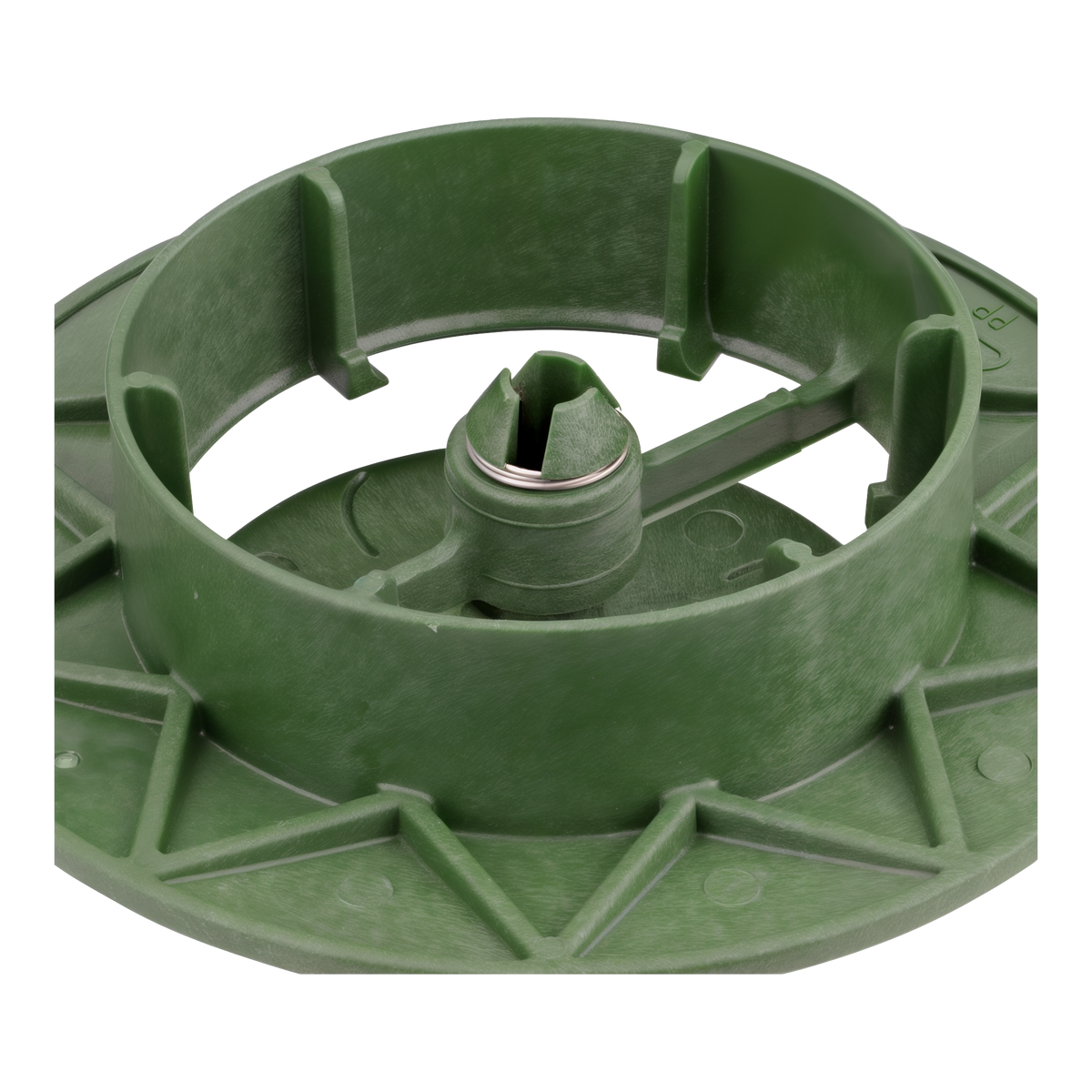

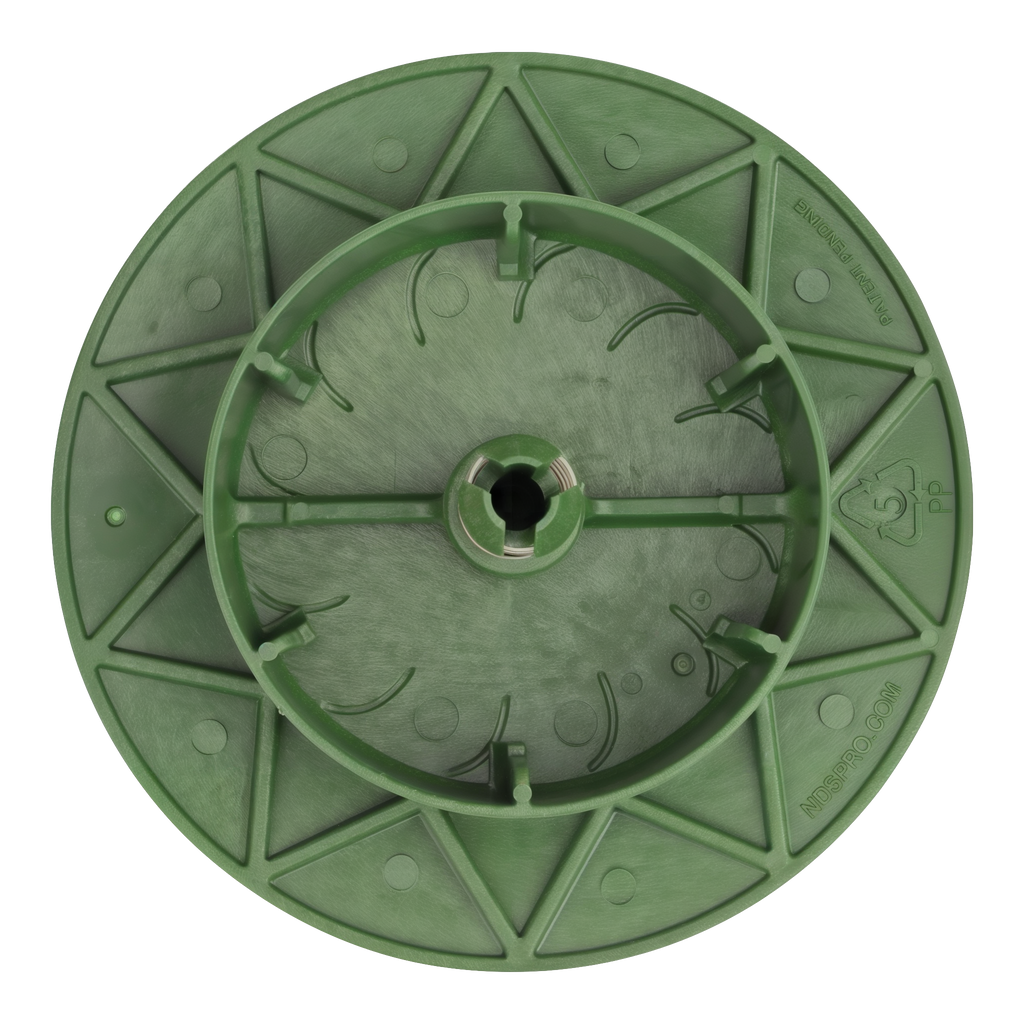

Spring-Loaded Cap: A stainless 302 spring lifts the cap up to 1 in. under water pressure and closes it as flow diminishes.
-
Flow Rate: NDS lists discharge up to 56 GPM; the tech spec shows 43.26 GPM at 1 in. of head and 0.04 PSI opening pressure.
-

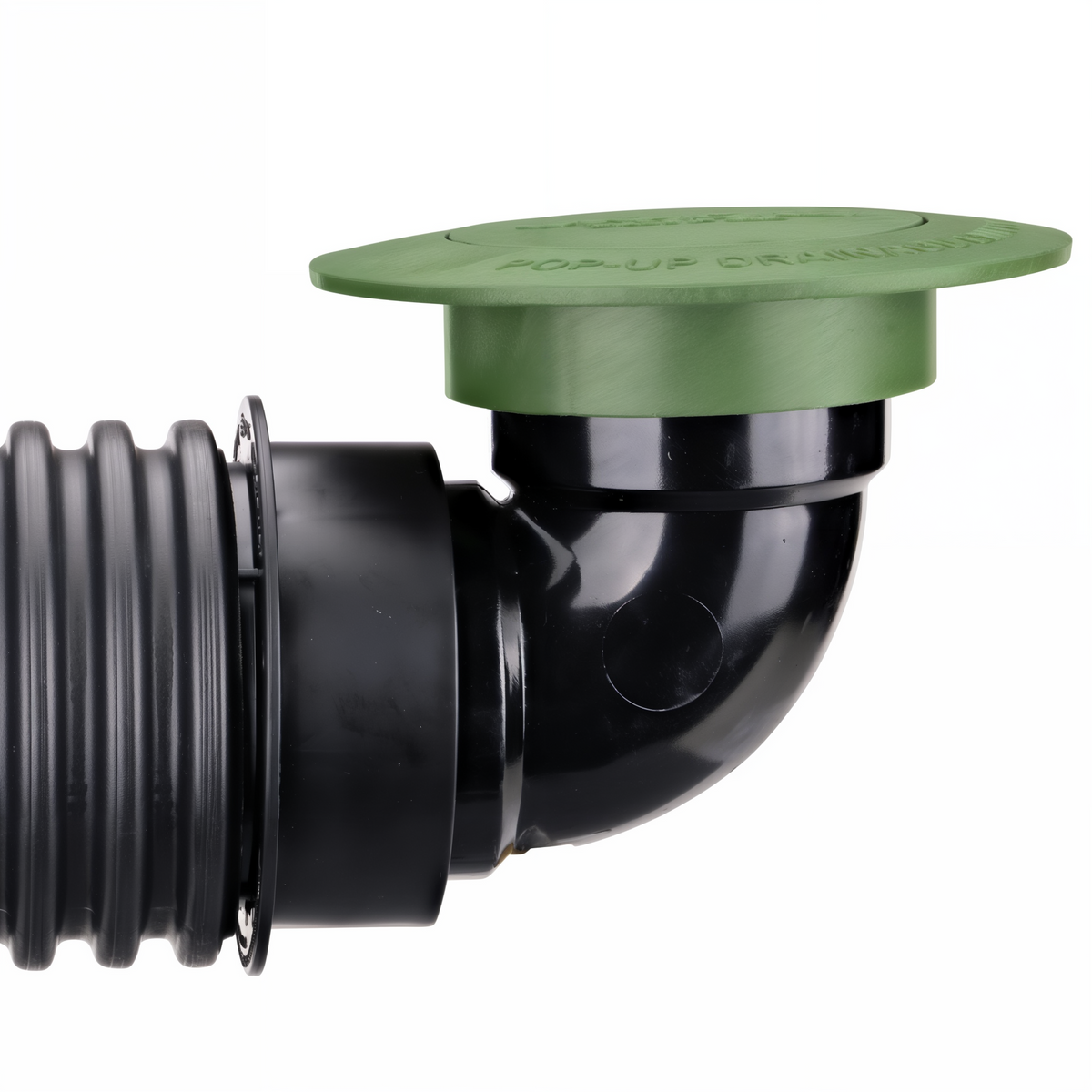

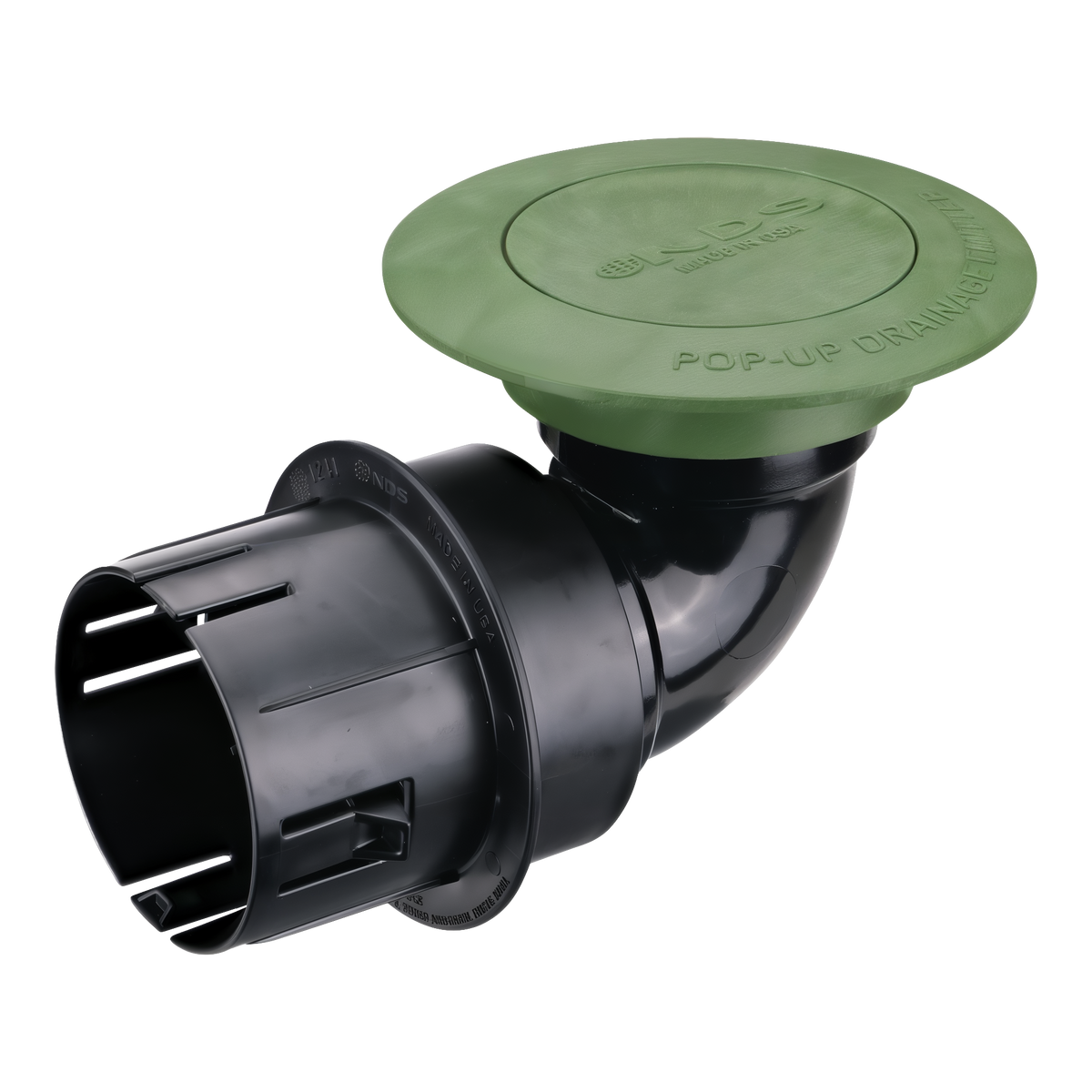

Pipe Fit: Fits 3 in. and 4 in. single-wall corrugated pipe and 4 in. Sch. 40 with the adapter; remove the adapter for 3 in. sewer and drain or triple-wall pipe.
-

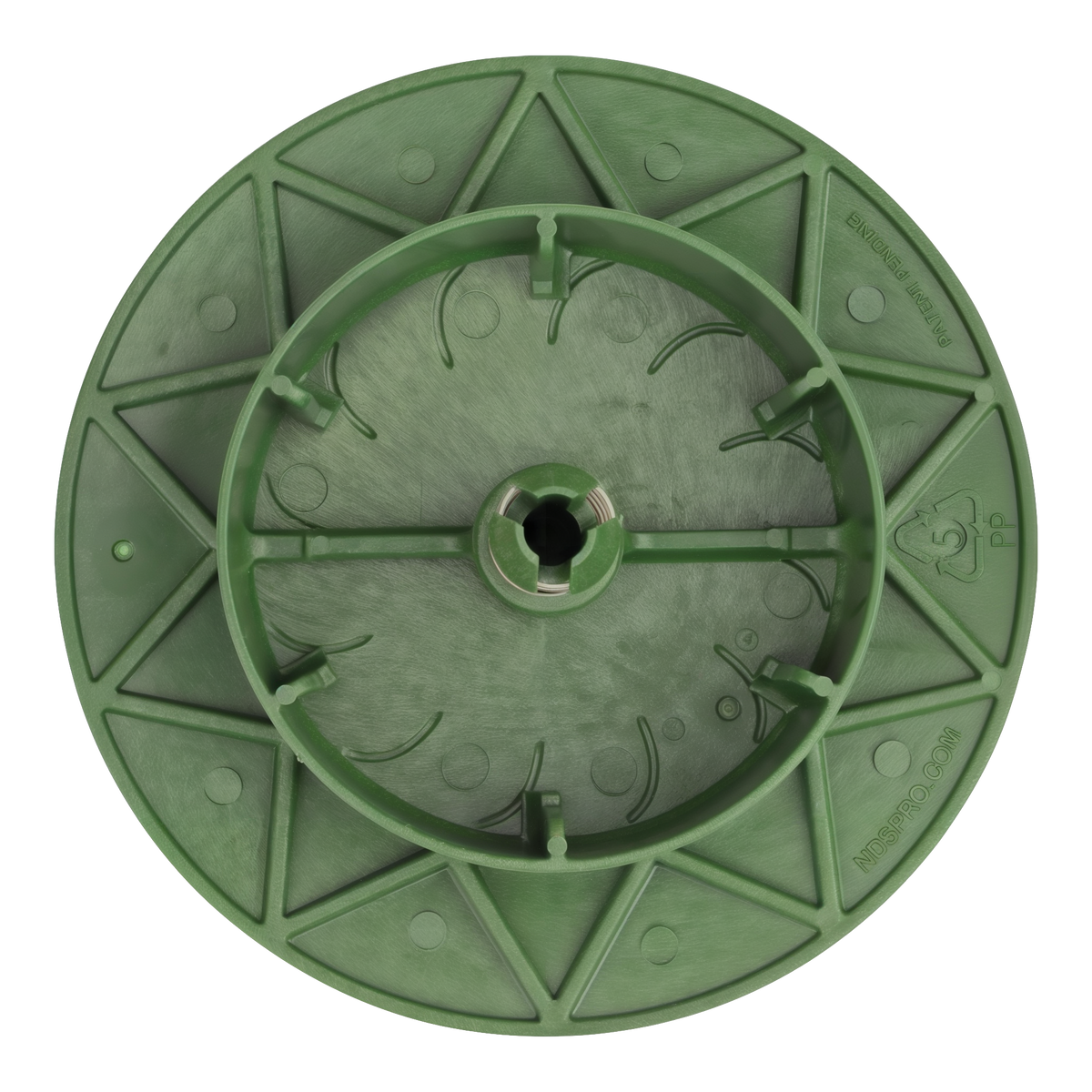

Weep Hole and Flange: A weep hole in the elbow drains standing water so the line does not stagnate or freeze, and the flange keeps grass from growing over the cover.
-
About the NDS Emitter Line: NDS builds the 430 kit with an HDPE cap and cover and a PVC elbow and publishes its own installation detail.
How to Install It
Run the drain line downhill from the catch basin or downspout to a spot where discharged water can spread across open lawn. Dig a shallow pit at the end of the trench, seat the elbow weep hole down and connect the pipe, using the adapter for corrugated or Sch. 40. Set the flange flush with the turf and bed a few inches of gravel under the elbow so weep water can soak away. Mow right over the closed cover. If the cap sticks, lift it, rinse out grit and let the spring reseat it.
Specifications
- Part number: NDS 430
- Kit: pop-up emitter, elbow and universal adapter
- Pipe fit: 3 in. and 4 in. corrugated, 4 in. Sch. 40; 3 in. S&D and triple-wall without adapter
- Materials: HDPE cap and cover, PVC elbow, stainless 302 spring
- Color: green
- Weight: 1.00 lb
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS 430 is the spring-loaded pop-up emitter kit: HDPE cap and cover, PVC elbow and a universal adapter for 3 in. and 4 in. single-wall corrugated pipe and 4 in. Sch. 40. Pull the adapter for 3 in. S&D or triple-wall. Spec one at the discharge end of every downspout or catch basin run that daylights on turf; the closed cap keeps rodents and debris out of the line, and the stainless 302 spring reseats the cap after each event. The tech spec lists 43.26 GPM at 1 in. of head with an opening pressure of 0.04 PSI, and NDS lists discharge up to 56 GPM.
Key Features
- Discharge: Cap lifts up to 1 in. under head; size the emitter count against the 43.26 GPM at 1 in. head figure from the NDS tech spec, not the peak number.
- Pipe Interface: Adapter on: 3 in. and 4 in. single-wall corrugated, 4 in. Sch. 40. Adapter off: 3 in. S&D and triple-wall.
- Weep Hole: Elbow weep hole drains the line after the event to limit stagnation and freeze; provide a gravel pocket below the elbow.
- Flange: Wide flange holds turf back from the cover so the cap seat stays clear.
- Materials: HDPE cap and cover, PVC elbow, stainless 302 spring; catalog weight 1.00 lb.
Installation
Follow the NDS Drainage Emitter with Elbow installation detail. Carry positive fall from the collection point to the emitter and daylight where discharge can spread across turf without recirculating to the foundation. Excavate a pocket at the end of the trench, bed the elbow on gravel with the weep hole down, connect the pipe with or without the adapter to match the pipe type, and set the flange flush with finished turf so mowers pass over the closed cap. Backfill around the elbow and compact by hand. On lines with more than one collection point, check that total flow at the design storm does not exceed the emitter capacity from the tech spec; add a second emitter or a larger outlet where it does. Keep the emitter out of low spots that pond, since the cap needs to sit above the surrounding water to discharge, and avoid placing it where the plow or mower deck will catch a raised cap. The emitter tech spec and the elbow installation detail are attached in the documentation for submittals.
Specifications
- Part number: NDS 430
- Kit: pop-up emitter, 3 in. elbow, universal adapter
- Pipe fit: 3 in. and 4 in. single-wall corrugated, 4 in. Sch. 40 (adapter on); 3 in. S&D, triple-wall (adapter off)
- Flow: 43.26 GPM at 1 in. head; opening pressure 0.04 PSI; up to 56 GPM listed
- Materials: HDPE cap and cover, PVC elbow, stainless 302 spring
- Weight: 1.00 lb
