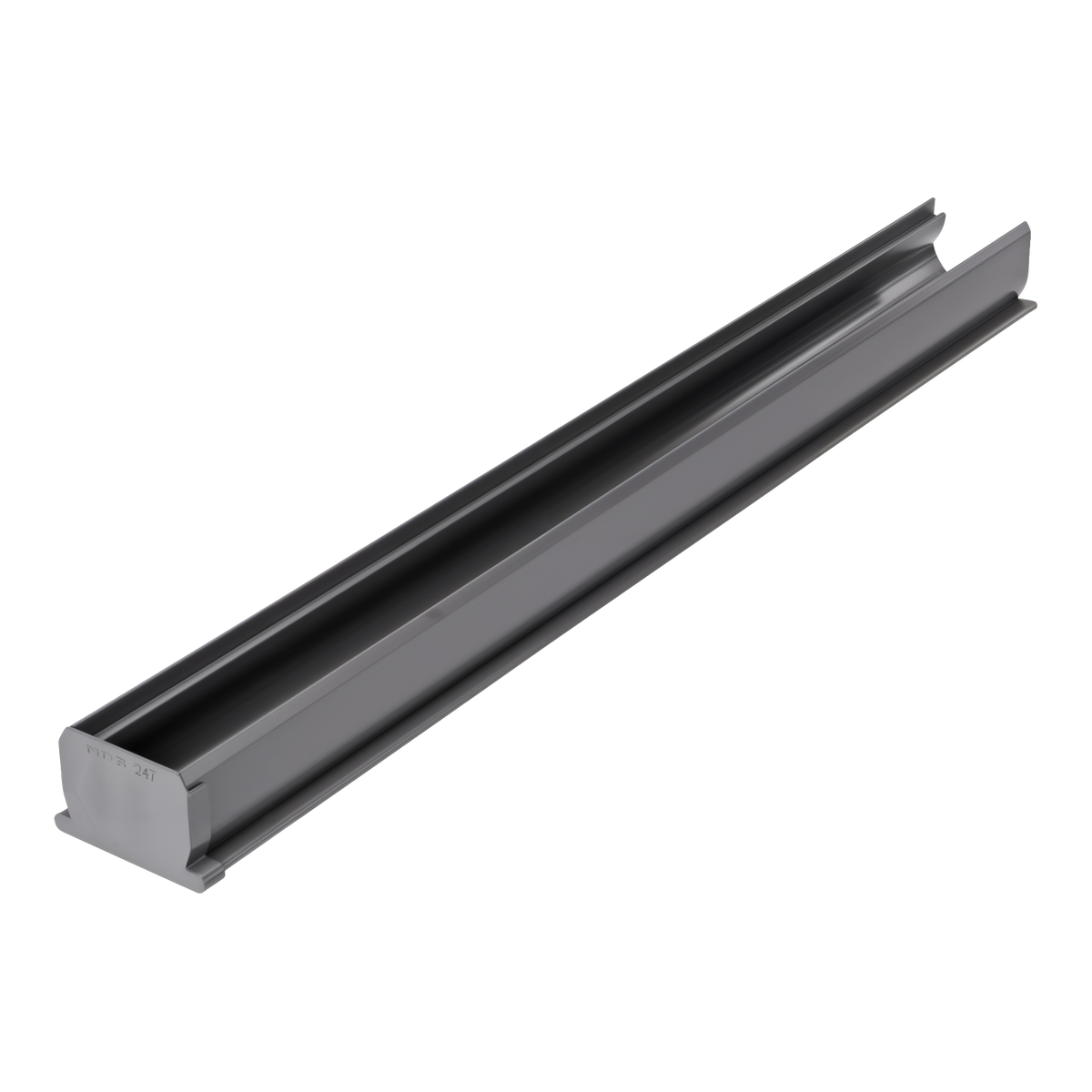

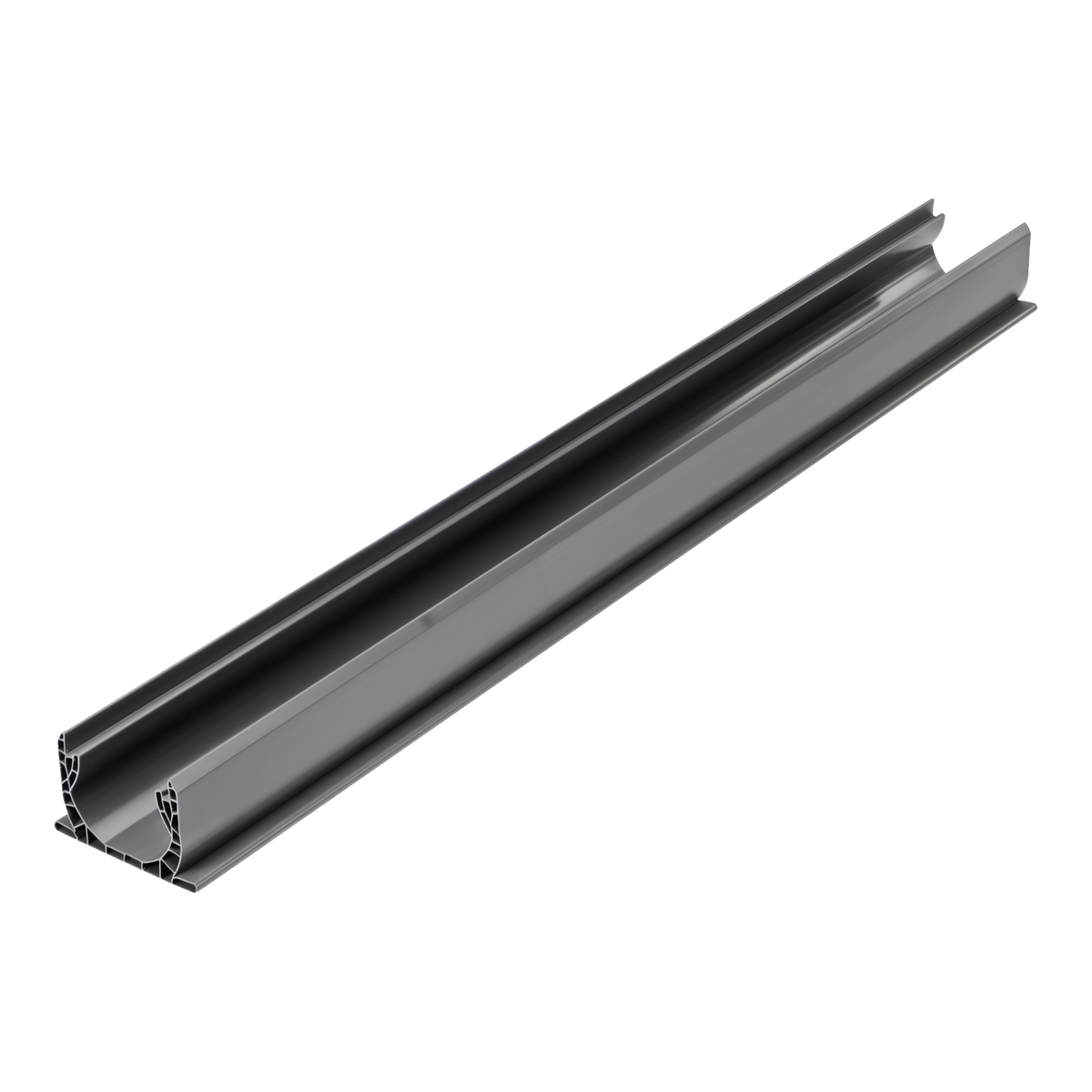

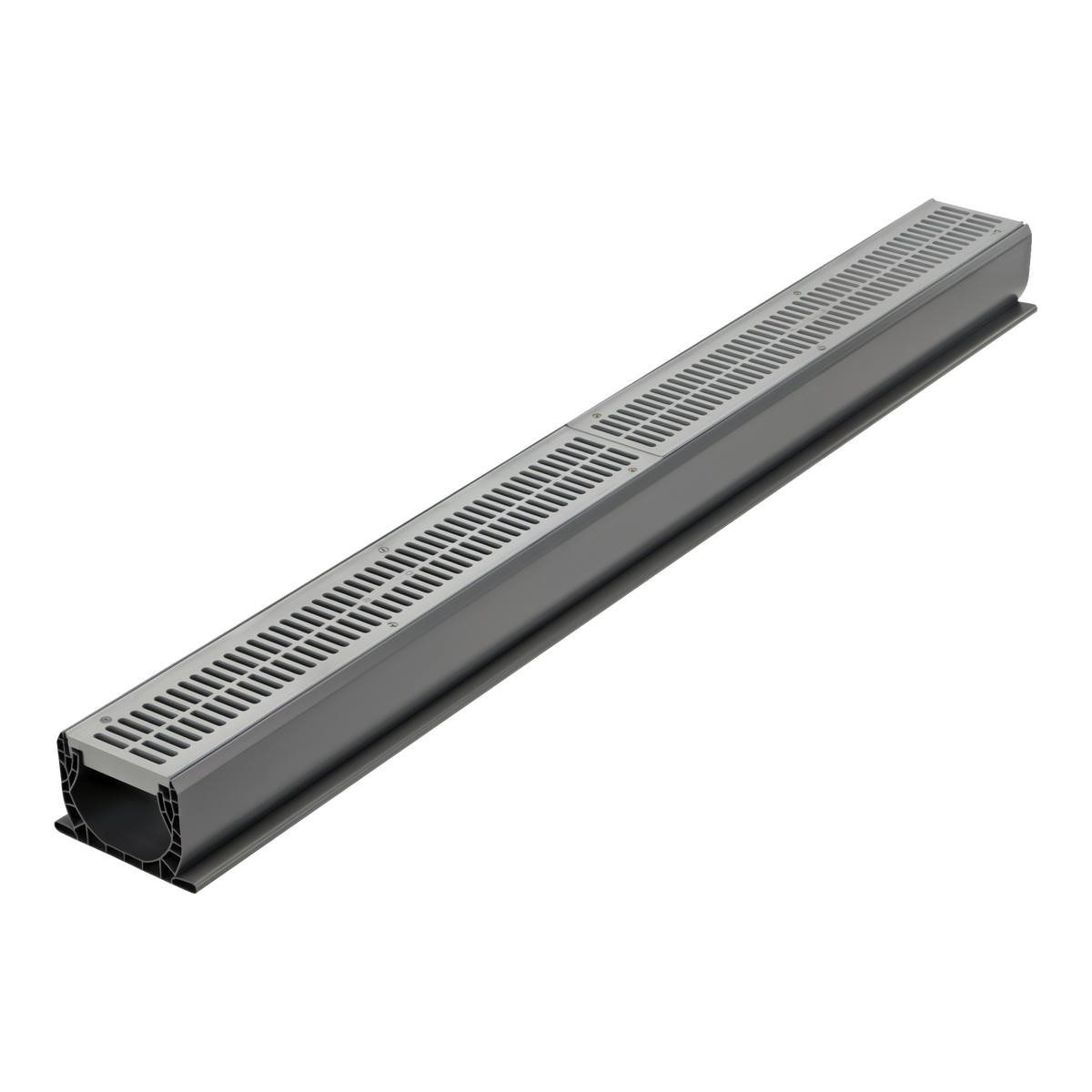

Collect runoff along a driveway apron, patio edge or pool deck with the NDS Spee-D Channel Drain 4 ft. This is the gray PVC channel body only, 4-3/4 in. wide, 3-3/4 in. high and 4 ft long, ready to pair with the Spee-D grate of your choice. Honeycomb-reinforced walls and a patented flying buttress design brace the channel from both sides and underneath, so it holds its shape under load once set in concrete. Bottom flanges give the channel an anchoring lip that keeps it straight and stops it floating during the pour. NDS part number 400.
Key Features
-

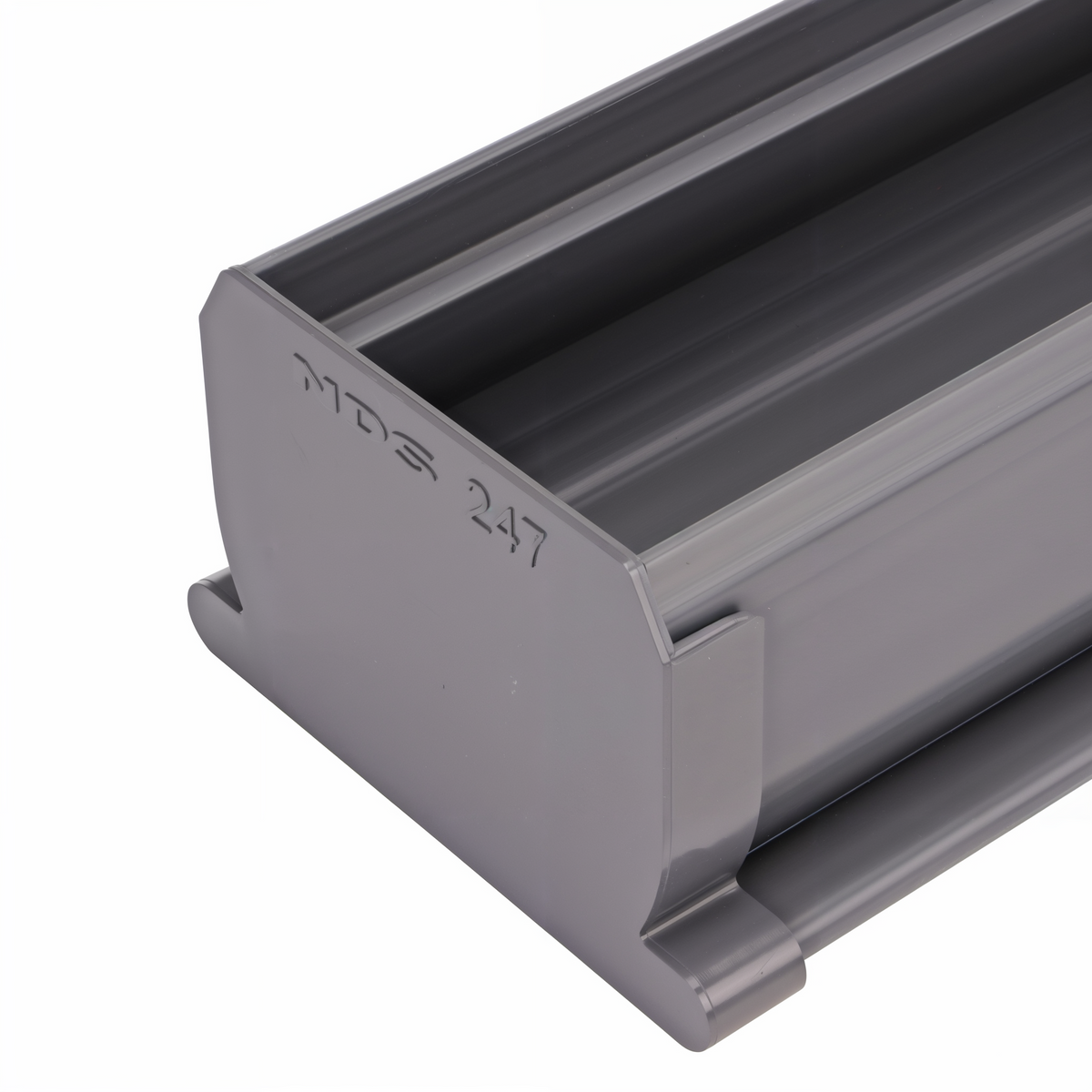

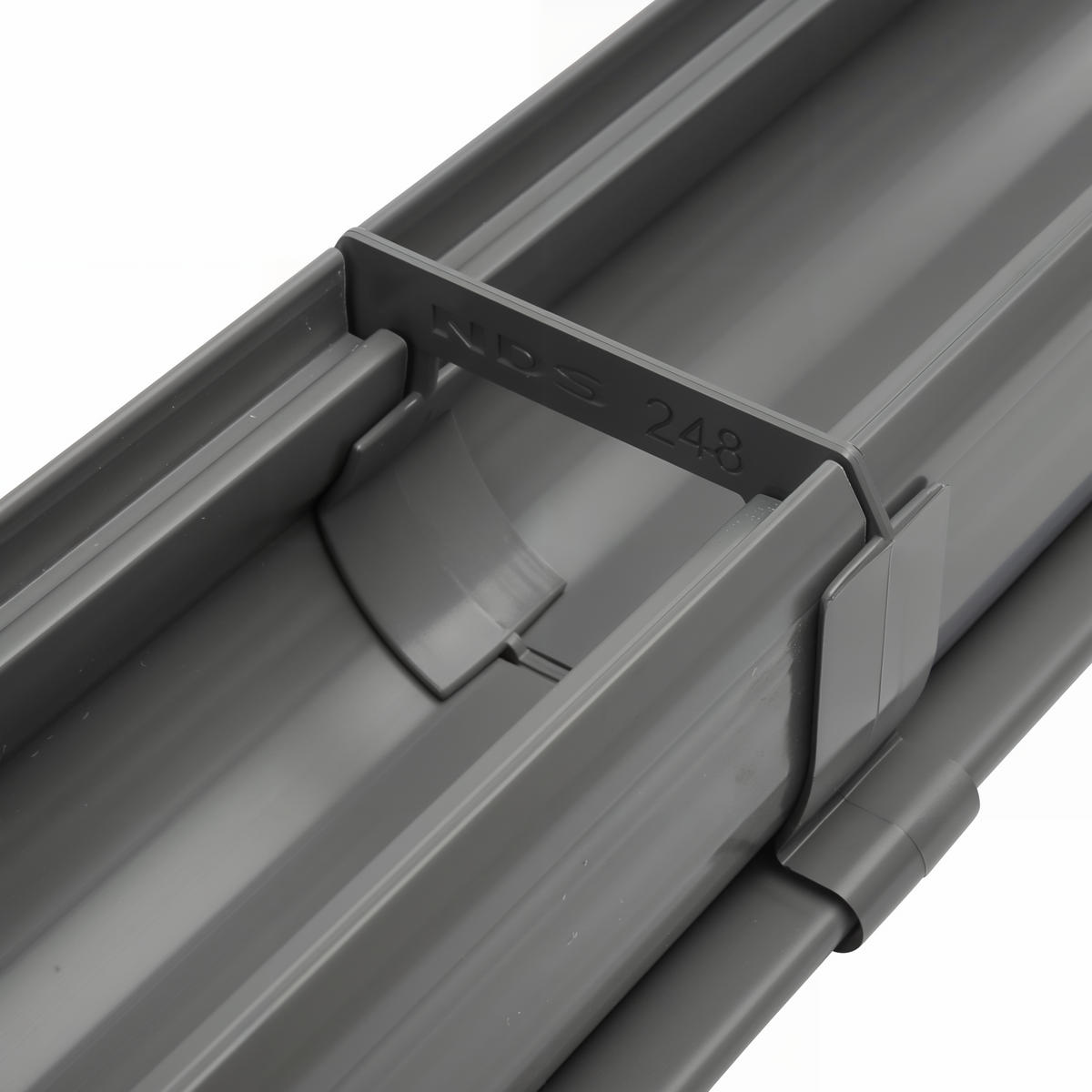

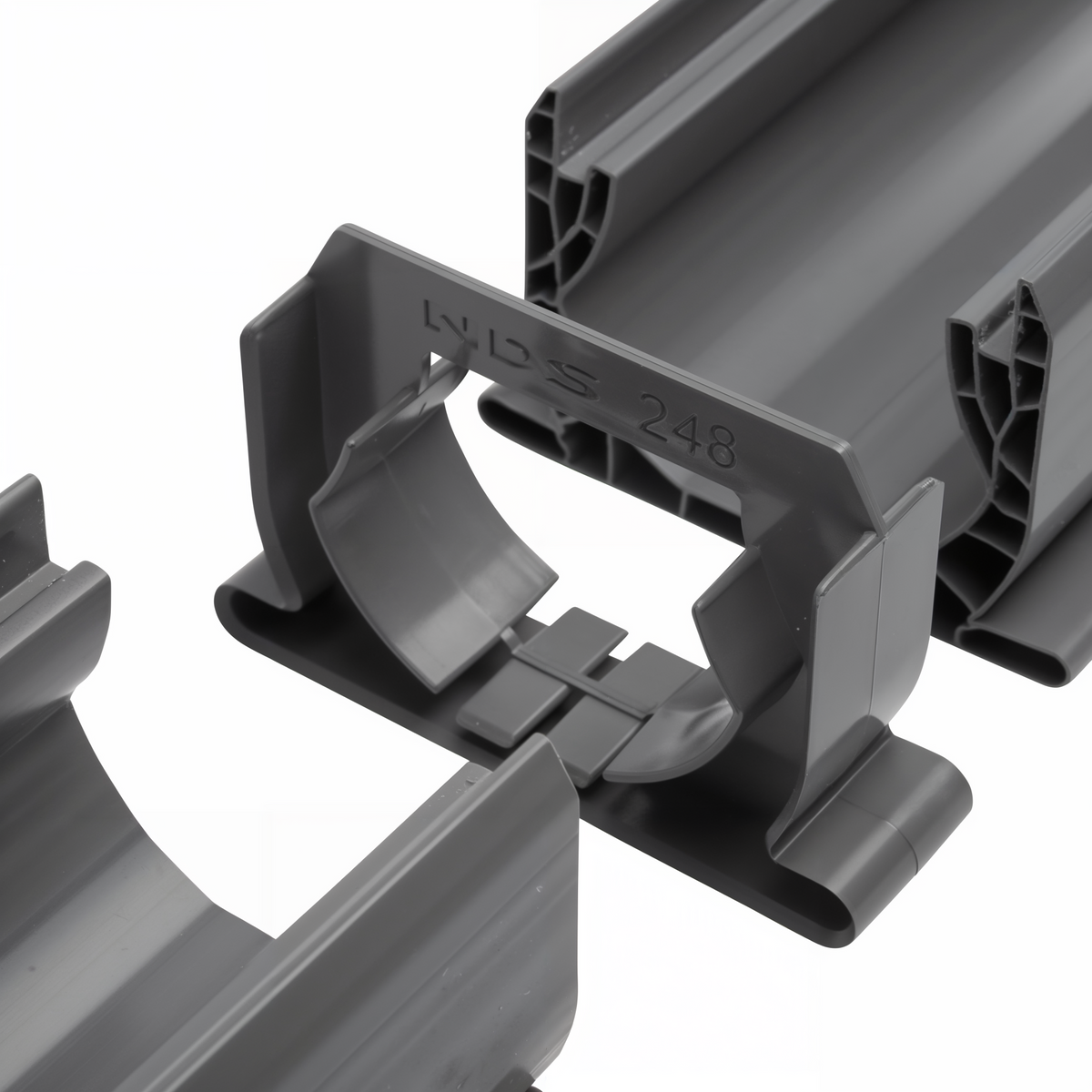

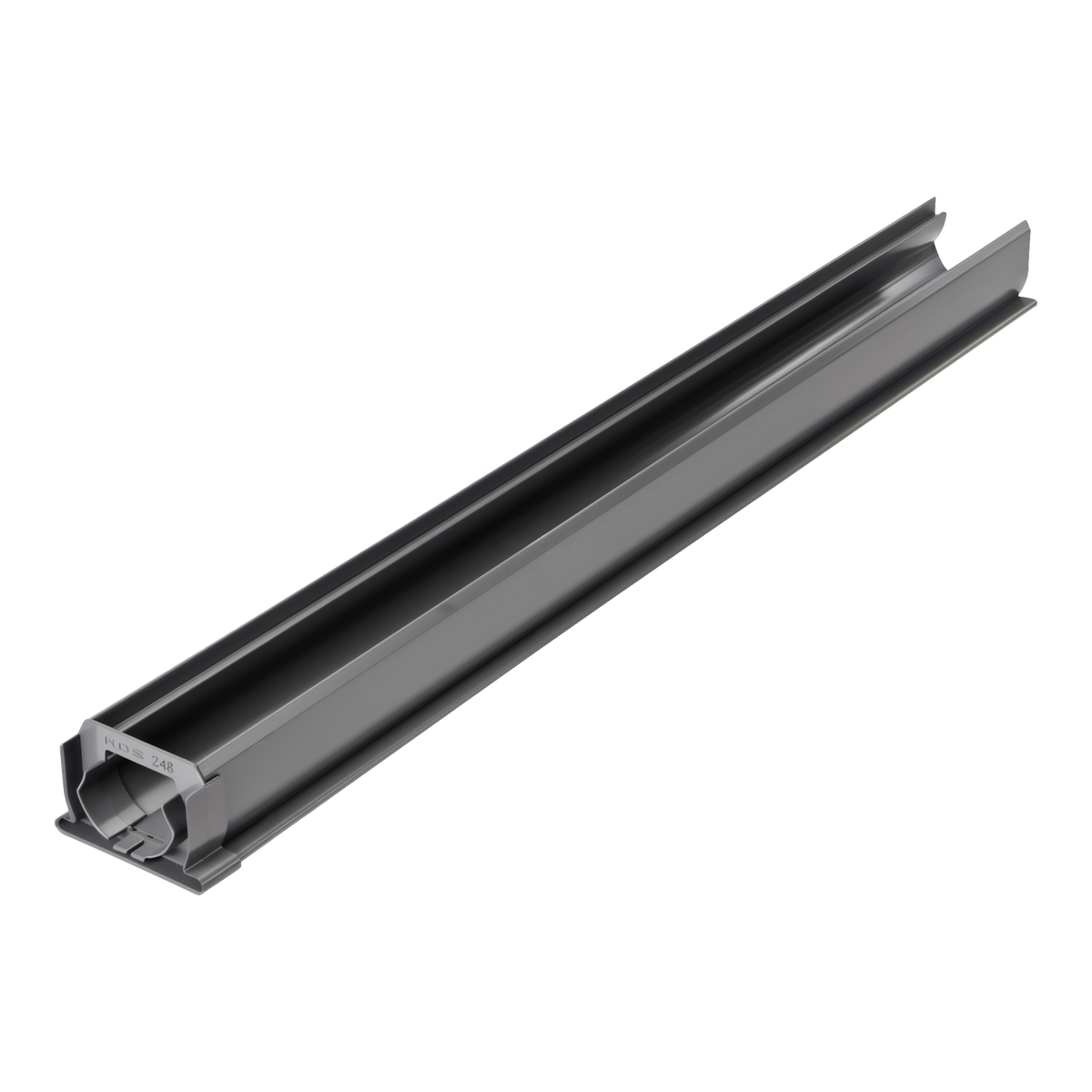

Cut to length: Trim the 4 ft section with a saw to fit the run exactly, then join pieces with a Spee-D coupling.
-

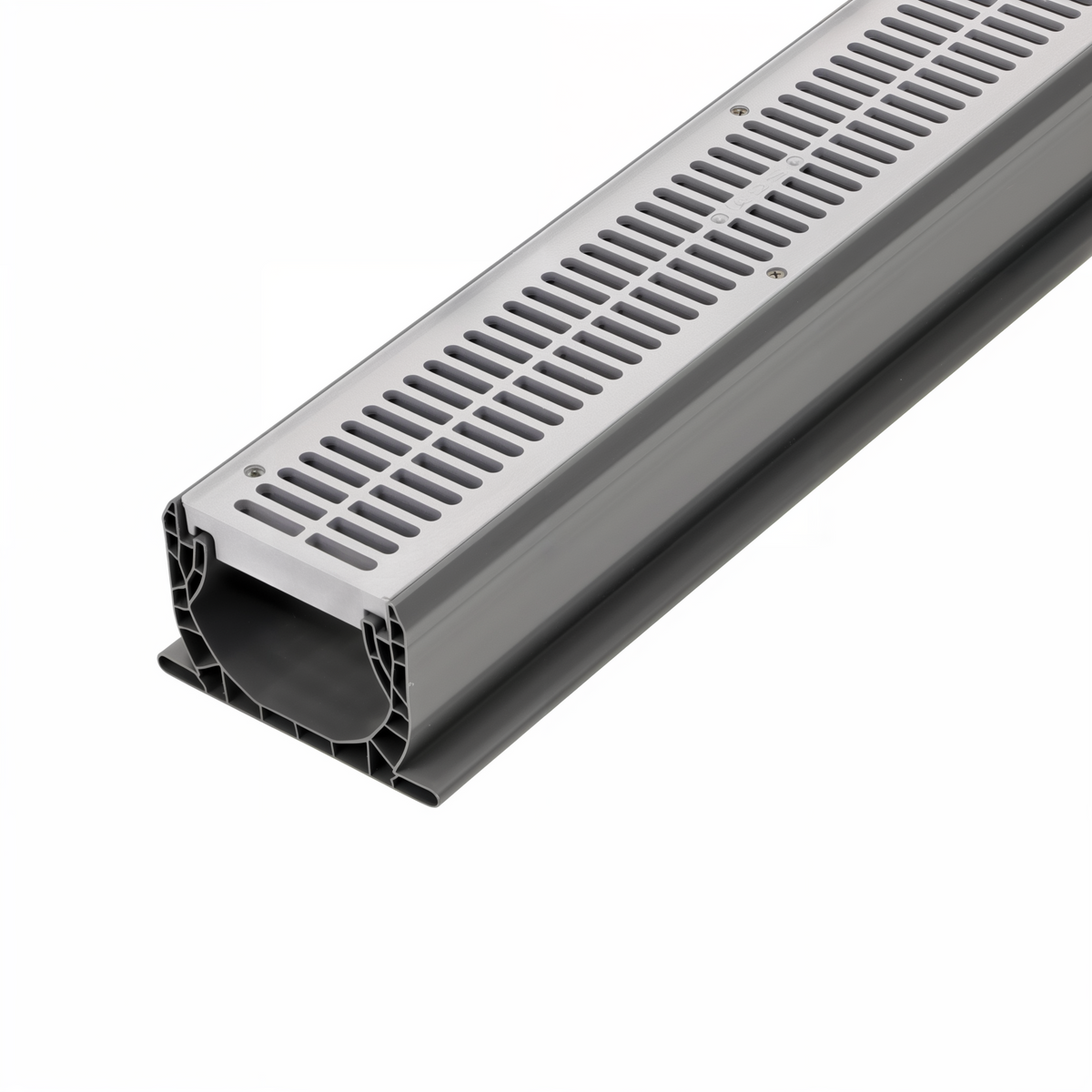

Reinforced body: The patented flying buttress and honeycomb walls provide load-bearing support from the sides and from below.
-
Anti-float flanges: Bottom flanges anchor into the concrete bed and hold the channel in line while you pour.
-
Moderate flow capacity: Built for light to moderate runoff from driveways, concrete and paver patios, courtyards and walkways.
-
About NDS: NDS is the manufacturer behind the Profile Series channel drains, and Spee-D is the line it positions for light to moderate flows alongside the smaller Mini Channel.
How to Install It
Dig a trench wide enough for the channel plus a concrete bed on each side, and set the depth so the channel top finishes flush with the surrounding surface. Connect sections with the Spee-D coupling, add an end outlet at the low end to tie into 3 in. or 4 in. drain pipe, and close the far end with a Spee-D end cap. Set the channel on its concrete bed, check the pitch toward the outlet, and pour concrete against both sides so the bottom flanges are locked in. Fit a Spee-D grate, sold separately, and follow the NDS pedestrian or vehicular installation detail for your traffic load.
Specifications
- NDS part number: 400
- Size: 4-3/4 in. W x 3-3/4 in. H x 4 ft L
- Material: PVC with UV inhibitors
- Color: Gray
- Weight: 4.83 lb (catalog)
- Grate: not included
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS Spee-D Channel Drain, part 400, is the 4 ft gray PVC channel body for the Profile Series Spee-D system. Section is 4-3/4 in. wide by 3-3/4 in. high by 4 ft long, cuts with a saw, and joins with the Spee-D coupling. Honeycomb-reinforced walls and the patented flying buttress carry load from both sides and beneath the channel, and bottom flanges lock the section into the concrete haunch so it stays straight and does not float during the pour. Grate is sold separately. Spec it for light to moderate flows on driveway aprons, garage thresholds, paver and concrete patios, pool decks and courtyards. Pull grate flow capacities from the NDS all-type grates flow capacity tech spec when sizing the run against the contributing area.
Key Features
- Dimensions: 4-3/4 in. W x 3-3/4 in. H x 4 ft L, catalog weight 4.83 lb per section. Field-cut to length with a saw.
- Structural support: Flying buttress design plus honeycomb walls resist side pressure from the pour and loading from above once encased.
- Anchoring flanges: Bottom flanges key into the concrete bed, hold alignment and prevent flotation while the haunch is placed.
- Take-off: Divide run length by 4 ft, round up, then count one coupling per joint, one end outlet per discharge point and one end cap per closed end. Order grates to match the channel footage.
- About NDS: NDS manufactures the Profile Series channel drains (Mini Channel and Spee-D) and the matching couplings, outlets and end caps, so the whole run comes from one system.
How to Install It
Trench to allow the concrete bed and side haunch called out in the NDS Profile Channel installation manual, and set the channel invert so the grate finishes flush with the adjacent slab or paver surface. Assemble sections with couplings, install the end outlet at the low end to 3 in. or 4 in. sewer and drain pipe, and cap the high end. Hold fall toward the outlet, brace as needed, and place concrete against both sides so the flanges are fully embedded. Use the pedestrian detail for patios and pool decks and the vehicular detail for driveways, and select a grate rated for the expected load. Encase fully in concrete on freeze-thaw sites so the channel does not shift or heave relative to the slab.
Specifications
- NDS part number 400
- 4-3/4 in. W x 3-3/4 in. H x 4 ft L
- PVC with UV inhibitors, gray
- Catalog weight 4.83 lb

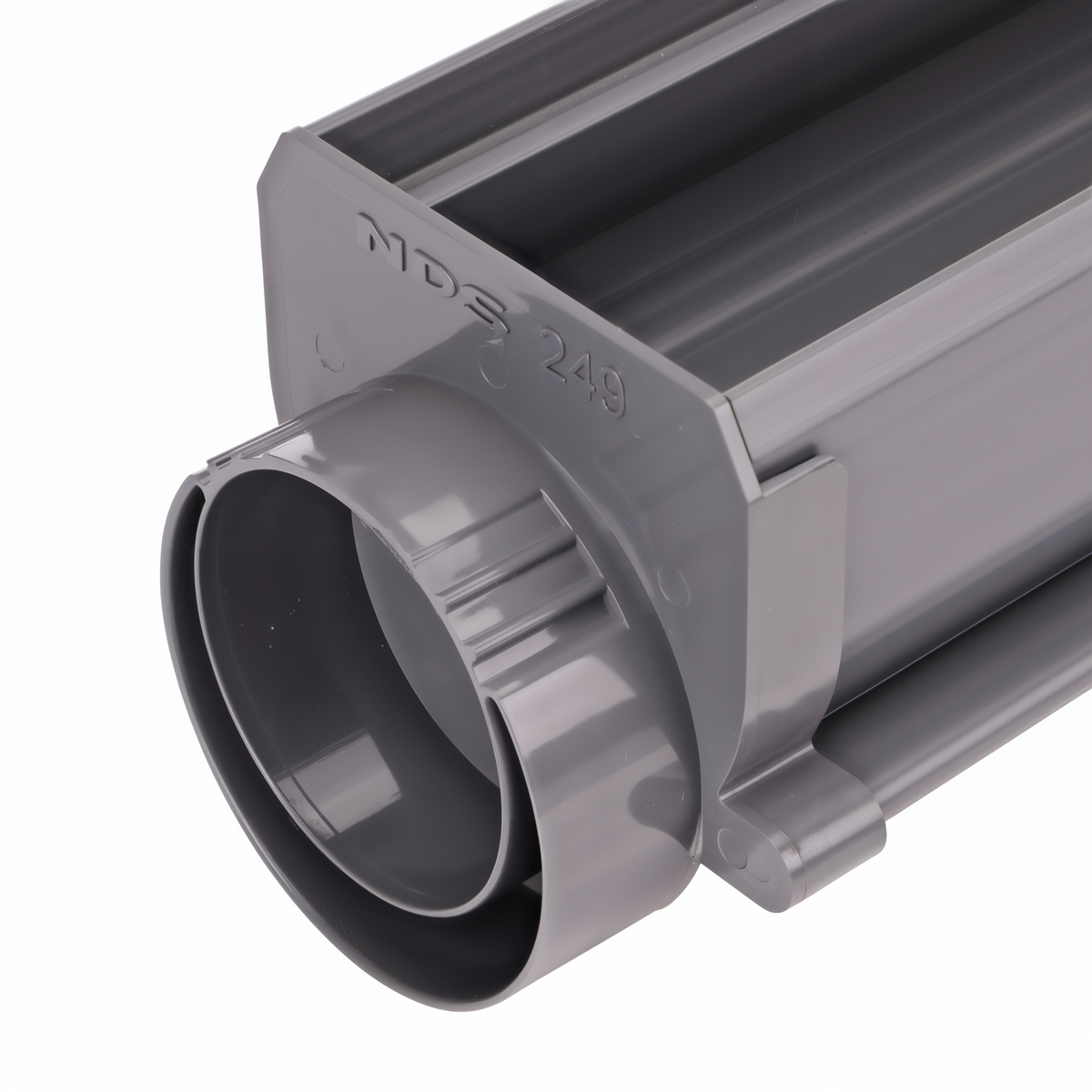

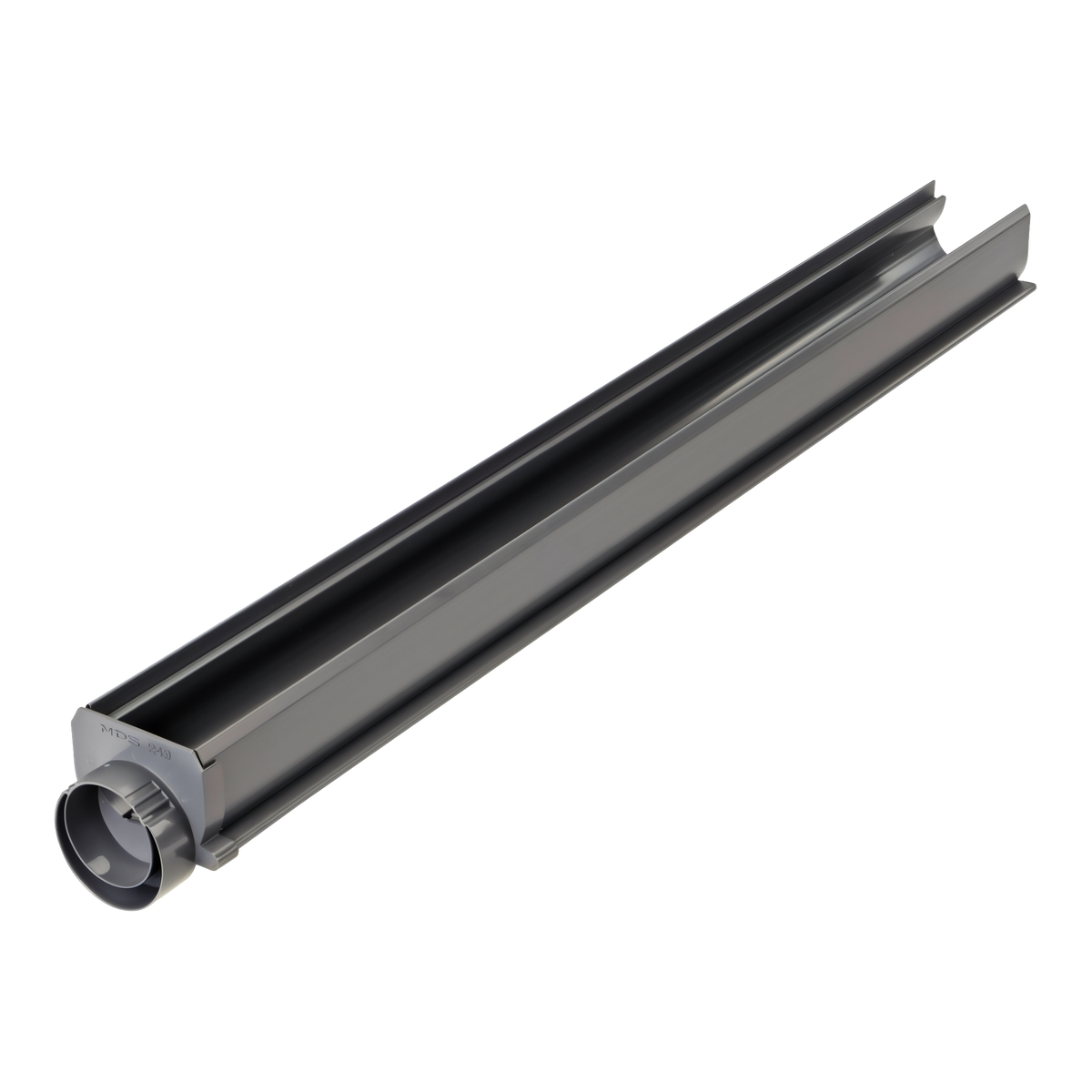

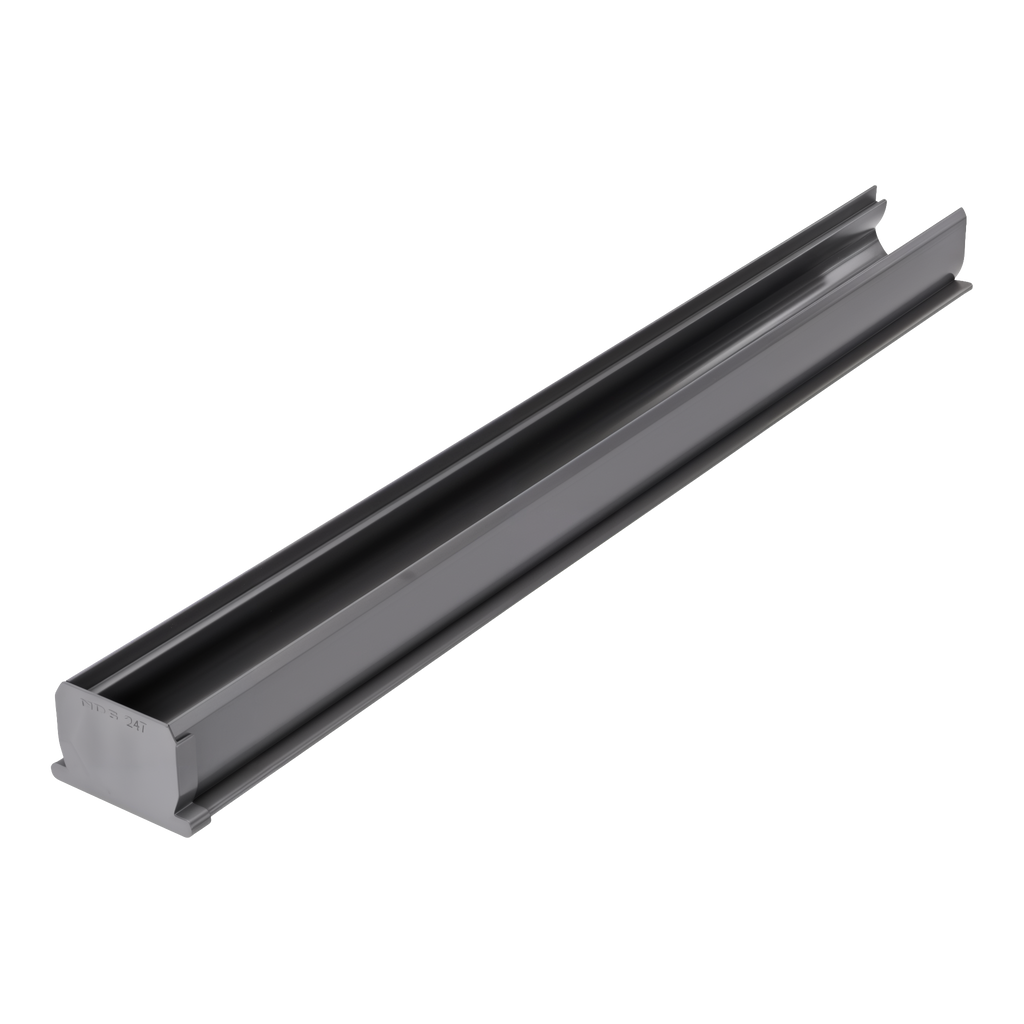

- Joins with Spee-D coupling 248; end cap 247; offset end outlet 249
- Grate not included; sold per unit
