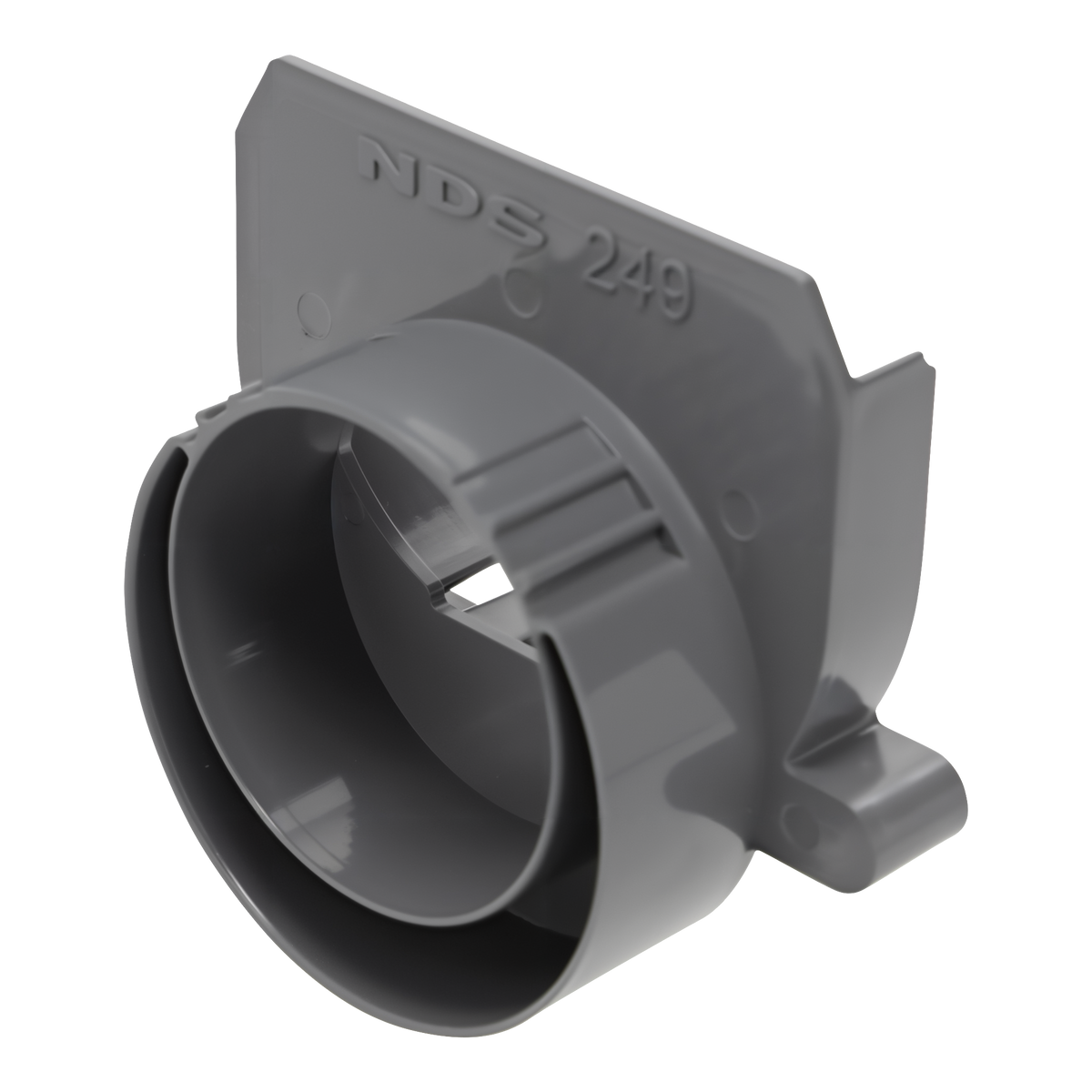

Drop the outlet connection below the channel with the NDS Spee-D Channel Drain Offset End Outlet. This gray PVC fitting attaches to the end of a Spee-D Channel Drain and connects to 3 in. sewer and drain pipe or a 4 in. sewer and drain fitting. Because the outlet point sits lower than the standard Spee-D end outlet, there is room for more concrete over the pipe connection, which matters on driveways and other slabs where the pipe would otherwise sit too close to the surface. NDS part number 249.
Key Features
-
Two pipe sizes: Connects to 3 in. sewer and drain pipe or a 4 in. sewer and drain fitting without an adapter.
-
Offset drop: The outlet sits lower than the standard end outlet, leaving more room for concrete over the pipe connection.
-
End-of-run outlet: Attaches at the end of the Spee-D channel so the whole run discharges through one pipe.
-
UV-treated PVC: Polyvinyl chloride with UV inhibitors, matched to the Spee-D channel body.
-
About NDS: NDS manufactures the full Spee-D channel drain line, from the 4 ft channel body to the outlets, couplings and caps used to finish a run.
How to Install It
Choose the offset outlet when the discharge pipe has to run under a slab that will see traffic or when the standard outlet would leave too little concrete over the pipe. Attach the fitting to the low end of the last Spee-D section, then connect your 3 in. sewer and drain pipe or 4 in. fitting and run it at a steady fall to the storm line, dry well or discharge point. Set the channel and outlet on the concrete bed, confirm the pitch, and pour concrete around the channel, the outlet body and over the pipe connection. Close the far end with a Spee-D end cap and use couplings at each section joint.
Specifications
- NDS part number: 249
- Connects to: 3 in. sewer and drain pipe or 4 in. sewer and drain fitting
- Fits: NDS Spee-D Channel Drain, end of run
- Material: PVC with UV inhibitors
- Color: Gray
- Weight: 0.50 lb (catalog)
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
NDS Spee-D Channel Drain Offset End Outlet, part 249, is the dropped-outlet transition for Spee-D runs. It attaches to the end of the channel and connects to 3 in. sewer and drain pipe or a 4 in. sewer and drain fitting. The connection point sits lower than the standard Spee-D end outlet, which buys additional concrete cover over the pipe. Spec it on driveway aprons and any slab where the discharge line crosses under traffic or where the standard outlet would leave the pipe too shallow. Gray PVC with UV inhibitors matches the channel, coupling and end cap so the exposed end of the run weathers evenly.
Key Features
- Pipe compatibility: 3 in. S&D pipe or 4 in. S&D fitting, so it ties into the common residential drain sizes without adapters.
- Concrete cover: Lower outlet elevation allows more concrete above the pipe connection, reducing the thin-slab crack line over the pipe on vehicular pours.
- End-of-run placement: Attaches at the channel end. One fitting per discharge point on a straight run.
- Take-off: One per outlet. Confirm the discharge pipe size before ordering so you do not need to adapt in the trench. Catalog weight 0.50 lb.
- About NDS: NDS manufactures the Profile Series channel drains (Mini Channel and Spee-D) and the matching couplings, outlets and end caps, so the whole run comes from one system.
How to Install It
Establish the invert of the discharge pipe first, then confirm the offset elevation gives the concrete cover the pour requires. Attach the fitting to the low end of the last section, connect the 3 in. pipe or 4 in. fitting and run the line at a consistent fall to the storm tie-in or dry well. Bed the channel and outlet in concrete and pour over the pipe connection per the NDS Spee-D outlet installation detail. Use the vehicular detail for driveways so the haunch and cover are adequate for wheel loads and freeze-thaw. Cap the high end with end cap 247 and couple sections with part 248. Note the outlet elevation on the as-built so the discharge line can be located later without breaking the slab.
Specifications
- NDS part number 249
- Connects to 3 in. sewer and drain pipe or 4 in. sewer and drain fitting
- Fits NDS Spee-D Channel Drain, end of run
- PVC with UV inhibitors, gray
- Catalog weight 0.50 lb
- Sold per unit
