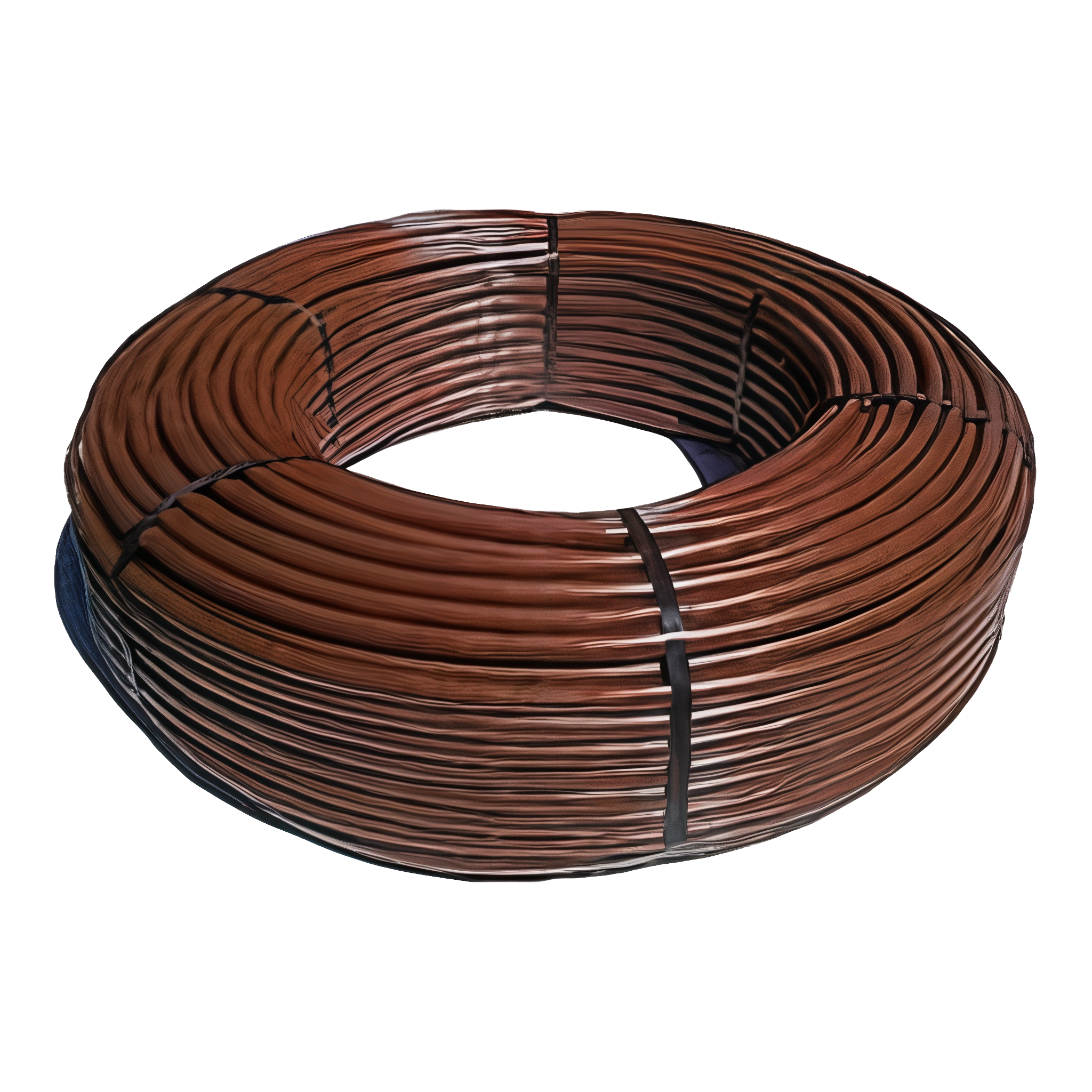

Netafim Techline CV 17mm 0.92 GPH dripline 250 foot roll coil on transparent background

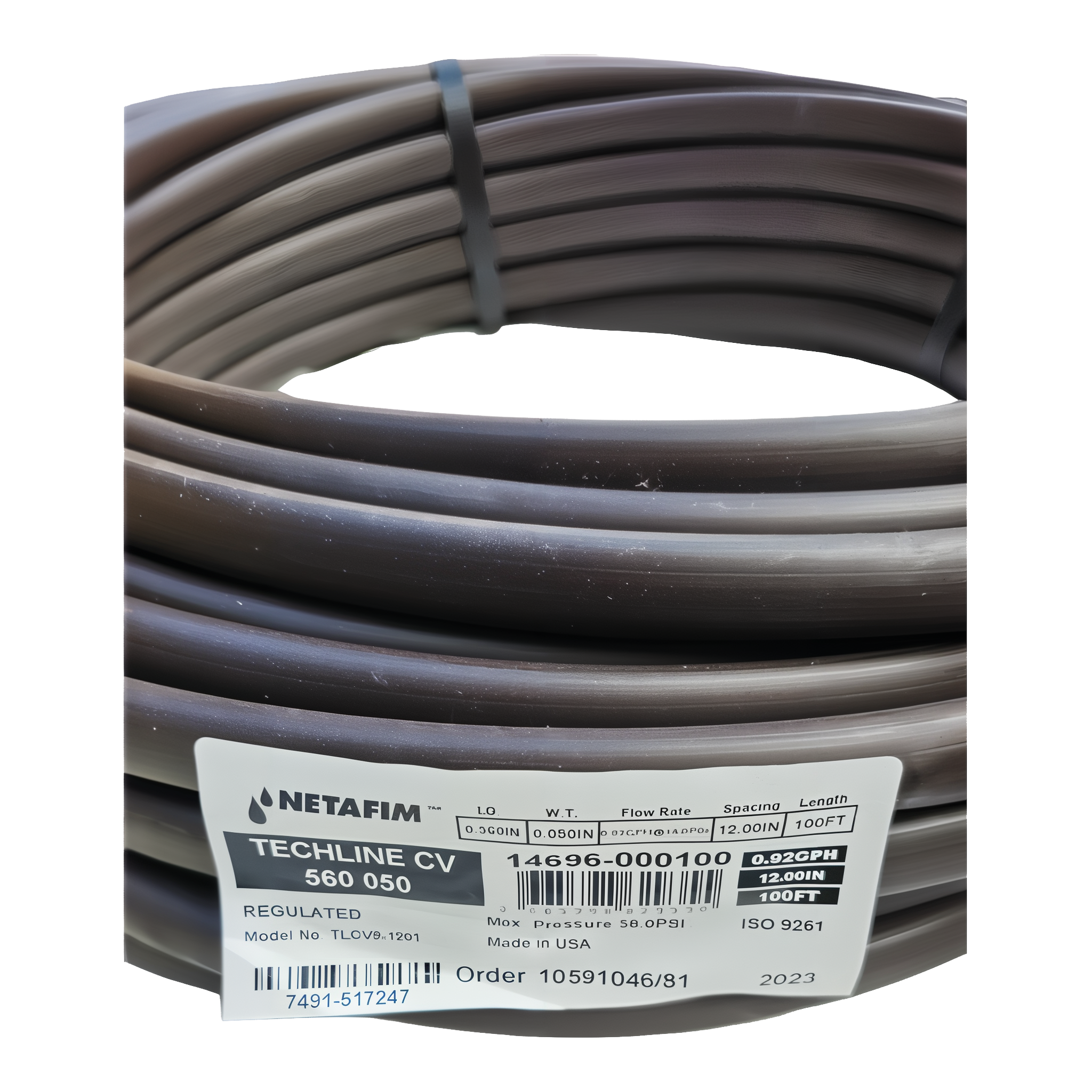

Netafim Techline CV 17mm dripline coiled roll showing Netafim sticker with model TLCV9-1201 TECHLINE CV 560 050 regulated marking

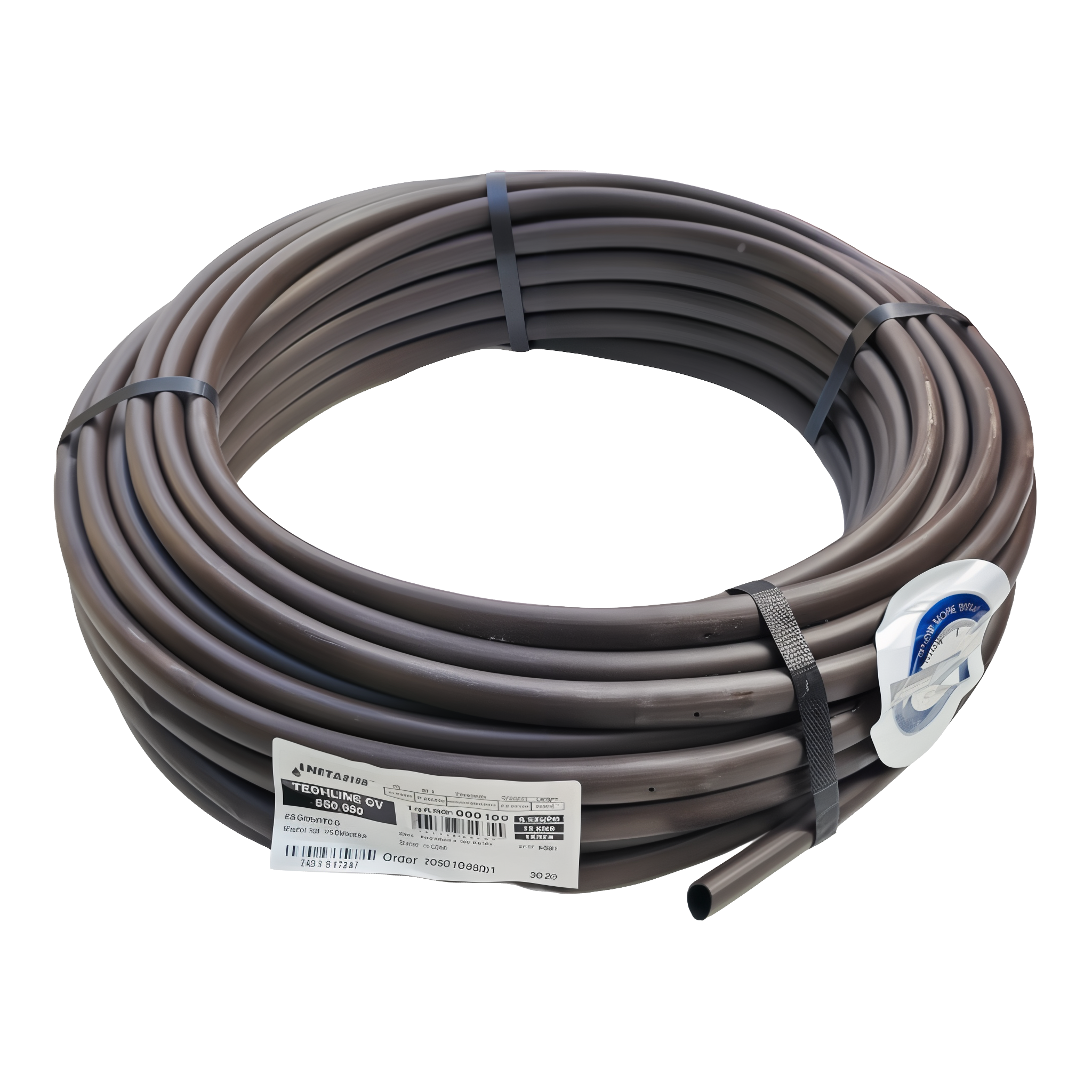

Netafim Techline CV 17mm dripline coiled roll with 100 foot length badge and product label

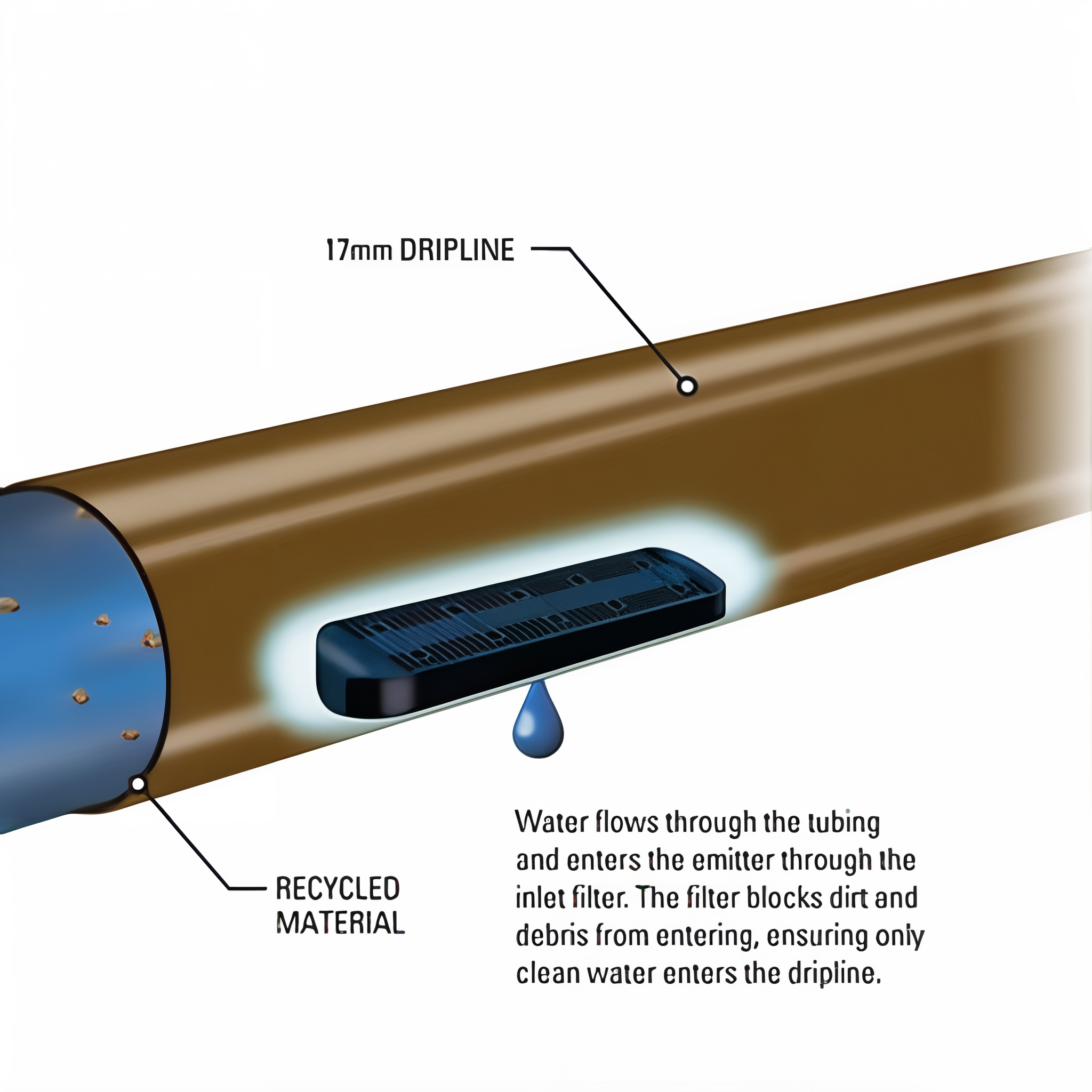

Netafim Techline CV 17mm emitter cross-section diagram showing inlet filter and recycled material dripline wall

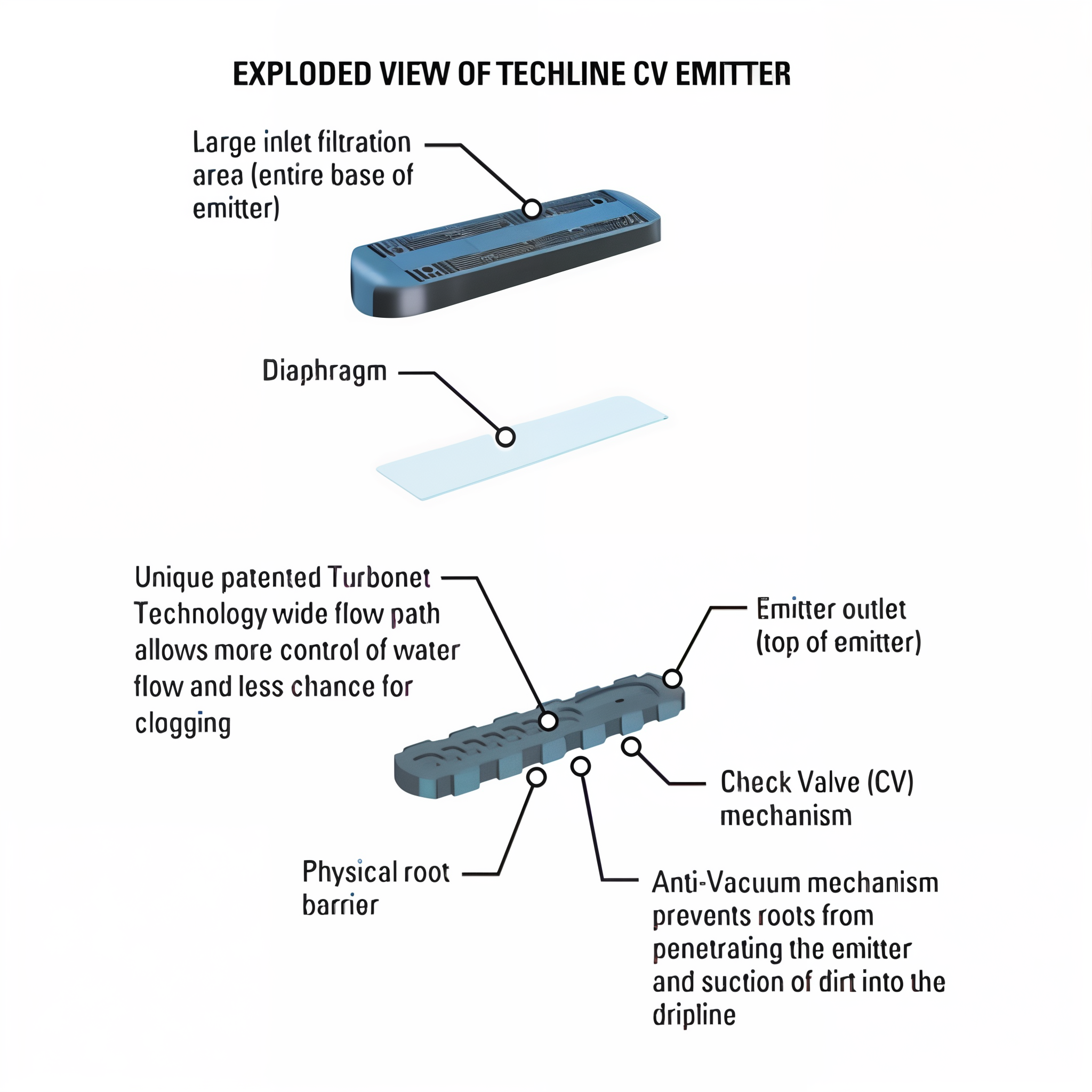

Netafim Techline CV emitter exploded view diagram showing Turbonet wide flow path, check valve mechanism, anti-vacuum, physical root barrier, and large inlet filtration area
Netafim Techline CV 17mm 0.92 GPH features infographic — root intrusion technology, precise watering, clog-resistant, self-flushing emitters

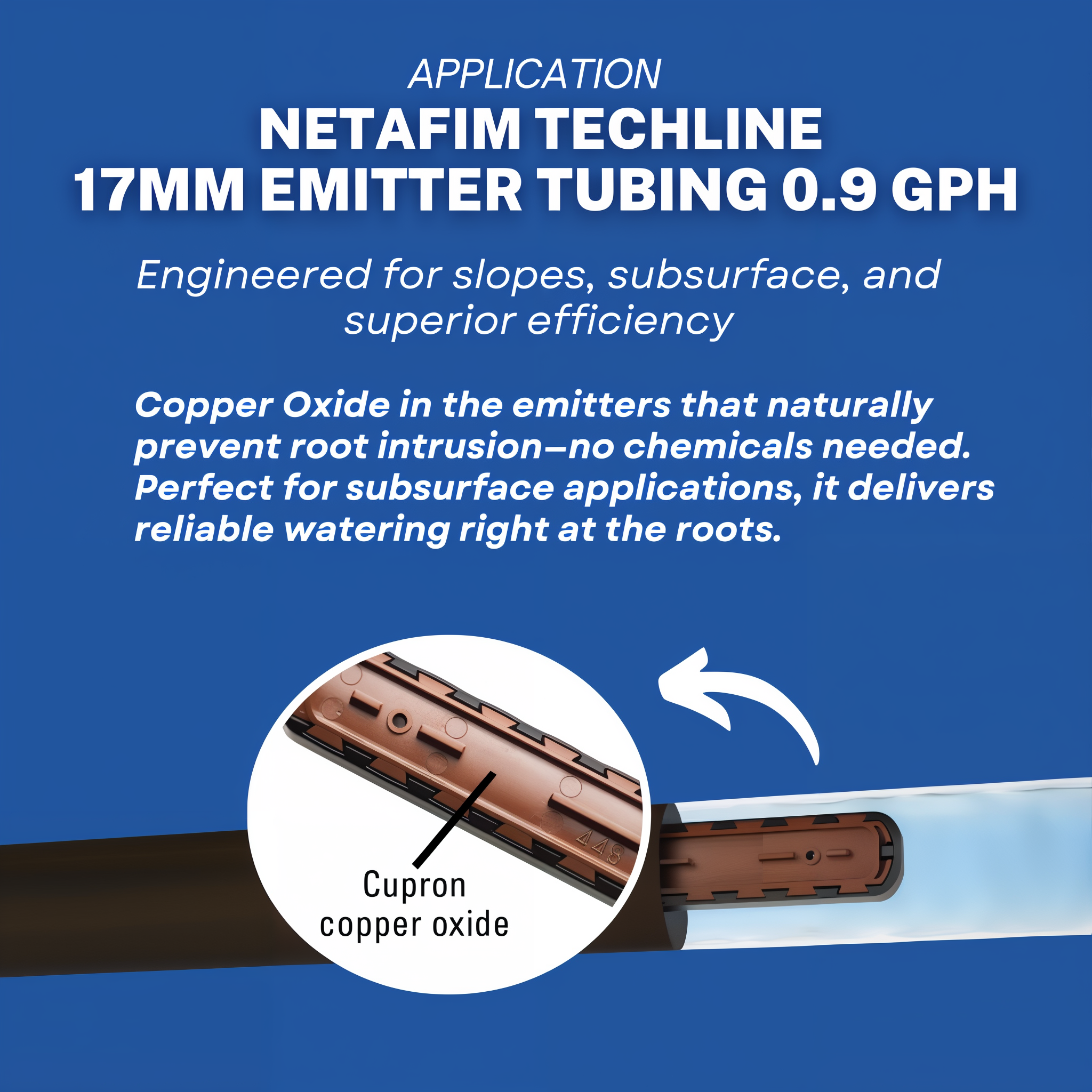

Netafim Techline CV 17mm application infographic — Cupron copper oxide in emitters naturally prevents root intrusion, engineered for slopes, subsurface, and surface installations

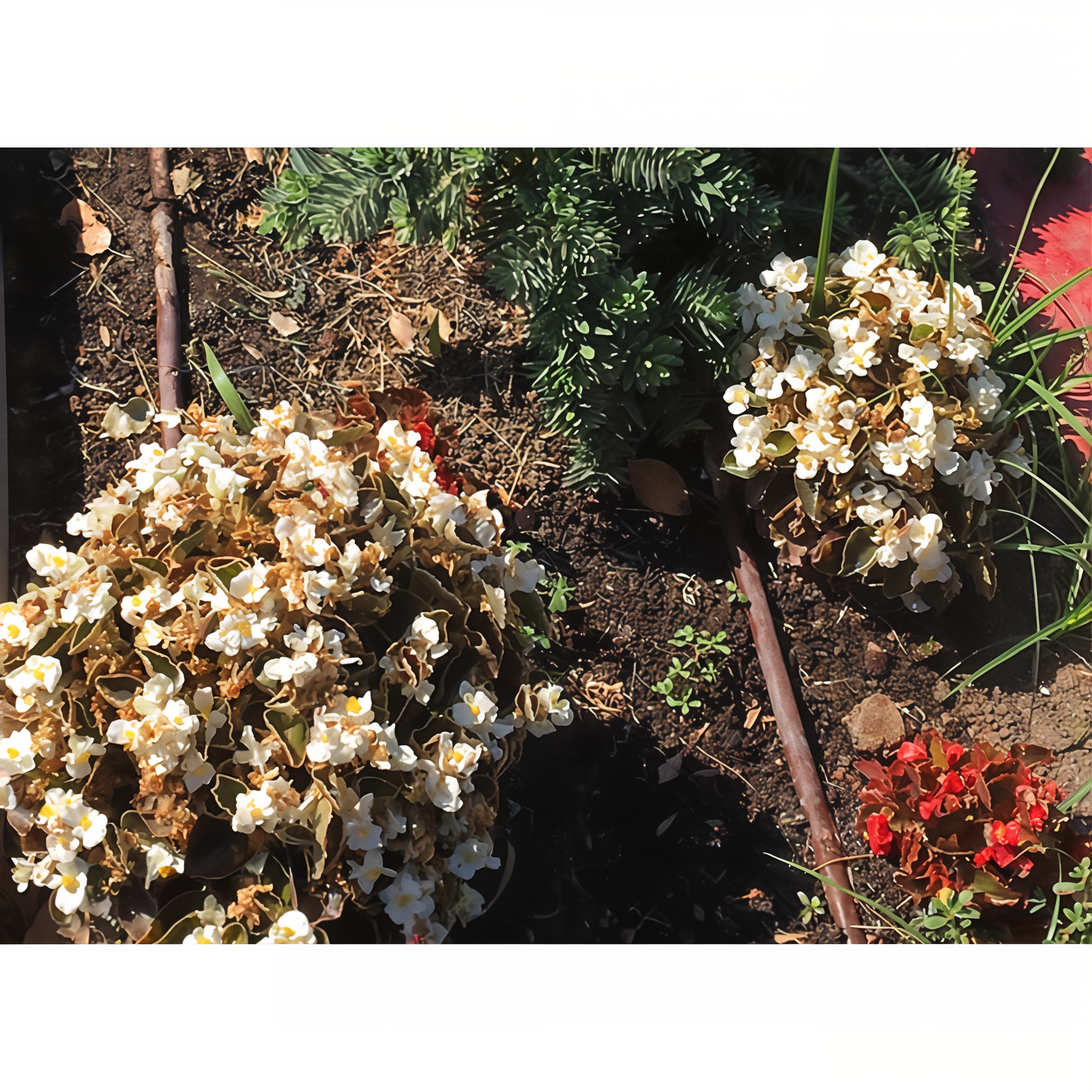

Netafim Techline CV 17mm dripline installed surface-laid in a begonia and ornamental flower bed delivering precise drip watering
Roll over image to zoom in Click on image to zoom
Netafim Techline CV 17mm 0.92 GPH dripline 100 foot roll coil on transparent backgroundNetafim Techline CV 17mm 0.92 GPH dripline 250 foot roll coil on transparent backgroundNetafim Techline CV 17mm dripline coiled roll showing Netafim sticker with model TLCV9-1201 TECHLINE CV 560 050 regulated markingNetafim Techline CV 17mm dripline coiled roll with 100 foot length badge and product labelNetafim Techline CV 17mm emitter cross-section diagram showing inlet filter and recycled material dripline wallNetafim Techline CV emitter exploded view diagram showing Turbonet wide flow path, check valve mechanism, anti-vacuum, physical root barrier, and large inlet filtration areaNetafim Techline CV 17mm 0.92 GPH features infographic — root intrusion technology, precise watering, clog-resistant, self-flushing emittersNetafim Techline CV 17mm application infographic — Cupron copper oxide in emitters naturally prevents root intrusion, engineered for slopes, subsurface, and surface installationsNetafim Techline CV 17mm dripline installed surface-laid in a begonia and ornamental flower bed delivering precise drip watering

Netafim Techline CV 17mm Emitter Tubing Dripline, 12 in. Spacing, 0.92 GPH

Drip Works
Length: 100 FT
Price:
$43.99

Description

The dripline pros reach for when they want one system that handles slopes, subsurface burial, and surface laydown without rethinking the design. Netafim Techline CV 17mm with the patented Turbonet emitter delivers 0.92 GPH at every 12 in. inlet, holds that flow consistent across pressure swings (the CV check-valve mechanism eliminates low-point drain-down and water-hammer drift), and resists root intrusion via the Cupron copper-oxide impregnated emitter outlet — no chemicals, no annual root treatments, just clean drip year after year.

Why Pros Pick Techline CV Over Generic Dripline

  • Patented Turbonet emitter — wide turbulent flow path resists clogging better than narrow labyrinth emitters; self-flushes on every cycle start and stop
  • Check valve (CV) mechanism — holds residual water in the line so the low emitters don’t empty out between cycles, eliminates the low-spot puddle that ruins zone uniformity
  • Anti-vacuum mechanism — prevents the line from sucking dirt back through the emitters when the zone shuts off
  • Cupron copper-oxide root barrier in the emitter — the only thing that reliably stops root intrusion long-term, no chemicals to inject
  • Physical root barrier ring — second-line defense against roots wrapping the emitter outlet
  • Made in USA from recycled plastic — UV-resistant, freeze-thaw stable, and easier on procurement spec sheets
  • Pressure-regulated — rated to 58 psi max (the CV emitter handles 8.5–58 psi while metering precisely)

Where It Shines

  • Surface drip on flower beds, perennial borders, and vegetable rows where 12 in. emitter spacing matches the plant pitch
  • Subsurface drip irrigation (SDI) for turf and athletic-field zones — the copper-oxide barrier earns its premium underground
  • Sloped landscapes where the CV mechanism keeps the dripline from drain-flushing at the bottom of the run after every cycle
  • Long zone runs where pressure compensation matters — the emitter delivers 0.92 GPH consistently along the length
  • Service-call retrofits replacing generic poly drip tubing with chronic clog or root problems

Pick Your Roll Length

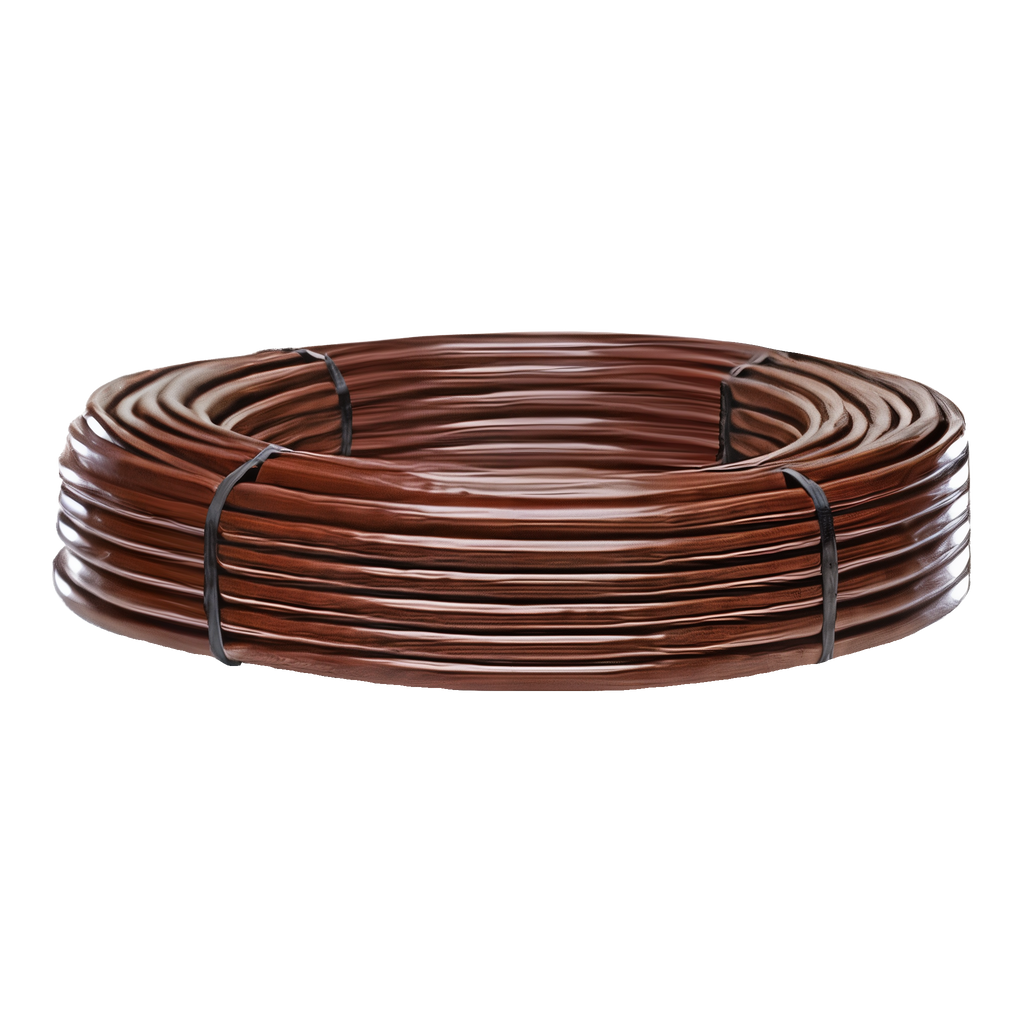

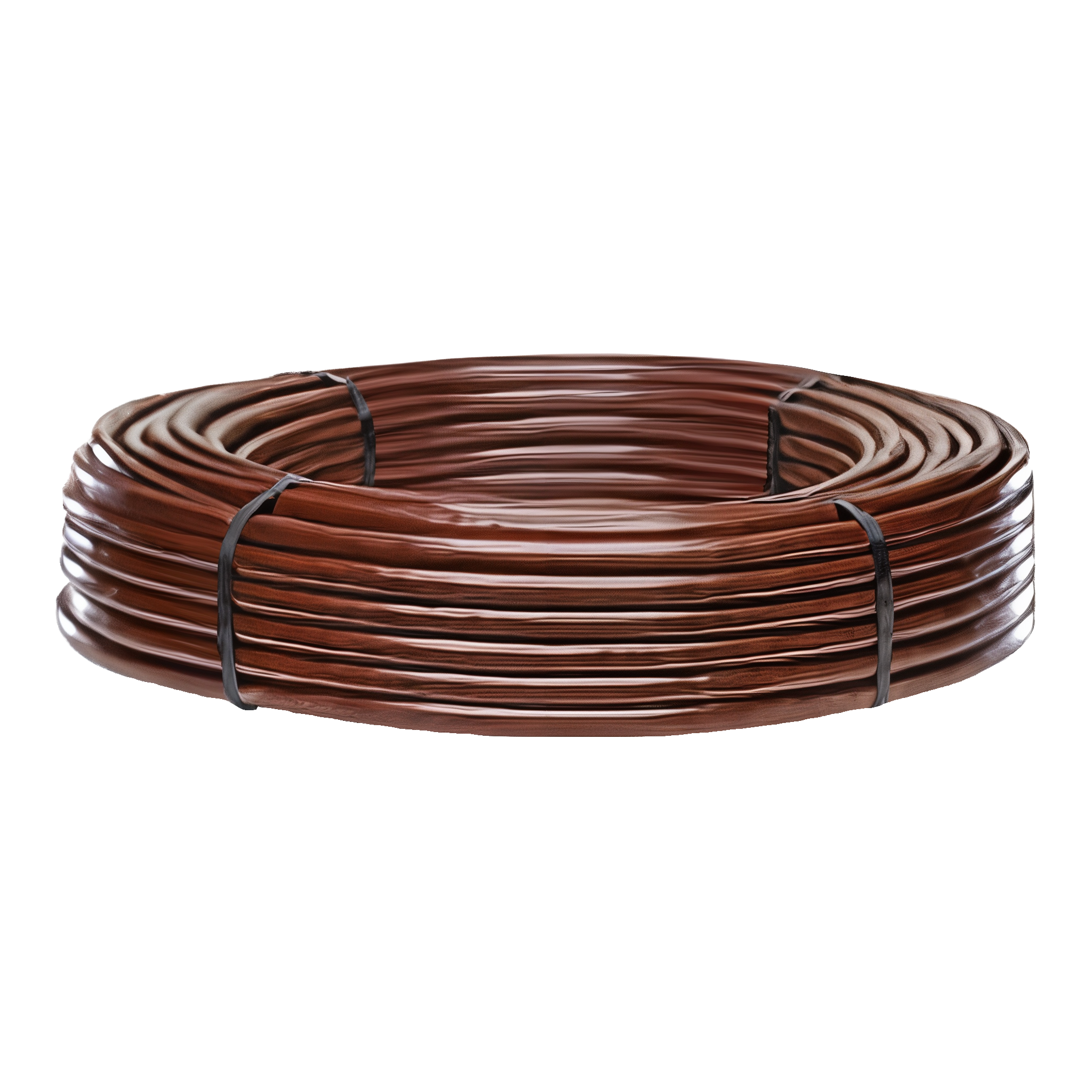

  • 100 FT roll — right-sized for a single bed install, manifold patch, or short branch run

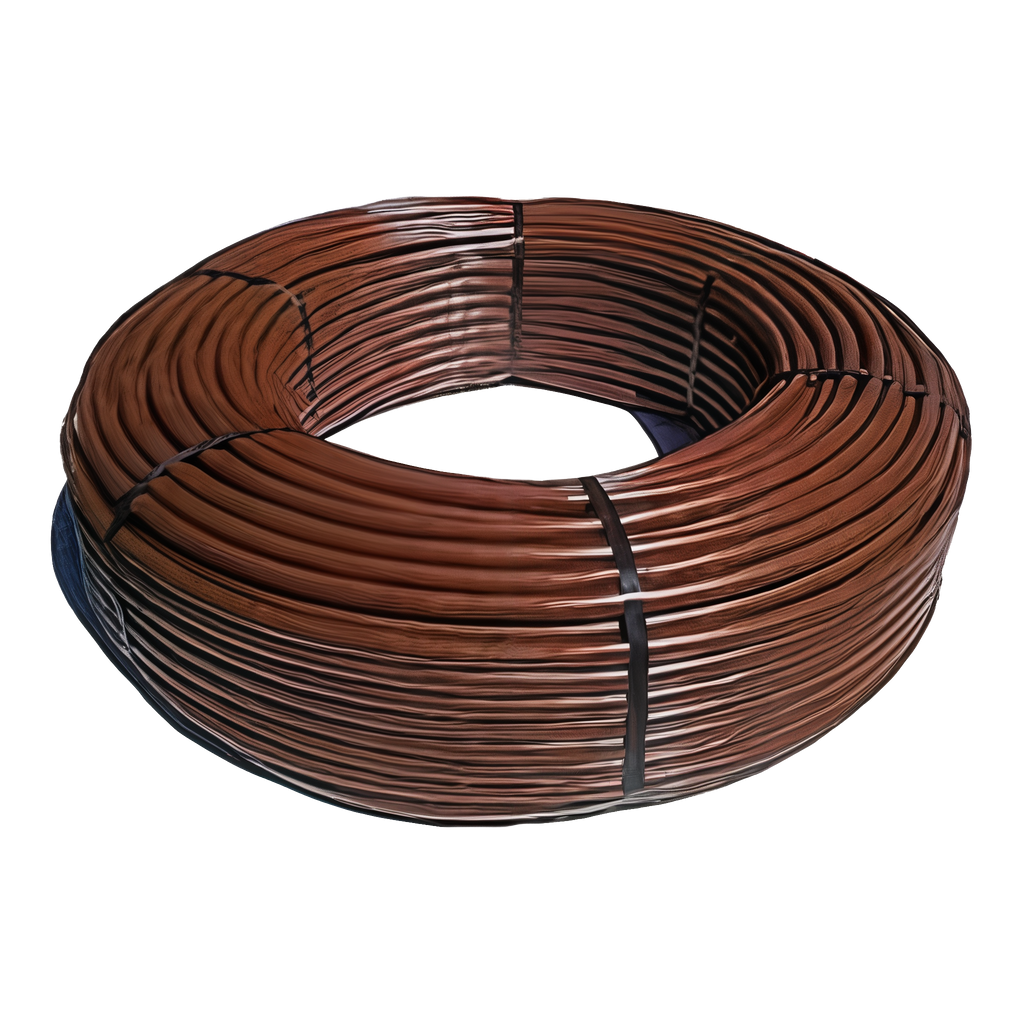

  • 250 FT roll — full-zone build, multi-bed install, or contractor stock

Both rolls are the SAME Techline CV 17mm tubing — same 0.92 GPH emitter, same 12 in. spacing, same Cupron technology. The only difference is the linear footage you take home.

Specifications

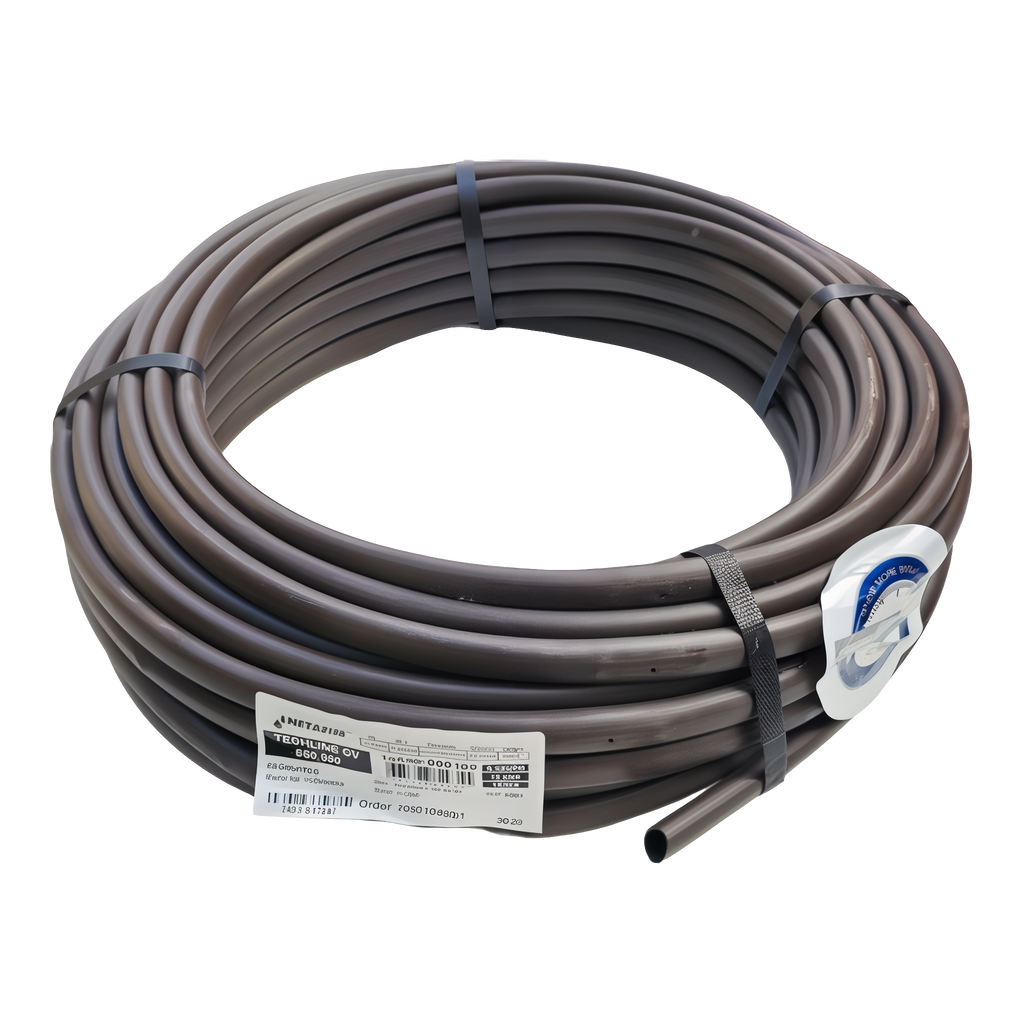

  • Family: Netafim Techline CV (marketing code TECHLINE CV 560 050 on the product sticker)

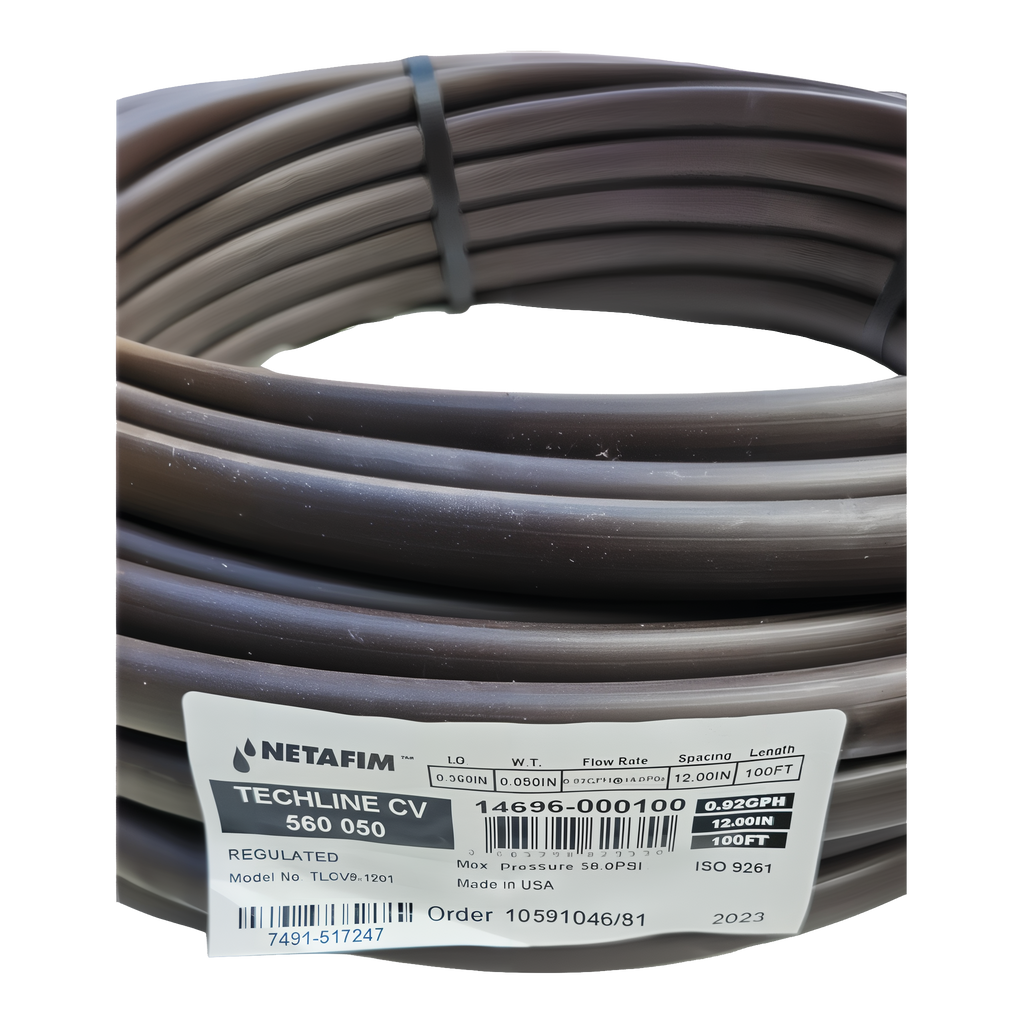

  • Netafim Model: TLCV9-1201 (on the 100 ft regulated sticker)
  • Dripline diameter: 17mm (0.66″ OD), inside diameter 0.56″
  • Emitter flow rate: 0.92 GPH at 14.5 psi (pressure-compensating range 8.5–58 psi)
  • Emitter spacing: 12 in. on-center
  • Operating pressure range: 8.5–58 psi (0.6–4.0 bar)
  • Check valve (CV) hold-up: prevents drain-down between cycles
  • Anti-vacuum / anti-suction mechanism: integrated in emitter
  • Root intrusion protection: Cupron copper oxide + physical barrier ring
  • Tubing material: Recycled polyethylene, UV-resistant
  • Origin: Made in USA
  • Certifications: ISO 9261

Install Notes

  • Use Netafim 17mm fittings — the OEM TLCOUP (coupling), TLTEE (tee), TLELL (elbow), and TL050MA / TL075MA (threaded adapters) seal correctly against the 0.56″ ID; generic 1/2″ barbs fit four sizes badly
  • Lay the dripline emitter-side up on surface installs (the emitter outlets are stamped along one side of the line)
  • For subsurface drip (SDI), bury 4–6 in. deep depending on root zone and emitter spacing
  • Cap the downstream end with a Netafim TLFIG8 figure-8 line end or equivalent — the CV mechanism doesn’t replace the end cap
  • Pressure-regulate the supply if the source is above 58 psi (a 25–30 psi inline regulator is standard)
  • Flush the line at install before connecting emitters / branches to clear assembly debris

Pair With

For fittings, use the Netafim TLCOUP (inline splice), TLTEE (3-way branch), TLELL (90° corner), and TL050MA / TL075MA (male NPT to barb) — all in our catalog.

Stop by Garoppo’s to pick up a roll, or order ahead for the next install.

Techline CV Technical Data Sheet
