Description

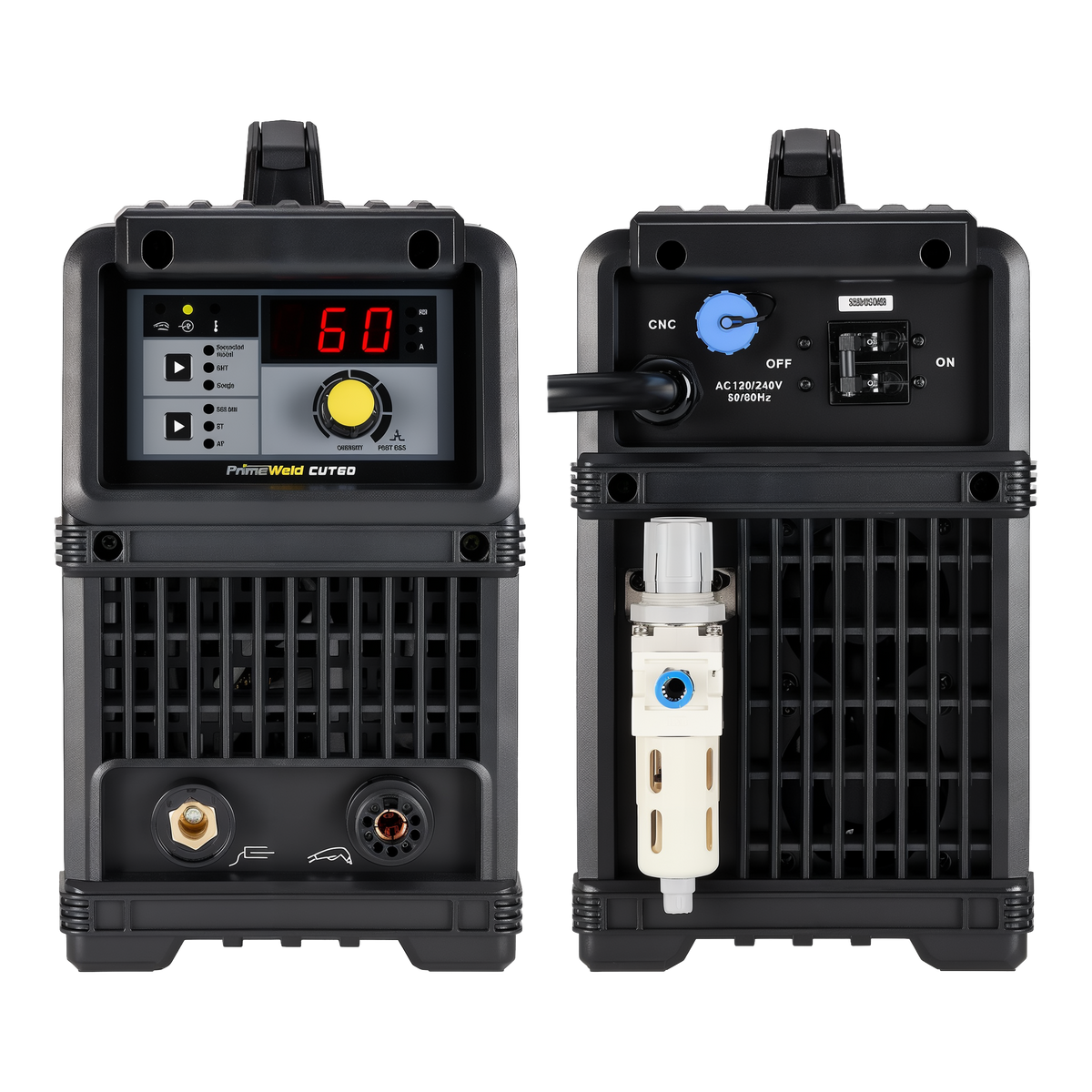

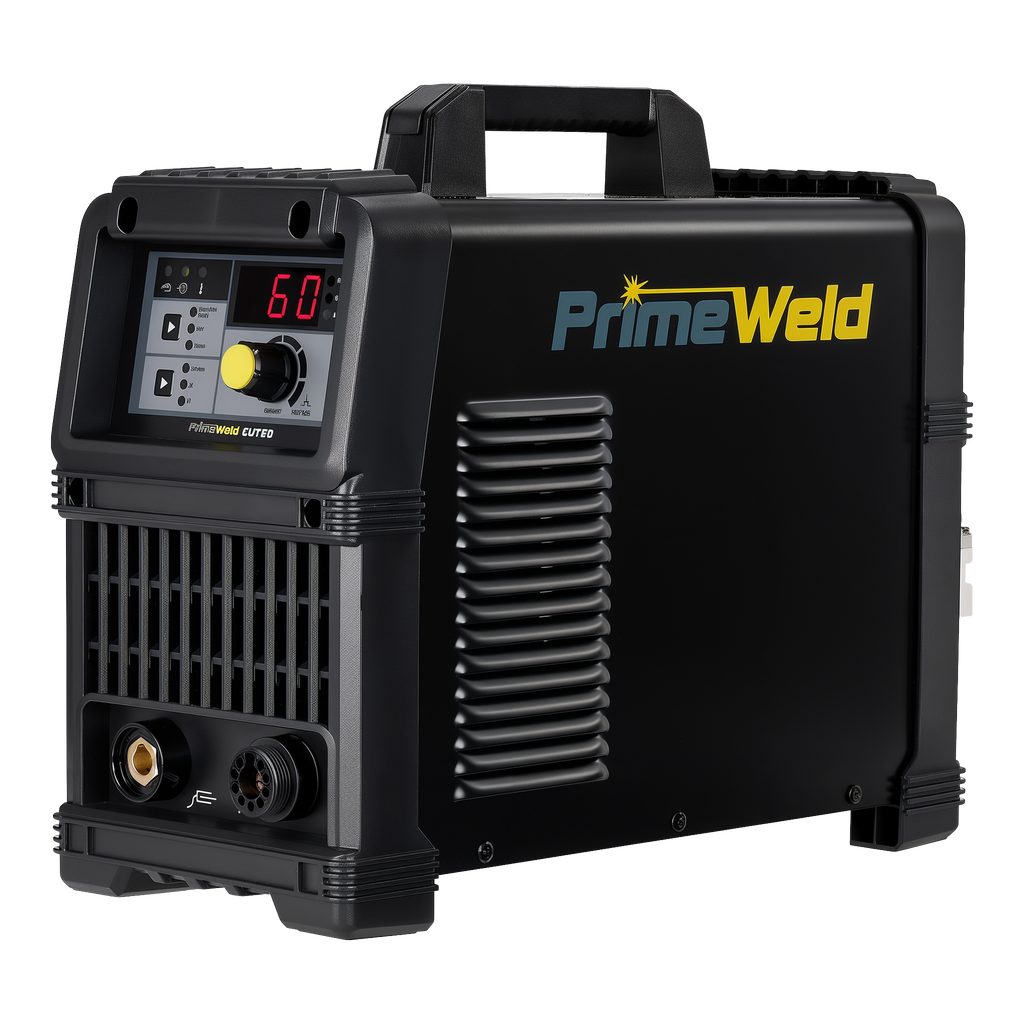

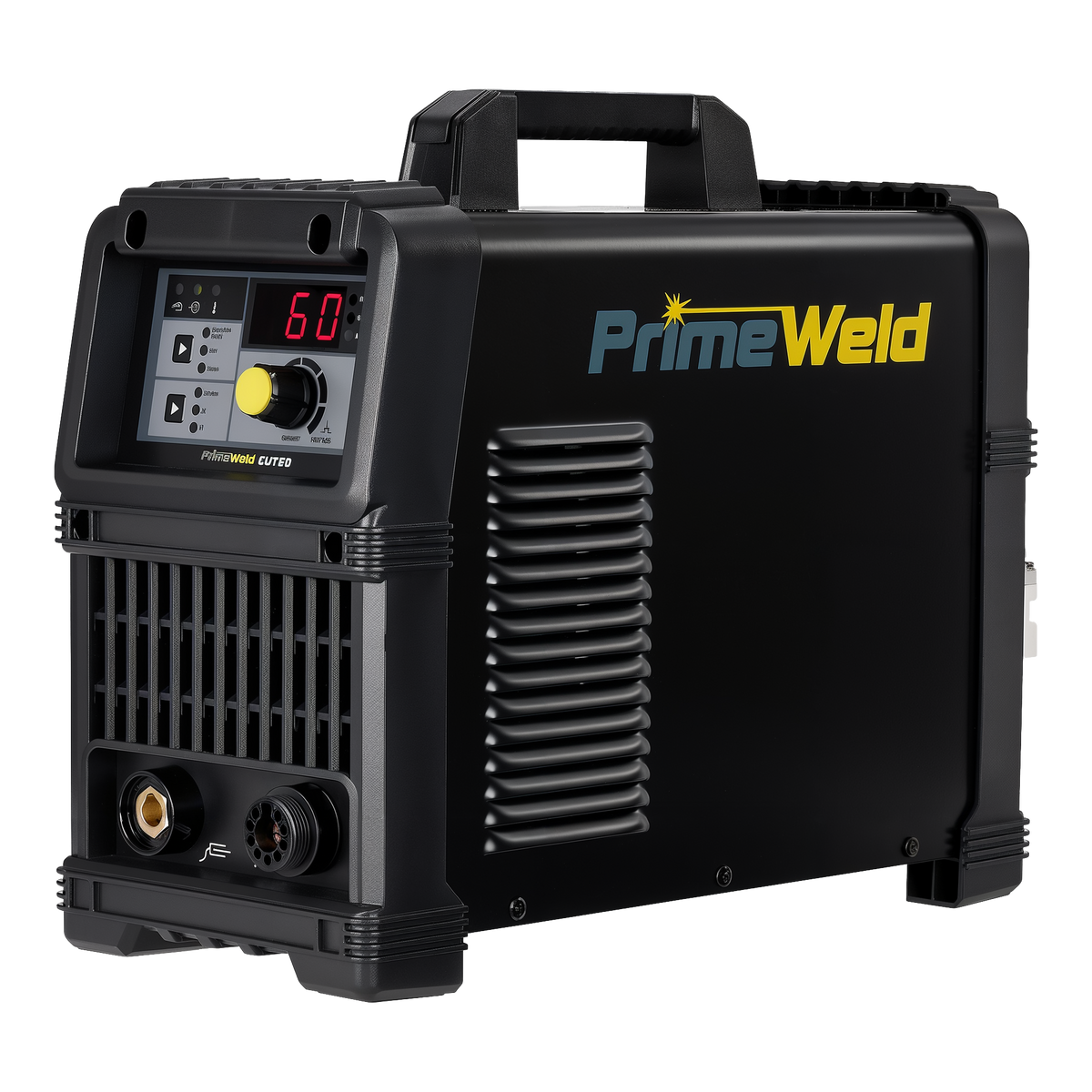

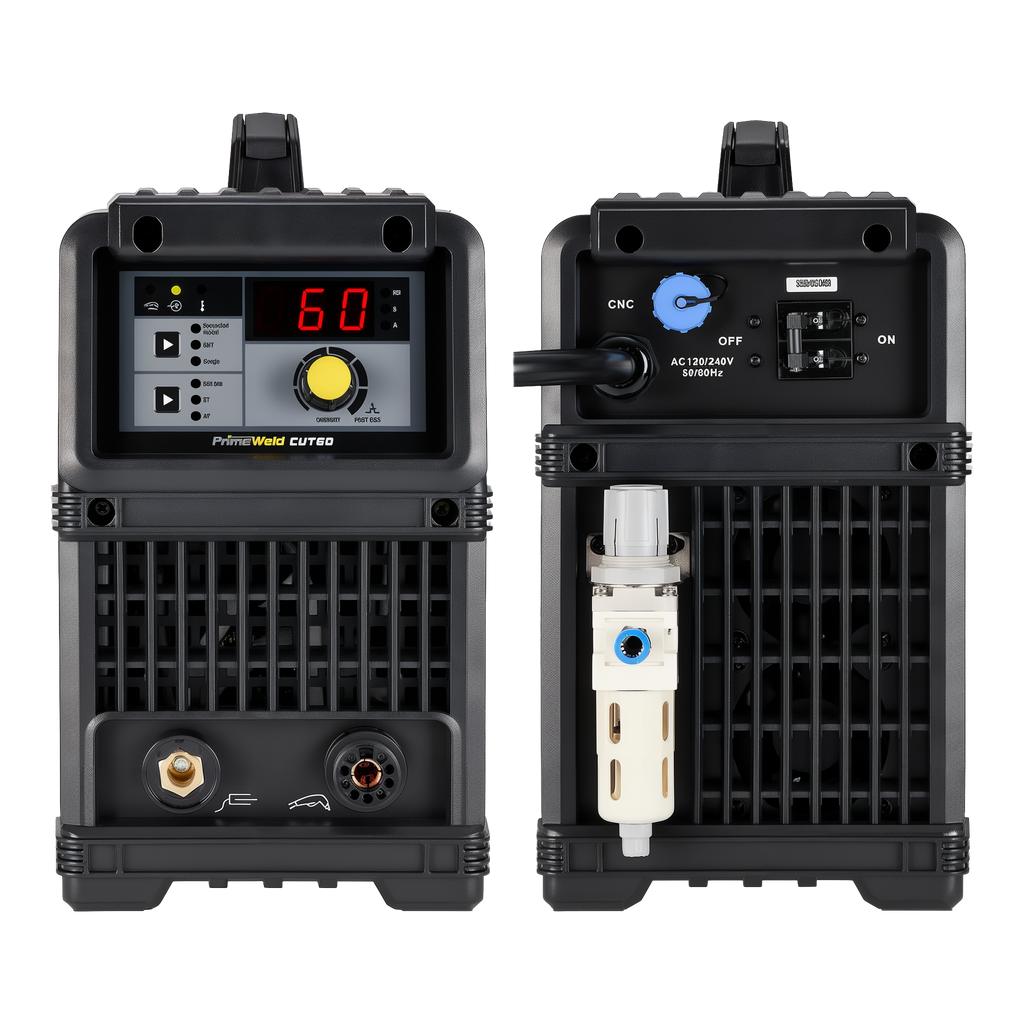

Cut steel up to 7/8" thick with the PrimeWeld CUT60 Dual Voltage 110v/220v 60-Amp Plasma Cutter, a 60-amp pilot arc plasma cutter that runs on 120 V or 240 V single-phase power. The compact inverter carries a digital power display and a front-panel air pressure gauge, and the IPT60 blowback torch, ground clamp, gas regulator and CNC plug come in the box. Connect compressed air and cut farm equipment, auto body panels, fabrication stock or metal art, by hand or on a CNC table.
Key Features

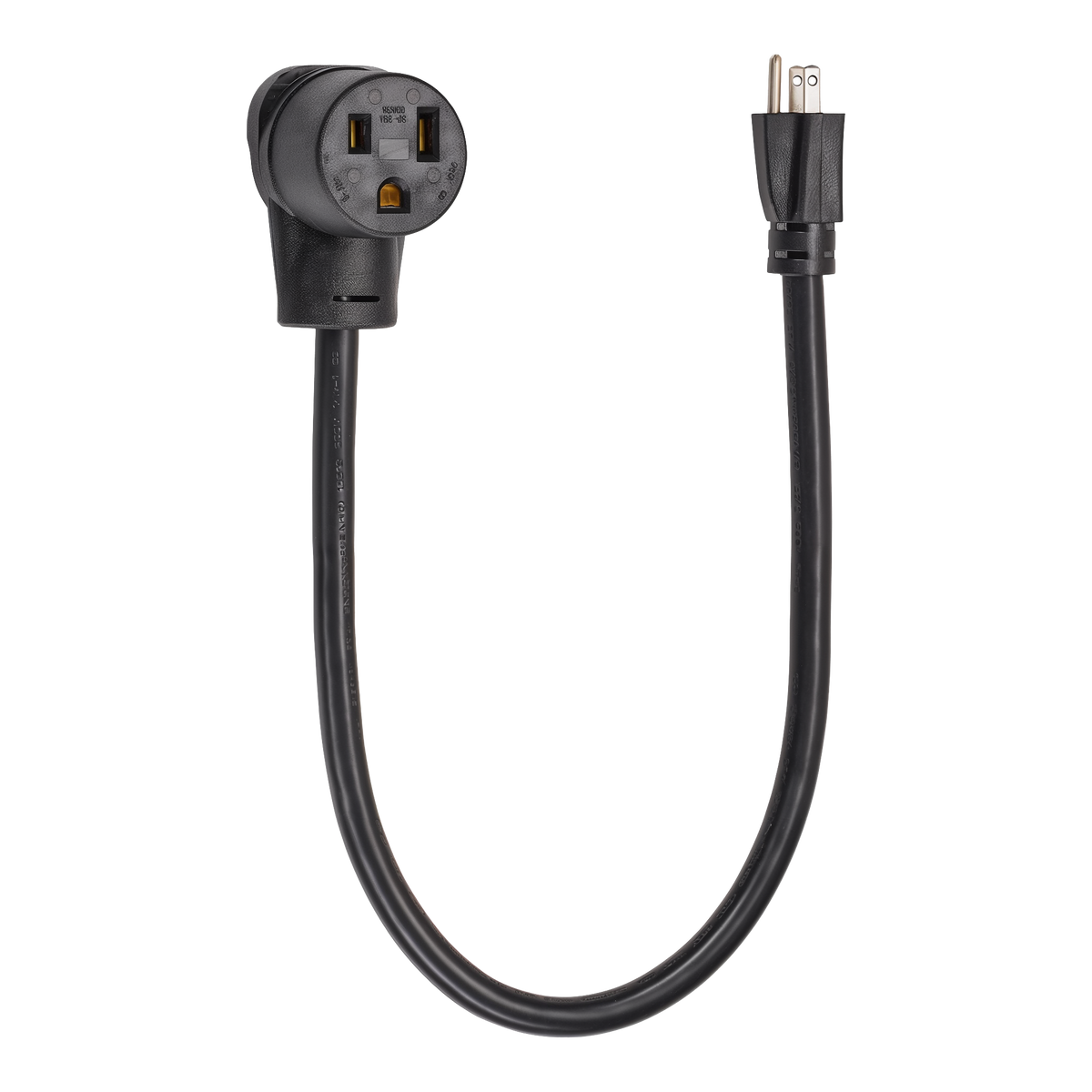

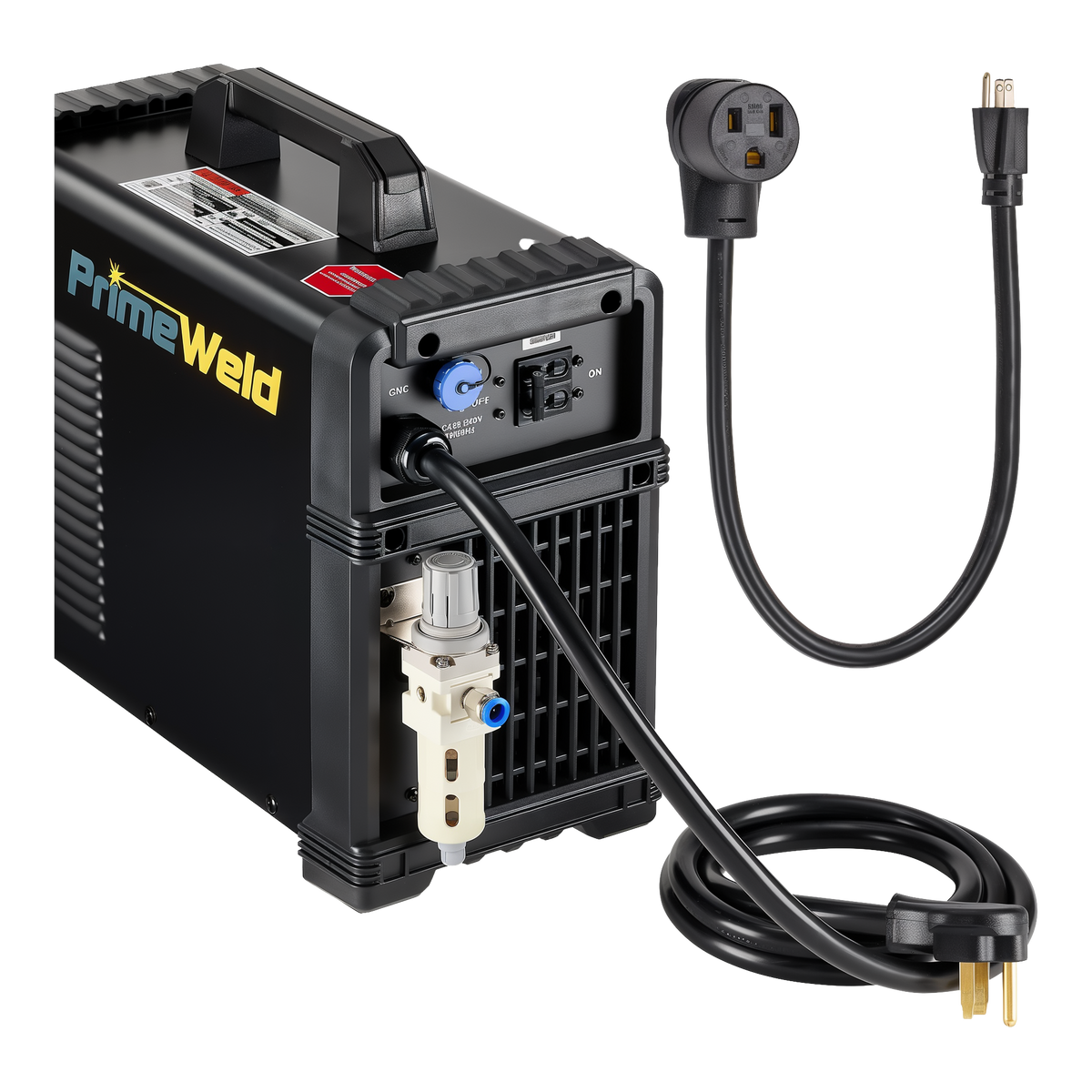

- Dual Voltage Input: Plug into 120 V with the included 220V-to-110V adapter for 20–30 A output, or run 240 V for the full 20–60 A range.
- Blowback Pilot Arc: The non-HF start keeps interference away from CNC electronics, and the continuous pilot arc restrikes across gaps so mesh, grating and expanded metal cut cleanly.
- Cutting Controls: Adjust air post-flow from 0 to 60 seconds to cool the torch, and switch between 2T and 4T trigger modes for long cuts.
- Power and Protection: MOSFET inverter technology gives stable output with overcurrent, overheating and power-spike protection built in.
- About PrimeWeld: PrimeWeld is based in Blackwood, New Jersey, and backs every machine with a 3-year no-hassle warranty and U.S.-based service, parts and technical support.
How to Use It
Connect a compressor rated at least 5 CFM at 80 PSI with a 20-gallon or larger tank, then clamp the 12 ft ground lead to clean bare metal. Switch the power on, use the SET AIR function to dial pressure between 55 and 75 PSI, and pick an amperage from 20 to 60 A to match your material thickness. Press the trigger to strike the arc and move the torch steadily across the cut, holding roughly 1/8" of standoff. Choose 2T to cut only while the trigger is held, or 4T to press once to start and once to stop. Work in a dry, well-ventilated space.
Specifications
- Model CUT60; 120 V / 240 V single-phase, 50/60 Hz; 30 A or 50 A breaker
- Output 20–30 A (120 V) or 20–60 A (240 V); cuts steel to 7/8" (20 mm)
- Duty cycle 60% at maximum output; 100% at 23 A (120 V) or 46 A (240 V)
- Air 40–75 PSI, 5 CFM at 90 PSI; machine 30 lb, 18" x 8.5" x 15.5", IP21

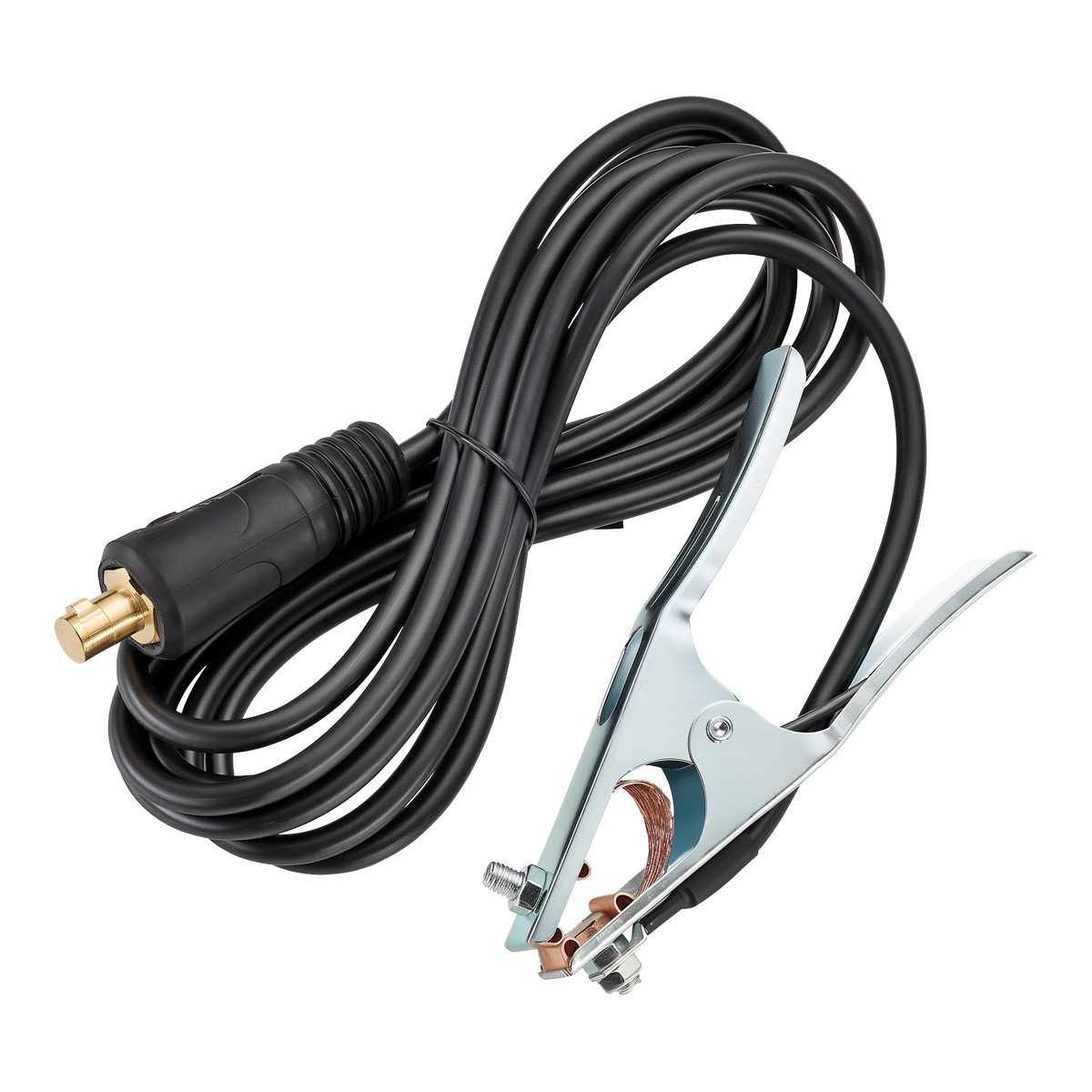

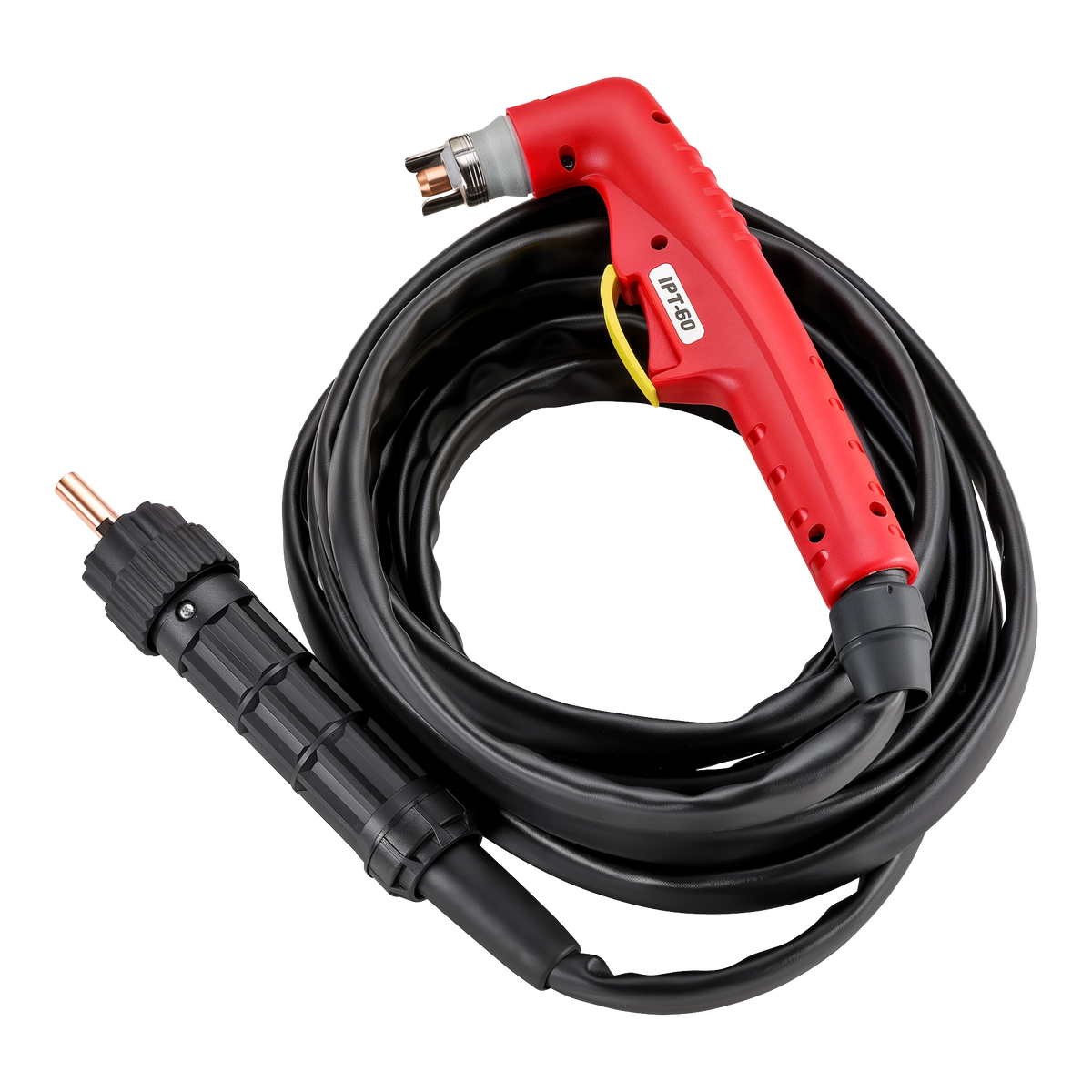

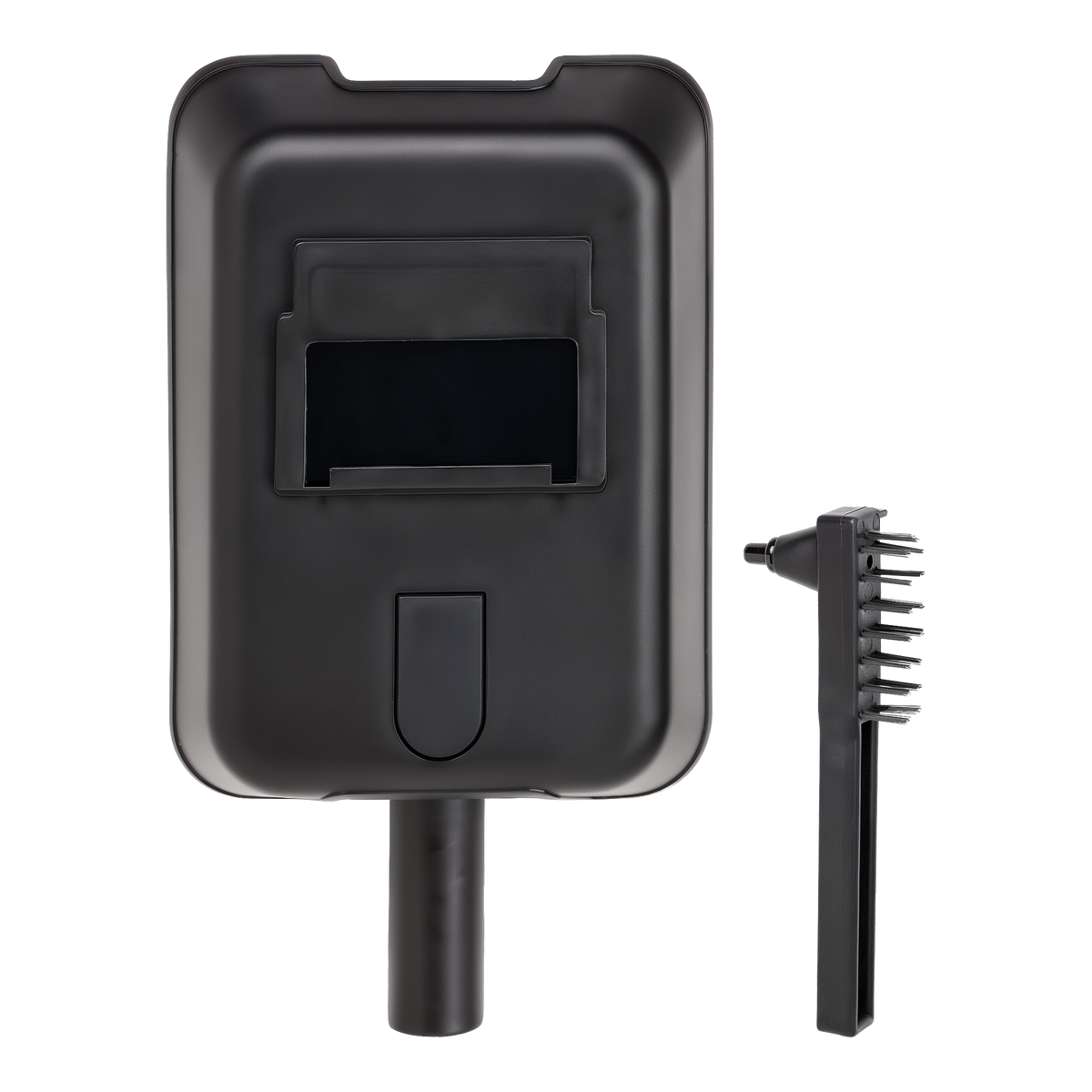

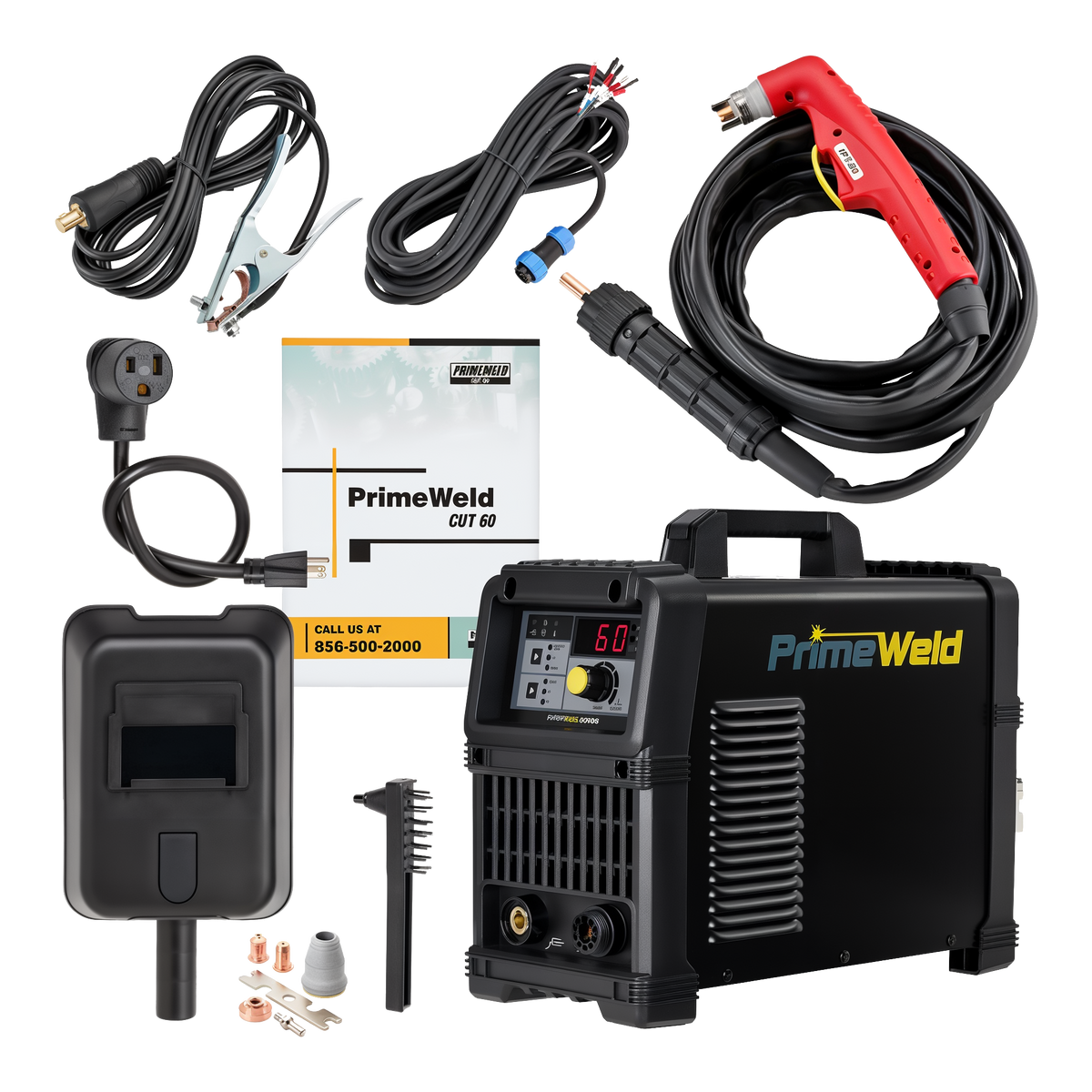

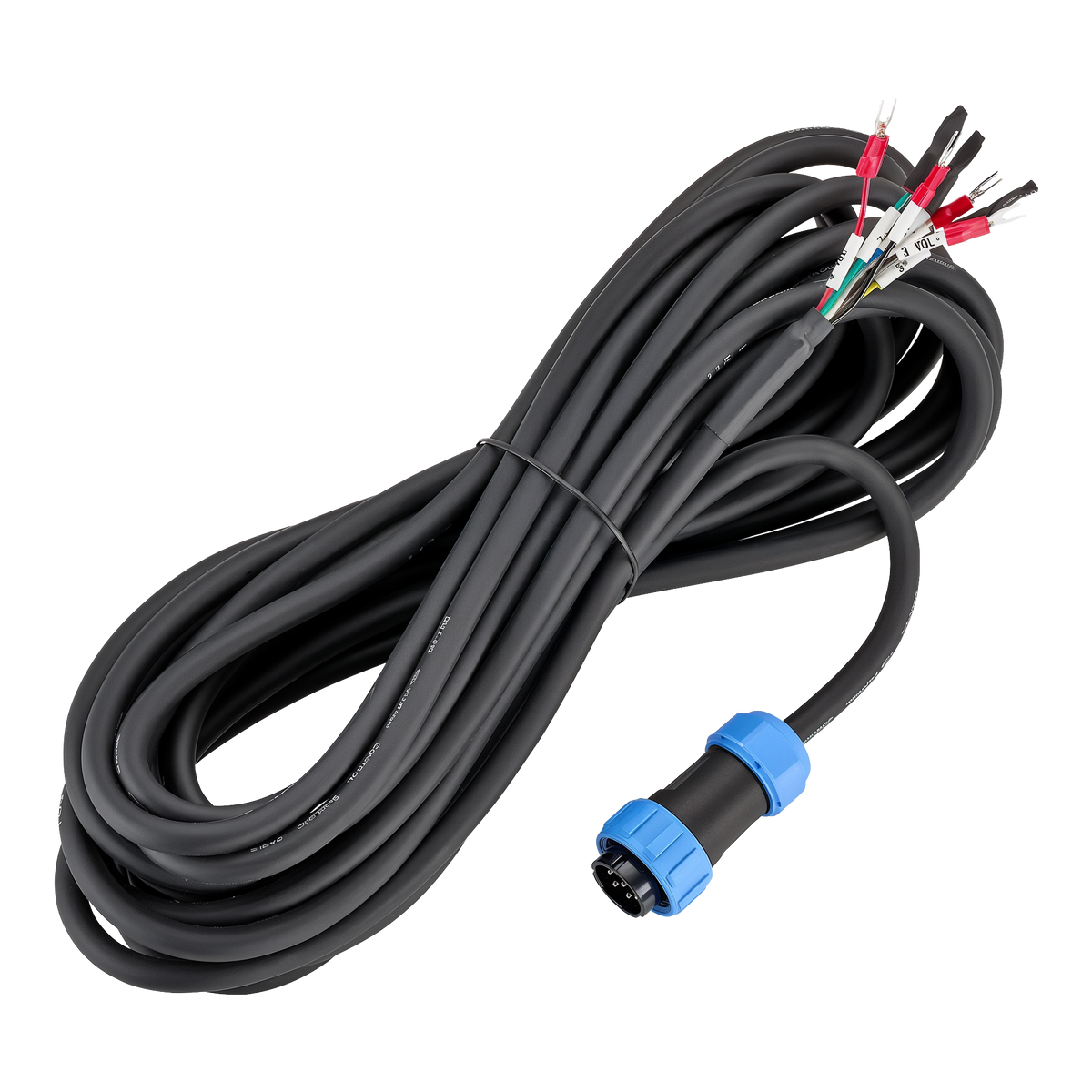

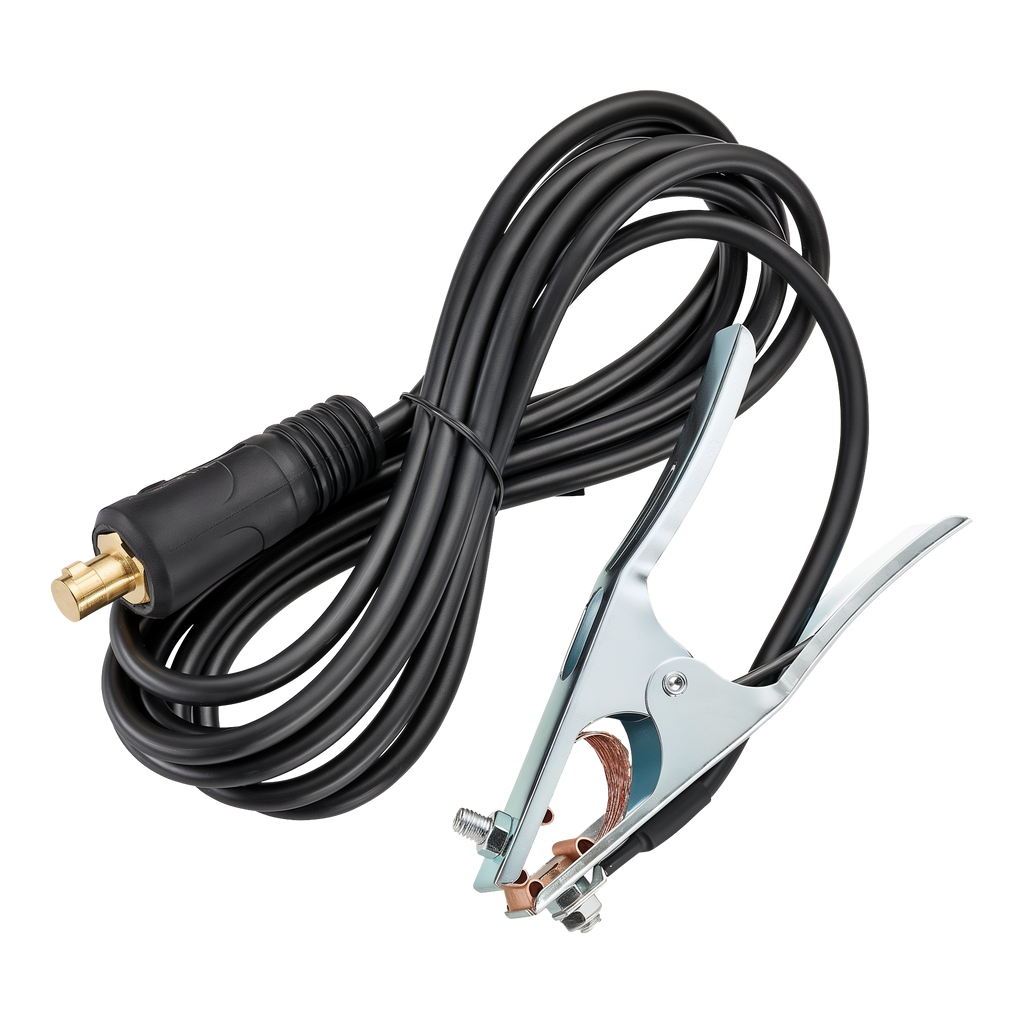

- In the box: IPT60 cutting torch, CNC plug, gas regulator, ground clamp with 12 ft cable, 220V-to-110V power adapter, hand-held welding mask, hammer brush, user manual
