Description

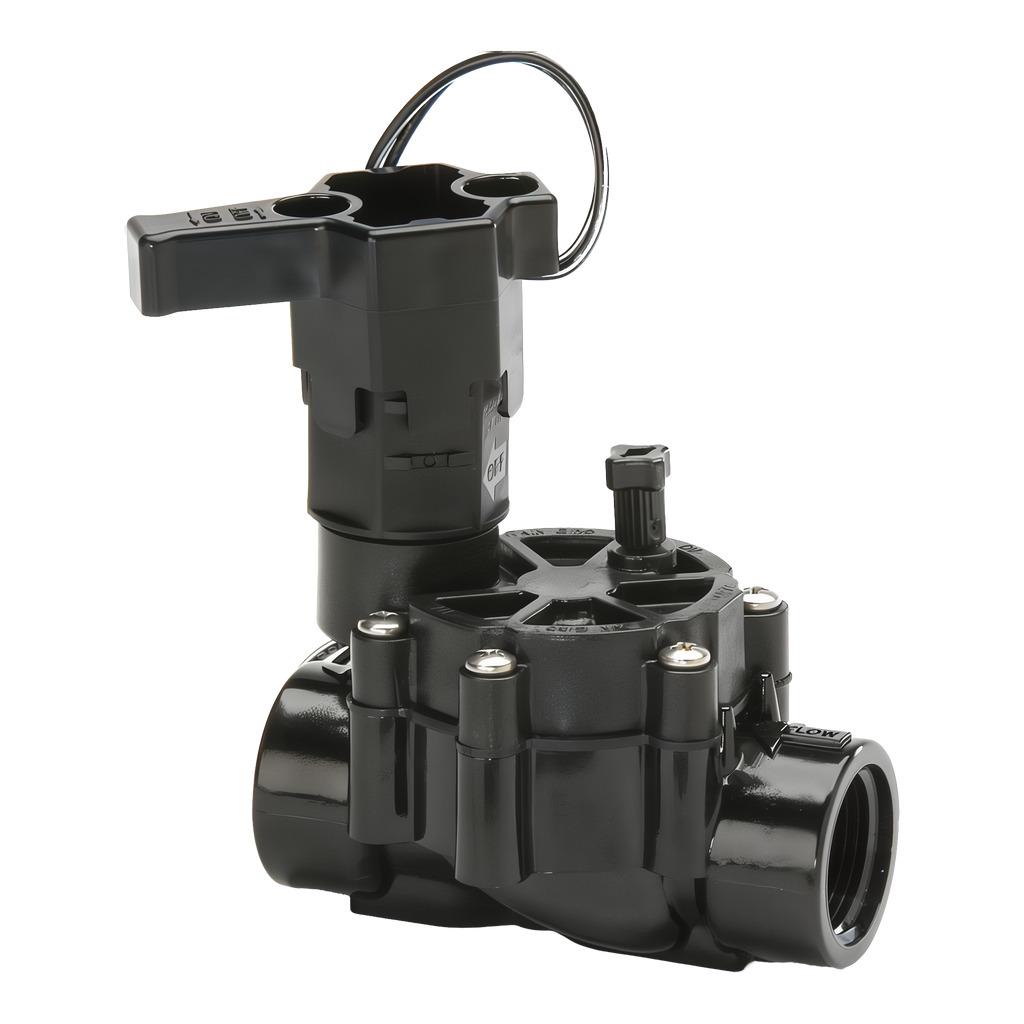

Drop a Rain Bird 100DV in line, wire it up to any standard 24 VAC sprinkler controller, and you’ve got a residential zone valve that’ll outlast the cheap plastic units on the shelf next to it. The DV series is Rain Bird’s workhorse for residential and light-commercial installs where city code calls for an upstream pressure vacuum breaker or double-check assembly — the valve handles the on/off, the backflow device handles the cross-connection protection. 1 in. NPT threaded inlet and outlet, glass-filled nylon body, 90-mesh self-cleaning filter, and a Buna-N diaphragm that takes municipal grit without tearing.
Why Irrigation Pros Pick the DV
- Universal compatibility — works with any 24 VAC residential or commercial sprinkler timer
- Self-cleaning 90 mesh (200 micron) inlet filter — cuts callbacks from grit-fouled diaphragms
- Buna-N diaphragm with reinforcement — resilient to chlorinated municipal water and minor sand load
- Internal and external manual bleed — flush the line during install, or trigger the zone without running back to the controller
- Captive plunger and spring — no parts to drop in the trench during a service call
- Latching solenoid compatible — swap in a Rain Bird latching solenoid to run on a battery-powered DC controller (TBOS-II, WPX, ESP-LXIVM)
- Reverse flow design — will not slam when pressurized backwards (handy on shared-manifold installs)
- Operates down to low-flow Xerigation rates when paired with a Rain Bird RBY filter upstream
Where It Shines
- Residential lawn and shrub-zone control in jurisdictions that require a separate PVB or DCVA
- Replacement for failed import valves on existing systems — same 1 in. NPT footprint
- Light commercial installs (HOA common areas, small parks, light-duty drip)
- Pump-fed systems — the DV handles surges that hammer cheaper valves to death
Specifications
- Model: 100DV
- Valve size: 1 in.
- Inlet / outlet: 1 in. NPT female threads (same on both sides)
- Body material: Glass-filled nylon plastic
- Diaphragm: Buna-N
- Solenoid: 24 VAC (latching DC solenoid optional)
- Flow range: 0.2 to 40 gpm
- Operating pressure: 15 to 150 psi
- Maximum water temperature: 110°F (43°C)
- Maximum ambient temperature: 150°F (66°C)
- Filter: Self-cleaning 90 mesh (200 micron) inlet screen
- Bleed: Internal and external manual
- Mounting orientation: Any (inline, horizontal recommended on long runs)
- Backflow protection: NONE — install an upstream PVB or DCVA where code requires
- Approximate weight: 1 lb (0.45 kg)
- Warranty: Rain Bird trade warranty
Install Notes
- Always wire the solenoid AFTER the controller is powered off — the DC pulse from a hot controller can latch the wrong state
- Pipe-thread sealant or Teflon tape is fine on the NPT inlet/outlet — the body is glass-filled nylon, no overtorque issues
- Mount with the flow-direction arrow pointed downstream
- For low-flow drip / Xerigation zones, add an RBY-100MX (1 in. wye filter) upstream to prevent diaphragm seat fouling at low velocities
- If the zone is on a battery controller (TBOS-II, WPX, ESP-LXIVM), order Rain Bird latching solenoid p/n DV-LATCH separately
What About the DVF (Flow Control)?
The 100DV is the standard model — full on/off only. The 100DVF model adds a manual flow-control stem on top so you can dial in the flow rate per zone (useful for matched-precip mixes or rotor zones that hammer). If you need flow control, ask us about the 100DVF.
Stop by Garoppo’s to pick one up, or schedule local delivery within our service area.
