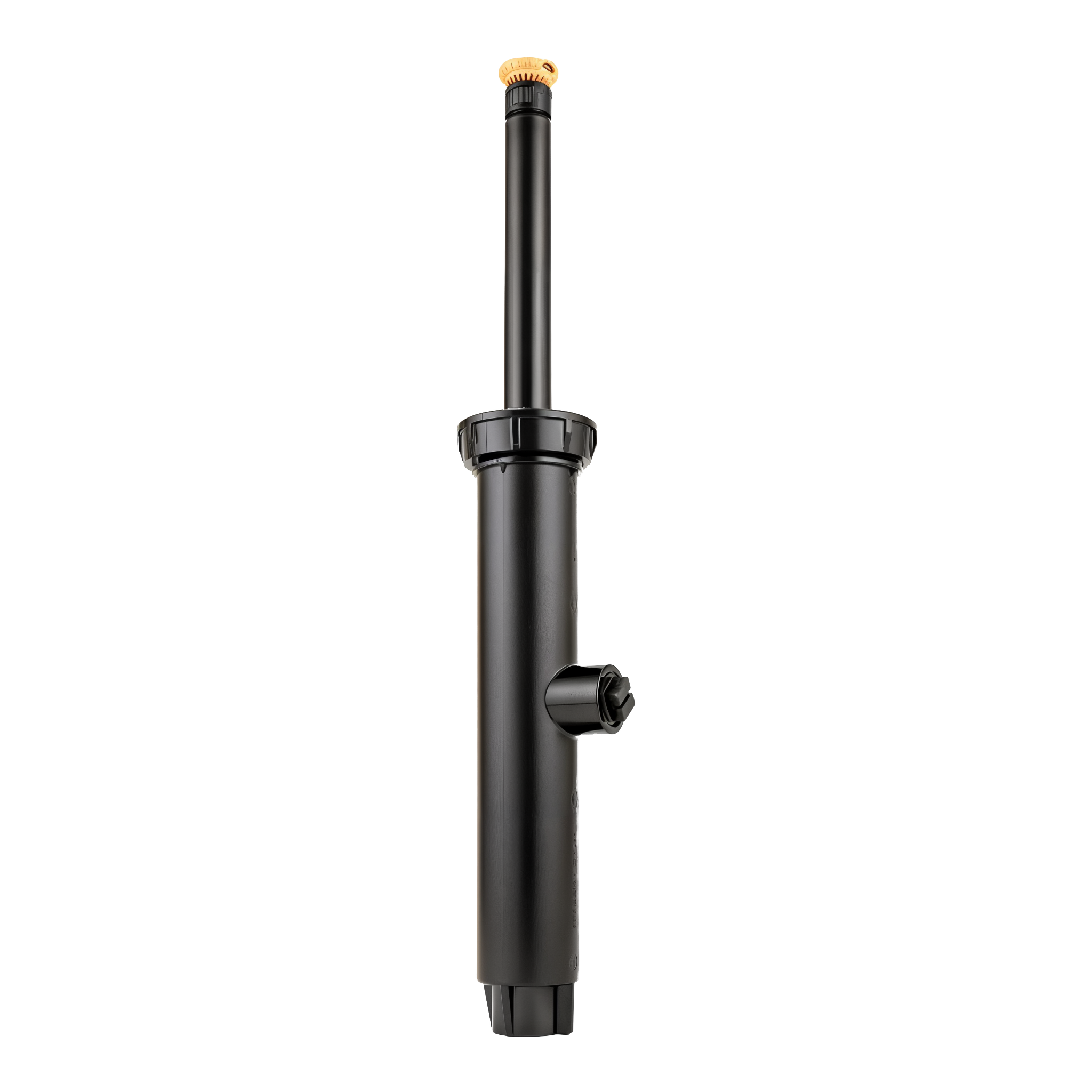

Rain Bird 1806 PRS-45 6-inch pop-up spray head with built-in 45 psi pressure regulator

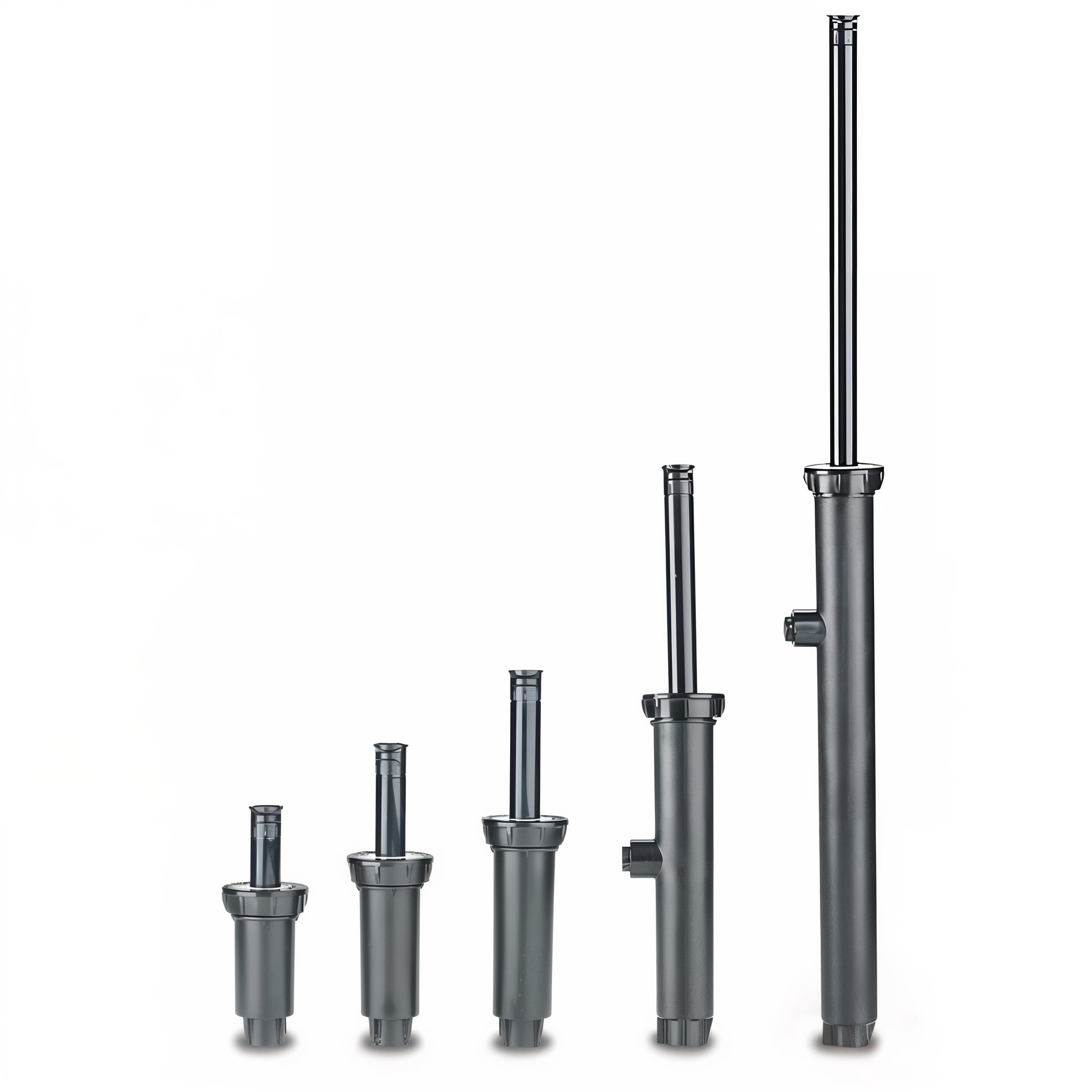

Rain Bird 1800 Series PRS-45 spray heads — assembled view showing the 1800-series body family

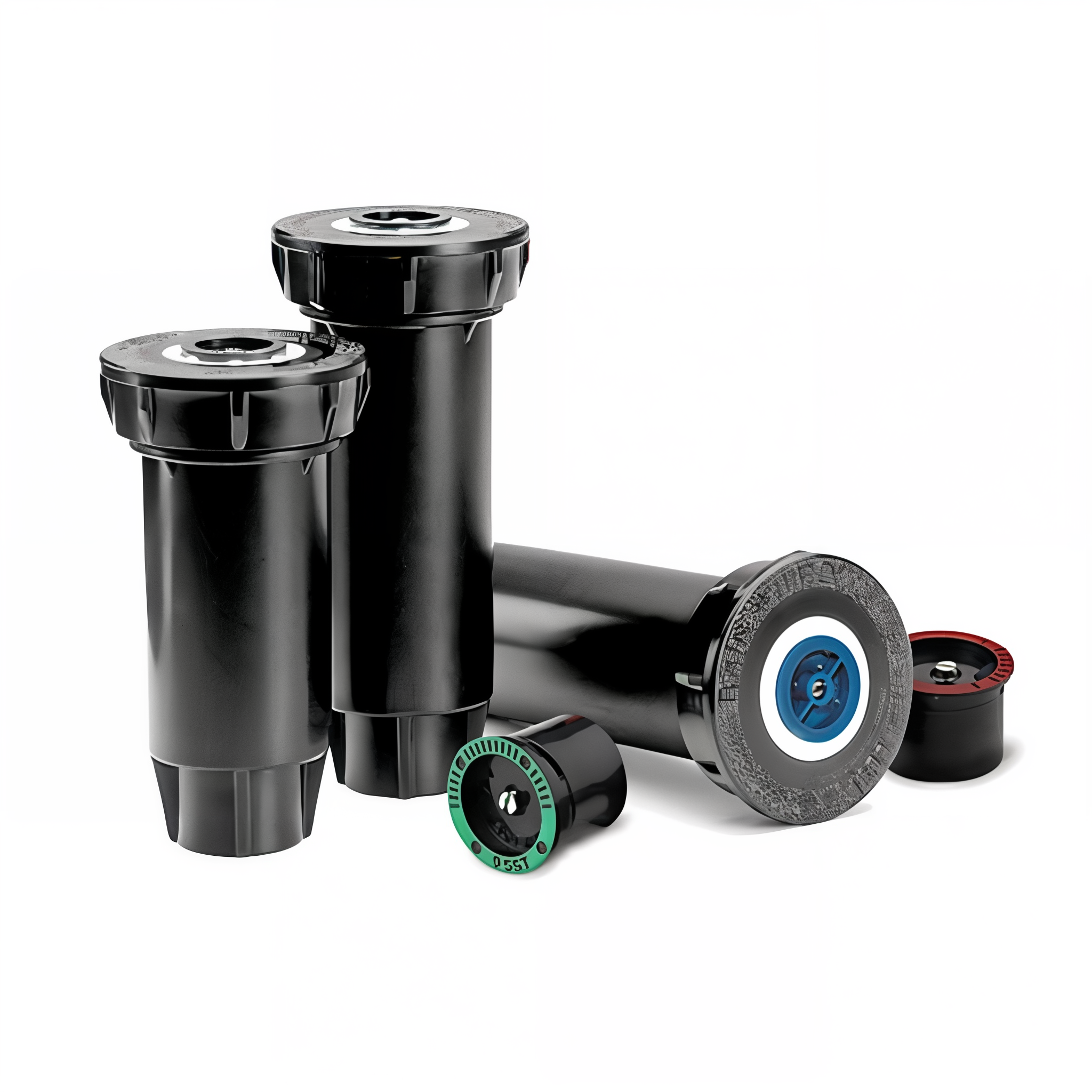

Rain Bird 1800 PRS-45 spray body feature graphic showing pressure-regulated stem construction

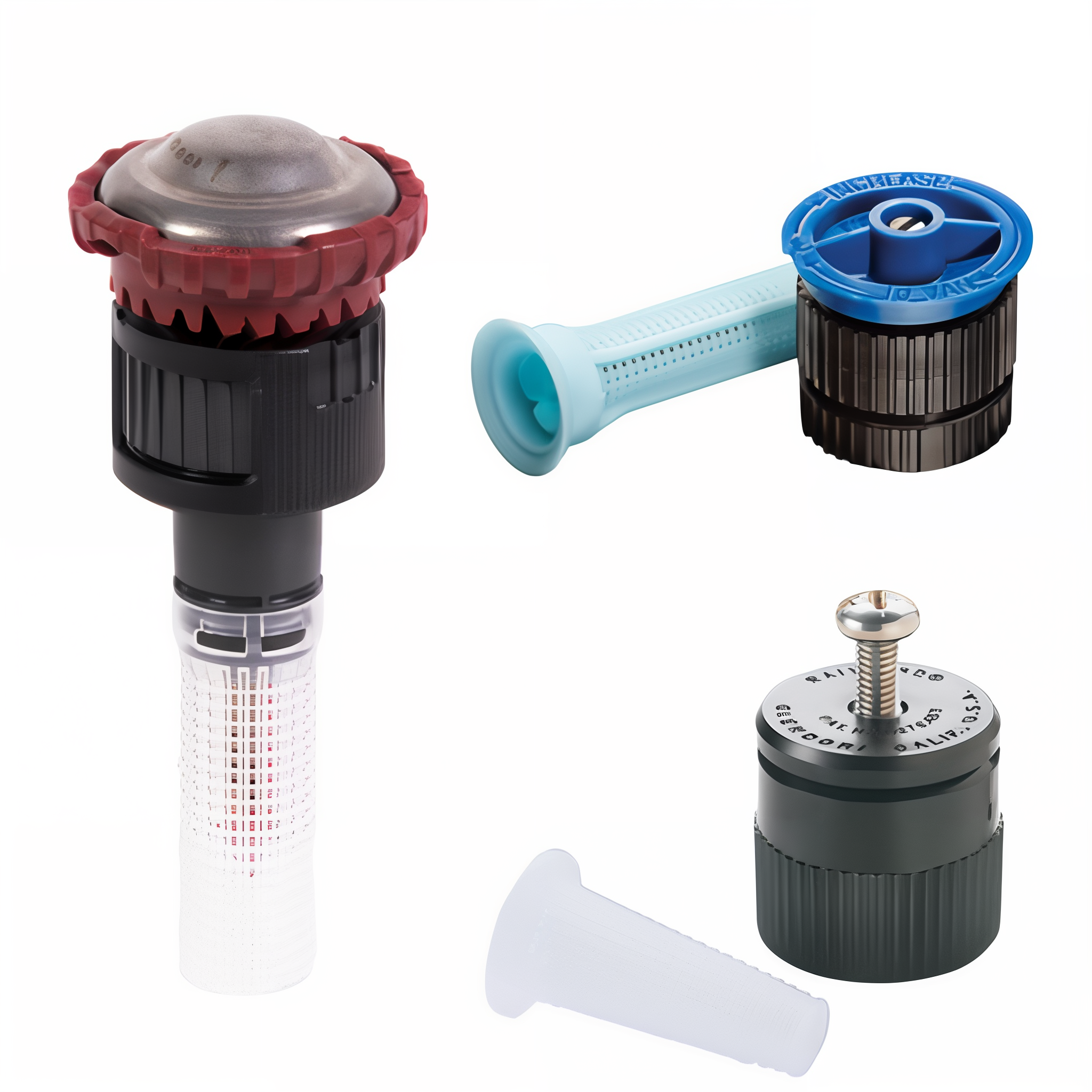

Rain Bird 1806 PRS-45 nozzle compatibility graphic — works with all Rain Bird plastic spray nozzles
Roll over image to zoom in Click on image to zoom
Rain Bird 1806 PRS-45 6-inch pop-up spray head with built-in 45 psi pressure regulatorRain Bird 1800 Series PRS-45 spray heads — assembled view showing the 1800-series body familyRain Bird 1800 PRS-45 spray body feature graphic showing pressure-regulated stem constructionRain Bird 1806 PRS-45 nozzle compatibility graphic — works with all Rain Bird plastic spray nozzles

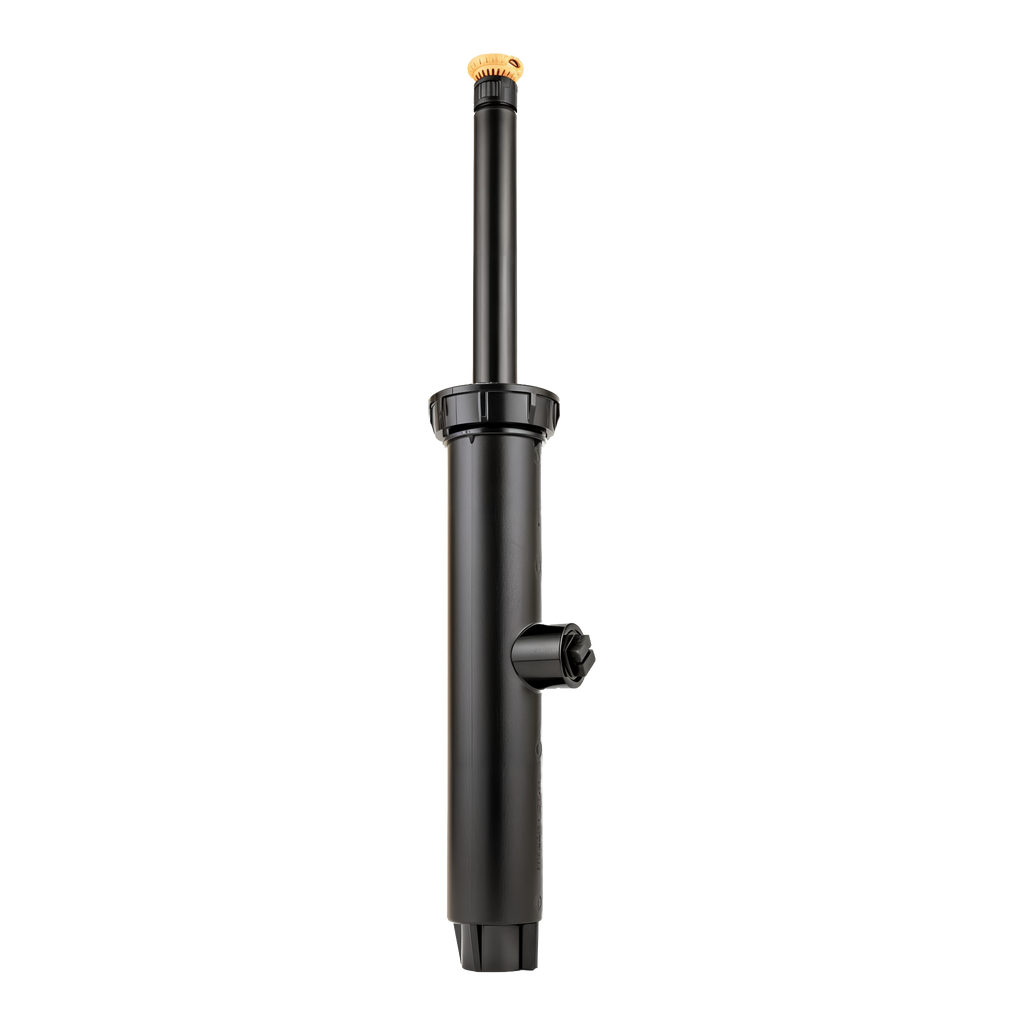

Rain Bird 1806 PRS-45 Pop-Up Spray Head, 6 Inch

Rain Bird
Price:
$15.99

Description

Pop the spray nozzle 6 inches above the lawn with the Rain Bird 1806 PRS-45 Spray Head. The taller pop-up clears longer turf, ornamental grasses, and groundcover that swallow a standard 4 in head. Built-in PRS regulator inside the stem holds every emitter on the zone at a clean 45 psi outlet pressure — no misting at the end of the line, no weak coverage at the far edge, and up to 70% flow restriction if a nozzle is damaged or missing. Designed for use with all Rain Bird plastic spray nozzles, including R-VAN rotary nozzles at their optimal 45 psi performance point.

Why Irrigation Pros Pick This Body

  • 6 in pop-up height (15.2 cm) — clears taller turf, groundcover, and ornamental beds that hide 4 in heads
  • Patented PRS pressure regulator built into the stem — constant 45 psi outlet regardless of inlet pressure
  • 45 psi is the optimal operating pressure for Rain Bird R-VAN rotary nozzles
  • Restricts flow up to 70% if a nozzle is removed or damaged — cuts water loss and protects the rest of the zone
  • Eliminates misting and fogging caused by high inlet pressure
  • Compatible with all Rain Bird plastic spray nozzles
  • EPA WaterSense certified — meets state PRS requirements
  • “PRS-45” stamped on cap for easy ID during maintenance
  • Five-year trade warranty

Where It Shines

  • Lawns with longer cut height or thicker turf
  • Ornamental beds and groundcover plantings
  • Areas with high or fluctuating municipal water pressure
  • Mixed-nozzle zones — constant outlet pressure regardless of nozzle
  • State jurisdictions requiring pressure-regulated spray heads (CA, WA, CO, etc.)

Specifications

  • Model: 1806P45
  • Pop-up height: 6 in (15.2 cm)
  • Inlet pressure range: 15-70 psi (operates within range; regulates outlet to 45 psi)
  • Outlet pressure: 45 psi (regulated)
  • Flow rate range: 0.62 to 20.1 gpm (depends on nozzle)
  • Features: Pressure regulation, Seal-A-Matic (SAM) check valve, flow shutoff if nozzle removed
  • Compatible with: All Rain Bird plastic spray nozzles, including R-VAN rotary
  • Nozzle included: No (purchase separately)
  • Non-potable use: Yes
  • Certifications: EPA WaterSense
  • Warranty: 5-year trade
  • Approximate weight: 1 lb

Sizing Up vs Down

This is the 6 in pop-up version. The same body is also available in 4 in (model 1804P45) for standard lawn-edge zones, and 12 in (model 1812P45) for tall plantings and shrub beds. The PRS-45 pressure regulation is identical across all three.

Note: This is the body only — choose your Rain Bird nozzle (R-VAN, MPR, or U-series) separately based on the spray arc and radius needed for the zone.
