Description

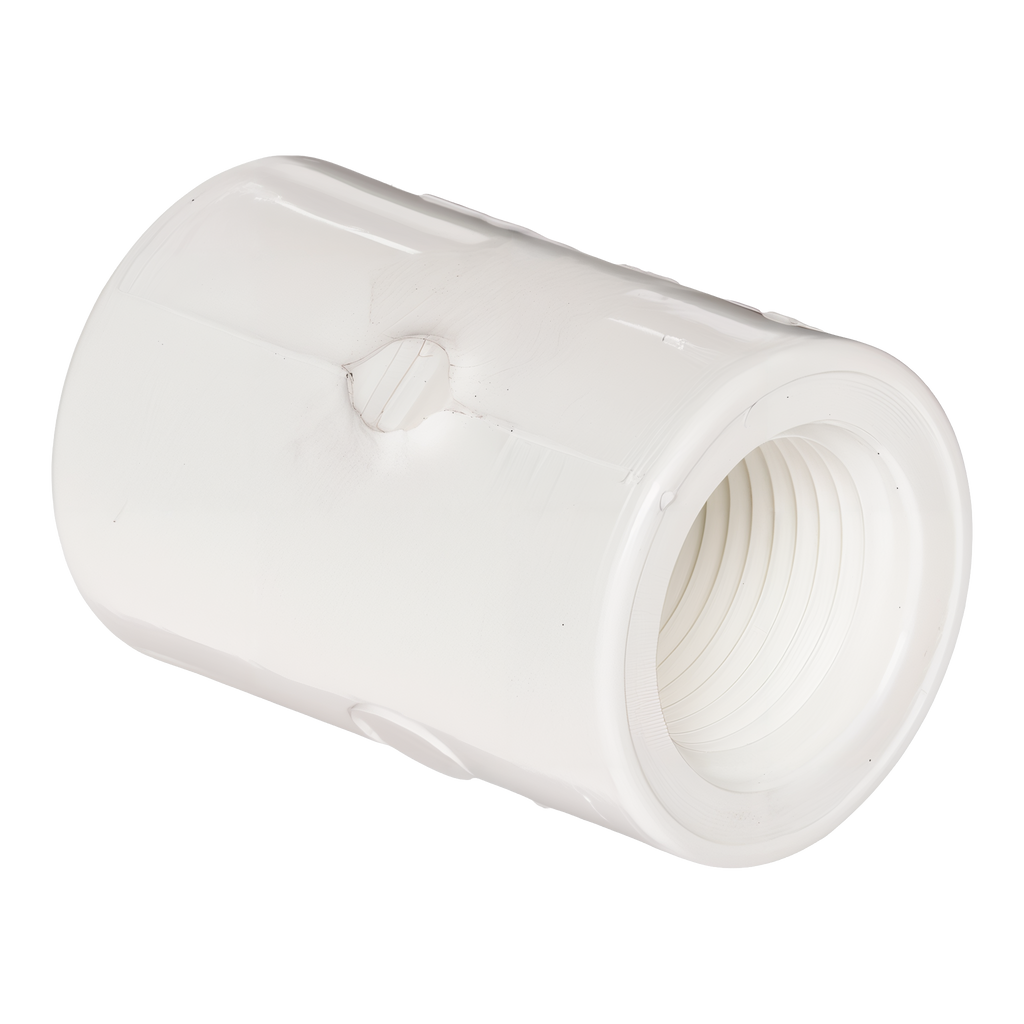

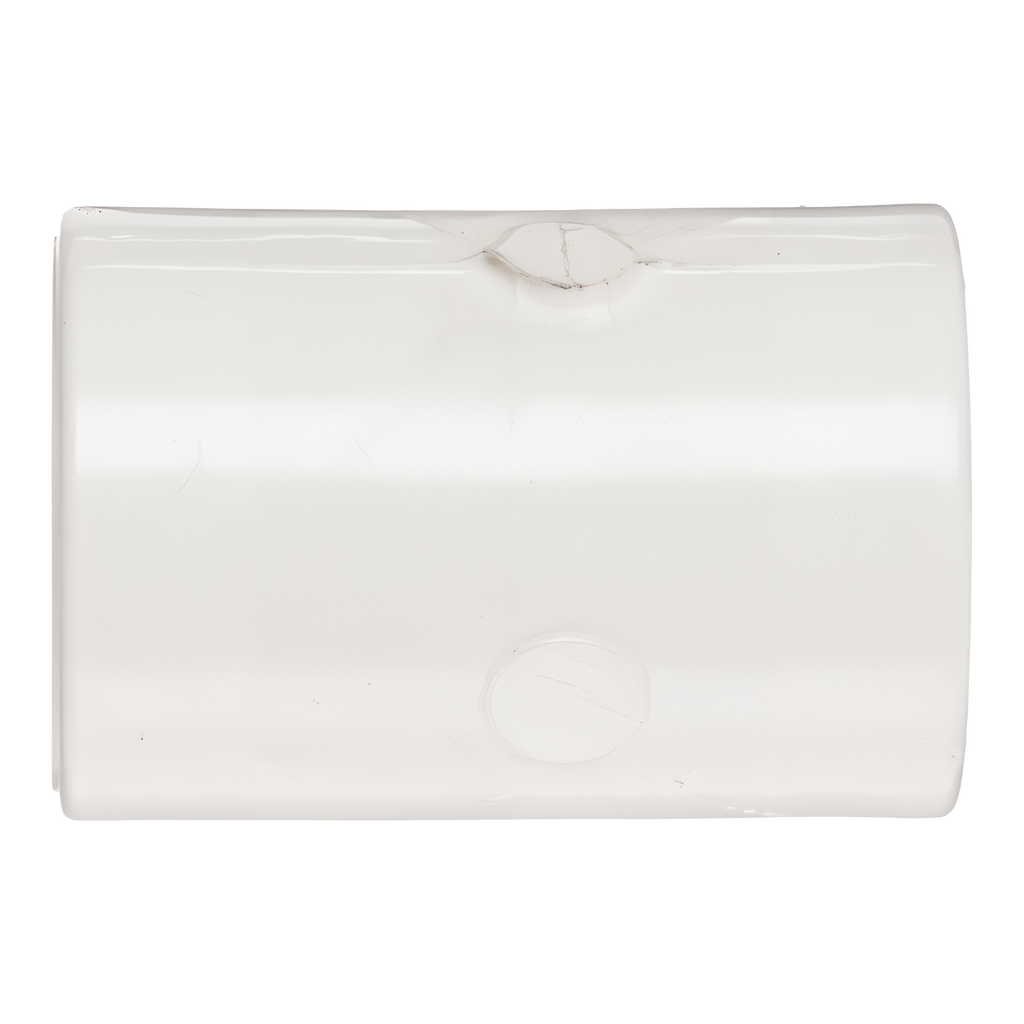

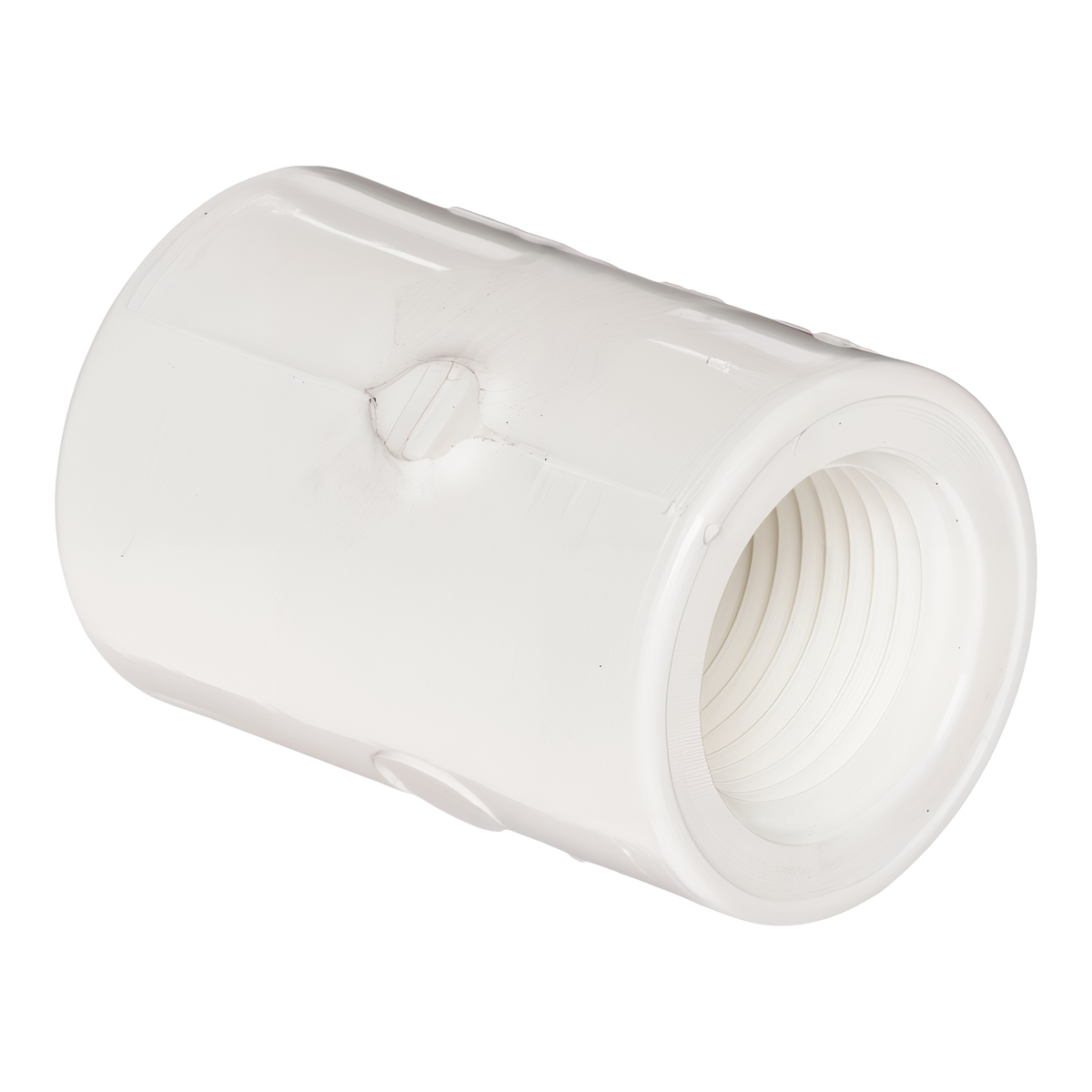

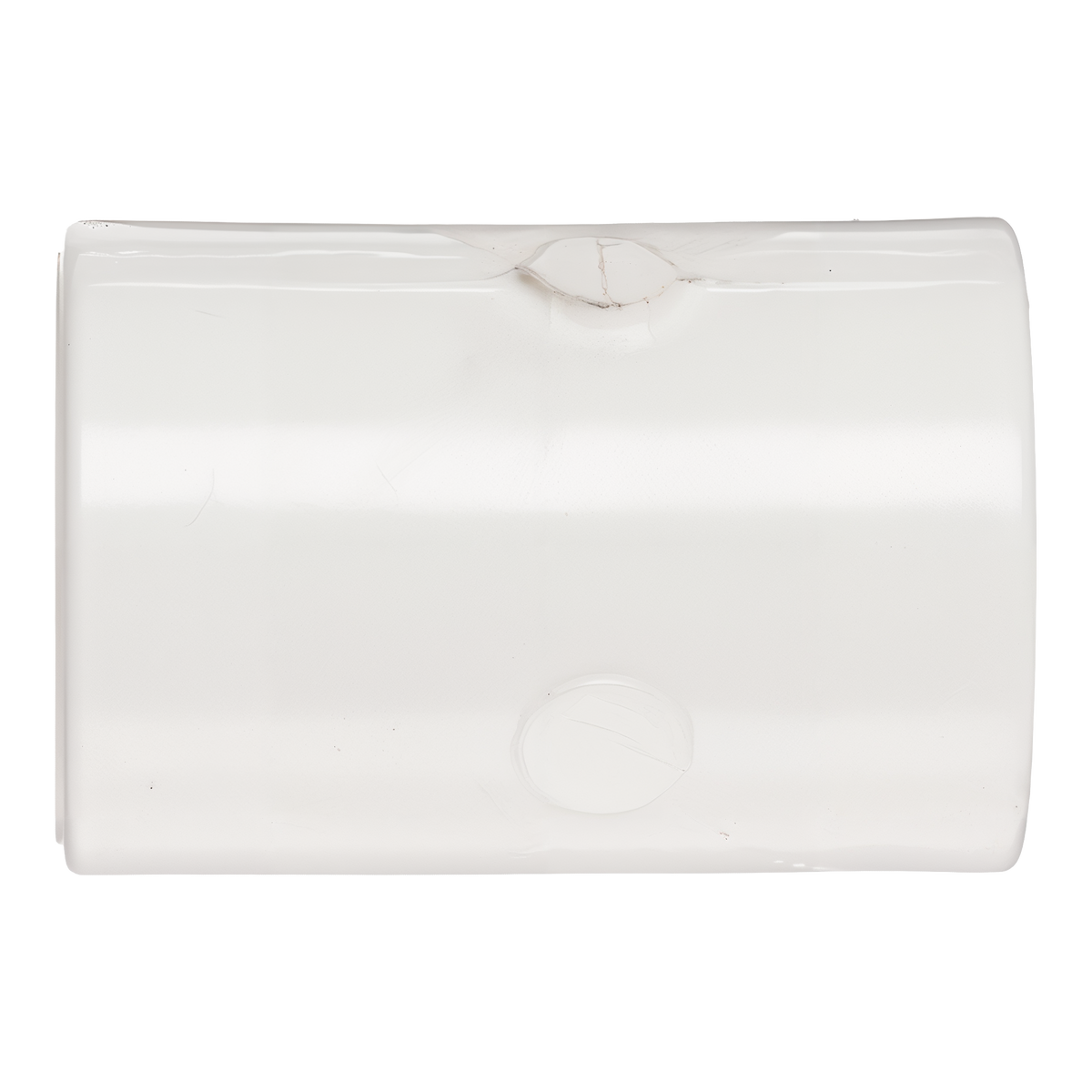

Bridge the gap between glued pipe and a threaded valve with the Spears 435-010 1 in. Schedule 40 PVC Female Adapter. One end of this white fitting is a 1 in. socket that solvent-welds onto plain-end pipe; the other is a 1 in. female NPT thread that accepts any male-threaded valve, riser, union or brass nipple. That makes it the fitting you use to land a sprinkler valve on a PVC manifold, hang a hose bib off a garden line or connect a threaded filter to a drip main. Rated to 450 psi and 32 to 140 F, corrosion-proof and NSF certified for potable water, it is molded in the U.S.A. for long, quiet service underground.
Key Features
- Socket x FPT: 1 in. slip socket on one end, 1 in. female NPT thread on the other.
- Glued-to-threaded transition: Connects solvent-weld PVC pipe to male-threaded valves, risers and fittings.
- Pressure rated: 450 psi maximum operating pressure, 32 to 140 F.
- Certified PVC: Chemical and corrosion resistant; meets ASTM D1784 and D2466 and is NSF certified for potable water.
- About Spears: The 435 series is Spears Manufacturing’s Schedule 40 female adapter line, molded in white PVC in the U.S.A.
How to Install It
Make the threaded joint first. Wrap the male threads of the valve or riser with PTFE tape, start it by hand into the female adapter and tighten one to two turns past hand-tight with a strap wrench; over-tightening a plastic thread can split it. Then prime the pipe end and the adapter socket, apply solvent cement, push the pipe in with a quarter turn and hold until it sets. Use a pair of adapters on either side of a valve so the valve can be unscrewed for service without cutting pipe. The same fitting lets you screw a threaded hose bib, backflow preventer or drip filter onto a glued line. Cure fully before pressure testing.
Specifications
- Part number: 435-010
- Size: 1 in. socket x 1 in. FPT
- Material: Schedule 40 PVC, white, molded
- Maximum operating pressure: 450 psi
- Temperature range: 32 to 140 F
- Standards: ASTM D1784, ASTM D2466, NSF potable water; made in the U.S.A.
