Description

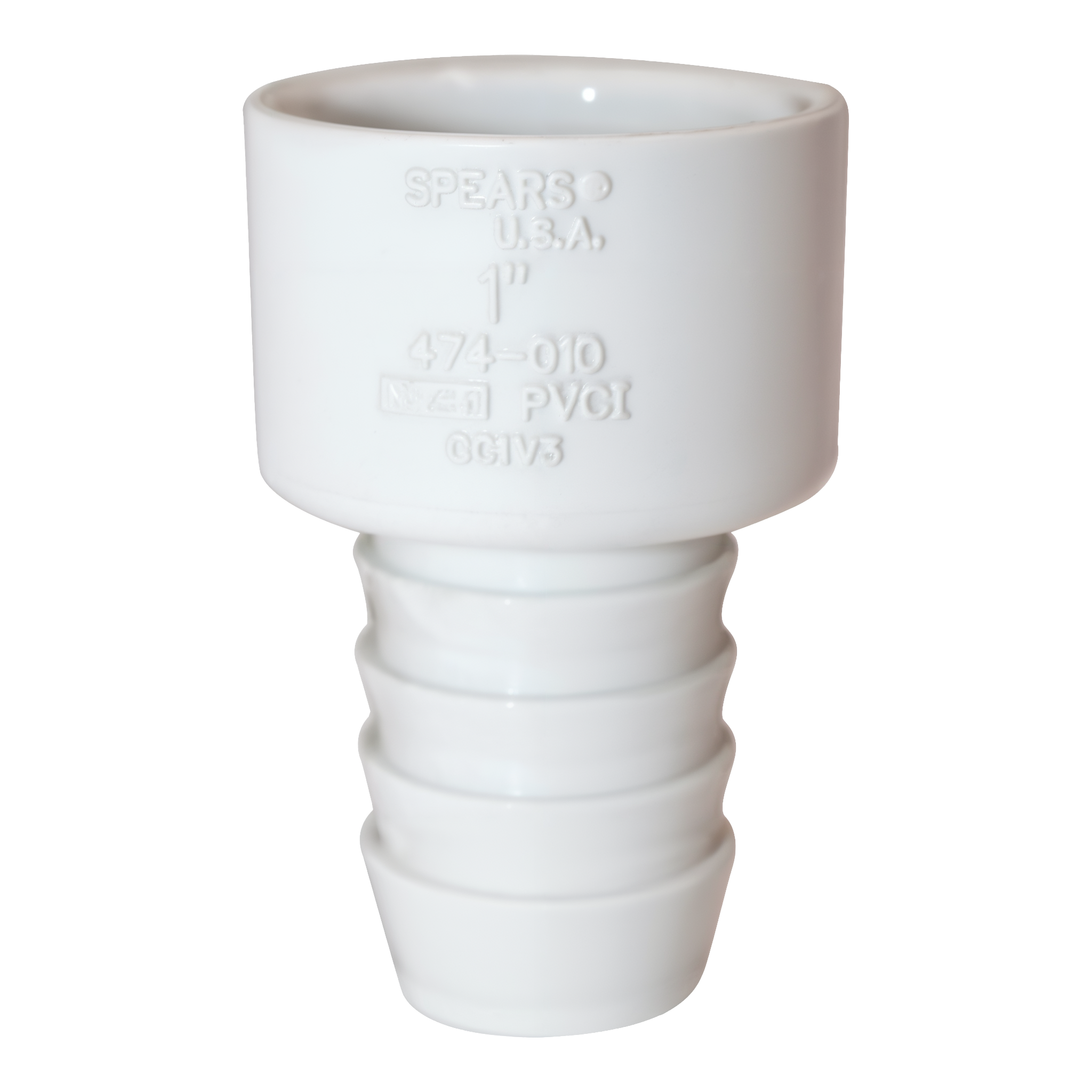

The Spears® 474-010 is the 1 in. transition fitting irrigation crews keep in the truck for the joint nobody warned them about — barbed insert end pushes into 1 in. flexible poly pipe, socket end solvent-welds onto 1 in. schedule 40 PVC. Molded white PVC, Spears USA marking, domestic-manufactured to SCH 40 / standard dimensions.
Why You’d Reach for the 474-010
- Insert (barb) inlet x Socket outlet — transitions between flexible 1 in. poly mainline and rigid 1 in. schedule 40 PVC lateral with no thread tape, no compression nut, no leak path at the joint
- Barbed insert with 3 retention ribs — molded ridge profile grips the poly inner wall; cinch with a stainless screw clamp or pinch clamp for a long-term joint
- Socket end takes solvent cement — prime, cement, push-and-quarter-turn for a chemically-welded joint that’s as strong as the pipe itself
- Molded PVC (Type I), white — chemically resistant to dirt, fertilizers, soil acids, and the typical irrigation water chemistry
- NSF-certified domestic manufacture — carries the “NSF-pw” mark for potable-water service, made in the U.S.A.
- Schedule 40 / standard dimensions — matches any 1 in. PVC pipe and fitting in the schedule 40 system
- 2-5/8 in. overall length — standard footprint, works in any valve box or trench manifold layout
Where It Fits in the System
- Drip irrigation transitions: when your 1 in. mainline switches from rigid PVC to flexible poly for the drip distribution, this is the connector. Push the barb into the poly, clamp it, solvent-weld the socket onto the PVC.
- Sprinkler zone tail-outs: if a zone runs PVC for the lateral and poly for the final drop to the head, the 474-010 makes the transition without a fitting kit
- Pond, water-feature, and koi-pond plumbing: connecting a flexible 1 in. poly return line into rigid PVC at the skimmer or pump bulkhead
- Pool plumbing repairs: when a section of poly hose needs to splice into a PVC system without a re-plumb
- Workshop / hobby plumbing: anywhere 1 in. poly and 1 in. PVC need to meet and stay together
Specifications
- Manufacturer: Spears Manufacturing Company
- Manufacturer part number: 474-010
- First Supply item number: P40ISAG
- Type: standard insert adapter (insert × socket)
- Nominal size: 1 in.
- End 1 (inlet): 1 in. barbed insert (for 1 in. ID flexible poly)

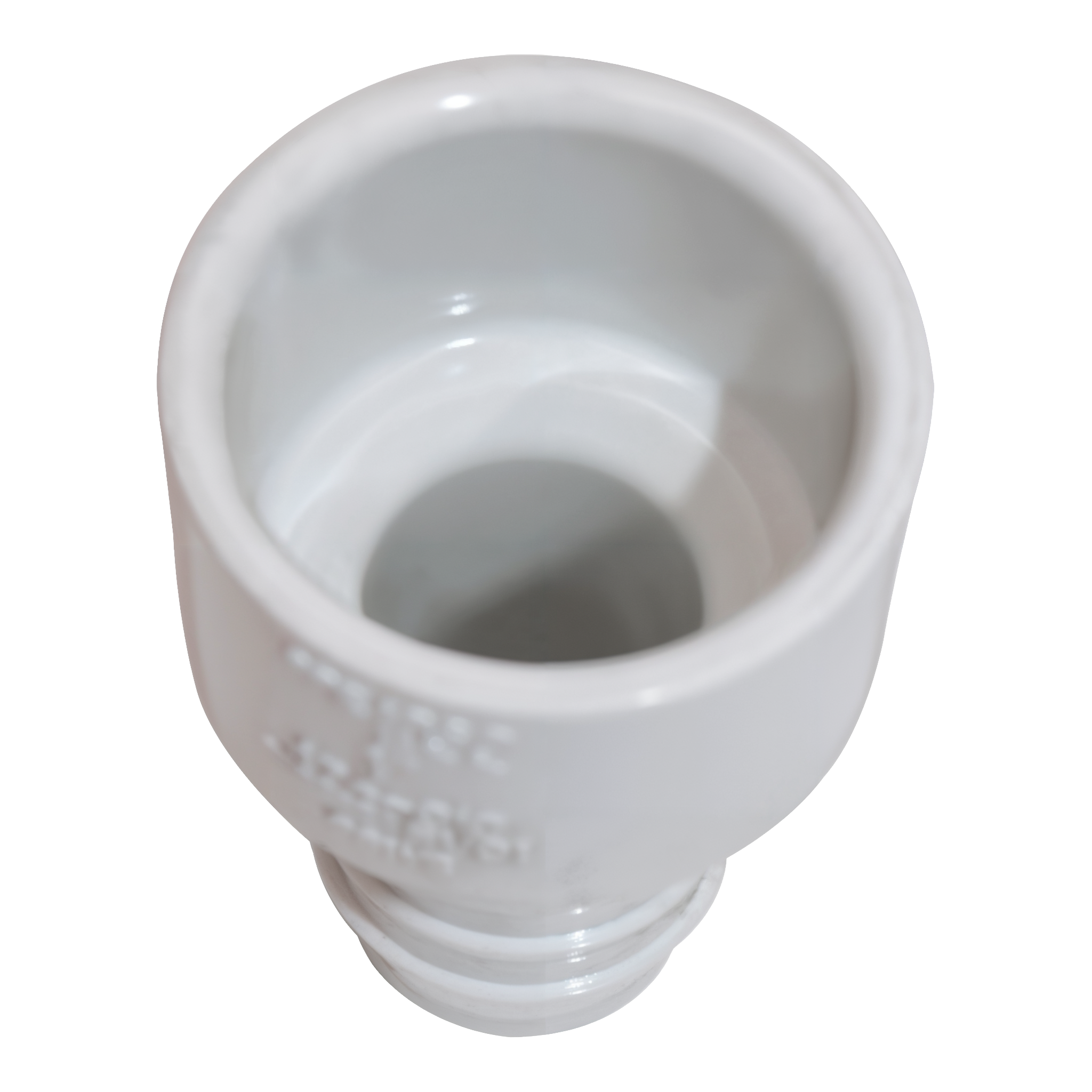

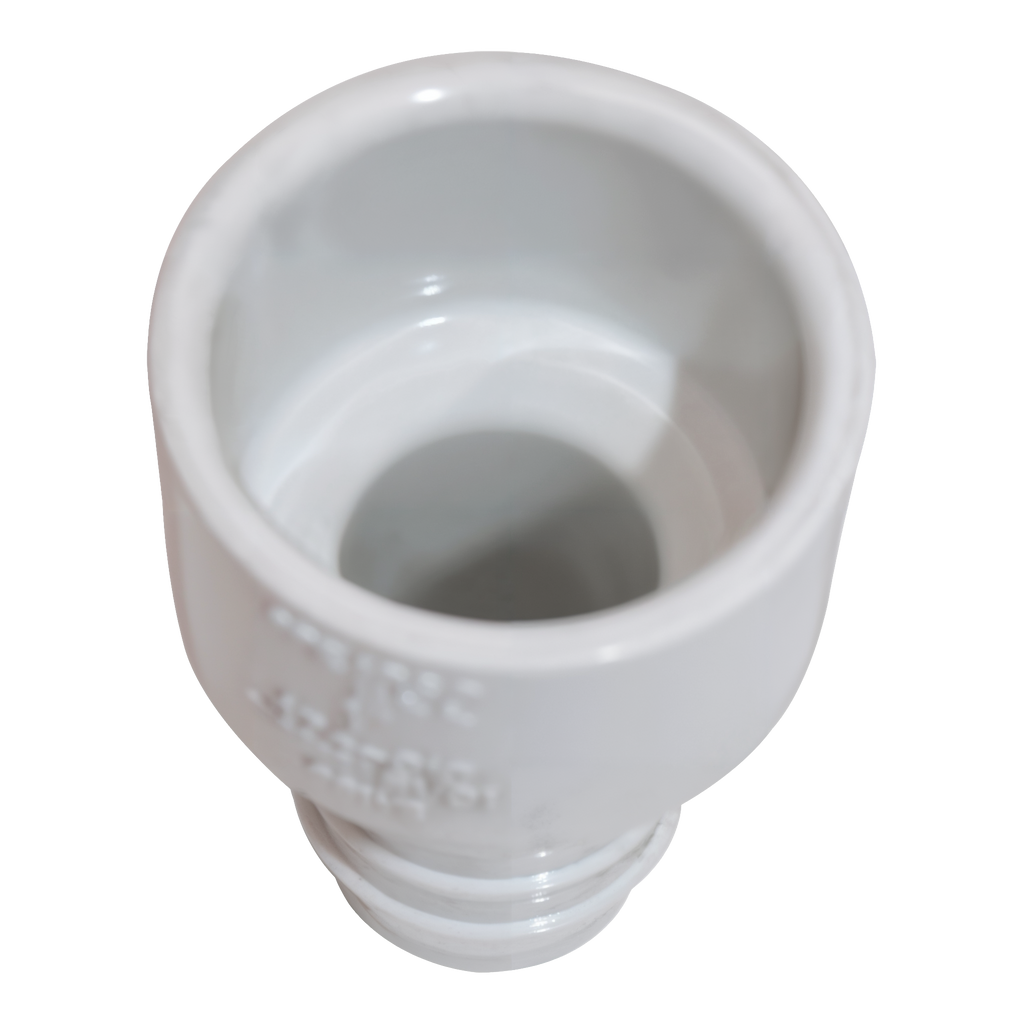

- End 2 (outlet): 1 in. solvent-weld socket (for 1 in. schedule 40 PVC)
- Schedule / dimension: SCH 40 / standard
- Material: PVC, Type I, molded white
- Overall length: 2-5/8 in.
- Pressure rating: matches 1 in. SCH 40 PVC pipe (~450 PSI burst, derated for sustained working pressure per ASTM D2241)
- Operating temperature: 33°F to 140°F (PVC max service temperature)
- Origin: domestic, U.S.A.
- Certifications: NSF-pw (potable water service)
- UPC: 10054211191771 (case GTIN-14)
Installation Notes
Barb end into poly pipe: Cut the poly square. Warm the poly tubing in hot water for 30 seconds if it’s a cold-day install (makes the insert push-fit easier). Push the barb fully into the pipe so the poly is seated past the third retention rib. Secure with a stainless steel hose clamp or pinch clamp positioned over the barbed section — tighten until the clamp screw is snug but not over-deformed.

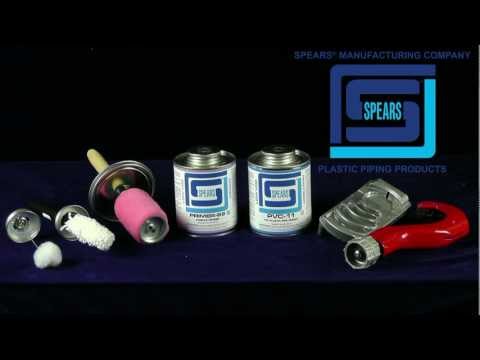

Socket end into PVC pipe: Dry-fit first to verify the lay-up. Apply Spears P-70 (or equivalent) primer to BOTH the pipe end and the inside of the socket. Apply PVC solvent cement (medium-bodied for 1 in.) to both surfaces. Push the pipe fully into the socket and rotate 1/4 turn to spread the cement. Hold for 30 seconds. Cure for 1 hour before low-pressure water test; 24 hours before full pressure.
Flow direction: non-directional — this is a passive transition fitting, install it whichever way the run requires.
What’s in the Box
- One Spears 474-010 1 in. insert adapter (insert x socket), bulk-packed
Compatible Accessories — Sold Separately
- 1 in. stainless hose clamps or pinch clamps for the barb-end joint
- Spears P-70 PVC primer (purple) for the socket joint
- Spears PVC solvent cement (medium body, for pipe up to 6 in.)
- 1 in. SCH 40 PVC pipe and additional fittings (tees, elbows, couplings)
- 1 in. flexible poly irrigation tubing
Stop by Garoppo’s to pick one up, or schedule local delivery within our service area.
