Description

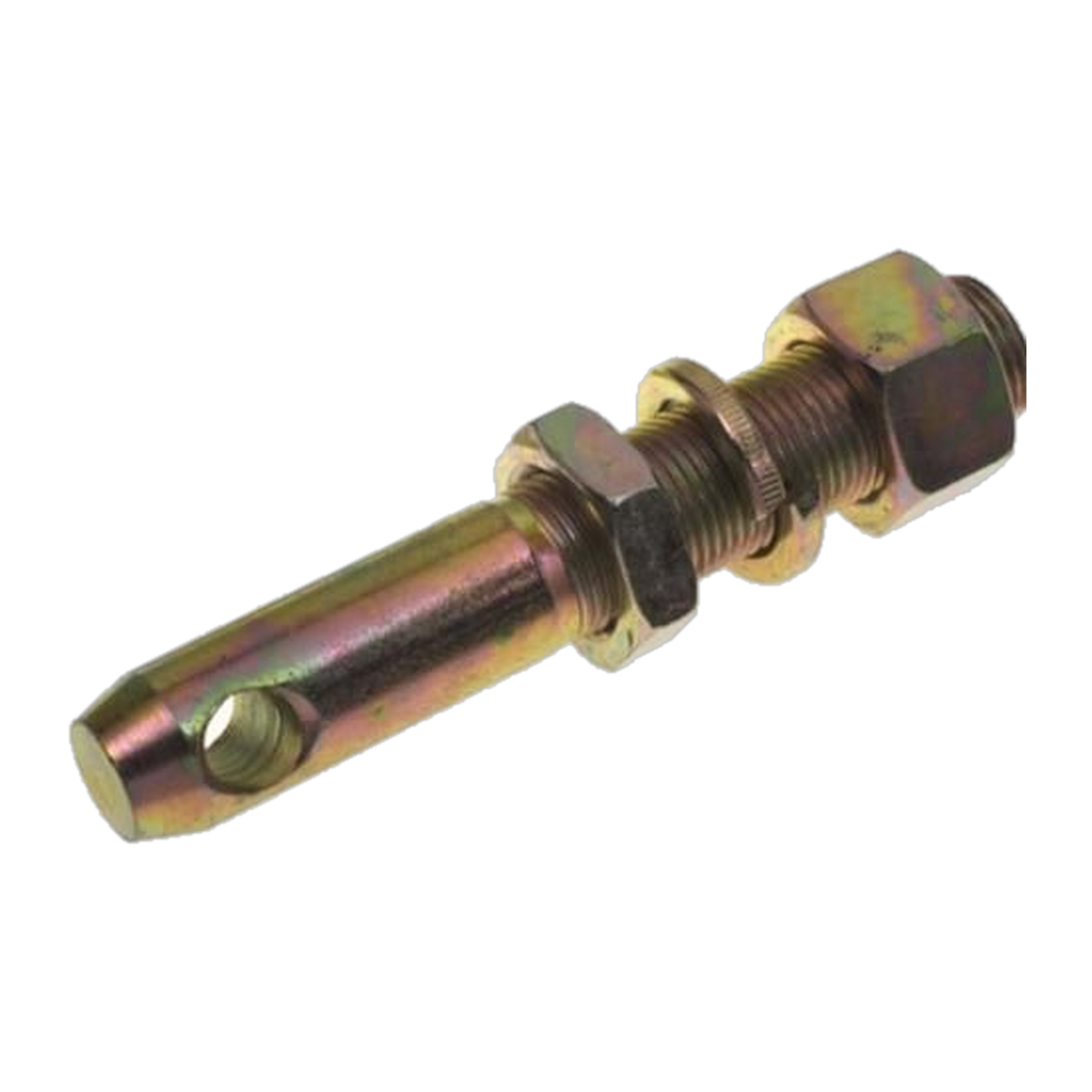

Hook up a Category 1 implement to your compact tractor with the SpeeCo Lift Arm Draw Pin Category 1 Forged, a replacement lower-link pin for three-point hitch implements. The pin is forged from steel and plated for rust resistance, with a 7/8 in. pin diameter that fits the ball ends of Category 1 lift arms. Behind the pin is a threaded shank with nuts and a washer, so you bolt it through the implement’s mounting bracket and it stays fixed there, ready for the lift arm to drop over it and a lynch pin to lock it on.
Key Features
- Category 1 fit: The 7/8 in. pin matches Cat. 1 lower lift arms found on compact and small utility tractors.
- Forged steel: A forged pin takes the shock of a bush hog or box blade bouncing over rough ground without bending.
- Threaded shank with nuts and washer: Bolts solidly to the implement bracket instead of relying on a loose pin and clip.
- Plated finish: Plating slows rust on a part that lives outdoors on the back of an implement.
- About SpeeCo: SpeeCo, formerly sold under the Farmex name, makes three-point hitch pins, top links and tractor hardware for farm and hobby-farm equipment.
How to Install It
Remove the old pin from the implement’s lower mounting bracket and check that the bracket hole is round and not worn oval. Slide the threaded shank of the new draw pin through the bracket, seat the washer and run the nuts up tight, then lock the second nut against the first so vibration cannot back them off. Do the same on the other side with a matching pin. To hitch, back the tractor up, lower the lift arms over the pins and secure each with a lynch pin through the cross hole. Grease the pin lightly before each season and check the nuts after the first few hours of use.
Specifications
- Category: 1 three-point hitch
- Pin diameter: 7/8 in.
- Material: forged, plated steel
- Mounting: threaded shank with nuts and washer
- Model: S07021900
- Sold individually
