Description

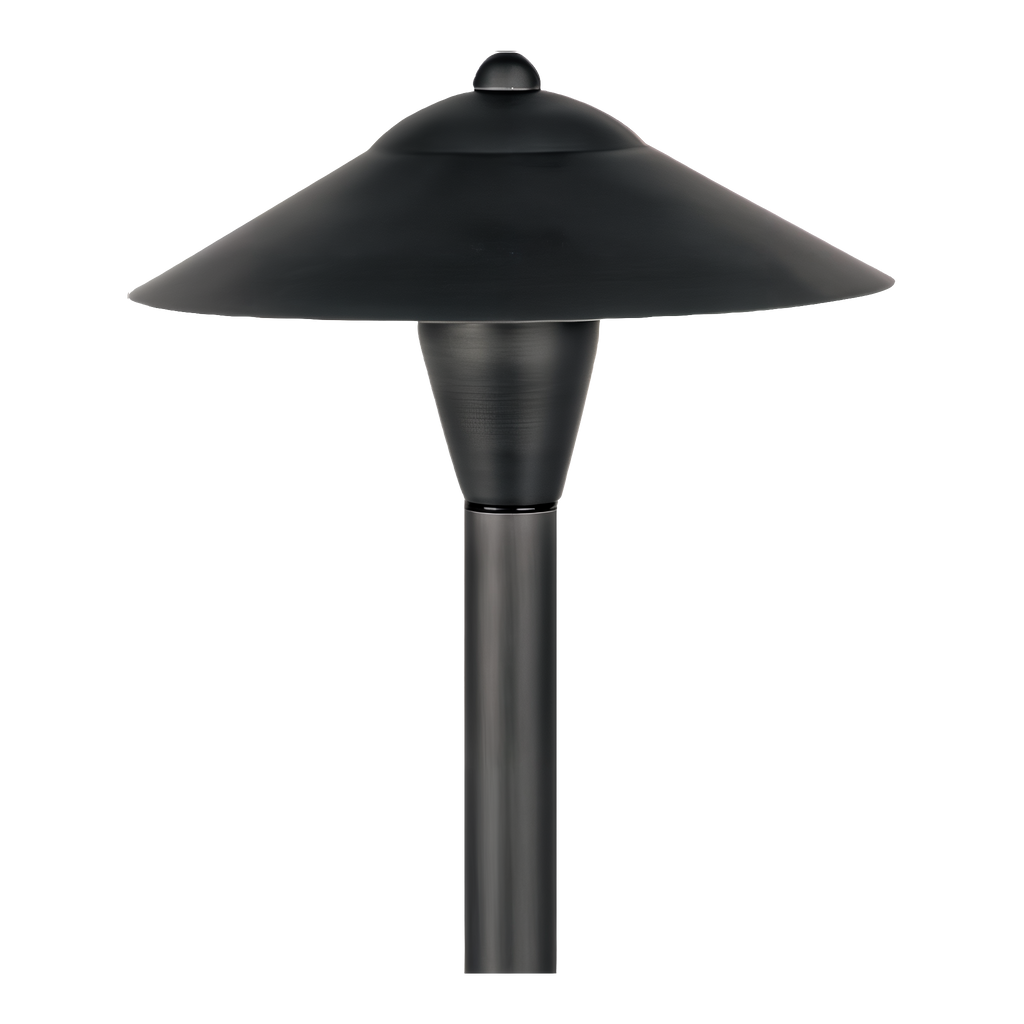

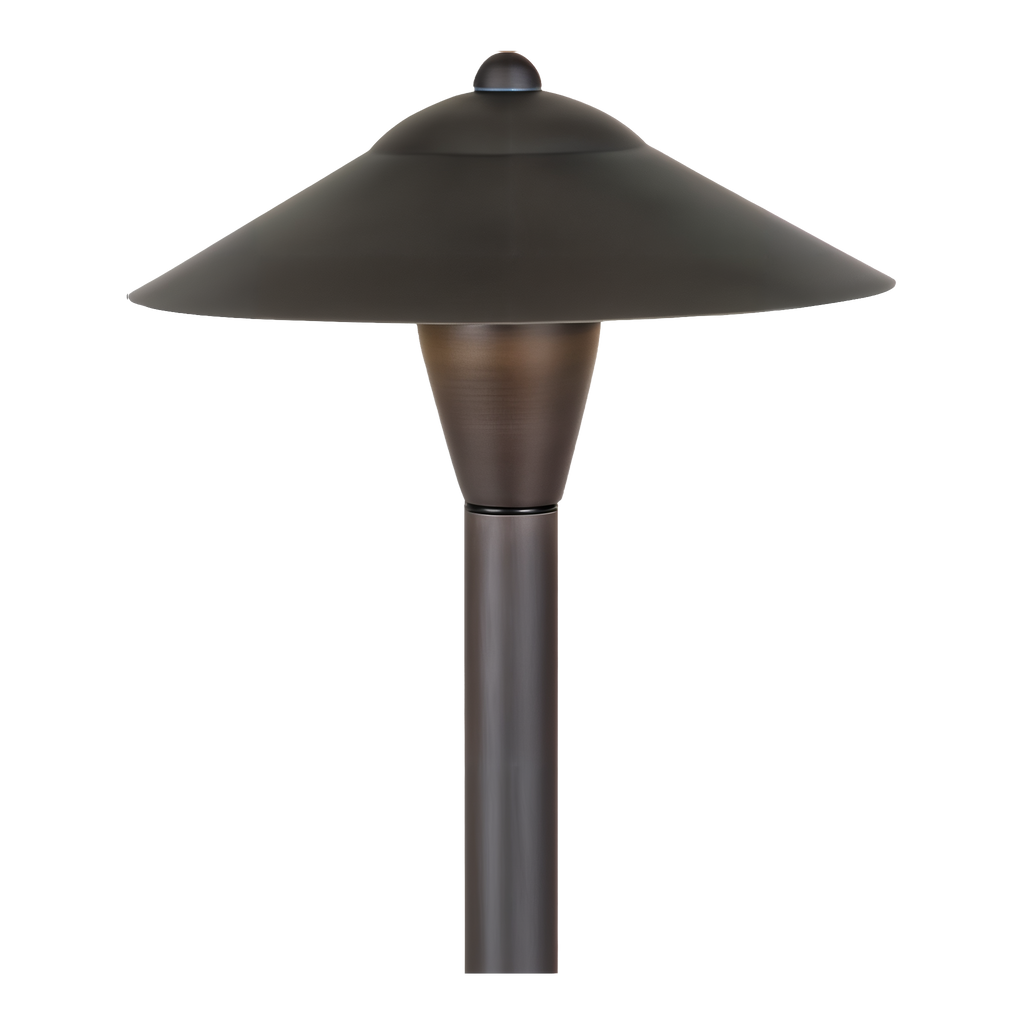

Light up walkways, paver edges, and garden paths with the Tru-Scapes Classic Path Light (TS-B302). The fixture is a solid heavy-duty brass build — Black powder-coat or Antique Brushed Bronze — with a high-hat-style head, 8″ hat, 24″ stem, and a clear protective glass enclosure. A 3W G4 LED inside throws a warm 2700K 360° glow across path borders and ground cover.
Model #: TS-B302 · Available in: Black or Bronze
Lighting Specifications
- Construction: Heavy-duty solid brass; beryllium-copper socket housing; clear protective glass enclosure
- Finish: Black Powder Coat or Antique Brushed Bronze
- Light Source: G4 LED Bulb (included, replaceable)
- Color Temperature: 2700K (warm white)
- Wattage: 3W
- Lumens: 158L
- Beam Angle: 360°
- Power Factor: 0.708
- Voltage Range: 9V–15V AC/DC (12V operating, low-voltage transformer sold separately)
- Lead Wire: 40″ 18AWG SPT-1W black waterproof
- IP Rating: IP65 (per spec sheet certification icon)
- Dimensions: 7-7/8″ hat × 23-1/4″ overall height
- Mounting: 8″ heavy-duty ground stake with cut-out for wire exit
- Certifications: ETL Listed (Intertek), IP-rated dust-tight and water-resistant
- Warranty: Lifetime on sockets · 5 years on brass and finish · 5 years (or 30,000 hours) on LED bulbs
Features
- Heavy-duty solid brass construction with protective heat-resistant glass
- Powder-coat or bronze finish protects against wear and corrosion
- Beryllium-copper socket housing for added corrosion resistance
- Easily replaceable G4 LED lamp
- Water-tight gasket ring keeps moisture out of the housing
- Includes (2) silicone-filled wire connectors rated for direct burial
Installation
Press the included 8″ stake into prepared soil along walkway edges or garden borders, set the fixture upright, and run the 40″ lead wire to a 12V low-voltage transformer using direct-burial silicone-filled connectors. Position 6–8 feet apart for even path coverage.
For full technical drawings and installation details, see the TS-B302 Spec Sheet.
