Description

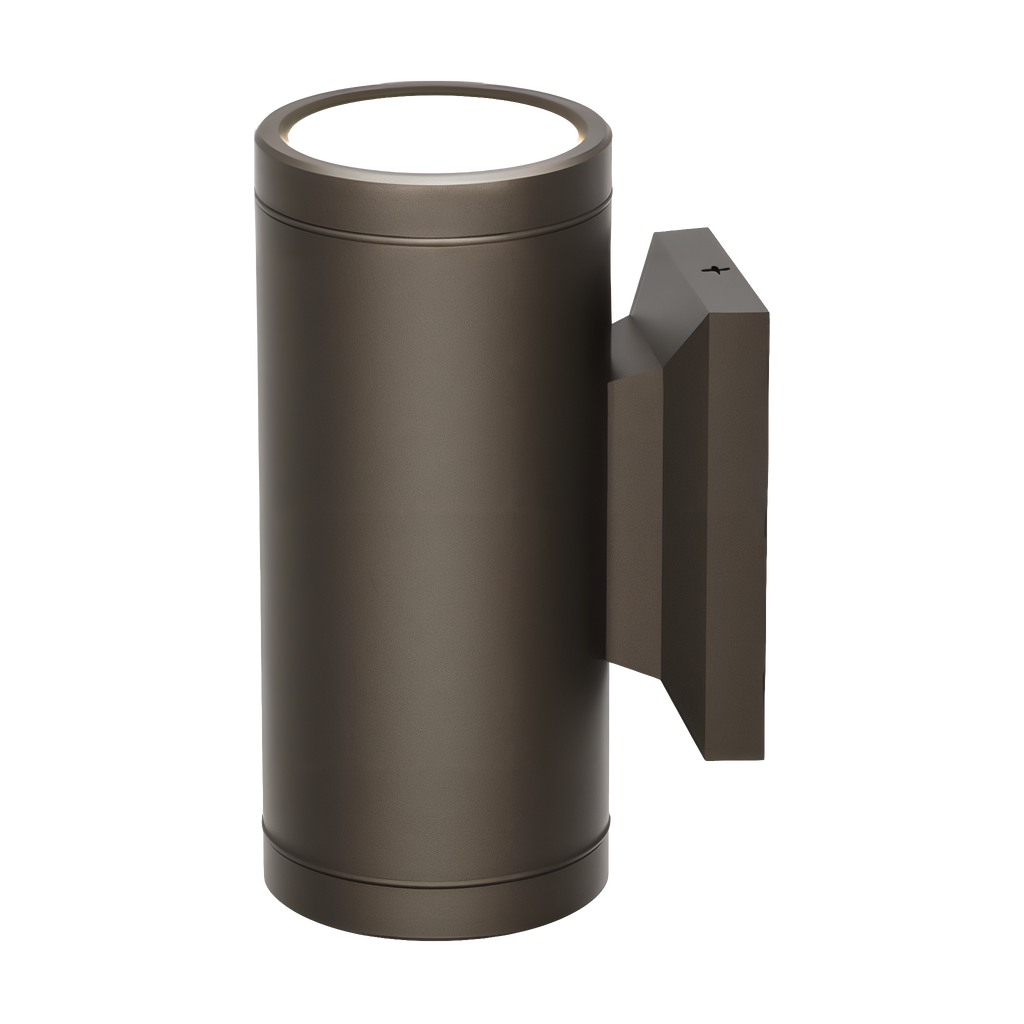

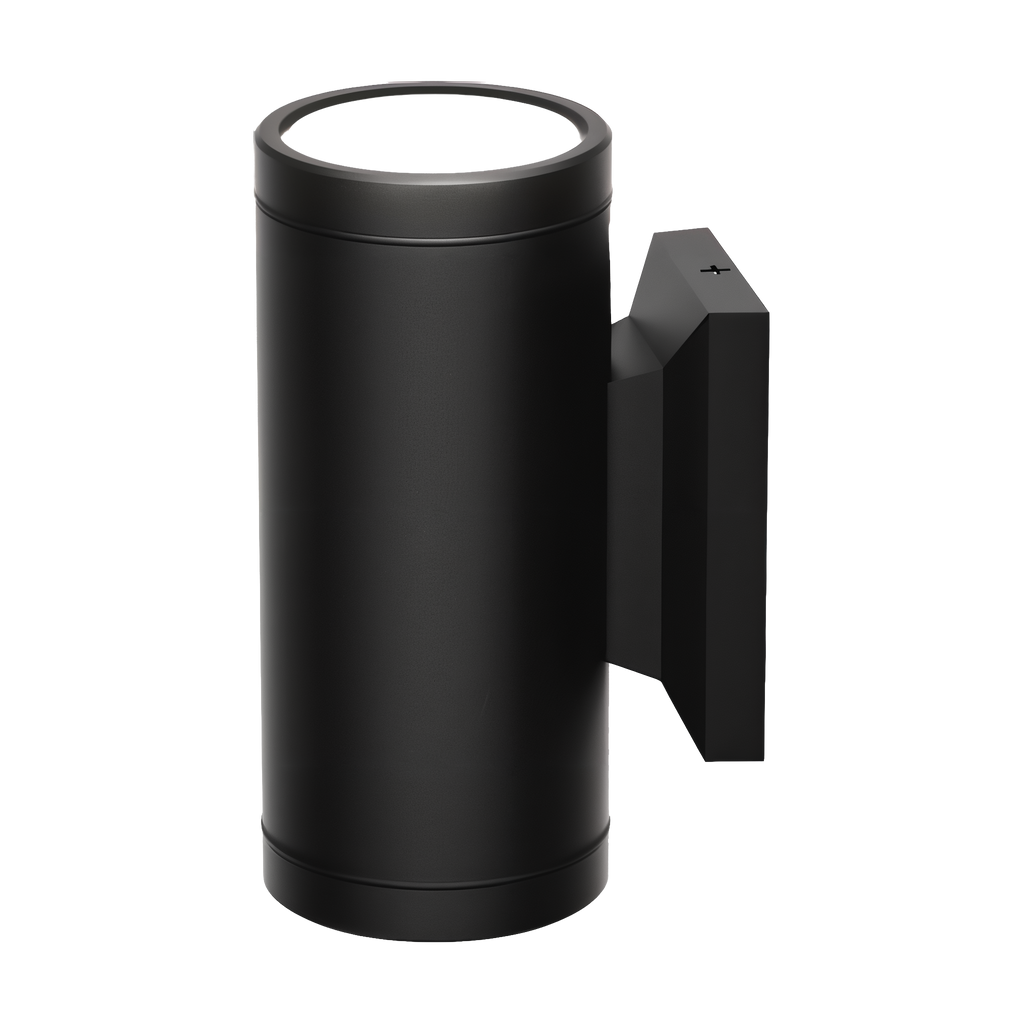

Light up entryways, columns, and structure walls in two directions at once with the Tru-Scapes Dual Lamp Sconce Light (TSS-AS201). Independent up and down lamps each cast a directional 60° beam, and the integrated RGBCW LED engine adjusts from a warm 2700K to a daylight 6500K—or any color in between—via the Tru-Scapes color-control app. The powder-coated aluminum housing wraps a glass lens and is rated IP65 for full outdoor use.
Model #: TSS-AS201 · Available in: Black or Bronze
Lighting Specifications
- Construction: Powder-coated aluminum housing with glass lens
- Finish: Black or Bronze
- Light Source: Integrated LEDs (non-replaceable)
- Color Temperature: Tunable RGBCW — adjustable from 2700K (warm white) through 6500K (daylight); top and bottom lamps controllable independently
- Wattage: 10W
- Lumens: 802L
- Beam Angle: 60° per lamp (dual up/down beam)
- Power Factor: 0.804
- Voltage Range: 9V–15V AC/DC (12V low-voltage transformer sold separately)
- Lead Wire: 36″ 18AWG SPT-1W black waterproof
- IP Rating: IP65 (dust-tight, water-resistant)
- Dimensions: H 5-3/8″ × W 3″ × D 4-3/8″
- Mounting: Surface-mount sconce for wall, column, or post applications; installs in any orientation
- Certifications: ETL Listed (Intertek), IP65
- Warranty: Lifetime on sockets · 5 years on aluminum housing and finish · 5 years (or 30,000 hours) on LEDs
Installation

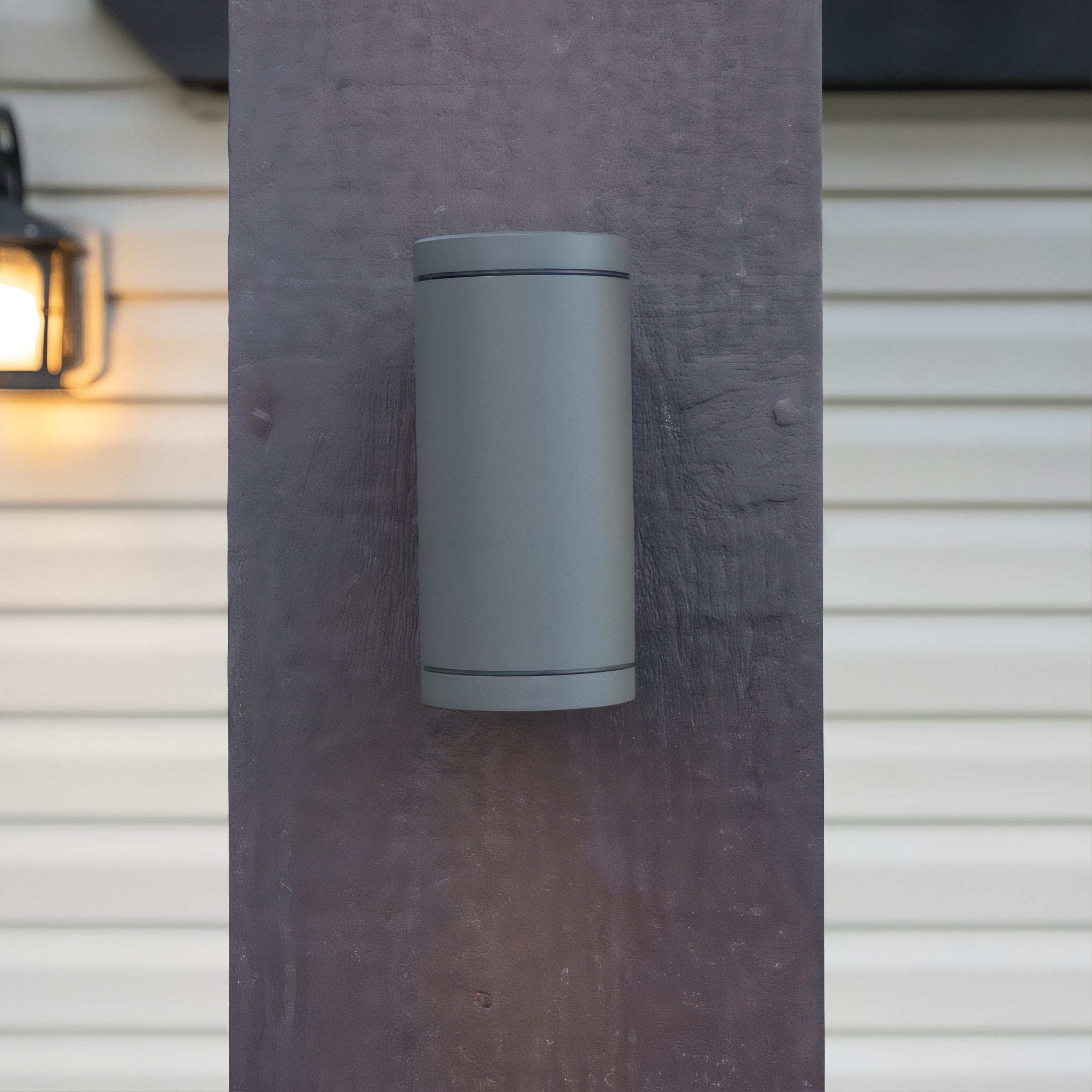

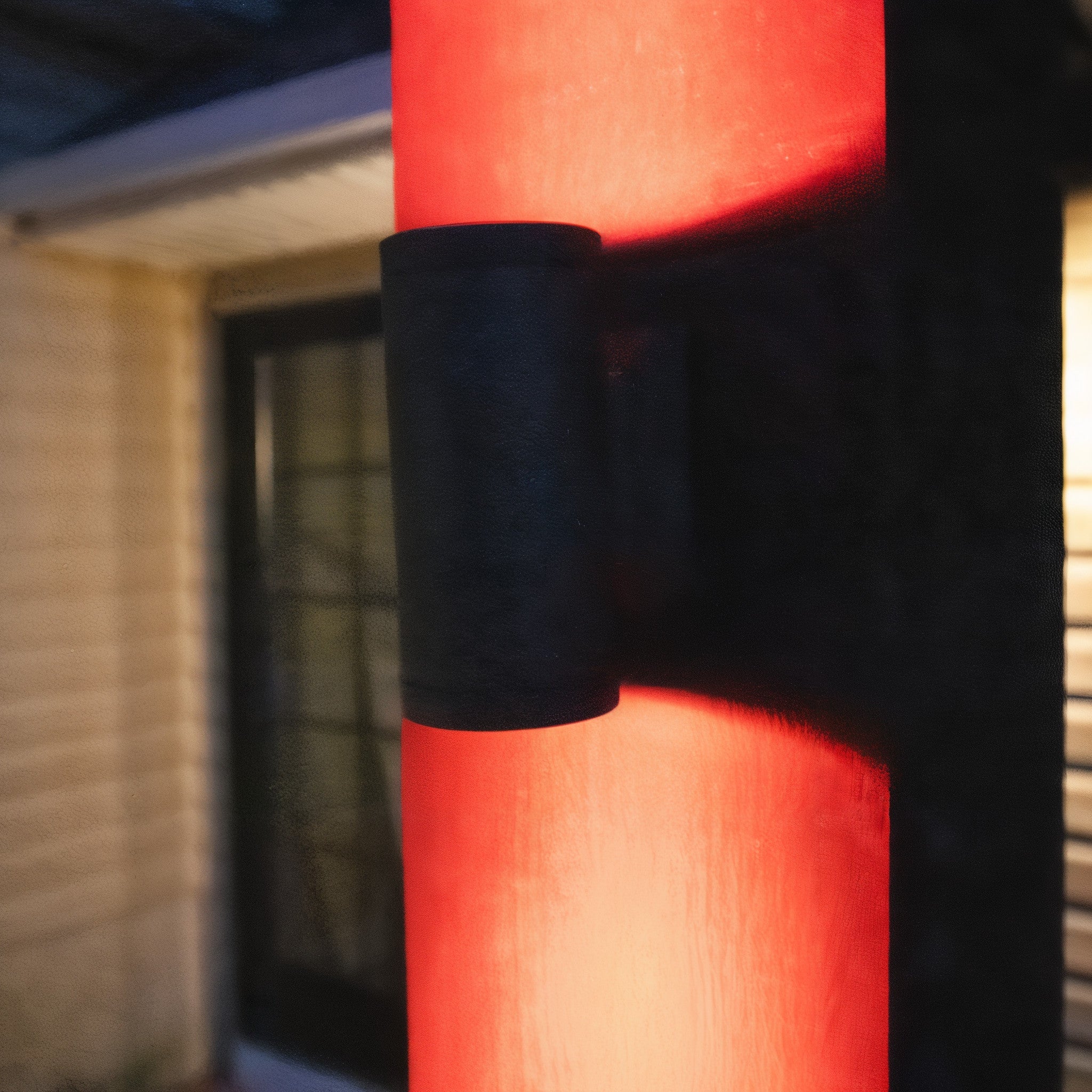

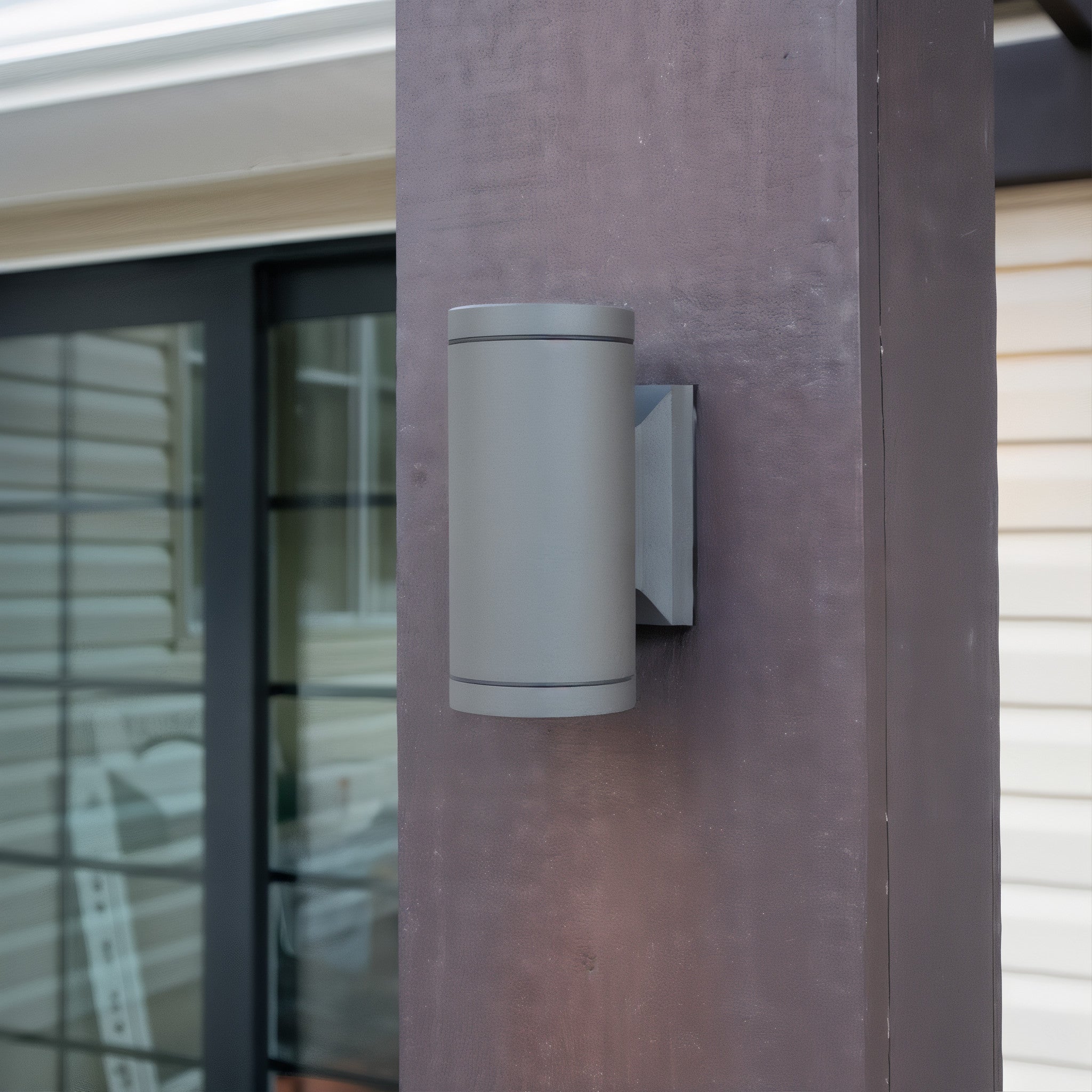

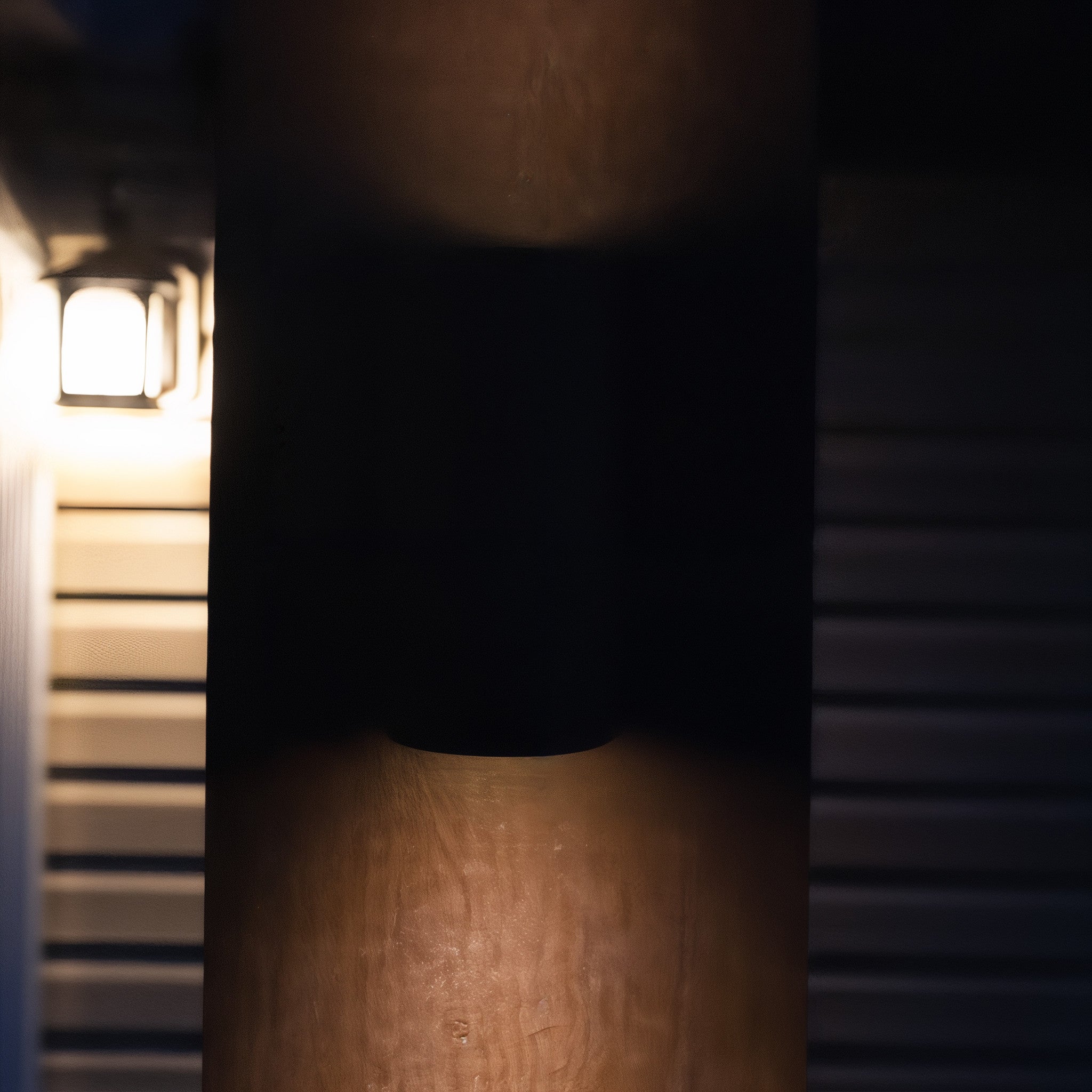

The TSS-AS201 surface-mounts to walls, posts, or columns with the included hardware. Run the lead wire to a 12V low-voltage transformer using direct-burial silicone-filled connectors. Pair with the Tru-Scapes color-control app to set CCT, RGB scenes, or schedule color shifts for holidays and events.
