Description

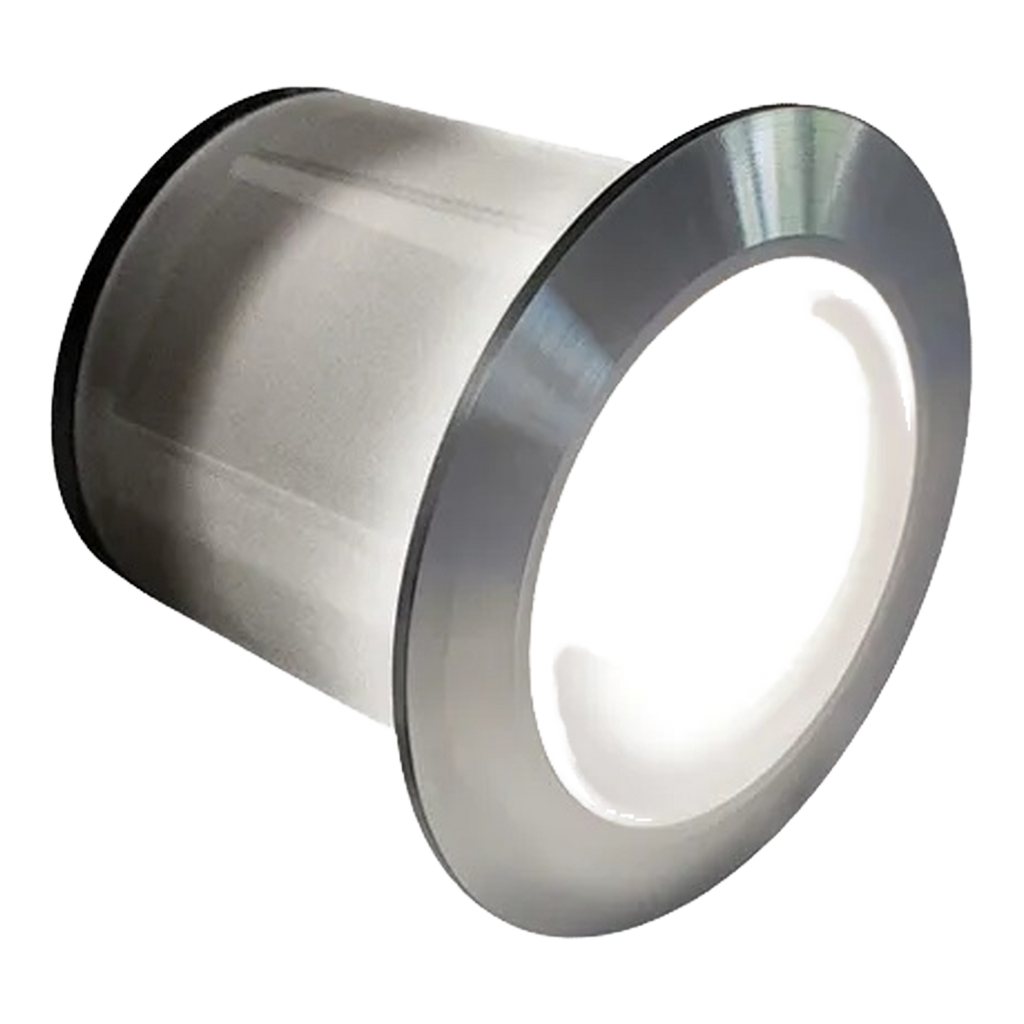

Light up walkways, patios, decks, and pool surrounds with the Tru-Scapes Modern 2.5″ Dot Light (TS-M25DOT-SS). This in-ground low-voltage LED fixture features a fully sealed composite housing wrapped in a 316 stainless steel ring and a frosted acrylic lens that casts a clean, glare-free pool of cool white (4000K) light. Drop it into concrete, stone, wood, or composite decking with a single 2″ core drill bit—ideal for accenting steps, edging driveways, or adding subtle direction lighting along hardscape paths.
Model #: TS-M25DOT-SS
Lighting Specifications

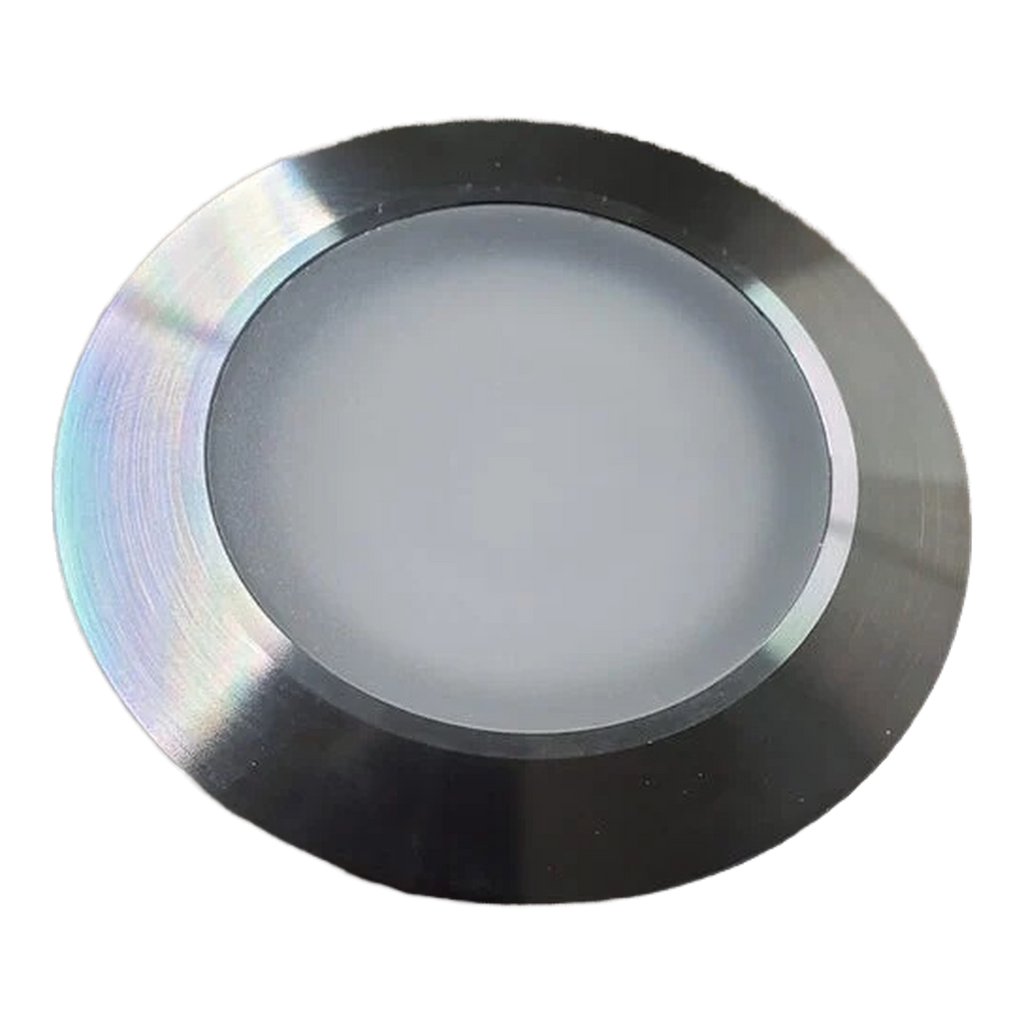

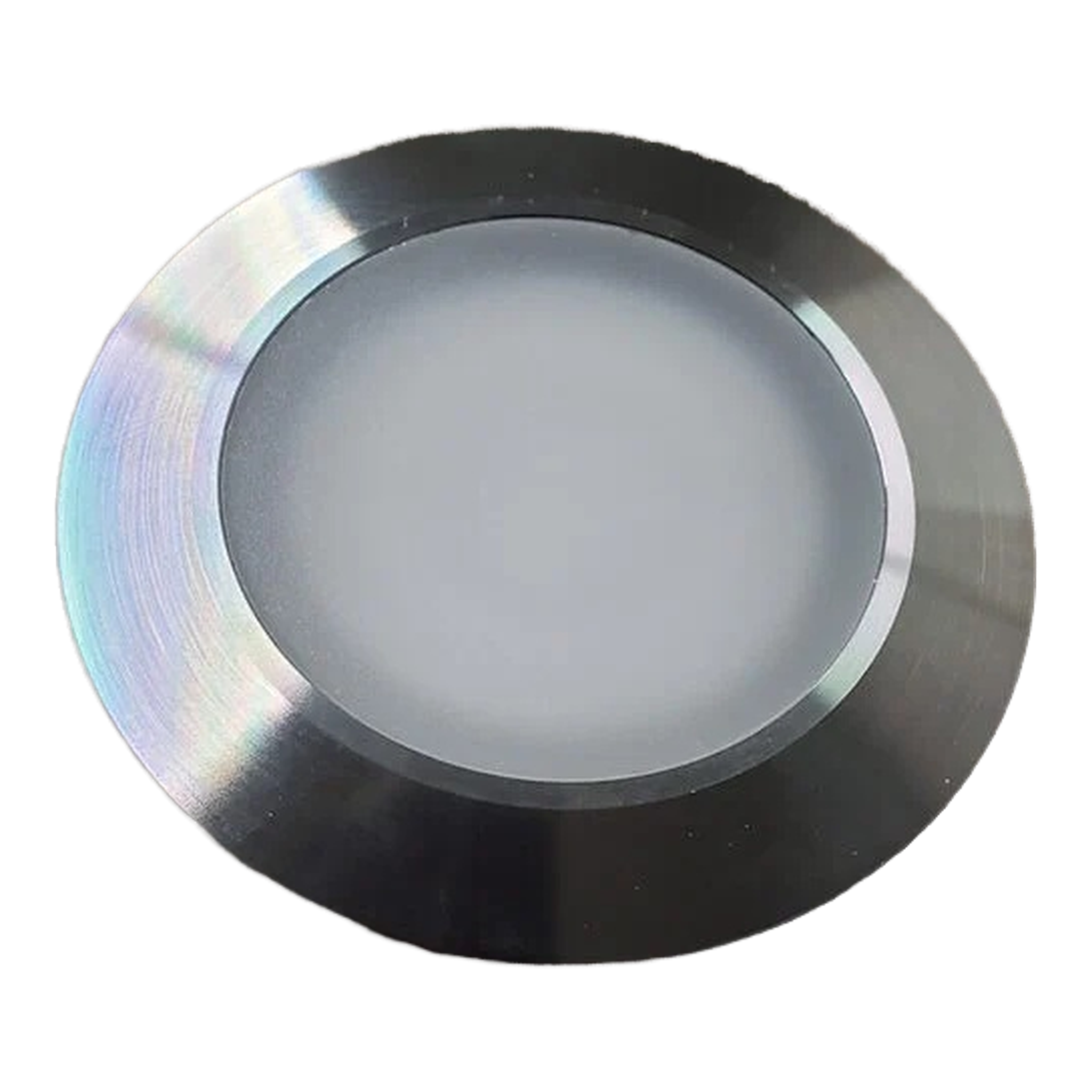

- Construction: Composite housing with 2.5″ stainless steel ring
- Finish: 316 stainless steel
- Lens: Frosted acrylic
- Wattage: 1.5W
- Lumens: 105L
- Color Temperature: 4000K (Cool White)
- Beam Angle: 60°
- Voltage Range: 9V–15V AC/DC (low-voltage transformer sold separately)
- Lead Wire: 36″ 18AWG SPT-1W black waterproof, direct-burial rated
- Wire Connectors: (2) silicone-filled, rated for direct burial
- IP Rating: IP68 (dust-tight, fully water-resistant)
- Dimensions: 2.5″ ring OD, 1.75″ total fixture height; installs in a 2″ core-drill hole
- Light Source: Integrated LED (non-replaceable; ring is replaceable)
- Certifications: ETL Listed (Intertek)
- Warranty: 5 years on the stainless steel fixture and LED (or 30,000 hours, whichever comes first)
Installation

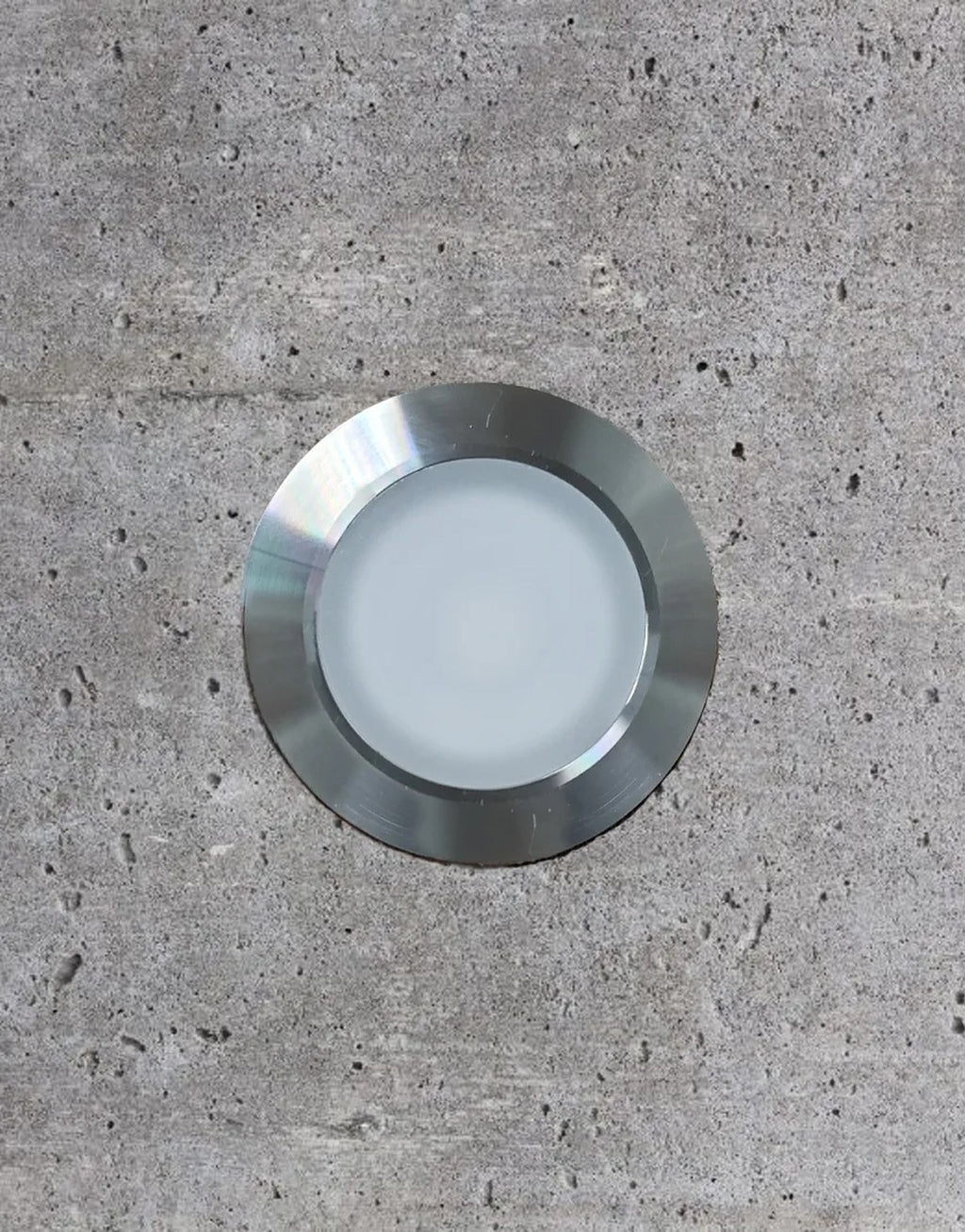

Drill a 2″ core hole into concrete, pavers, stone, wood, or composite decking, drop the fixture in, and connect to a low-voltage transformer using the included silicone-filled wire connectors. The replaceable stainless steel ring lets you refresh the look of the install without pulling the fixture.
For full technical drawings and installation details, see the TS-M25DOT-SS Series Spec Sheet.
