Description

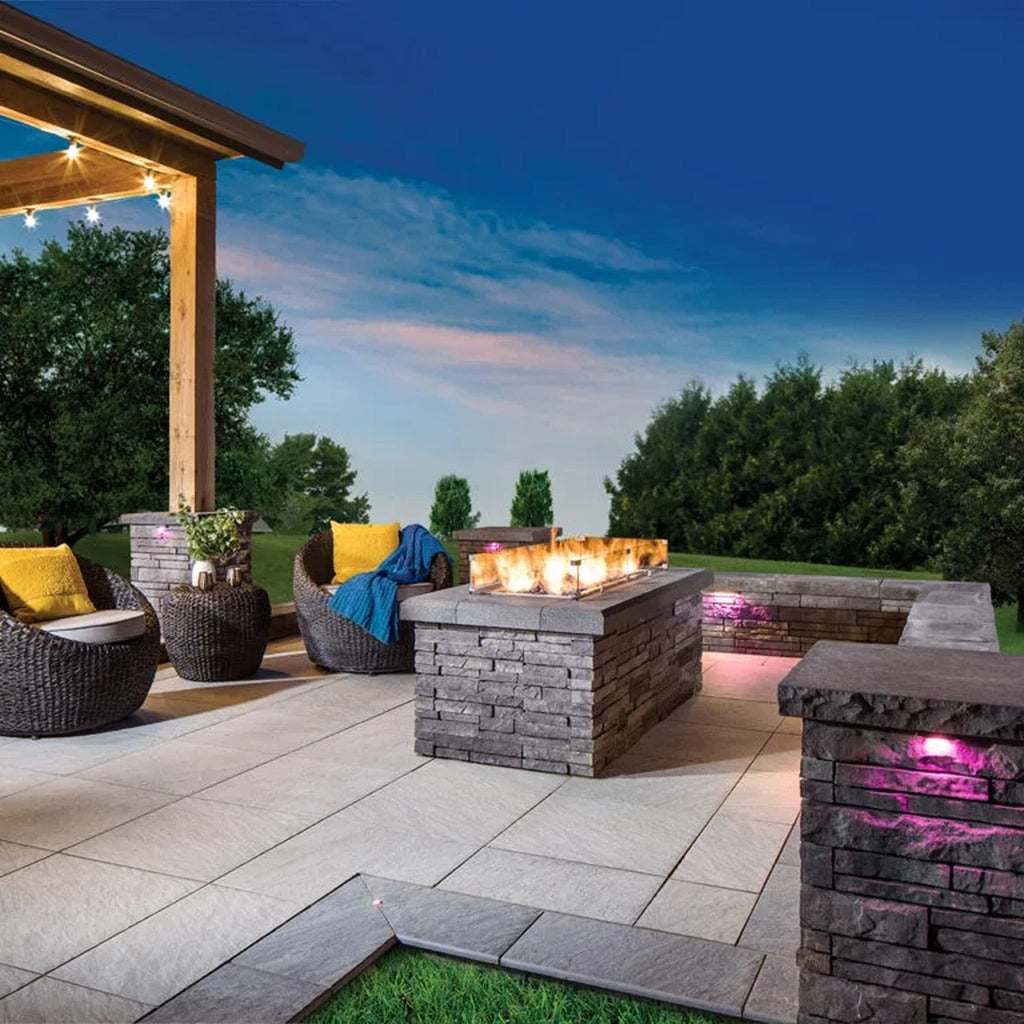

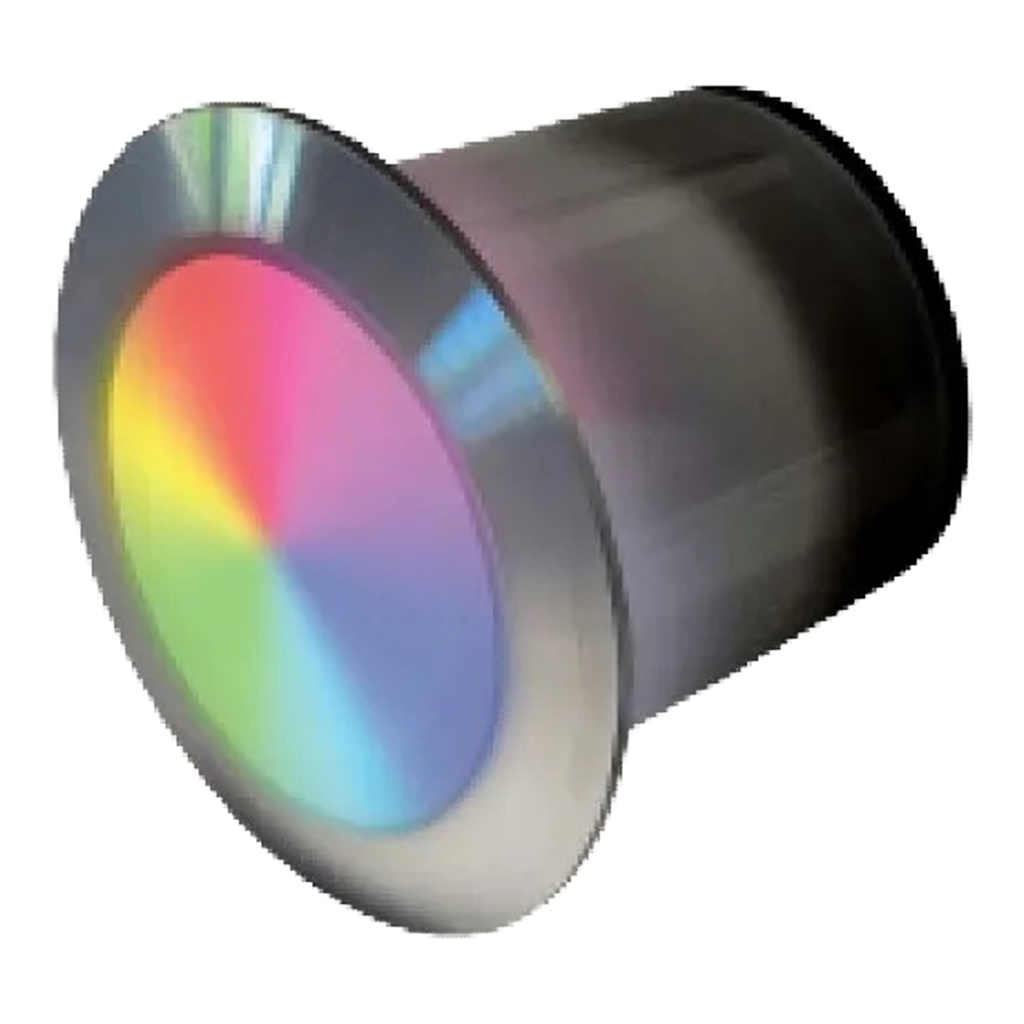

Light up walkways, patios, decks, and pool surrounds with the Tru-Scapes Modern Color Changing 2.5″ Dot Light (TS-M25DOTC-SS). This in-ground low-voltage LED fixture features a fully sealed composite housing wrapped in a 316 stainless steel ring and a frosted acrylic lens, with full app control over RGBCW color, white-light color temperature (2700K–6500K), dimming, and fixture grouping. Drop it into concrete, stone, wood, or composite decking with a single 2″ core drill bit—ideal for accenting steps, edging driveways, or adding dynamic, programmable color along hardscape paths.
Model #: TS-M25DOTC-SS
Lighting Specifications
- Construction: Composite housing with 2.5″ stainless steel ring
- Finish: 316 stainless steel
- Lens: Frosted acrylic
- Wattage: 1.5W
- Lumens: 60L
- Color Output: RGBCW with adjustable white from 2700K to 6500K (Bluetooth app control)
- Voltage Range: 9V–15V AC/DC (low-voltage transformer sold separately)
- Lead Wire: 36″ 18AWG SPT-1W black waterproof, direct-burial rated
- Wire Connectors: (2) silicone-filled, rated for direct burial
- IP Rating: IP68 (dust-tight, fully water-resistant)
- Dimensions: 2.5″ ring OD, 1.75″ total fixture height; installs in a 2″ core-drill hole
- Light Source: Integrated LED (non-replaceable; ring is replaceable)
- Certifications: ETL Listed (Intertek)
- Warranty: 5 years on the stainless steel fixture and LED (or 30,000 hours, whichever comes first)
App Control
Pair the TS-M25DOTC-SS with the Tru-Scapes color-control app to dial in scenes, animations, and color temperatures from your phone. Group multiple fixtures and program transitions to match the moment—cool white for working hours, warm amber for dinner parties, or full RGB for events.
Installation
Drill a 2″ core hole into concrete, pavers, stone, wood, or composite decking, drop the fixture in, and connect to a low-voltage transformer using the included silicone-filled wire connectors. The replaceable stainless steel ring lets you refresh the look without pulling the fixture.
For full technical drawings, see the TS-M25DOTC-SS Series Spec Sheet. App walkthroughs: English · Spanish.
