Description

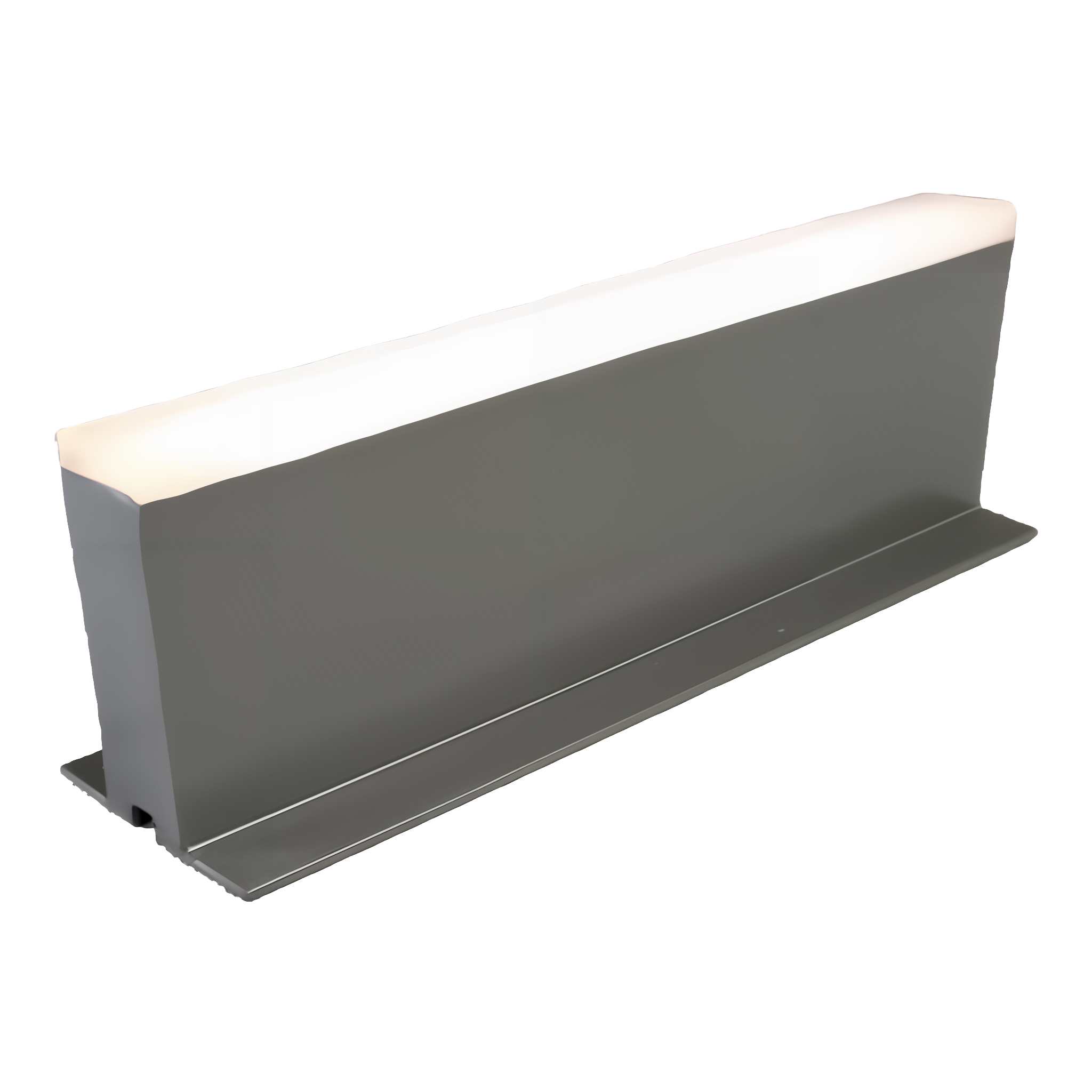

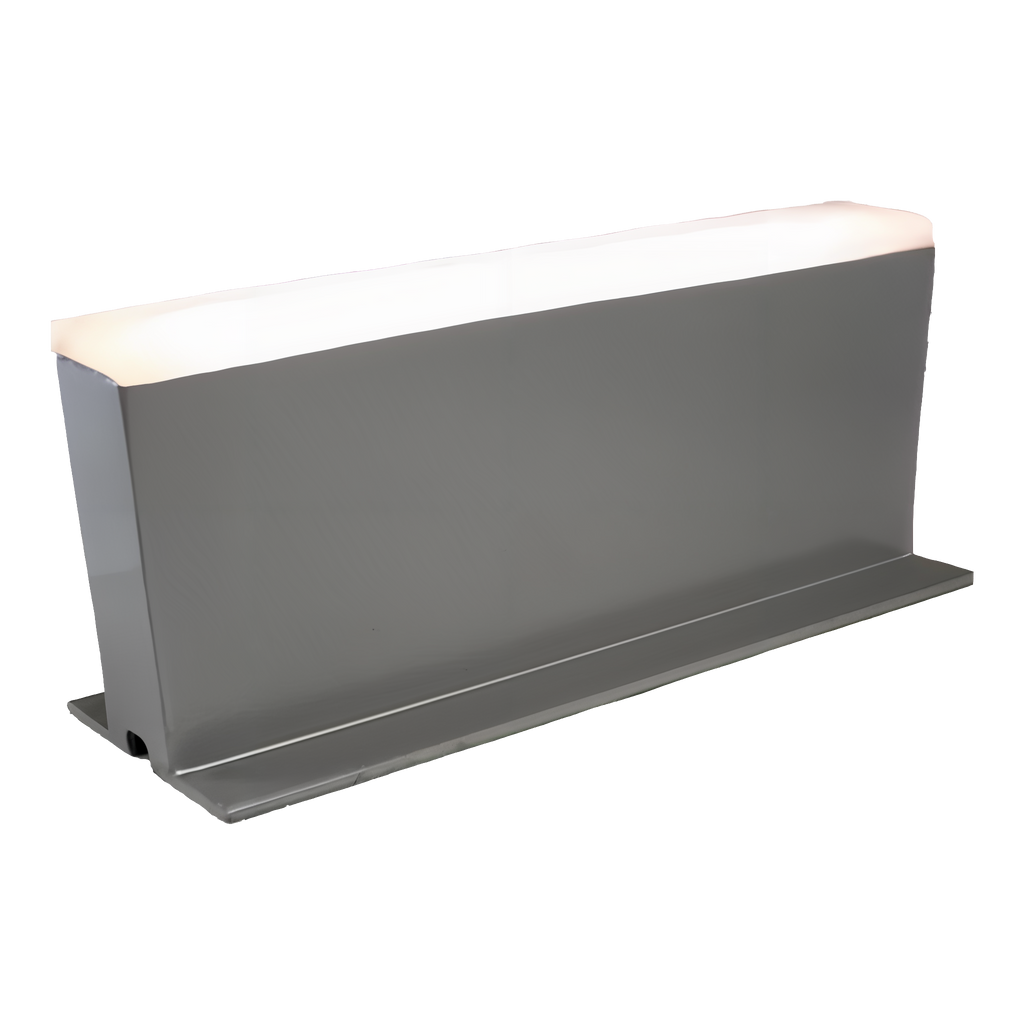

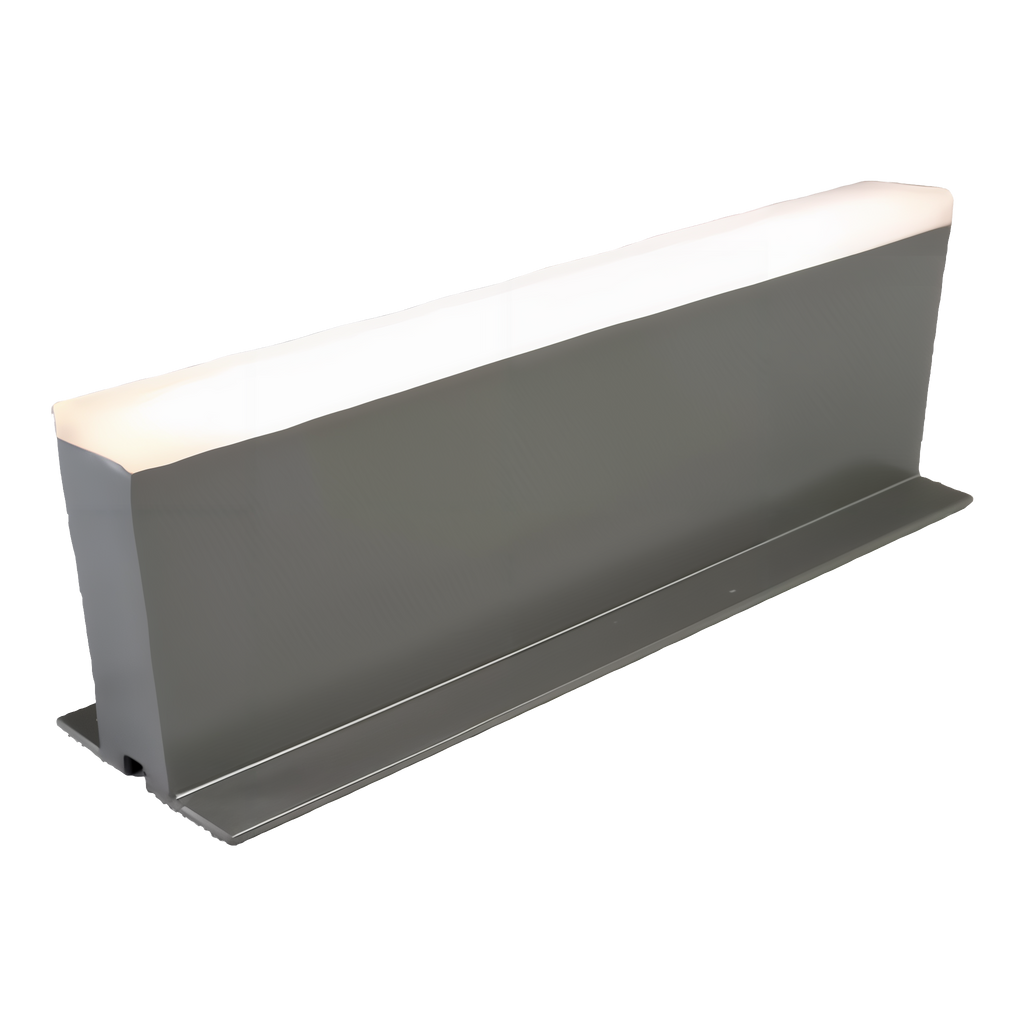

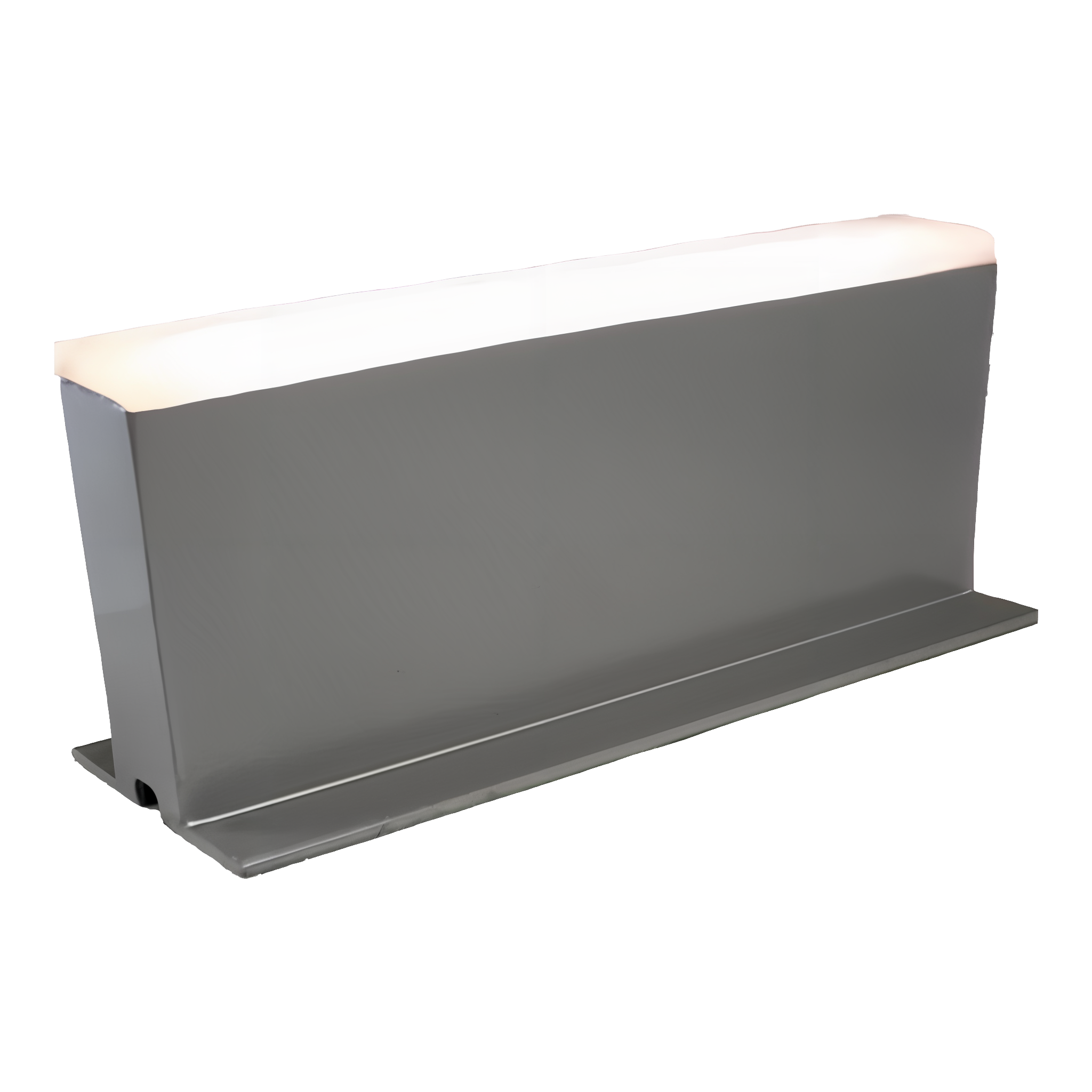

The Tru-Scapes Modern Paver Light family (TS-MPHL series) is a flush-mount LED paver light contractors install in the sailor or soldier course of a paver project — set into the surface so it sits perfectly level with the surrounding pavers, lighting patio areas, walkways, and driveways from underfoot. Powder-coated aluminum housing with a frosted acrylic lens diffuses the 4000K cool-white LEDs into a wide 120° beam pattern. Three sizes match common paver layouts: 6" (15 LEDs / 42 lumens), 8" (18 LEDs / 54 lumens), and 9" (21 LEDs / 72 lumens). Compatible with standard 60mm pavers or larger.
Why Hardscape Pros Specify the Modern Paver Light
- Flush-mount in the paver course: Sits level with the paver surface — install in the sailor or soldier course during the original layout, no after-the-fact retrofitting
- 4000K cool white LEDs: Crisp modern white that flatters concrete, stone, and contemporary hardscape — 120° beam washes the path ahead
- Three sizes for your layout: 6", 8", and 9" — pick the one that matches your modular paver layout (60mm or larger)
- Aluminum + frosted acrylic: Aluminum body survives freeze/thaw and irrigation; frosted acrylic lens diffuses the LEDs and protects them from foot and wheel traffic
- 9V–15V AC/DC range: Forgives voltage drop on long runs — chain along walkways and driveways
- 36" SPT-1W lead wire: 36-inch black waterproof 18AWG lead reaches the buried tap connector on most paver-bed installs
- Grey powder-coated finish: Reads neutral against grey, charcoal, and natural-stone paver palettes
Use Cases
Patio perimeter lighting, walkway accent runs in sailor/soldier course pavers, driveway edge lines, pool deck surrounds, garden path runs, courtyard layouts. Pair with a Tru-Scapes 12V low-voltage transformer (sold separately) sized for total wattage on the run.
Specifications by Size
- 6" (TS-MPHL-6): 15 LEDs / 1.5W / 42 lumens
- 8" (TS-MPHL-8): 18 LEDs / 1.8W / 54 lumens
- 9" (TS-MPHL-9): 21 LEDs / 2.5W / 72 lumens
Shared Specifications
- Manufacturer: Tru-Scapes (TS-MPHL series)
- Construction: Aluminum housing, frosted acrylic lens
- Finish: Grey powder-coated
- Color temperature: 4000K (cool white)
- Beam angle: 120°
- Voltage range: 9V–15V AC/DC
- Lead wire: 36" / 18AWG / SPT-1W black waterproof
- Paver compatibility: Requires 60mm paver or larger; install in sailor or soldier course
- Power supply: Requires 12V low-voltage transformer (sold separately)
Sold per fixture.
