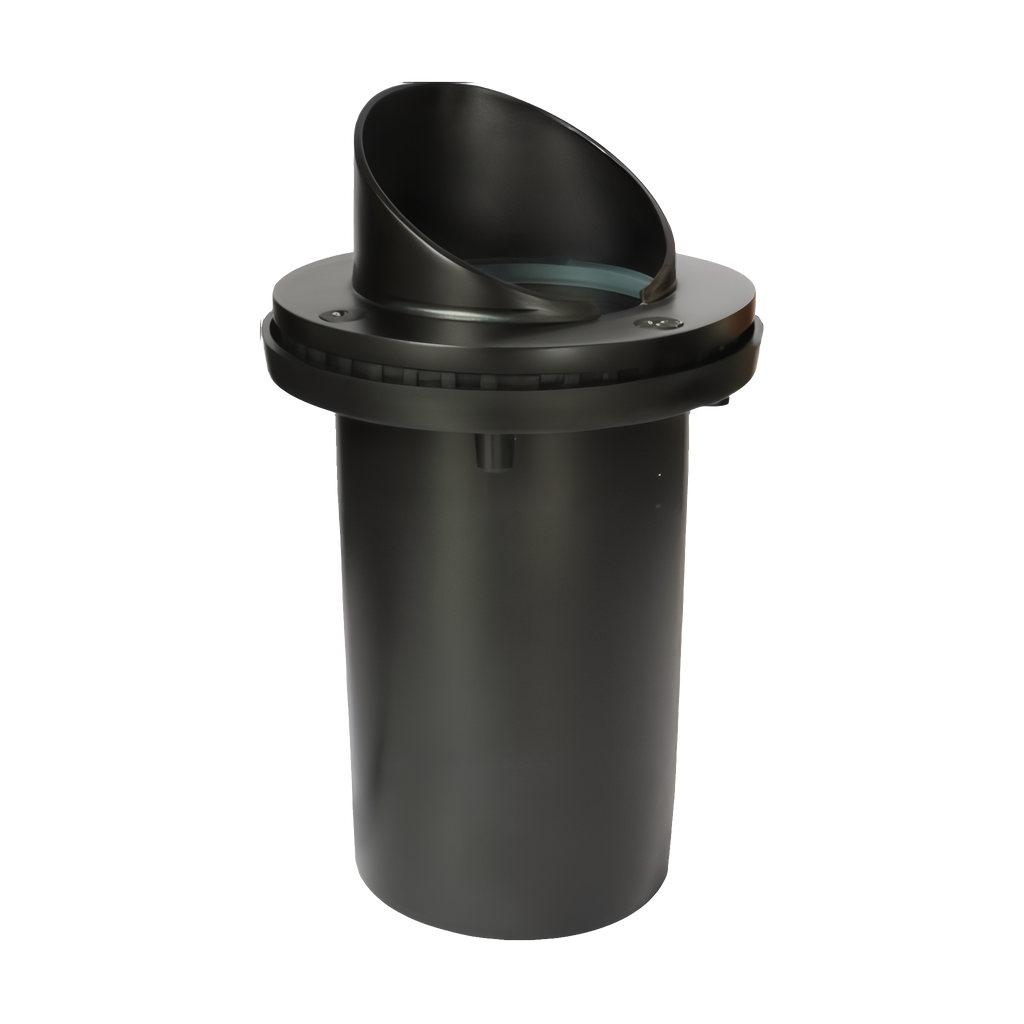

Tru-Scapes Sealed In-Ground Well Light TS-B203 — Black brass shroud, MR16 LED 2700K warm white, studio view

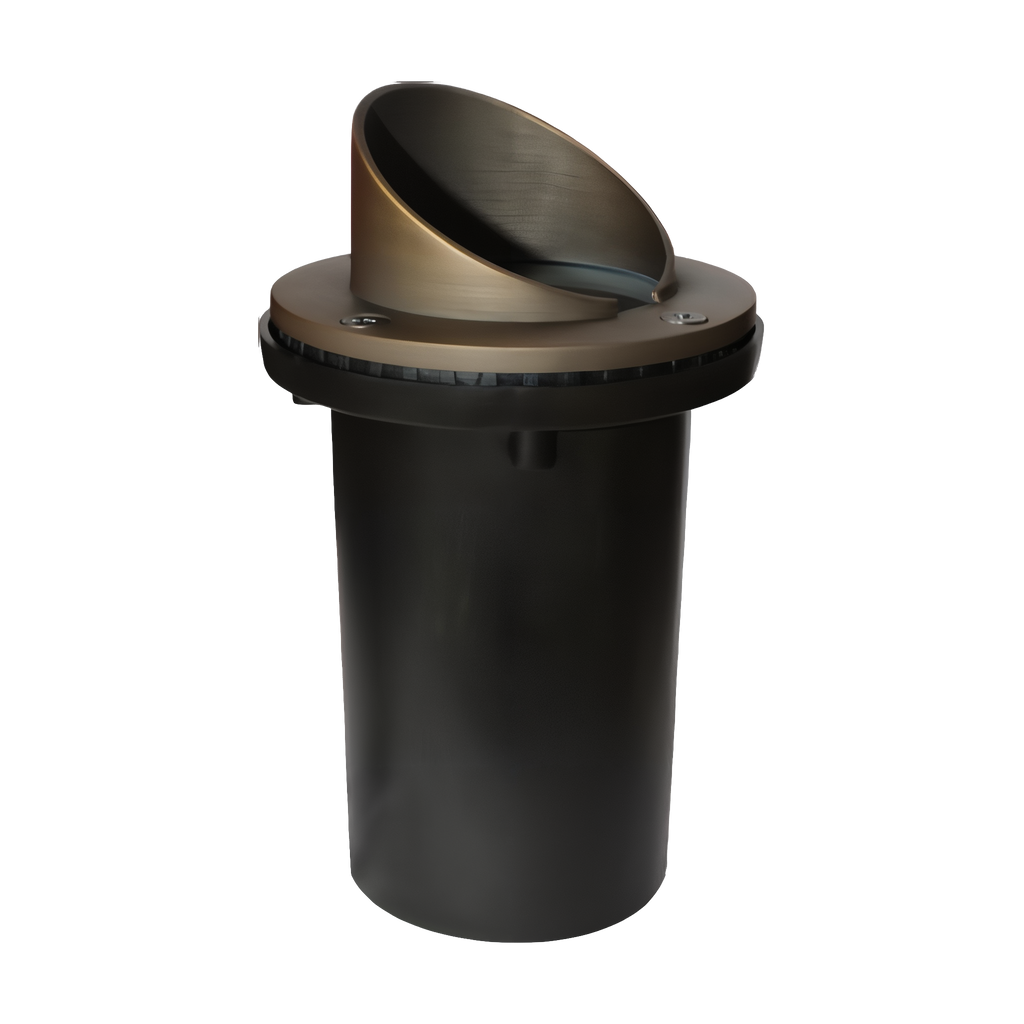

Tru-Scapes Sealed In-Ground Well Light TS-B203 — Bronze brass shroud, MR16 LED 2700K warm white, studio view

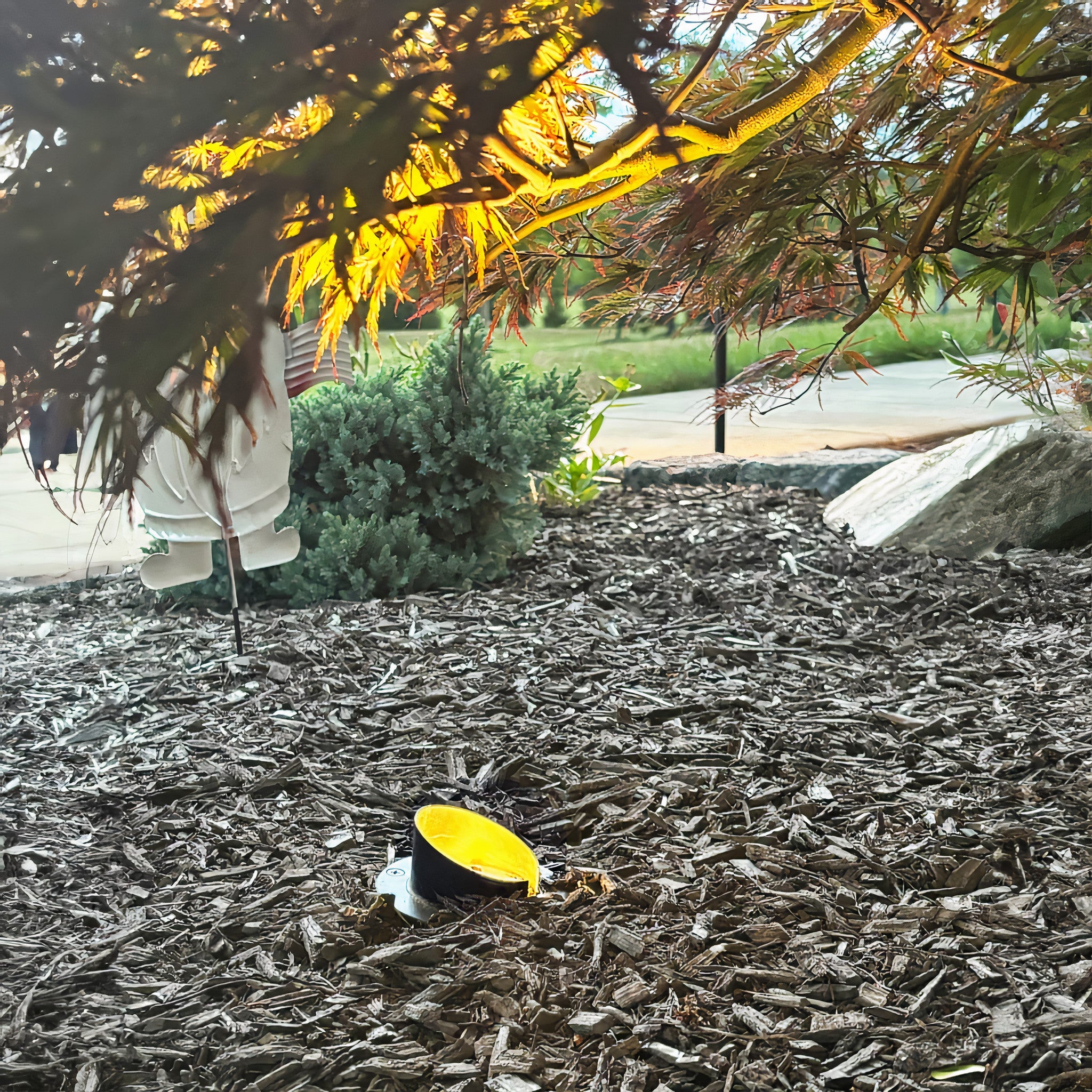

Tru-Scapes Sealed In-Ground Well Light TS-B203 — installed flush in landscape bed, 2700K uplight on tree

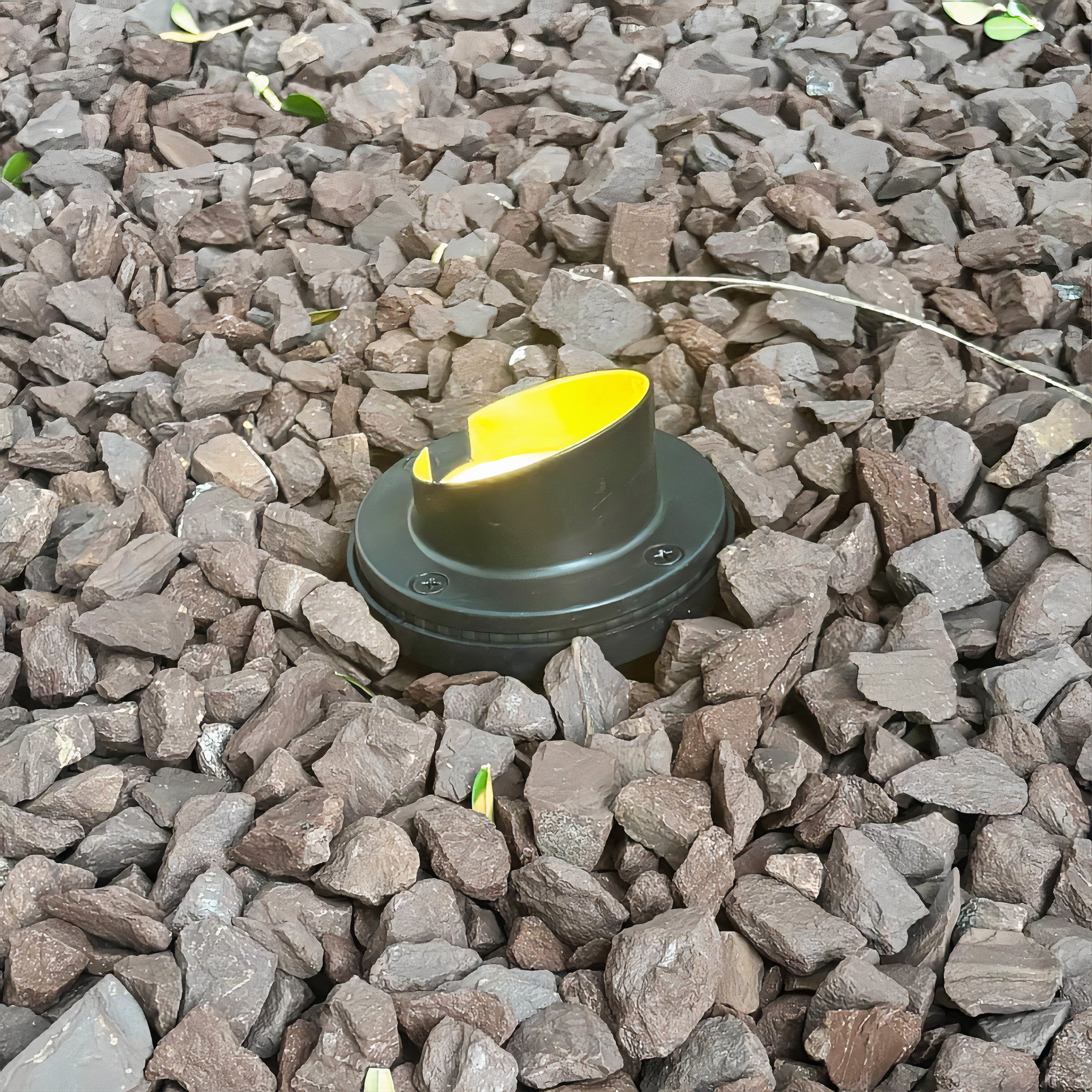

Tru-Scapes Sealed In-Ground Well Light TS-B203 — landscape uplighting application at dusk

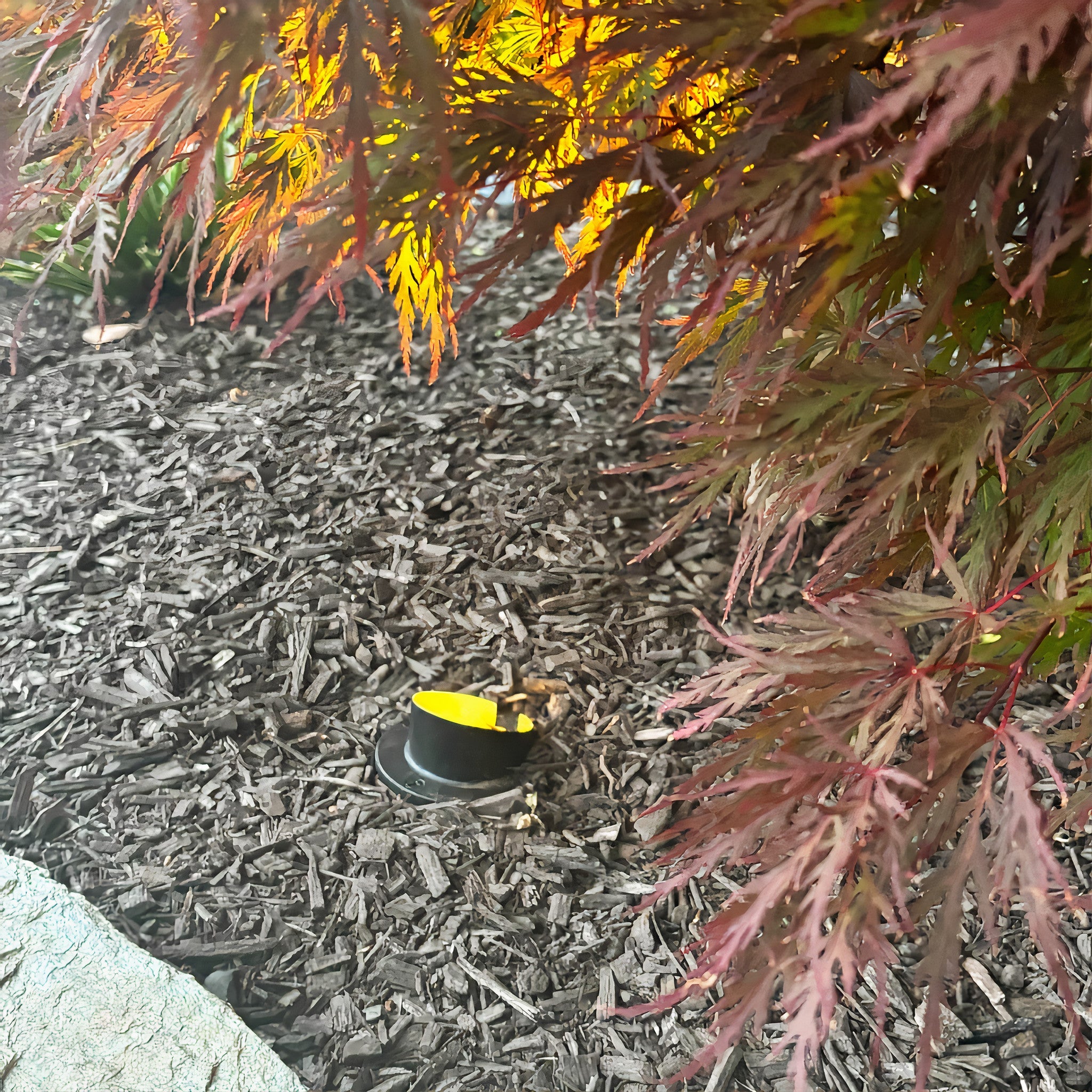

Tru-Scapes Sealed In-Ground Well Light TS-B203 — outdoor accent landscape lighting

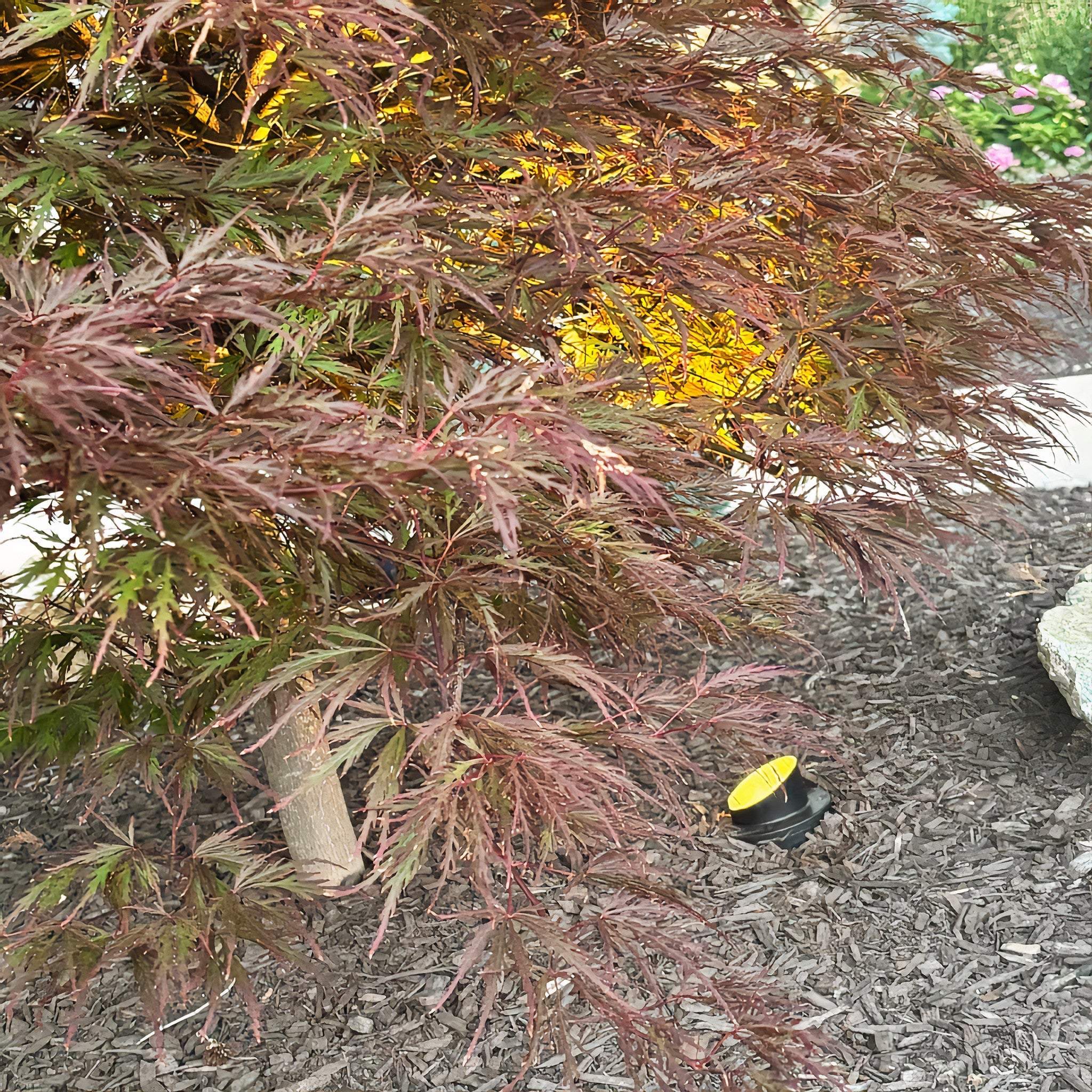

Tru-Scapes Sealed In-Ground Well Light TS-B203 — focal-point tree uplighting

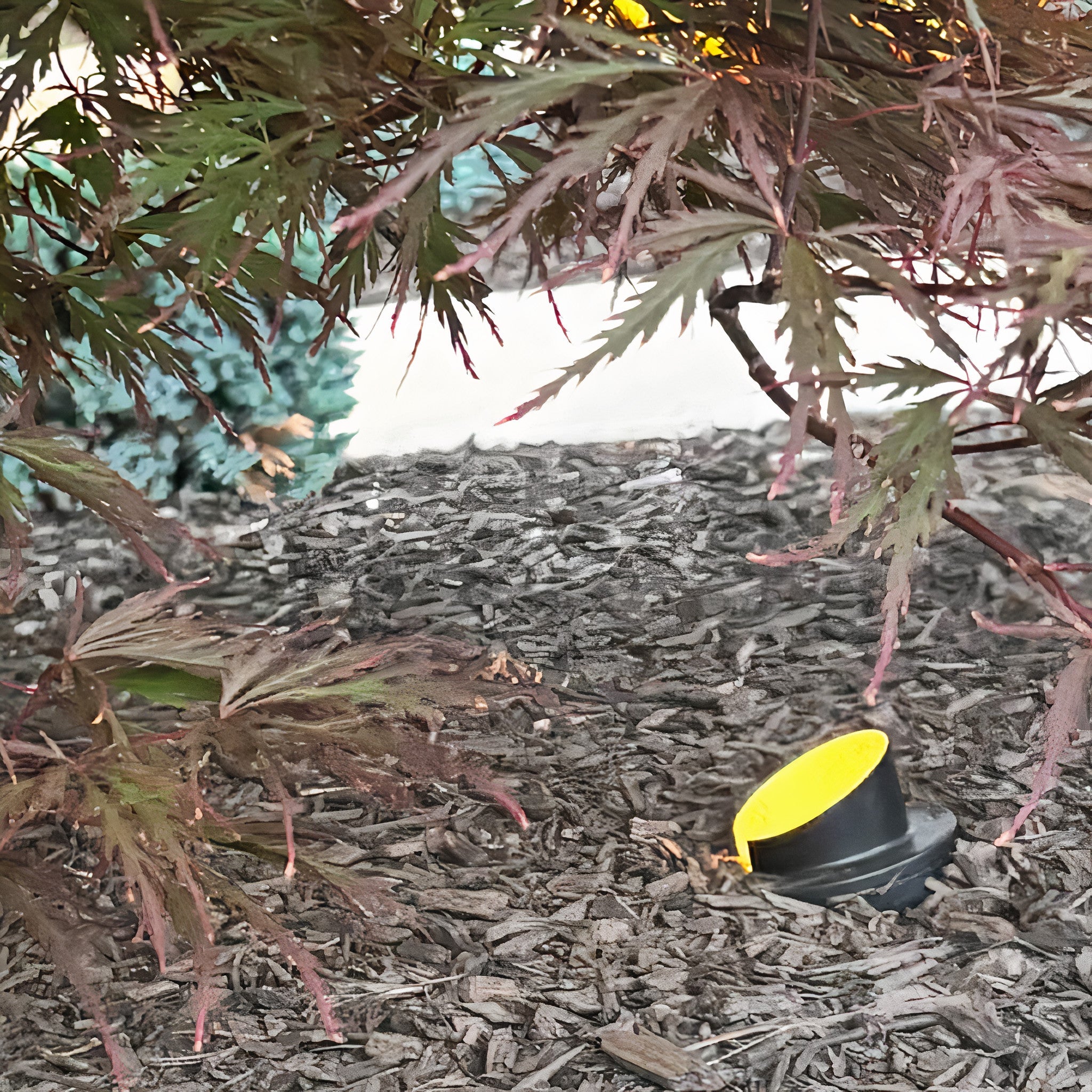

Tru-Scapes Sealed In-Ground Well Light TS-B203 — wall and statue accent application

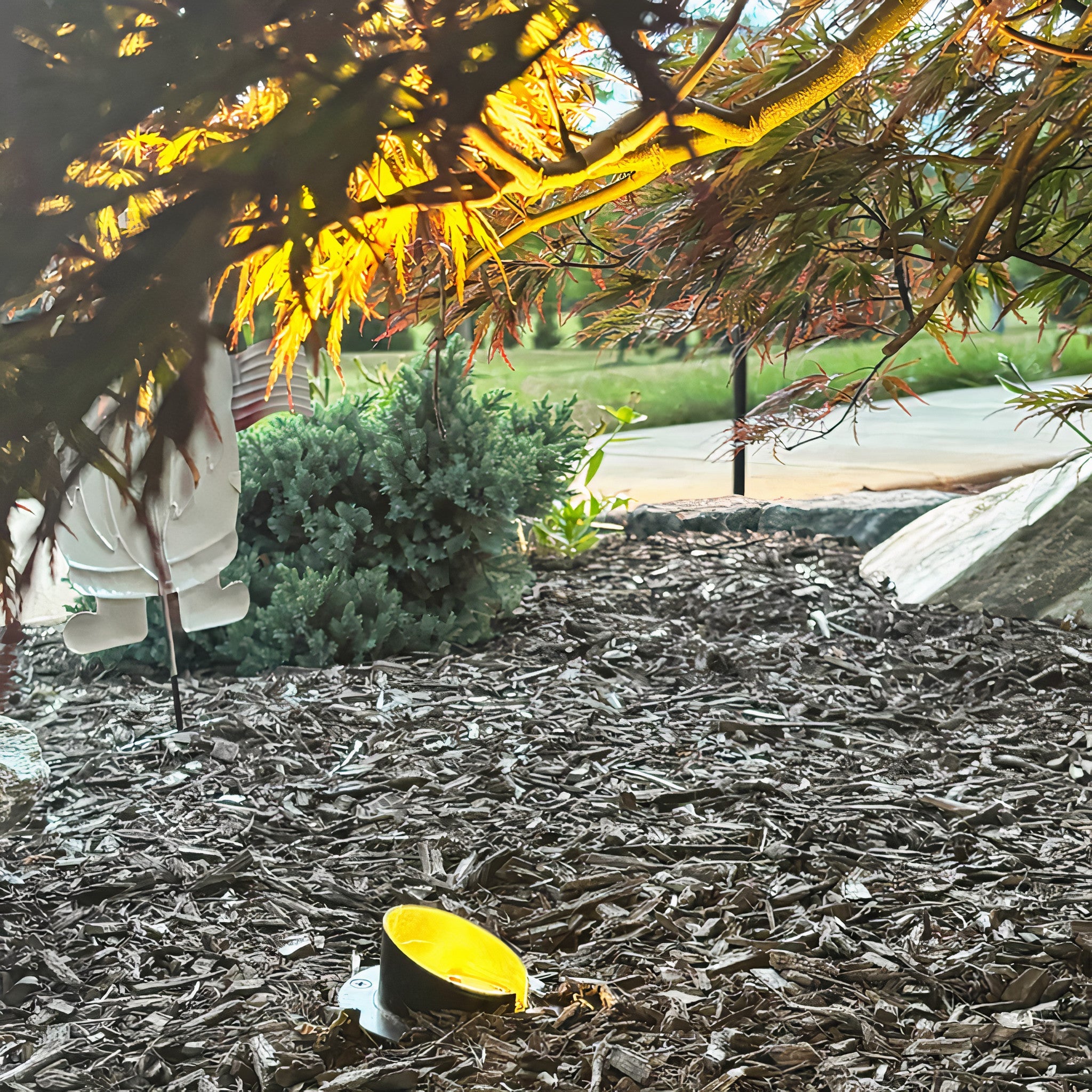

Tru-Scapes Sealed In-Ground Well Light TS-B203 — flush in-ground installation

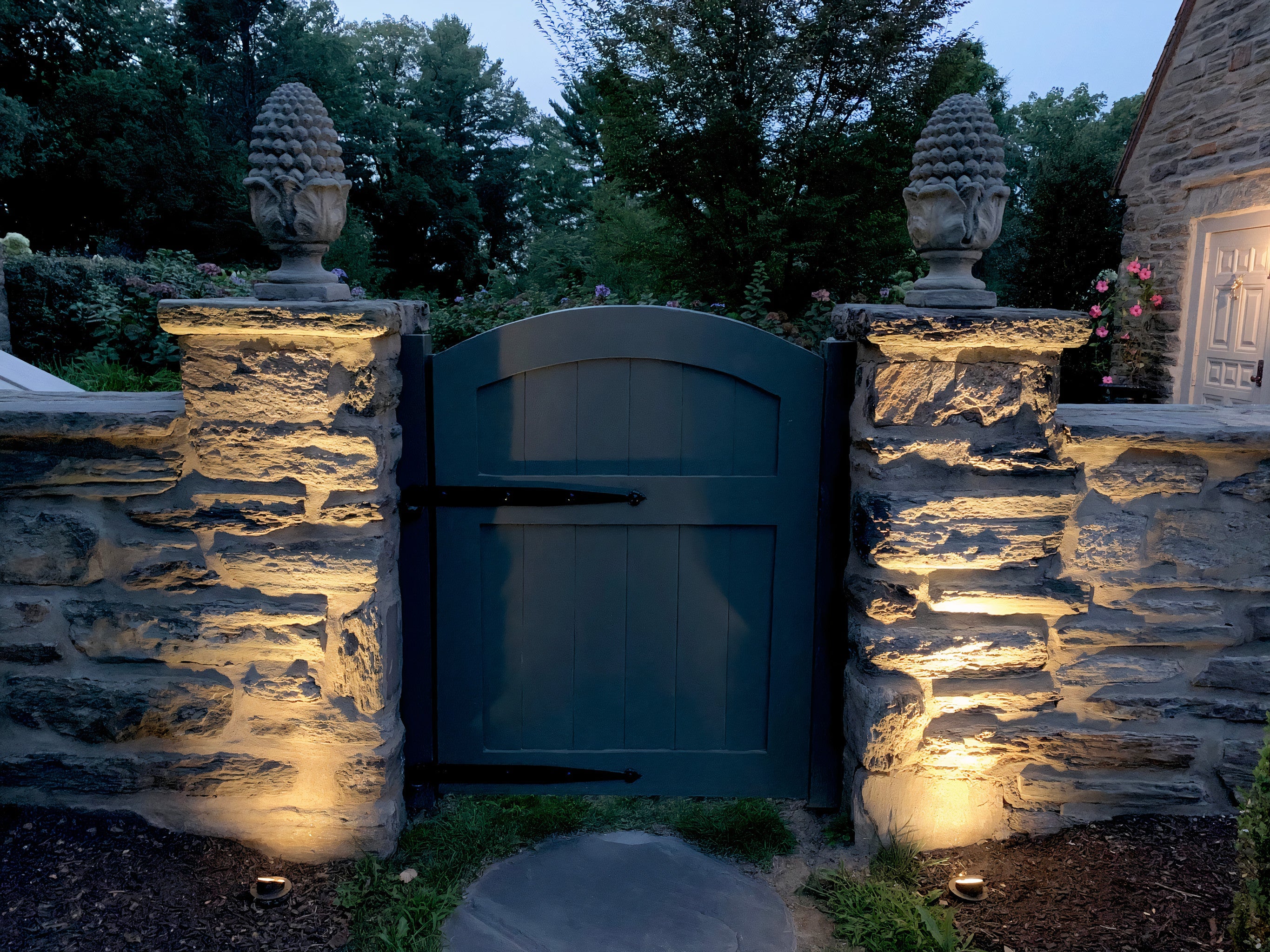

Tru-Scapes Sealed In-Ground Well Light TS-B203 — landscape installation detail
Roll over image to zoom in Click on image to zoom
Tru-Scapes Sealed In-Ground Well Light TS-B203 — Black brass shroud, MR16 LED 2700K warm white, studio viewTru-Scapes Sealed In-Ground Well Light TS-B203 — Bronze brass shroud, MR16 LED 2700K warm white, studio viewTru-Scapes Sealed In-Ground Well Light TS-B203 — installed flush in landscape bed, 2700K uplight on treeTru-Scapes Sealed In-Ground Well Light TS-B203 — landscape uplighting application at duskTru-Scapes Sealed In-Ground Well Light TS-B203 — outdoor accent landscape lightingTru-Scapes Sealed In-Ground Well Light TS-B203 — focal-point tree uplightingTru-Scapes Sealed In-Ground Well Light TS-B203 — wall and statue accent applicationTru-Scapes Sealed In-Ground Well Light TS-B203 — flush in-ground installationTru-Scapes Sealed In-Ground Well Light TS-B203 — landscape installation detail

Tru-Scapes Sealed In-Ground Well Light TS-B203

Tru-Scapes
Color: Black
Black
Bronze
Color Temperature: 2700K
2700K
Price:
$81.00

Description

Uplight focal-point trees, statues, fountains, and walls with the Tru-Scapes Sealed In-Ground Well Light (TS-B203). A heavy-duty brass shroud and black composite in-ground housing keep the fixture buried flush with the ground while a 4W MR16 LED lamp throws a warm 2700K accent beam upward through a flat heat-resistant glass lens. Designed for professional low-voltage landscape installations and rated IP65 for full outdoor use.

Model #: TS-B203 · Available in: Black or Bronze

Lighting Specifications

  • Construction: Brass shroud over PVC in-ground housing; beryllium-copper socket housing
  • Finish: Black or Bronze (powder-coat / antique-bronze)
  • Light Source: MR16 LED Lamp (replaceable)
  • Color Temperature: 2700K (warm white)
  • Wattage: 4W
  • Lumens: 308L
  • Beam Angle: 60°
  • Power Factor: 0.731
  • Voltage Range: 9V–15V AC/DC (12V operating, low-voltage transformer sold separately)
  • Lead Wire: 32″ 18AWG SPT-1W black waterproof
  • Lens: Flat tempered (heat-resistant) glass
  • IP Rating: IP65 (dust-tight, water-resistant)
  • Dimensions: 4″ diameter × 6-7/8″ height; 8″ heavy-duty stake with cut-out for wire exit
  • Mounting: Flush in-ground, water-tight gasket ring
  • Certifications: ETL Listed (Intertek), IP65
  • Warranty: Lifetime on sockets · 5 years on brass and finish · 5 years (or 30,000 hours) on LED lamps

Features

  • Brass shroud over PVC lower housing — powder-coat or bronzing finish protects against wear and corrosion
  • Beryllium-copper socket housing for added corrosion resistance
  • Water-tight gasket ring keeps moisture out of the housing
  • Easily replaceable MR16 lamp
  • Includes (2) silicone-filled wire connectors rated for direct burial
  • Heat-resistant tempered glass lens

Installation

Set the included 8″ stake into prepared soil, fit the housing flush with grade, and run the lead wire to a 12V low-voltage transformer using the included direct-burial connectors. Aim the MR16 inside the brass shroud to dial in the throw on your focal point.

For full technical drawings and installation details, see the TS-B203 Spec Sheet.
