Description

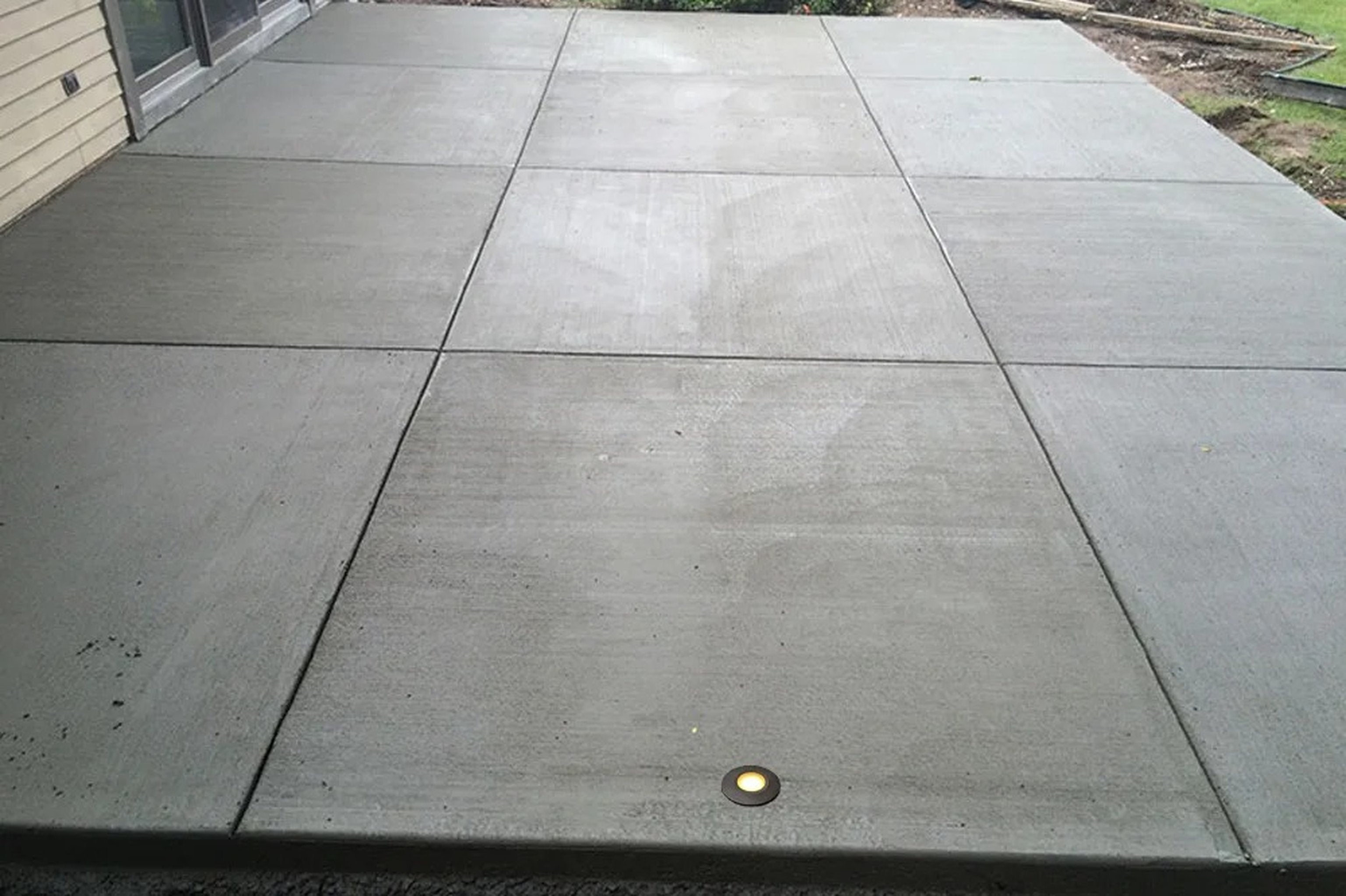

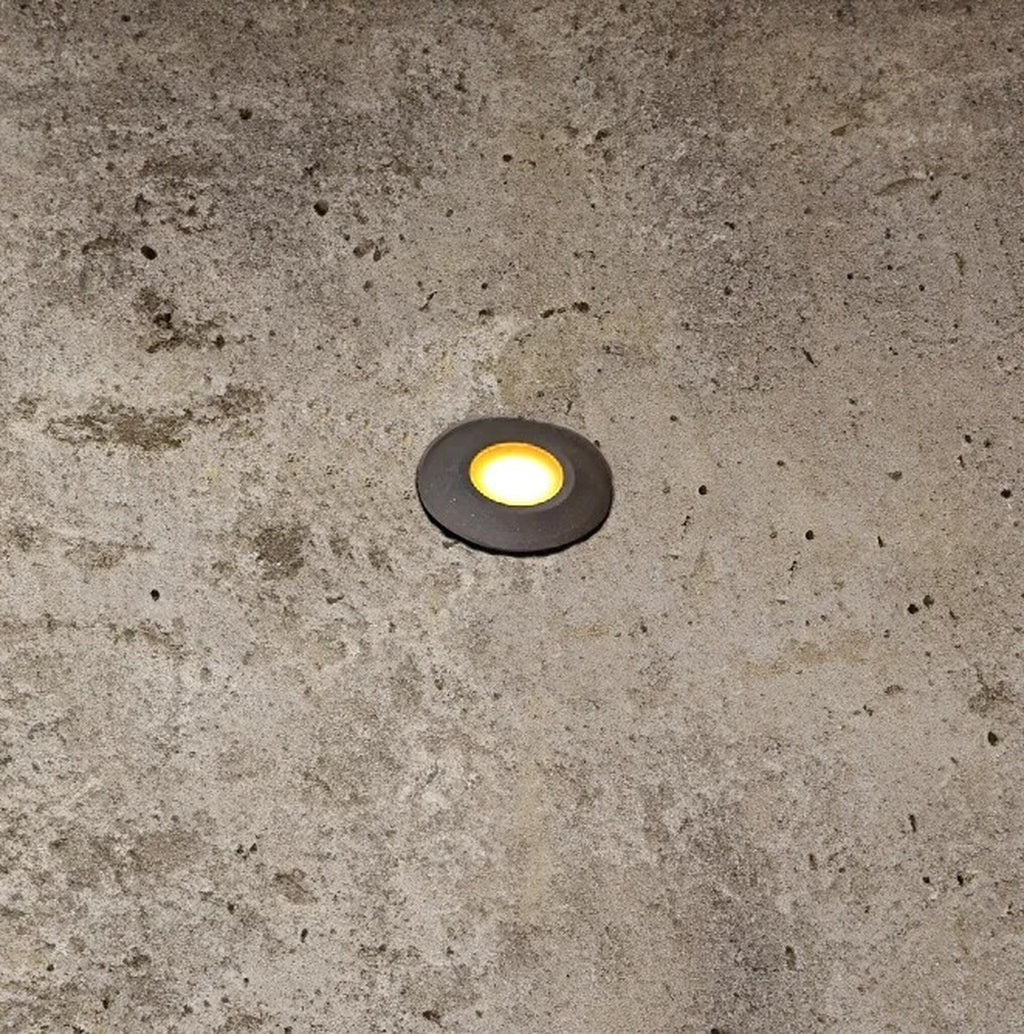

Mark stair edges, paver borders, and deck risers with the Tru-Scapes Traditional 1.5″ Dot Light (TS-15DOT-BRZ). This in-ground low-voltage LED fixture features a fully sealed composite housing wrapped in an anodized bronze ring and a frosted acrylic lens that emits a soft, warm 2700K glow—ideal for blending with classic hardscape palettes. Drop it into concrete, stone, wood, or composite decking with a single 1″ core drill bit for a flush, low-profile finish that resists trip hazards and seasonal wear.
Model #: TS-15DOT-BRZ
Lighting Specifications

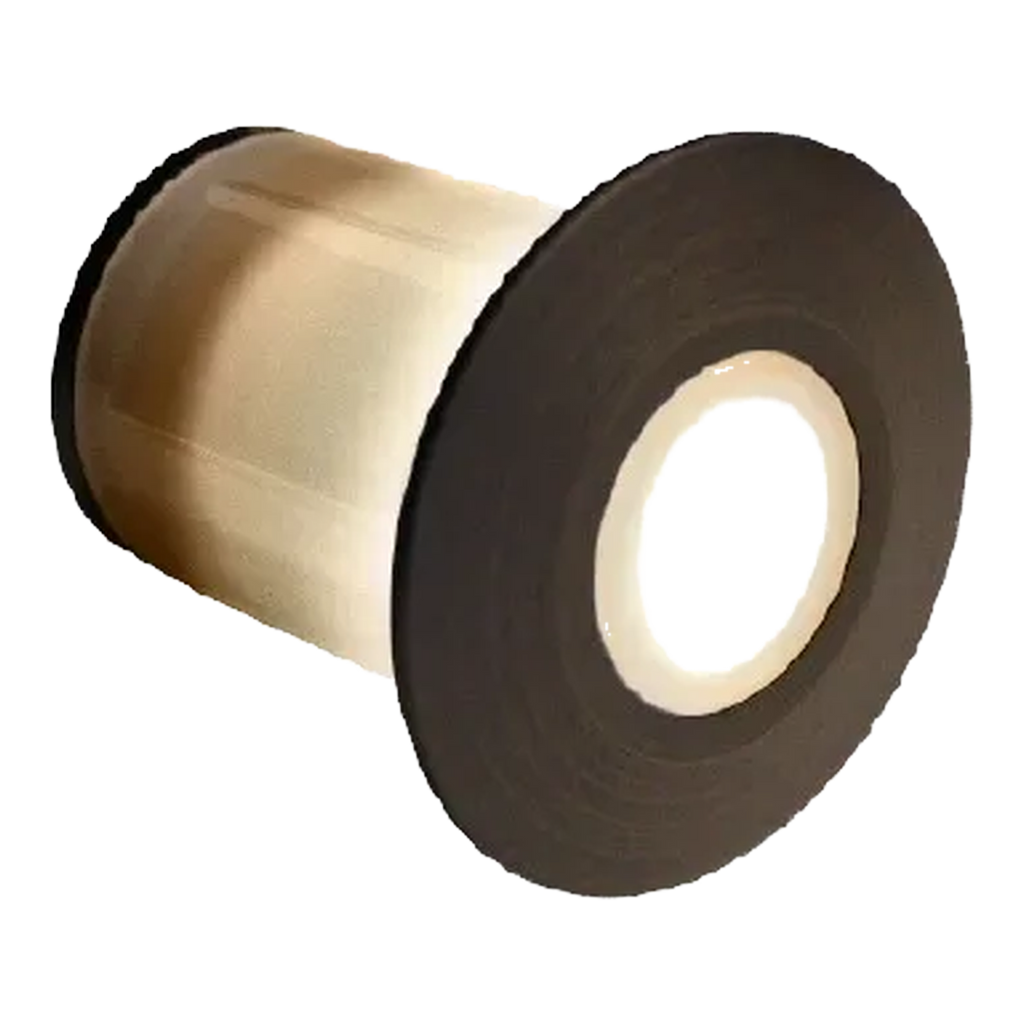

- Construction: Composite housing with 1.5″ OD anodized bronze ring
- Finish: Anodized bronze (replaceable ring)
- Lens: Frosted acrylic
- Wattage: 0.25W
- Lumens: 10L
- Color Temperature: 2700K (Warm White)
- Voltage Range: 9V–15V AC/DC (low-voltage transformer sold separately)
- Lead Wire: 36″ 18AWG SPT-1W black waterproof, direct-burial rated
- Wire Connectors: (2) silicone-filled, rated for direct burial
- IP Rating: IP68 (dust-tight, fully water-resistant)
- Dimensions: 1.5″ ring OD, 1.75″ total fixture height; installs in a 1″ core-drill hole
- Light Source: Integrated LED (non-replaceable; ring is replaceable)
- Certifications: ETL Listed (Intertek)
- Warranty: 5 years on the bronze fixture and LED (or 30,000 hours, whichever comes first)
Installation
Drill a 1″ core hole into concrete, pavers, stone, wood, or composite decking, drop the fixture in, and connect to a low-voltage transformer using the included silicone-filled wire connectors. The replaceable bronze ring lets you refresh the look of the install without pulling the fixture.
For full technical drawings and installation details, see the TS-15DOT-BRZ Series Spec Sheet.
