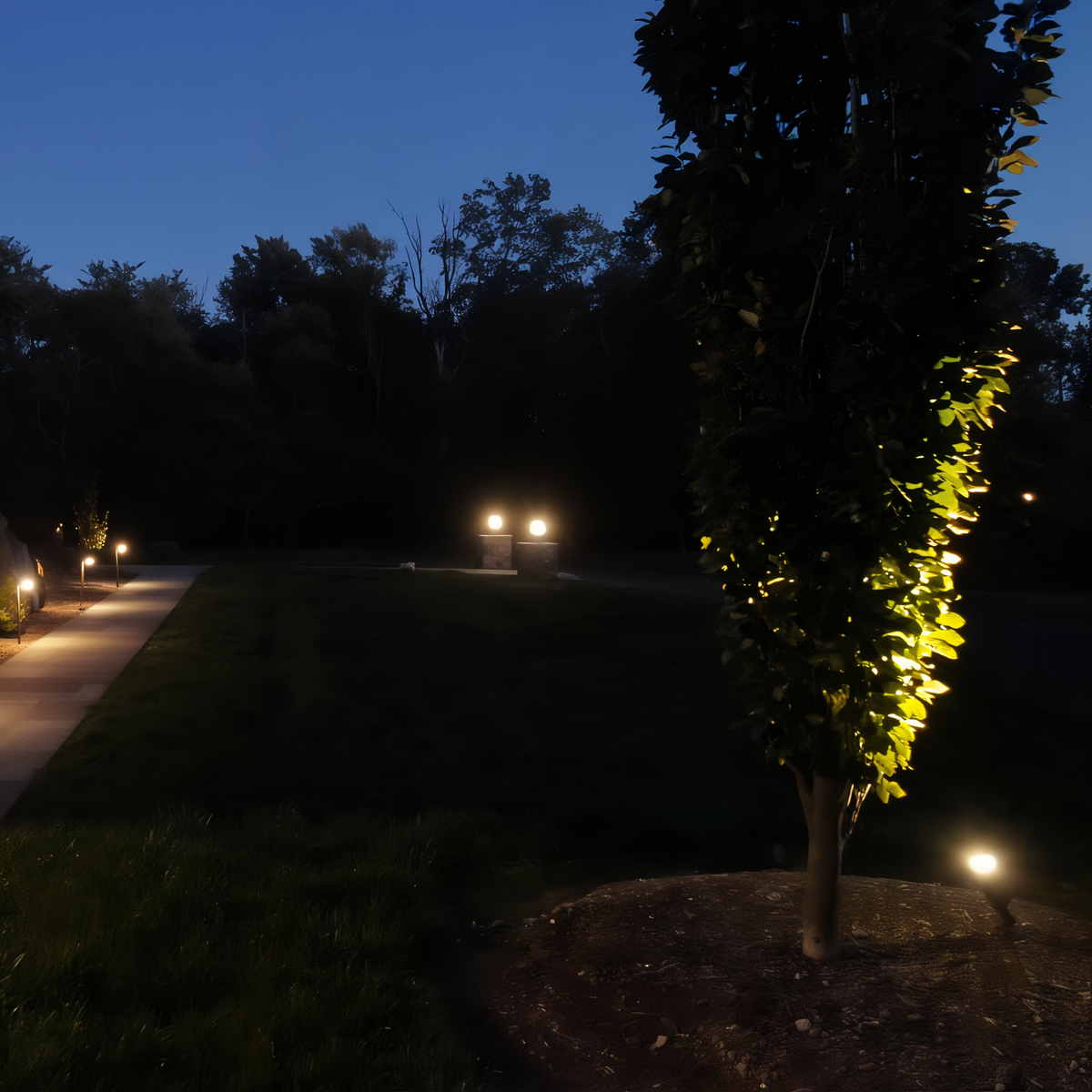

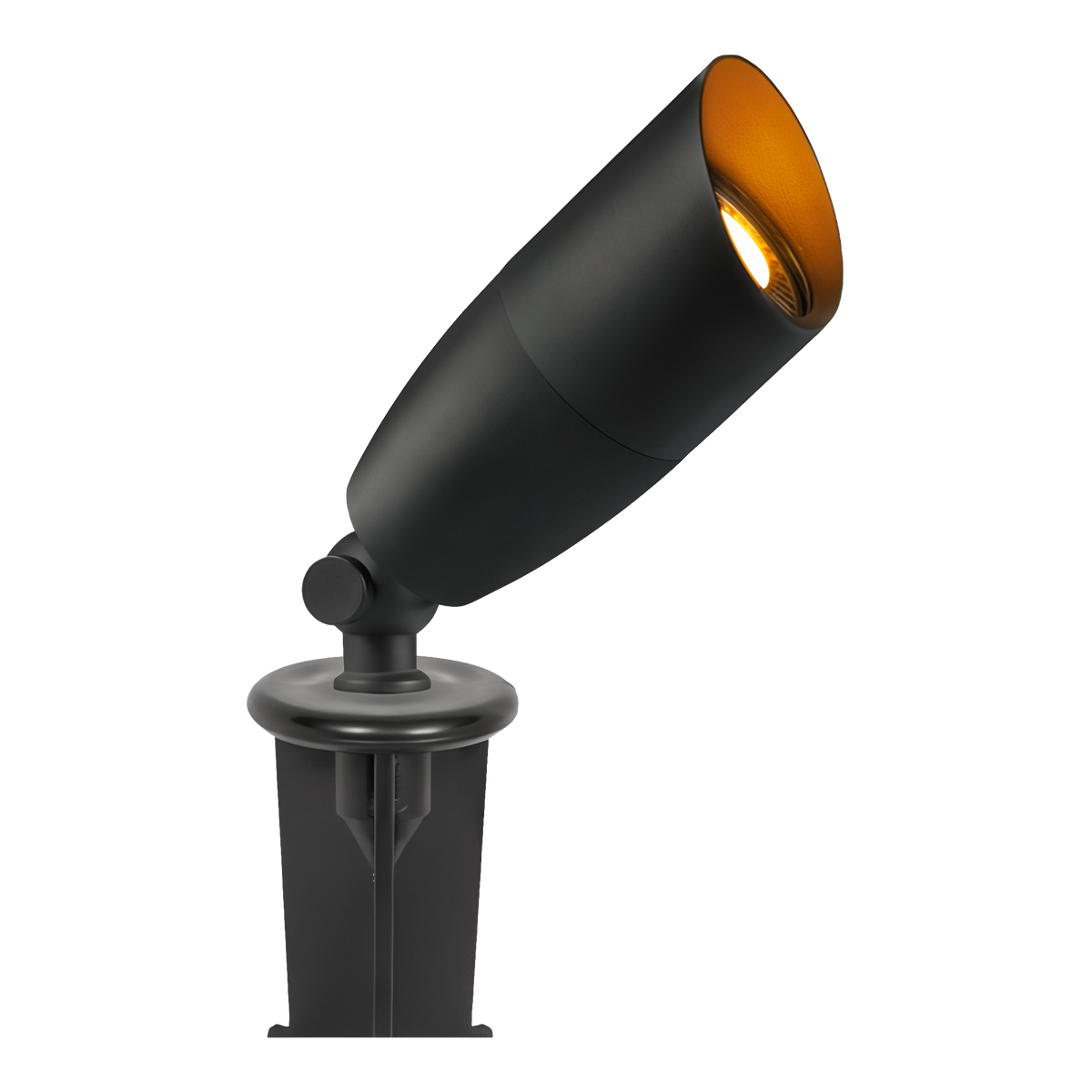

Light a specimen tree, wash a stone wall or pick out a fountain with the Tru-Scapes Traditional Accent Light TS-B102, the fixture Tru-Scapes calls the workhorse of the industry. The body is solid die-cast brass in a black powder-coated finish, with a shielded head on an adjustable knuckle and an 8" heavy-duty ground stake. A 4W MR16 LED lamp is included, throwing 382 lumens of warm 2700K light in a 40 degree beam that flatters bark, stone and water, and a double O-ring seal keeps moisture out of the socket.
Key Features
-
Solid die-cast brass: Heavy-duty brass construction with a double O-ring seal, a beryllium copper socket and flat heat-resistant glass built for decades outdoors.
-
LED lamp included: The MR16 LED draws 4W, delivers 382 lumens at a warm 2700K and spreads a 40 degree beam, ready to run on any 12V low-voltage transformer (sold separately).
-
Easy to aim and relamp: A thumb nut on the knuckle and a locknut set the angle by hand, and the shield twists and pulls off so you can change the lamp without tools.
-
Wired and staked: 36" of 18AWG SPT-1W black waterproof lead wire and an 8" stake with a wire cutout make for a clean, quick install.
-
About Tru-Scapes: Tru-Scapes builds professional-grade brass low-voltage landscape and hardscape lighting for contractors and serious homeowners.
How to Install It
Run low-voltage cable from a 12V transformer to each fixture location. Push the 8" stake into the soil at the base of the tree, wall or feature you want to light, route the 36" lead through the stake cutout and connect it to the main cable with a waterproof connector. Power the system, loosen the thumb nut, aim the head so the 40 degree beam grazes the surface and tighten the locknut. The drainage notch in the shield sheds rain at any angle. To change the lamp, twist and pull the shield off, swap the MR16 and press it back on. Keep the total load within the transformer’s rating.
Specifications
- Model: TS-B102, Black powder-coated finish
- Construction: solid die-cast brass, beryllium copper socket, flat heat-resistant glass lens
- Lamp: MR16 LED included, 4W, 382 lumens, 2700K, 40 degree beam
- Voltage: 9 to 15V AC/DC; 12V low-voltage transformer sold separately
- Lead wire: 36" 18AWG SPT-1W black waterproof
- Mounting: 8" heavy-duty ground stake with wire cutout
Stop by Garoppo’s Stone & Garden Center and Feed & Pet Supply to see it in person and pick one up, or schedule local delivery within our service area.
Tru-Scapes TS-B102 Traditional Accent Light, black powder-coated solid die-cast brass, low-voltage LED uplight. The B102 is Tru-Scapes' highest-volume accent fixture. Included MR16 LED: 4W, 382 lumens, 2700K, 40° beam. Input 9 to 15V AC/DC. 36" 18AWG SPT-1W black waterproof lead; 8" heavy-duty ground stake with wire cutout. Beryllium copper socket housing, flat heat-resistant glass, double O-ring seal, drainage notch in the shield, thumb-nut knuckle with locknut. Transformer sold separately. Spec sheet attached to the listing.
Key Features
- Construction: Solid die-cast brass body and knuckle; black powder coat. Double O-ring seal at the socket keeps water out through freeze-thaw.
- Lamp: MR16 LED included, 4W / 382 lm / 2700K / 40°. Twist-and-pull shield for hand relamping in the field.
- Electrical: 9 to 15V AC/DC input. 4W per fixture makes load calcs simple: 25 fixtures per 100W of transformer capacity before cable loss.
- Mounting: 8" stake with cable cutout; 36" lead reaches a main-run splice without extension on most layouts.
- Adjustment: Thumb nut and locknut on the knuckle; drainage notch allows any aim angle without pooling.
Installation
- Layout: Stake at the base of trees, columns, wall faces, statues and fountains. Aim the 40° beam to graze textured surfaces; back off the stake for a wider wash on smooth walls.
- Wiring: Route the 36" lead through the stake cutout to the main low-voltage run and splice with waterproof connectors. Confirm 9 to 15V at the last fixture on each run.
- Aiming: Power up at dusk, loosen the thumb nut, set the angle and tighten the locknut. Recheck after the first season as plantings fill in.
- Service: Relamp by twisting off the shield. No tools; no disassembly of the knuckle.
Spec Notes

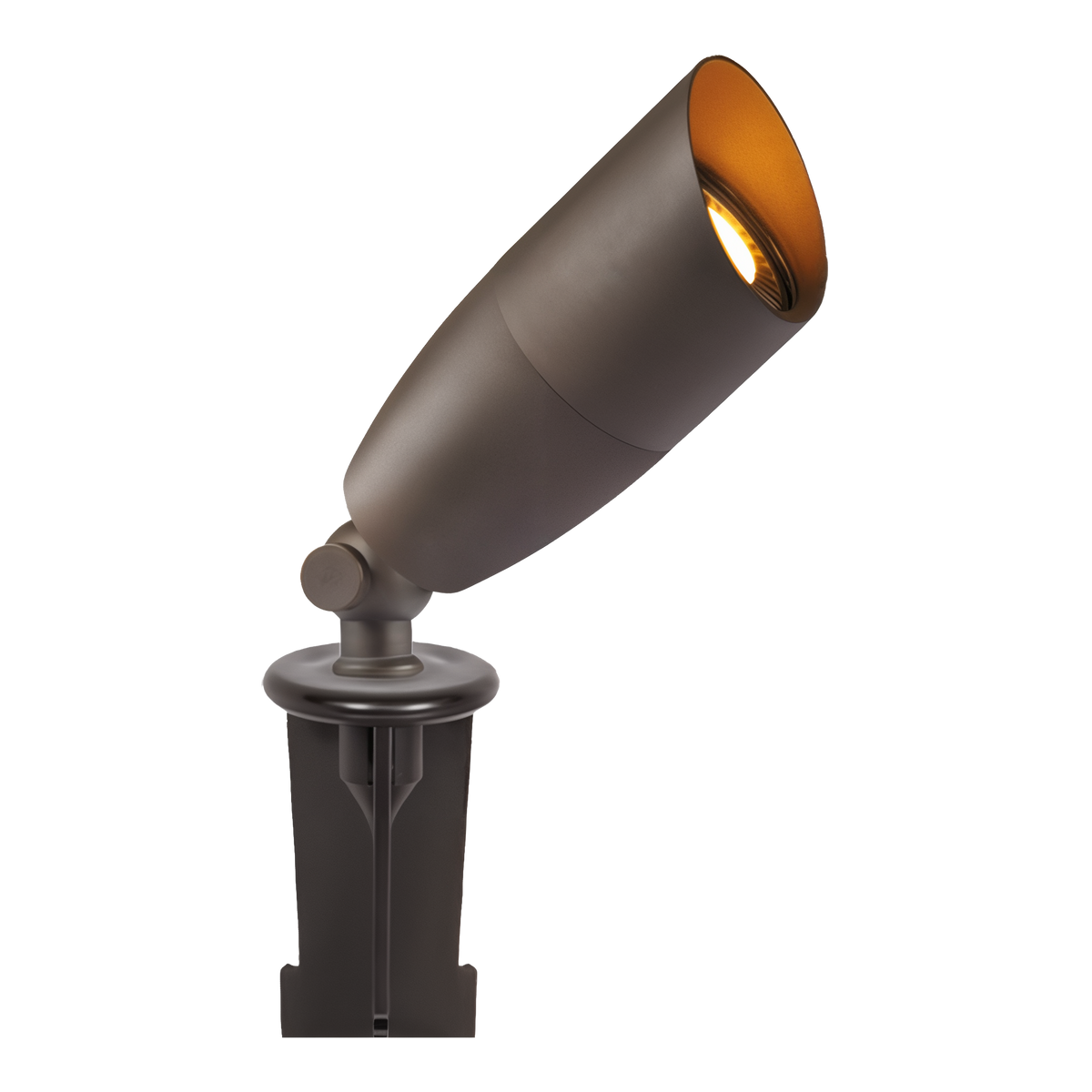

Specify the TS-B102 as the default accent fixture on brass-spec jobs and reserve well lights and path lights for their own tasks. The 4W LED keeps transformer sizing conservative, and the 9 to 15V window tolerates voltage drop on long runs and the 14V tap on multi-tap transformers. Tru-Scapes also produces this fixture in Antique Brushed Bronze; this listing is the Black finish. Pair with a Wi-Fi or astronomical-timer transformer for dusk-to-dawn control. Sold per fixture, lamp included, transformer and connectors separate.
Specifications
- Model: TS-B102, Black powder coat.
- Material: Die-cast brass; beryllium copper socket; flat heat-resistant glass.
- Lamp: MR16 LED, 4W, 382 lm, 2700K, 40°.
- Input: 9 to 15V AC/DC; 12V transformer sold separately.
- Lead / stake: 36" 18AWG SPT-1W; 8" heavy-duty stake. Sold per unit.
