Description

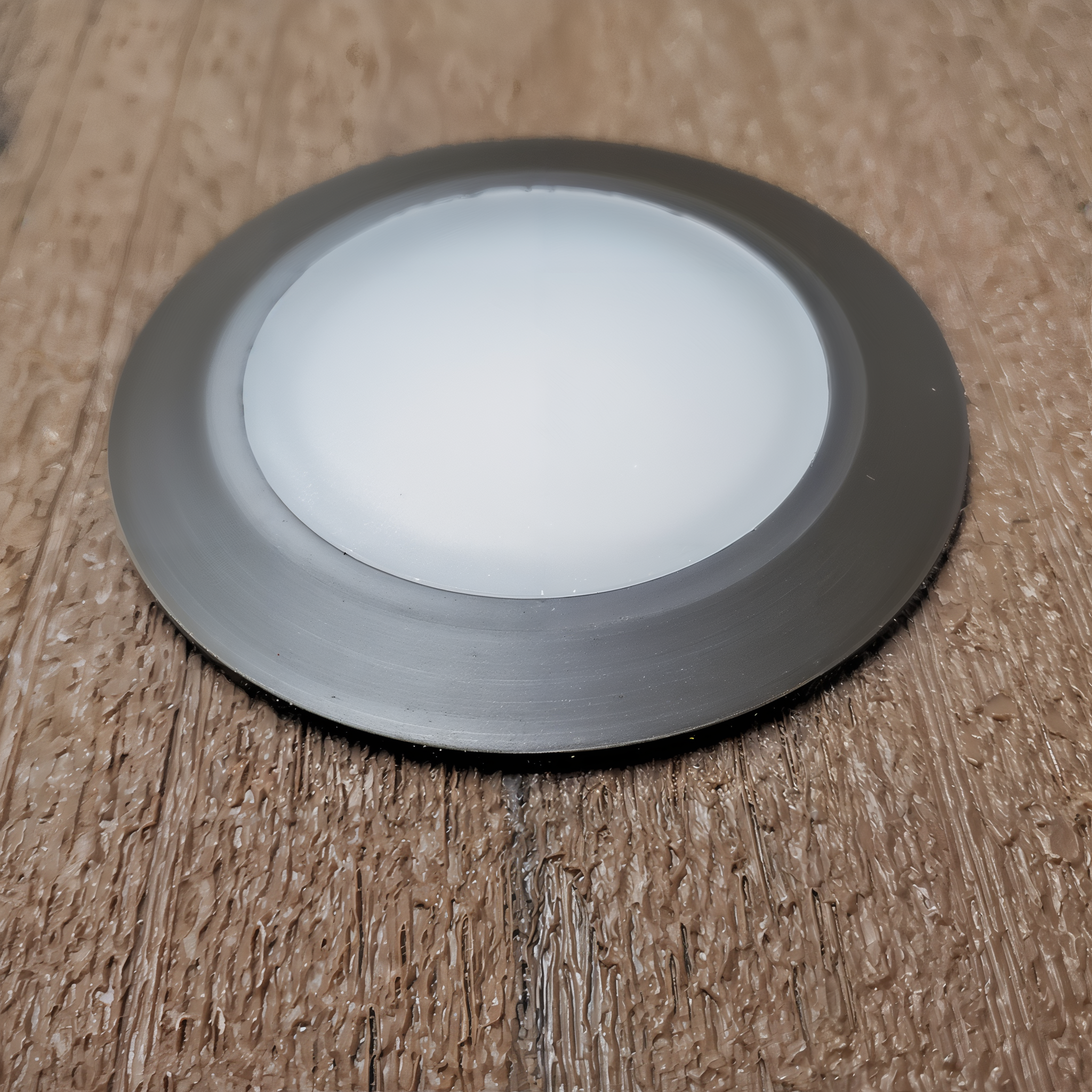

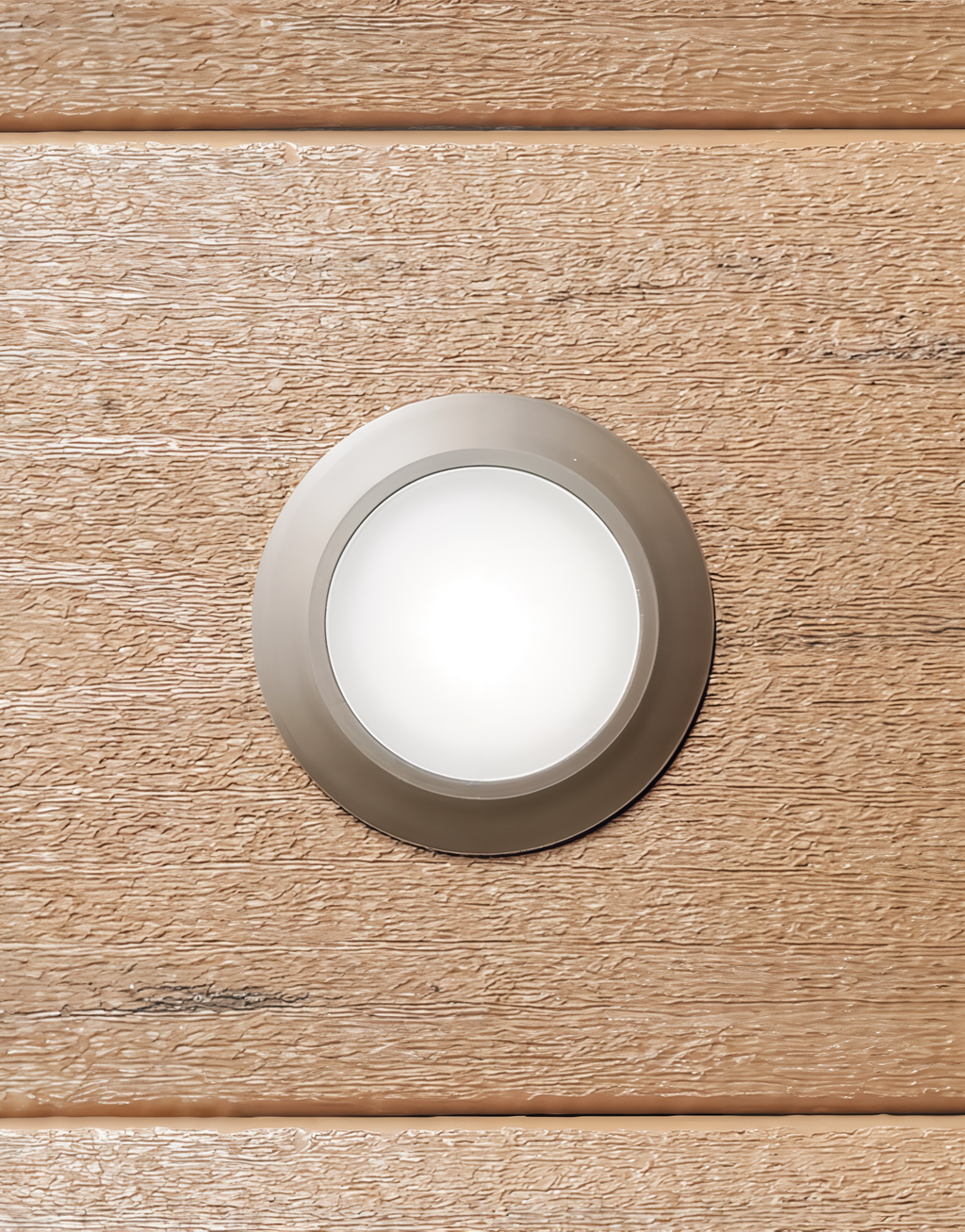

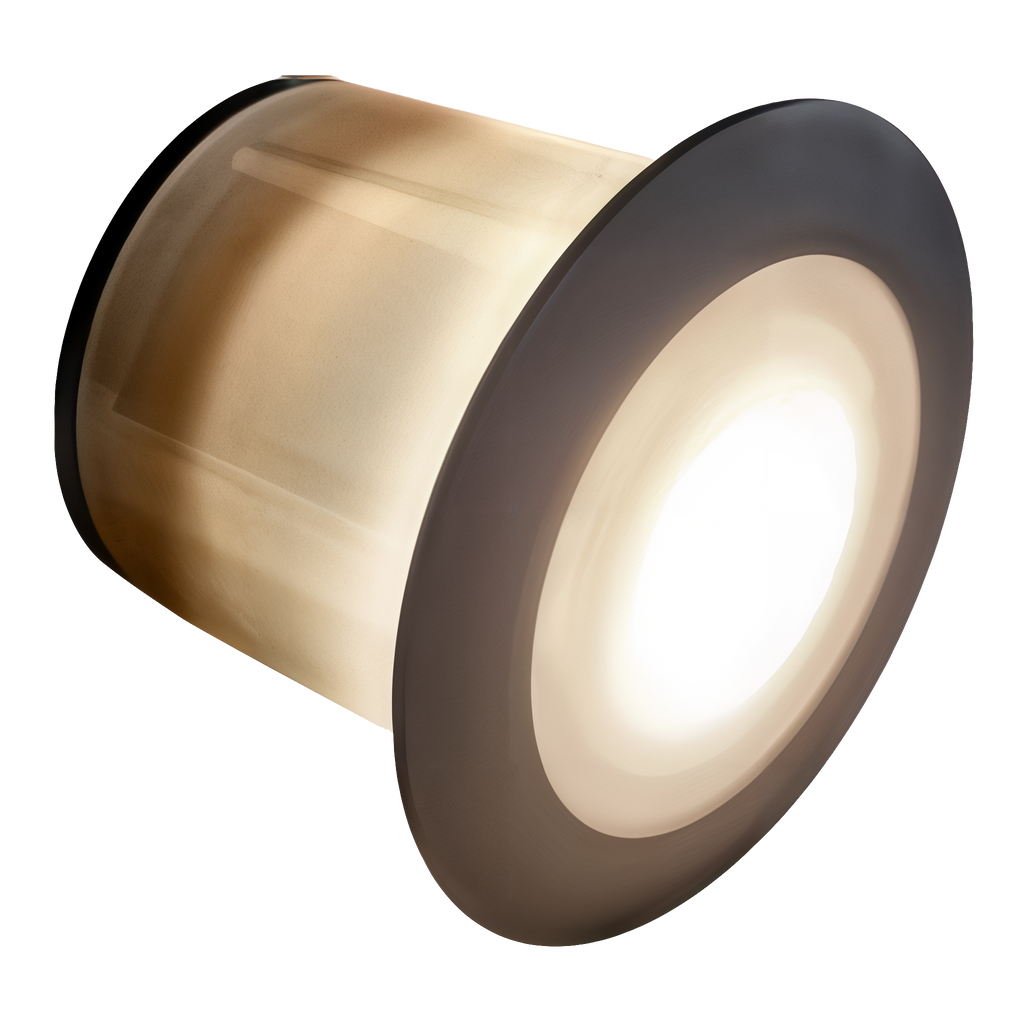

The Tru-Scapes TS-25DOT-BRZ is the small, in-ground LED dot light contractors install where a recessed pinprick of warm light is wanted — in the face of paver steps, along the top of a deck board, set into stone or concrete, or in the riser of a composite step. The 1.2W LED throws 90 lumens at warm 2700K from a low-profile 2.5" anodized bronze ring that sits flush with the surface. Sealed to IP68, the housing survives buried installs, irrigation overspray, freeze/thaw cycles, and the occasional foot traffic. Install into a 2" core-drilled hole in concrete, stone, wood, or composite decking. The bronze ring is replaceable; the integrated LED module is not, so the fixture is a long-life, set-and-forget piece for the original install.
Why Hardscape and Deck Pros Specify the TS-25DOT
- Flush 2.5" bronze ring: Anodized bronze sits level with the surface — clean against tan, brown, and natural-stone palettes; replaceable if the finish ever takes a hit
- 2" core drill install: One drill bit, one hole — works in concrete patio slabs, paver step risers, deck boards, composite decking, and stone treads
- 1.2W / 90L / 2700K: Tight pool of warm light right where you want it — chain along a step run or perimeter without taxing the transformer
- IP68 sealed housing: Buried-rated — survives wet installs, snow melt, irrigation, and freeze/thaw
- 9V–15V AC/DC range: Forgives voltage drop on long runs in a low-voltage layout
- 36" SPT-1W lead wire: 36-inch black waterproof 18AWG lead reaches the buried tap connector on most installs
- Replaceable ring, integrated LED: Long-service-life LED module designed to outlast typical replacement cycles — not field-replaceable, but the visible bronze trim ring is
Use Cases
Step-riser accent lighting on paver and stone steps, in-deck spotlights on cedar/composite decking, perimeter lighting on patio slabs, walkway dot runs along stone paths, accent lighting in poured-concrete patios. Pair with a Tru-Scapes 12V low-voltage transformer (sold separately) sized for total wattage on the run.
Specifications
- Manufacturer: Tru-Scapes (model TS-25DOT-BRZ)
- Construction: Composite housing with anodized bronze 2.5" ring; frosted acrylic lens
- Finish: Anodized bronze (replaceable ring)
- Light source: Integrated LED module (not field-replaceable)
- Power: 1.2W
- Output: 90 lumens
- Color temperature: 2700K (warm white)
- Voltage range: 9V–15V AC/DC
- Lead wire: 36" / 18AWG / SPT-1W black waterproof
- Sealing: IP68 (buried/wet-rated)
- Install: 2" core drill hole; total fixture height 1.75"
- Power supply: Requires 12V low-voltage transformer (sold separately)
Sold per fixture.
