Description

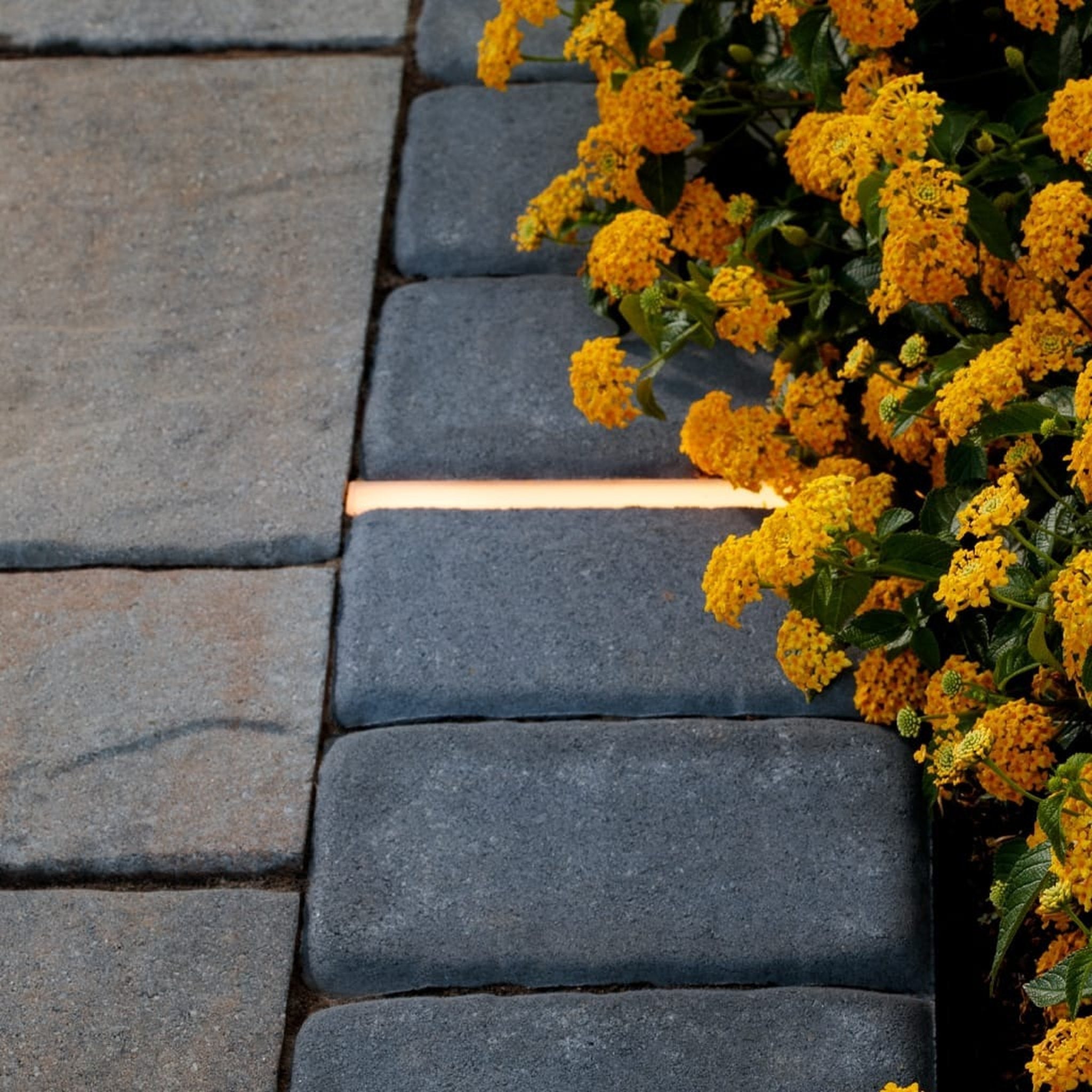

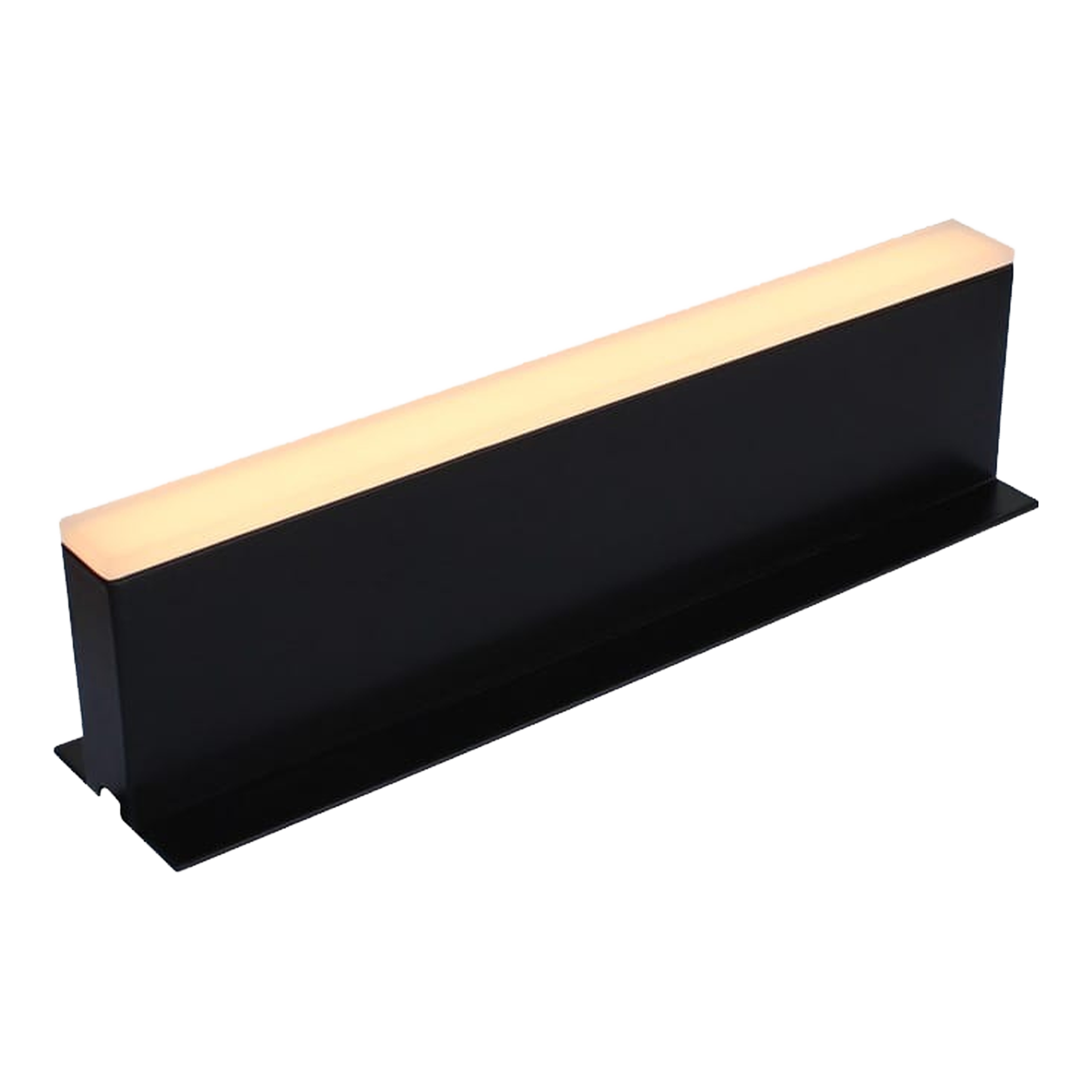

Build glow-from-within paver borders, stair risers, seat walls, and column caps with the Tru-Scapes Traditional Paver Light HPL Series (TS-HPL-6, TS-HPL-8, TS-HPL-9). Each fixture is a sealed aluminum housing with a frosted acrylic lens that hides between sailor or soldier course pavers and casts a soft, glare-free 2700K warm-white light along finished hardscape. All three sizes share the same low-voltage LED platform, low-profile 3/4″ thickness, and 120° beam spread—pick the size that matches your paver length.
Sizes & Light Output
- TS-HPL-6 (6″): 15 LEDs · 1.5W · 26 lumens · 2700K
- TS-HPL-8 (8″): 18 LEDs · 1.8W · 44 lumens · 2700K
- TS-HPL-9 (9″): 21 LEDs · 2.5W · 52 lumens · 2700K
Common Specifications
- Construction: Aluminum housing with frosted acrylic lens
- Finish: Black
- Color Temperature: 2700K (Warm White)
- Beam Angle: 120°
- Voltage Range: 9V–15V AC/DC (low-voltage transformer sold separately)
- Lead Wire: 36″ 18AWG SPT-1W black waterproof, direct-burial rated
- Wire Connectors: (2) silicone-filled, rated for direct burial
- Profile: 3/4″ thick · 2-3/8″ tall · designed to slot between 60mm or thicker paver coursing
- Light Source: Integrated LED (non-replaceable)
- Certifications: ETL Listed (Intertek)
- Warranty: 5 years on the fixture and LED (or 30,000 hours, whichever comes first)
Installation

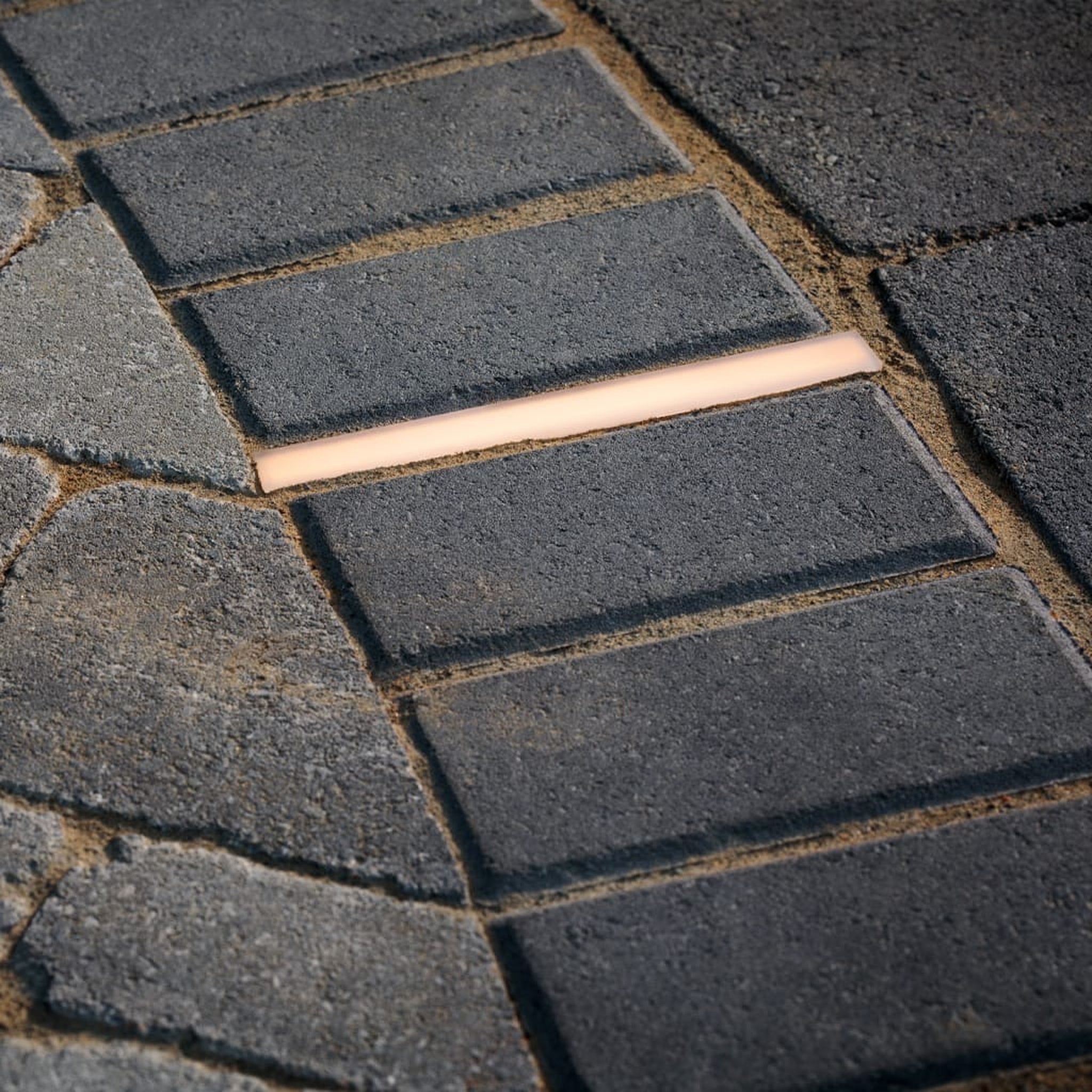

The HPL Series is designed to drop into the joint between sailor or soldier course pavers (60mm minimum thickness) without any drilling. Run the lead wire to a low-voltage transformer using the included silicone-filled direct-burial connectors, set the fixture flush with the surrounding paver face, and dress the joint with polymeric sand to lock everything in place.
For full technical drawings and installation details, see the TS-HPL Series Spec Sheet.
