Description

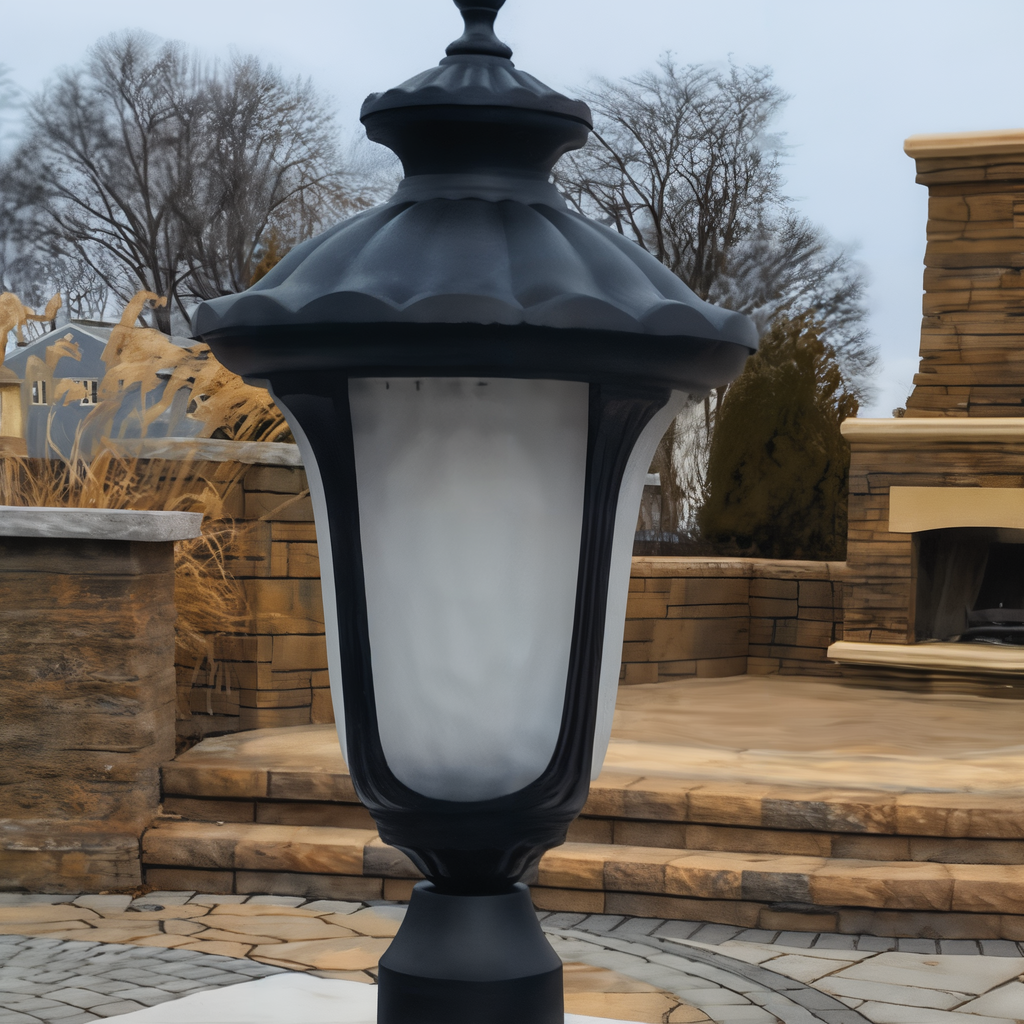

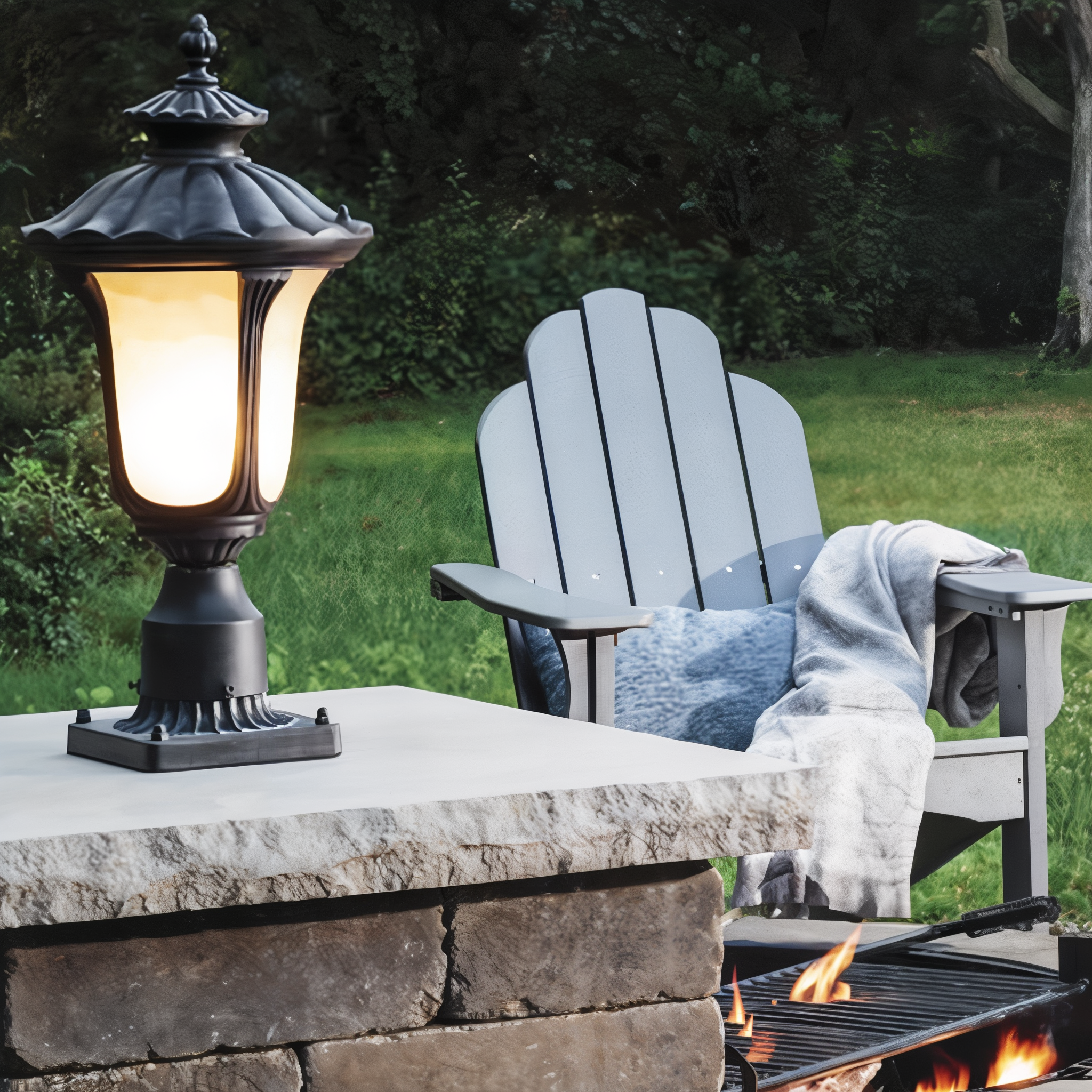

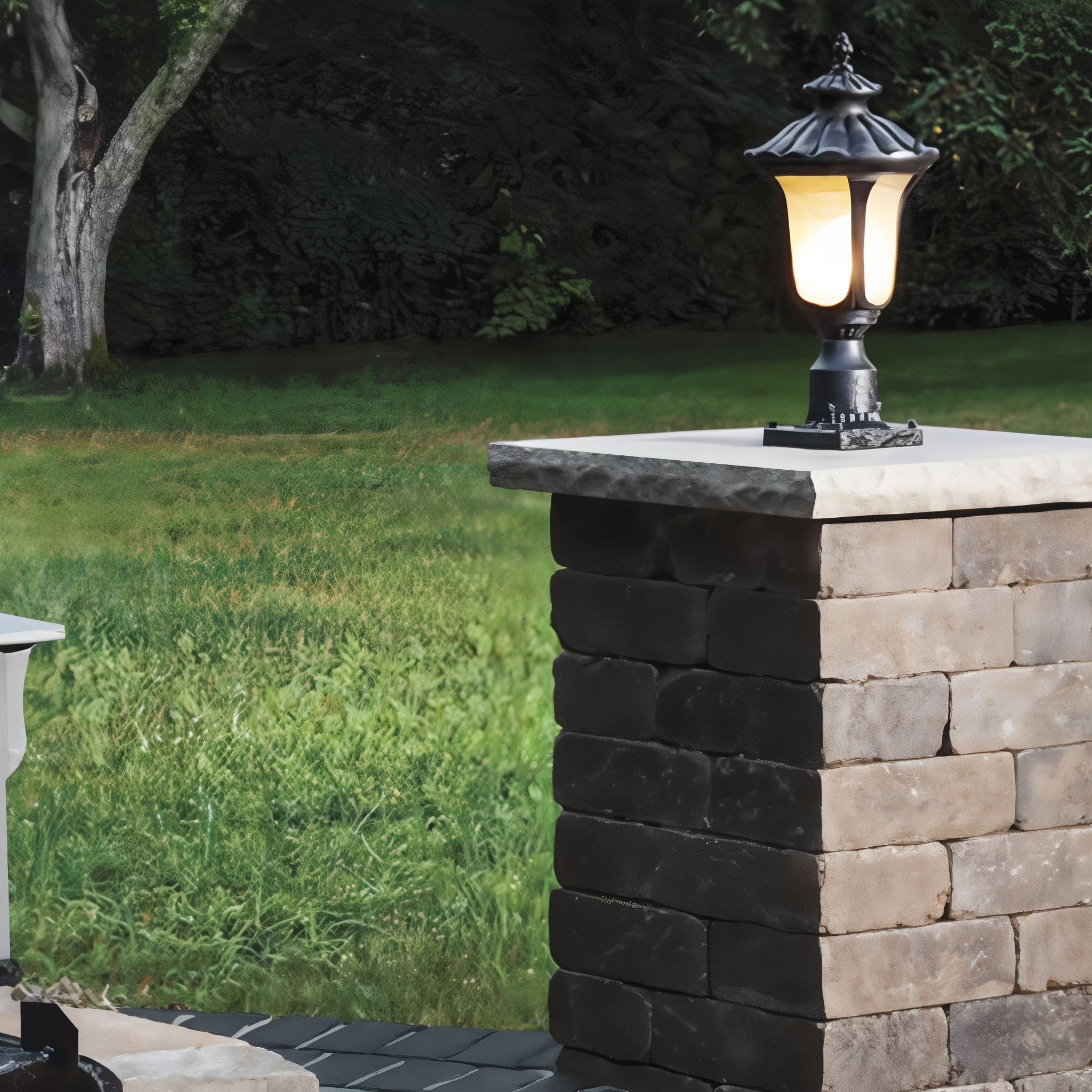

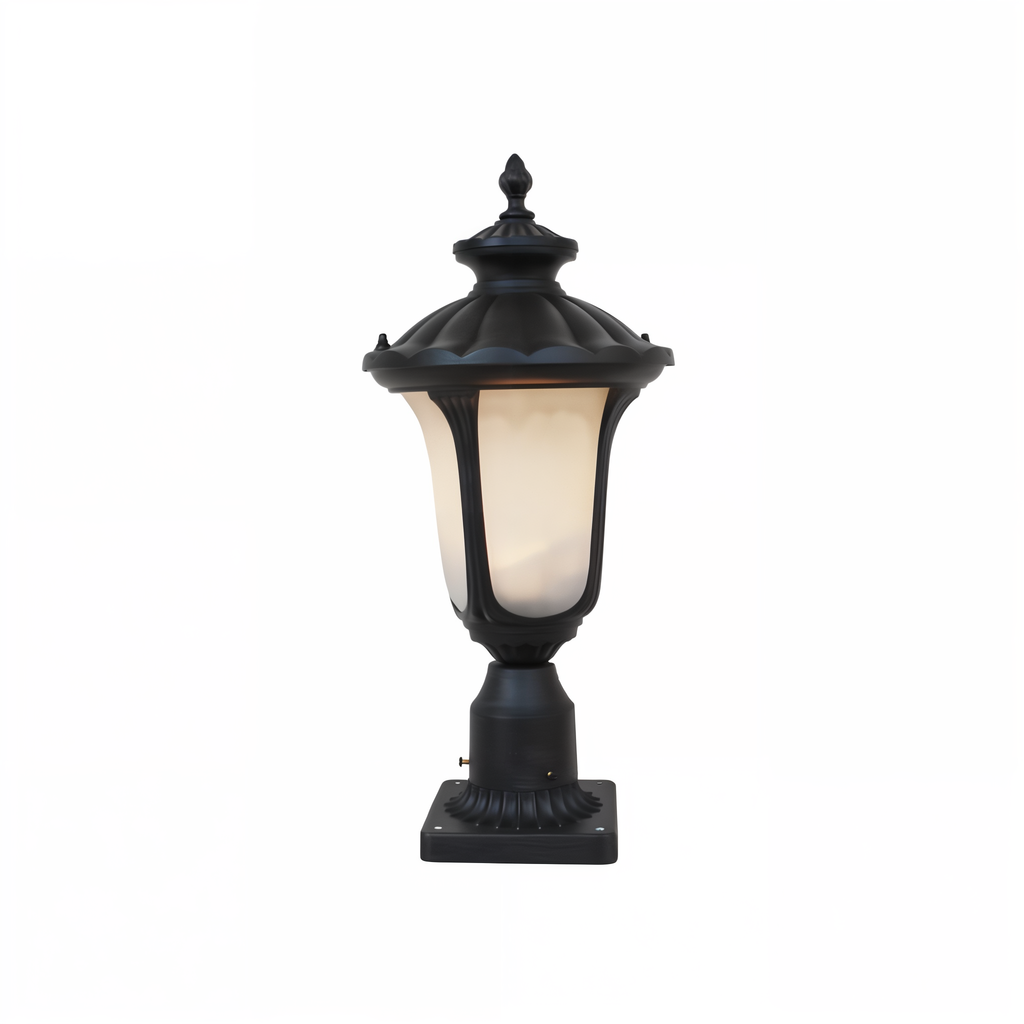

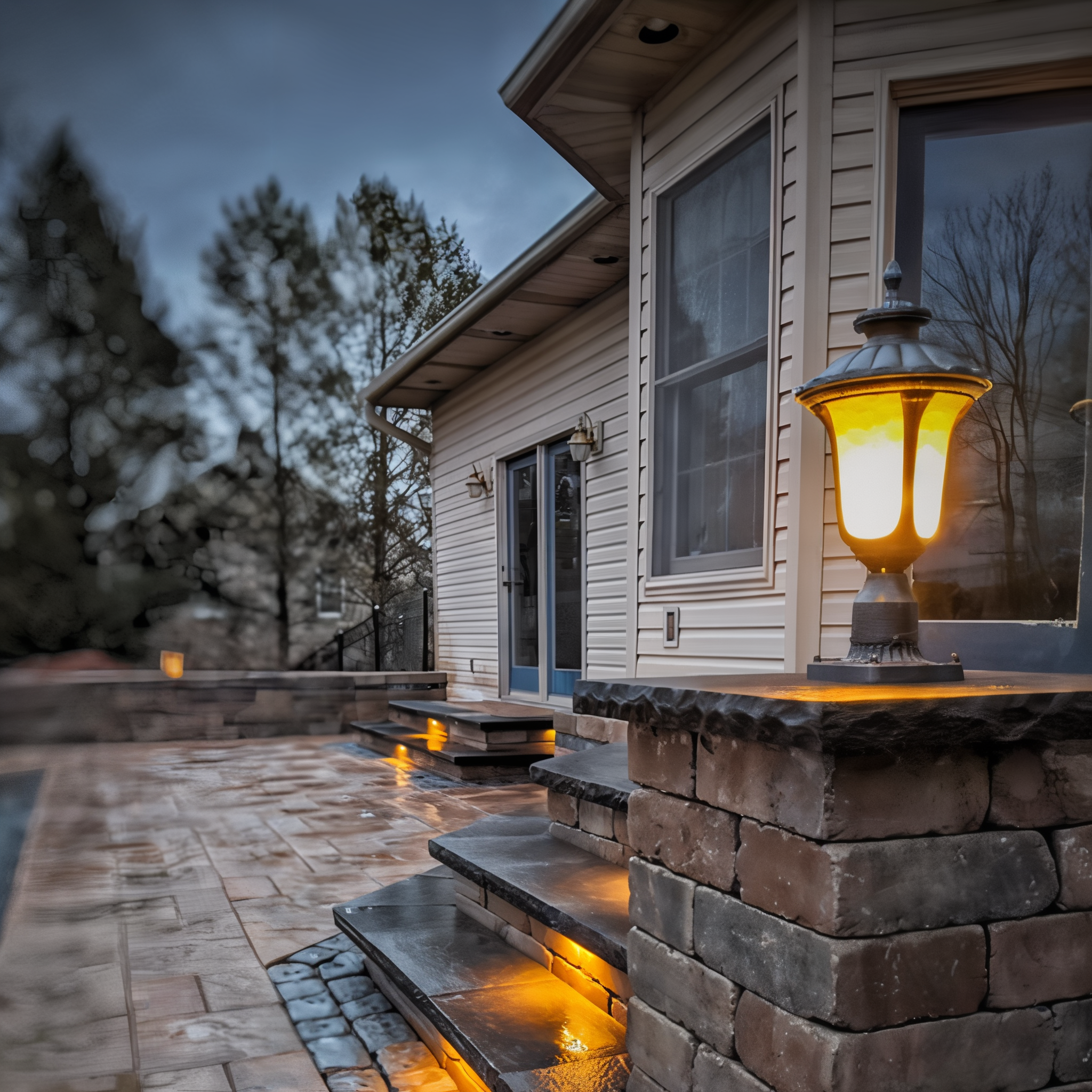

Cap stone columns, gate piers, and entry walls with the Tru-Scapes Traditional Pillar Light (TS-PL100). The fixture is a powder-coated aluminum housing in antique brushed bronze with a frosted heat-resistant glass encasement that throws a warm 2700K 360° glow from a 3W G4 LED. The factory G4 lamp can be swapped for a Tru-Scapes RGBCW G4 (2700K–6500K) when you want color-control flexibility.
Model #: TS-PL100-BRZ · Available in: Bronze
Lighting Specifications
- Construction: Powder-coated aluminum housing with frosted heat-resistant glass encasement
- Finish: Antique Brushed Bronze
- Light Source: G4 LED Lamp (replaceable; RGBCW-compatible 2700K–6500K)
- Color Temperature: 2700K (warm white) by default
- Wattage: 3W
- Lumens: 195L
- Beam Angle: 360°
- Power Factor: 0.717
- Voltage Range: 9V–15V AC/DC (12V low-voltage transformer sold separately)
- Lead Wire: 24″ 18AWG SPT-1W black waterproof
- Mounting Plate: 5-1/2″ × 5-1/2″
- Mounting: Pillar / column / pier cap mount — masonry drill bit and anchor kit included
- Certifications: ETL Listed (Intertek); dust-tight and water-resistant
- Warranty: Lifetime on sockets · 5 years on aluminum and finish · 5 years (or 30,000 hours) on LED bulbs
What's in the Box
- Tru-Scapes Traditional Pillar Light fixture (Bronze)
- G4 LED lamp (2700K)
- Masonry drill bit
- Anchor kit
- (2) Silicone-filled wire connectors rated for direct burial and outdoor use
Installation
Use the included masonry drill bit and anchor kit to set the 5-1/2″ mounting plate flush to the top of a stone column or gate pier, then run the 24″ lead wire to a 12V low-voltage transformer using the included silicone-filled connectors. The G4 socket accepts standard or RGBCW G4 lamps if you later want app-controlled color.
For full technical drawings and installation details, see the TS-PL100 Spec Sheet.
